For emergencies
6-15
6

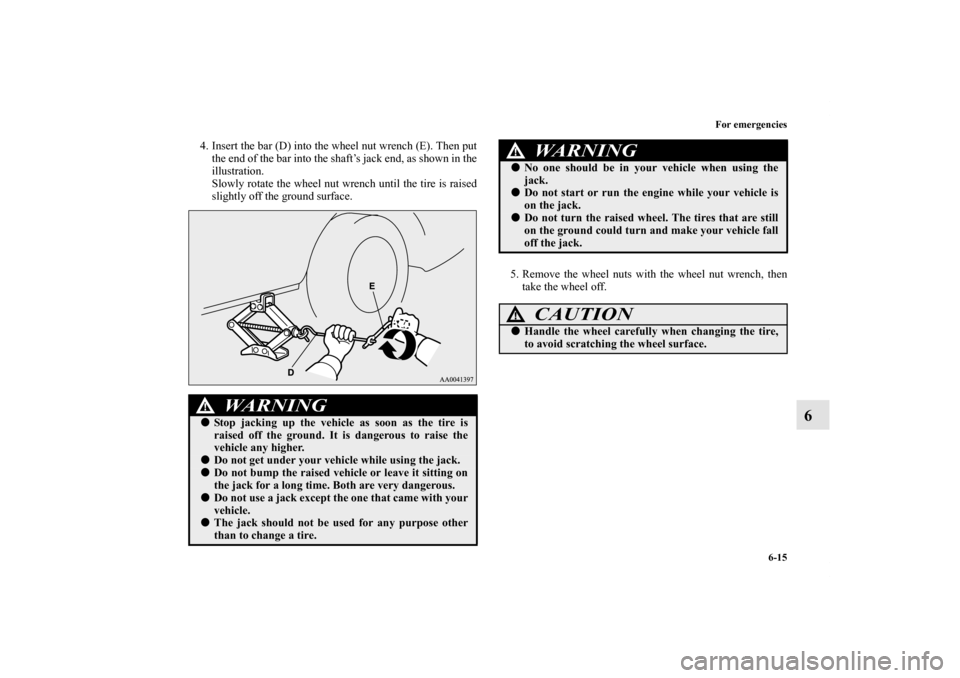

4. Insert the bar (D) into the wheel nut wrench (E). Then put
the end of the bar into the shaft’s jack end, as shown in the
illustration.
Slowly rotate the wheel nut wrench until the tire is raised
slightly off the ground surface.
5. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off.
WA R N I N G
!
Stop jacking up the vehicle as soon as the tire is
raised off the ground. It is dangerous to raise the
vehicle any higher.
Do not get under your vehicle while using the jack.
Do not bump the raised vehicle or leave it sitting on
the jack for a long time. Both are very dangerous.
Do not use a jack except the one that came with your
vehicle.
The jack should not be used for any purpose other
than to change a tire.

No one should be in your vehicle when using the
jack.
Do not start or run the engine while your vehicle is
on the jack.
Do not turn the raised wheel. The tires that are still
on the ground could turn and make your vehicle fall
off the jack.
CAUTION
!
Handle the wheel carefully when changing the tire,
to avoid scratching the wheel surface.
WA R N I N G
!
BK0132701US.book 15 ページ ２０１０年１２月６日　月曜日　午後２時３分

For emergencies
6-21
6
Towing the vehicle by a tow truck
Towing with rear wheels off the ground (Type B)Place the gearshift lever in the “Neutral” position (manual tran-
saxle) or the selector lever in the “N” (NEUTRAL) position
(automatic transaxle).
Turn the ignition key to the “ACC” position and secure the
steering wheel in a straight-ahead position with a rope or tie-
down strap. Never place the ignition key in the “LOCK” posi-
tion when towing.
CAUTION
!
This vehicle must not be towed by a tow truck using
sling lift type equipment (Type A) as illustrated.
Using a sling lift will damage the bumper and front
end.
If the engine or transaxle is malfunctioning or dam-
aged, transport the vehicle with the driving wheels
on a carriage (Type C, D or E) as illustrated.
If the vehicle is towed with the ignition key in the
“ON” position and only the front wheels or only the
rear wheels raised off the ground, the ASC may
operate, resulting in an accident. When towing the
vehicle with the front wheels raised, keep the igni-
tion key in the “LOCK” or “ACC” position. When
towing the vehicle with the rear wheels raised, keep
the ignition key in the “ACC” position.
If you tow the vehicles with an automatic transaxle
with the driving wheels on the ground (Type B) as
illustrated, make sure that the towing speed and dis-
tance given below are never exceeded, causing the
transaxle damage.
Towing speed: 31 mph (50 km/h)
Towing distance: 18 miles (30 km)
For the towing speed and the towing distance, follow
the local driving laws and regulations.
CAUTION
!
Never tow an automatic transaxle vehicle with the
rear wheels up (and the front wheels on the ground)
(Type B) when the automatic transaxle fluid level is
low. This may cause serious and expensive damage
to the transaxle.
BK0132701US.book 21 ページ ２０１０年１２月６日　月曜日　午後２時３分

6-22 For emergencies
6
Towing with front wheels off the ground (Type C)Release the parking brake.
Place the gearshift lever in the “Neutral” position (manual tran-
saxle) or the selector lever in the “N” (NEUTRAL) position
(automatic transaxle).
Operation under adverse driving conditions
N00837200721
If your vehicle becomes stuck in sand, mud or
snow If your vehicle becomes stuck in snow, sand, or mud, it can
often be moved by a rocking motion. Move the gearshift lever
(manual transaxle) or selector lever (automatic transaxle)
rhythmically between 1st and Reverse position (with manual
transaxle) or “Sports mode” and “R” (REVERSE) position
(with automatic transaxle), while pressing lightly on the accel-
erator pedal.
Do not race the engine nor spin the wheels. Constant efforts to
free a stuck vehicle can cause overheating and transaxle fail-
ure. Let the engine idle for a few minutes to cool the transaxle
before trying again.
If your vehicle is still stuck after several rocking attempts, call
for a commercial tow truck service.
WA R N I N G
!
To prevent entry of exhaust gas from the towing
vehicle, set the selection switch to the recirculation
position.
WA R N I N G
!
When trying to rock your vehicle out of a stuck posi-
tion, make sure that there are no people nearby. The
rocking motion can make your vehicle suddenly
lurch forward or backward, and injure any
bystanders.
BK0132701US.book 22 ページ ２０１０年１２月６日　月曜日　午後２時３分

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 6

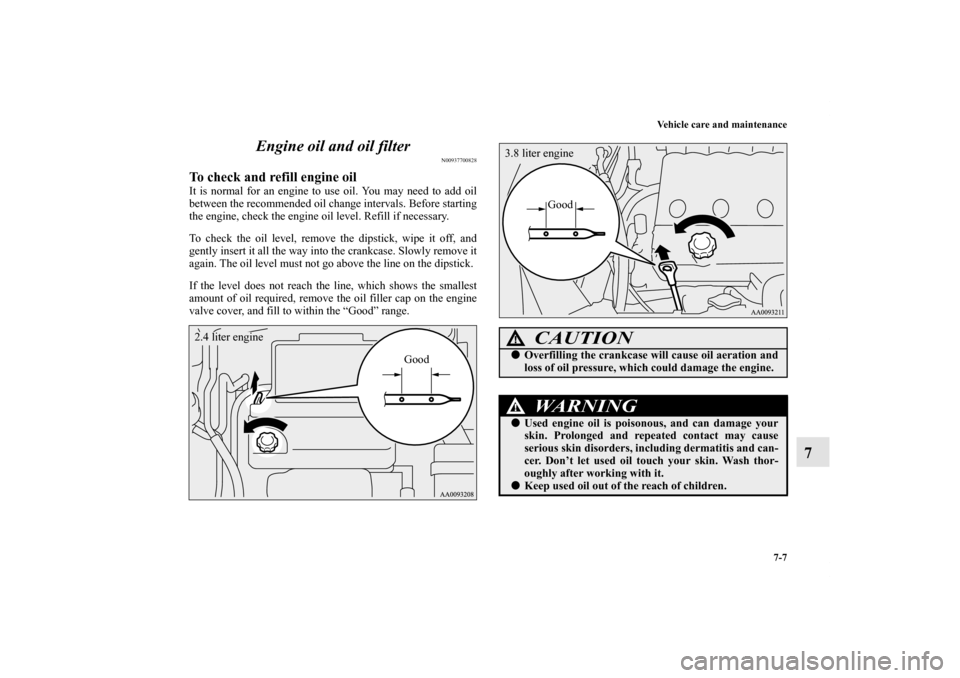

Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 7
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 10
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 11
Automatic transaxle fluid (if so equipped) . . . . . .7- 12
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 14
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 14
Brake fluid/Clutch fluid (if so equipped) . . . . . . . .7- 15
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 20
Clutch pedal free play (if so equipped) . . . . . . . . .7- 29
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 30
Parking brake lever stroke . . . . . . . . . . . . . . . . . . .7- 30
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 31
Emission-control system maintenance. . . . . . . . . .7- 31
General maintenance . . . . . . . . . . . . . . . . . . . . . . .7- 33
For cold and snowy weather . . . . . . . . . . . . . . . . .7- 37Fuse links. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 37
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 38
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 47
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 71
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 72
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 73
BK0132701US.book 1 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-2 Vehicle care and maintenance
7Service precautions
N00937300156
Taking regular care of your vehicle will preserve its value and
appearance as long as possible.
You can do some of the maintenance work yourself, and the
rest should only be performed by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
If you discover a malfunction or other problem, have it cor-
rected by an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
This section describes the maintenance inspections that you
can do yourself, if you so desire. Follow the instructions and
precautions for each procedure.
Have you purchased the Mitsubishi Motors Diamond Care Pro-
tection Plan? The Plan supplements your new vehicle warran-
ties. See your authorized Mitsubishi Motors dealer for details.
WA R N I N G
!
When checking or servicing the inside of the engine
compartment, be sure the engine is stopped and has
had a chance to cool down.
If you need to work in the engine compartment with
the engine running, be especially careful that your
clothing, hair, etc. does not get caught in the fan,
drive belts, or other moving parts.
The fan can turn on automatically even if the engine
is not running. Turn the ignition key to the “LOCK”
position and remove the key to be safe while you
work in the engine compartment.
Do not smoke or allow open flames around fuel or
the battery. The fumes are flammable.

Be extremely careful when working around the bat-
tery. It contains poisonous and corrosive sulfuric
acid.
Do not get under your vehicle while it is on a jack.
Always use properly rated automotive jack stands.
Handling your vehicle’s parts and materials in the
wrong way can injure you. Ask an authorized
Mitsubishi Motors dealer or a repair facility of your
choice if you have questions.
WA R N I N G
!
BK0132701US.book 2 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-3
7 Catalytic converter
N00937400391
The catalytic converter requires you to use unleaded fuel only.
Leaded gasoline will destroy the emission-control effective-
ness of the converter.
Normally, the catalytic converter does not require maintenance.
However, it is important to keep the engine properly tuned for
the converter to continue to work properly. To reduce the possibility of catalytic converter damage:

Use UNLEADED GASOLINE ONLY of the type of rec-
ommended in “Fuel selection”.

Do not drive with an extremely low fuel level. Running
out of gas could damage the catalytic converter.

Do not try to start the engine by pushing or towing the
vehicle. If the battery is weak or run down, use jumper
cables to properly start the engine.

Do not idle the engine with any spark plug wires discon-
nected or removed, such as when performing diagnostic
tests.

Do not idle the engine for a long time if it is idling
roughly or otherwise obviously malfunctioning.

To prevent the catalytic converter from being damaged
from unburned gas, do not race the engine when turning
off the ignition switch.

Stop driving the vehicle if you think the performance is
noticeably low, or the engine has a malfunction. If you are
not able to stop driving immediately, slow down and drive
for only a short time. Have an inspection made by an
authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.

In unusual situations involving major engine problems, a
burning odor may indicate severe and abnormal catalytic
converter overheating. If this occurs, stop in a safe place,
shut the engine off and let the vehicle cool. Once the
engine is cool, immediately take your vehicle to an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice for service.
CAUTION
!
Damage to the catalytic converter can result if your
vehicle is not kept in proper operating condition. If
the engine malfunctions or misfires, or if your vehi-
cle performance suffers, have it serviced promptly.
Running your vehicle when it is overheated may
result in damage to the converter and vehicle.
WA R N I N G
!
Do not park or run your vehicle in areas where com-
bustible materials such as dry grass or leaves can
come in contact with a hot exhaust, since a fire could
occur.
Do not put undercoat paint on the catalytic con-
verter.
BK0132701US.book 3 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-4 Vehicle care and maintenance

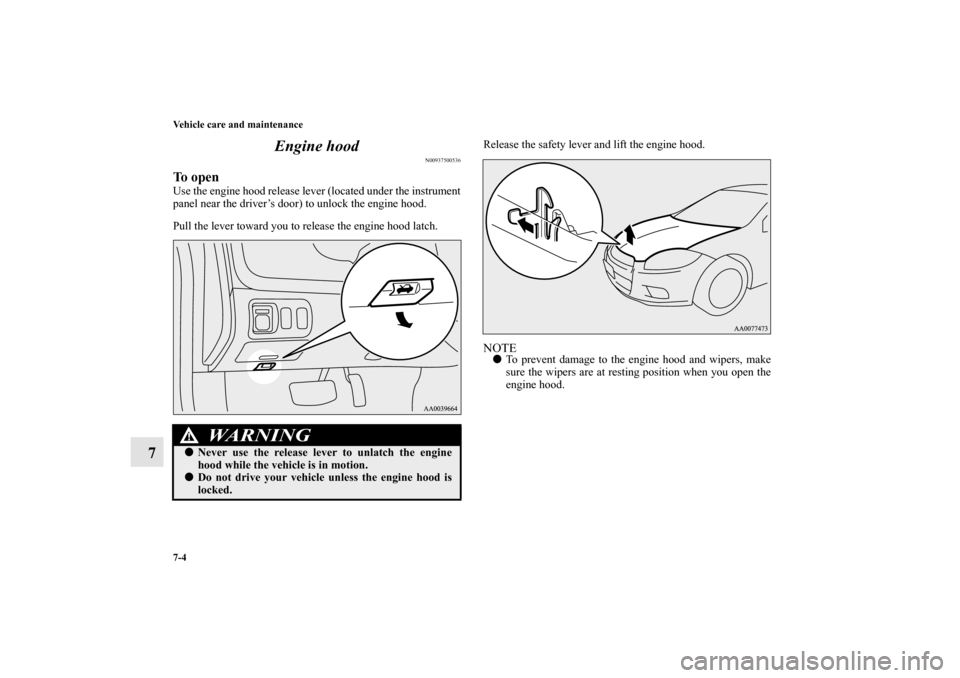

7Engine hood
N00937500536
To openUse the engine hood release lever (located under the instrument
panel near the driver’s door) to unlock the engine hood.
Pull the lever toward you to release the engine hood latch.Release the safety lever and lift the engine hood.
NOTE
To prevent damage to the engine hood and wipers, make
sure the wipers are at resting position when you open the
engine hood.
WA R N I N G
!
Never use the release lever to unlatch the engine
hood while the vehicle is in motion.
Do not drive your vehicle unless the engine hood is
locked.
BK0132701US.book 4 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-5
7

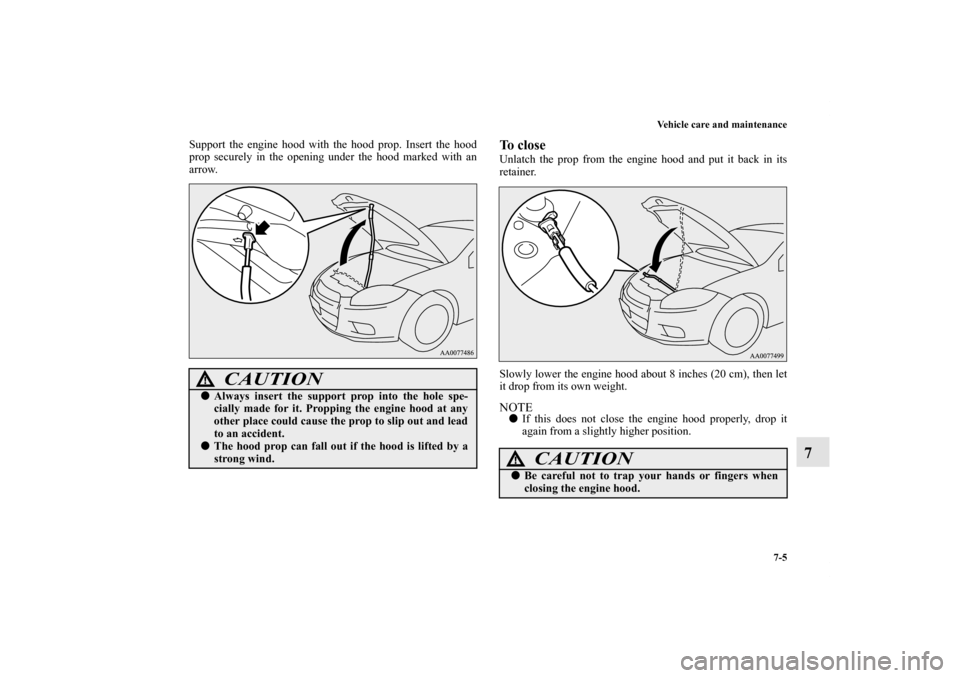

Support the engine hood with the hood prop. Insert the hood
prop securely in the opening under the hood marked with an
arrow.
To closeUnlatch the prop from the engine hood and put it back in its
retainer.
Slowly lower the engine hood about 8 inches (20 cm), then let
it drop from its own weight. NOTE
If this does not close the engine hood properly, drop it
again from a slightly higher position.
CAUTION
!
Always insert the support prop into the hole spe-
cially made for it. Propping the engine hood at any
other place could cause the prop to slip out and lead
to an accident.
The hood prop can fall out if the hood is lifted by a
strong wind.
CAUTION
!
Be careful not to trap your hands or fingers when
closing the engine hood.
BK0132701US.book 5 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-6 Vehicle care and maintenance
7View of the engine compartment
N00937600540
2.4 liter engine
1- Power steering fluid reservoir
2- Brake fluid/Clutch fluid reservoir (if so equipped)
3- Battery
4- Windshield and rear window washer (ECLIPSE only) fluid
reservoir
5- Engine oil level dipstick
6- Engine oil filler cap
7- Radiator cap
8- Automatic transaxle fluid level dipstick (if so equipped)
9- Engine coolant reservoir
10- Air cleaner filter3.8 liter engine
BK0132701US.book 6 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-7
7 Engine oil and oil filter
N00937700828
To check and refill engine oil It is normal for an engine to use oil. You may need to add oil
between the recommended oil change intervals. Before starting
the engine, check the engine oil level. Refill if necessary.
To check the oil level, remove the dipstick, wipe it off, and
gently insert it all the way into the crankcase. Slowly remove it
again. The oil level must not go above the line on the dipstick.
If the level does not reach the line, which shows the smallest
amount of oil required, remove the oil filler cap on the engine
valve cover, and fill to within the “Good” range. 2.4 liter engine
Good
CAUTION
!
Overfilling the crankcase will cause oil aeration and
loss of oil pressure, which could damage the engine.
WA R N I N G
!
Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Don’t let used oil touch your skin. Wash thor-
oughly after working with it.
Keep used oil out of the reach of children.
Good 3.8 liter engine
BK0132701US.book 7 ページ ２０１０年１２月６日　月曜日　午後２時３分
