7-56 Vehicle care and maintenance
7
3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Front turn signal, parking and side-marker lights
(except for vehicles with high intensity discharge
headlights)
N00943400048
1. Remove the entire socket and bulb assembly (A) by turn-
ing it clockwise (the left side) or counterclockwise (the
right side).*- Front of the vehicle
BK0132701US.book 56 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-57
7
2. Depress the tab (B) on the harness connector and pull the
harness connector to remove it.
3. To install the bulb, perform the removal steps in reverse.
Front fog lights
(if so equipped)
N00943600675
1. Remove the three clips (A) by turning them counterclock-
wise or prying them, and remove the two screws (B) by
turning them counterclockwise, then remove the cover
(C).
BK0132701US.book 57 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-59
7
Rear combination lights
N00943700461
ECLIPSE1. Open the rear hatch.
Push the center of the clips (A) and remove them. Then
remove the cover (B).
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the front fog lights
are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0132701US.book 59 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-60 Vehicle care and maintenance
7

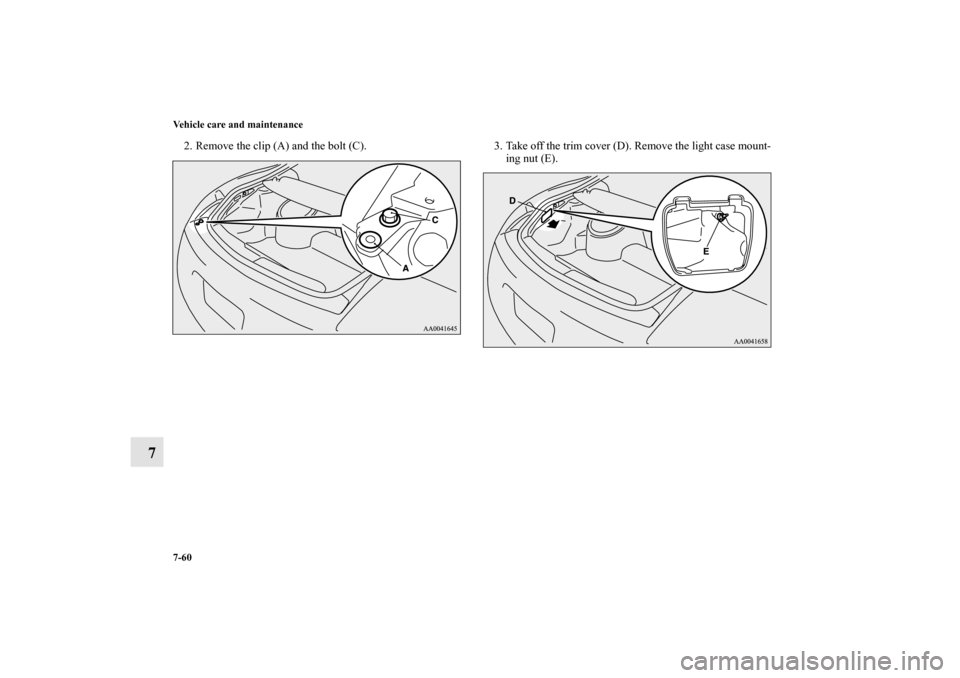

2. Remove the clip (A) and the bolt (C). 3. Take off the trim cover (D). Remove the light case mount-
ing nut (E).
BK0132701US.book 60 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-61
7
4. Insert the tip of the screwdriver at the edge of the light
unit, pry gently to remove the light unit.
Then move the light unit toward the rear of the vehicle
and remove the clip (F).NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.5. Remove the socket and bulb assemblies by turning them
counterclockwise.
Remove the bulb by pulling it out.
G- Back-up light
H- Rear turn signal light
I- Rear side-marker light
BK0132701US.book 61 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-62 Vehicle care and maintenance
7
6. To install the bulb, perform the removal steps in reverse.NOTE
When mounting the light unit, align the clip (F), pins and
bolts (J) on the light unit with the holes in the body.

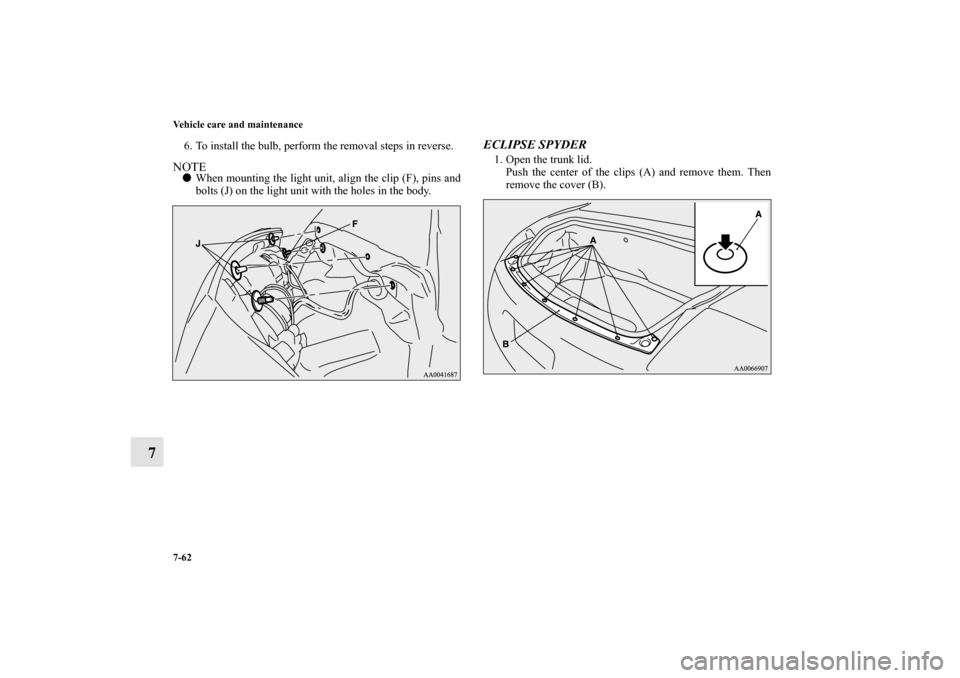

ECLIPSE SPYDER1. Open the trunk lid.
Push the center of the clips (A) and remove them. Then
remove the cover (B).
BK0132701US.book 62 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-64 Vehicle care and maintenance
7
Grasp the trim cover and pull it toward you to remove the
clips.4. Lift the trim cover. Remove the light case mounting nut
(E).
1
2BK0132701US.book 64 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-65
7
5. Insert the tip of the screwdriver at the edge of the light
unit, pry gently to remove the light unit.
Then move the light unit toward the rear of the vehicle
and remove the clip (F).NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.6. Remove the socket and bulb assemblies by turning them
counterclockwise.
Remove the bulb by pulling it out.
G- Back-up light
H- Rear turn signal light
I- Rear side-marker light
BK0132701US.book 65 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-66 Vehicle care and maintenance
7
7. To install the bulb, perform the removal steps in reverse.NOTE
When mounting the light unit, align the clip (F), pins and
bolts (J) on the light unit with the holes in the body.
License plate light
N00944000272

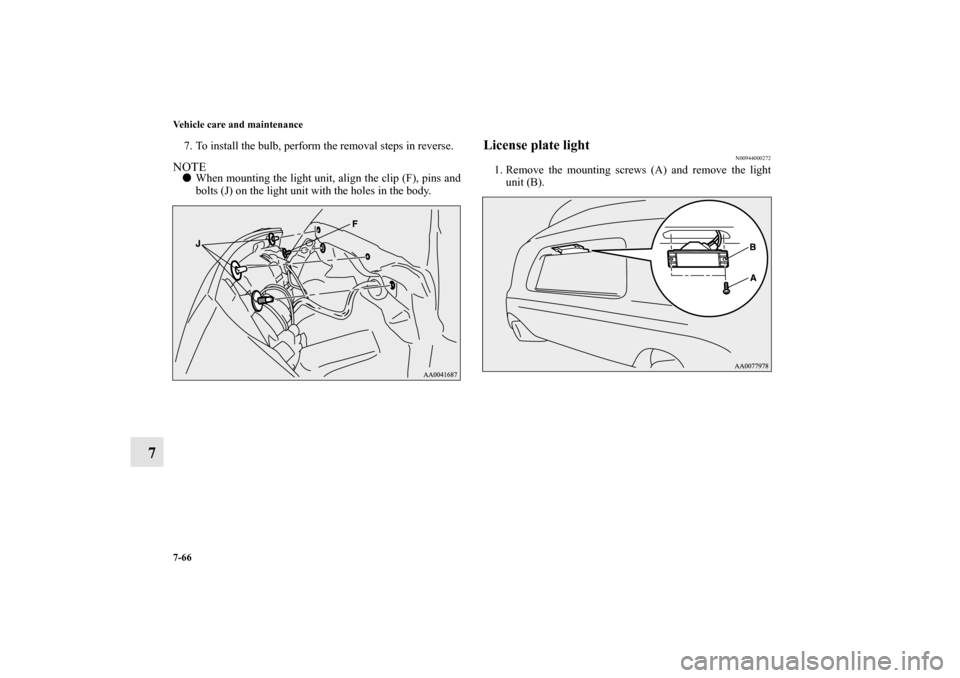

1. Remove the mounting screws (A) and remove the light
unit (B).
BK0132701US.book 66 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-68 Vehicle care and maintenance
7
Dome light (Rear) (ECLIPSE only)
N00944100303

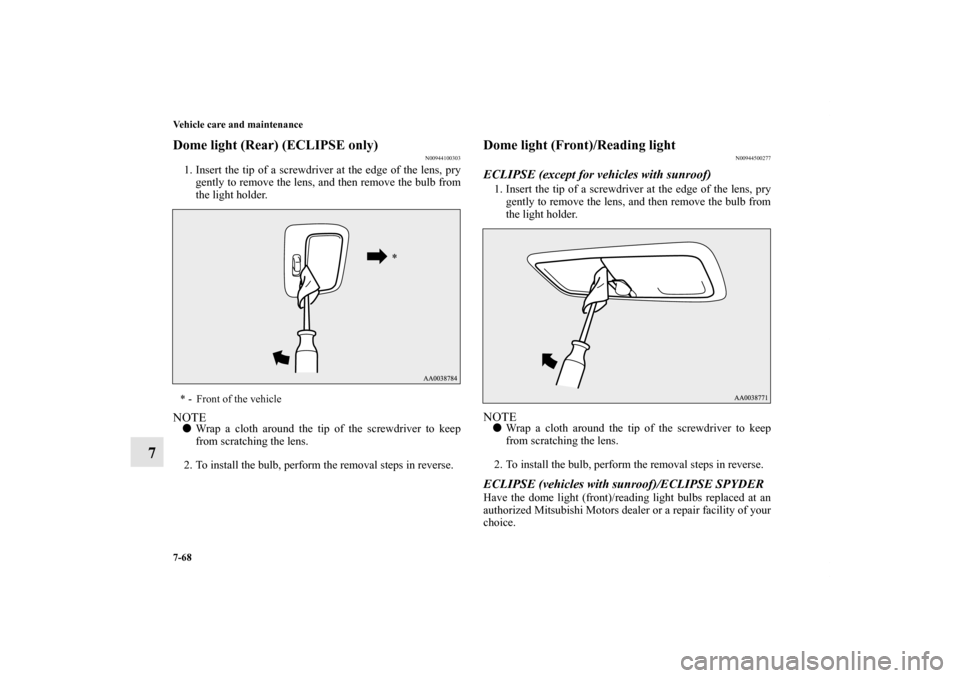

1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.
Dome light (Front)/Reading light
N00944500277
ECLIPSE (except for vehicles with sunroof)1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
2. To install the bulb, perform the removal steps in reverse.ECLIPSE (vehicles with sunroof)/ECLIPSE SPYDERHave the dome light (front)/reading light bulbs replaced at an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
