keyless MITSUBISHI ECLIPSE 2012 4.G User Guide

3-170 Features and controls
3
Dome light (Front)/Reading lights-Type1
(if so
equipped)
N00525800147
Dome light (Front)The dome light can be turned on by sliding the dome light
switch.
1 (DOOR) - The dome light comes on when any door or rear
hatch is opened. When all the doors (including the
rear hatch) are closed, the dome light is dimmed
gradually for 30 seconds then goes out. However,
the light goes out immediately without being
dimmed if:

The ignition switch is turned to the “ON” posi-
tion.

All the doors (including the rear hatch) are
locked using the power door lock switch, or
the remote control switch of the keyless entry
system.
NOTE
If the ignition key is removed with the doors
and the rear hatch closed, the dome light
comes on for 30 seconds and then goes out.
2 (OFF) - The dome light goes off.
BK0132701US.book 170 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-172 Features and controls
3

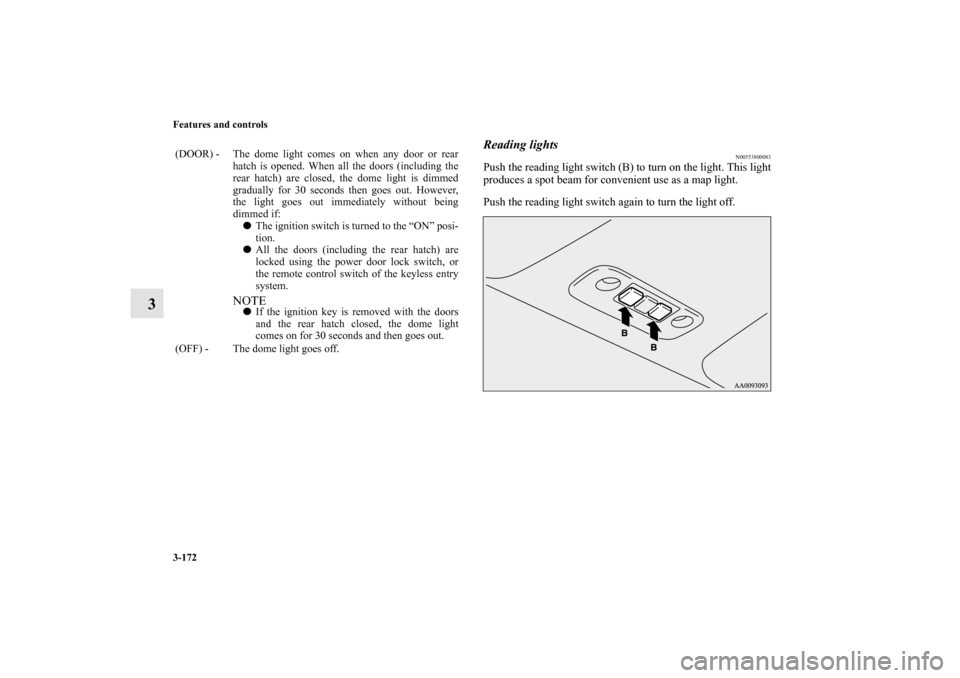

Reading lights
N00553800083
Push the reading light switch (B) to turn on the light. This light
produces a spot beam for convenient use as a map light.
Push the reading light switch again to turn the light off.
(DOOR) - The dome light comes on when any door or rear
hatch is opened. When all the doors (including the
rear hatch) are closed, the dome light is dimmed
gradually for 30 seconds then goes out. However,
the light goes out immediately without being
dimmed if:

The ignition switch is turned to the “ON” posi-
tion.

All the doors (including the rear hatch) are
locked using the power door lock switch, or
the remote control switch of the keyless entry
system.
NOTE
If the ignition key is removed with the doors
and the rear hatch closed, the dome light
comes on for 30 seconds and then goes out.
(OFF) - The dome light goes off.
BK0132701US.book 172 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-173
3

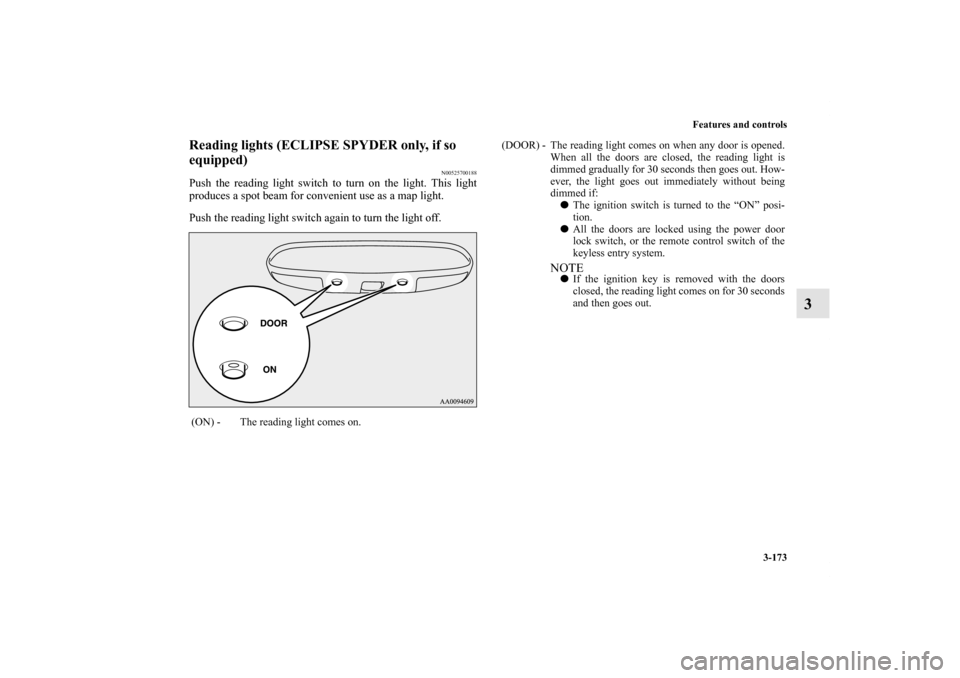

Reading lights (ECLIPSE SPYDER only, if so
equipped)
N00525700188
Push the reading light switch to turn on the light. This light
produces a spot beam for convenient use as a map light.
Push the reading light switch again to turn the light off.(ON) - The reading light comes on.
(DOOR) - The reading light comes on when any door is opened.
When all the doors are closed, the reading light is
dimmed gradually for 30 seconds then goes out. How-
ever, the light goes out immediately without being
dimmed if:

The ignition switch is turned to the “ON” posi-
tion.

All the doors are locked using the power door
lock switch, or the remote control switch of the
keyless entry system.
NOTE
If the ignition key is removed with the doors
closed, the reading light comes on for 30 seconds
and then goes out.
BK0132701US.book 173 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-174 Features and controls
3

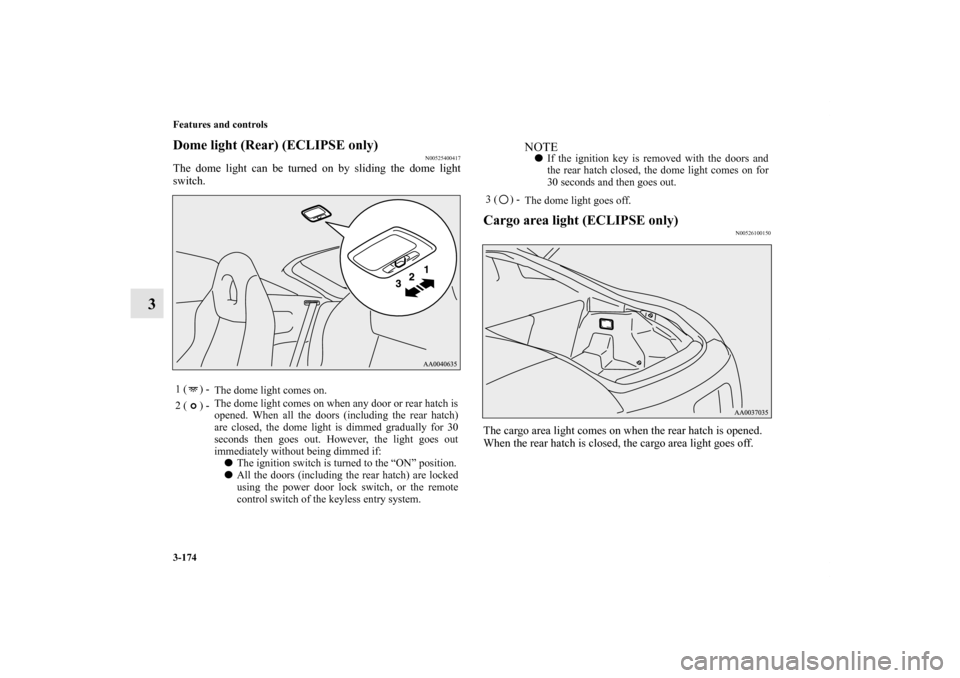

Dome light (Rear) (ECLIPSE only)
N00525400417
The dome light can be turned on by sliding the dome light
switch.
Cargo area light (ECLIPSE only)
N00526100150
The cargo area light comes on when the rear hatch is opened.
When the rear hatch is closed, the cargo area light goes off.
1 ( ) -
The dome light comes on.
2 ( ) -The dome light comes on when any door or rear hatch is
opened. When all the doors (including the rear hatch)
are closed, the dome light is dimmed gradually for 30
seconds then goes out. However, the light goes out
immediately without being dimmed if:

The ignition switch is turned to the “ON” position.

All the doors (including the rear hatch) are locked
using the power door lock switch, or the remote
control switch of the keyless entry system.
NOTE
If the ignition key is removed with the doors and
the rear hatch closed, the dome light comes on for
30 seconds and then goes out.
3 ( ) -
The dome light goes off.
BK0132701US.book 174 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-175
3

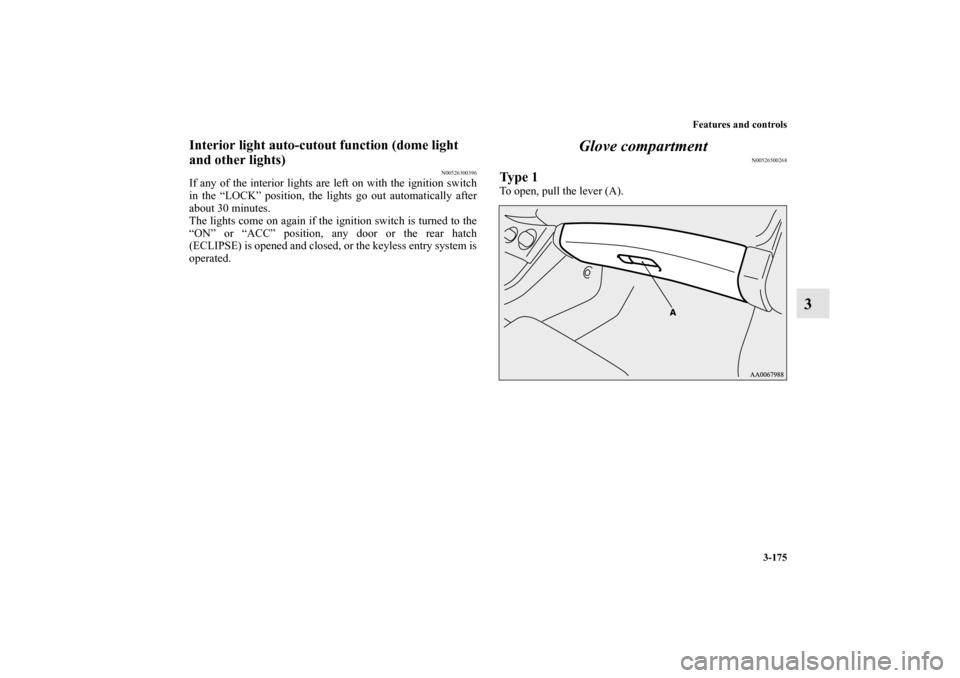

Interior light auto-cutout function (dome light
and other lights)
N00526300396
If any of the interior lights are left on with the ignition switch
in the “LOCK” position, the lights go out automatically after
about 30 minutes.
The lights come on again if the ignition switch is turned to the
“ON” or “ACC” position, any door or the rear hatch
(ECLIPSE) is opened and closed, or the keyless entry system is
operated.
Glove compartment
N00526500268
Ty p e 1To open, pull the lever (A).
BK0132701US.book 175 ページ ２０１０年１２月６日　月曜日　午後２時３分

Alphabetical index
4
G
Gauges 3-104
General maintenance 7-33
General vehicle data 9-5
Genuine parts 1-9
Glove compartment 3-175
Glove compartment light
Bulb capacity 7-50
,7-51
Replacement 7-69
H
Hands-free Bluetooth
® cellular phone interface system with
voice recognition 3-137
Hazard warning flasher switch 3-130
Hazard warning lights 3-111
Head restraints 2-12
Headlight levelling switch 3-128
Headlights
Bulb capacity 7-48
Dimmer 3-127
Headlight flasher 3-128
High beam indicator 3-111
Levelling switch 3-128
Replacement 7-51,7-52
Switch 3-125
High-mounted stop light
Bulb capacity 7-49
Hood lock release mechanism and safety catch 7-36Horn switch 3-136
I
If the vehicle breaks down 6-2
Ignition switch 3-60
Important facts to know in case of an accident 8-4
Indicator 3-111
Indicator and warning light package 3-110
Inside emergency trunk lid release 3-20
Inside rear hatch/trunk lid release 3-18
Inside rearview mirror 3-56
Instrument cluster 3-104
Instrument panel control switch 3-138
Interior lights 3-169
J
Jack 6-9
Storage 6-8
Jump-starting the engine 6-2
K
Key reminder buzzer 3-14
,3-62
Keyless entry system 3-7
Keys 3-2L
Labeling 9-2
License plate light
Bulb capacity 7-49
BK0132701US.book 4 ページ ２０１０年１２月６日　月曜日　午後２時３分
