Features and controls
3-101
3
General information
N00533000207
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS- Gen of the Industry Canada
Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Rear-view camera
(if so equipped)
N00546200085
When the gearshift lever (for vehicles with manual transaxle)
or the selector lever (for vehicles with automatic transaxle) is
in the “R” position with the ignition key in the “ON” position,
the rear-view camera image will be displayed on the left por-
tion of the inside rearview mirror.
When the gearshift lever or the selector lever is shifted out of
the “R” position, the rear-view camera image will turn off.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
WA R N I N G
!
Never rely solely on the rear-view camera to clear
the area behind your vehicle. Always check visually
behind and all around your vehicle for persons, ani-
mals, obstructions or other vehicles. Failure to do so
can result in vehicle damage, serious injury or
death.
The rear-view camera is an aid system for backing
up, but it is not a substitute for your visual confir-
mation.
The view on the rear-view camera display is limited,
and objects outside the view, such as under the
bumper or around either corner of the bumper end,
cannot be seen on the display.
BK0132701US.book 101 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-102 Features and controls
3
Location of rear-view cameraThe rear-view camera (A) is in the rear bumper.
Rear-view camera display
N00547700016
The rear-view camera image appears on the left portion of the
rear-view mirror.
CAUTION
!
If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.
To avoid damaging the camera;
• Do not rub the cover excessively or polish it by
using an abrasive compound.
• Do not disassemble the camera.
• Do not splash hot water directly on the lens.
• Do not spray the camera and its surroundings with
high-pressure water.
CAUTION
!
The rear-view camera uses a wide-angle lens. As a
result, images and distances shown on the rear-view
camera display are not exact.
BK0132701US.book 102 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-103
3
NOTE
Mirror image is displayed on the rear-view camera dis-
play.

Monitor brightness is adjusted automatically by sensors.

In the event the monitor is continuously used for more
than 5 minutes, the monitor will automatically turn off.

Under certain circumstances, it may become difficult to
see an image on the display, even when the system is
functioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens.
→ When the camera picks up extremely bright light,
such as sunlight reflected off the rear bumper, a bright
vertical line may appear on the display.
BK0132701US.book 103 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-136 Features and controls
3
NOTE
If your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Heated mirror” on page 3-60.)
Horn switch
N00523800143
To honk the horn, press around the “ ” mark on the steering
wheel.
CAUTION
!
The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.
Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.
Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.
When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
BK0132701US.book 136 ページ ２０１０年１２月６日　月曜日　午後２時３分

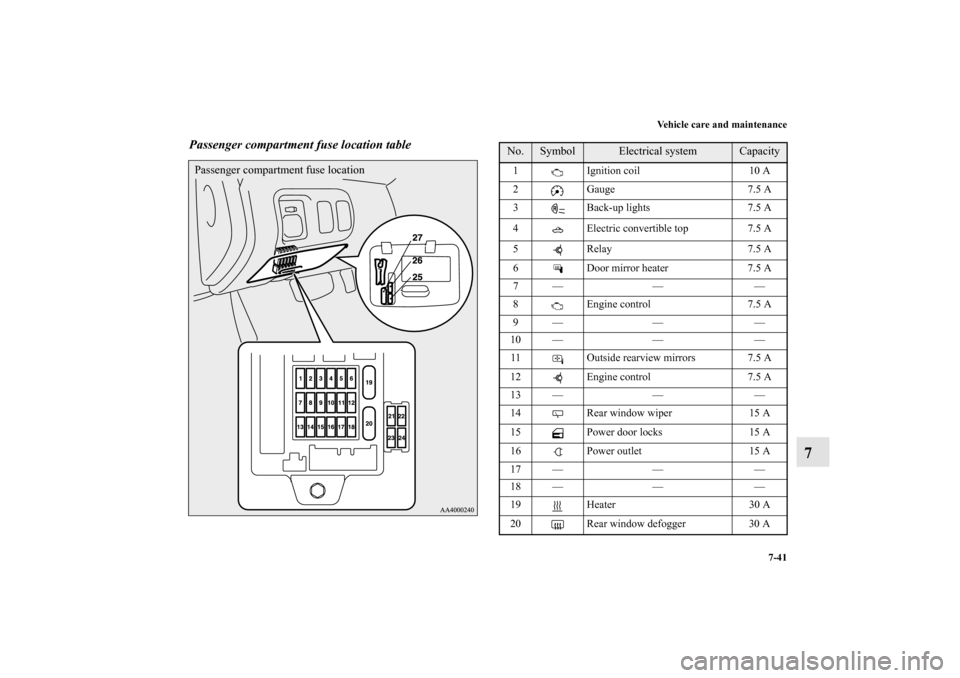

Vehicle care and maintenance
7-41
7
Passenger compartment fuse location tablePassenger compartment fuse location
No.
Symbol
Electrical system
Capacity
1 Ignition coil 10 A
2 Gauge 7.5 A
3 Back-up lights 7.5 A
4 Electric convertible top 7.5 A
5 Relay 7.5 A
6 Door mirror heater 7.5 A
7— — —
8 Engine control 7.5 A
9— — —
10 — — —
11 Outside rearview mirrors 7.5 A
12 Engine control 7.5 A
13 — — —
14 Rear window wiper 15 A
15 Power door locks 15 A
16 Power outlet 15 A
17 — — —
18 — — —
19 Heater 30 A
20 Rear window defogger 30 A
BK0132701US.book 41 ページ ２０１０年１２月６日　月曜日　午後２時３分

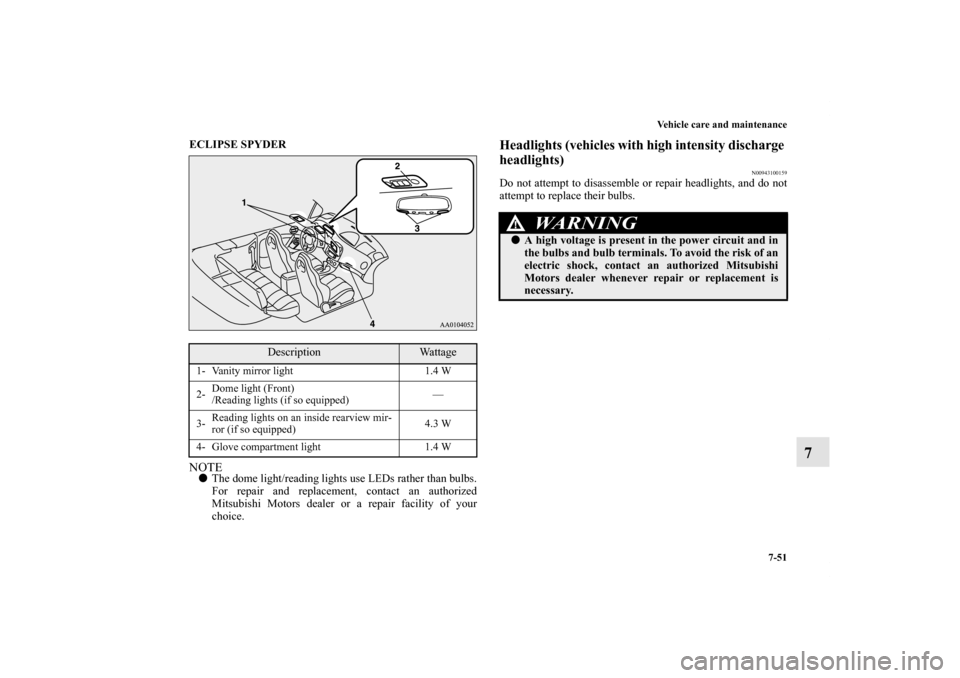

Vehicle care and maintenance
7-51
7
ECLIPSE SPYDER
NOTE
The dome light/reading lights use LEDs rather than bulbs.
For repair and replacement, contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
Headlights (vehicles with high intensity discharge
headlights)
N00943100159
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.
Description
Wattage
1- Vanity mirror light 1.4 W
2-Dome light (Front)
/Reading lights (if so equipped)—
3-Reading lights on an inside rearview mir-
ror (if so equipped)4.3 W
4- Glove compartment light 1.4 W
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
Motors dealer whenever repair or replacement is
necessary.
BK0132701US.book 51 ページ ２０１０年１２月６日　月曜日　午後２時３分

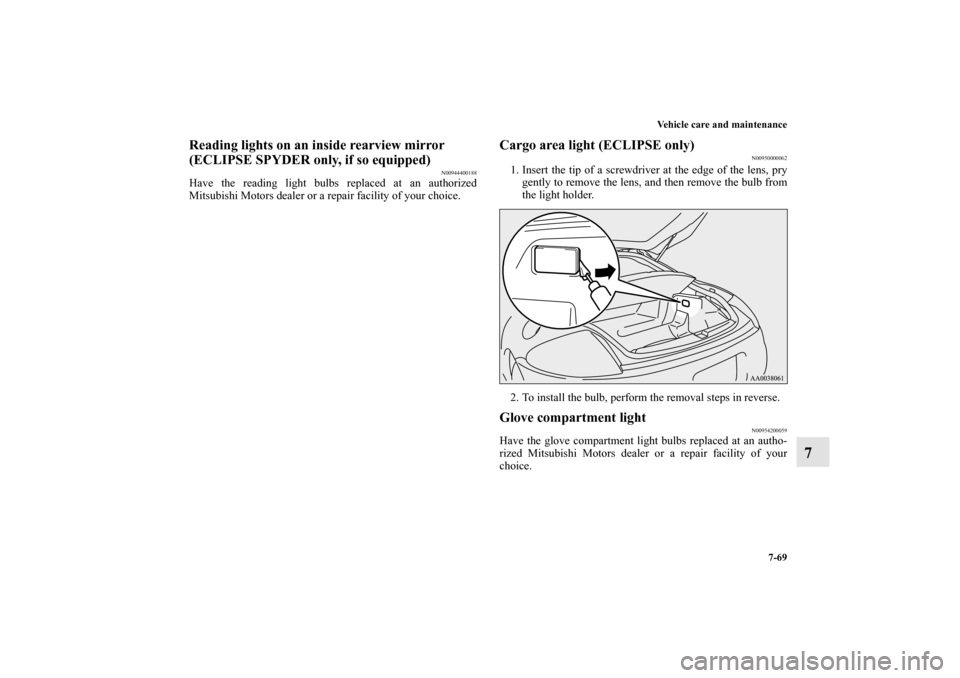

Vehicle care and maintenance
7-69
7
Reading lights on an inside rearview mirror
(ECLIPSE SPYDER only, if so equipped)
N00944400188
Have the reading light bulbs replaced at an authorized
Mitsubishi Motors dealer or a repair facility of your choice.
Cargo area light (ECLIPSE only)
N00950000062
1. Insert the tip of a screwdriver at the edge of the lens, pry
gently to remove the lens, and then remove the bulb from
the light holder.
2. To install the bulb, perform the removal steps in reverse.Glove compartment light
N00954200059
Have the glove compartment light bulbs replaced at an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice.
BK0132701US.book 69 ページ ２０１０年１２月６日　月曜日　午後２時３分

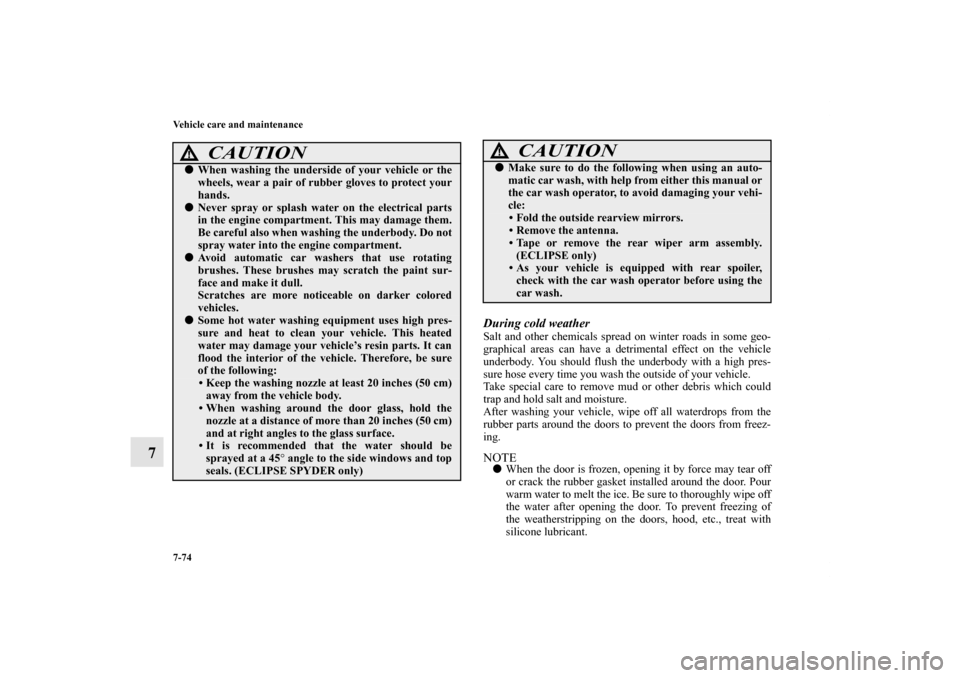

7-74 Vehicle care and maintenance
7
During cold weather Salt and other chemicals spread on winter roads in some geo-
graphical areas can have a detrimental effect on the vehicle
underbody. You should flush the underbody with a high pres-
sure hose every time you wash the outside of your vehicle.
Take special care to remove mud or other debris which could
trap and hold salt and moisture.
After washing your vehicle, wipe off all waterdrops from the
rubber parts around the doors to prevent the doors from freez-
ing.NOTE
When the door is frozen, opening it by force may tear off
or crack the rubber gasket installed around the door. Pour
warm water to melt the ice. Be sure to thoroughly wipe off
the water after opening the door. To prevent freezing of
the weatherstripping on the doors, hood, etc., treat with
silicone lubricant.
CAUTION
!
When washing the underside of your vehicle or the
wheels, wear a pair of rubber gloves to protect your
hands.
Never spray or splash water on the electrical parts
in the engine compartment. This may damage them.
Be careful also when washing the underbody. Do not
spray water into the engine compartment.
Avoid automatic car washers that use rotating
brushes. These brushes may scratch the paint sur-
face and make it dull.
Scratches are more noticeable on darker colored
vehicles.
Some hot water washing equipment uses high pres-
sure and heat to clean your vehicle. This heated
water may damage your vehicle’s resin parts. It can
flood the interior of the vehicle. Therefore, be sure
of the following:
• Keep the washing nozzle at least 20 inches (50 cm)
away from the vehicle body.
• When washing around the door glass, hold the
nozzle at a distance of more than 20 inches (50 cm)
and at right angles to the glass surface.
• It is recommended that the water should be
sprayed at a 45° angle to the side windows and top
seals. (ECLIPSE SPYDER only)

Make sure to do the following when using an auto-
matic car wash, with help from either this manual or
the car wash operator, to avoid damaging your vehi-
cle:
• Fold the outside rearview mirrors.
• Remove the antenna.
• Tape or remove the rear wiper arm assembly.
(ECLIPSE only)
• As your vehicle is equipped with rear spoiler,
check with the car wash operator before using the
car wash.CAUTION
!
BK0132701US.book 74 ページ ２０１０年１２月６日　月曜日　午後２時３分

Alphabetical index
4
G
Gauges 3-104
General maintenance 7-33
General vehicle data 9-5
Genuine parts 1-9
Glove compartment 3-175
Glove compartment light
Bulb capacity 7-50
,7-51
Replacement 7-69
H
Hands-free Bluetooth
® cellular phone interface system with
voice recognition 3-137
Hazard warning flasher switch 3-130
Hazard warning lights 3-111
Head restraints 2-12
Headlight levelling switch 3-128
Headlights
Bulb capacity 7-48
Dimmer 3-127
Headlight flasher 3-128
High beam indicator 3-111
Levelling switch 3-128
Replacement 7-51,7-52
Switch 3-125
High-mounted stop light
Bulb capacity 7-49
Hood lock release mechanism and safety catch 7-36Horn switch 3-136
I
If the vehicle breaks down 6-2
Ignition switch 3-60
Important facts to know in case of an accident 8-4
Indicator 3-111
Indicator and warning light package 3-110
Inside emergency trunk lid release 3-20
Inside rear hatch/trunk lid release 3-18
Inside rearview mirror 3-56
Instrument cluster 3-104
Instrument panel control switch 3-138
Interior lights 3-169
J
Jack 6-9
Storage 6-8
Jump-starting the engine 6-2
K
Key reminder buzzer 3-14
,3-62
Keyless entry system 3-7
Keys 3-2L
Labeling 9-2
License plate light
Bulb capacity 7-49
BK0132701US.book 4 ページ ２０１０年１２月６日　月曜日　午後２時３分

Alphabetical index
5
Replacement 7-66
Light dimmer control 3-109
Loading information 4-7
Low-fuel warning light 3-108
Lubricants 9-9
Luggage hooks 3-180
M
Manual transaxle 3-66
Fluid 9-9
Oil 7-14
Shift points (recommended speed) 3-68
Mirror
Inside rearview mirror 3-56
Outside rearview mirrors 3-58
Modifications to and racing of your vehicle 1-7
Multi center display 3-114
N
Notepad holder 3-177
O
Octane requirement 1-2
Odometer 3-106
Oil
Engine oil 7-7
Manual transaxle oil 7-14
Oil pressure warning light 3-113
Operation under adverse driving conditions 6-22Outside rearview mirrors 3-58
Overheating 6-6
P
Parking 4-6
Parking brake 3-54
Parking brake lever stroke 7-30
Parking and side-marker lights
Bulb capacity 7-48
Replacement 7-53
Pen holder 3-177
Polishing 7-75
Power brakes 3-80
Power door locks 3-15
Power outlet 3-168
Power steering
Fluid 7-16
,9-9
System 3-89
Power windows 3-26
Puncture (Tire changing) 6-9
R
Radiator cap 7-11
Radio
AM/FM electronically tuned radio with CD autochanger-
Type 2 5-39
AM/FM electronically tuned radio with CD player-Type 1
5-26
BK0132701US.book 5 ページ ２０１０年１２月６日　月曜日　午後２時３分
