7-28 Vehicle care and maintenance
7
Snow tires
N00940000362
In some areas of the country, snow tires are required for winter
driving. If snow tires are required in your area, you must
choose snow tires of the same size and type as the original tires
provided with your vehicle. Snow tires should also be installed
on all four wheels. Otherwise your safety and vehicle handling
can be reduced.
Even where laws may permit it, snow tires should not be oper-
ated at sustained speeds over 75 mph (120 km/h).
CAUTION
!
Avoid the combined use of different types of tires.
Using different types of tires can affect vehicle per-
formance and safety.
Front
CAUTION
!
Change to tapered nuts when using snow tires with
steel wheels.
As your vehicle is equipped with a tire pressure
monitoring system, use only Mitsubishi genuine
wheels.
Other wheels do not permit correct installation of
tire inflation pressure sensors and can cause air
leakage and sensor failure, which would not be cov-
ered by your vehicle’s warranty.
See an authorized Mitsubishi Motors dealer when
you replace a tire or wheel.
BK0132701US.book 28 ページ ２０１０年１２月６日　月曜日　午後２時３分

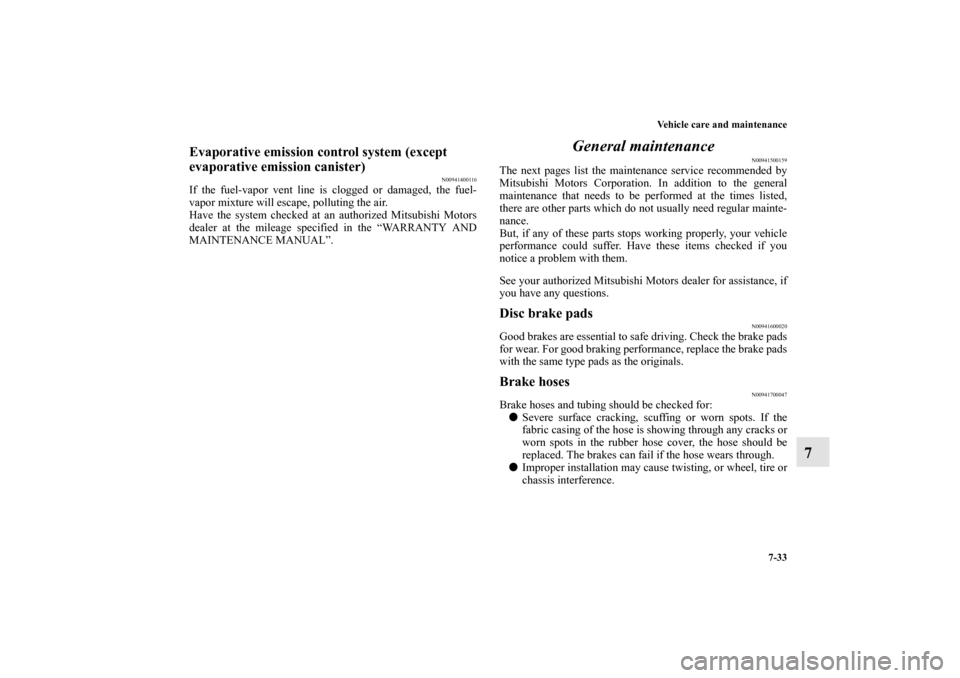

Vehicle care and maintenance
7-33
7
Evaporative emission control system (except
evaporative emission canister)
N00941400116
If the fuel-vapor vent line is clogged or damaged, the fuel-
vapor mixture will escape, polluting the air.
Have the system checked at an authorized Mitsubishi Motors
dealer at the mileage specified in the “WARRANTY AND
MAINTENANCE MANUAL”.
General maintenance
N00941500159
The next pages list the maintenance service recommended by
Mitsubishi Motors Corporation. In addition to the general
maintenance that needs to be performed at the times listed,
there are other parts which do not usually need regular mainte-
nance.
But, if any of these parts stops working properly, your vehicle
performance could suffer. Have these items checked if you
notice a problem with them.
See your authorized Mitsubishi Motors dealer for assistance, if
you have any questions.Disc brake pads
N00941600020
Good brakes are essential to safe driving. Check the brake pads
for wear. For good braking performance, replace the brake pads
with the same type pads as the originals.Brake hoses
N00941700047
Brake hoses and tubing should be checked for:

Severe surface cracking, scuffing or worn spots. If the
fabric casing of the hose is showing through any cracks or
worn spots in the rubber hose cover, the hose should be
replaced. The brakes can fail if the hose wears through.

Improper installation may cause twisting, or wheel, tire or
chassis interference.
BK0132701US.book 33 ページ ２０１０年１２月６日　月曜日　午後２時３分

9-4 Specifications
9
Tire and loading information placard
N01148100573
The tire and loading information placard is located on the
driver’s door sill. A- All vehicles (Type A)
B- Vehicles sold in Canada (Type B)
Ty p e ATy p e B
BK0132701US.book 4 ページ ２０１０年１２月６日　月曜日　午後２時３分

9-8 Specifications
9Battery
N01147800049
Battery is a 12 volt type.NOTE
There are various sizes of batteries in BCI Groups No.24
and 86.
When you replace the battery, confirm the size of the
replacement battery will not interfere with other compo-
nents in the engine compartment.
Tires and wheels
N01147900688
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
2.4 liter
BCI Group No.863.8 liter
BCI Group No.24
Tire P235/45R18 94VWheel
Size 18 x 8JPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0132701US.book 8 ページ ２０１０年１２月６日　月曜日　午後２時３分

Alphabetical index
5
Replacement 7-66
Light dimmer control 3-109
Loading information 4-7
Low-fuel warning light 3-108
Lubricants 9-9
Luggage hooks 3-180
M
Manual transaxle 3-66
Fluid 9-9
Oil 7-14
Shift points (recommended speed) 3-68
Mirror
Inside rearview mirror 3-56
Outside rearview mirrors 3-58
Modifications to and racing of your vehicle 1-7
Multi center display 3-114
N
Notepad holder 3-177
O
Octane requirement 1-2
Odometer 3-106
Oil
Engine oil 7-7
Manual transaxle oil 7-14
Oil pressure warning light 3-113
Operation under adverse driving conditions 6-22Outside rearview mirrors 3-58
Overheating 6-6
P
Parking 4-6
Parking brake 3-54
Parking brake lever stroke 7-30
Parking and side-marker lights
Bulb capacity 7-48
Replacement 7-53
Pen holder 3-177
Polishing 7-75
Power brakes 3-80
Power door locks 3-15
Power outlet 3-168
Power steering
Fluid 7-16
,9-9
System 3-89
Power windows 3-26
Puncture (Tire changing) 6-9
R
Radiator cap 7-11
Radio
AM/FM electronically tuned radio with CD autochanger-
Type 2 5-39
AM/FM electronically tuned radio with CD player-Type 1
5-26
BK0132701US.book 5 ページ ２０１０年１２月６日　月曜日　午後２時３分

Alphabetical index
6AM/FM/Satellite electronically tuned radio with CD
autochanger-Type 3 5-39
General information about your radio 5-76
Reading lights on an inside rearview mirror
Bulb capacity 7-51
Replacement 7-69
Switch 3-173
Rear combination lights 7-59
Rear hatch 3-16
Rear seat 2-11
Rear shelf panel 3-178
Rear side-marker lights
Bulb capacity 7-49
Replacement 7-59
Rear turn signal lights
Bulb capacity 7-49
Replacement 7-59
Rear window defogger switch 3-135
Rear-view camera 3-101
Rearview mirror
Inside 3-56
Outside 3-58
Refrigerant (air conditioning) 9-9
Replacement of light bulbs 7-47
Replacing tires and wheels 7-25
Reporting Safety Defects 8-3
S
Safe driving techniques 4-4Seat 2-2
Front seats 2-4
Heated seats 2-10
Rear seat 2-11
Seats and restraint systems 2-3
Seat belt 2-13
Adjustable seat belt shoulder anchor 2-19
Child restraints 2-24
Driver’s seat belt reminder/warning light 2-18
Front passenger seat belt warning light 2-19
Maintenance and inspection 2-35
Pre-tensioner 2-22
Seat belt extender 2-21
Seat belt guide 2-20
Seat belt use during pregnancy 2-22
Service brake 3-79
Service precautions 7-2
Skid control function 3-85
Snow tires 7-28
Spark plugs 7-32
Speedometer 3-105
Steering
Power steering fluid 7-16
,9-9
Tilt lock lever 3-55
Wheel lock 3-63
Steering wheel remote control switch 5-65
Stop and tail light
Bulb capacity 7-49
Sun visors 3-166
BK0132701US.book 6 ページ ２０１０年１２月６日　月曜日　午後２時３分
