General informationYour electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
This digital apparatus does not exceed the Class A limits for
radio noise emissions from digital apparatus set out in the
Radio Interference Regulations of the Canadian Department of
Communications.
Keyless entry system
N00509000851
Press the remote control transmitter buttons to lock or unlock
the doors and to open the rear hatch (ECLIPSE) or trunk lid
(ECLIPSE SPYDER).
It can also help you signal for attention by setting off the panic
alarm.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-Rear hatch ( ) button (ECLIPSE)/
Trunk ( ) button (ECLIPSE SPYDER)
4- PANIC button
5- Indicator light
BK0132701US.book 7 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-9
3
Horn deactivation/reactivation The answerback function can be set in the following three
ways.
Each time the answerback function is set, a tone will sound to
tell you the condition of the answerback function.
1. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
2. Release the LOCK and UNLOCK buttons within 10 sec-
onds of pressing the UNLOCK button in step 1.Turn signal light deactivation/reactivation The answerback function from the turn signal lights indicating
when the doors and the rear hatch or trunk lid are locked or
unlocked can be turned on or off separately.
A tone will sound once when the function has been turned on,
and twice if it has been turned off.To deactivate/reactivate the answerback function for lock-
ing of the doors and rear hatch or trunk lid, take the fol-
lowing steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the LOCK button and then release the UNLOCK
button within 10 seconds of pressing the LOCK button in
step 1.
To deactivate/reactivate the answerback function for
unlocking of the doors and rear hatch or trunk lid, take the
following steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the UNLOCK button and then release the LOCK
button within 10 seconds of pressing the LOCK button in
step 1.
Using the panic alarmIf you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (4) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
One chime: The horn will sound if the doors and the rear
hatch or trunk lid are locked with the keyless
entry system.
Two chimes: The horn will not sound, even if the doors and
the rear hatch or trunk lid are locked with the
keyless entry system.
Three chimes: The horn will sound if the doors and the rear
hatch or trunk lid are already locked and the key-
less entry system is used.
In this mode, the horn will only sound when the
keyless entry LOCK button is pressed again to
reconfirm that the doors and the rear hatch or
trunk lid are locked.
BK0132701US.book 9 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-11
3

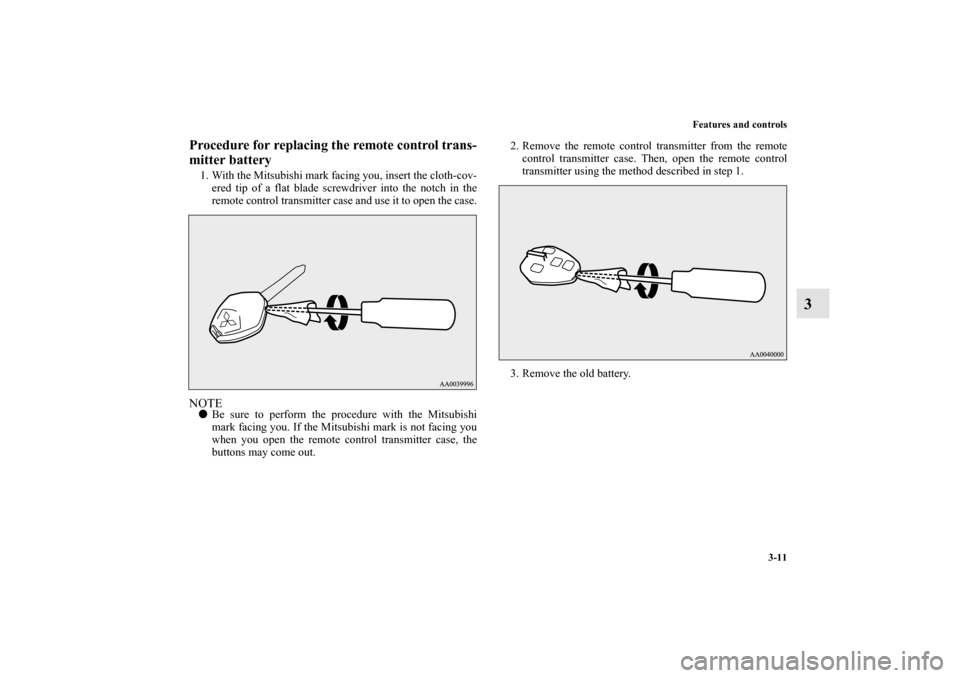

Procedure for replacing the remote control trans-
mitter battery1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.2. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 1.
3. Remove the old battery.
BK0132701US.book 11 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-34 Features and controls
3
5. Push the left and right release buttons (A) to unlock the
latch handles (B) and cause them to slightly rise.6. Pull the latch handles (B) toward you until they lock in
position.
NOTE
Make sure the latch handles (B) are securely locked in
place. Operating the electric convertible top without first
locking the latch handles in position could cause the elec-
tric convertible top to malfunction.

If you pull the driver’s-side latch handle (B) while listen-
ing to the audio system, an audible beep will sound and
the audio system’s sound equalization will change to set-
tings that are optimized for operation with the electric
convertible top open.
A
B
B
BK0132701US.book 34 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-115
3
Controls and display
N00533100051
Ty p e 1 Ty p e 2
1- Electronic compass (type 1 only) → P. 3 - 1 1 6
This display shows the compass direction of the vehicle.
2- Digital clock → P.3-123
3- Outside temperature (type 1 only) → P.3-123
4- Audio
This display shows the audio condition.
Refer to “Audio system” on page 5-24.
5- “H” button/“M” button
These buttons can change the display.
“To adjust for compass variance” → P. 3 - 1 1 7
“Compass calibration” → P.3-120
“Digital clock” → P. 3 - 1 2 3
“Change of the outside temperature unit” → P.3-124
BK0132701US.book 115 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-123
3
Digital clock
N00553100015
The time (A) is shown in the center of the display.Adjusting the timeSet the time by pressing the various buttons as described
below.NOTE
If the battery cables are disconnected or the battery
becomes discharged, the clock will have to be reset.
Outside temperature (type 1 only)
N00522300053
This value (A) shows the outside temperature of the vehicle.NOTE
The outside temperature can be displayed from -40°F
(-40°C) to 122°F (50°C).

When the outside temperature is over 122°F (50°C) or
below -40°F (-40°C), the display will remain 122°F
(50°C) or -40°F (-40°C).

The outside temperature displayed may differ from the
actual temperature on account of surrounding conditions,
driving conditions, etc.
H (HOUR)- Press and hold the “H” button until the correct
hour appears.
M (MINUTE)- Press and hold the “M” button until the correct
minute appears.
BK0132701US.book 123 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-30 Comfort controls
5
Radio control panel and display
N00734900869
1- PWR (On-Off) switch
2- Memory select buttons
3- RADIO (AM/FM selection) button
4- SEEK (Up-seek) button
5- SEEK (Down-seek) button
6- SCAN button
7- TUNE/FOLDER switch
8- SCAN indicator
9- AM/FM (AM/FM1/FM2) indicator
10- Preset memory number display
11- ST (Stereo) indicator
12- Frequency display
BK0132701US.book 30 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-31
5
To listen to the radio
N00735000737
1. Press the PWR switch (1) to turn the audio system on and
off. The system turns on in the last mode used.
2. Press the RADIO button (3) to select the desired band
(AM/FM1/FM2).
3. Press the SEEK button (4 or 5) to tune to station, or press
one of the memory select buttons (2) to tune in to a station
memorized for that button.To tune the radioAutomatic tuning
1. After pressing the SEEK button (4 or 5), reception of the
selected station will begin.
2. Press the SCAN button (6). SCAN indicator (8) will come
on and the radio will tune consecutively to each available
station for about 5 seconds per station. If you want to stop
scanning, press the SCAN button again.
The frequency display of the current station blinks once
per second during SCAN.
Manual tuning
The frequency changes every time the TUNE/FOLDER switch
(7) is turned.
Turn the switch to select the desired station. To enter frequencies into the memoryAs many as 6 AM and 12 FM stations can be entered into the
memory.To store a frequency in the memory, follow these steps:
1. Press the SEEK button (4 or 5), or turn the
TUNE/FOLDER switch (7) to tune to the frequency you
wish to keep in the memory.
2. Press one of the memory select buttons (2) until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within about 2 seconds.
NOTE
Disconnecting the battery cables erases all the radio sta-
tion settings stored in the memory.
BK0132701US.book 31 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-39
5 AM/FM electronically tuned radio with CD autochanger-Type 2 (if so equipped)
AM/FM/Satellite electronically tuned radio with CD autochanger-Type 3 (if so equipped)
N00734300821

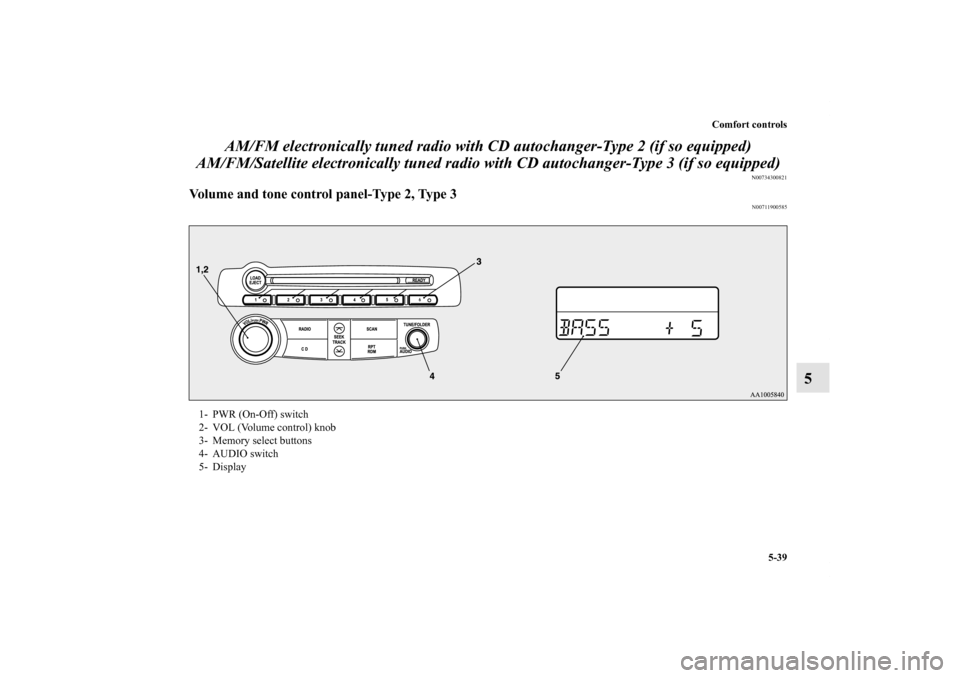

Volume and tone control panel-Type 2, Type 3
N00711900585
1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- Memory select buttons
4- AUDIO switch
5- Display
BK0132701US.book 39 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-43
5
TYPE (Music type select)To select the desired music type.SOUND PRESETS (sound setting storage)6 different sound settings can be stored into memory in the
“SOUND PRESET” mode. For example:To store your current sound settings into memory, follow these
steps:
1. Go to the “SOUND PRESET” setting (preset button lights
will be flashing).
2. Push one of the memory select buttons (3) for more than 2
seconds.
To recall the sound settings that are stored in memory, follow
these steps:
1. Go to the “SOUND PRESET” setting (preset button lights
will be flashing).
2. Push your desired memory select button (3) for less than 2
seconds.
NOTE
The sound customization adjust mode will automatically
shut off when either the radio or CD is selected, or if no
adjustment is made within 10 seconds.

If the AUDIO switch (4) is pushed and held for more than
2 seconds during the audio adjust mode, it will change to
“Hold” mode. The selected audio mode will be held until
the AUDIO switch (4) is pushed for more than 2 seconds
again.
Music type
Description
NORMAL Sounds good for all types of music.
POP Tight bass and high frequency sound
ROCKTuned for hard rock and heavy metal with
powerful drums, guitars, and vocals.
HIP-HOP Deep bass punch and well-defined vocals
COUNTRY Enhanced main vocalsSettings
Preset 1
Preset 2
Preset 3
SUB PUNCH Punch 3 Punch 5 Punch 4
BASS +1 0 0
MID 0 0 0
TRE +2 +1 0
FADE 0 0 0
BAL 0 0 0
FIELD Live Normal Stage
TYPE POP HIP-HOP Rock
