Comfort controls
5-29
5

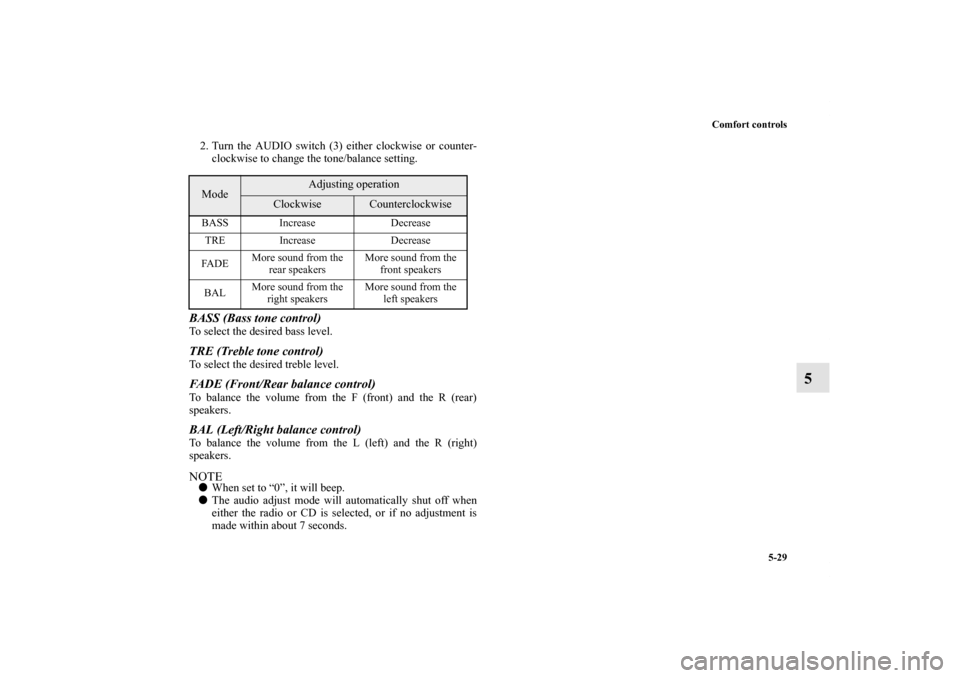

2. Turn the AUDIO switch (3) either clockwise or counter-
clockwise to change the tone/balance setting.BASS (Bass tone control) To select the desired bass level. TRE (Treble tone control) To select the desired treble level. FADE (Front/Rear balance control) To balance the volume from the F (front) and the R (rear)
speakers. BAL (Left/Right balance control) To balance the volume from the L (left) and the R (right)
speakers.NOTE
When set to “0”, it will beep.

The audio adjust mode will automatically shut off when
either the radio or CD is selected, or if no adjustment is
made within about 7 seconds.Mode
Adjusting operation
Clockwise
Counterclockwise
BASS Increase Decrease
TRE Increase Decrease
FA D EMore sound from the
rear speakers More sound from the
front speakers
BAL More sound from the
right speakers More sound from the
left speakers
BK0132701US.book 29 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-41
5

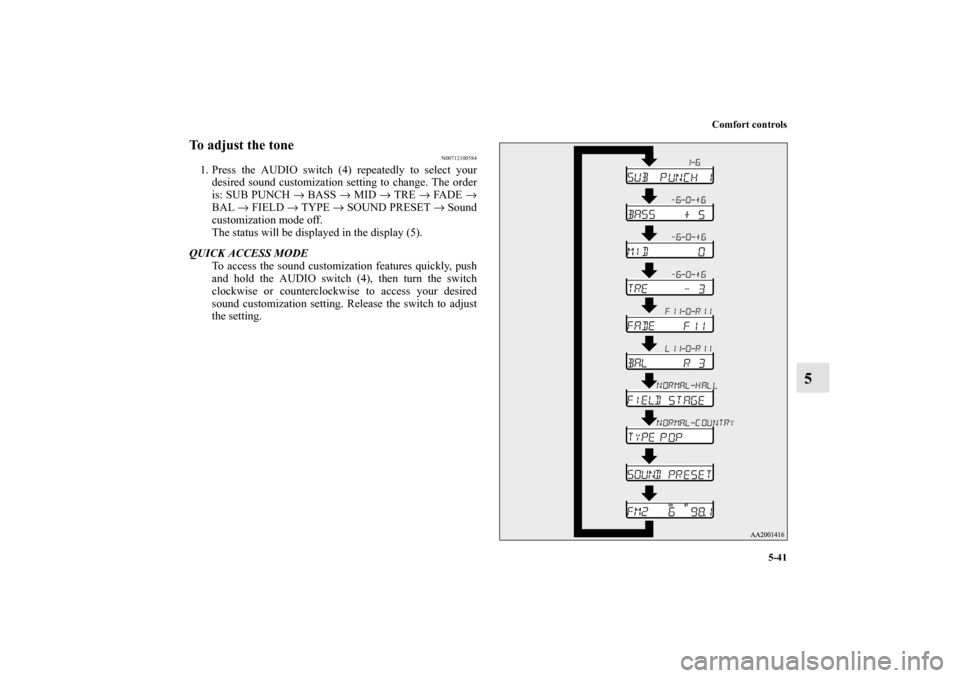

To adjust the tone
N00712100584
1. Press the AUDIO switch (4) repeatedly to select your
desired sound customization setting to change. The order
is: SUB PUNCH → BASS → MID → TRE → FADE →
BAL → FIELD → TYPE → SOUND PRESET → Sound
customization mode off.
The status will be displayed in the display (5).
QUICK ACCESS MODE
To access the sound customization features quickly, push
and hold the AUDIO switch (4), then turn the switch
clockwise or counterclockwise to access your desired
sound customization setting. Release the switch to adjust
the setting.
BK0132701US.book 41 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-44 Comfort controls
5

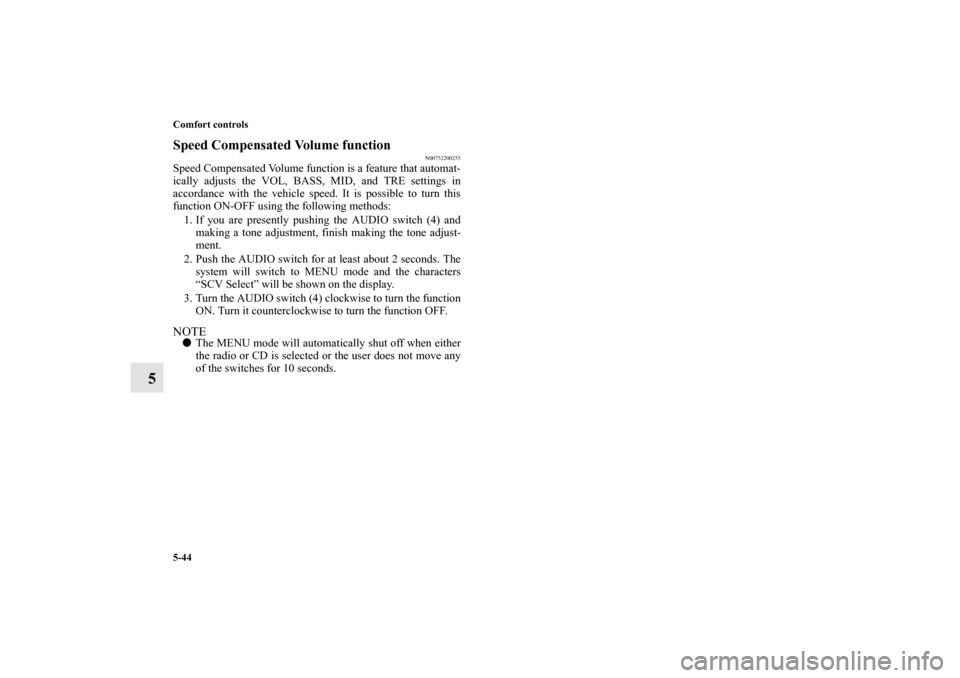

Speed Compensated Volume function
N00752200255
Speed Compensated Volume function is a feature that automat-
ically adjusts the VOL, BASS, MID, and TRE settings in
accordance with the vehicle speed. It is possible to turn this
function ON-OFF using the following methods:
1. If you are presently pushing the AUDIO switch (4) and
making a tone adjustment, finish making the tone adjust-
ment.
2. Push the AUDIO switch for at least about 2 seconds. The
system will switch to MENU mode and the characters
“SCV Select” will be shown on the display.
3. Turn the AUDIO switch (4) clockwise to turn the function
ON. Turn it counterclockwise to turn the function OFF.NOTE
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 10 seconds.
