2-10 Seat and restraint systems
2
For access to the rear seat (Passenger’s side only)
N00402400028
For rear seat passenger entry or exit, the front passenger seat
and seatback can be moved forward by either pulling up the
seat lock lever or depressing the lock release pedal behind the
seat. To return the seat, push the seatback backward until you
hear a “click” and the seat locks in position.
Heated seats
(if so equipped)
N00435600293
The heated seats can be operated when the ignition key is in the
“ON” position.
The indicator light (A) will illuminate while the heater is on.
WA R N I N G
!
To make sure that the seat is securely locked, try to
move it forward or backward without using the
adjusting lever. To reduce the risk of serious injury
or death in the event of an accident or sudden stop,
all seatbacks should be kept in the upright position
while the vehicle is in motion.
1- Heater high (for quick heating)
2- Heater off
3- Heater low (to keep the seat warm)
BK0132701US.book 10 ページ ２０１０年１２月６日　月曜日　午後２時３分

Seat and restraint systems
2-11

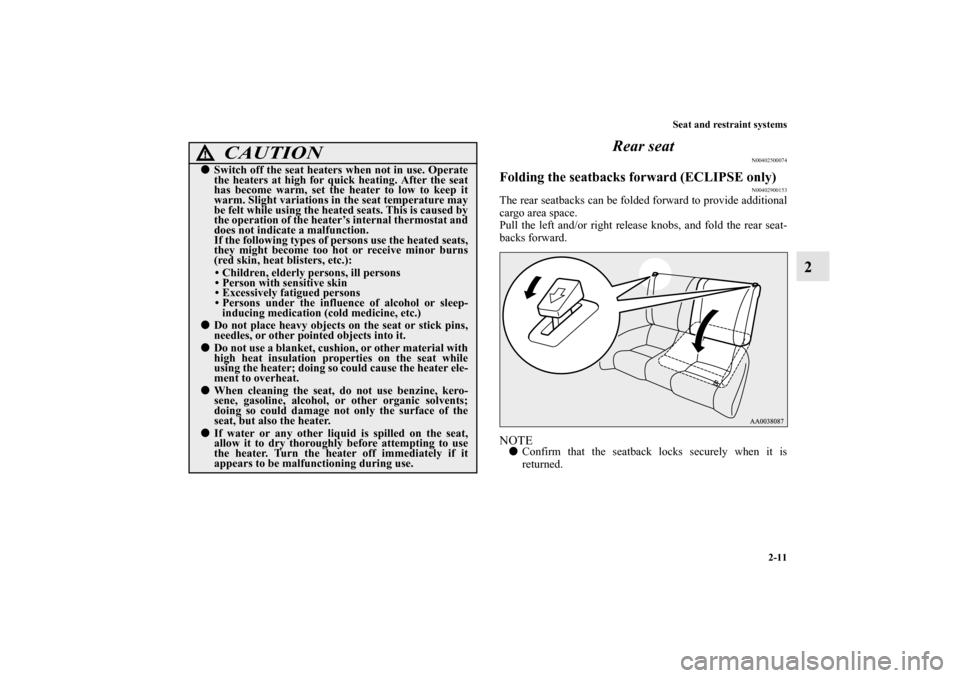

2 Rear seat
N00402500074
Folding the seatbacks forward (ECLIPSE only)
N00402900153
The rear seatbacks can be folded forward to provide additional
cargo area space.
Pull the left and/or right release knobs, and fold the rear seat-
backs forward.NOTE
Confirm that the seatback locks securely when it is
returned.
CAUTION
!
Switch off the seat heaters when not in use. Operate
the heaters at high for quick heating. After the seat
has become warm, set the heater to low to keep it
warm. Slight variations in the seat temperature may
be felt while using the heated seats. This is caused by
the operation of the heater’s internal thermostat and
does not indicate a malfunction.
If the following types of persons use the heated seats,
they might become too hot or receive minor burns
(red skin, heat blisters, etc.):
• Children, elderly persons, ill persons
• Person with sensitive skin
• Excessively fatigued persons
• Persons under the influence of alcohol or sleep-
inducing medication (cold medicine, etc.)

Do not place heavy objects on the seat or stick pins,
needles, or other pointed objects into it.
Do not use a blanket, cushion, or other material with
high heat insulation properties on the seat while
using the heater; doing so could cause the heater ele-
ment to overheat.
When cleaning the seat, do not use benzine, kero-
sene, gasoline, alcohol, or other organic solvents;
doing so could damage not only the surface of the
seat, but also the heater.
If water or any other liquid is spilled on the seat,
allow it to dry thoroughly before attempting to use
the heater. Turn the heater off immediately if it
appears to be malfunctioning during use.
BK0132701US.book 11 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-60 Features and controls
3
Heated mirror
(if so equipped)
N00549300146
When the rear window defogger switch is pressed, the outside
rearview mirrors are defogged or defrosted. Current will flow
through the heater element inside the mirrors, thus clearing
away frost or condensation.
The indicator light (C) will illuminate while the defogger is on.
The heater will be turned off automatically in about 17 min-
utes.
Ignition switch
N00512400631
LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion. ACCAllows operation of electrical accessories with the engine off. ON The engine runs and all accessories can be used.
CAUTION
!
Electric current will flow through the heating wires
on the rear window to help clear away moisture or
frost when the rear defogger switch is pressed.
When the top is completely lowered, keep the rear
window defogger turned off to avoid damage to the
top (ECLIPSE SPYDER only).
Manual transaxle Automatic transaxle
BK0132701US.book 60 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-109
3
Engine coolant temperature gauge
N00519700112
This gauge shows the engine coolant temperature. If the tem-
perature is low when the ignition key is turned to the “ON”
position, the indicator will remain at the “C” (cold) position
until the engine begins to warm up.
The indicator will normally stay near the center while driving,
but may rise slightly in stop-and-go traffic or when the engine
is under a heavy load.
Light dimmer control (meter illumination con-
trol)
N00552700030
The rheostat can be adjusted while the headlights or tail lights
are on.
Turn the dial to adjust the illumination (meter, multi center dis-
play, audio system’s control panel, heater control panel, etc.) to
the desired brightness.
CAUTION
!
Take care to keep the engine operating temperature
within the normal range while driving. If the indica-
tor enters the “H” (hot) position, the engine is over-
heating (Refer to “Engine overheating” on page 6-
6).
1- To reduce brightness
2- To increase brightness
BK0132701US.book 109 ページ ２０１０年１２月６日　月曜日　午後２時３分

4-8 Driving safety
4

Curb weight: the weight of a motor vehicle with standard
equipment including the maximum capacity of fuel, oil,
and coolant.

Accessory weight: the combined weight (in excess of
those standard items which may be replaced) of automatic
transmission, power steering, power brakes, power win-
dows, power seats, radio, and heater, to the extent that
these items are available as factory- installed equipment
(whether installed or not).

Vehicle capacity weight: the rated cargo and luggage load
plus 150 lbs (68 kg)* times the vehicle’s designated seat-
ing capacity.

Production options weight: the combined weight of those
installed regular production options weighing over 5 lbs
(2.3 kg) in excess of those standard items which they
replace, not previously considered in curb weight or
accessory weight, including heavy duty brakes, ride level-
ers, roof rack, heavy duty battery, and special trim.

Normal occupant weight: 150 lbs (68 kg)* times the num-
ber of specified occupants. (In your vehicle the number is
2)

Occupant distribution: distribution of occupants in a vehi-
cle as specified. (In your vehicle the distribution is 2 in
front seat)
Tire and loading information placard
N00630100354
The tire and loading information placard is located on the
driver’s door sill.
*: 150 lbs (68 kg) is the weight of one person as defined by
U.S.A. and Canadian regulations.A- All vehicles (Type A)
B- Vehicles sold in Canada (Type B)
BK0132701US.book 8 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-6 Comfort controls
5
Blower speed selection dial
N00736500087
When the ignition key is in the ON position, select the blower
speed by turning the blower speed selection dial. The blower
speed will gradually increase as the dial is turned to the right.
When the blower speed selection dial is set to the “OFF” posi-
tion, all fan-driven airflow will stop.
Temperature control dial
N00736600121
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler. NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

For instructions on how to use the “MAX A/C” position
(A), see “Cooling” on page 5-10.
BK0132701US.book 6 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-16 Comfort controls
5
Temperature control dial
N00737000164
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.
NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.
Ty p e 1
Ty p e 2
BK0132701US.book 16 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-72 Comfort controls
5

In the following circumstances, moisture can form on
compact discs and inside the audio system, preventing
normal operation.
• When there is high humidity (for example, when it is
raining).
• When the temperature suddenly rises, such as right after
the heater is turned on in cold weather.
In this case, wait until the moisture has had time to dry
out.

When the CD player is subjected to violent vibrations,
such as during off-road driving, the tracking may not
work.

When storing compact discs, always store them in their
separate cases. Never place compact discs in direct sun-
light, or in any place where the temperature or humidity is
high.

Never touch the flat surface of the disc where there isn’t a
label. This will damage the disc surface and could affect
the sound quality. When handling a compact disc, always
hold it by the outer edge and the center hole.
To clean a disc, use a soft, clean, dry cloth. Wipe directly
from the center hole toward the outer edge. Do not wipe in
a circle. Never use any chemicals such as benzine, paint
thinner, a disc spray cleaner, or an anti-static agent on the
disc.

Do not use a ball point pen, felt pen, pencil, etc. to write
on the label surface of the disc.
BK0132701US.book 72 ページ ２０１０年１２月６日　月曜日　午後２時３分

For emergencies
6-3
6
3. You could be injured if the vehicles move. Set the parking
brake firmly on each vehicle. Put an automatic transaxle
in “P” (PARK) or a manual transaxle in “N” (Neutral).
Turn the ignition key to the “LOCK” position. NOTE
Turn off all lights, heater, and other electrical loads. This
will avoid sparks and help save both batteries.
4. Make sure your battery electrolyte is at the proper level.
(Refer to “Battery” on page 7-16.)5. Connect one end of one jumper cable to the positive (+)
terminal of the discharged battery (A), and the other end
to the positive (+) terminal of the booster battery (B).
2.4 liter engine

WA R N I N G
!
Turn the ignition key to the “LOCK” position on
both vehicles. Make sure that the cables or your
clothes cannot be caught by the fan or drive belt.
Personal injury could result.
WA R N I N G
!
If the electrolyte fluid is not visible, or looks frozen,
DO NOT ATTEMPT JUMP STARTING!!
The battery might split open or explode if the tem-
perature is below the freezing point or if it is not
filled to the proper level.
BK0132701US.book 3 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-10 Vehicle care and maintenance
7Engine coolant
N00937800281
To check the coolant level The coolant reserve system provides a quick visual method for
determining the coolant level. When the engine is cold, the
level of the coolant in the reserve tank should be between the
“F” (FULL) and “L” (LOW) marks. The radiator normally
remains completely full so there is no need to remove the radi-
ator cap except for checking the coolant freeze point or replac-
ing the antifreeze coolant.To add coolant Use Mitsubishi Genuine Coolant or an equivalent.
Mitsubishi Genuine Coolant provides excellent protection
against corrosion and rust formation on all metals, including
aluminum, and prevents blockages in the radiator, heater, cyl-
inder head, engine block, etc.
If you need to add coolant often, or if the level in the reserve
tank does not drop when the engine cools, the cooling system
should be pressure-tested for leaks. Take your vehicle to an
authorized Mitsubishi Motors dealer or a repair facility of your
choice for testing.
CAUTION
!
Do not use alcohol or methanol antifreeze or any
engine coolants that contain them. Using the wrong
antifreeze can corrode aluminum parts.
When you need to add coolant to the reserve tank,
use at least a 50 % concentration of ethylene-glycol
antifreeze in water. Do not overfill. Use a higher con-
centration (not over 60 %) when the outside temper-
ature is -31 °F (-35 °C) or lower. When the engine is
working very hard (for example, during mountain
driving and/or when the outside temperature is
high), use a 50 % concentration. You can check the
concentration level with a gauge from an automotive
supply store, or your authorized Mitsubishi Motors
dealer or service station can check it for you. Use
only high quality ethylene-glycol antifreeze coolant
that is made to prevent corrosion of all cooling sys-
tem metals.
Do not top off the tank with plain water only. Water
by itself boils at a lower temperature and does not
stop rust or freezing. If the water freezes, it will
damage your cooling system. Do not use tapwater. It
can cause corrosion and rust.
BK0132701US.book 10 ページ ２０１０年１２月６日　月曜日　午後２時３分
