set clock MITSUBISHI ECLIPSE 2012 4.G Owners Manual

Features and controls
3-123
3
Digital clock
N00553100015
The time (A) is shown in the center of the display.Adjusting the timeSet the time by pressing the various buttons as described
below.NOTE
If the battery cables are disconnected or the battery
becomes discharged, the clock will have to be reset.
Outside temperature (type 1 only)
N00522300053
This value (A) shows the outside temperature of the vehicle.NOTE
The outside temperature can be displayed from -40°F
(-40°C) to 122°F (50°C).

When the outside temperature is over 122°F (50°C) or
below -40°F (-40°C), the display will remain 122°F
(50°C) or -40°F (-40°C).

The outside temperature displayed may differ from the
actual temperature on account of surrounding conditions,
driving conditions, etc.
H (HOUR)- Press and hold the “H” button until the correct
hour appears.
M (MINUTE)- Press and hold the “M” button until the correct
minute appears.
BK0132701US.book 123 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-6 Comfort controls
5
Blower speed selection dial
N00736500087
When the ignition key is in the ON position, select the blower
speed by turning the blower speed selection dial. The blower
speed will gradually increase as the dial is turned to the right.
When the blower speed selection dial is set to the “OFF” posi-
tion, all fan-driven airflow will stop.
Temperature control dial
N00736600121
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler. NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

For instructions on how to use the “MAX A/C” position
(A), see “Cooling” on page 5-10.
BK0132701US.book 6 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-9
5

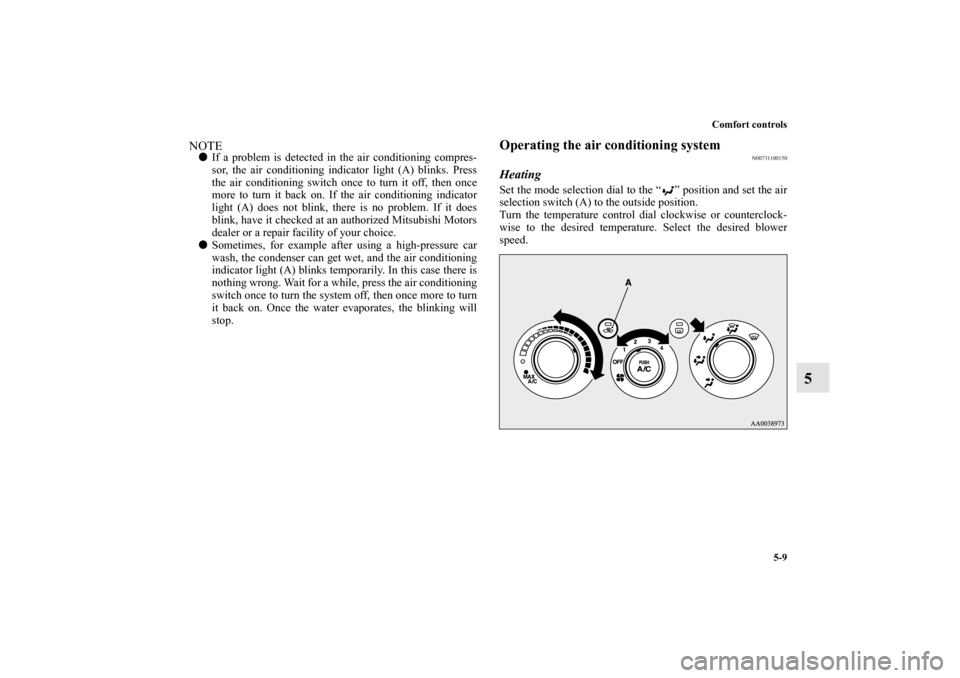

NOTE
If a problem is detected in the air conditioning compres-
sor, the air conditioning indicator light (A) blinks. Press
the air conditioning switch once to turn it off, then once
more to turn it back on. If the air conditioning indicator
light (A) does not blink, there is no problem. If it does
blink, have it checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice.

Sometimes, for example after using a high-pressure car
wash, the condenser can get wet, and the air conditioning
indicator light (A) blinks temporarily. In this case there is
nothing wrong. Wait for a while, press the air conditioning
switch once to turn the system off, then once more to turn
it back on. Once the water evaporates, the blinking will
stop.
Operating the air conditioning system
N00731100150
Heating Set the mode selection dial to the “ ” position and set the air
selection switch (A) to the outside position.
Turn the temperature control dial clockwise or counterclock-
wise to the desired temperature. Select the desired blower
speed.
BK0132701US.book 9 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-10 Comfort controls
5

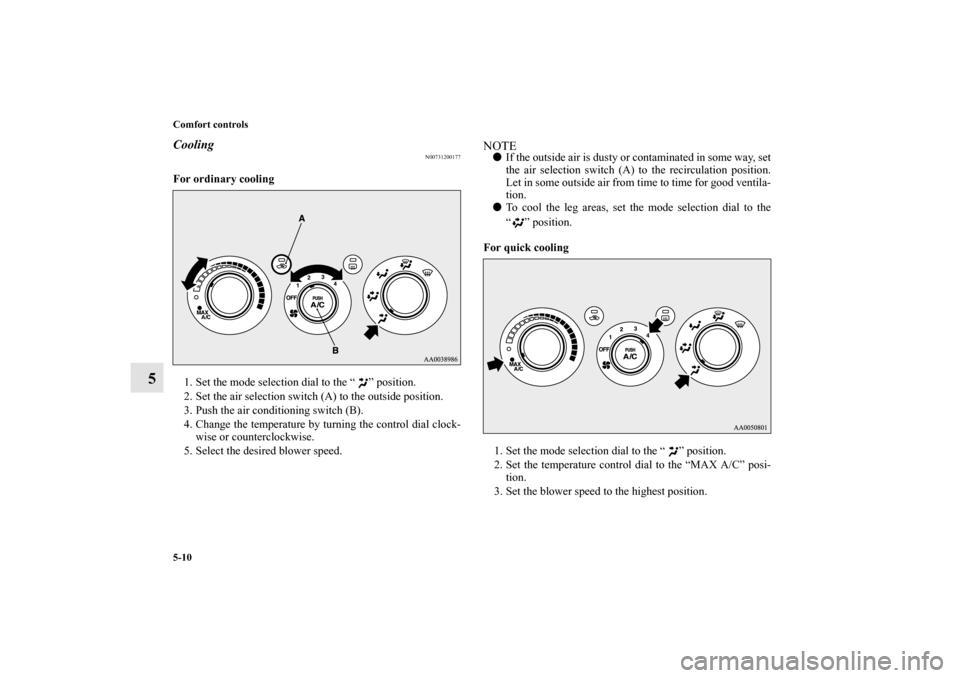

Cooling
N00731200177
For ordinary cooling

1. Set the mode selection dial to the “ ” position.
2. Set the air selection switch (A) to the outside position.
3. Push the air conditioning switch (B).
4. Change the temperature by turning the control dial clock-
wise or counterclockwise.
5. Select the desired blower speed.
NOTE
If the outside air is dusty or contaminated in some way, set
the air selection switch (A) to the recirculation position.
Let in some outside air from time to time for good ventila-
tion.

To cool the leg areas, set the mode selection dial to the
“ ” position.
For quick cooling

1. Set the mode selection dial to the “ ” position.
2. Set the temperature control dial to the “MAX A/C” posi-
tion.
3. Set the blower speed to the highest position.
BK0132701US.book 10 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-29
5
2. Turn the AUDIO switch (3) either clockwise or counter-
clockwise to change the tone/balance setting.BASS (Bass tone control) To select the desired bass level. TRE (Treble tone control) To select the desired treble level. FADE (Front/Rear balance control) To balance the volume from the F (front) and the R (rear)
speakers. BAL (Left/Right balance control) To balance the volume from the L (left) and the R (right)
speakers.NOTE
When set to “0”, it will beep.

The audio adjust mode will automatically shut off when
either the radio or CD is selected, or if no adjustment is
made within about 7 seconds.Mode
Adjusting operation
Clockwise
Counterclockwise
BASS Increase Decrease
TRE Increase Decrease
FA D EMore sound from the
rear speakers More sound from the
front speakers
BAL More sound from the
right speakers More sound from the
left speakers
BK0132701US.book 29 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-41
5
To adjust the tone
N00712100584
1. Press the AUDIO switch (4) repeatedly to select your
desired sound customization setting to change. The order
is: SUB PUNCH → BASS → MID → TRE → FADE →
BAL → FIELD → TYPE → SOUND PRESET → Sound
customization mode off.
The status will be displayed in the display (5).
QUICK ACCESS MODE
To access the sound customization features quickly, push
and hold the AUDIO switch (4), then turn the switch
clockwise or counterclockwise to access your desired
sound customization setting. Release the switch to adjust
the setting.
BK0132701US.book 41 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-42 Comfort controls
5
2. Turn the AUDIO switch (4) either clockwise or counter-
clockwise to adjust the sound customization features.SUB PUNCH (Subwoofer tone control) To select the desired subwoofer PUNCH level. BASS (Bass tone control) To select the desired bass level. MID (Midrange tone control) To select the desired midrange level.
TRE (Treble tone control) To select the desired treble level. FADE (Front/Rear balance control) To balance the volume from the F (front) and the R (rear)
speakers. BAL (Left/Right balance control) To balance the volume from the L (left) and the R (right)
speakers.FIELD (Sound field type select)To select the desired sound field.
Mode
Adjusting operation
Clockwise
Counterclockwise
SUB PUNCH Increase Decrease
BASS Increase Decrease
MID Increase Decrease
TRE Increase Decrease
FA D EMore sound from
the rear speakers More sound from
the front speakers
BAL More sound from
the right speakers More sound from
the left speakers
FIELD NORMAL →
STAGE → LIVE →
HALLHALL → LIVE→
STAGE → NOR-
MAL
TYPENORMAL → POP
→ ROCK → HIP-
HOP → COUNTRYCOUNTRY→ HIP-
HOP → ROCK →
POP → NORMAL
SOUND PRESET — —
Sound field type
Description
NORMALOptimized for the Rockford Fosgate high
bass output.
STAGEPlaces the image of a sound stage in front of
the driver with the vocalist in the center (for
driver only).
LIVEFront seat occupants are surrounded by
sound from front and rear speakers.
HALLPlaces the image of a sound stage in front of
the driver with the vocalist in the center (for
driver only). Sound reflections are added to
the rear speakers to simulate the experience
of being at a concert hall. Best with classical
or vocalist music.
BK0132701US.book 42 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-44 Comfort controls
5
Speed Compensated Volume function
N00752200255
Speed Compensated Volume function is a feature that automat-
ically adjusts the VOL, BASS, MID, and TRE settings in
accordance with the vehicle speed. It is possible to turn this
function ON-OFF using the following methods:
1. If you are presently pushing the AUDIO switch (4) and
making a tone adjustment, finish making the tone adjust-
ment.
2. Push the AUDIO switch for at least about 2 seconds. The
system will switch to MENU mode and the characters
“SCV Select” will be shown on the display.
3. Turn the AUDIO switch (4) clockwise to turn the function
ON. Turn it counterclockwise to turn the function OFF.NOTE
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 10 seconds.
BK0132701US.book 44 ページ ２０１０年１２月６日　月曜日　午後２時３分
