start stop button MITSUBISHI ECLIPSE 2012 4.G Owners Manual

Features and controls
3-141
3

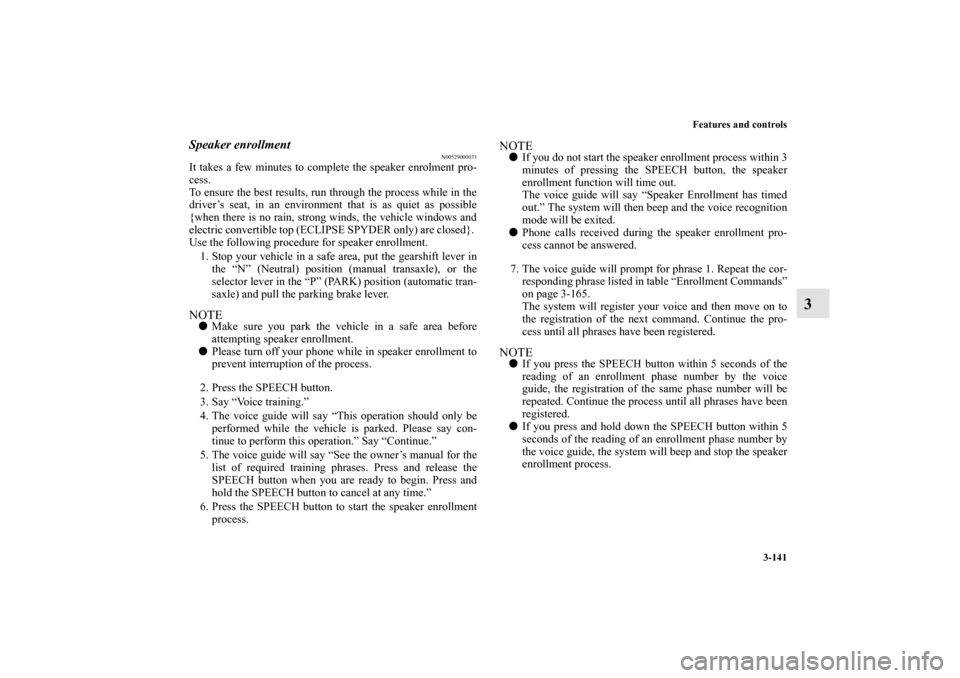

Speaker enrollment
N00529000033
It takes a few minutes to complete the speaker enrolment pro-
cess.
To ensure the best results, run through the process while in the
driver’s seat, in an environment that is as quiet as possible
{when there is no rain, strong winds, the vehicle windows and
electric convertible top (ECLIPSE SPYDER only) are closed}.
Use the following procedure for speaker enrollment.
1. Stop your vehicle in a safe area, put the gearshift lever in
the “N” (Neutral) position (manual transaxle), or the
selector lever in the “P” (PARK) position (automatic tran-
saxle) and pull the parking brake lever.NOTE
Make sure you park the vehicle in a safe area before
attempting speaker enrollment.

Please turn off your phone while in speaker enrollment to
prevent interruption of the process.
2. Press the SPEECH button.
3. Say “Voice training.”
4. The voice guide will say “This operation should only be
performed while the vehicle is parked. Please say con-
tinue to perform this operation.” Say “Continue.”
5. The voice guide will say “See the owner’s manual for the
list of required training phrases. Press and release the
SPEECH button when you are ready to begin. Press and
hold the SPEECH button to cancel at any time.”
6. Press the SPEECH button to start the speaker enrollment
process.
NOTE
If you do not start the speaker enrollment process within 3
minutes of pressing the SPEECH button, the speaker
enrollment function will time out.
The voice guide will say “Speaker Enrollment has timed
out.” The system will then beep and the voice recognition
mode will be exited.

Phone calls received during the speaker enrollment pro-
cess cannot be answered.
7. The voice guide will prompt for phrase 1. Repeat the cor-
responding phrase listed in table “Enrollment Commands”
on page 3-165.
The system will register your voice and then move on to
the registration of the next command. Continue the pro-
cess until all phrases have been registered.NOTE
If you press the SPEECH button within 5 seconds of the
reading of an enrollment phase number by the voice
guide, the registration of the same phase number will be
repeated. Continue the process until all phrases have been
registered.

If you press and hold down the SPEECH button within 5
seconds of the reading of an enrollment phase number by
the voice guide, the system will beep and stop the speaker
enrollment process.
BK0132701US.book 141 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-33
5

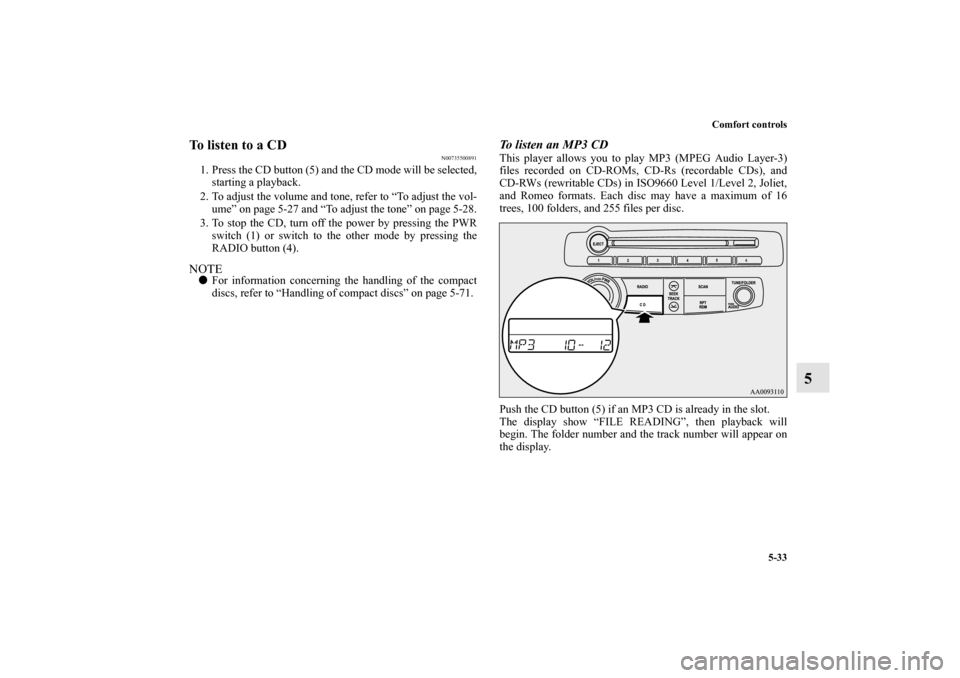

To listen to a CD
N00735500891
1. Press the CD button (5) and the CD mode will be selected,
starting a playback.
2. To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-27 and “To adjust the tone” on page 5-28.
3. To stop the CD, turn off the power by pressing the PWR
switch (1) or switch to the other mode by pressing the
RADIO button (4).NOTE
For information concerning the handling of the compact
discs, refer to “Handling of compact discs” on page 5-71.
To listen an MP3 CDThis player allows you to play MP3 (MPEG Audio Layer-3)
files recorded on CD-ROMs, CD-Rs (recordable CDs), and
CD-RWs (rewritable CDs) in ISO9660 Level 1/Level 2, Joliet,
and Romeo formats. Each disc may have a maximum of 16
trees, 100 folders, and 255 files per disc.
Push the CD button (5) if an MP3 CD is already in the slot.
The display show “FILE READING”, then playback will
begin. The folder number and the track number will appear on
the display.
BK0132701US.book 33 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-38 Comfort controls
5

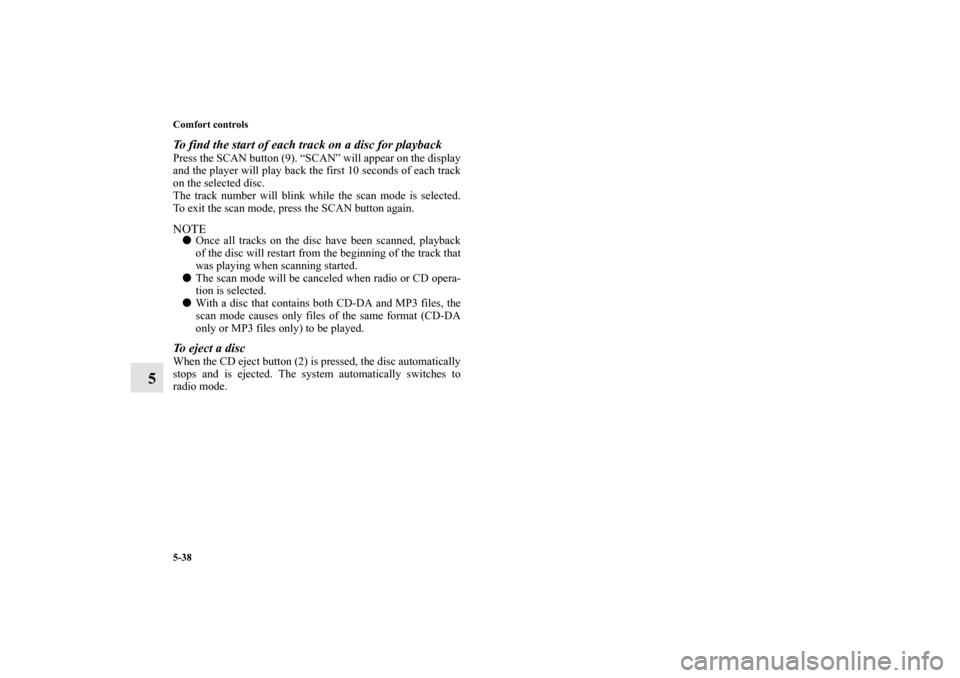

To find the start of each track on a disc for playbackPress the SCAN button (9). “SCAN” will appear on the display
and the player will play back the first 10 seconds of each track
on the selected disc.
The track number will blink while the scan mode is selected.
To exit the scan mode, press the SCAN button again.NOTE
Once all tracks on the disc have been scanned, playback
of the disc will restart from the beginning of the track that
was playing when scanning started.

The scan mode will be canceled when radio or CD opera-
tion is selected.

With a disc that contains both CD-DA and MP3 files, the
scan mode causes only files of the same format (CD-DA
only or MP3 files only) to be played.To eject a discWhen the CD eject button (2) is pressed, the disc automatically
stops and is ejected. The system automatically switches to
radio mode.BK0132701US.book 38 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-57
5

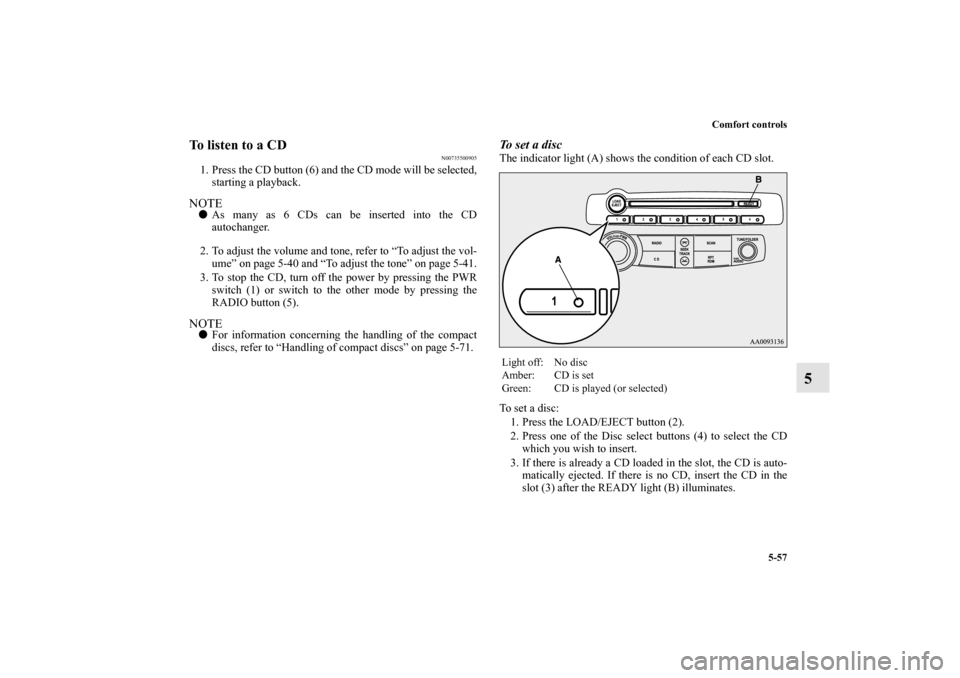

To listen to a CD
N00735500905
1. Press the CD button (6) and the CD mode will be selected,
starting a playback.NOTE
As many as 6 CDs can be inserted into the CD
autochanger.
2. To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-40 and “To adjust the tone” on page 5-41.
3. To stop the CD, turn off the power by pressing the PWR
switch (1) or switch to the other mode by pressing the
RADIO button (5).NOTE
For information concerning the handling of the compact
discs, refer to “Handling of compact discs” on page 5-71.
To s e t a d i s cThe indicator light (A) shows the condition of each CD slot.
To set a disc:
1. Press the LOAD/EJECT button (2).
2. Press one of the Disc select buttons (4) to select the CD
which you wish to insert.
3. If there is already a CD loaded in the slot, the CD is auto-
matically ejected. If there is no CD, insert the CD in the
slot (3) after the READY light (B) illuminates.Light off: No disc
Amber: CD is set
Green: CD is played (or selected)
BK0132701US.book 57 ページ ２０１０年１２月６日　月曜日　午後２時３分
