Quick index
3
Selector lever position indicator in the instru-
ment cluster flashes slowly
(once per second) (if so equipped)
Have the automatic transaxle checked at an authorized Mitsubishi
Motors dealer or a repair facility of your choice as soon as possible.P. 3 - 7 4
and
or
and
ASC indicator and
ASC OFF indicator
Park your vehicle in a safe place and turn off the engine.
Restart the engine and check to see if the indicator comes on again.

If the indicator does not go out, or if it comes on again, have your
vehicle inspected at an authorized Mitsubishi Motors dealer or a
repair facility of your choice as soon as possible.

When this indicator comes on, the active stability control is not func-
tioning and normal operation of the vehicle will not be affected.P. 3 - 8 7
Tire pressure monitoring system warning light
If the warning light comes on, you should stop and adjust the tires to
the proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-23.)
Once adjustments have been made, the warning light will go off after
a few minutes of driving.

If the warning light blinks for approximately 1 minute and then
remains continuously illuminated, the system is not operating prop-
erly. If the system returns to normal, the warning light will go off. If
the warning light does not go off, have the vehicle inspected at an
authorized Mitsubishi Motors dealer.P. 3 - 9 7
Warning light
Do this
Ref. page
BK0132701US.book 3 ページ ２０１０年１２月６日　月曜日　午後２時３分

Quick index
5
Metallic squeal when you press the
brake pedal while driving.“Brake pad wear alarm”
The brake pads are worn down to the serviceable limit.
Have the brake pads replaced at an authorized Mitsubishi Motors dealer or a
repair facility of your choice.P.3-80
Tone when the ignition key is turned to
the “ON” position.“Seat belt reminder buzzer”
When the ignition key is turned to the “ON” position, the tone will sound for
about 6 seconds. If the driver’s seat belt remains unfastened 1 minute later, the
tone will sound intermittently (12 times) when the vehicle is driven. If the
driver’s seat belt subsequently remains unfastened while the vehicle is being
driven, the tone will sound as a warning each time the vehicle stops and starts.
When the driver’s seat belt is fastened, the tone will stop.P.2-18
Tone when the vehicle is moving at
more than 5 mph (8 km/h).“Door-ajar warning buzzer”
Door or rear hatch (ECLIPSE) is not properly shut.
If you shut the door or rear hatch (ECLIPSE), the tone will stop.P. 3 - 1 1 4
When the headlights have flashed for
three minutes, the horn will sound inter-
mittently for three minutes.“Theft-alarm system”
The theft-alarm system is operating. To stop the alarm, use the keyless-entry
transmitter to lock or unlock the doors or rear hatch (ECLIPSE) or the trunk
lid (ECLIPSE SPYDER).
Alternatively, turn the ignition key to the “ON” position.P.3-22
Sound
Do this
Ref. page
BK0132701US.book 5 ページ ２０１０年１２月６日　月曜日　午後２時３分

2-18 Seat and restraint systems
2
Driver’s seat belt reminder/warning light
N00418400137
A tone and warning light are used to remind the driver to fasten
the seat belt.
When the ignition key is turned to the “ON” position, the warn-
ing light will come on and a tone will sound for about 6 sec-
onds. If the driver’s seat belt remains unfastened
approximately 1 minute later, the warning light will flash and
the tone will sound intermittently (12 times each) when the
vehicle is driven. If the driver subsequently unfastens the seat
belt while driving, the warning light and tone will issue further
warnings. And if the seat belt remains unfastened, the warning
light and tone will issue further warnings each time the vehicle
starts moving from a stop. When the seat belt is fastened, the
warnings will stop.
WA R N I N G
!
In order to reduce the risk of serious injury or death
in an accident, always wear your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and wearing a seat belt. Children
should additionally be restrained in a secure child
restraint system.
BK0132701US.book 18 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-33
3
To p s w i t c h e s
N00505100030
The top can be opened and closed using the switches. The top
moves only while a switch is being pushed.NOTE
If the OPEN switch and CLOSE switch are both pushed at
the same time, the operation indicator lamp will flash
slowly (approximately one flashes per second) and a tone
will sound intermittently and rapidly (approximately three
per second) to indicate that the top is not going to work.
To operate the top, release the switches and push the rele-
vant switch again.
If the switches are continuously pushed one after the
other, a protection circuit may operate, making the electric
convertible top temporarily inoperable. In this event, the
operation indicator lamp will flash slowly (approximately
one flash per second) and a tone will sound intermittently
(approximately three times per second). Wait about 7 min-
utes, then try operating the electric convertible top again.
To open the top
N00505200031
1. Without obstructing traffic, stop the vehicle on a level,
firm surface where the top can be safely operated.
2. Securely apply the parking brake. If the vehicle has an
automatic transaxle, place the selector lever in the “P”
(PARK) position. If the vehicle has a manual transaxle,
place the gearshift lever in the “N” (Neutral) position.NOTE
The top can be operated with the selector lever of an auto-
matic transaxle in a position other than “P” (PARK) and
with the gearshift lever of a manual transaxle in a position
other than “N” (Neutral). For safety, however, you should
place the selector lever or gearshift lever (as relevant) in
the indicated position and apply the parking brake.
3. Start the engine.NOTE
Operating the top without the engine running can drain the
battery. To avoid a dead battery, operate the top with the
engine running.
4. Pull down both sun visors.
1- OPEN switch
2- CLOSE switch
3- Operation indicator lamp
12
3
BK0132701US.book 33 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-36 Features and controls
3
NOTE
During operation of the top, if the switch is released
before the top has fully closed or retracted, the top will
stop moving and the operation indicator lamp will flash
slowly (approximately one flash per second).

If operation of the top is stopped for more than 4 minutes
before it has fully closed or retracted, the top (depending
on its location) will slowly move toward the closed or
retracted position. During this time, the operation indica-
tor lamp will flash rapidly (approximately two flashes per
second) and the top switch will be inoperable. When the
operation indicator lamp stops flashing (approximately 2
minutes later), the top switch will again become operable.

The operation indicator lamp is illuminated while the top
is moving.

When the OPEN switch is pushed, the door windows and
quarter windows automatically open fully before the top
starts moving.

If the CLOSE switch is pushed when the top is fully
closed, the operation indicator lamp flashes slowly
(approximately one flash per second) and a tone sounds
intermittently and rapidly (approximately three times per
second) to indicate that the top is not going to move.
To close the top
N00505300045
1. When you push the CLOSE switch, a tone will sound and
the top will start to operate. Keep pressing the CLOSE
switch until the top is fully closed. Refer to “Top
switches” on page 3-33.NOTE
When the top reaches the fully closed position, a tone
sounds once and the operation indicator lamp goes off to
show that the operation is complete.
WA R N I N G
!
To avoid injury, keep hands and head away from the
top while it is operating.
To prevent uncontrolled movement of the top,
always keep the vehicle engine running when oper-
ating the top.
BK0132701US.book 36 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-37
3
NOTE
During operation of the top, if the switch is released
before the top has fully closed or retracted, the top will
stop moving and the operation indicator lamp will flash
slowly (approximately one flash per second).

If operation of the top is stopped for more than 4 minutes
before it has fully closed or retracted, the top (depending
on its location) will slowly move toward the closed or
retracted position. During this time, the operation indica-
tor lamp will flash rapidly (approximately two flashes per
second) and the top switch will be inoperable. When the
operation indicator lamp stops flashing (approximately 2
minutes later), the top switch will again become operable.

The operation indicator lamp is illuminated while the top
is moving.

When the CLOSE switch is pushed, the door windows
and quarter windows automatically open fully before the
top starts moving.

If the OPEN switch is pushed when the top is fully open,
the operation indicator lamp flashes slowly (approxi-
mately one flash per second) and a tone sounds intermit-
tently and rapidly (approximately three times per second)
to indicate that the top is not going to move.
WA R N I N G
!
To avoid injury, keep hands and head away from the
top while it is operating.
To prevent uncontrolled movement of the top,
always keep the vehicle engine running when oper-
ating the top.
BK0132701US.book 37 ページ ２０１０年１２月６日　月曜日　午後２時３分

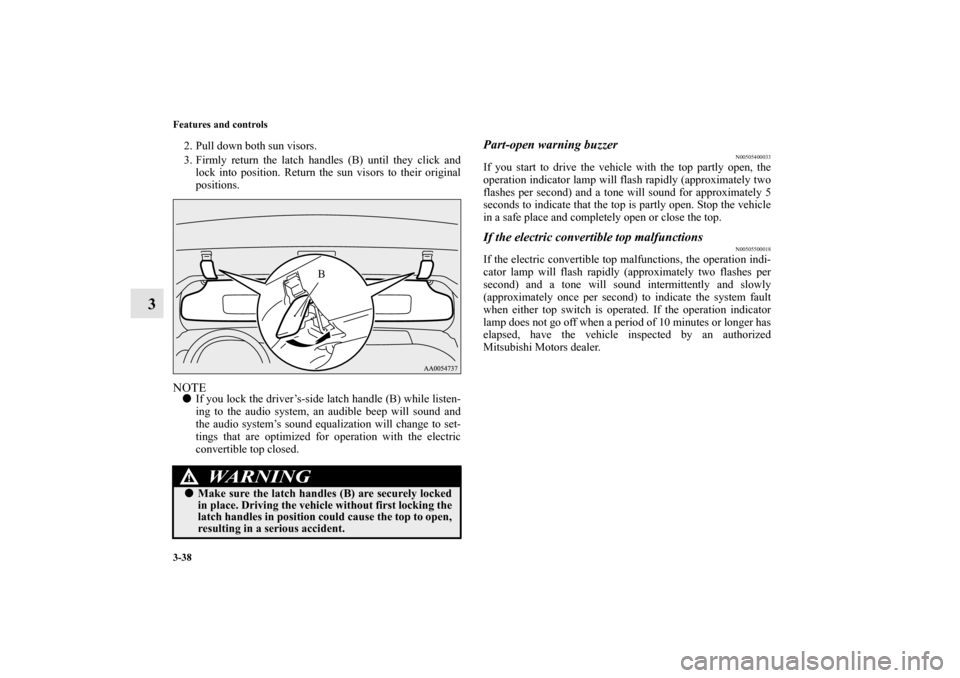

3-38 Features and controls
3
2. Pull down both sun visors.
3. Firmly return the latch handles (B) until they click and
lock into position. Return the sun visors to their original
positions.NOTE
If you lock the driver’s-side latch handle (B) while listen-
ing to the audio system, an audible beep will sound and
the audio system’s sound equalization will change to set-
tings that are optimized for operation with the electric
convertible top closed.
Part-open warning buzzer
N00505400033
If you start to drive the vehicle with the top partly open, the
operation indicator lamp will flash rapidly (approximately two
flashes per second) and a tone will sound for approximately 5
seconds to indicate that the top is partly open. Stop the vehicle
in a safe place and completely open or close the top.If the electric convertible top malfunctions
N00505500018
If the electric convertible top malfunctions, the operation indi-
cator lamp will flash rapidly (approximately two flashes per
second) and a tone will sound intermittently and slowly
(approximately once per second) to indicate the system fault
when either top switch is operated. If the operation indicator
lamp does not go off when a period of 10 minutes or longer has
elapsed, have the vehicle inspected by an authorized
Mitsubishi Motors dealer.
WA R N I N G
!
Make sure the latch handles (B) are securely locked
in place. Driving the vehicle without first locking the
latch handles in position could cause the top to open,
resulting in a serious accident.
B
BK0132701US.book 38 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-62 Features and controls
3
For vehicles with an automatic transaxle, when removing the
key, first set the selector lever to the “P” (PARK) position, and
then turn the key to the “LOCK” position and remove it.NOTE
For vehicles with an automatic transaxle, the key cannot
be removed unless the selector lever is set in the “P”
(PARK) position.
Key reminder buzzer
N00551000049
If the driver’s door is opened while the ignition key is in the
“LOCK” or “ACC” position, a tone will sound.
Automatic transaxle
CAUTION
!
Do not remove the ignition key from the ignition
switch while driving. The steering wheel will lock,
causing loss of control.
If the engine is turned off while driving, the power
brake booster will stop functioning and braking effi-
ciency will be reduced. Also, the power steering sys-
tem will not function and it will require greater
effort to manually steer the vehicle.
Do not leave the key in the “ON” position for a long
time when the engine is not running. This will cause
the battery to run down.
Do not turn the key to the “START” position when
the engine is running. It will damage the starter
motor.
BK0132701US.book 62 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-75
3
Selector lever positions (Main gate)
N00514200183
“P” PARKThis position locks the transaxle to prevent the vehicle from
moving. The engine can be started from the “PARK” position.“R” REVERSEMove the lever to this position only after the vehicle has come
to a complete stop.
“N” NEUTRALAt this position, the transaxle is disengaged. It is the same as
the neutral position on a manual transaxle and should be used
when the vehicle is not moving for an extended length of time
during driving, such as in a traffic jam.
CAUTION
!
Never shift into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion.
If the lever is shifted into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion,
the transaxle may be damaged.
WA R N I N G
!
Never move the selector lever to the “N” (NEU-
TRAL) position while driving since you could acci-
dentally slip it into the “P” (PARK) or
“R”(REVERSE) position, damaging the transaxle.
To prevent the vehicle from rolling when stopped on
a slope, the engine should be started in the “P”
(PARK) position, not in “N” (NEUTRAL) position.
Always keep your foot on the brake pedal when the
vehicle is in “N” (NEUTRAL) position, or when
shifting into or out of “N” (NEUTRAL) position, to
prevent rolling.
BK0132701US.book 75 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-79
3
Parking
N00515100017
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.When the automatic transaxle makes no speed change
N00515300064
If the transaxle does not change gears while driving, or your
vehicle does not pick up enough speed when starting on an
uphill slope, it may be that there is something unusual happen-
ing in the transaxle, causing a safety device to activate. Have
your vehicle checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.
1. If your vehicle has difficulty moving uphill, shift the
selector lever into 2nd gear of the sports mode.
This method might not work depending on the type of
transaxle malfunction.
2. Once the vehicle is moving on a level road, move the
selector lever back to “D” (DRIVE) position.NOTE
When the selector lever position indicator in the instru-
ment cluster flashes, it means that there is an abnormal
condition in the transaxle. Refer to “Selector lever posi-
tion indicator” on page 3-73.
Service brake
N00517500187
Brake pedalOveruse of the brake can cause poor brake response and pre-
mature wear of the brake pads.
When driving down a long or steep hill, use engine braking by
shifting the transaxle into a lower gear (manual transaxle) or a
lower gear of the sports mode (automatic transaxle).
WA R N I N G
!
Do not leave any objects near the brake pedal or let
a floor mat slide under it; doing so could prevent the
full pedal stroke that would be necessary in an emer-
gency. Make sure that the pedal can be operated
freely at all times. Make sure the floor mat is
securely held in place.
CAUTION
!
It is important not to drive the vehicle with your foot
resting on the brake pedal when braking is not
required. This practice can result in very high brake
temperatures, premature pad wear, and possible
damage to the brakes.
BK0132701US.book 79 ページ ２０１０年１２月６日　月曜日　午後２時３分
