Features and controls
3-111
3 Indicator
N00519900042
Turn signal indicators/Hazard warning lights
N00520000173
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed. NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100060
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200218
This indicator comes on while the front fog lights are on.
Warning lights
N00520300062
Brake warning light
N00520400210
This light comes on when the ignition key is turned to the
“ON” position (engine off).
When the engine is started, the light should go off.
The light will illuminate under the following conditions:

When the parking brake lever is engaged.

When the brake fluid level in the reservoir falls to a low
level.

When the brake circuit is not operating correctly.
Before driving your vehicle, release the parking brake and
make certain that the brake warning light has gone out.
CAUTION
!
Brake performance or your ability to control the
vehicle may be compromised or the vehicle may
become unstable if the brakes are applied suddenly
in the following situations:
• The brake warning light does not illuminate when
the parking brake is applied or does not turn off
when the parking brake is released.
• The brake warning light remains illuminated dur-
ing driving.
• If any of the above situations occur, stop the vehi-
cle in a safe location, avoiding any sudden brake
application, contact and your nearest authorized
Mitsubishi Motors dealer or a repair facility of
your choice.
BK0132701US.book 111 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-130 Features and controls
3
NOTE
A light in the instrument panel flashes to show when the
front and rear turn signal lights are working properly.
If this light flashes faster than usual, check for a burned
out lamp bulb or malfunctioning connection.
If the panel light does not come on when the lever is
moved, check for a blown fuse or a burned out bulb in the
panel.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Hazard warning flasher switch
N00522700246
If you press the flasher switch, the front and rear turn signals
will flash intermittently, and so will the hazard warning lights.
This is an emergency warning system and should not be used
when the vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the ignition key is removed. NOTE
If you keep the flashers on for several hours with the
engine turned off, the battery will run down.
BK0132701US.book 130 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-48 Vehicle care and maintenance
7
Outside (front)
N00900900040
Vehicles with high intensity discharge headlights
Except for vehicles with high intensity discharge headlights

Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
1- Headlight 35 W D1S
2-Parking and side-marker
light1.5 cp 194NA
3- Front turn signal light 27/7 W 3757AK
4- Front fog light 45 W H10
Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
5- Headlight 60/55 W H13
6-Front turn signal, parking
and side-marker light30/2.2 cp 3457AK
7-Front fog light
(if so equipped)45 W H10
BK0132701US.book 48 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-49
7

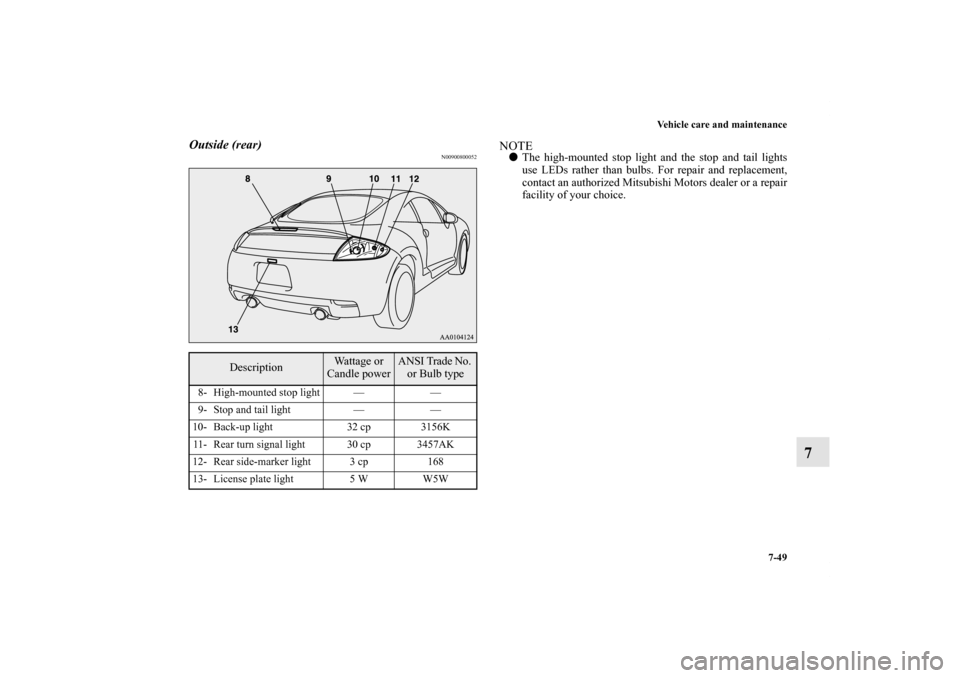

Outside (rear)
N00900800052
NOTE
The high-mounted stop light and the stop and tail lights
use LEDs rather than bulbs. For repair and replacement,
contact an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
8- High-mounted stop light — —
9- Stop and tail light — —
10- Back-up light 32 cp 3156K
11- Rear turn signal light 30 cp 3457AK
12- Rear side-marker light 3 cp 168
13- License plate light 5 W W5W
BK0132701US.book 49 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-55
7

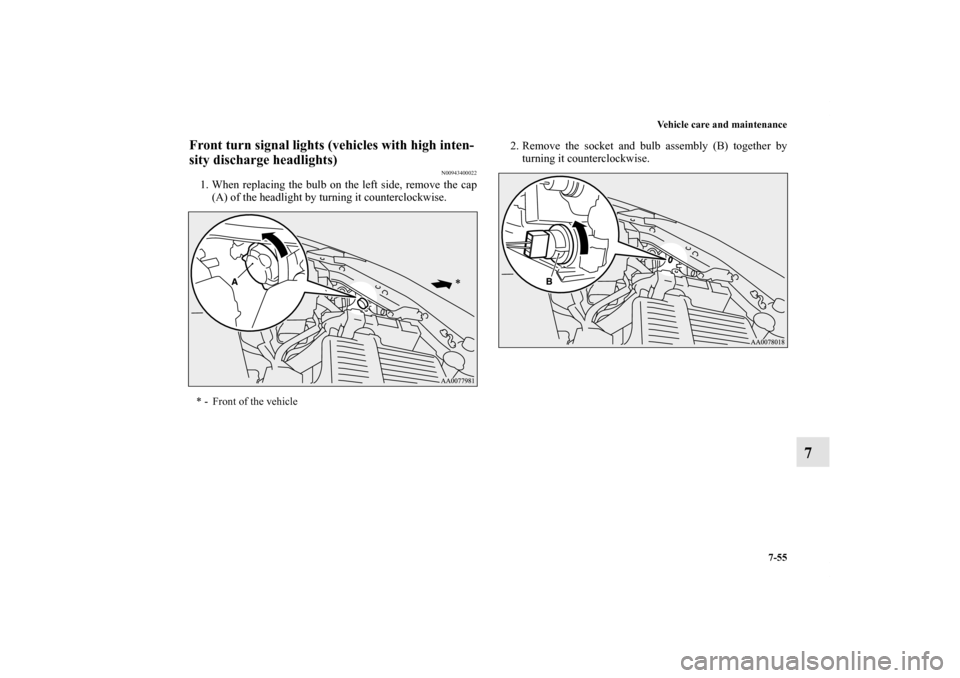

Front turn signal lights (vehicles with high inten-
sity discharge headlights)
N00943400022
1. When replacing the bulb on the left side, remove the cap
(A) of the headlight by turning it counterclockwise.2. Remove the socket and bulb assembly (B) together by
turning it counterclockwise.* - Front of the vehicle
BK0132701US.book 55 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-56 Vehicle care and maintenance
7

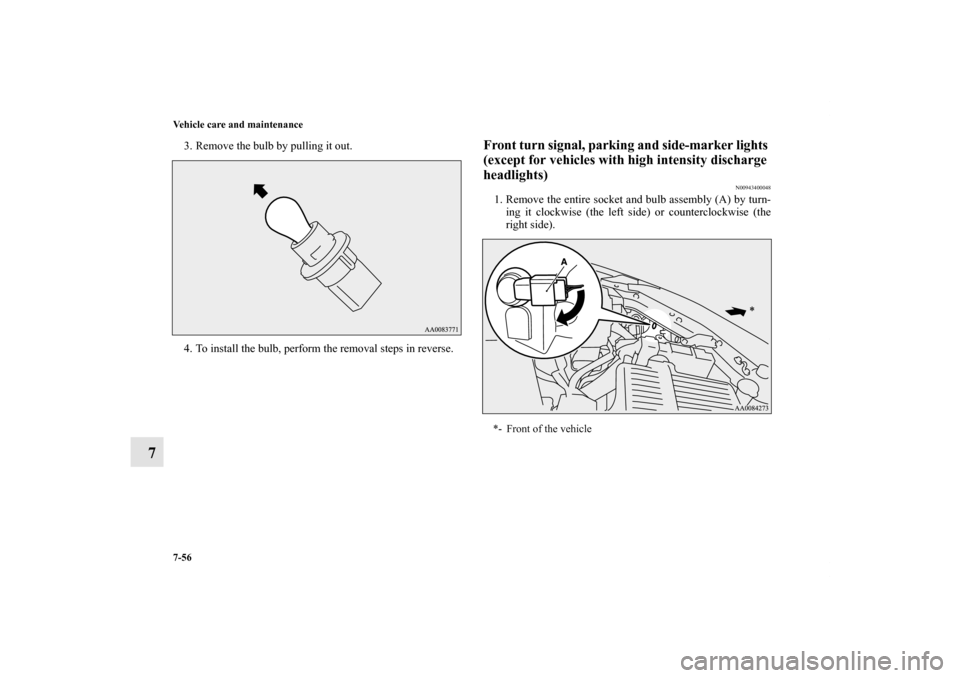

3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Front turn signal, parking and side-marker lights
(except for vehicles with high intensity discharge
headlights)
N00943400048
1. Remove the entire socket and bulb assembly (A) by turn-
ing it clockwise (the left side) or counterclockwise (the
right side).*- Front of the vehicle
BK0132701US.book 56 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-61
7
4. Insert the tip of the screwdriver at the edge of the light
unit, pry gently to remove the light unit.
Then move the light unit toward the rear of the vehicle
and remove the clip (F).NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.5. Remove the socket and bulb assemblies by turning them
counterclockwise.
Remove the bulb by pulling it out.
G- Back-up light
H- Rear turn signal light
I- Rear side-marker light
BK0132701US.book 61 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-65
7
5. Insert the tip of the screwdriver at the edge of the light
unit, pry gently to remove the light unit.
Then move the light unit toward the rear of the vehicle
and remove the clip (F).NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.6. Remove the socket and bulb assemblies by turning them
counterclockwise.
Remove the bulb by pulling it out.
G- Back-up light
H- Rear turn signal light
I- Rear side-marker light
BK0132701US.book 65 ページ ２０１０年１２月６日　月曜日　午後２時３分
