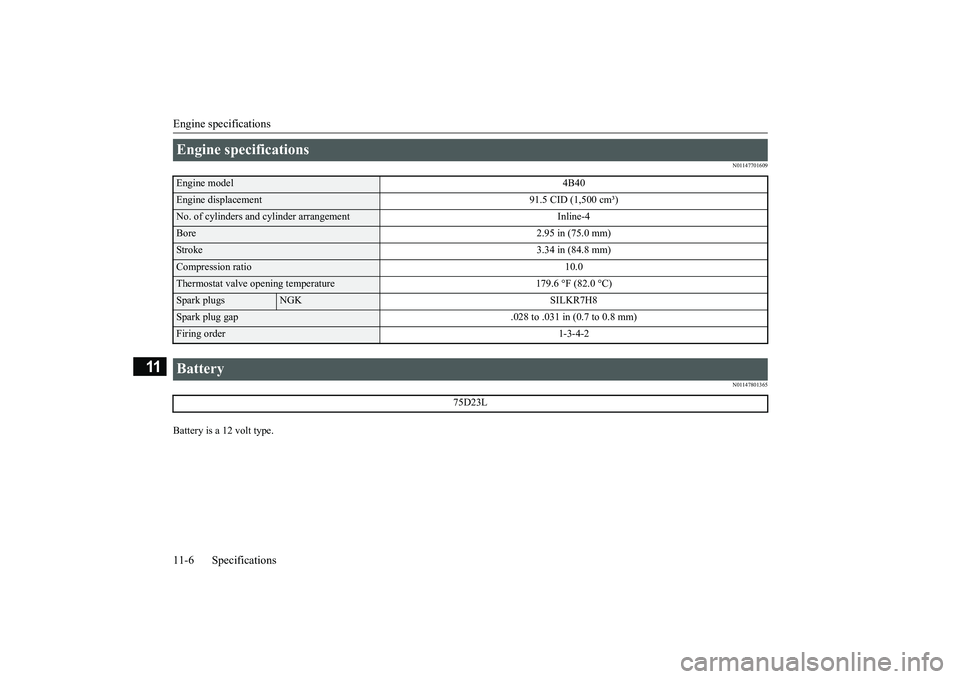

Engine specifications 11-6 Specifications
11
N01147701609 N01147801365
Battery is a 12 volt type.Engine specifications Engine model
4B40
Engine displacement 91.5 CID (1,500 cm³)No. of cylinders and cylinder arrangement Inline-4Bore
2.95 in (75.0 mm)
Stroke
3.34 in (84.8 mm)
Compression ratio 10.0Thermostat valve opening temperature 179.6 °F (82.0 °C)Spark plugs
NGK SILKR7H8
Spark plug gap .028 to .031 in (0.7 to 0.8 mm)Firing order
1-3-4-2
Battery
75D23L
