Instruments and controls 1-1
1
Overview
N00100202805
Instruments and controls
Combination headlights an
d dimmer switch P.5-188
Automatic High Beam (AHB) sw
itch (if so equipped) P.5-191
Turn signal lever P.5-196 Front fog light switch P.5-198
Steering wheel audio remote control switches [For DISPLAY AUDIO and Smartphone Link Display Audio, refer to the separate owner’s manual.]
Active stability control (ASC) OFF switch P.5-82
Supplemental Restraint System (SRS) - driver’s airbag P.4-30, 4-37Horn switch P.5-206
Instrument cluster P.5-139
Windshield wiper and washer switch P.5-198 Rear window wiper and
washer switch P.5-203
Cruise control switches P.5-84, 5-88
Steering wheel height and reach adjustment lever P.5-50
Engine switch (if so equipped) P.5-18
Sportronic steering wheel paddle
shifter (if so equipped) P.5-65
Lane Departure Warning (LDW) switch (if so equipped) P.5-115
Forward Collision Mitigation
system (FCM) ON/OFF switch
(if so equipped) P.5-104
Supplemental Restraint System (SRS) - driver’s knee airbag P.4-37
Ignition switch (if so equipped) P.5-57
“SONAR” switch (if so
equipped) P.5-125
Head Up Display (HUD) switches (if so equipped) P.5-184
Headlight leveling switch
(if so equipped) P.5-196
Camera switch P.5-133
Hands free switches (if so equipped)
Multi-information display switches P.5-142
Head Up Display (HUD)
(if so equipped) P.5-184
BK0252700US.bo
ok 1 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Instruments and controls
Overview 1-2
1
Hazard warning flasher switch P.5-197
Electric rear window defogger switch P.5-204
Fuel tank filler door release lever P.3-3 Engine hood release lever P.9-3 Floor console box P.5-219 Arm rest P.4-6
12 V power outlet (Type1) P.5-208
Air conditioning P.7-6
Passenger’s airbag off indicator P.4-30, 4-35 Theft-alarm indicator P.5-38
Front passenger seat belt warning light P.4-19
Heated steering wheel switc
h (if so equipped) P.5-205
Heated seat switch (for the rear seats) (if so equipped) P.4-8
Side vents P.7-3
ECO mode switch P.5-198
USB input terminal P.5-206
Center vents P.7-3
Fuse block P.9-23
Front drink holder P.5-219
Side vents P.7-3
12 V power outlet (Type 2) P.5-208
Touchpad Controller (if so equipped)
BK0252700US.bo
ok 2 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Outside (Front) 1-7 Overview
1
N00100602753
Outside (Front)
Power panoramic sunroof
(if so equipped) P.5-43
Windshield wipers P.5-198
Engine hood P.9-3
Front fog lights P.5-198, 9-28, 9-32
Outside rearview mirrors P.5-53 Side turn signal lights P.5-196, 9-28, 9-31Side-view camera (if so equipped) P.5-129
Fuel tank filler P.3-3
Power window P.5-40
Front turn signal lights P.5-196, 9-28, 9-31
Headlights, high/low beam P.5-188, 9-28, 9-29
Headlights, high/low beam P.5-188, 9-28, 9-30
Parking lights/Daytime running lights P.5-188, 9-28, 9-30
Parking lights/Daytime running lights P.5-188, 9-28, 9-30
Halogen headlights type LED headlights type
Front side-marker lights P.5-188, 9-28, 9-30
Front side-marker lights P.5-188, 9-28, 9-30
Sensor (if so equipped) [for Fo
rward Collision Mitigation system
(FCM), Lane Departure Warn
ing (LDW) and Automatic High
Beam (AHB)] P.5-100, 5-115, 5-191 Rain sensor (if so equipped) P.5-198
Front-view camera (if so equipped) P.5-129 Parking sensors (if so equipped) P.5-123
BK0252700US.bo
ok 7 ページ ２０１７年１０月４日　水曜日　午後４時５４分

2-1
2
If this warning light comes on or
flashes while you’re driving...
Quick index
N00200702322
If this warning light comes on or flashes while you’re driving...
NOTE
For information regarding warning displays in the multi-informat
ion display, refer to “Multi-information display” on page 5-140
.
 These warning lights will come on for a few seconds for a bulb check
when the ignition switch is first turned to “ON” or the op
eration mode is put in ON.
Wa r n i n g l i g h t s
Do this
Ref. Page
Charging system warning light
 Park your vehicle in a safe place and stop the engine. Contact your Mitsubishi Motors dealer or
a repair facility of your choice for assis-
tance.
P. 5-183
or
Brake warning light (red)
 If this light comes on while driving, check to see that the parking brake is fully released. If this light stays on after releasing the parking brake, immediately stop and check the brake fluid level.  If the brake fluid level is correct, there may be a system malfunction. Avoid hard braking and high speed, and contact an aut
horized Mitsubishi Mo
tors dealer or a
repair facility of your choice for assistance.
P. 5-181
Electric parking brake warning light
(yellow) (if so equipped)
 If the warning light comes on during driving, th
ere is the possibility that the parking
brake cannot be operated or released. Immediately stop the vehicle in a safe place, and contact an authorized Mitsubishi Moto
rs dealer or a repair facility of your
choice for assistance.
P. 5-181
BK0252700US.bo
ok 1 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this warning light comes on or
flashes while you’re driving...
2-2 Quick index
2
or
Engine malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”)
 Although your vehicle will usually be drivable and not need towing, have the engine system checked at an authorized Mits
ubishi Motors dealer or a repair facility
of your choice as soon as po
ssible. If the vehicle is not
drivable, contact emergency
roadside assistance at 1-888-648-7820 (for ve
hicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an author
ized Mitsubishi Motors dealer, or local
towing company for assistance.
P. 5-182
Electric power steering system (EPS)
warning light
 If this light comes on while the engine is
running, it may become harder to turn the
steering wheel. Have your vehicle inspected at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.
P. 5-80
Anti-lock braking system warning
light
 When this light comes on, the anti-lock braking system is not functioning and only the ordinary braking system is functioning.  Park your vehicle in a safe place and stop the engine. Test the system as described on page 5-79.  If the light does not go out after the test, or if it comes on again, we recommend that you have the system checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.
P. 5-79
SRS warning light
 Immediately have the airbag and the pre-te
nsioner seat belt system checked at an
authorized Mitsubishi Motors dealer.
P. 4-36
Warning lights
Do this
Ref. Page
BK0252700US.bo
ok 2 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this warning light comes on or
flashes while you’re driving...
Quick index 2-3
2
and
ASC indicator and ASC OFF indicator
 Park your vehicle in a safe place and stop the engine. Restart the engine and check whether the indicator goes out.  If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of your choice as soon
as possible.  When this indicator comes on, the active
stability control is not functioning and
normal operation of the vehicle will not be affected.
P. 5-83
ASC indicator
 Park your vehicle in a safe place and stop the engine. Restart the engine and check whether the indicator goes out.  If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of your choice as soon
as possible.  When this indicator comes on, the hi
ll start assist is not functioning.
Start off carefully on a steep uphill slope.
P. 5-77
Tire pressure monitoring system warn-
ing light
 If the warning light comes on, you should stop and adjust the tires to the proper inflation pressure as soon as possible. (See “Tire inflation pressures” on page 9-15.)Once adjustments have been made, the warning light will go off after a few minutes of driving.  If the warning light blinks for approxim
ately 1 minute and then remains continu-
ously illuminated, the system is not operatin
g properly. If the system returns to nor-
mal, the warning light will go off. If
the warning light does not go off, have the
vehicle inspected at an authori
zed Mitsubishi Motors dealer.
P. 5-118
LED headlight warning light
 If the warning light comes on, there may be
a malfunction in the LED headlight
unit. Have the vehicle inspected at an authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
P. 5-190
Wa r n i n g l i g h t s
Do this
Ref. Page
BK0252700US.bo
ok 3 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this problem occurs... 2-4 Quick index
2
N00200902034
If this problem occurs...
Problem
Do this
Ref. Page

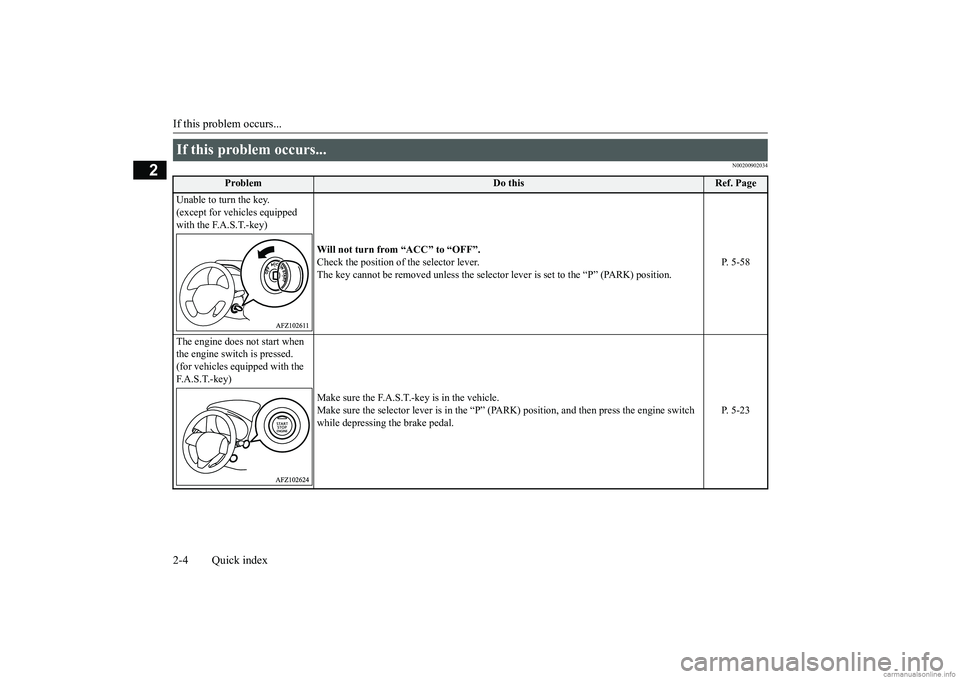

Unable to turn the key. (except for vehicles equipped with the F.A.S.T.-key)
Will not turn from “ACC” to “OFF”. Check the position of the selector lever. The key cannot be removed unless the selector
lever is set to the “P” (PARK) position.
P. 5-58
The engine does not start when the engine switch is pressed.(for vehicles equipped with the F. A . S . T. - k e y )
Make sure the F.A.S.T.-key is in the vehicle. Make sure the selector lever is in the “P” (PAR
K) position, and then press the engine switch
while depressing the brake pedal.
P. 5-23
BK0252700US.bo
ok 4 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this problem occurs...
Quick index 2-5
2

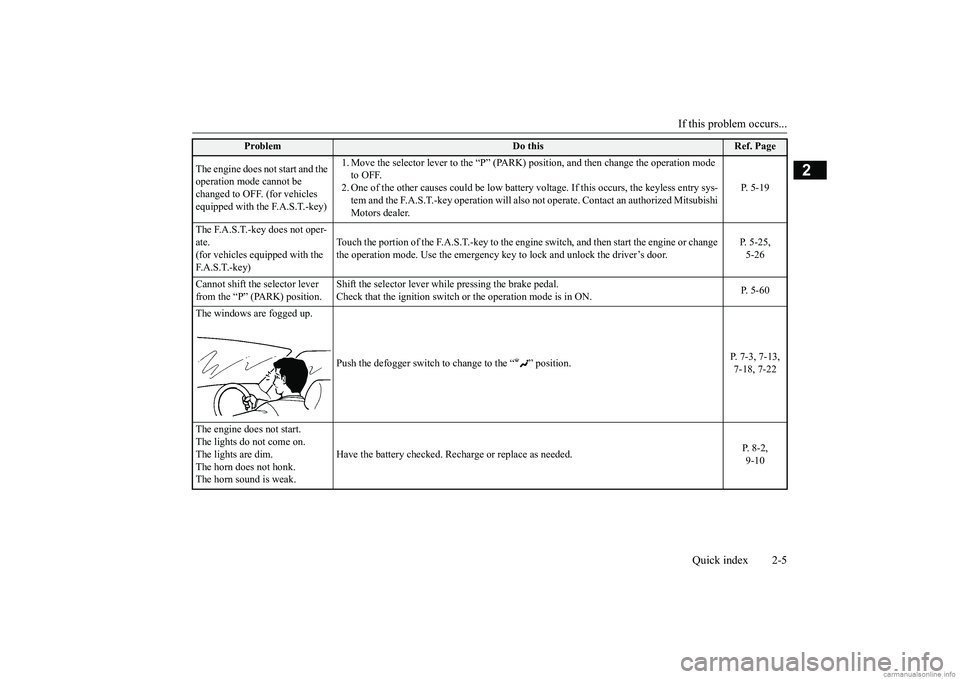

The engine does not start and the operation mode cannot be changed to OFF. (for vehicles equipped with the F.A.S.T.-key)
1. Move the selector lever to the “P” (PARK)
position, and then change the operation mode
to OFF. 2. One of the other causes could be low battery
voltage. If this occurs, the keyless entry sys-
tem and the F.A.S.T.-key operation will also no
t operate. Contact an authorized Mitsubishi
Motors dealer.
P. 5-19
The F.A.S.T.-key does not oper- ate.(for vehicles equipped with the F. A . S . T. - k e y )
Touch the portion of the F.A.S.T.-key to the engine
switch, and then start the engine or change
the operation mode. Use the emergency key to lock and unlock the driver’s door.
P. 5-25, 5-26
Cannot shift the selector lever from the “P” (PARK) position.
Shift the selector lever while pressing the brake pedal. Check that the ignition switch or the operation mode is in ON.
P. 5-60
The windows are fogged up.
Push the defogger switch to
change to the “ ” position.
P. 7-3, 7-13, 7-18, 7-22
The engine does not start. The lights do not come on. The lights are dim.The horn does not honk. The horn sound is weak.
Have the battery checked. Recharge or replace as needed.
P. 8-2, 9-10
Problem
Do this
Ref. Page
BK0252700US.bo
ok 5 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this problem occurs... 2-6 Quick index
2
Problem
Do this
Ref. Page

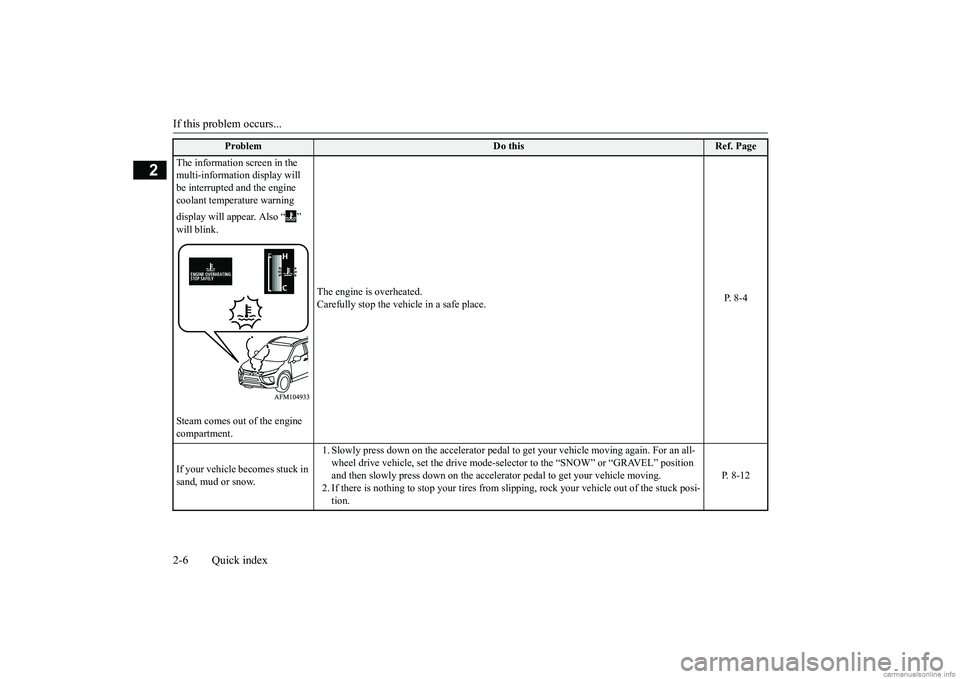

The information screen in the multi-information display will be interrupted and the engine coolant temperature warning display will appear. Also “ ” will blink. Steam comes out of the engine compartment.
The engine is overheated. Carefully stop the vehicle in a safe place.
P. 8-4
If your vehicle becomes stuck in sand, mud or snow.
1. Slowly press down on the accelerator pedal to
get your vehicle moving again. For an all-
wheel drive vehicle, set the drive mode-sel
ector to the “SNOW” or “GRAVEL” position
and then slowly press down on the accelerat
or pedal to get your vehicle moving.
2. If there is nothing to stop your tires from sli
pping, rock your vehicle out of the stuck posi-
tion.
P. 8-12
BK0252700US.bo
ok 6 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this problem occurs...
Quick index 2-7
2
WA R N I N G When attempting to rock your vehicle out of
a stuck position, be sure that no one is
near the vehicle. The rocking motion may c
ause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders. Avoid revving the engine or spinning the
wheels. Prolonged efforts to free a stuck ve
hicle may result in overheating and transa
xle failure.
If the vehicle remains stuck after several rocking at
tempts, have a towing service pull the vehicle out.
Problem
Do this
Ref. Page
The brakes are not functioning properly after crossing a puddle or stream.
Dry out the brakes by driving slowly while lightly pressing the brake pedal.
P. 5-72, 6-5
The continuously variable trans- mission (CVT) makes no shift change when accelerating. The initial movement of the vehicle is slow when the vehicle starts moving.
There may be a problem in the CVT. If the or warning lights on the multi-information display will not turn off, or if they come on frequently, please have the vehicle check
ed at your nearest Mitsubishi Motors dealer.
P. 5-66
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level. 2. Replace the flat tire with the spare tire.
P. 8-6
BK0252700US.bo
