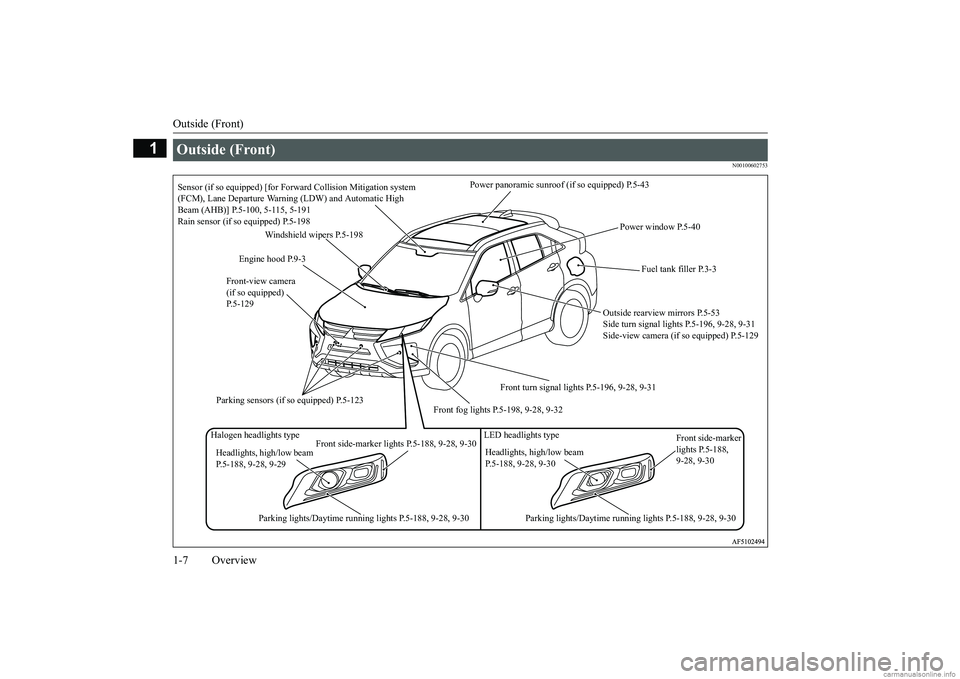

Outside (Front)
Power panoramic sunroof
(if so equipped) P.5-43
Windshield wipers P.5-198
Engine hood P.9-3
Front fog lights P.5-198, 9-28, 9-32
Outside rearview mirrors P.5-53 Side turn signal lights P.5-196, 9-28, 9-31Side-view camera (if so equipped) P.5-129
Fuel tank filler P.3-3
Power window P.5-40
Front turn signal lights P.5-196, 9-28, 9-31
Headlights, high/low beam P.5-188, 9-28, 9-29
Headlights, high/low beam P.5-188, 9-28, 9-30
Parking lights/Daytime running lights P.5-188, 9-28, 9-30
Parking lights/Daytime running lights P.5-188, 9-28, 9-30
Halogen headlights type LED headlights type
Front side-marker lights P.5-188, 9-28, 9-30
Front side-marker lights P.5-188, 9-28, 9-30
Sensor (if so equipped) [for Fo
rward Collision Mitigation system
(FCM), Lane Departure Warn
ing (LDW) and Automatic High
Beam (AHB)] P.5-100, 5-115, 5-191 Rain sensor (if so equipped) P.5-198
Front-view camera (if so equipped) P.5-129 Parking sensors (if so equipped) P.5-123
BK0252700US.bo
ok 7 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Outside (Rear)
Overview 1-8
1
N00100602766
Outside (Rear)
Keyless entry system P.5-6, 5-28 F.A.S.T.-key (Free-hand Advanced Securi
ty Transmitter) (if so equipped) P.5-12
Locking and unlocking P.5-32
Tires P.9-12 Tire pressure monitoring system P.5-118Tire inflation pressures P.9-15 Changing tires P.8-6 Tire rotation P.9-17Tire chains P.9-18 Size of tires and wheels P.11-7
Stop lights P.5-188, 9-28
Rear turn signal lights P.5-196, 9-28, 9-32
Spare tire P.8-7
License plate lights P.9-28, 9-34
Rear-view camera P.5-127, 5-129
Rear window wiper P.5-203, 9-19
High-mounted stop light P.9-28
Antenna
Liftgate P.5-36
Rear side-marker lights P.5-188, 9-28
Tail lights P.5-188, 9-28
Back-up lights P.9-28, 9-33
Roof spoiler
Rear spoiler

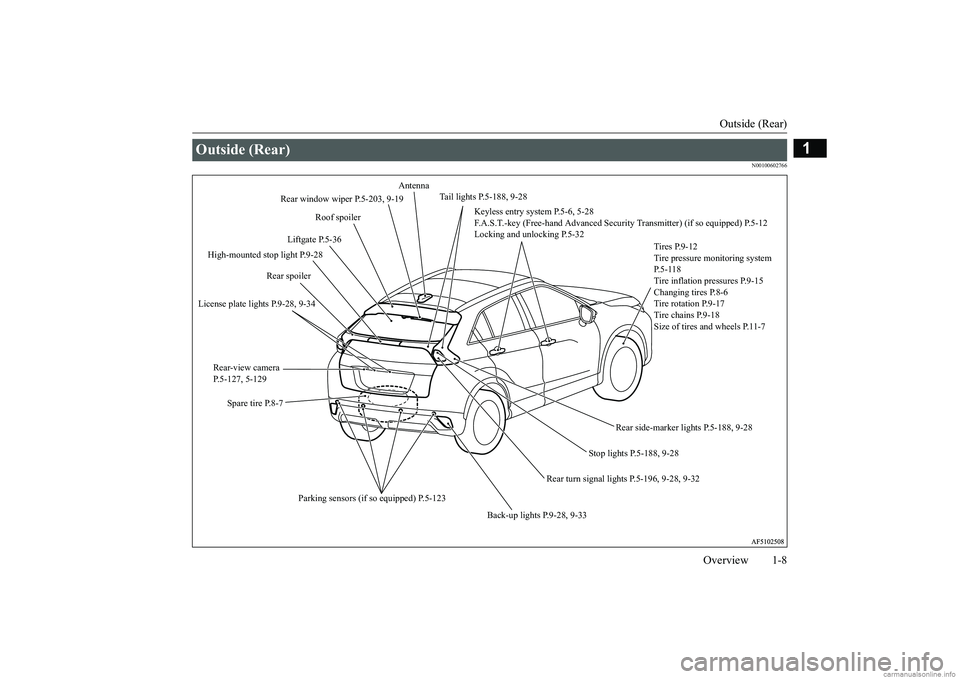

Parking sensors (if so equipped) P.5-123
BK0252700US.bo
ok 8 ページ ２０１７年１０月４日　水曜日　午後４時５４分

5

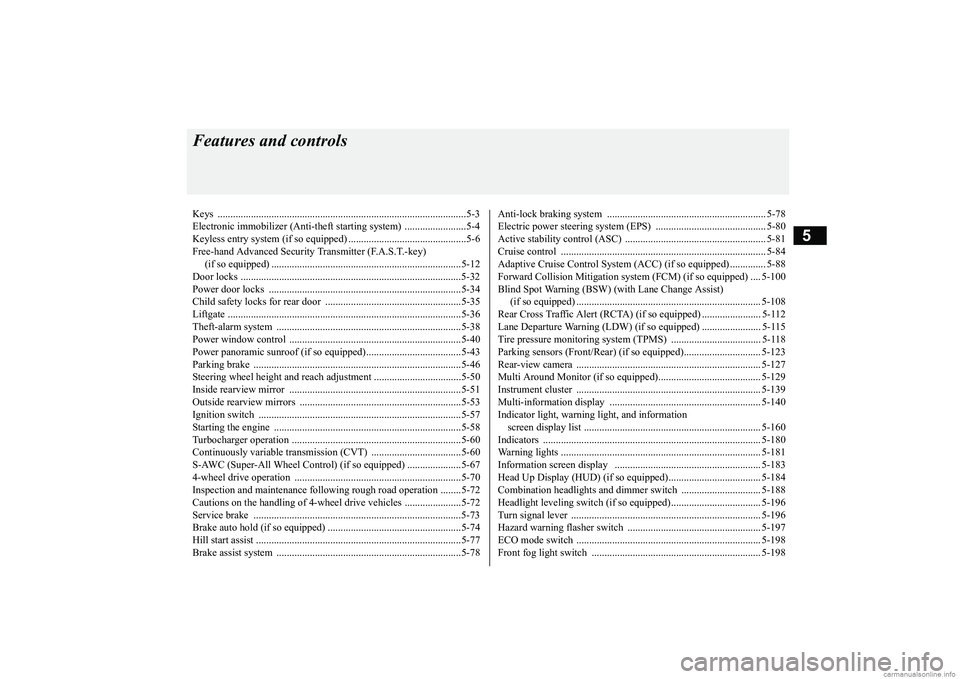

Features and controlsKeys ..........................................
.......................................................5-3
Electronic immobilizer (Anti-thef
t starting system) ........................5-4
Keyless entry system (if so equipped) ..............................................5-6 Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) .
.................................................
........................5-12
Door locks .......................
...............................................................5-32
Power door locks ............
...............................................................5-34
Child safety locks for r
ear door .....................................................5-35
Liftgate ......................................
.....................................................5-36
Theft-alarm system
................................................
........................5-38
Power window control
...........................................
........................5-40
Power panoramic sunroof (if
so equipped).....................................5-43
Parking brake ..................
...............................................................5-46
Steering wheel height and reach adjustment ..................................5-50 Inside rearview mirro
r ...........................................
........................5-51
Outside rearview mirr
ors ...............................................................5-53
Ignition switch ......
.................................................
........................5-57
Starting the engine
.................................................
........................5-58
Turbocharger operation
..........................................
........................5-60
Continuously variable trans
mission (CVT) ...................................5-60
S-AWC (Super-All Wheel Control) (if so equipped) .....................5-67 4-wheel drive operation
.........................................
........................5-70
Inspection and maintenance following rough road operation ........5-72Cautions on the handling of 4-wheel drive vehicles ......................5-72 Service brake ..................
...............................................................5-73
Brake auto hold (if so
equipped) ....................................................5-74
Hill start assist .......
.................................................
........................5-77
Brake assist system
................................................
........................5-78
Anti-lock braking syst
em .....................................
......................... 5-78
Electric power steering syst
em (EPS) ........................................... 5-80
Active stability control
(ASC) ....................
................................... 5-81
Cruise control ................
.................................................
............... 5-84
Adaptive Cruise Control System (ACC) (if so equipped) .............. 5-88 Forward Collision Mitigation system (FCM) (if so equipped) .... 5-100 Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped) ..........
.................................................
............. 5-108
Rear Cross Traffic Alert (RCTA) (if so equipped) ....................... 5-112 Lane Departure Warning (LDW) (if so equipped) ....................... 5-115Tire pressure monitoring system (TPMS) ................................... 5-118 Parking sensors (Front/Rear)
(if so equipped).............................. 5-123
Rear-view camera ..........
.................................................
............. 5-127
Multi Around Monitor (if so
equipped)........................................ 5-129
Instrument cluster
.................................................
....................... 5-139
Multi-information disp
lay ....................................
....................... 5-140
Indicator light, warning light, and information screen display list
..............................................
....................... 5-160
Indicators .................................
.................................................... 5-180
Warning lights ................
.................................................
............. 5-181
Information screen disp
lay ........................
................................. 5-183
Head Up Display (HUD) (if
so equipped).................................... 5-184
Combination headlights and dimmer switch ............................... 5-188Headlight leveling switch (if
so equipped)................................... 5-196
Turn signal lever ..
.................................................
....................... 5-196
Hazard warning flasher
switch .................................................... 5-197
ECO mode switch ..........
.................................................
............. 5-198
Front fog light switch
...........................................
....................... 5-198
BK0252700US.bo
ok 1 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Parking sensors (Front/Rear) (if so equipped)
Features and controls 5-123
5
N00589800042

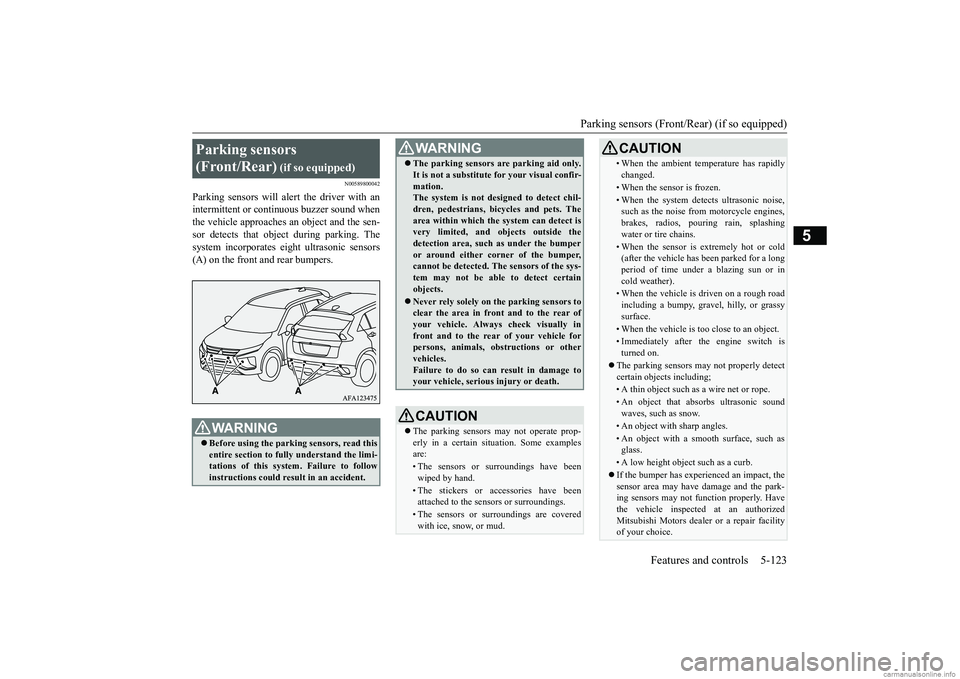

Parking sensors will alert the driver with an intermittent or continuous buzzer sound whenthe vehicle approaches an object and the sen- sor detects that object during parking. The system incorporates eight ultrasonic sensors(A) on the front and rear bumpers.Parking sensors (Front/Rear)
(if so equipped)
WA R N I N G Before using the parking sensors, read this entire section to fully understand the limi-tations of this system. Failure to follow instructions could result in an accident.
 The parking sensors are parking aid only. It is not a substitute for your visual confir- mation. The system is not designed to detect chil- dren, pedestrians, bicycles and pets. Thearea within which the system can detect is very limited, and ob
jects outside the
detection area, such as under the bumperor around either corner of the bumper, cannot be detected. The sensors of the sys- tem may not be able to detect certainobjects. Never rely solely on the parking sensors to clear the area in front and to the rear of your vehicle. Always check visually in front and to the rear of your vehicle forpersons, animals, obstructions or other vehicles. Failure to do so can result in damage toyour vehicle, serious injury or death.CAUTION The parking sensors may not operate prop- erly in a certain situation. Some examples are:• The sensors or surroundings have beenwiped by hand.• The stickers or accessories have beenattached to the sensors or surroundings.• The sensors or surroundings are coveredwith ice, snow, or mud.WA R N I N G
• When the ambient temperature has rapidly changed.• When the sensor is frozen.• When the system detects ultrasonic noise,such as the noise from motorcycle engines, brakes, radios, pouring rain, splashingwater or tire chains.• When the sensor is extremely hot or cold(after the vehicle has been parked for a long period of time under a blazing sun or in cold weather).• When the vehicle is driven on a rough roadincluding a bumpy, gravel, hilly, or grassysurface.• When the vehicle is too close to an object.• Immediately after the engine switch isturned on.
 The parking sensors may not properly detect certain objects including;• A thin object such as a wire net or rope.• An object that absorbs ultrasonic sound waves, such as snow.• An object with sharp angles.• An object with a smooth surface, such as glass.• A low height object such as a curb. If the bumper has experienced an impact, the sensor area may have damage and the park- ing sensors may not function properly. Have the vehicle inspected at an authorizedMitsubishi Motors dealer or a repair facility of your choice.CAUTION
BK0252700US.book
123 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Parking sensors (Front/Rear) (if so equipped) 5-124 Features and controls
5
“Normal mode” and “Towing hitch mode” for a vehicle equipped with a towing hitch can be selected.
The detection areas are within approximately 24 inches (60 cm) (A) from the front and cor- ner sensors and 49 inches (125 cm) (B) from the back sensors.
If your vehicle is equipped with a towing hitch and part of the towing hitch is close to the center sensors (e. g. European type towing hitch), the center sensor may detect the tow-ing hitch and the alarm beeps may sound though there is no obstacle behind the vehi- cle. To avoid this detection, the parking sen-sors can be switched to the towing hitch mode. The detection areas are within approximately24 inches (60 cm) (A) from the front and cor-ner sensors, and 49 inches (125 cm) (B) from the back sensors. The system will not detect the areas (C), within approximately 8 inches(20 cm) (D) from the rear bumper.

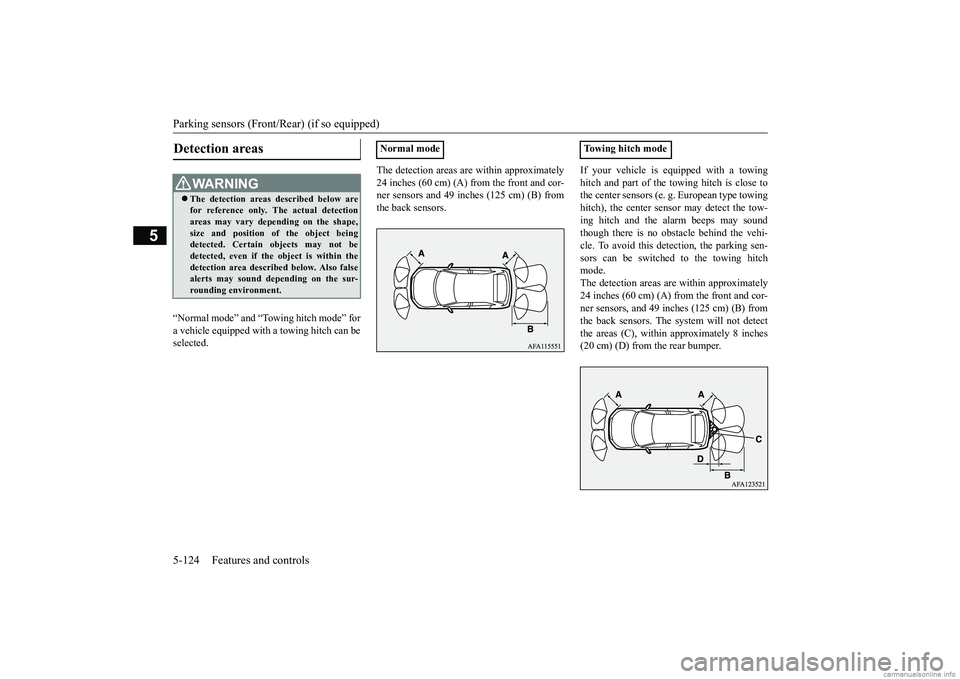

Detection areas

WA R N I N G The detection areas described below are for reference only. The actual detection areas may vary depending on the shape, size and position of the object beingdetected. Certain objects may not be detected, even if the object is within the detection area described below. Also falsealerts may sound depending on the sur- rounding environment.
Normal mode
Towing hitch mode
BK0252700US.book
124 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Parking sensors (Front/Rear) (if so equipped)
Features and controls 5-125
5
To switch to the towing hitch mode and return to the normal mode, refer to “Changing the detection mode” on page 5-126.
N00590000044

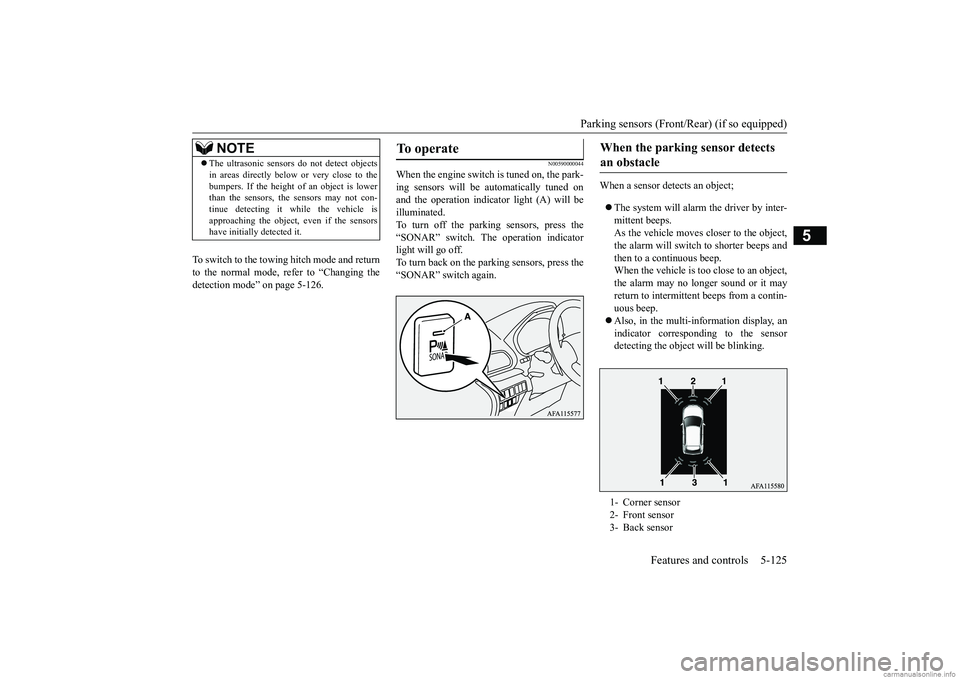

When the engine switch is tuned on, the park- ing sensors will be automatically tuned onand the operation indi
cator light (A) will be
illuminated. To turn off the parking sensors, press the“SONAR” switch. The operation indicator light will go off. To turn back on the parking sensors, press the“SONAR” switch again.
When a sensor detects an object;  The system will alarm the driver by inter- mittent beeps. As the vehicle moves closer to the object, the alarm will switch to shorter beeps andthen to a continuous beep. When the vehicle is too close to an object, the alarm may no longer sound or it mayreturn to intermittent beeps from a contin-uous beep.  Also, in the multi-information display, an indicator corresponding to the sensordetecting the object will be blinking.
NOTE
 The ultrasonic sensors do not detect objects in areas directly below or very close to the bumpers. If the height of an object is lower than the sensors, the sensors may not con- tinue detecting it while the vehicle isapproaching the object,
even if the sensors
have initially detected it.
To operate

When the parking sensor detects an obstacle

1- Corner sensor 2- Front sensor 3- Back sensor
BK0252700US.book
125 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Parking sensors (Front/Rear) (if so equipped) 5-126 Features and controls
5
Front and corner sensor Back sensor (When the “normal mode” is selected)
Back sensor (When the “Towing hitch mode” is selected)
N00590100045
If your vehicle is equipped with a towinghitch and part of the towing hitch is close tothe center sensors (e. g. European type towing hitch), the center sensor may detect the tow- ing hitch and alarm beeps may sound thoughthere is no obstacle behind the vehicle. To avoid this detection, the parking sensors can be switched to the towing hitch mode. To switch to the towing hitch mode; While the selector lever is in the “R”(REVERSE) position, turn off the parking sensors by pressing the “SONAR” switch, then press and hold the “SONAR” switchapproximately 3 seconds or more and release it. A buzzer will sound twice to indicate the detection mode is switched to the towinghitch mode. To turn on the parking sensors, press the “SONAR” switch again. To return to the normal mode; While the selector lever is in the “R”(REVERSE) position, turn off the parking sensors by pressing the “SONAR” switch, then press and hold the “SONAR” switchapproximately 3 seconds or more and release it. A buzzer will sound once to indicate the detection mode is returned to the normalmode. To turn on the parking sensors, press the “SONAR” switch again.

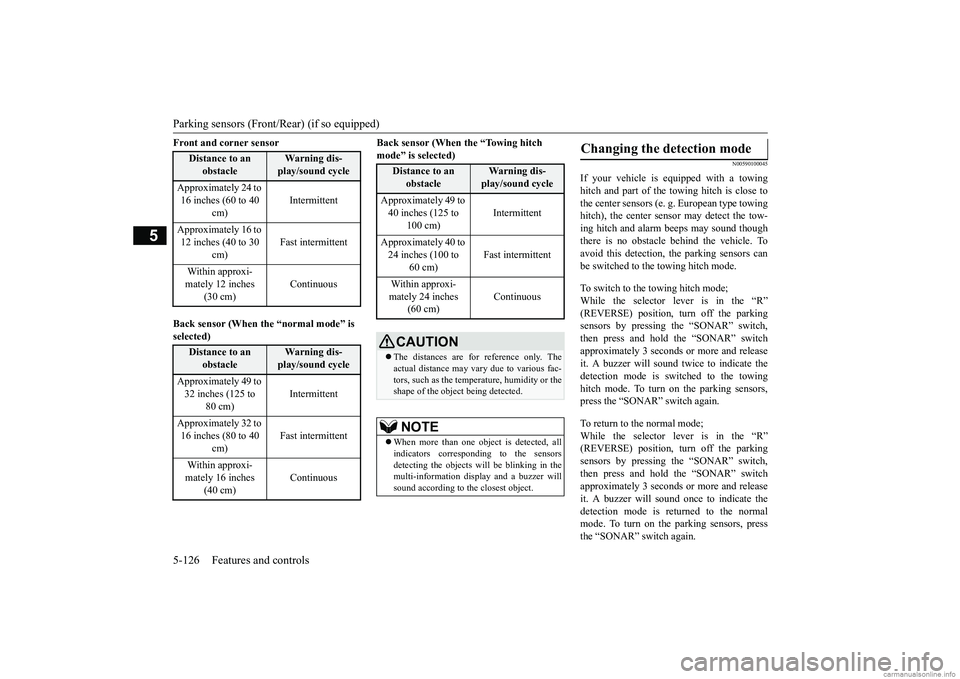

Distance to an
obstacle
War n i n g d i s -play/sound cycle
Approximately 24 to 16 inches (60 to 40
cm)
Intermittent
Approximately 16 to 12 inches (40 to 30
cm)
Fast intermittent
Within approxi- mately 12 inches
(30 cm)
Continuous
Distance to an
obstacle
War n i n g d i s -play/sound cycle
Approximately 49 to 32 inches (125 to
80 cm)
Intermittent
Approximately 32 to 16 inches (80 to 40
cm)
Fast intermittent
Within approxi- mately 16 inches
(40 cm)
Continuous
Distance to an
obstacle
War n i n g d i s -play/sound cycle
Approximately 49 to 40 inches (125 to
100 cm)
Intermittent
Approximately 40 to 24 inches (100 to
60 cm)
Fast intermittent
Within approxi- mately 24 inches
(60 cm)
Continuous
CAUTION The distances are for reference only. The actual distance may vary due to various fac-tors, such as the temperature, humidity or the shape of the object being detected.NOTE
 When more than one object is detected, all indicators corresponding to the sensors detecting the objects will be blinking in the multi-information display and a buzzer willsound according to the closest object.
Changing the detection mode

BK0252700US.book
126 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Rear-view camera
Features and controls 5-127
5
N00590200046
If the system detects a problem with a sensor, a warning is displayed in the multi-informa- tion display and a buzzer will sound forapproximately five seconds.
Also, the indicator light (A) on the “SONAR” switch will continue blinking until the sensor resumes functioning. Have the vehicle inspected at an authorizedMitsubishi Motors dealer or a repair facility of your choice.
N00546201330

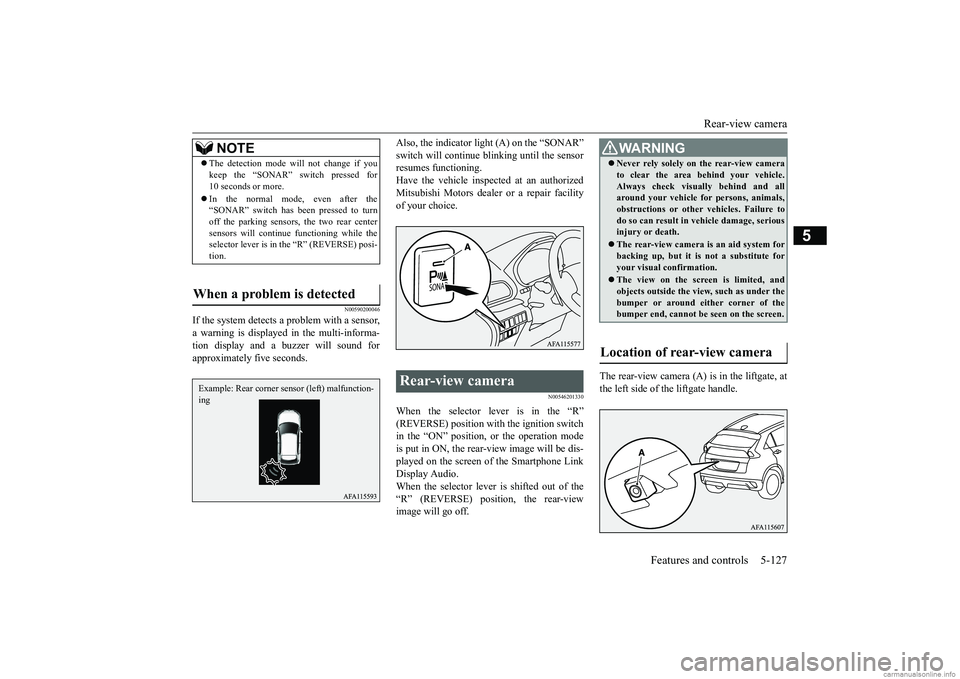

When the selector lever is in the “R” (REVERSE) position with the ignition switch in the “ON” position, or the operation mode is put in ON, the rear-view image will be dis-played on the screen of the Smartphone Link Display Audio. When the selector lever is shifted out of the“R” (REVERSE) position, the rear-view image will go off.
The rear-view camera (A) is in the liftgate, at the left side of the liftgate handle.
NOTE
 The detection mode will not change if you keep the “SONAR” switch pressed for 10 seconds or more.  In the normal mode, even after the “SONAR” switch has been pressed to turn off the parking sensors, the two rear center sensors will continue functioning while theselector lever is in the “R” (REVERSE) posi- tion.
When a problem is detected

Example: Rear corner sensor (left) malfunction- ing
Rear-view camera
WA R N I N G Never rely solely on the rear-view camera to clear the area behind your vehicle. Always check visually behind and all around your vehicle for persons, animals, obstructions or other vehicles. Failure todo so can result in vehicle damage, serious injury or death. The rear-view camera is an aid system for backing up, but it is not a substitute for your visual confirmation. The view on the screen is limited, and objects outside the view, such as under thebumper or around either corner of the bumper end, cannot be seen on the screen.
Location of rear-view camera
BK0252700US.book
127 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Indicator light, warning light, an
d information screen display list
5-178 Features and controls
5
Screen
System operation status
Reference
 When “AUTO” mode of S-AWC is selected.
Refer to “S-AWC (Super-All Wheel Con- trol)” on page 5-67.
 When “SNOW” mode of S-AWC is selected.  When “GRAVEL” mode of S-AWC is selected.  When the ECO mode is activated. Refer to “ECO mode switch” on page 5-198.  When the parking sensor detects an obstacle.

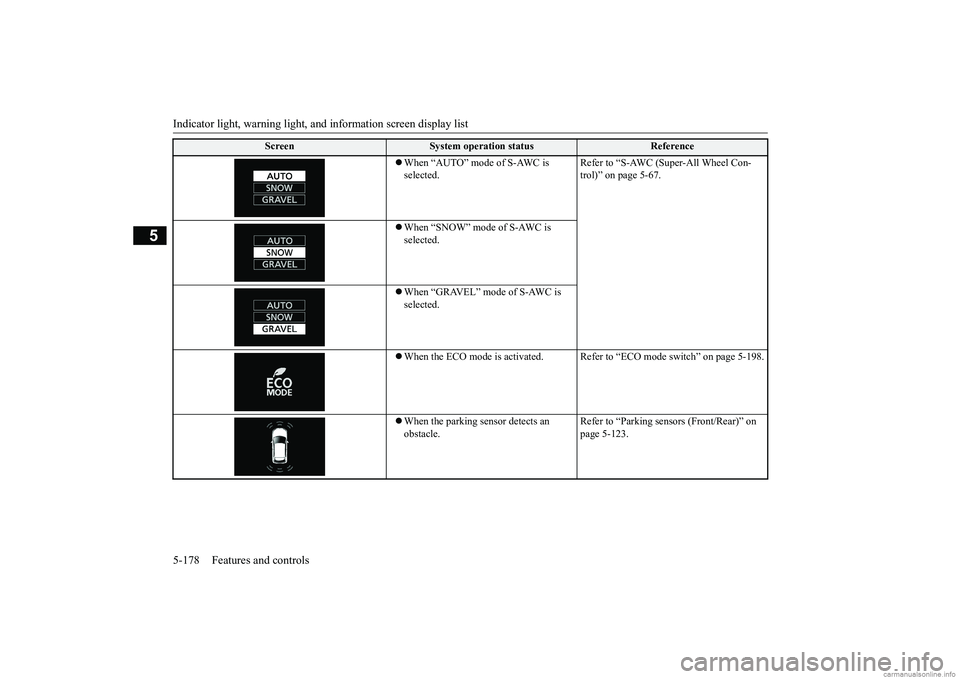

Refer to “Parking sensors (Front/Rear)” on page 5-123.
BK0252700US.book
178 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Vehicle preparation before driving 6-4 Driving safety
6
N00629001800

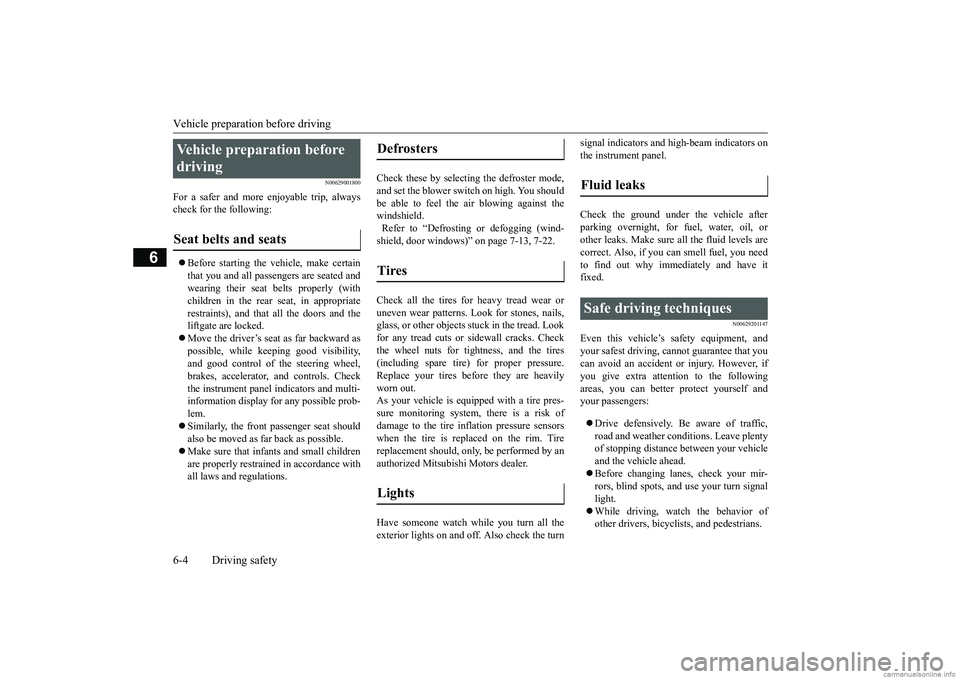

For a safer and more enjoyable trip, always check for the following:  Before starting the vehicle, make certain that you and all passengers are seated and wearing their seat belts properly (with children in the rear seat, in appropriaterestraints), and that all the doors and the liftgate are locked.  Move the driver’s seat as far backward as possible, while keeping good visibility, and good control of the steering wheel, brakes, accelerator, and controls. Checkthe instrument panel indicators and multi- information display for any possible prob- lem. Similarly, the front passenger seat should also be moved as far back as possible.  Make sure that infants and small children are properly restrained in accordance with all laws and regulations.
