MITSUBISHI ECLIPSE CROSS 2019 Owner's Manual (in English)

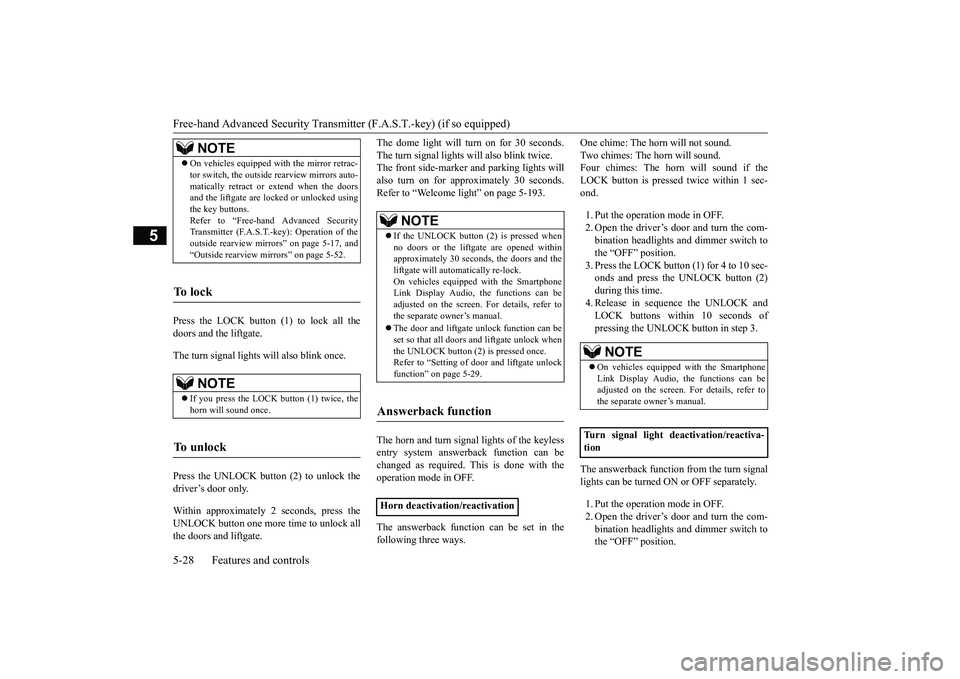

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-28 Features and controls
5
Press the LOCK button (1) to lock all the doors and the liftgate. The turn signal lights will also blink once. Press the UNLOCK button (2) to unlock the driver’s door only. Within approximately 2 seconds, press the UNLOCK button one more time to unlock allthe doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal lights will also blink twice. The front side-marker and parking lights will also turn on for appr
oximately 30 seconds.
Refer to “Welcome light” on page 5-193. The horn and turn signal lights of the keyless entry system answerback function can be changed as required. This is done with theoperation mode in OFF. The answerback function can be set in the following three ways.
One chime: The horn will not sound. Two chimes: The horn will sound. Four chimes: The horn will sound if the LOCK button is presse
d twice within 1 sec-
ond. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2)during this time.4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.
The answerback function from the turn signal lights can be turned ON or OFF separately. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position.
NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors auto- matically retract or extend when the doors and the liftgate are lock
ed or unlocked using
the key buttons.Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key): Operation of the outside rearview mirrors” on page 5-17, and“Outside rearview mirrors” on page 5-52.
To l o c k

NOTE
 If you press the LOCK button (1) twice, the horn will sound once.
To u n l o c k

NOTE
 If the UNLOCK button (2) is pressed when no doors or the liftgate are opened within approximately 30 seconds, the doors and theliftgate will automatically re-lock. On vehicles equipped with the Smartphone Link Display Audio, the functions can beadjusted on the screen. For details, refer to the separate owner’s manual.  The door and liftgate unlock function can be set so that all doors and liftgate unlock when the UNLOCK button (2) is pressed once.Refer to “Setting of door and liftgate unlock function” on page 5-29.
Answerback function

Horn deactivation/reactivation
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can beadjusted on the screen. For details, refer to the separate owner’s manual.
Turn signal light deactivation/reactiva- tion
BK0266800US.bo
ok 28 ページ ２０１８年６月２７日　水曜日　午後５時６分

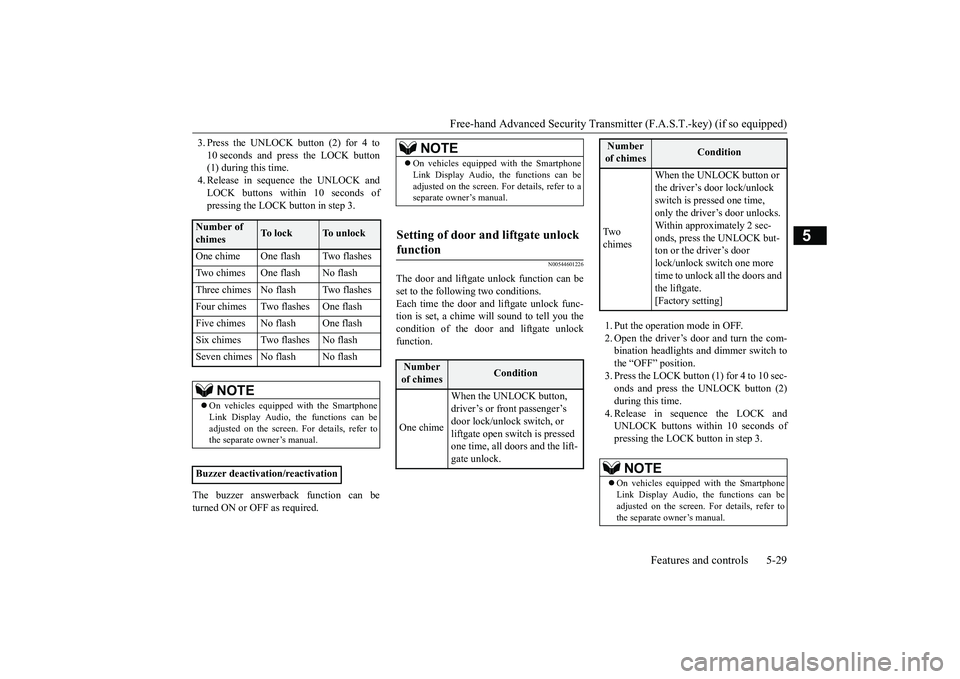

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-29
5
3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
The buzzer answerback function can be turned ON or OFF as required.
N00544601226
The door and liftgate unlock function can be set to the following two conditions. Each time the door and liftgate unlock func- tion is set, a chime will sound to tell you thecondition of the door and liftgate unlock function.
1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2) during this time.4. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
Number of chimes
To l o c k
To unlock
One chime One flash Two flashes Two chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes No flash No flash
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer tothe separate owner’s manual.
Buzzer deactivation/reactivation
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer to a separate owner’s manual.
Setting of door and liftgate unlock function

Number of chimes
Condition
One chime
When the UNLOCK button, driver’s or front passenger’s door lock/unlock switch, or liftgate open switch is pressed one time, all doors and the lift-gate unlock.
Tw o chimes
When the UNLOCK button or the driver’s door lock/unlock switch is pressed one time, only the driver’s door unlocks. Within approximately 2 sec-onds, press the UNLOCK but- ton or the driver’s door lock/unlock switch one more time to unlock all the doors and the liftgate. [Factory setting]
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer to the separate owner’s manual.Number of chimes
Condition
BK0266800US.bo
ok 29 ページ ２０１８年６月２７日　水曜日　午後５時６分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-30 Features and controls
5
N00544701126
If you are near your vehicle and feel threat- ened, you can activate the alarm to call atten-tion as follows: 1. Press the PANIC button (3) for more than 1 second. 2. The headlights will blink on and off andthe horn will sound intermittently for approximately 3 minutes. 3. To turn off the alarm, press any button onthe key.
N00562001091
Your F.A.S.T.-key operates on a radio fre- quency subject to Federal Communications Commission (FCC) Rules (For vehicles soldin U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device com- plies with Part 15 of FCC Rules and IndustryCanada’s applicable licence-exempt RSS standard(s). Operation is subject to the fol- lowing two conditions.  This device may not cause harmful inter- ference, and  This device must accept any interference received, including interference that maycause undesired operation of this device.
N00562101106
1. Before replacing the battery, remove staticelectricity from your body by touching ametal grounded object. 2. Remove the emergency key from the key. Refer to “Emergency key” on page 5-25.3. With the Mitsubishi mark facing you, insert the cloth-covered tip of a flat blade screwdriver into the notch in the case anduse it to open the case.
Using the panic alarm

NOTE
 The indicator light (4) comes on each time a button is pressed.  The F.A.S.T.-key can be used from approxi- mately 40 feet (12 m) away. However, this distance may change if your vehicle is near aTV transmitting tower, a power station, or a radio station.  If the following conditions are observed after pressing the LOCK (1) or UNLOCK (2) but- ton on the key, the battery in the F.A.S.T.-key may need to be replaced. • The doors and the liftgate cannot be locked or unlocked. • The panic alarm cannot be operated. • The indicator light (4) is dim or does not come on.
 If you lose your F.A.S.T.-key, please contact an authorized Mitsubish
i Motors dealer for a
replacement.  If you wish to obtain an
additional F.A.S.T.-
key, please contact an authorized Mitsubishi Motors dealer. A maximum of four F.A.S.T.- keys can be programmed for your vehicle.  To use the new keys, it is necessary to regis- ter the key with both the electronic immobi-lizer and keyless entry system. Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer F.A.S.T.-key programming” on page 5-26.
General information

NOTE
CAUTION Changes or modifications not expressly approved by the party responsible for com- pliance could void the user’s authority to operate the equipment.
Procedure for replacing the key battery

BK0266800US.bo
ok 30 ページ ２０１８年６月２７日　水曜日　午後５時６分

Door locks
Features and controls 5-31
5
4. Remove the old battery. 5. Install a new battery with the + side (A) up. 6. Close the case firmly. 7. Install the emergency key removed in step 2.8. Check the keyless entry system to see that it works.
N00509201586
Turn the key toward the front of the vehicle tolock the door. After ch
ecking that the door is
locked, turn the key back to the center andremove it.
NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubishi mark is not facing you when you open the case, the transmitter may come out.NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.
+ side - side Coin type battery CR2032
CAUTION When the key case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal components.
Door locks
WA R N I N G Make sure all doors are tightly closed and locked while driving.• Locked doors, in combination with theuse of seat belts, can help reduce the riskof ejection in an accident.• Locked doors can help keep passengers,especially small children, from opening doors and falling out of moving vehicles.• Locked doors can help prevent outsidersfrom gaining access to your vehicle when you slow or come to a stop.
 Lock your vehicle whenever you leave it. Children who get into unlocked vehiclesmay not be able to get out. Children trapped inside vehicles can quickly be overcome by heat and suffer serious injury or death due to heat stroke. Never leave a child alone in the vehicle. In addition to the risk of heat stroke, chil- dren can activate switches and controls,resulting in an injury or fatal accident.
 When closing a door, make sure that the door is fully closed and the door-ajar warning display goes out on the informa- tion screen on the multi-information dis- play. If the door is ajar it could open whiledriving and cause an accident.
To lock and unlock with the key (driver’s door) 1- Insert or remove the key 2- Lock 3- UnlockWA R N I N G
BK0266800US.bo
ok 31 ページ ２０１８年６月２７日　水曜日　午後５時６分

Door locks 5-32 Features and controls
5
Move the lock knob to the lock position to lock the door.All doors should be kept locked while driv- ing. The driver’s door can be unlocked without using the lock knob by pulling on the inside door handle. 1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehi- cle. Close the door.
N00549601263
If the ignition switch is
turned to the “OFF”
position and the driver’s door is opened with the key in the ignition switch, the keyreminder buzzer will sound intermittently to remind you to remove the key.
NOTE
 When locking or unlocking with the key, only the driver’s door will be locked or unlocked. To lock or unlock all doors and liftgate, use the power door lock switch, the keyless entrysystem or the F.A.S.T.-key operation. Refer to “Power door locks” on page 5-33, “Keyless entry system” on pages 5-6 and5-27, and “To operate using the F.A.S.T.- key” on page 5-14.  In vehicles equipped with the F.A.S.T.-key, the driver’s door can be locked and unlocked using the emergency key.Refer to “Emergency key” on page 5-25.
To lock or unlock the door from the inside 1- Lock 2- UnlockTo lock the door without using the key
Key reminder system (except for vehicles equipped with the F. A . S . T. - k e y )
BK0266800US.bo
ok 32 ページ ２０１８年６月２７日　水曜日　午後５時６分

Power door locks
Features and controls 5-33
5
The warning display will be displayed on the information screen in the multi-information display.
N00517301078
If the ignition switch is turned to the “ON”position or the operation mode is in any mode other than OFF, when you push the lock knobforward with the driver’s door or passenger’sdoor open, the lock knob will automatically return to the unlocked position.
N00503801173
If the driver’s door is opened while the engine is stopped and the operation mode is in any mode other than OFF, the operation mode ON buzzer will sound intermittently to remindyou put the operation mode in OFF. The warning display will be displayed on the information screen in the multi-informationdisplay.
N00509301659
All of the doors and the
liftgate can be locked
or unlocked by pressing the power door lock switch on the driver’s or the front passengerdoor.
Lock out protection Operation mode ON reminder system (vehicles equipped with F. A . S . T. - k e y )
Power door locks
NOTE
 When locking or unlocking with the key on the driver’s door, only the driver’s door will lock or unlock.  Repeated continuous operation between lock and unlock could activate the power door locking system’s built-in protection circuit,and prevent the system from operating. If this occurs, wait approximately 1 minute before operating the power door lock switch.
To lock and unlock the doors and liftgate Using the power door lock switch 1- Lock 2- Unlock
BK0266800US.bo
ok 33 ページ ２０１８年６月２７日　水曜日　午後５時６分

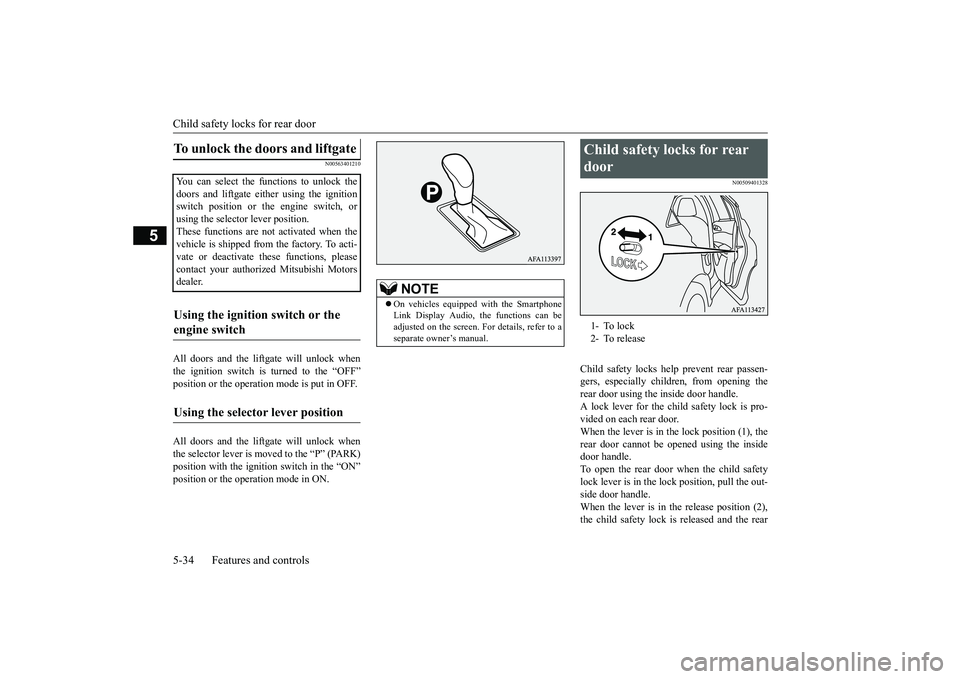

Child safety locks for rear door 5-34 Features and controls
5
N00563401210
All doors and the liftgate will unlock when the ignition switch is turned to the “OFF” position or the operation mode is put in OFF. All doors and the liftgate will unlock when the selector lever is moved to the “P” (PARK) position with the igniti
on switch in the “ON”
position or the operation mode in ON.
N00509401328
Child safety locks help prevent rear passen-gers, especially children, from opening therear door using the inside door handle.A lock lever for the child safety lock is pro- vided on each rear door. When the lever is in the lock position (1), therear door cannot be opened using the inside door handle. To open the rear door when the child safetylock lever is in the lock position, pull the out- side door handle. When the lever is in the release position (2),the child safety lock is released and the rear
To unlock the doors and liftgate You can select the functions to unlock thedoors and liftgate either using the ignition switch position or the engine switch, or using the selector lever position.These functions are not activated when the vehicle is shipped from the factory. To acti- vate or deactivate these functions, pleasecontact your authorized Mitsubishi Motors dealer.Using the ignition switch or the engine switch Using the selector lever position
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer to a separate owner’s manual.
Child safety locks for rear door 1- To lock 2- To release
BK0266800US.bo
ok 34 ページ ２０１８年６月２７日　水曜日　午後５時６分

Liftgate
Features and controls 5-35
5
door can be opened using the inside door han- dle.
N00510101325
1. After unlocking, push the liftgate open switch (A) and pull up the liftgate.
WA R N I N G Always keep the doors tightly closed and locked when driving. An unlocked door may be accidentally opened by a passen-ger, especially by a child who could fall out. Also, if the doors are not locked, there is a greater risk of someone being thrownfrom the vehicle in an accident.
Liftgate
WA R N I N G The luggage compartment was not designed for people to ride in it. Do not letpassengers ride in or
let children play in
the luggage compartment. Riding or play- ing in the luggage compartment couldresult in a serious accident or injury. Before driving, be sure that the liftgate is securely closed. It is dangerous to drive with the liftgate open
since carbon monox-
ide (CO) gas contained in engine exhaust gases can enter the passenger compart- ment.CO is an invisible, odorless gas that can cause unconsciousness and even death. In addition, if the liftgate opens whiledriving, luggage could fall onto the road and cause an accident.
 When opening and closing the liftgate, make sure that there are no people nearby and be careful not to hit your head or pinch your hands, neck, etc. If snow or ice has accumulated on the lift- gate, remove it before opening the liftgate. Otherwise the liftgate may abruptly closedue to the weight of the snow or ice. When opening the liftgate, always fully open it. A partially opened liftgate can unexpectedly close due to its own weight. When the vehicle is pa
rked on a slope, the
effort required to open or close the liftgate may be greater or less than expected.The liftgate may also open or close more quickly.CAUTION Do not stand behind the exhaust pipe when loading and unloading luggage. Heat fromthe exhaust could lead to burns. To avoid damage to the liftgate, make sure that area above and behind the liftgate is clear before opening it.WA R N I N G
NOTE
 Locking and unlocking the doors by using power door locks (driver and front passenger side), keyless entry system, or F.A.S.T.-key operation (vehicles equipped with the F.A.S.T.-key) also locks and unlocks the lift-gate.
To open To open from outside the vehicle
CAUTION Make sure there is no one standing nearby when opening the liftgate.
BK0266800US.bo
ok 35 ページ ２０１８年６月２７日　水曜日　午後５時６分

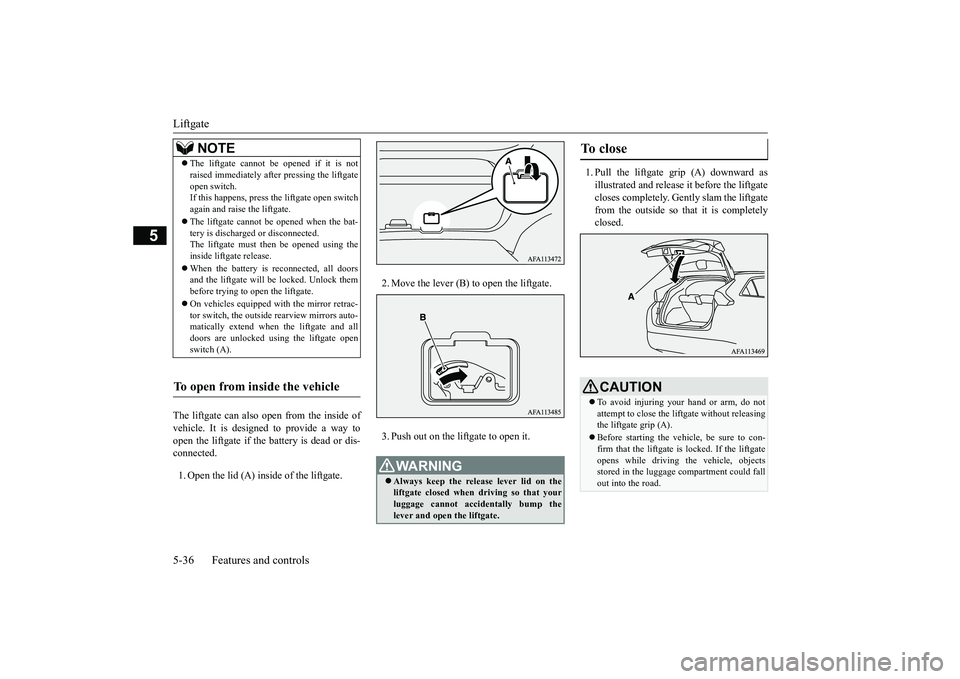

Liftgate 5-36 Features and controls
5
The liftgate can also open from the inside of vehicle. It is designed to provide a way to open the liftgate if the battery is dead or dis- connected. 1. Open the lid (A) inside of the liftgate.
2. Move the lever (B) to open the liftgate. 3. Push out on the liftgate to open it.
1. Pull the liftgate grip (A) downward as illustrated and release it before the liftgate closes completely. Gently slam the liftgatefrom the outside so
that it is completely
closed.
NOTE
 The liftgate cannot be opened if it is not raised immediately after pressing the liftgate open switch. If this happens, press the liftgate open switch again and raise the liftgate.  The liftgate cannot be opened when the bat- tery is discharged or disconnected.The liftgate must then be opened using the inside liftgate release.  When the battery is reconnected, all doors and the liftgate will be locked. Unlock them before trying to open the liftgate.  On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors auto-matically extend when the liftgate and all doors are unlocked using the liftgate open switch (A).
To open from inside the vehicle
WA R N I N G Always keep the release lever lid on the liftgate closed when driving so that your luggage cannot accidentally bump the lever and open the liftgate.
To close
CAUTION To avoid injuring your hand or arm, do not attempt to close the liftgate without releasingthe liftgate grip (A). Before starting the vehicle, be sure to con- firm that the liftgate
is locked. If the liftgate
opens while driving the vehicle, objects stored in the luggage compartment could fallout into the road.
BK0266800US.bo
ok 36 ページ ２０１８年６月２７日　水曜日　午後５時６分

Theft-alarm system
Features and controls 5-37
5
N00510201267
The theft-alarm system is designed to provide protection from unauthorized entry into thevehicle. This system is operated in three stages: the first is the “armed” stage, the sec- ond is the “alarm” stage,
and third is the “dis-
armed” stage. If triggered, the system provides both audible and visual alarm sig- nals.
N00510301239
Park the vehicle and stop the engine. Arm thesystem as described below. 1. Except for vehicles equipped with the F.A.S.T.-key, remove the key from the ignition switch. For vehicles equipped with the F.A.S.T.-key, put the operation mode in OFF. 2. Make sure that the engine hood is closed. 3. Lock all doors and the liftgate by usingthe keyless entry system or the F.A.S.T.- key operation.
At this time, the theft-alarm indicator (A) on the instrument panel flashes for confir- mation. 4. The system has entered the armed stage after approximately 20 seconds, when thetheft-alarm indicator (A) flashing becomes slower. The theft-alarm indicator (A) continues toflash while the system is in the armedstage.
NOTE
 Gas struts (B) are installed in the locations illustrated in order to support the liftgate. Please observe the following in order to pre- vent damage or faulty operation: • Do not touch, push or pull the gas struts when closing the liftgate. • Do not attach any plastic material, tape, etc., to the gas struts. • Do not tie string, etc., around the gas struts. • Do not hang objects
on the gas struts.
Theft-alarm system
CAUTIONDo not modify or add parts to the theft-alarm system. Doing so could cause the theft-alarm to malfunction.
Armed stage Arm the system and leave
NOTE
 If the engine hood is open, the theft-alarm indicator (A) illuminates and the system can- not enter the armed stage.The system enters the armed stage approxi- mately 20 seconds after the engine hood is closed.
