display MITSUBISHI ECLIPSE CROSS 2019 (in English) Owner's Guide

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)

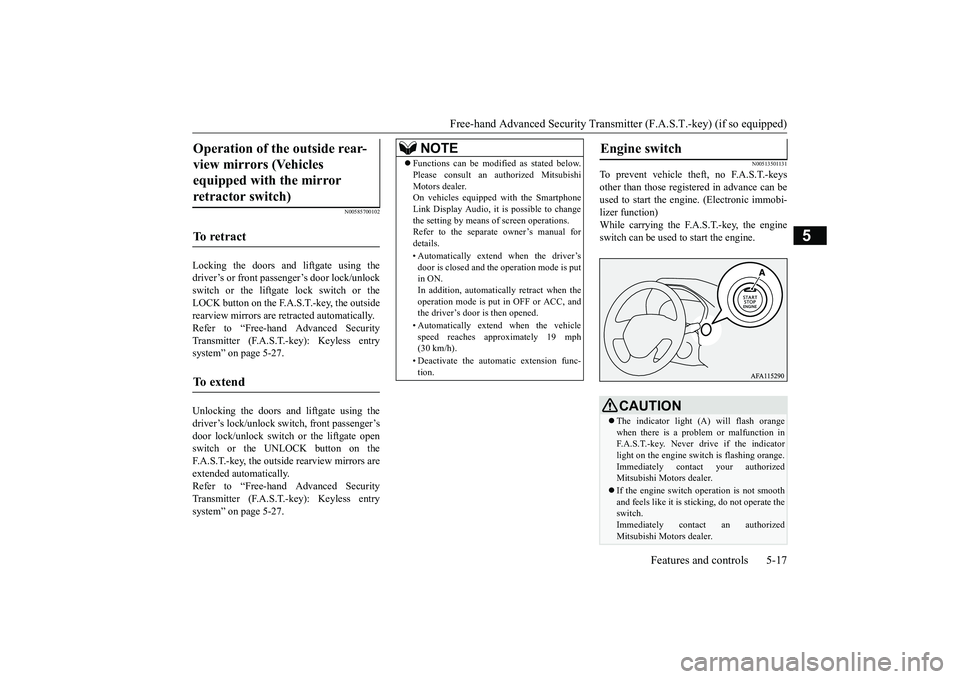

Features and controls 5-17
5
N00585700102
Locking the doors and liftgate using the driver’s or front passenger’s door lock/unlockswitch or the liftgate lock switch or theLOCK button on the F.A.S.T.-key, the outside rearview mirrors are retracted automatically. Refer to “Free-hand Advanced SecurityTransmitter (F.A.S.T.-key): Keyless entry system” on page 5-27. Unlocking the doors and liftgate using the driver’s lock/unlock switch, front passenger’s door lock/unlock switch or the liftgate openswitch or the UNLOCK button on the F.A.S.T.-key, the outside rearview mirrors are extended automatically.Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key): Keyless entry system” on page 5-27.
N00513501131
To prevent vehicle theft, no F.A.S.T.-keysother than those registered in advance can beused to start the engine. (Electronic immobi- lizer function) While carrying the F.A.S.T.-key, the engineswitch can be used to start the engine.
Operation of the outside rear- view mirrors (Vehicles equipped with the mirror retractor switch)

To retract

To e x t e n d

NOTE
 Functions can be modified as stated below. Please consult an authorized Mitsubishi Motors dealer. On vehicles equipped with the Smartphone Link Display Audio, it is possible to changethe setting by means of screen operations. Refer to the separate owner’s manual for details. • Automatically extend when the driver’s door is closed and the operation mode is putin ON. In addition, automatically retract when the operation mode is put in OFF or ACC, andthe driver’s door is then opened. • Automatically extend when the vehicle speed reaches approximately 19 mph (30 km/h). • Deactivate the automatic extension func- tion.
Engine switch

CAUTION The indicator light (A) will flash orange when there is a problem or malfunction inF.A.S.T.-key. Never drive if the indicator light on the engine switch is flashing orange. Immediately contact your authorizedMitsubishi Motors dealer. If the engine switch operation is not smooth and feels like it is sticking, do not operate the switch. Immediately contact an authorizedMitsubishi Motors dealer.
BK0266800US.bo
ok 17 ページ ２０１８年６月２７日　水曜日　午後５時６分

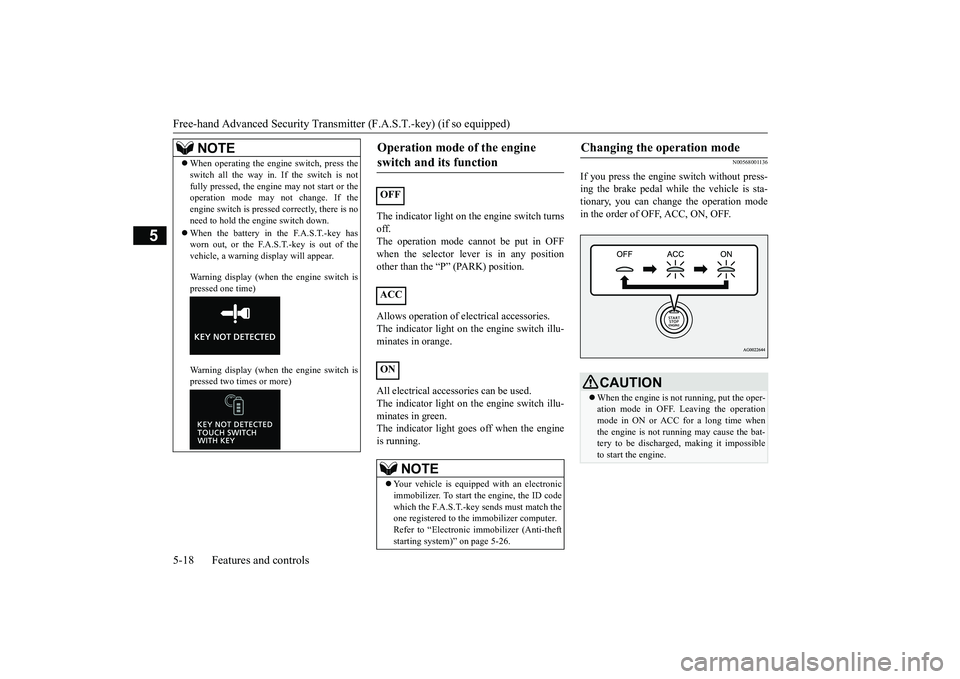

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-18 Features and controls
5
The indicator light on the engine switch turns off. The operation mode cannot be put in OFF when the selector lever is in any positionother than the “P” (PARK) position. Allows operation of electrical accessories. The indicator light on the engine switch illu- minates in orange. All electrical accessories can be used. The indicator light on the engine switch illu-minates in green. The indicator light goes off when the engine is running.
N00568001136
If you press the engine switch without press-ing the brake pedal while the vehicle is sta-tionary, you can change the operation mode in the order of OFF, ACC, ON, OFF.
NOTE
 When operating the engine switch, press the switch all the way in. If the switch is not fully pressed, the engine may not start or the operation mode may not change. If the engine switch is pressed correctly, there is noneed to hold the engine switch down.  When the battery in the F.A.S.T.-key has worn out, or the F.A.S.T.-key is out of the vehicle, a warning display will appear. Warning display (when the engine switch is pressed one time) Warning display (when the engine switch is pressed two times or more)
Operation mode of the engine switch and its function

OFF ACC ON
NOTE
 Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID codewhich the F.A.S.T.-key sends must match the one registered to the immobilizer computer. Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-26.
Changing the operation mode

CAUTION When the engine is not running, put the oper- ation mode in OFF. Leaving the operationmode in ON or ACC for a long time when the engine is not running may cause the bat- tery to be discharged, making it impossibleto start the engine.
BK0266800US.bo
ok 18 ページ ２０１８年６月２７日　水曜日　午後５時６分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-19
5
N00568101078
After approximately 30 minutes has elapsed with the operation mode in ACC, the function automatically cuts out the power for the audio
system and other electri
c devices that can be
operated with that mode. When the engine switch is pressed while the operation mode is in ACC, the power is sup-plied again to those devices.
N00503501301
With the F.A.S.T.-key, warnings are given through buzzers and disp
lays on the information screen
in the multi-information displ
ay in order to pre-
vent mistaken operations or vehicle theft.When a warning operates, be sure to check the vehicle and the F.
A.S.T.-key. A warning is also displayed if there is a problem i
n the F.A.S.T.-key.
When the battery is disconnected, the current operation mode is memorized. After recon- necting the battery, the memorized mode is selected automatically. Before disconnect- ing the battery for repair or replacement,make sure to put the operation mode in OFF. Be careful if you are not sure which opera- tion mode the vehicle is in when the batteryis run down. The operation mode cannot be changed from OFF to ACC or ON if the F.A.S.T.-key is not detected to be in the vehicle. Refer to “Oper- ating range for starting the engine andchanging the operation mode” on page 5-14. When there is the F.A.S.T.-key in the vehicle and the operation mode is not changed, the battery in the F.A.S.T.-key may have worn out.Refer to “Warning activation” on page 5-19.CAUTION
NOTE
 If the operation mode cannot be changed to OFF, perform the following procedure. 1. Move the selector lever to the “P” (PARK) position, and then change theoperation mode to OFF. 2. One of the other causes could be low bat- tery voltage. If this occurs, the keyless entry system and the F.A.S.T.-key opera- tion will also not operate. Contact anauthorized Mitsubishi Motors dealer or a repair facility of your choice.
ACC power auto-cutout function

NOTE
 It is possible to modify functions as follows: • The time until the power cuts out can be changed to approximately 60 minutes. • The ACC power auto-cutout function can be deactivated. For details, we recommend you to consult an authorized Mitsubishi Motors dealer. On vehicles equipped with the Smartphone Link Display Audio, screen operations canbe used to make the adjustment. Refer to the separate owner’s manual for details.
Warning activation

Item
Display
Buzzer
Solution
Note
Detection of failure Inner buzzer sounds
once
There is a problem in the F. A . S . T. - k e y.
—
BK0266800US.bo
ok 19 ページ ２０１８年６月２７日　水曜日　午後５時６分

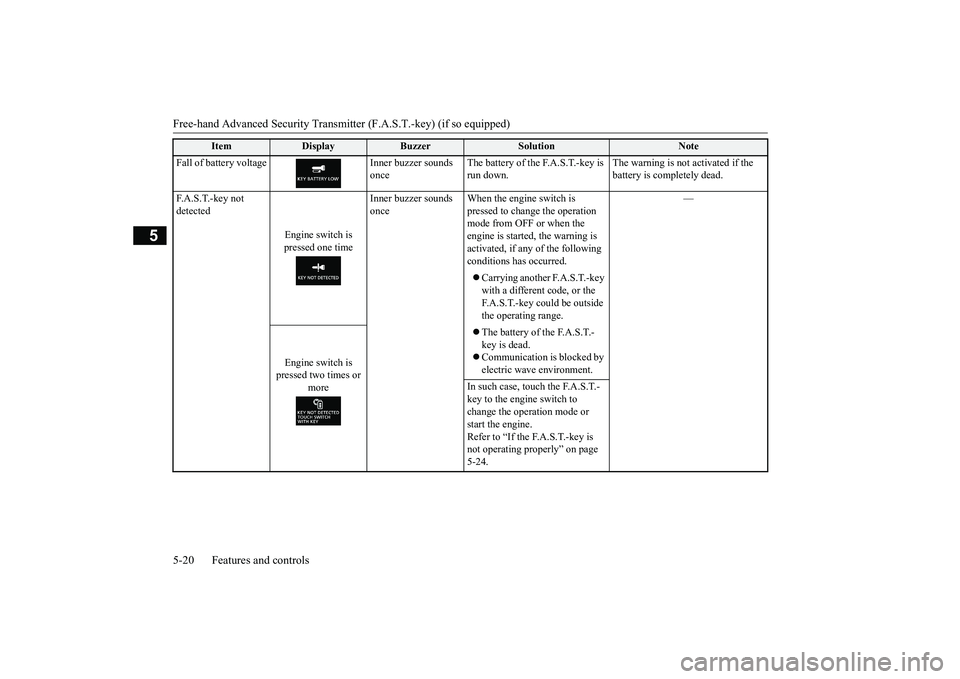

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-20 Features and controls
5
Fall of battery voltage Inner buzzer sounds
once
The battery of the F.A.S.T.-key is run down.
The warning is not activated if the battery is completely dead.
F.A.S.T.-key not detected
Engine switch is pressed one time
Inner buzzer sounds once
When the engine switch is pressed to change the operation mode from OFF or when the engine is started, the warning is activated, if any of the following conditions has occurred.
—
 Carrying another F.A.S.T.-key with a different code, or the F.A.S.T.-key could be outside the operating range.
Engine switch is pressed two times or
more
 The battery of the F.A.S.T.- key is dead.  Communication is blocked by electric wave environment.
In such case, touch the F.A.S.T.- key to the engine switch to change the operation mode or start the engine.Refer to “If the F.A.S.T.-key is not operating properly” on page 5-24.
Item
Display
Buzzer
Solution
Note
BK0266800US.bo
ok 20 ページ ２０１８年６月２７日　水曜日　午後５時６分

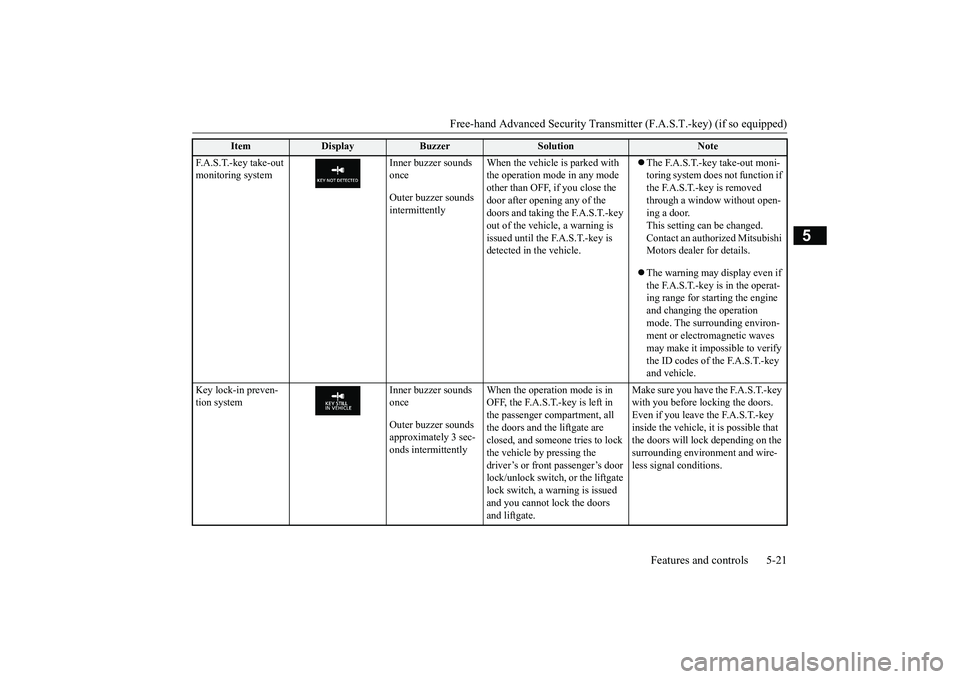

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-21
5
F.A.S.T.-key take-out monitoring system
Inner buzzer sounds once Outer buzzer sounds intermittently
When the vehicle is parked with the operation mode in any mode other than OFF, if you close the door after opening any of the doors and taking the F.A.S.T.-key out of the vehicle, a warning is issued until the F.A.S.T.-key is detected in the vehicle.
 The F.A.S.T.-key take-out moni- toring system does not function if the F.A.S.T.-key is removed through a window without open- ing a door. This setting can be changed.Contact an authorized Mitsubishi Motors dealer for details.  The warning may display even if the F.A.S.T.-key is in the operat-ing range for starting the engine and changing the operation mode. The surrounding environ-ment or electromagnetic waves may make it impossible to verify the ID codes of the F.A.S.T.-key and vehicle.
Key lock-in preven- tion system
Inner buzzer sounds once Outer buzzer sounds approximately 3 sec-onds intermittently
When the operation mode is in OFF, the F.A.S.T.-key is left in the passenger compartment, all the doors and the liftgate are closed, and someone tries to lock the vehicle by pressing the driver’s or front passenger’s door lock/unlock switch, or the liftgate lock switch, a warning is issued and you cannot lock the doors and liftgate.
Make sure you have the F.A.S.T.-key with you before locking the doors. Even if you leave the F.A.S.T.-key inside the vehicle, it is possible that the doors will lock depending on the surrounding environment and wire-less signal conditions.
Item
Display
Buzzer
Solution
Note
BK0266800US.bo
ok 21 ページ ２０１８年６月２７日　水曜日　午後５時６分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-22 Features and controls
5
N00514601416
 The operation mode can be in any mode to start the engine.
 The starter motor will be turning for up to approximately 15 seconds if the engineswitch is released at once. Pressing the engine switch again while the starter motor is still turning will stop the startermotor. The starter motor will be turning for up to approximately 30 seconds while theengine switch is pressed.
If the engine does not start, wait for a while and then attempt to start the engineagain. Trying repeatedly with the engine or starter motor still turning will damage the starter mechanism. If the engine will not start because the bat- tery is weak or discharged, refer to “Jump-starting the engine” on page 8-2for instructions.  A longer warm up period will only con- sume extra fuel.
Door ajar prevention system
Inner buzzer sounds once Outer buzzer sounds approximately 3 sec-onds intermittently
When the operation mode is in OFF, and someone tries to lock the vehicle by pressing the driver’s or front passenger’s door lock/unlock switch, or the liftgate lock switch while one of the doors or the liftgate is not fully closed, a warning is issued and you cannot lock the doors and liftgate.
—
Operation mode OFF reminder system
Inner buzzer sounds once Outer buzzer sounds approximately 3 sec-onds intermittently
When the operation mode is in any mode other than OFF, some- one tries to lock the vehicle by pressing the driver’s or front pas- senger’s door lock/unlock switch, or the liftgate lock switch, a warning is issued and you cannot lock the doors and liftgate.
—
Item
Display
Buzzer
Solution
Note
Starting and stopping the engine

Tips for starting

BK0266800US.bo
ok 22 ページ ２０１８年６月２７日　水曜日　午後５時６分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-23
5
The engine is warmed up enough for driv- ing when the bar graph of engine coolant temperature display starts to move. Refer to “Engine coolant temperature display”on page 5-145.
Your vehicle is equipped with an electroni- cally controlled fuel injection system. This system automatically controls fuel injection.There is usually no need to depress the accel- erator pedal when starting the engine. To prevent battery drain, wait a few secondsbetween attempts to restart the engine.
1. Make sure all occupants are properly seated with seat belts fastened. 2. Make sure the parking brake is applied. 3. Press and hold the brake pedal downfirmly with your right foot. 4. Make sure the selector lever is in the “P” (PARK) position. 5. Press the engine switch. 6. Confirm that all warning lights and warn- ing displays are functioning properly.
After several attempts, you may experience that the engine still does not start. 1. Make sure that all electric devices, such as lights, air conditioning blower and rearwindow defogger, are turned off. 2. While depressing the brake pedal, press the accelerator pedal halfway and hold itthere, then crank the engine. Release the accelerator pedal, immediately after the engine starts.
WA R N I N G Never run the engine in a closed or poorly ventilated area any longer than is needed to move your vehicle out of the area. Car-bon monoxide gas, which is odorless and extremely poisonous, could build up and cause serious injury or death.CAUTION Do not push-start the vehicle.Do not run the engine at high rpms or drive at high speeds until the engine has had a chance to warm up.
Starting the engine

NOTE
 After the engine has not started for a while, the brake pedal effort needed to start theengine may become greater. If this occurs, depress the brake pedal more firmly than usual.NOTE
 The engine can only be started when the selector lever is in the “P” (PARK) or “N”(NEUTRAL) position. For safety reasons, the engine should be started when the selector lever is in the “P”(PARK) position in which the driving wheels lock.
NOTE
 Minor noises may be heard on engine start- up. These will disappear as the engine warms up.
When the engine is hard to start
BK0266800US.bo
ok 23 ページ ２０１８年６月２７日　水曜日　午後５時６分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)

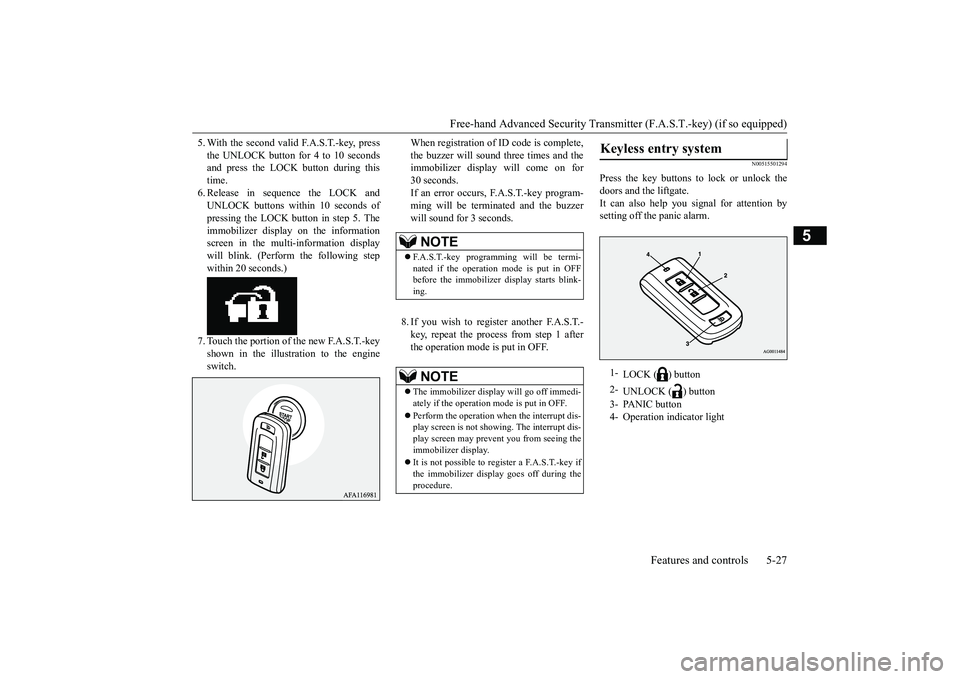

Features and controls 5-27
5
5. With the second valid F.A.S.T.-key, press the UNLOCK button for 4 to 10 seconds and press the LOCK button during this time.6. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 5. Theimmobilizer display on the information screen in the multi-information display will blink. (Perform the following stepwithin 20 seconds.) 7. Touch the portion of the new F.A.S.T.-key shown in the illustration to the engineswitch.
When registration of ID code is complete, the buzzer will sound three times and the immobilizer display will come on for 30 seconds.If an error occurs, F.A.S.T.-key program- ming will be terminated and the buzzer will sound for 3 seconds. 8. If you wish to register another F.A.S.T.- key, repeat the process from step 1 after the operation mode is put in OFF.
N00515501294
Press the key buttons to lock or unlock thedoors and the liftgate.It can also help you signal for attention by setting off the panic alarm.
NOTE
 F.A.S.T.-key programming will be termi- nated if the operation mode is put in OFF before the immobilizer display starts blink- ing.NOTE
 The immobilizer display will go off immedi- ately if the operation mode is put in OFF.  Perform the operation when the interrupt dis- play screen is not showing. The interrupt dis- play screen may prevent you from seeing the immobilizer display.  It is not possible to register a F.A.S.T.-key if the immobilizer display goes off during the procedure.
Keyless entry system

1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button 4- Operation indicator light
BK0266800US.bo
ok 27 ページ ２０１８年６月２７日　水曜日　午後５時６分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-28 Features and controls
5
Press the LOCK button (1) to lock all the doors and the liftgate. The turn signal lights will also blink once. Press the UNLOCK button (2) to unlock the driver’s door only. Within approximately 2 seconds, press the UNLOCK button one more time to unlock allthe doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal lights will also blink twice. The front side-marker and parking lights will also turn on for appr
oximately 30 seconds.
Refer to “Welcome light” on page 5-193. The horn and turn signal lights of the keyless entry system answerback function can be changed as required. This is done with theoperation mode in OFF. The answerback function can be set in the following three ways.
One chime: The horn will not sound. Two chimes: The horn will sound. Four chimes: The horn will sound if the LOCK button is presse
d twice within 1 sec-
ond. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2)during this time.4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.
The answerback function from the turn signal lights can be turned ON or OFF separately. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position.
NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors auto- matically retract or extend when the doors and the liftgate are lock
ed or unlocked using
the key buttons.Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key): Operation of the outside rearview mirrors” on page 5-17, and“Outside rearview mirrors” on page 5-52.
To l o c k

NOTE
 If you press the LOCK button (1) twice, the horn will sound once.
To u n l o c k

NOTE
 If the UNLOCK button (2) is pressed when no doors or the liftgate are opened within approximately 30 seconds, the doors and theliftgate will automatically re-lock. On vehicles equipped with the Smartphone Link Display Audio, the functions can beadjusted on the screen. For details, refer to the separate owner’s manual.  The door and liftgate unlock function can be set so that all doors and liftgate unlock when the UNLOCK button (2) is pressed once.Refer to “Setting of door and liftgate unlock function” on page 5-29.
Answerback function

Horn deactivation/reactivation
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can beadjusted on the screen. For details, refer to the separate owner’s manual.
Turn signal light deactivation/reactiva- tion
BK0266800US.bo
ok 28 ページ ２０１８年６月２７日　水曜日　午後５時６分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-29
5
3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
The buzzer answerback function can be turned ON or OFF as required.
N00544601226
The door and liftgate unlock function can be set to the following two conditions. Each time the door and liftgate unlock func- tion is set, a chime will sound to tell you thecondition of the door and liftgate unlock function.
1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2) during this time.4. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
Number of chimes
To l o c k
To unlock
One chime One flash Two flashes Two chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes No flash No flash
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer tothe separate owner’s manual.
Buzzer deactivation/reactivation
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer to a separate owner’s manual.
Setting of door and liftgate unlock function

Number of chimes
Condition
One chime
When the UNLOCK button, driver’s or front passenger’s door lock/unlock switch, or liftgate open switch is pressed one time, all doors and the lift-gate unlock.
Tw o chimes
When the UNLOCK button or the driver’s door lock/unlock switch is pressed one time, only the driver’s door unlocks. Within approximately 2 sec-onds, press the UNLOCK but- ton or the driver’s door lock/unlock switch one more time to unlock all the doors and the liftgate. [Factory setting]
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer to the separate owner’s manual.Number of chimes
Condition
BK0266800US.bo
