System control MITSUBISHI ECLIPSE CROSS 2019 Owner's Manual (in English)

Table of contents
123456789101112
Overview Quick indexGeneral information Seat and restraint systems Features and controlsDriving safetyComfort controlsFor emergenciesVehicle care and maintenance Customer assistance/
Reporting Safety Defects
Specifications Alphabetical index
BK0266800US.bo
ok 1 ページ ２０１８年６月２７日　水曜日　午後５時６分

Instruments and controls
1-1
1
Overview
N00100202892
Instruments and controls
Combination headlights and dimmer switch P.5-186
Automatic High Beam (AHB) switch (if so equipped) P.5-189
Turn signal lever P.5-194
Front fog light switch P.5-196
Steering wheel audio remote control switches [For
DISPLAY AUDIO and Smartphone Link Display
Audio, refer to the separate owner’s manual.]Active stability control (ASC) OFF switch P.5-81
Supplemental Restraint System (SRS) -
driver’s airbag P.4-30, 4-36
Horn switch P.5-204
Instrument cluster
P.5-137
Windshield wiper and washer switch P.5-196
Rear window wiper and washer switch P.5-201
Cruise control switches P.5-82, 5-87 Steering wheel height and reach adjustment lever P.5-49Engine switch (if so
equipped) P.5-17 Sportronic steering wheel paddle shifter (if so equipped) P.5-63
Lane Departure Warning (LDW) switch
(if so equipped) P.5-117 Forward Collision Mitigation system (FCM) ON/OFF switch
(if so equipped) P.5-103
Supplemental Restraint System (SRS) -
driver’s knee airbag P.4-36
Ignition switch (if so equipped) P.5-56 Head Up Display (HUD) switches
(if so equipped) P.5-182
Headlight leveling switch (if so equipped) P.5-194
Camera switch P.5-131
Hands free switches (if so equipped)Multi-information display switches P.5-140
Head Up Display (HUD) (if so equipped) P.5-182
BK0266800US.book 1 ページ ２０１８年６月２８日　木曜日　午後３時４５分

Instruments and controls
1-3 Overview
1
Supplemental Restraint System (SRS) -
front passenger’s airbag P. 4-30, 4-36
Glove compartment P.5-216
Card holder P.5-216
S-AWC drive mode-selector (if so equipped)
P.5-67 Parking brake lever P.5-46
Heated seat switches (for the front
seats) P.4-8 Selector lever P.5-59Brake auto hold switch P.5-73
S-AWC drive mode
selector (if so equipped)
P.5-67Electric parking brake type Parking brake lever type
Heated seat switches
(for the front seats) (if
so equipped) P.4-8Electric parking brake switch P.5-46
Selector lever P.5-59 Multi Around Monitor (if so equipped) P.5-127
Audio (if so equipped)
[For DISPLAY AUDIO and Smartphone Link Display
Audio, refer to the separate owner’s manuals.]
BK0266800US.book 3 ページ ２０１８年６月２８日　木曜日　午後４時５４分

Interior
Overview 1-4
1
N00100302574
Interior
Sun visors P.5-205 Vanity mirror P.5-205 Card holder P.5-205
Supplemental Restraint System (SRS) - side airbag P.4-30, 4-40
Adjustable seat belt
shoulder anchor P.4-19
Seat belts P.4-13
Electric remote-controlled outside rearview mirrors switch P.5-53
Lock switch P.5-41
Power door lock switch P.5-33
Power window switch P.5-39
Rear seat P.4-6
Front seat P.4-3
Inside rearview mirror P.5-50 HomeLink
® Wireless Control
System (if so equipped) P.5-207
Storing the rear seat belts P.4-20
BK0266800US.bo
ok 4 ページ ２０１８年６月２７日　水曜日　午後５時６分

Interior 1-5 Overview
1
Assist grips P.5-220 Coat hook P.5-220
Bottle holder P.5-218
Head restraints P.4-9
Arm rest (if so equipped) P.4-8 Rear drink holder (if so equipped) P.5-217
Cargo area cover (if so equipped) P.5-218
Supplemental Restraint System (SRS) - curtain airbag P.4-30, 4-41 Dome light (rear) P.5-214
Front shade switch (if so equipped) P.5-42
Dome light (front) switch P.5-213
Front sunroof switch (if so equipped) P.5-42
Dome light (front)/Reading lights P.5-213
Hands-free microphone (if so equipped)
Dome light (front)/Reading lights P.5-213
Telematics Control Unit (TCU) (if so equipped) P.3-5
Rear shade switch (if
so equipped) P.5-42
BK0266800US.bo
ok 5 ページ ２０１８年６月２７日　水曜日　午後５時６分

If this warning light comes on or
flashes while you’re driving...
Quick index 2-3
2
and
ASC indicator and ASC OFF indicator
 Park your vehicle in a safe place and stop the engine. Restart the engine and check whether the indicator goes out.  If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of your choice as soon
as possible.  When this indicator comes on, the active
stability control is not functioning and
normal operation of the vehicle will not be affected.
P. 5-82
ASC indicator
 Park your vehicle in a safe place and stop the engine. Restart the engine and check whether the indicator goes out.  If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of your choice as soon
as possible.  When this indicator comes on, the hi
ll start assist is not functioning.
Start off carefully on a steep uphill slope.
P. 5-76
Tire pressure monitoring system warn-
ing light
 If the warning light comes on, you should stop and adjust the tires to the proper inflation pressure as soon as possible. (See “Tire inflation pressures” on page 9-15.)Once adjustments have been made, the warning light will go off after a few minutes of driving.  If the warning light blinks for approxim
ately 1 minute and then remains continu-
ously illuminated, the system is not operatin
g properly. If the system returns to nor-
mal, the warning light will go off. If
the warning light does not go off, have the
vehicle inspected at an authori
zed Mitsubishi Motors dealer.
P. 5-120
LED headlight warning light
(if so equipped)
 If the warning light comes on, there may be
a malfunction in the LED headlight
unit. Have the vehicle inspected at an authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
P. 5-188
Wa r n i n g l i g h t s
Do this
Ref. Page
BK0266800US.bo
ok 3 ページ ２０１８年６月２７日　水曜日　午後５時６分

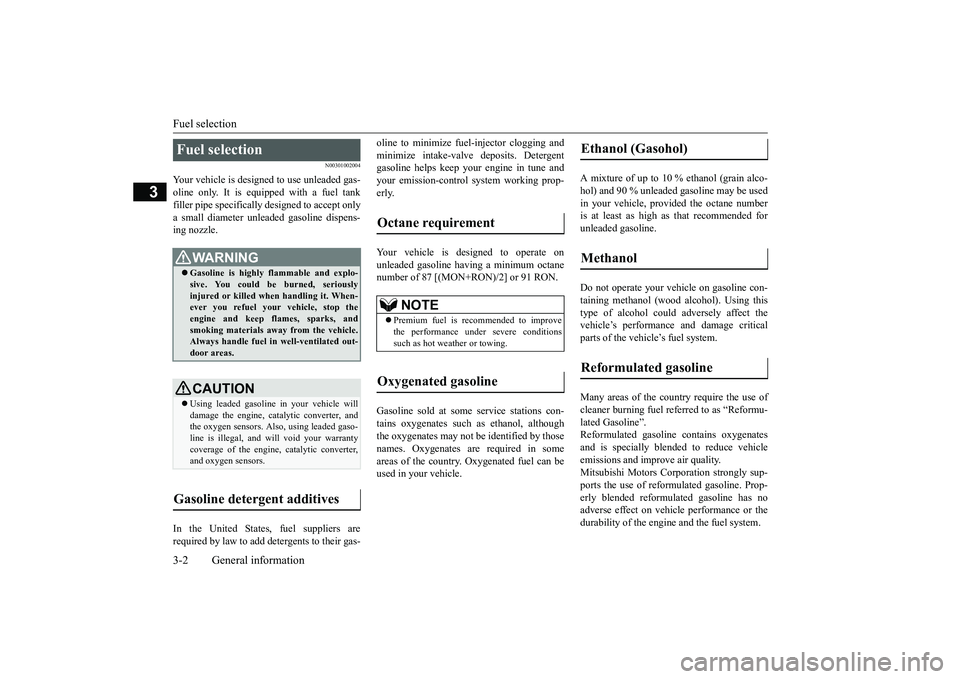

Fuel selection 3-2 General information
3
N00301002004
Your vehicle is designed to use unleaded gas- oline only. It is equipped with a fuel tankfiller pipe specifically designed to accept only a small diameter unleaded gasoline dispens- ing nozzle. In the United States, fuel suppliers are required by law to add detergents to their gas-
oline to minimize fuel-injector clogging and minimize intake-valve deposits. Detergent gasoline helps keep your engine in tune and your emission-control system working prop-erly. Your vehicle is designed to operate on unleaded gasoline having a minimum octanenumber of 87 [(MON+RON)/2] or 91 RON. Gasoline sold at some service stations con- tains oxygenates such as ethanol, although the oxygenates may not be identified by thosenames. Oxygenates are required in some areas of the country. Oxygenated fuel can be used in your vehicle.
A mixture of up to 10 % ethanol (grain alco- hol) and 90 % unleaded gasoline may be usedin your vehicle, provided the octane number is at least as high as that recommended for unleaded gasoline. Do not operate your vehicle on gasoline con- taining methanol (wood alcohol). Using this type of alcohol could adversely affect thevehicle’s performance and damage critical parts of the vehicle’s fuel system. Many areas of the country require the use of cleaner burning fuel referred to as “Reformu- lated Gasoline”.Reformulated gasoline contains oxygenates and is specially blended to reduce vehicle emissions and improve air quality.Mitsubishi Motors Cor
poration strongly sup-
ports the use of reformulated gasoline. Prop- erly blended reformulated gasoline has noadverse effect on vehicle performance or the durability of the engine and the fuel system.
Fuel selection
WA R N I N G Gasoline is highly flammable and explo- sive. You could be burned, seriouslyinjured or killed when handling it. When- ever you refuel your vehicle, stop the engine and keep flames, sparks, andsmoking materials away from the vehicle. Always handle fuel in well-ventilated out- door areas.CAUTION Using leaded gasoline in your vehicle will damage the engine, catalytic converter, and the oxygen sensors. Also, using leaded gaso-line is illegal, and will void your warranty coverage of the engine, catalytic converter, and oxygen sensors.
Gasoline detergent additives
Octane requirement
NOTE
 Premium fuel is recommended to improve the performance under severe conditions such as hot w
eather or towing.
Oxygenated gasoline
Ethanol (Gasohol) Methanol Reformulated gasoline
BK0266800US.bo
ok 2 ページ ２０１８年６月２７日　水曜日　午後５時６分

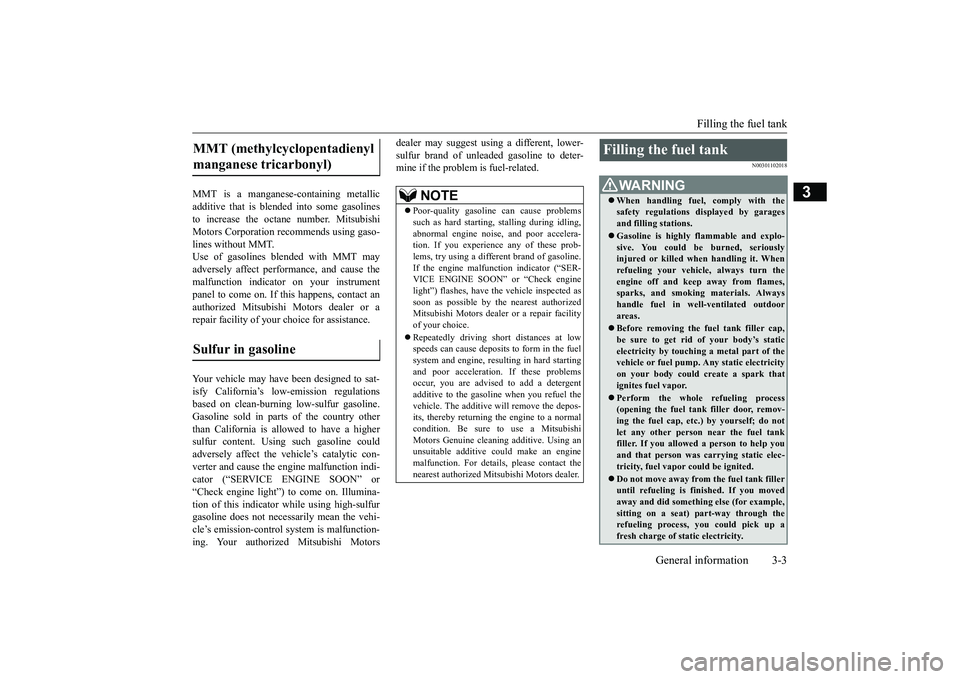

Filling the fuel tank
General information 3-3
3
MMT is a manganese-containing metallic additive that is blended into some gasolines to increase the octane number. Mitsubishi Motors Corporation recommends using gaso-lines without MMT. Use of gasolines blended with MMT may adversely affect performance, and cause themalfunction indicator on your instrumentpanel to come on. If this happens, contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance. Your vehicle may have been designed to sat- isfy California’s low-emission regulationsbased on clean-burning low-sulfur gasoline. Gasoline sold in parts of the country other than California is allowed to have a highersulfur content. Using such gasoline could adversely affect the vehicle’s catalytic con- verter and cause the engine malfunction indi-cator (“SERVICE ENGINE SOON” or “Check engine light”) to come on. Illumina- tion of this indicator while using high-sulfurgasoline does not necessarily mean the vehi- cle’s emission-control system is malfunction- ing. Your authorized Mitsubishi Motors
dealer may suggest using a different, lower- sulfur brand of unleaded gasoline to deter- mine if the problem is fuel-related.
N00301102018
MMT (methylcyclopentadienyl manganese tricarbonyl) Sulfur in gasoline
NOTE
 Poor-quality gasoline can cause problems such as hard starting, stalling during idling, abnormal engine noise, and poor accelera- tion. If you experience any of these prob-lems, try using a different brand of gasoline. If the engine malfunction indicator (“SER- VICE ENGINE SOON” or “Check enginelight”) flashes, have the vehicle inspected as soon as possible by the nearest authorized Mitsubishi Motors dealer or a repair facilityof your choice.  Repeatedly driving short distances at low speeds can cause deposits to form in the fuel system and engine, resulting in hard starting and poor acceleration. If these problemsoccur, you are advised to add a detergent additive to the gasoline when you refuel the vehicle. The additive will remove the depos-its, thereby returning the engine to a normal condition. Be sure to use a Mitsubishi Motors Genuine cleaning additive. Using anunsuitable additive could make an engine malfunction. For details, please contact the nearest authorized Mitsubishi Motors dealer.
Filling the fuel tank
WA R N I N G When handling fuel, comply with the safety regulations displayed by garages and filling stations. Gasoline is highly flammable and explo- sive. You could be burned, seriously injured or killed when handling it. Whenrefueling your vehicle, always turn the engine off and keep away from flames, sparks, and smoking materials. Alwayshandle fuel in well-ventilated outdoor areas. Before removing the fuel tank filler cap, be sure to get rid of your body’s static electricity by touching a metal part of thevehicle or fuel pump. Any static electricity on your body could create a spark that ignites fuel vapor. Perform the whole refueling process (opening the fuel tank filler door, remov-ing the fuel cap, etc.) by yourself; do not let any other person near the fuel tank filler. If you allowed a person to help youand that person was carrying static elec- tricity, fuel vapor could be ignited. Do not move away from the fuel tank filler until refueling is finished. If you movedaway and did something else (for example, sitting on a seat) part-way through the refueling process, you could pick up afresh charge of static electricity.
BK0266800US.bo
ok 3 ページ ２０１８年６月２７日　水曜日　午後５時６分

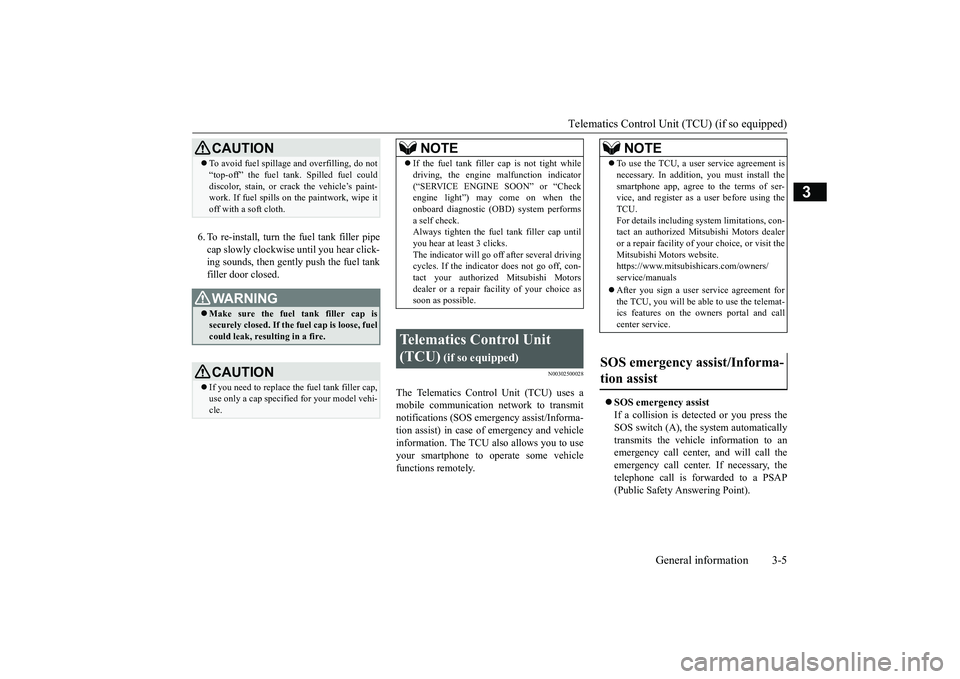

Telematics Control Unit (TCU) (if so equipped)
General information 3-5
3
6. To re-install, turn the fuel tank filler pipe cap slowly clockwise until you hear click- ing sounds, then gently push the fuel tank filler door closed.
N00302500028
The Telematics Control Unit (TCU) uses amobile communication network to transmitnotifications (SOS emergency assist/Informa- tion assist) in case of emergency and vehicle information. The TCU also allows you to useyour smartphone to operate some vehicle functions remotely.
 SOS emergency assist If a collision is detected or you press the SOS switch (A), the system automaticallytransmits the vehicle information to an emergency call center, and will call the emergency call center. If necessary, thetelephone call is forwarded to a PSAP (Public Safety Answering Point).
CAUTION To avoid fuel spillage and overfilling, do not “top-off” the fuel tank. Spilled fuel could discolor, stain, or crack the vehicle’s paint- work. If fuel spills on the paintwork, wipe it off with a soft cloth.WA R N I N G Make sure the fuel tank filler cap is securely closed. If the fuel cap is loose, fuel could leak, resulting in a fire.CAUTION If you need to replace the fuel tank filler cap, use only a cap specified for your model vehi- cle.
NOTE
 If the fuel tank filler
cap is not tight while
driving, the engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”) may come on when the onboard diagnostic (OBD) system performsa self check. Always tighten the fuel tank filler cap until you hear at least 3 clicks.The indicator will go off after several driving cycles. If the indicator does not go off, con- tact your authorized Mitsubishi Motorsdealer or a repair facility of your choice as soon as possible.
Telematics Control Unit (TCU)
(if so equipped)
NOTE
 To use the TCU, a user service agreement is necessary. In addition, you must install the smartphone app, agree to the terms of ser- vice, and register as a user before using the TCU.For details including system limitations, con- tact an authorized Mitsubishi Motors dealer or a repair facility of
your choice, or visit the
Mitsubishi Motors website. https://www.mitsubishicars.com/owners/ service/manuals  After you sign a user service agreement for the TCU, you will be able to use the telemat-ics features on the owners portal and call center service.
SOS emergency assist/Informa- tion assist

BK0266800US.bo
ok 5 ページ ２０１８年６月２７日　水曜日　午後５時６分

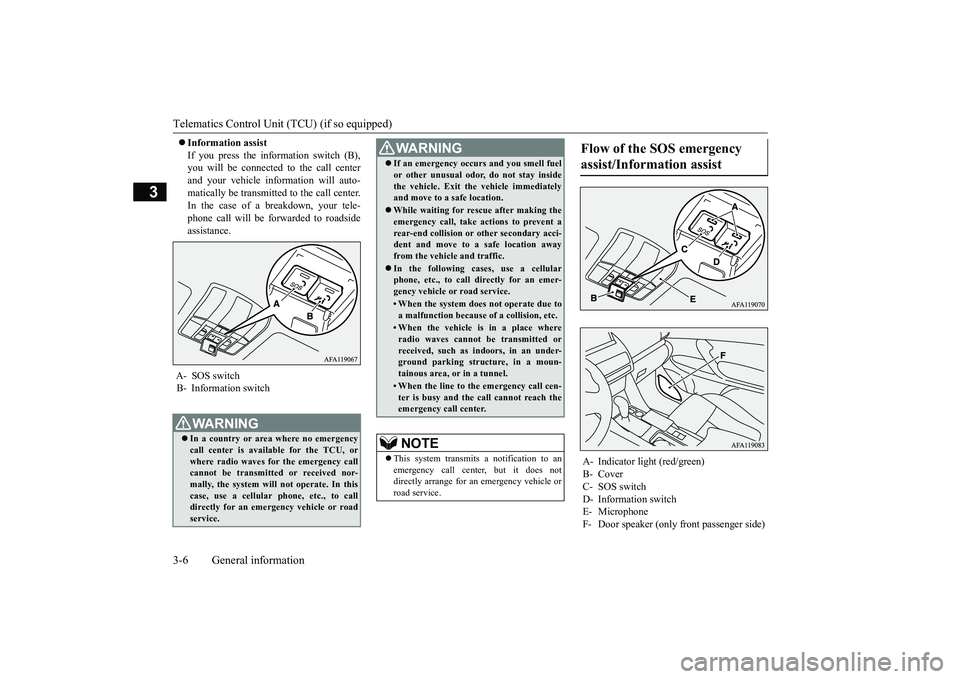

Telematics Control Unit (TCU) (if so equipped) 3-6 General information
3
 Information assist If you press the information switch (B), you will be connected to the call center and your vehicle information will auto-matically be transmitted to the call center. In the case of a breakdown, your tele- phone call will be forwarded to roadsideassistance.
A- SOS switch B- Information switch
WA R N I N G In a country or area where no emergency call center is available for the TCU, or where radio waves for the emergency callcannot be transmitted or received nor- mally, the system will not operate. In this case, use a cellular phone, etc., to calldirectly for an emergency vehicle or road service.
 If an emergency occurs and you smell fuel or other unusual odor, do not stay inside the vehicle. Exit the vehicle immediately and move to a safe location. While waiting for rescue after making the emergency call, take actions to prevent a rear-end collision or other secondary acci-dent and move to a safe location away from the vehicle and traffic. In the following cases, use a cellular phone, etc., to call directly for an emer- gency vehicle or road service.• When the system does not operate due toa malfunction because of a collision, etc.• When the vehicle is in a place whereradio waves cannot be transmitted orreceived, such as indoors, in an under- ground parking structure, in a moun- tainous area, or in a tunnel.• When the line to the emergency call cen-ter is busy and the call cannot reach theemergency call center.NOTE
 This system transmits a notification to an emergency call center, but it does notdirectly arrange for an emergency vehicle or road service.WA R N I N G
Flow of the SOS emergency assist/Information assist

A- Indicator light (red/green) B- Cover C- SOS switchD- Information switchE- Microphone F- Door speaker (only front passenger side)
BK0266800US.bo
ok 6 ページ ２０１８年６月２７日　水曜日　午後５時６分
