Table of Contents 1-2
Table of Contents
Introduction
Table of Contents ---------------------------- 1-2
Outline of the System ----------------------- 1-4
Map Disc ---------------------------------------- 1-5Supported Areas ------------------------------------- 1-5
Map Disc Loading and Removal ---------------- 1-5GPS Measurement --------------------------- 1-6
Error in the Current Location ------------ 1-8
Route Calculation -------------------------- 1-10
Operation of MMCS
Starting the MMCS Screen ---------------- 2-1
Interrupt Displays ---------------------------- 2-2
Main Menu -------------------------------------- 2-4
Audio --------------------------------------------- 2-6Radio --------------------------------------------------- 2-6
CD Changer ------------------------------------------ 2-6
Satellite Radio (SIRIUS
TM) ------------------------ 2-7
Air Conditioner -------------------------------- 2-8
Trip ------------------------------------------------ 2-9Reset Mode ----------------------------------------- 2-10
Driving Distance and Time ---------------------- 2-10
Lap Time ---------------------------------------------- 2-11
Setup ------------------------------------------- 2-12Picture Quality ------------------------------------- 2-12
Screen ----------------------------------------------- 2-12
System ----------------------------------------------- 2-14
Alarm ------------------------------------------------- 2-15
Equipment ------------------------------------------- 2-17
Clearing the Screen ------------------------------ 2-19Maintenance --------------------------------- 2-20Setting the Maintenance Timing --------------- 2-20
Updating All Information ------------------------- 2-21
Deleting All Information -------------------------- 2-21
Updating by Item ---------------------------------- 2-21
Deleting by Item ----------------------------------- 2-22Environment --------------------------------- 2-23
Calendar --------------------------------------- 2-24Setting the Schedule ----------------------------- 2-24
Editing the Schedule ----------------------------- 2-26
Deleting the Schedule ---------------------------- 2-26
Basic Operation
Displaying the Navi Screen --------------- 3-1Starting the Navi ------------------------------------- 3-1
Returning to the Main Menu ---------------------- 3-1Menu Screens (Four Menus) ------------- 3-2Current Location Menu ---------------------------- 3-2
Scroll Menu ------------------------------------------- 3-2
Navi Menu --------------------------------------------- 3-3
Route Menu ------------------------------------------- 3-3
Explanation of Common Buttons ---------------- 3-4
Map Screen ------------------------------------- 3-5Current Location Screen -------------------------- 3-5Changing the Map Display ---------------- 3-6Changing the Scale --------------------------------- 3-6
Changing the Map Orientation ------------------- 3-7
Changing to a Two Maps Display --------------- 3-7
Changing Day or Night ----------------------------- 3-8Scrolling the Map ---------------------------- 3-9Scrolling to a Certain Location ------------------- 3-9
Destination Setting for Scrolled Position ---- 3-10
Viewing the Car Location ------------------------ 3-10Intersection Guidance -------------------- 3-11Guidance Map -------------------------------------- 3-11
Turn List ---------------------------------------------- 3-11
Arrow Guide ---------------------------------------- 3-12Listening to the Voice Guide ----------- 3-13Changing the Voice Volume -------------------- 3-13How to Enter Text -------------------------- 3-14Entering a Letter ----------------------------------- 3-14
Entering a Symbol -------------------------------- 3-14
Deleting Text ---------------------------------------- 3-14
Switching between
Upper Case and Lower Case --------- 3-15
Completing the Input ----------------------------- 3-15
Page 37 of 101
Calendar 2-24

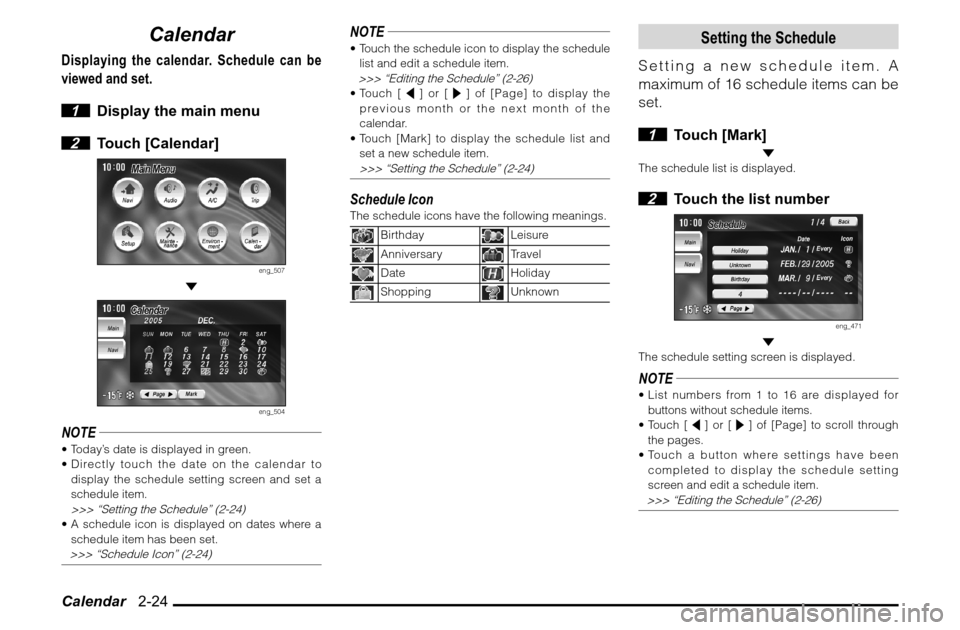

Calendar
Displaying the calendar. Schedule can be
viewed and set.
1 Display the main menu
2 Touch [Calendar]
eng_507
eng_504
NOTE Today’s date is displayed in green.
Directly touch the date on the calendar to
display the schedule setting screen and set a
schedule item.
>>> “Setting the Schedule” (2-24) A schedule icon is displayed on dates where a
schedule item has been set.
>>> “Schedule Icon” (2-24)
NOTE Touch the schedule icon to display the schedule
list and edit a schedule item.
>>> “Editing the Schedule” (2-26) Touch [ ] or [ ] of [Page] to display the
previous month or the next month of the
calendar.
Touch [Mark] to display the schedule list and
set a new schedule item.
>>> “Setting the Schedule” (2-24)Schedule IconThe schedule icons have the following meanings.
Birthday
Leisure
Anniversary
Travel
Date
Holiday
Shopping
Unknown
Setting the Schedule
Setting a new schedule item. A
maximum of 16 schedule items can be
set.
1 Touch [Mark]
The schedule list is displayed. 2 Touch the list number
eng_471
The schedule setting screen is displayed.NOTE List numbers from 1 to 16 are displayed for
buttons without schedule items.
Touch [ ] or [ ] of [Page] to scroll through
the pages.
Touch a button where settings have been
completed to display the schedule setting
screen and edit a schedule item.
>>> “Editing the Schedule” (2-26)
Page 39 of 101
Calendar 2-26

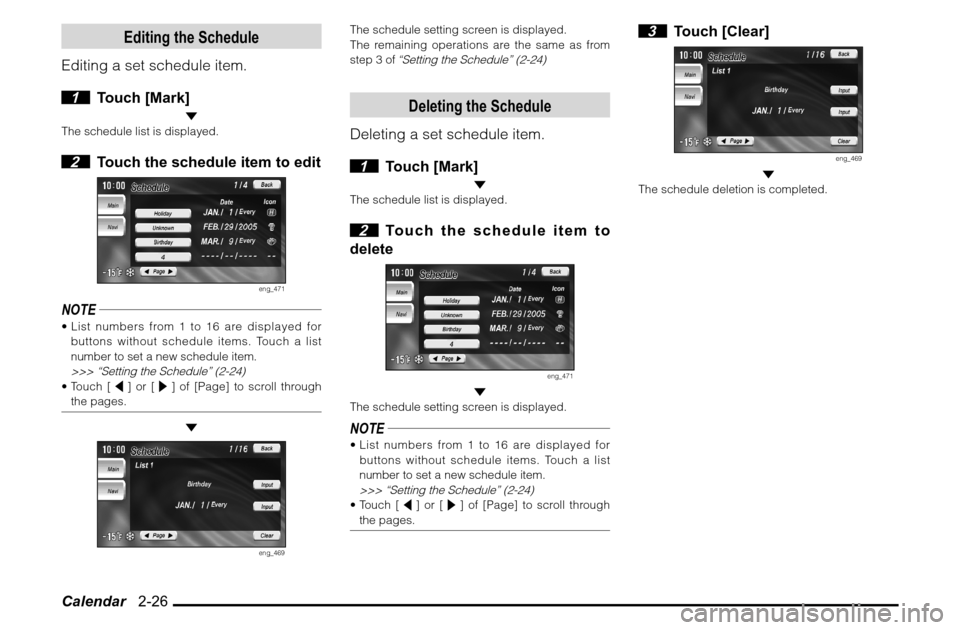

Editing the Schedule
Editing a set schedule item.
1 Touch [Mark]
The schedule list is displayed. 2 Touch the schedule item to edit
eng_471
NOTE List numbers from 1 to 16 are displayed for
buttons without schedule items. Touch a list
number to set a new schedule item.
>>> “Setting the Schedule” (2-24) Touch [ ] or [ ] of [Page] to scroll through
the pages.
eng_469
The schedule setting screen is displayed.
The remaining operations are the same as from
step 3 of
“Setting the Schedule” (2-24)Deleting the Schedule
Deleting a set schedule item.
1 Touch [Mark]
The schedule list is displayed. 2 Touch the schedule item to
delete
eng_471
The schedule setting screen is displayed.NOTE List numbers from 1 to 16 are displayed for
buttons without schedule items. Touch a list
number to set a new schedule item.
>>> “Setting the Schedule” (2-24) Touch [ ] or [ ] of [Page] to scroll through
the pages.
3 Touch [Clear]
eng_469
The schedule deletion is completed.
Page 41 of 101
Menu Screens (Four Menus) 3-2Menu Screens(Four Menus)
Current Location Menu
eng_037
1) Orientation Mark
The orientation of the map can be changed.
>>> “Changing the Map Orientation” (3-7)2) [Voice]
An intersection guidance map for the next
intersection is displayed, and voice guidance is
performed. Only displayed when a route has been
set.
>>> “Listening to the Voice Guide” (3-13)
3) [Route]
The “Route Menu” is displayed and the route
can be viewed or edited. Only displayed when
a route has been set.
>>> “Routes” (5-1)
4) [Navi Menu] The “Navi Menu” is displayed and the
destination settings or setup can be performed. >>> “Destination” (4-1), “Setup” (7-1)5) [Main]
The Main Menu is displayed.
>>> “Returning to the Main Menu” (3-1)6) Scale Change Button
The map scale can be changed.
>>> “Changing the Scale” (3-6)
Scroll Menu
Touch the map to display.
eng_108
1) Arrow Buttons
The map is scrolled. The map can be scrolled
in the 8 arrow directions.
>>> “Scrolling the Map” (3-9)2) Cursor
3) [Location]
The positional relationship between the cursor
position and the current location can be
viewed.
>>> “Viewing the Car Location” (3-10)
4) [Nearby POI]
POI can be searched for in the vicinity of the
cursor position.
>>> “Nearby POI” (4-8)
5) [Address Book]
The cursor position can be stored in the
address book.
>>> “Storing a New Location” (6-1)6) [Set]
Sets the cursor position as the destination.
>>> “Destination Setting for Scrolled Position”
(3-10)
1)
2)
3)
4)5)
3)1)2)
6)5)4) 6)
Page 43 of 101
Menu Screens (Four Menus) 3-4
Explanation of Common Buttons
This section explains the common
buttons that appear in all the menu
screens.
Displays the current location screen.Returns to the previous screen.Scrolls forward through a list one line
at a time.Scrolls forward through a list one
page at a time.Scrolls back through a list one line at
a time.Scrolls back through a list one page
at a time.
