Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200700924
NOTE
These warning lights will come on for a few seconds for a bulb check when the ignition key is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your
choice for assistance.P.3-85
Oil pressure warning light
Park your vehicle in a safe place and stop the engine, then check the engine
oil level.
If the light comes on while the engine oil level is normal, have the system
checked at an authorized Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.P.3-85
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is
fully released.

If this light stays on after releasing the parking brake, stop and check the
brake fluid level.

If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speeds, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P.3-83
BK0102600US.book 1 ページ ２００９年３月３０日　月曜日　午後２時２分

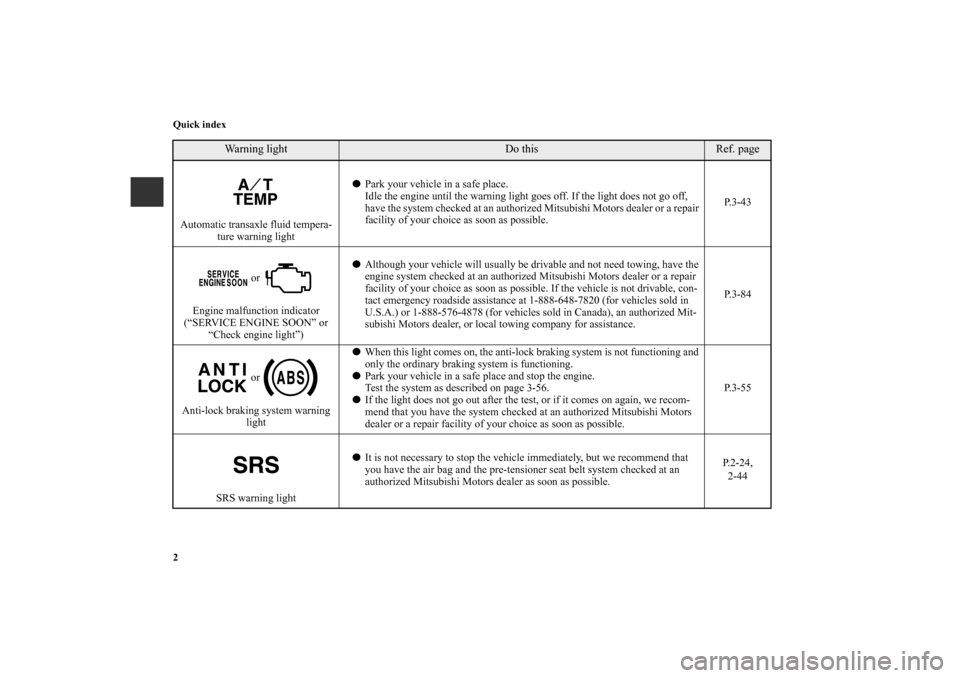

2 Quick indexAutomatic transaxle fluid tempera-
ture warning light
Park your vehicle in a safe place.
Idle the engine until the warning light goes off. If the light does not go off,
have the system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.P. 3 - 4 3
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized Mit-
subishi Motors dealer, or local towing company for assistance.P. 3 - 8 4
or
Anti-lock braking system warning
light
When this light comes on, the anti-lock braking system is not functioning and
only the ordinary braking system is functioning.

Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-56.

If the light does not go out after the test, or if it comes on again, we recom-
mend that you have the system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P. 3 - 5 5
SRS warning light
It is not necessary to stop the vehicle immediately, but we recommend that
you have the air bag and the pre-tensioner seat belt system checked at an
authorized Mitsubishi Motors dealer as soon as possible.P.2-24,
2-44
Warning light
Do this
Ref. page
BK0102600US.book 2 ページ ２００９年３月３０日　月曜日　午後２時２分

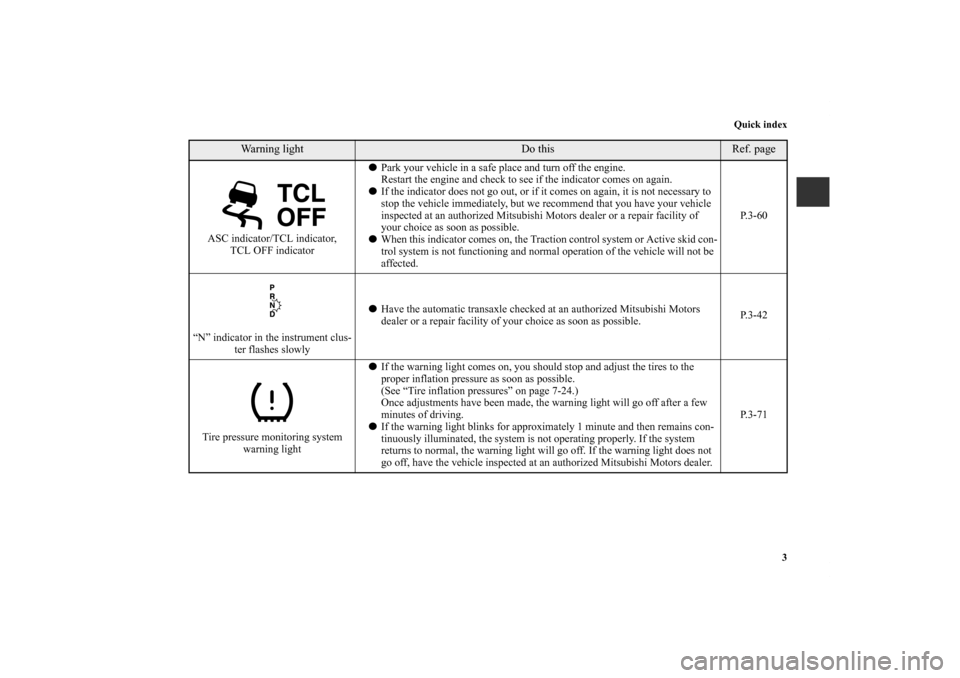

Quick index
3

ASC indicator/TCL indicator,
TCL OFF indicator
Park your vehicle in a safe place and turn off the engine.
Restart the engine and check to see if the indicator comes on again.

If the indicator does not go out, or if it comes on again, it is not necessary to
stop the vehicle immediately, but we recommend that you have your vehicle
inspected at an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.

When this indicator comes on, the Traction control system or Active skid con-
trol system is not functioning and normal operation of the vehicle will not be
affected.P.3-60
“N” indicator in the instrument clus-
ter flashes slowly
Have the automatic transaxle checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P.3-42
Tire pressure monitoring system
warning light
If the warning light comes on, you should stop and adjust the tires to the
proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-24.)
Once adjustments have been made, the warning light will go off after a few
minutes of driving.

If the warning light blinks for approximately 1 minute and then remains con-
tinuously illuminated, the system is not operating properly. If the system
returns to normal, the warning light will go off. If the warning light does not
go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.P.3-71
Warning light
Do this
Ref. page
BK0102600US.book 3 ページ ２００９年３月３０日　月曜日　午後２時２分

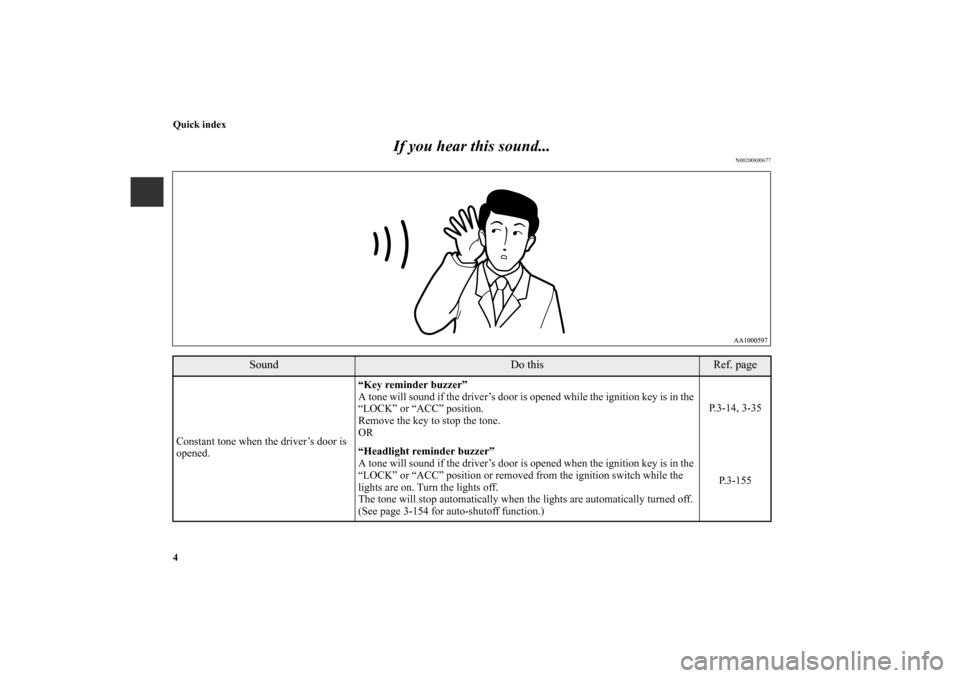

4 Quick index
If you hear this sound...
N00200800677
Sound
Do this
Ref. page
Constant tone when the driver’s door is
opened.“Key reminder buzzer”
A tone will sound if the driver’s door is opened while the ignition key is in the
“LOCK” or “ACC” position.
Remove the key to stop the tone.
ORP.3-14, 3-35
“Headlight reminder buzzer”
A tone will sound if the driver’s door is opened when the ignition key is in the
“LOCK” or “ACC” position or removed from the ignition switch while the
lights are on. Turn the lights off.
The tone will stop automatically when the lights are automatically turned off.
(See page 3-154 for auto-shutoff function.)P.3-155BK0102600US.book 4 ページ ２００９年３月３０日　月曜日　午後２時２分

Quick index
5
Metallic squeal when you press the
brake pedal while driving.“Brake pad wear alarm”
The brake pads are worn down to the serviceable limit.
Have the brake pads replaced at an authorized Mitsubishi Motors dealer or a
repair facility of your choice.P.3-54
Tone when the ignition key is turned to
the “ON” position.“Seat belt reminder buzzer”
When the ignition key is turned to the “ON” position, the tone will sound for
about 6 seconds. If the driver’s seat belt remains unfastened 1 minute later, the
tone will sound intermittently (12 times) when the vehicle is driven. If the
driver’s seat belt subsequently remains unfastened while the vehicle is being
driven, the tone will sound as a warning each time the vehicle stops and starts.
When the driver’s seat belt is fastened, the tone will stop.P.2-19
Tone when the vehicle is moving at
more than 5 mph (8 km/h).“Door-ajar warning buzzer”
Door, liftgate is not properly shut.
If you shut the door, liftgate the tone will stop.P.3-85
Wind buffeting when driving with one
or both rear door windows opened.“What to do if you hear wind buffeting when driving”
Open the front door windows as well as the rear door windows.P.3-25
When the headlights have flashed for
three minutes, the horn will sound inter-
mittently for three minutes.“Theft-alarm system”
The theft-alarm system is operating. To stop the alarm, turn the key in the
driver’s door toward the front of the vehicle (the lock direction) or toward the
rear of the vehicle (the unlock direction). Alternatively, use the keyless-entry
transmitter to lock or unlock the doors, liftgate.P.3-20
Sound
Do this
Ref. page
BK0102600US.book 5 ページ ２００９年３月３０日　月曜日　午後２時２分

6 Quick index
If this problem occurs...
N00200900795
Problem
Do this
Ref. Page
Cannot turn the key.
From “LOCK” to “ACC”
Turn the key while jogging the steering wheel in either direction.
From “ACC” to “LOCK”
Check the position of the selector lever.
The key cannot be removed unless the selector lever is set to the “P” (PARK) position.P.3-35,
3-36
Cannot shift the selector lever
from the “P” (PARK) position.Shift the selector lever while pressing the brake pedal.
Check that the ignition key is in the “ON” position.P.3-40
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-12,
5-23
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
7-16BK0102600US.book 6 ページ ２００９年３月３０日　月曜日　午後２時２分

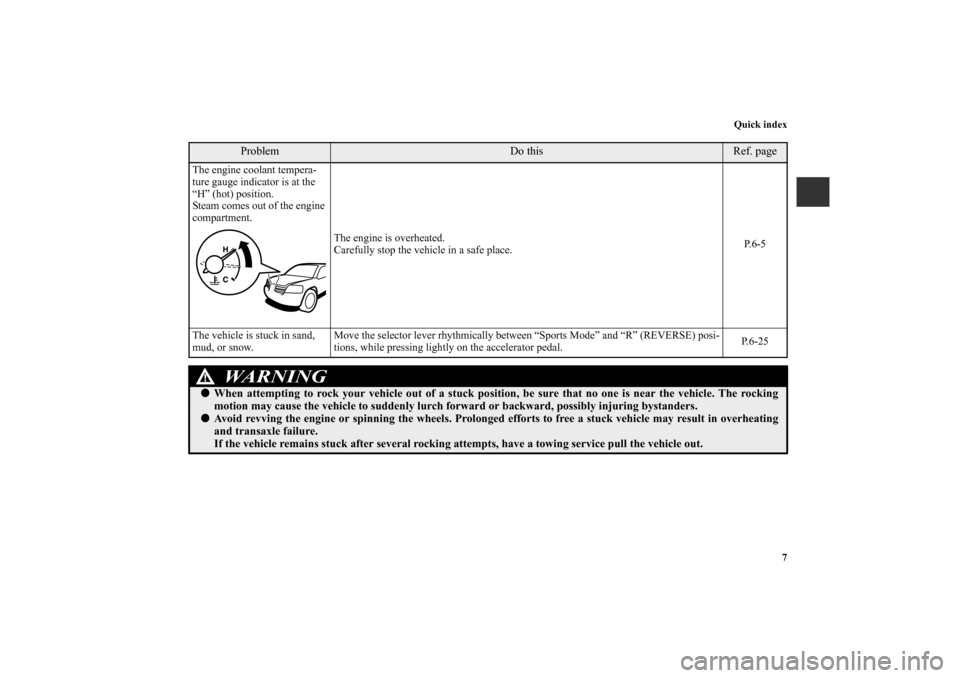

Quick index
7
Problem
Do this
Ref. page
The engine coolant tempera-
ture gauge indicator is at the
“H” (hot) position.
Steam comes out of the engine
compartment.
The engine is overheated.
Carefully stop the vehicle in a safe place.P. 6 - 5
The vehicle is stuck in sand,
mud, or snow.Move the selector lever rhythmically between “Sports Mode” and “R” (REVERSE) posi-
tions, while pressing lightly on the accelerator pedal.P.6-25
WA R N I N G
!
When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking
motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.
Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
BK0102600US.book 7 ページ ２００９年３月３０日　月曜日　午後２時２分

8 Quick index
Problem
Do this
Ref. page
The brakes are not functioning
properly after driving through
water. Dry out the brakes by driving slowly while lightly pressing the brake pedal. P.3-50
The automatic transaxle does
not shift when accelerating
and/or the vehicle does not
easily begin to move. There may be a problem in the automatic transaxle.
Have the vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility
of your choice.
Shift the lever into 2nd gear of the sports mode when starting the vehicle. If the vehicle is
on a level road, shift the lever back to “D” (DRIVE) position.
(This method may or may not work depending on the type of malfunction.)P.3-46
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. Replace the flat tire with the spare tire.P.6-12BK0102600US.book 8 ページ ２００９年３月３０日　月曜日　午後２時２分

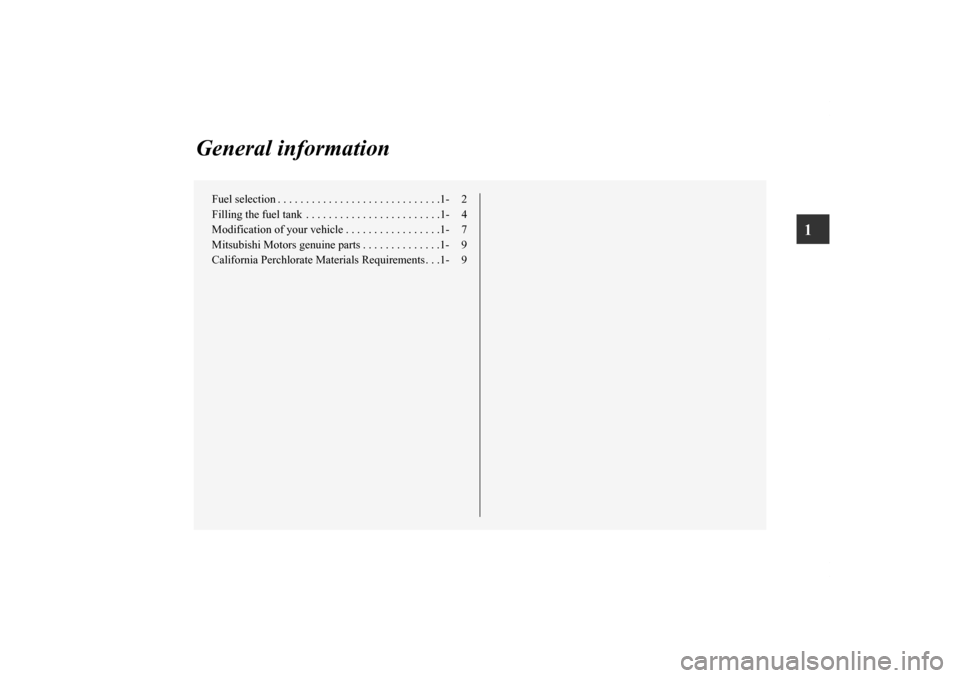

1
General information
Fuel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 2
Filling the fuel tank . . . . . . . . . . . . . . . . . . . . . . . .1- 4
Modification of your vehicle . . . . . . . . . . . . . . . . .1- 7
Mitsubishi Motors genuine parts . . . . . . . . . . . . . .1- 9
California Perchlorate Materials Requirements . . .1- 9
