Page 4 of 514
Overview
Instruments and controls (Instrument panel)
N00100201228
Multi center display (if so equipped) P.3-86
Digital clock (if so equipped) P.3-197
Fuses P.7-36
Engine hood release
lever P.7-4
Parking brake pedal
P. 3 - 2 8
Heated seat switch
(if so equipped) P.2-9Supplemental restraint system-air bag
(for front passenger’s seat) P.2-35
Hazard warning
flasher switch
P. 3 - 1 5 8
Vents P.5-2
Audio system
P.5-30, 5-43
Air conditioning
P.5-6, 5-14 Passenger’s air bag off indicator
P. 2 - 4 3Front passenger seat
belt warning light
P. 2 - 2 0
BK0102600US.book 2 ページ 2009年3月30日 月曜日 午後2時2分
Page 111 of 514

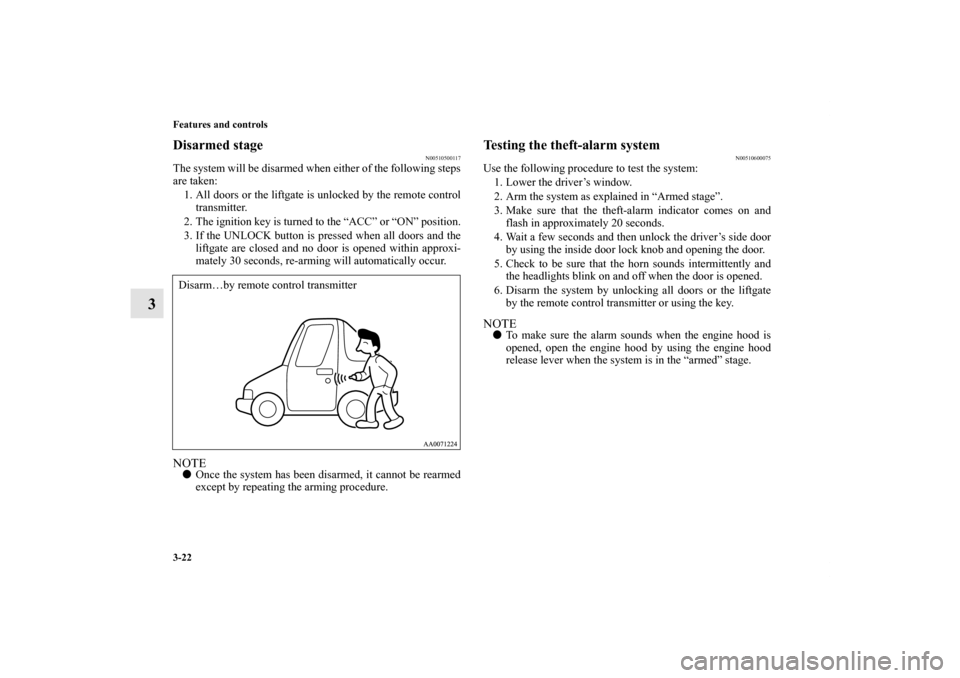

3-22 Features and controls
3
Disarmed stage
N00510500117
The system will be disarmed when either of the following steps
are taken:
1. All doors or the liftgate is unlocked by the remote control
transmitter.
2. The ignition key is turned to the “ACC” or “ON” position.
3. If the UNLOCK button is pressed when all doors and the
liftgate are closed and no door is opened within approxi-
mately 30 seconds, re-arming will automatically occur.NOTEOnce the system has been disarmed, it cannot be rearmed
except by repeating the arming procedure.
Testing the theft-alarm system
N00510600075
Use the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flash in approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob and opening the door.
5. Check to be sure that the horn sounds intermittently and
the headlights blink on and off when the door is opened.
6. Disarm the system by unlocking all doors or the liftgate
by the remote control transmitter or using the key.NOTETo make sure the alarm sounds when the engine hood is
opened, open the engine hood by using the engine hood
release lever when the system is in the “armed” stage.
Disarm…by remote control transmitterBK0102600US.book 22 ページ 2009年3月30日 月曜日 午後2時2分
Page 431 of 514

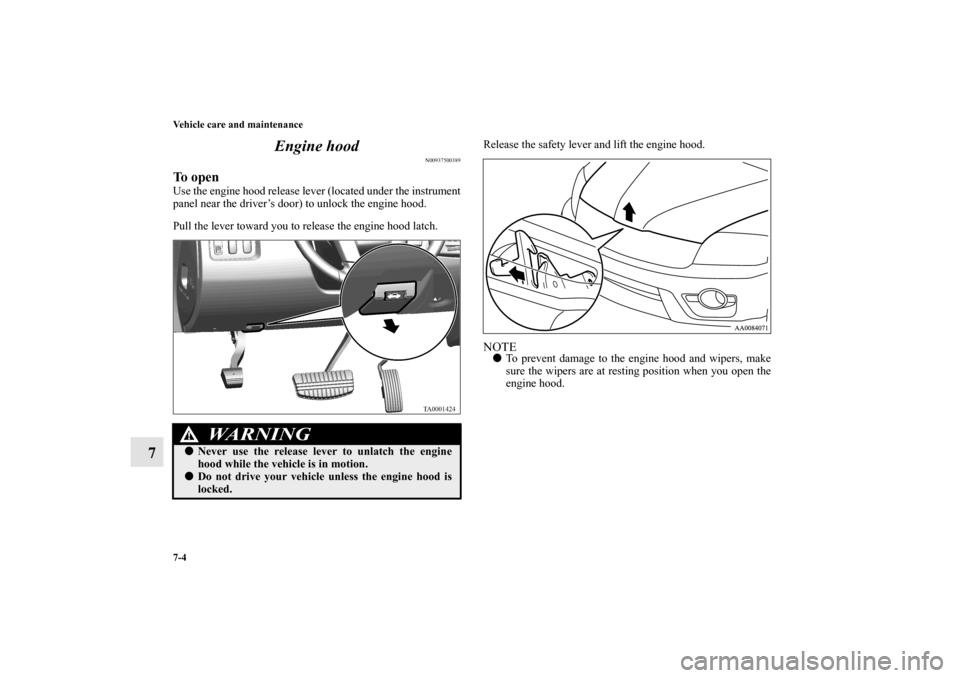

7-4 Vehicle care and maintenance
7Engine hood
N00937500389
To openUse the engine hood release lever (located under the instrument
panel near the driver’s door) to unlock the engine hood.
Pull the lever toward you to release the engine hood latch.Release the safety lever and lift the engine hood.
NOTETo prevent damage to the engine hood and wipers, make
sure the wipers are at resting position when you open the
engine hood.
WA R N I N G
!Never use the release lever to unlatch the engine
hood while the vehicle is in motion. Do not drive your vehicle unless the engine hood is
locked.
BK0102600US.book 4 ページ 2009年3月30日 月曜日 午後2時2分
Page 461 of 514

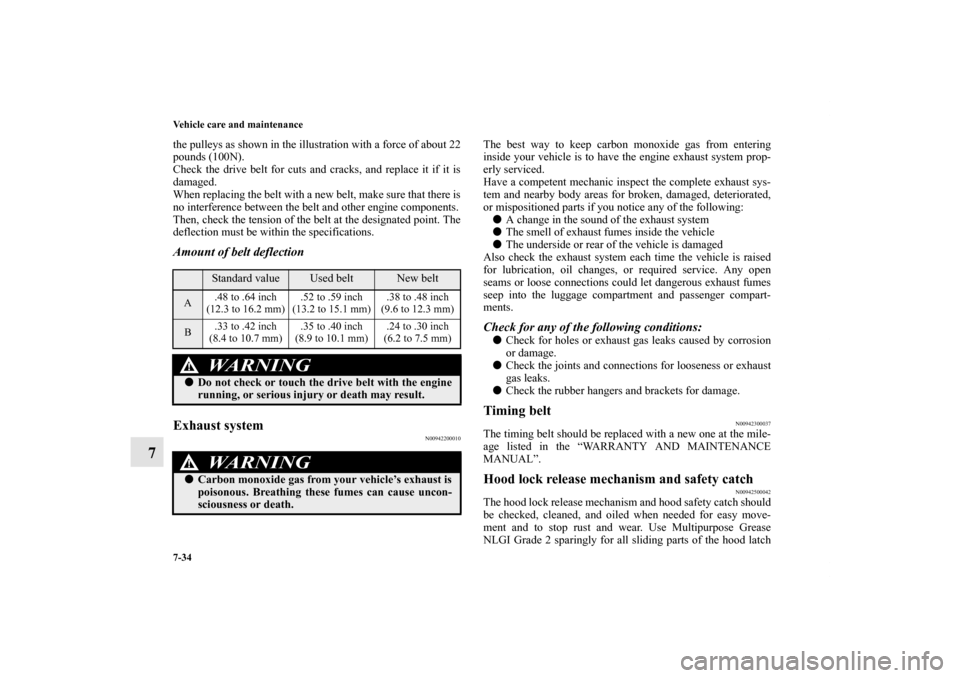

7-34 Vehicle care and maintenance
7
the pulleys as shown in the illustration with a force of about 22
pounds (100N).
Check the drive belt for cuts and cracks, and replace it if it is
damaged.
When replacing the belt with a new belt, make sure that there is
no interference between the belt and other engine components.
Then, check the tension of the belt at the designated point. The
deflection must be within the specifications.Amount of belt deflectionExhaust system
N00942200010
The best way to keep carbon monoxide gas from entering
inside your vehicle is to have the engine exhaust system prop-
erly serviced.
Have a competent mechanic inspect the complete exhaust sys-
tem and nearby body areas for broken, damaged, deteriorated,
or mispositioned parts if you notice any of the following:
A change in the sound of the exhaust system
The smell of exhaust fumes inside the vehicle
The underside or rear of the vehicle is damaged
Also check the exhaust system each time the vehicle is raised
for lubrication, oil changes, or required service. Any open
seams or loose connections could let dangerous exhaust fumes
seep into the luggage compartment and passenger compart-
ments. Check for any of the following conditions: Check for holes or exhaust gas leaks caused by corrosion
or damage.
Check the joints and connections for looseness or exhaust
gas leaks.
Check the rubber hangers and brackets for damage.Timing belt
N00942300037
The timing belt should be replaced with a new one at the mile-
age listed in the “WARRANTY AND MAINTENANCE
MANUAL”.Hood lock release mechanism and safety catch
N00942500042
The hood lock release mechanism and hood safety catch should
be checked, cleaned, and oiled when needed for easy move-
ment and to stop rust and wear. Use Multipurpose Grease
NLGI Grade 2 sparingly for all sliding parts of the hood latch
Standard value
Used belt
New belt
A.48 to .64 inch
(12.3 to 16.2 mm).52 to .59 inch
(13.2 to 15.1 mm).38 to .48 inch
(9.6 to 12.3 mm)B.33 to .42 inch
(8.4 to 10.7 mm).35 to .40 inch
(8.9 to 10.1 mm).24 to .30 inch
(6.2 to 7.5 mm)
WA R N I N G
!Do not check or touch the drive belt with the engine
running, or serious injury or death may result.
WA R N I N G
!Carbon monoxide gas from your vehicle’s exhaust is
poisonous. Breathing these fumes can cause uncon-
sciousness or death.
BK0102600US.book 34 ページ 2009年3月30日 月曜日 午後2時2分
Page 462 of 514
Vehicle care and maintenance
7-35
7
and release lever. Work the grease into the hood lock mecha-
nism until all the movable surfaces are covered.
Also, put a light coat of the same grease on the safety catch
wherever moving parts touch.
For cold and snowy weather
N00942600115
Ventilation slotsThe ventilation slots in front of the windshield should be kept
clear of leaves or brushed clear after a heavy snowfall, so that
the operation of the heating and ventilation systems will not be
impaired.WeatherstrippingTo prevent freezing of the weatherstripping on the doors,
engine hood, etc., they should be treated with silicone grease.Additional equipment (For regions where snow is
encountered)It is a good idea to carry a shovel or a short-handled spade in
the vehicle during the winter so that you can clear away snow
if you get stranded. A small hand-brush for sweeping snow off
the vehicle and a plastic scraper for the windshield, side and
rear window are also useful.
BK0102600US.book 35 ページ 2009年3月30日 月曜日 午後2時2分
Page 505 of 514
9-8 Specifications
9Capacities
N01148000732
Item
Capacity
Lubricants
Fuel (approximate) 21.4 gal (81.0 L) Refer to “Fuel selection” on page 1-2.Engine oil
Oil pan 4.2 qt (4.0 L)
Engine oils displaying ILSAC certification symbol or conform-
ing to the API classification SM.Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Automatic transaxle
Front-wheel drive 8.9 qt (8.4 L)
DIAMOND ATF SP III All-wheel drive 9.3 qt (8.8 L)
Transfer oil (All-wheel drive) .58 qt (0.55 L) Hypoid gear oil API classification GL-5 SAE 90Differential (All-wheel drive)
Rear axle 1.2 qt (1.1 L)Hypoid gear oil API classification GL-5 or higher
Above -10 °F (-23 °C) SAE90,85W-90,80W-90
From -30 °F (-34 °C) to -10 °F (-23 °C) SAE80W,80W-90
Below -30 °F (-34 °C) SAE75W
Brake As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
Include .63 qt (0.6 L)
in reserve tank
Front-wheel drive
9.5 qt (9.0 L)
Long Life Antifreeze Coolant or an equivalentAll-
wheel
drive
Without Towing kitWith Towing kit 10.1 qt (9.6 L)
Washer fluid 4.2 qt (4.0 L) — Refrigerant (air conditioning)Refer to the air
conditioning
label on page
9-2.HFC-134a BK0102600US.book 8 ページ 2009年3月30日 月曜日 午後2時2分
Page 509 of 514

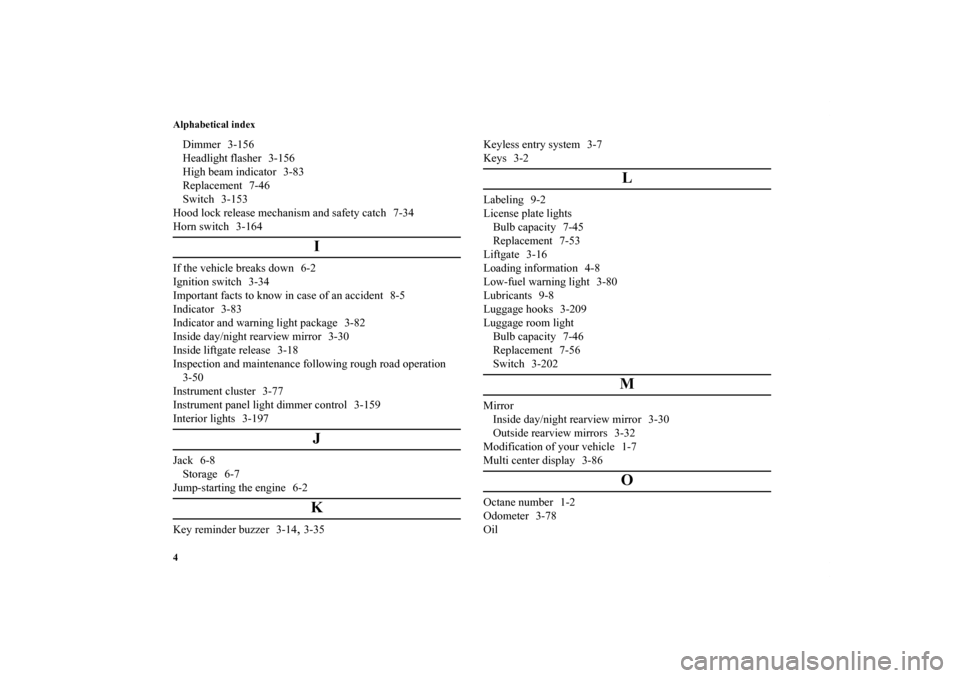

Alphabetical index
4Dimmer 3-156
Headlight flasher 3-156
High beam indicator 3-83
Replacement 7-46
Switch 3-153
Hood lock release mechanism and safety catch 7-34
Horn switch 3-164
I
If the vehicle breaks down 6-2
Ignition switch 3-34
Important facts to know in case of an accident 8-5
Indicator 3-83
Indicator and warning light package 3-82
Inside day/night rearview mirror 3-30
Inside liftgate release 3-18
Inspection and maintenance following rough road operation
3-50
Instrument cluster 3-77
Instrument panel light dimmer control 3-159
Interior lights 3-197
J
Jack 6-8
Storage 6-7
Jump-starting the engine 6-2
K
Key reminder buzzer 3-14
,3-35Keyless entry system 3-7
Keys 3-2
L
Labeling 9-2
License plate lights
Bulb capacity 7-45
Replacement 7-53
Liftgate 3-16
Loading information 4-8
Low-fuel warning light 3-80
Lubricants 9-8
Luggage hooks 3-209
Luggage room light
Bulb capacity 7-46
Replacement 7-56
Switch 3-202
M
Mirror
Inside day/night rearview mirror 3-30
Outside rearview mirrors 3-32
Modification of your vehicle 1-7
Multi center display 3-86
O
Octane number 1-2
Odometer 3-78
Oil
BK0102600US.book 4 ページ 2009年3月30日 月曜日 午後2時2分
