Page 177 of 514

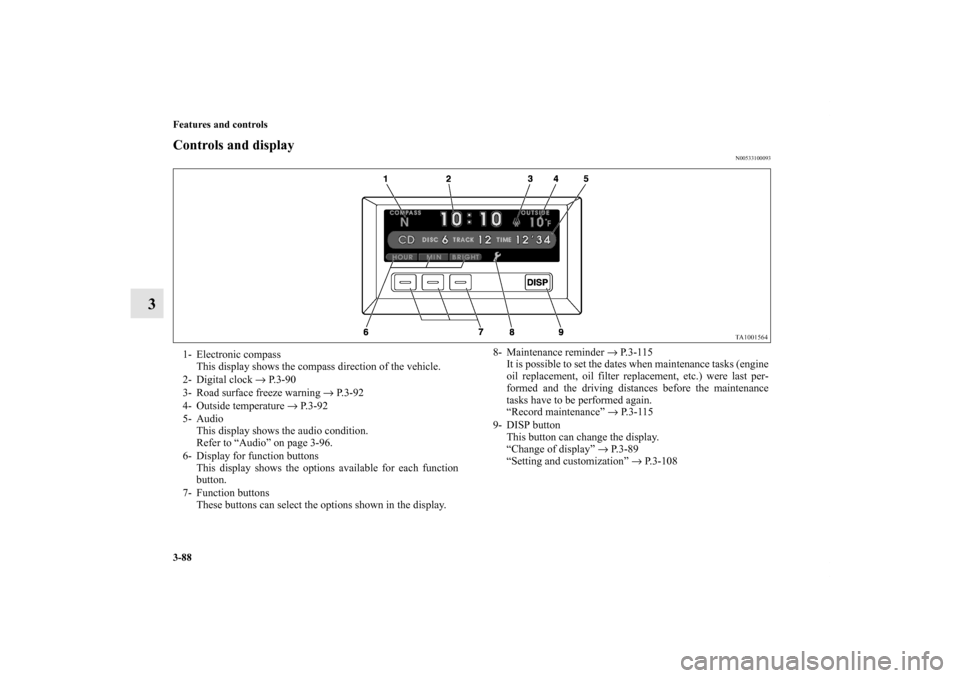

3-88 Features and controls
3
Controls and display
N00533100093
1- Electronic compass
This display shows the compass direction of the vehicle.
2- Digital clock → P.3-90
3- Road surface freeze warning → P.3-92
4- Outside temperature → P.3-92
5- Audio
This display shows the audio condition.
Refer to “Audio” on page 3-96.
6- Display for function buttons
This display shows the options available for each function
button.
7- Function buttons
These buttons can select the options shown in the display.8- Maintenance reminder → P. 3 - 1 1 5
It is possible to set the dates when maintenance tasks (engine
oil replacement, oil filter replacement, etc.) were last per-
formed and the driving distances before the maintenance
tasks have to be performed again.
“Record maintenance” → P. 3 - 1 1 5
9- DISP button
This button can change the display.
“Change of display” → P.3-89
“Setting and customization” → P.3-108
BK0102600US.book 88 ページ 2009年3月30日 月曜日 午後2時2分
Page 204 of 514
Features and controls
3-115
3

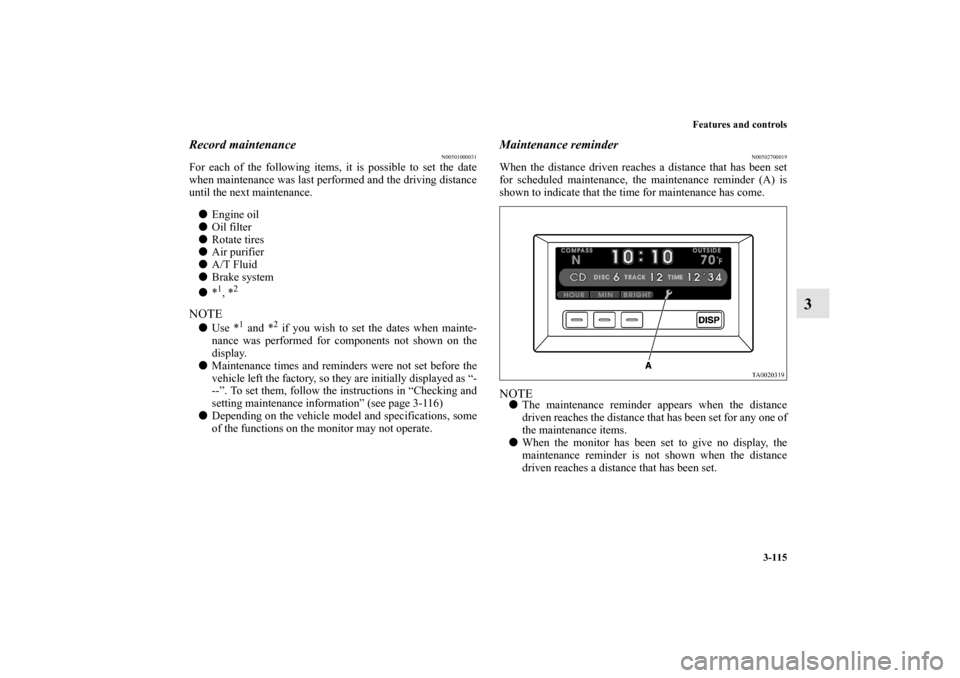

Record maintenance
N00501000031
For each of the following items, it is possible to set the date
when maintenance was last performed and the driving distance
until the next maintenance.
Engine oil
Oil filter
Rotate tires
Air purifier
A/T Fluid
Brake system
*
1, *2
NOTEUse *
1 and *
2 if you wish to set the dates when mainte-
nance was performed for components not shown on the
display.
Maintenance times and reminders were not set before the
vehicle left the factory, so they are initially displayed as “-
--”. To set them, follow the instructions in “Checking and
setting maintenance information” (see page 3-116)
Depending on the vehicle model and specifications, some
of the functions on the monitor may not operate.
Maintenance reminder
N00502700019
When the distance driven reaches a distance that has been set
for scheduled maintenance, the maintenance reminder (A) is
shown to indicate that the time for maintenance has come.NOTEThe maintenance reminder appears when the distance
driven reaches the distance that has been set for any one of
the maintenance items.
When the monitor has been set to give no display, the
maintenance reminder is not shown when the distance
driven reaches a distance that has been set.
BK0102600US.book 115 ページ 2009年3月30日 月曜日 午後2時2分
Page 428 of 514
7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 6
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 6
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 9
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 11
Automatic transaxle fluid. . . . . . . . . . . . . . . . . . . .7- 12
Transfer oil (All-wheel drive models) . . . . . . . . . .7- 13
Rear axle oil (All-wheel drive models) . . . . . . . . .7- 14
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 14
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 15
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 20
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 29
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 30
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 31
Emission-control system maintenance. . . . . . . . . .7- 31
General maintenance . . . . . . . . . . . . . . . . . . . . . . .7- 33
For cold and snowy weather . . . . . . . . . . . . . . . . .7- 35Fuse links. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 36
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 36
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 44
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 57
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 58
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 60
BK0102600US.book 1 ページ 2009年3月30日 月曜日 午後2時2分
Page 433 of 514
7-6 Vehicle care and maintenance

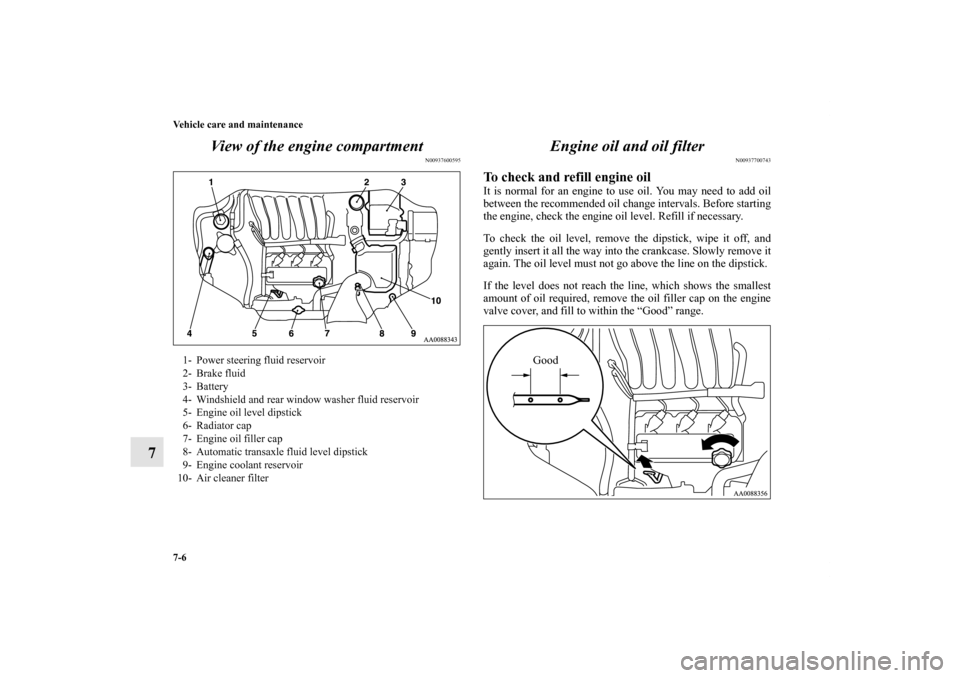

7View of the engine compartment
N00937600595
Engine oil and oil filter
N00937700743
To check and refill engine oil It is normal for an engine to use oil. You may need to add oil
between the recommended oil change intervals. Before starting
the engine, check the engine oil level. Refill if necessary.
To check the oil level, remove the dipstick, wipe it off, and
gently insert it all the way into the crankcase. Slowly remove it
again. The oil level must not go above the line on the dipstick.
If the level does not reach the line, which shows the smallest
amount of oil required, remove the oil filler cap on the engine
valve cover, and fill to within the “Good” range.
1- Power steering fluid reservoir
2- Brake fluid
3- Battery
4- Windshield and rear window washer fluid reservoir
5- Engine oil level dipstick
6- Radiator cap
7- Engine oil filler cap
8- Automatic transaxle fluid level dipstick
9- Engine coolant reservoir
10- Air cleaner filter
Good
BK0102600US.book 6 ページ 2009年3月30日 月曜日 午後2時2分
Page 436 of 514
Vehicle care and maintenance
7-9
7

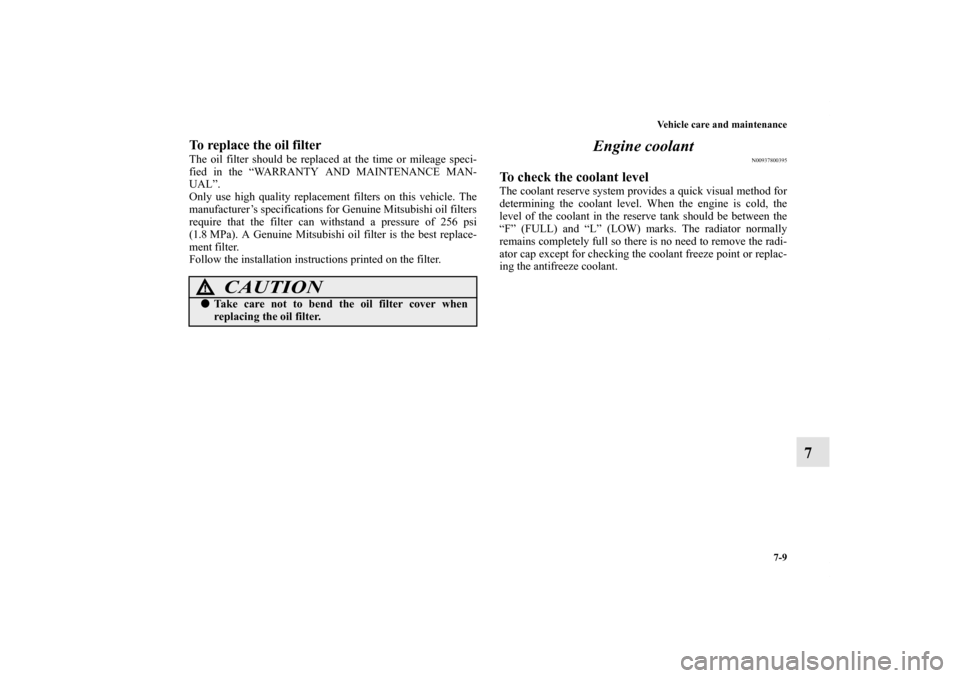

To replace the oil filterThe oil filter should be replaced at the time or mileage speci-
fied in the “WARRANTY AND MAINTENANCE MAN-
UAL”.
Only use high quality replacement filters on this vehicle. The
manufacturer’s specifications for Genuine Mitsubishi oil filters
require that the filter can withstand a pressure of 256 psi
(1.8 MPa). A Genuine Mitsubishi oil filter is the best replace-
ment filter.
Follow the installation instructions printed on the filter.
Engine coolant
N00937800395
To check the coolant level The coolant reserve system provides a quick visual method for
determining the coolant level. When the engine is cold, the
level of the coolant in the reserve tank should be between the
“F” (FULL) and “L” (LOW) marks. The radiator normally
remains completely full so there is no need to remove the radi-
ator cap except for checking the coolant freeze point or replac-
ing the antifreeze coolant.
CAUTION
!Take care not to bend the oil filter cover when
replacing the oil filter.
BK0102600US.book 9 ページ 2009年3月30日 月曜日 午後2時2分
Page 505 of 514
9-8 Specifications

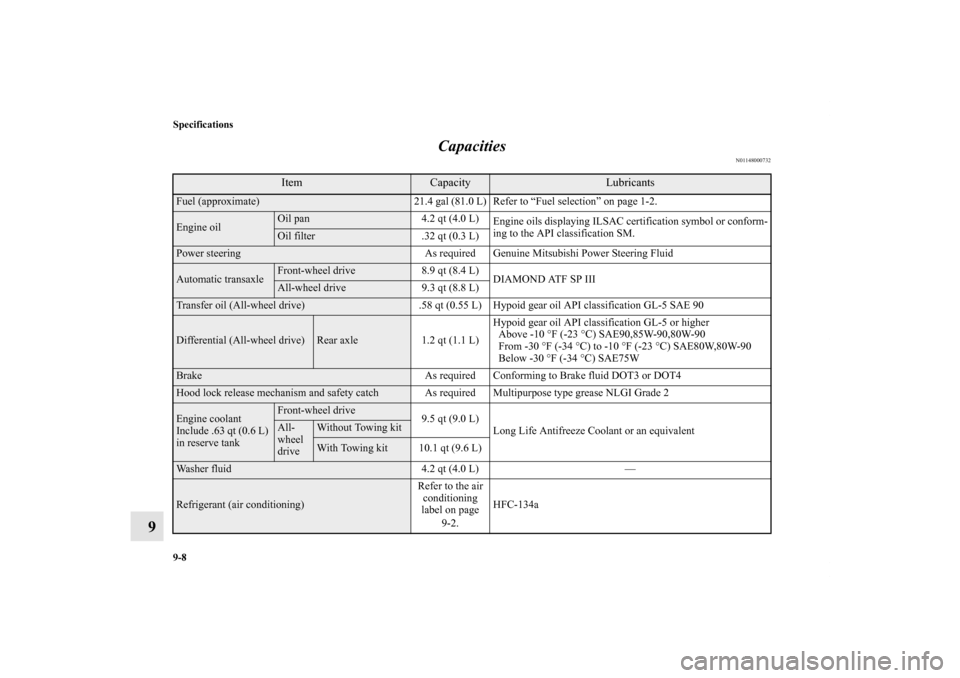

9Capacities
N01148000732
Item
Capacity
Lubricants
Fuel (approximate) 21.4 gal (81.0 L) Refer to “Fuel selection” on page 1-2.Engine oil
Oil pan 4.2 qt (4.0 L)
Engine oils displaying ILSAC certification symbol or conform-
ing to the API classification SM.Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Automatic transaxle
Front-wheel drive 8.9 qt (8.4 L)
DIAMOND ATF SP III All-wheel drive 9.3 qt (8.8 L)
Transfer oil (All-wheel drive) .58 qt (0.55 L) Hypoid gear oil API classification GL-5 SAE 90Differential (All-wheel drive)
Rear axle 1.2 qt (1.1 L)Hypoid gear oil API classification GL-5 or higher
Above -10 °F (-23 °C) SAE90,85W-90,80W-90
From -30 °F (-34 °C) to -10 °F (-23 °C) SAE80W,80W-90
Below -30 °F (-34 °C) SAE75W
Brake As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
Include .63 qt (0.6 L)
in reserve tank
Front-wheel drive
9.5 qt (9.0 L)
Long Life Antifreeze Coolant or an equivalentAll-
wheel
drive
Without Towing kitWith Towing kit 10.1 qt (9.6 L)
Washer fluid 4.2 qt (4.0 L) — Refrigerant (air conditioning)Refer to the air
conditioning
label on page
9-2.HFC-134a BK0102600US.book 8 ページ 2009年3月30日 月曜日 午後2時2分
