Page 154 of 514
Features and controls
3-65
3

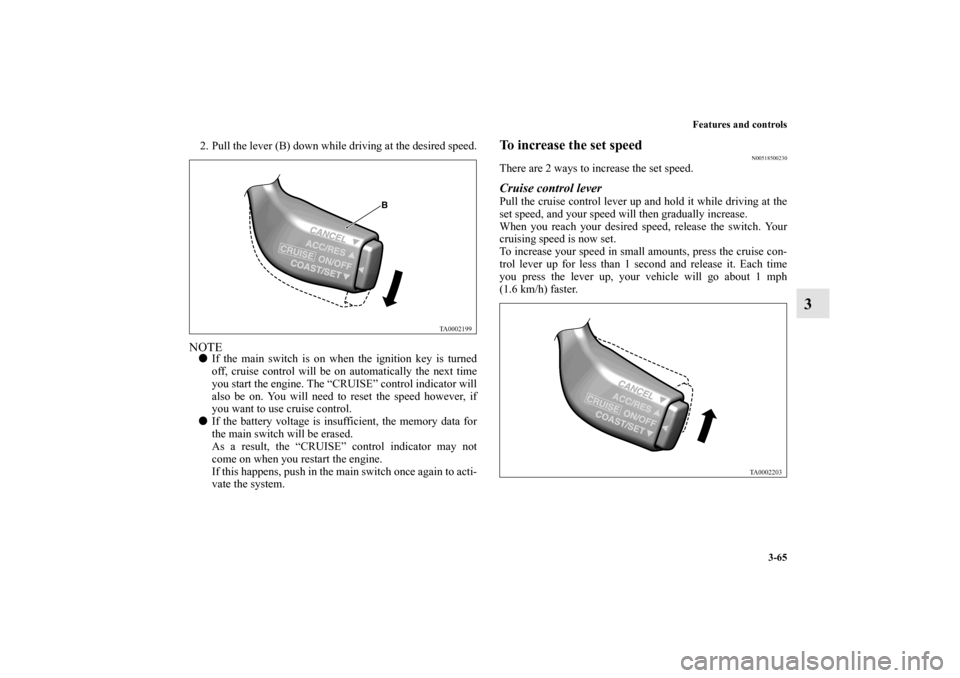

2. Pull the lever (B) down while driving at the desired speed.NOTEIf the main switch is on when the ignition key is turned
off, cruise control will be on automatically the next time
you start the engine. The “CRUISE” control indicator will
also be on. You will need to reset the speed however, if
you want to use cruise control.
If the battery voltage is insufficient, the memory data for
the main switch will be erased.
As a result, the “CRUISE” control indicator may not
come on when you restart the engine.
If this happens, push in the main switch once again to acti-
vate the system.
To increase the set speed
N00518500230
There are 2 ways to increase the set speed.Cruise control lever Pull the cruise control lever up and hold it while driving at the
set speed, and your speed will then gradually increase.
When you reach your desired speed, release the switch. Your
cruising speed is now set.
To increase your speed in small amounts, press the cruise con-
trol lever up for less than 1 second and release it. Each time
you press the lever up, your vehicle will go about 1 mph
(1.6 km/h) faster.
BK0102600US.book 65 ページ 2009年3月30日 月曜日 午後2時2分
Page 166 of 514
Features and controls
3-77

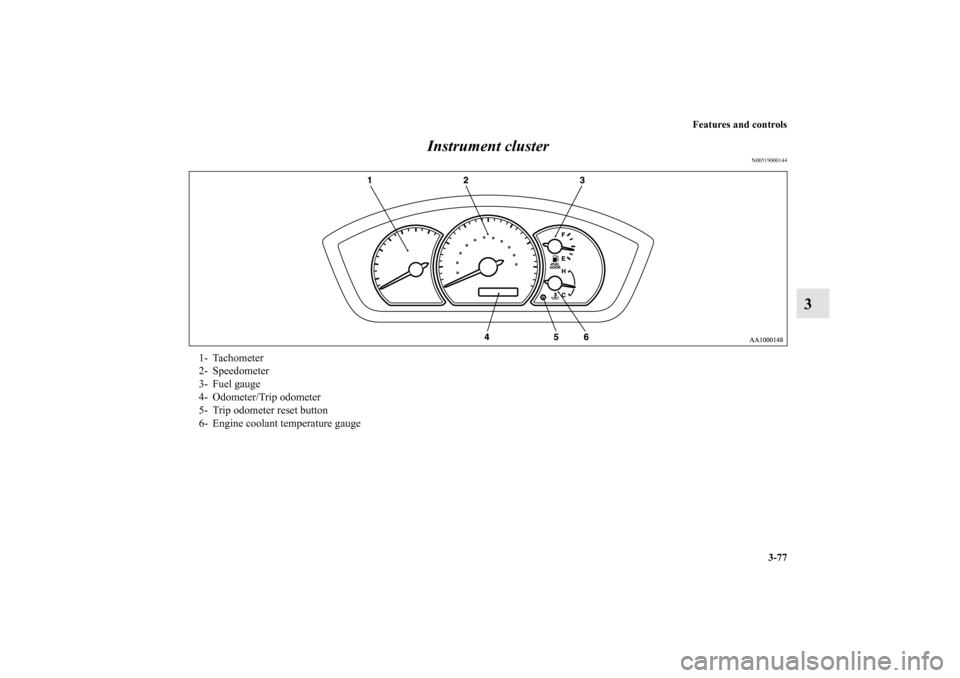

3 Instrument cluster
N00519000144
1- Tachometer
2- Speedometer
3- Fuel gauge
4- Odometer/Trip odometer
5- Trip odometer reset button
6- Engine coolant temperature gauge
BK0102600US.book 77 ページ 2009年3月30日 月曜日 午後2時2分
Page 167 of 514
3-78 Features and controls
3
Speedometer
N00519100015
The speedometer shows your vehicle’s speed.Tachometer
N00519200032
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient gear range and
engine speed combinations.
This gauge also assists in evaluating engine performance.
Odometer/Trip odometer
N00519500426
When the ignition switch is in the “ON” position, an “ODO” or
“TRIP” indicator is displayed.
CAUTION
!The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct gear to control the engine speed so
that the tachometer indicator does not enter the red
zone.
1- Odometer
2- Trip odometer
3- Reset button
BK0102600US.book 78 ページ 2009年3月30日 月曜日 午後2時2分
Page 168 of 514
Features and controls
3-79
3

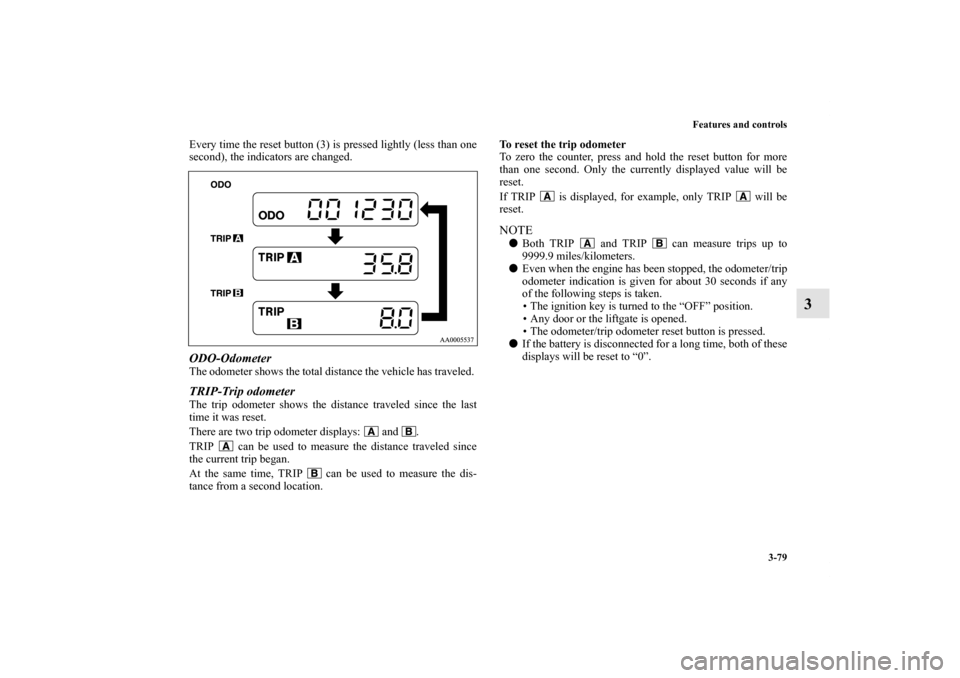

Every time the reset button (3) is pressed lightly (less than one
second), the indicators are changed. ODO-OdometerThe odometer shows the total distance the vehicle has traveled. TRIP-Trip odometerThe trip odometer shows the distance traveled since the last
time it was reset.
There are two trip odometer displays: and .
TRIP can be used to measure the distance traveled since
the current trip began.
At the same time, TRIP can be used to measure the dis-
tance from a second location.To reset the trip odometer
To zero the counter, press and hold the reset button for more
than one second. Only the currently displayed value will be
reset.
If TRIP is displayed, for example, only TRIP will be
reset.
NOTEBoth TRIP and TRIP can measure trips up to
9999.9 miles/kilometers.
Even when the engine has been stopped, the odometer/trip
odometer indication is given for about 30 seconds if any
of the following steps is taken.
• The ignition key is turned to the “OFF” position.
• Any door or the liftgate is opened.
• The odometer/trip odometer reset button is pressed.
If the battery is disconnected for a long time, both of these
displays will be reset to “0”.
BK0102600US.book 79 ページ 2009年3月30日 月曜日 午後2時2分
Page 184 of 514
Features and controls
3-95
3

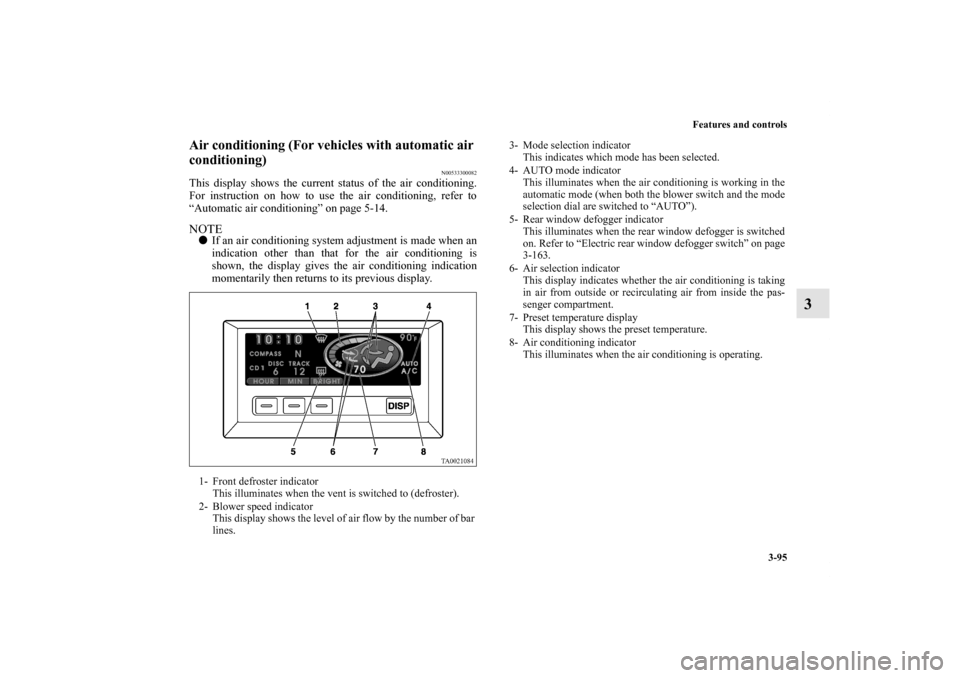

Air conditioning (For vehicles with automatic air
conditioning)
N00533300082
This display shows the current status of the air conditioning.
For instruction on how to use the air conditioning, refer to
“Automatic air conditioning” on page 5-14.NOTEIf an air conditioning system adjustment is made when an
indication other than that for the air conditioning is
shown, the display gives the air conditioning indication
momentarily then returns to its previous display.1- Front defroster indicator
This illuminates when the vent is switched to (defroster).
2- Blower speed indicator
This display shows the level of air flow by the number of bar
lines.
3- Mode selection indicator
This indicates which mode has been selected.
4- AUTO mode indicator
This illuminates when the air conditioning is working in the
automatic mode (when both the blower switch and the mode
selection dial are switched to “AUTO”).
5- Rear window defogger indicator
This illuminates when the rear window defogger is switched
on. Refer to “Electric rear window defogger switch” on page
3-163.
6- Air selection indicator
This display indicates whether the air conditioning is taking
in air from outside or recirculating air from inside the pas-
senger compartment.
7- Preset temperature display
This display shows the preset temperature.
8- Air conditioning indicator
This illuminates when the air conditioning is operating.
BK0102600US.book 95 ページ 2009年3月30日 月曜日 午後2時2分
Page 186 of 514
Features and controls
3-97
3

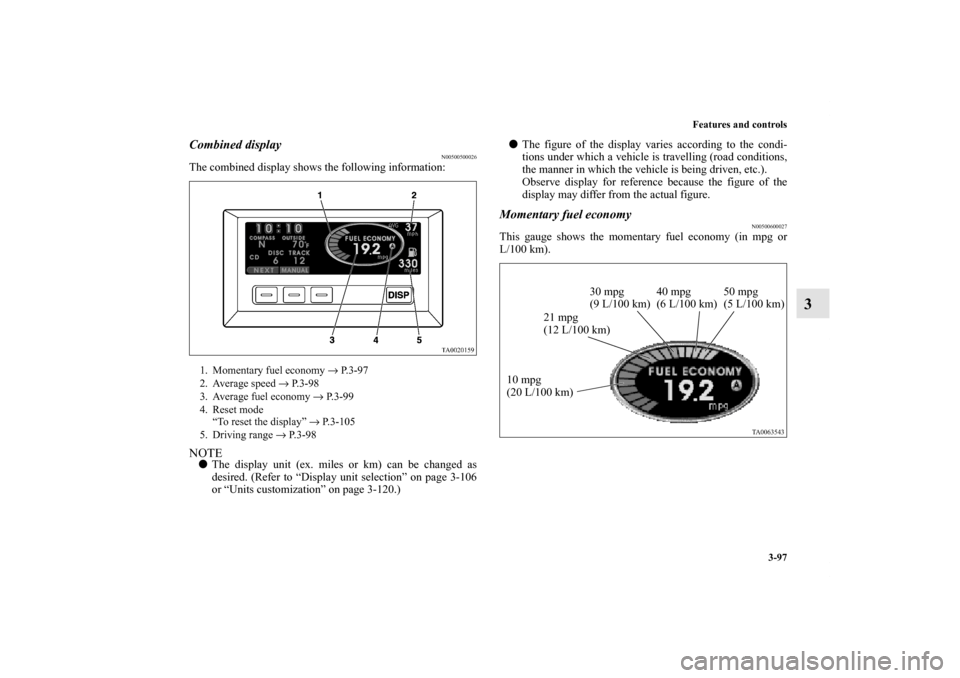

Combined display
N00500500026
The combined display shows the following information:NOTEThe display unit (ex. miles or km) can be changed as
desired. (Refer to “Display unit selection” on page 3-106
or “Units customization” on page 3-120.)The figure of the display varies according to the condi-
tions under which a vehicle is travelling (road conditions,
the manner in which the vehicle is being driven, etc.).
Observe display for reference because the figure of the
display may differ from the actual figure.
Momentary fuel economy
N00500600027
This gauge shows the momentary fuel economy (in mpg or
L/100 km).
1. Momentary fuel economy → P. 3 - 9 7
2. Average speed → P.3-98
3. Average fuel economy → P.3-99
4. Reset mode
“To reset the display” → P.3-105
5. Driving range → P.3-98
10 mpg
(20 L/100 km)21 mpg
(12 L/100 km)30 mpg
(9 L/100 km)40 mpg
(6 L/100 km)50 mpg
(5 L/100 km)
BK0102600US.book 97 ページ 2009年3月30日 月曜日 午後2時2分
Page 187 of 514
3-98 Features and controls
3

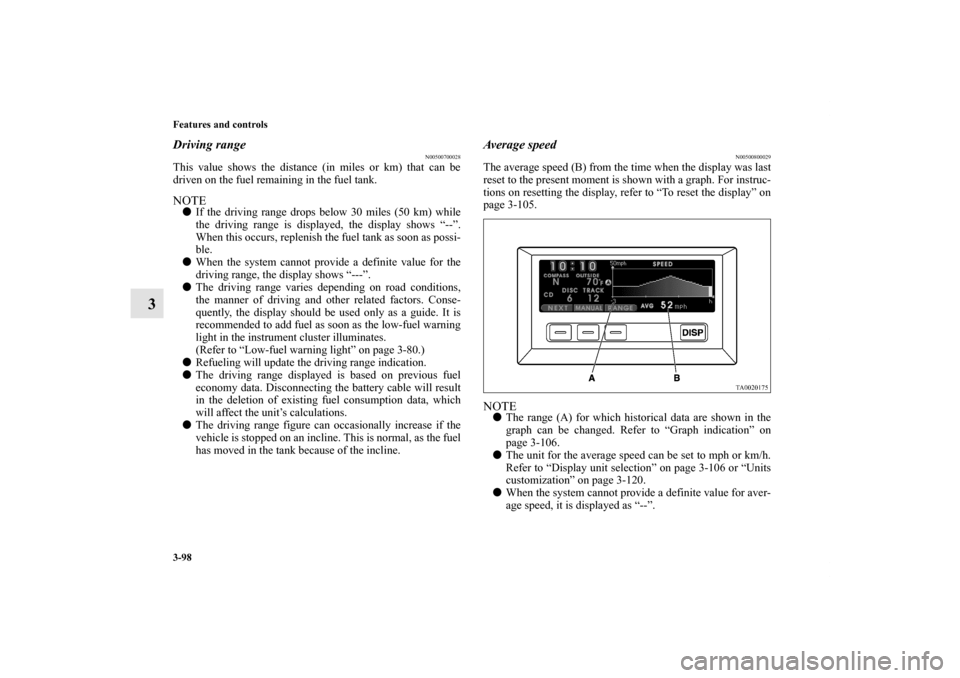

Driving range
N00500700028
This value shows the distance (in miles or km) that can be
driven on the fuel remaining in the fuel tank.NOTEIf the driving range drops below 30 miles (50 km) while
the driving range is displayed, the display shows “--”.
When this occurs, replenish the fuel tank as soon as possi-
ble.
When the system cannot provide a definite value for the
driving range, the display shows “---”.
The driving range varies depending on road conditions,
the manner of driving and other related factors. Conse-
quently, the display should be used only as a guide. It is
recommended to add fuel as soon as the low-fuel warning
light in the instrument cluster illuminates.
(Refer to “Low-fuel warning light” on page 3-80.)
Refueling will update the driving range indication.
The driving range displayed is based on previous fuel
economy data. Disconnecting the battery cable will result
in the deletion of existing fuel consumption data, which
will affect the unit’s calculations.
The driving range figure can occasionally increase if the
vehicle is stopped on an incline. This is normal, as the fuel
has moved in the tank because of the incline.
Average speed
N00500800029
The average speed (B) from the time when the display was last
reset to the present moment is shown with a graph. For instruc-
tions on resetting the display, refer to “To reset the display” on
page 3-105.NOTEThe range (A) for which historical data are shown in the
graph can be changed. Refer to “Graph indication” on
page 3-106.
The unit for the average speed can be set to mph or km/h.
Refer to “Display unit selection” on page 3-106 or “Units
customization” on page 3-120.
When the system cannot provide a definite value for aver-
age speed, it is displayed as “--”.
BK0102600US.book 98 ページ 2009年3月30日 月曜日 午後2時2分
Page 188 of 514
Features and controls
3-99
3
When the ignition switch is turned on, the average speed
which was being displayed when the ignition switch was

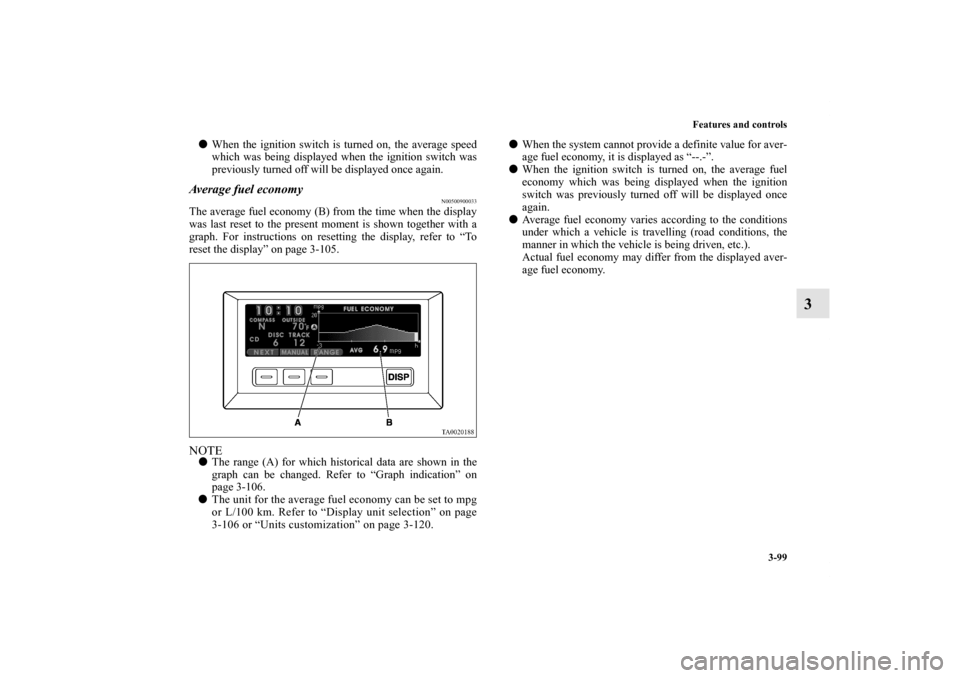

previously turned off will be displayed once again. Average fuel economy
N00500900033
The average fuel economy (B) from the time when the display
was last reset to the present moment is shown together with a
graph. For instructions on resetting the display, refer to “To
reset the display” on page 3-105.NOTEThe range (A) for which historical data are shown in the
graph can be changed. Refer to “Graph indication” on
page 3-106.
The unit for the average fuel economy can be set to mpg
or L/100 km. Refer to “Display unit selection” on page
3-106 or “Units customization” on page 3-120.When the system cannot provide a definite value for aver-
age fuel economy, it is displayed as “--.-”.
When the ignition switch is turned on, the average fuel
economy which was being displayed when the ignition
switch was previously turned off will be displayed once
again.
Average fuel economy varies according to the conditions
under which a vehicle is travelling (road conditions, the
manner in which the vehicle is being driven, etc.).
Actual fuel economy may differ from the displayed aver-
age fuel economy.
BK0102600US.book 99 ページ 2009年3月30日 月曜日 午後2時2分
Page 189 of 514
3-100 Features and controls
3

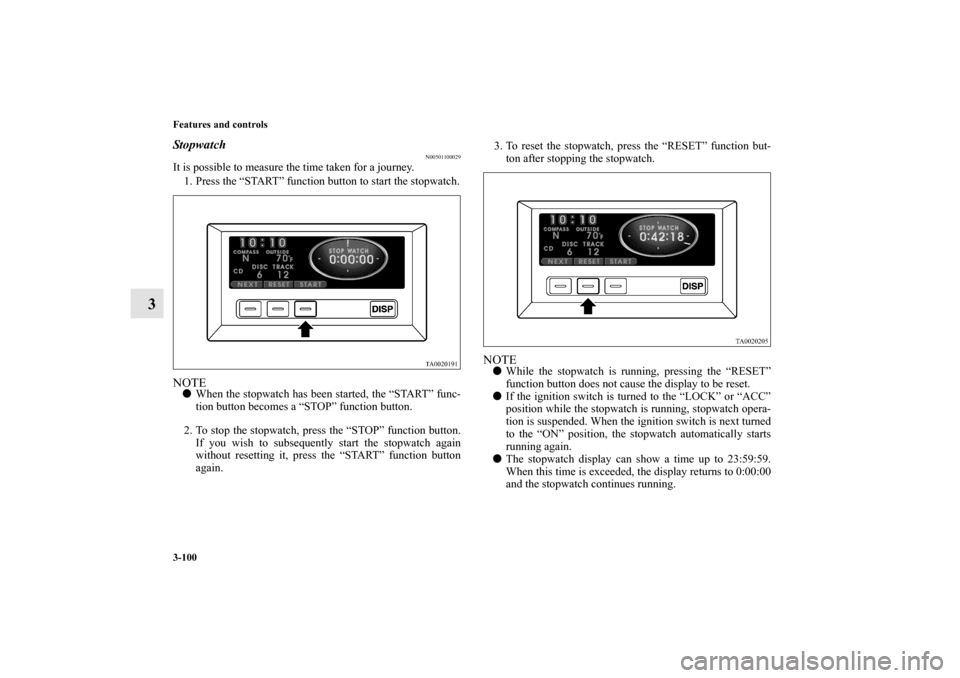

Stopwatch
N00501100029
It is possible to measure the time taken for a journey.
1. Press the “START” function button to start the stopwatch.NOTEWhen the stopwatch has been started, the “START” func-
tion button becomes a “STOP” function button.
2. To stop the stopwatch, press the “STOP” function button.
If you wish to subsequently start the stopwatch again
without resetting it, press the “START” function button
again.3. To reset the stopwatch, press the “RESET” function but-
ton after stopping the stopwatch.
NOTEWhile the stopwatch is running, pressing the “RESET”
function button does not cause the display to be reset.
If the ignition switch is turned to the “LOCK” or “ACC”
position while the stopwatch is running, stopwatch opera-
tion is suspended. When the ignition switch is next turned
to the “ON” position, the stopwatch automatically starts
running again.
The stopwatch display can show a time up to 23:59:59.
When this time is exceeded, the display returns to 0:00:00
and the stopwatch continues running.
BK0102600US.book 100 ページ 2009年3月30日 月曜日 午後2時2分
Page 191 of 514
3-102 Features and controls
3
3. Press the “START” function button to start the timer. To
stop the timer before it has reached 0:00:00, press the
“STOP” function button.NOTEIf the timer reaches 0:00:00 while another display is
showing, a tone sounds once and the display changes to
the countdown timer for seven seconds.
If the “DISP” function button is pressed at this time, the
countdown timer disappears and the previous display
appears again.
When the countdown timer has started, the “START”
function button becomes the “STOP” function button.
Even if the ignition switch is turned to the “OFF” position
while the countdown timer is running, the countdown
timer continues counting down to 0:00:00.Normally, a tone sounds to indicate that the countdown
timer has reached 0:00:00. It is possible to make a setting
so that the tone does not sound at this time. For details,
refer to “Timer buzzer setting” on page 3-126.
4. To reset the countdown timer, press the “SET” function
button for at least 2 seconds. The display will return to
0:00:00.
NOTEEven if the “SET” function button is pressed while the
countdown timer is running, the countdown timer will not
be reset.
If the “SET” function button is pressed lightly one time,
the previously set timer duration will be shown. To
change the timer duration setting, perform the procedure
again from step 1.
BK0102600US.book 102 ページ 2009年3月30日 月曜日 午後2時2分
