MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Manufacturer: MITSUBISHI, Model Year: 1997, Model line: GALANT, Model: MITSUBISHI GALANT 1997 8.G
Pages: 638, PDF Size: 18.9 MB
MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual GALANT 1997 8.G MITSUBISHI MITSUBISHI https://www.carmanualsonline.info/img/19/7435/w960_7435-0.png MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual
Search: (lane assist, battery, radio, fuel additives, AUX, tire pressure reset)
Jump to page (1-638):

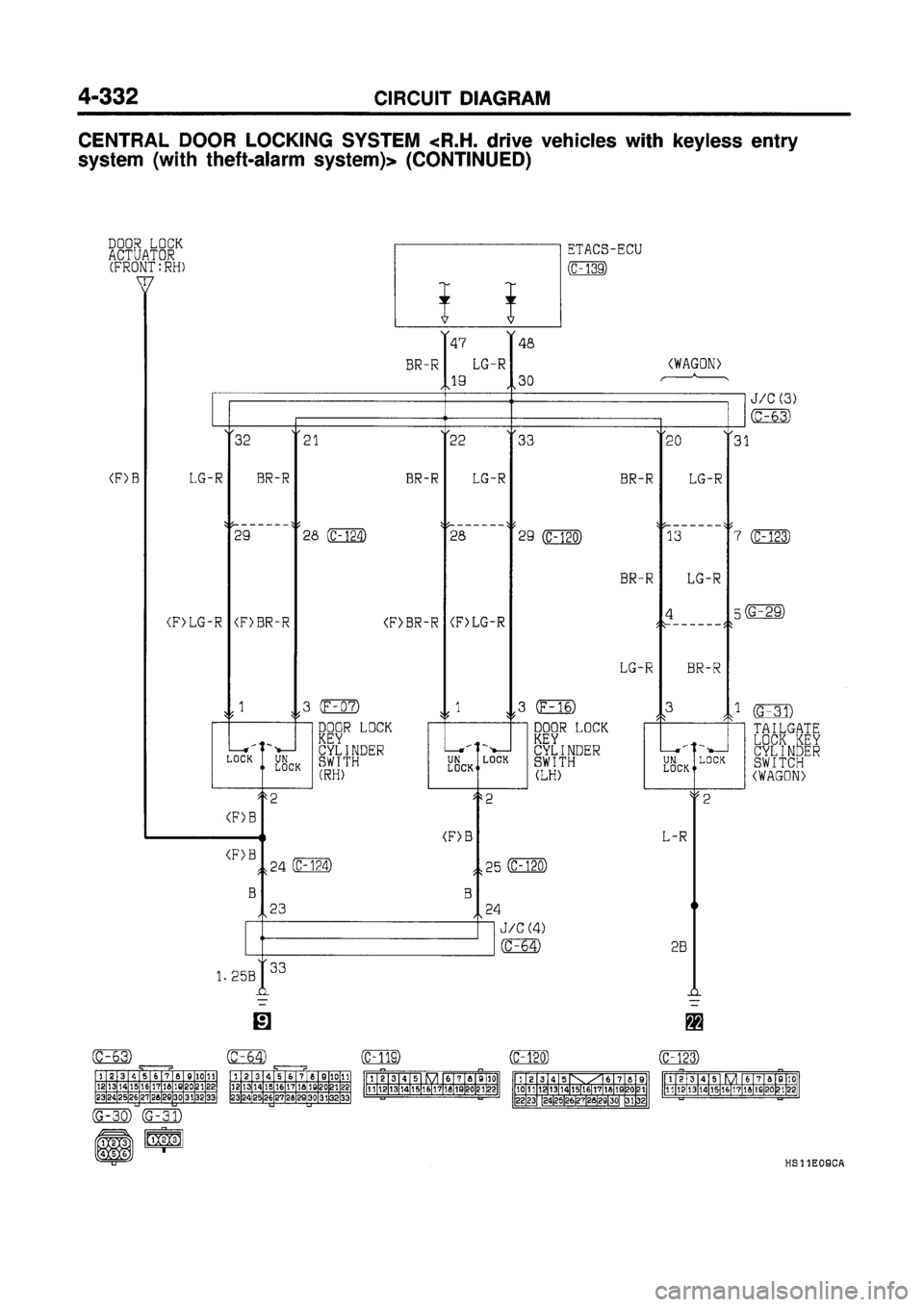

Page 421 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

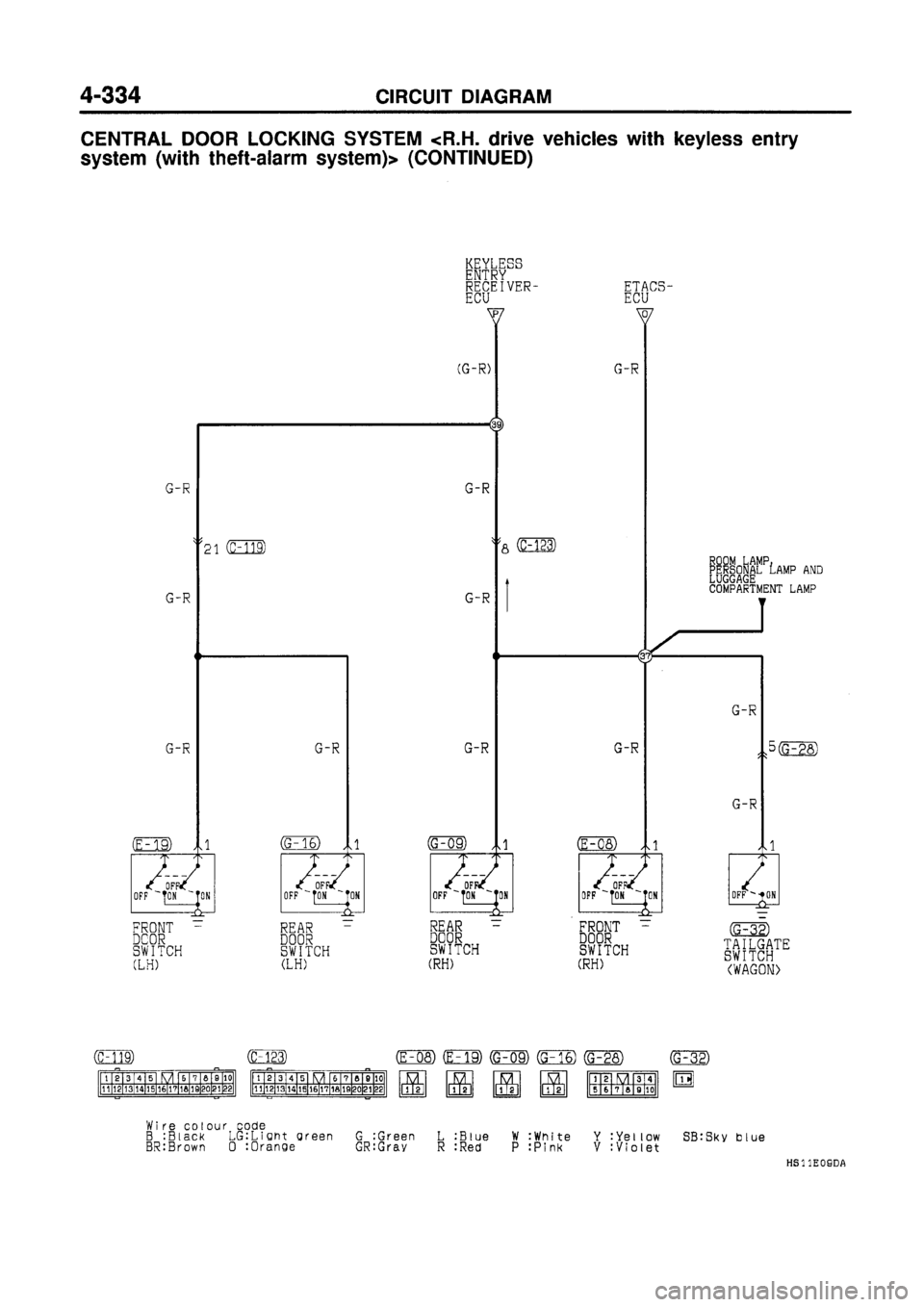

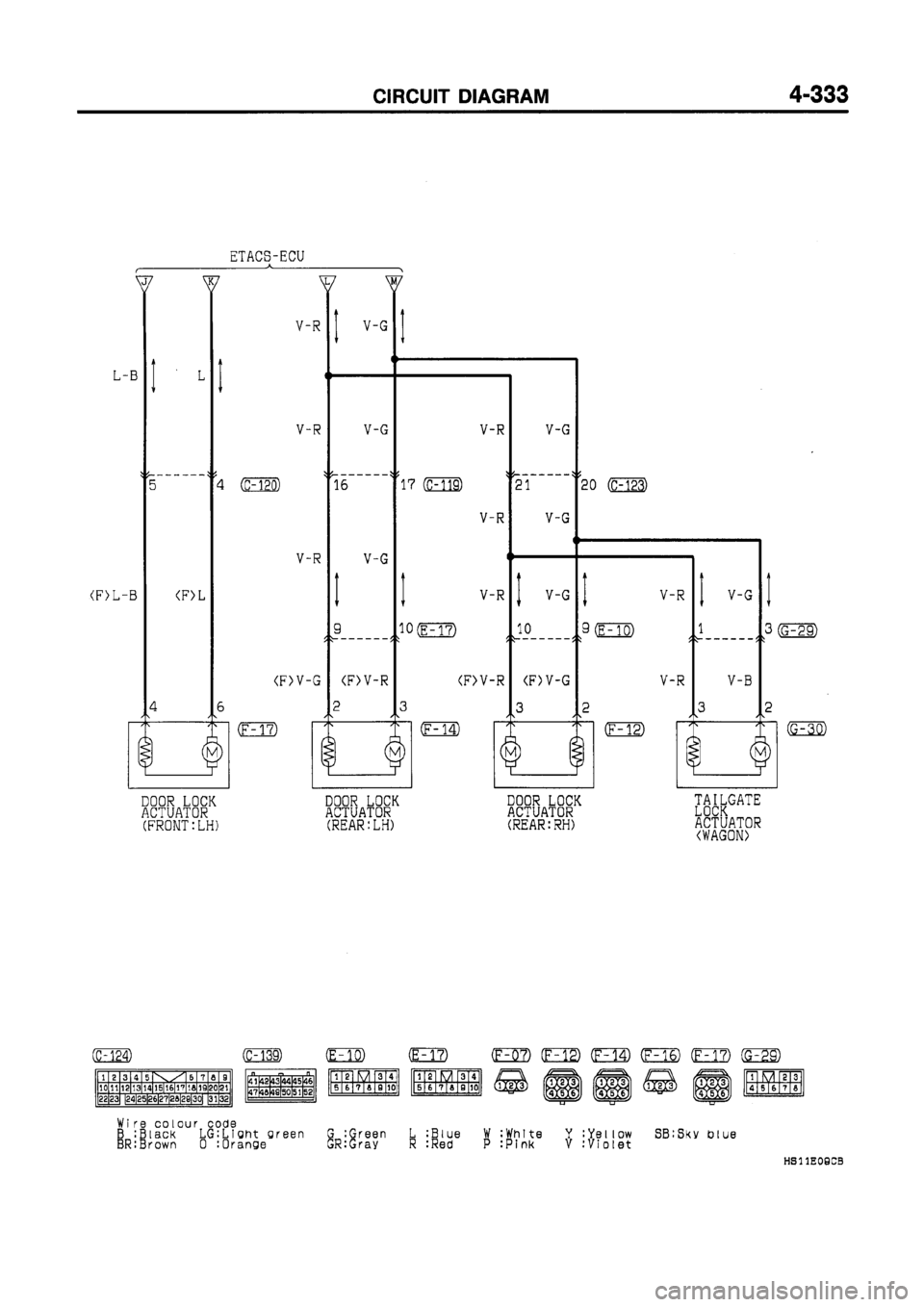

Page 422 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 423 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 424 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

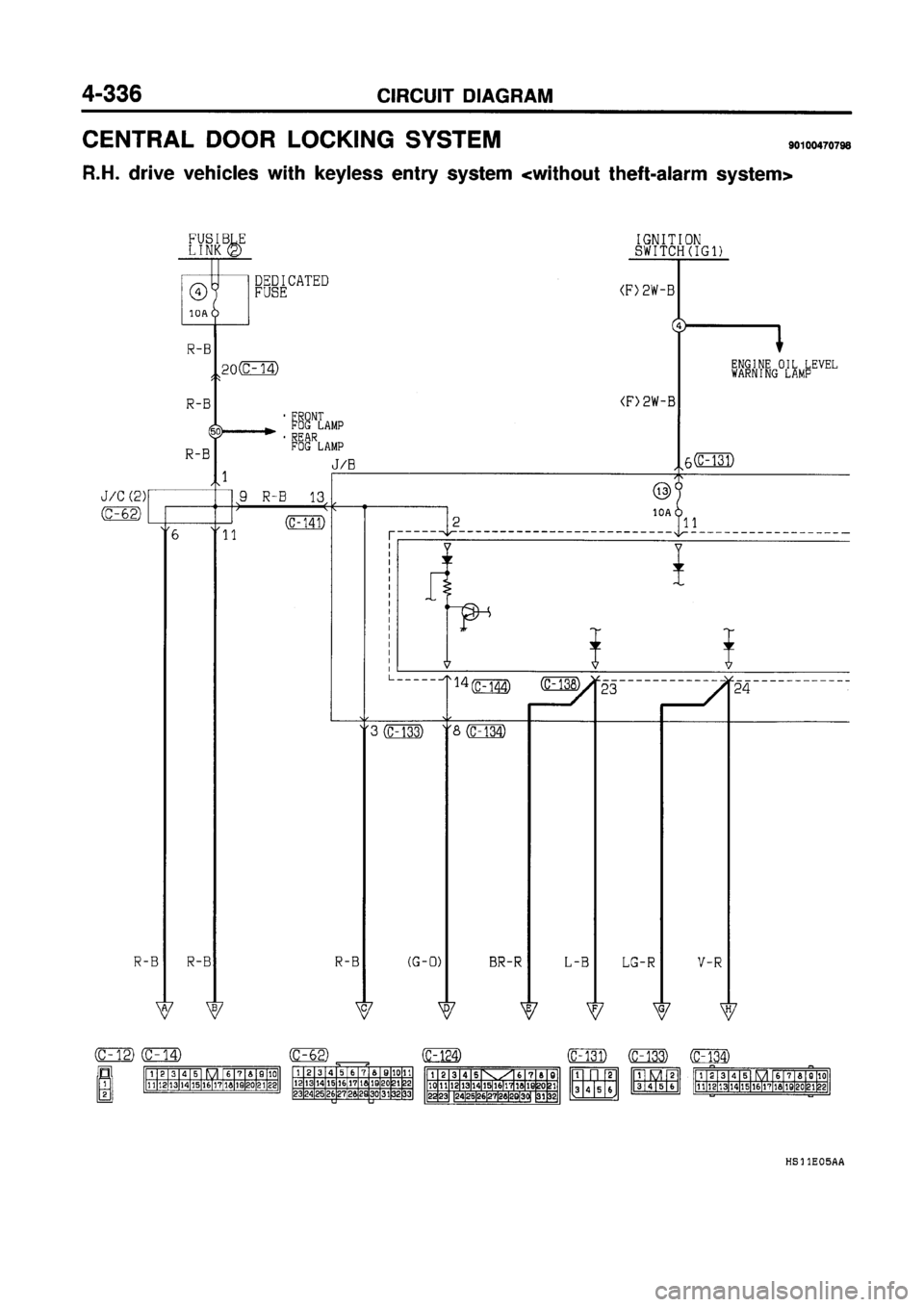

Page 425 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 426 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

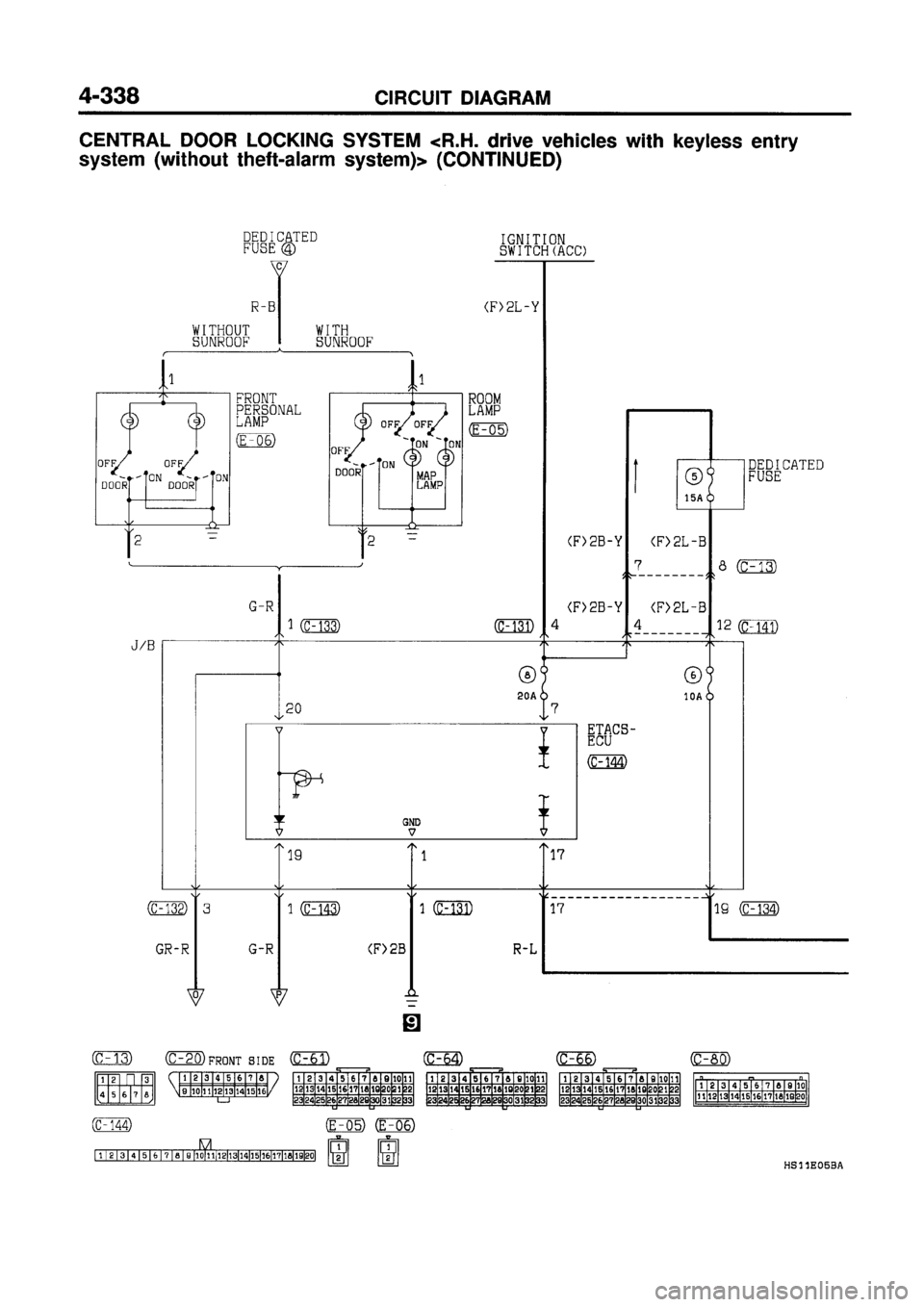

Page 427 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 428 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

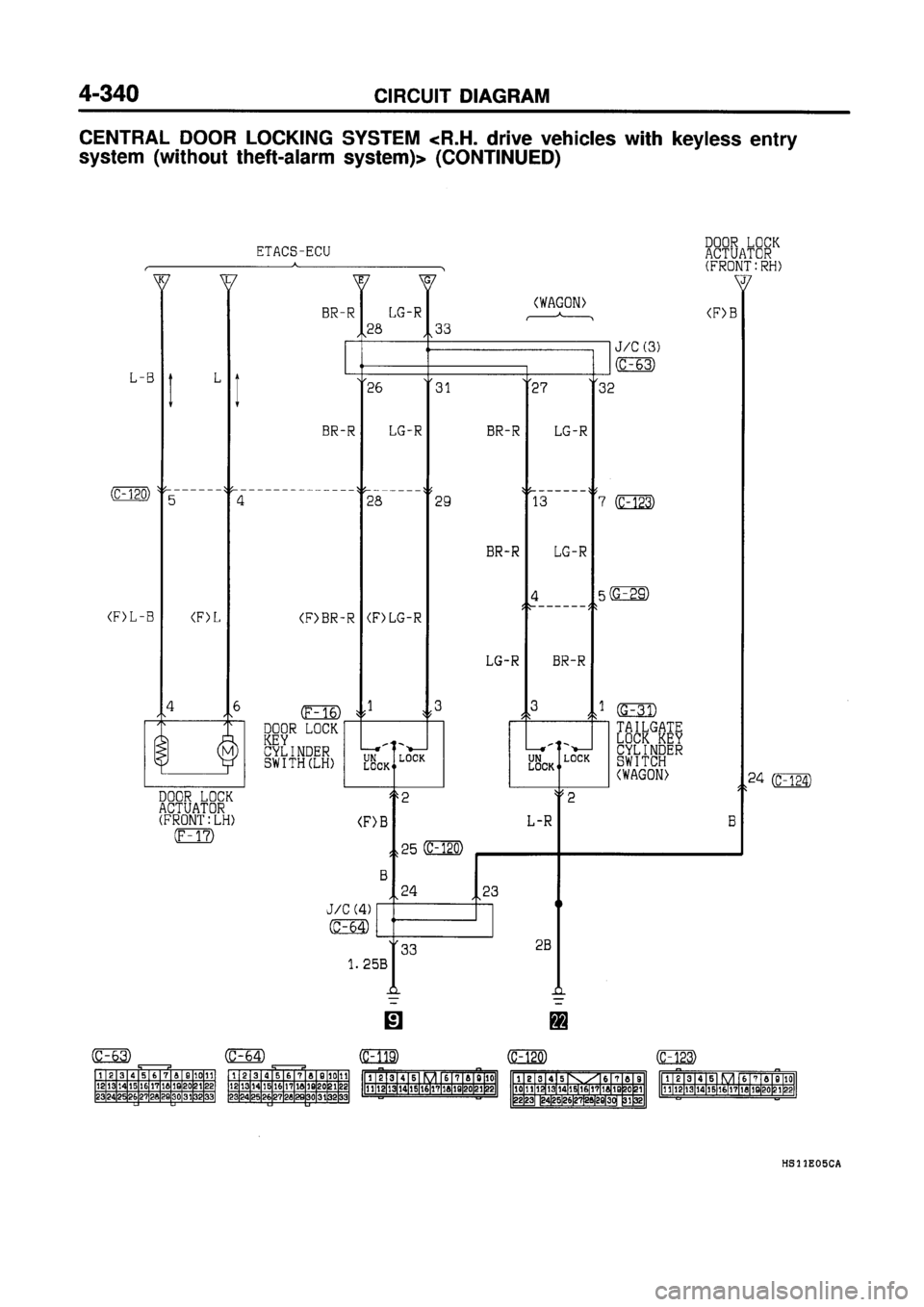

Page 429 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

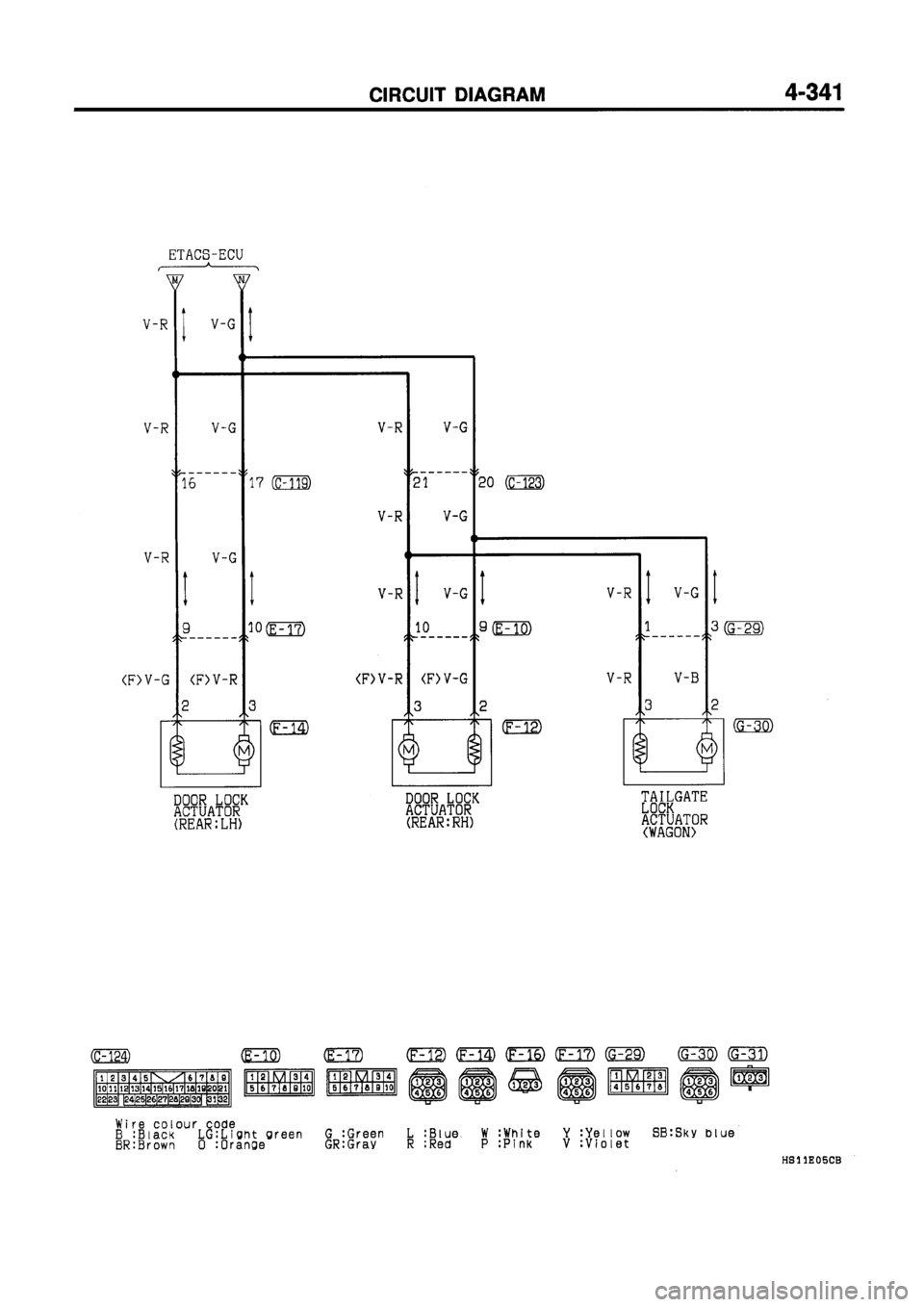

Page 430 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual
