MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Manufacturer: MITSUBISHI, Model Year: 1997, Model line: GALANT, Model: MITSUBISHI GALANT 1997 8.G
Pages: 638, PDF Size: 18.9 MB
MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual GALANT 1997 8.G MITSUBISHI MITSUBISHI https://www.carmanualsonline.info/img/19/7435/w960_7435-0.png MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual
Search: (mirror controls, ABS, wipers, battery capacity, seat memory , brake)
Jump to page (1-638):

Page 471 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 472 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 473 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 474 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

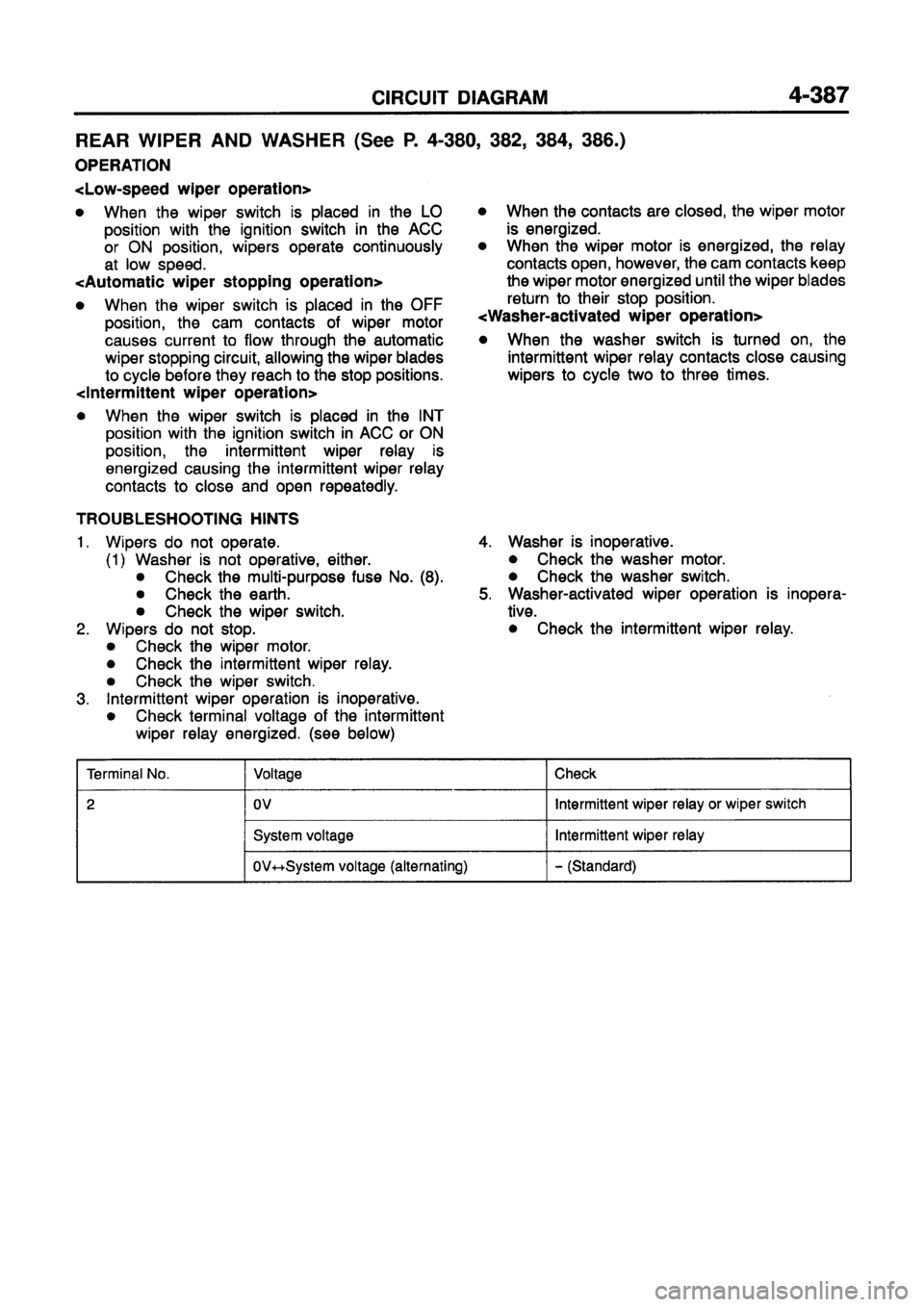

Page 475 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 476 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 477 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 478 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 479 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual

Page 480 of 638

MITSUBISHI GALANT 1997 8.G Electrical Wiring Diagram Workshop Manual
