Introduction
N09200100888
Thank you for buying a MITSUBISHI GALANT.
We are confident you will enjoy your vehicle. It has been engi-
neered for optimum performance, durability and comfort. By
thoroughly reading this Owner’s Manual, you will gain an
understanding of the many features that are included in the
GALANT. The Owner’s Manual contains descriptions and
illustrations that will assist in the operation and maintenance of
your vehicle.
Your Authorized Mitsubishi Motors Dealer will be happy to
assist you with any further questions you may have regarding
the operation of your vehicle.
Please note that this manual applies to all GALANT models
and explains all features including options. Some features
explained in this manual may not be installed on your vehicle.
Please leave this Owner’s Manual in the vehicle at the time of
resale. The next owner will appreciate having access to the
information contained here.
This manual includes instructions for standard and optional
equipment available at the time of printing. Mitsubishi Motors
Corporation reserves the right to make changes in design and
specifications and to make additions or improvements in its
product without assuming any obligation to install these on
previously manufactured products.
Throughout this manual the words WA R N I N G and CAUTION
appear.
These are reminders to be especially careful. Failure to follow the
instructions could result in personal injury or damage to your
vehicle.
WA R N I N G
!
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
CAUTION
!
Points out hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE Gives helpful information.
WA R N I N G
!

Engine exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to the State of
California to cause cancer and birth defects and reproduc-
tive harm. In addition, certain fluids contained in vehicles
and certain products of component wear contain or emit
chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
©2011 Mitsubishi Motors Corporation Printed in U.S.A.This vehicle is manufactured by Mitsubishi Motors North America, Inc. in
U.S.A. under license from Mitsubishi Motors Corporation.
12PS41(MMNA)_Cover2.fm 1 ページ ２０１１年３月１１日　金曜日　午前１０時２５分

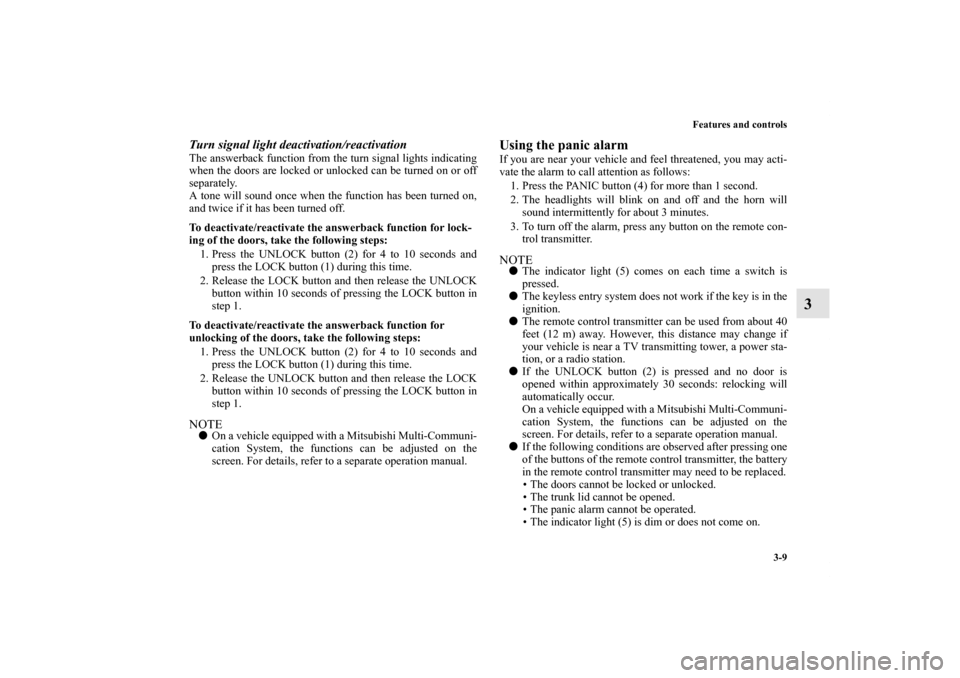

Features and controls
3-9
3
Turn signal light deactivation/reactivation The answerback function from the turn signal lights indicating
when the doors are locked or unlocked can be turned on or off
separately.
A tone will sound once when the function has been turned on,
and twice if it has been turned off.
To deactivate/reactivate the answerback function for lock-
ing of the doors, take the following steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the LOCK button and then release the UNLOCK
button within 10 seconds of pressing the LOCK button in
step 1.
To deactivate/reactivate the answerback function for
unlocking of the doors, take the following steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the UNLOCK button and then release the LOCK
button within 10 seconds of pressing the LOCK button in
step 1.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Using the panic alarmIf you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (4) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.NOTE
The indicator light (5) comes on each time a switch is
pressed.

The keyless entry system does not work if the key is in the
ignition.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed and no door is
opened within approximately 30 seconds: relocking will
automatically occur.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

If the following conditions are observed after pressing one
of the buttons of the remote control transmitter, the battery
in the remote control transmitter may need to be replaced.
• The doors cannot be locked or unlocked.
• The trunk lid cannot be opened.
• The panic alarm cannot be operated.
• The indicator light (5) is dim or does not come on.
BK0139500US.book 9 ページ ２０１１年４月１９日　火曜日　午後１時４８分

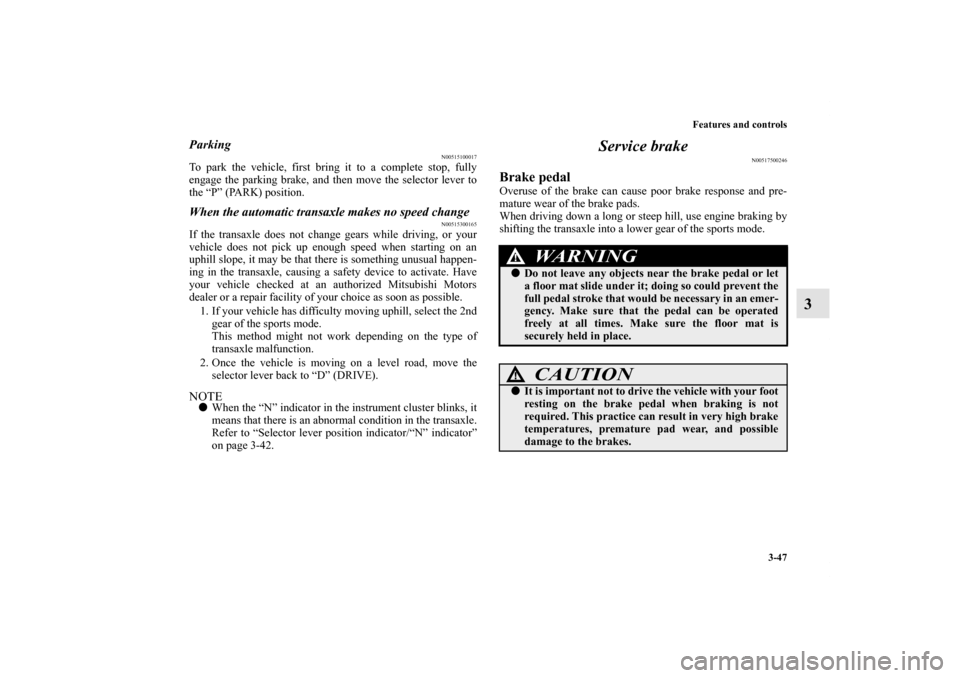

Features and controls
3-47
3
Parking
N00515100017
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.When the automatic transaxle makes no speed change
N00515300165
If the transaxle does not change gears while driving, or your
vehicle does not pick up enough speed when starting on an
uphill slope, it may be that there is something unusual happen-
ing in the transaxle, causing a safety device to activate. Have
your vehicle checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.
1. If your vehicle has difficulty moving uphill, select the 2nd
gear of the sports mode.
This method might not work depending on the type of
transaxle malfunction.
2. Once the vehicle is moving on a level road, move the
selector lever back to “D” (DRIVE).NOTE
When the “N” indicator in the instrument cluster blinks, it
means that there is an abnormal condition in the transaxle.
Refer to “Selector lever position indicator/“N” indicator”
on page 3-42.
Service brake
N00517500246
Brake pedalOveruse of the brake can cause poor brake response and pre-
mature wear of the brake pads.
When driving down a long or steep hill, use engine braking by
shifting the transaxle into a lower gear of the sports mode.
WA R N I N G
!
Do not leave any objects near the brake pedal or let
a floor mat slide under it; doing so could prevent the
full pedal stroke that would be necessary in an emer-
gency. Make sure that the pedal can be operated
freely at all times. Make sure the floor mat is
securely held in place.
CAUTION
!
It is important not to drive the vehicle with your foot
resting on the brake pedal when braking is not
required. This practice can result in very high brake
temperatures, premature pad wear, and possible
damage to the brakes.
BK0139500US.book 47 ページ ２０１１年４月１９日　火曜日　午後１時４８分

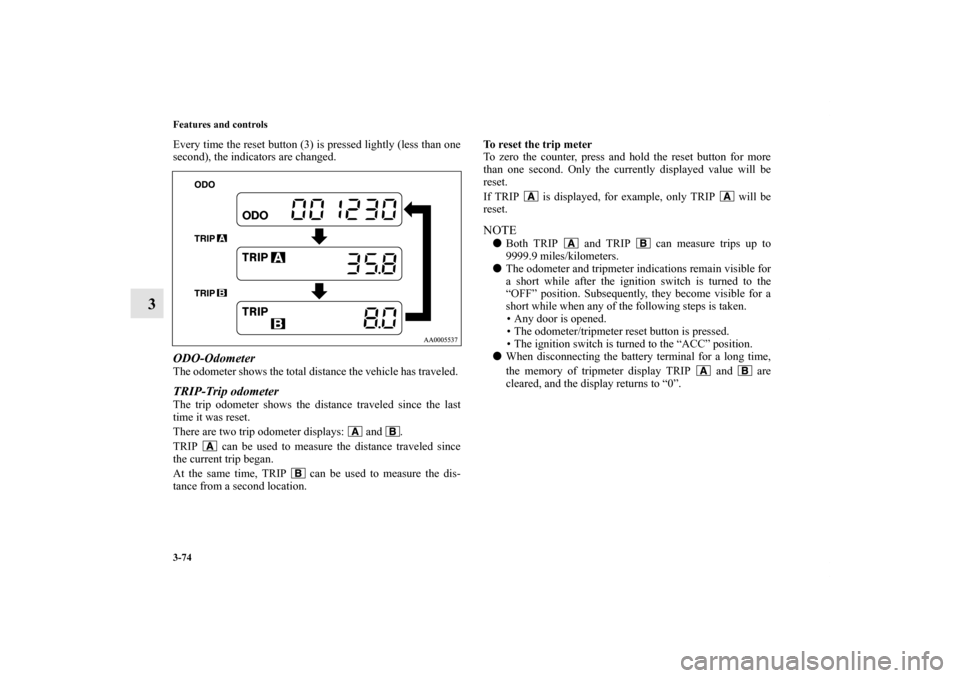

3-74 Features and controls
3
Every time the reset button (3) is pressed lightly (less than one
second), the indicators are changed. ODO-OdometerThe odometer shows the total distance the vehicle has traveled. TRIP-Trip odometerThe trip odometer shows the distance traveled since the last
time it was reset.
There are two trip odometer displays: and .
TRIP can be used to measure the distance traveled since
the current trip began.
At the same time, TRIP can be used to measure the dis-
tance from a second location.To reset the trip meter
To zero the counter, press and hold the reset button for more
than one second. Only the currently displayed value will be
reset.
If TRIP is displayed, for example, only TRIP will be
reset.
NOTE
Both TRIP and TRIP can measure trips up to
9999.9 miles/kilometers.

The odometer and tripmeter indications remain visible for
a short while after the ignition switch is turned to the
“OFF” position. Subsequently, they become visible for a
short while when any of the following steps is taken.
• Any door is opened.
• The odometer/tripmeter reset button is pressed.
• The ignition switch is turned to the “ACC” position.

When disconnecting the battery terminal for a long time,
the memory of tripmeter display TRIP and are
cleared, and the display returns to “0”.
BK0139500US.book 74 ページ ２０１１年４月１９日　火曜日　午後１時４８分

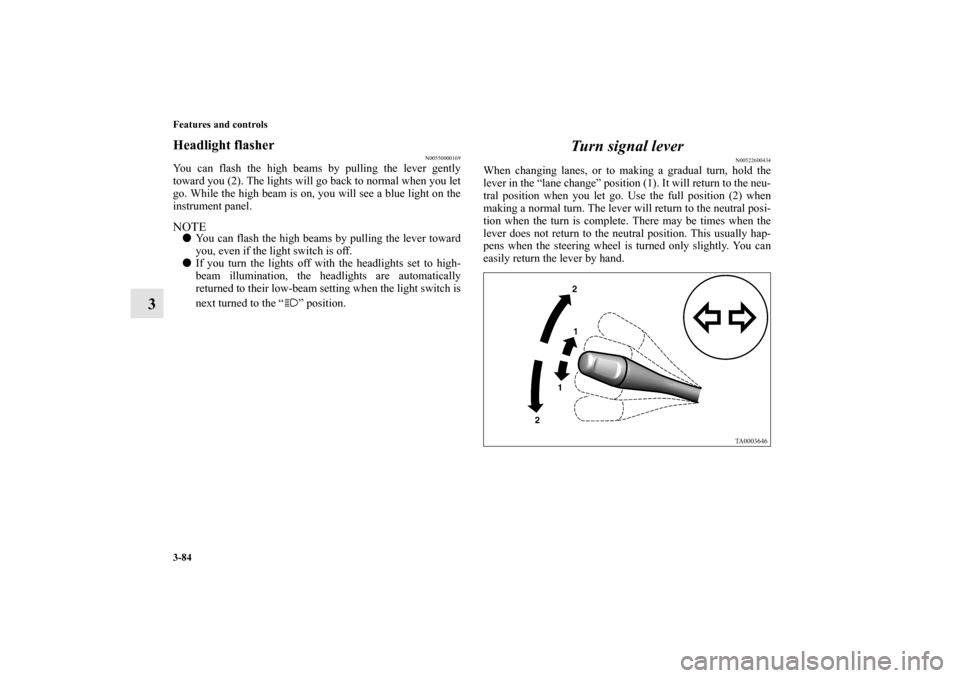

3-84 Features and controls
3
Headlight flasher
N00550000169
You can flash the high beams by pulling the lever gently
toward you (2). The lights will go back to normal when you let
go. While the high beam is on, you will see a blue light on the
instrument panel.NOTE
You can flash the high beams by pulling the lever toward
you, even if the light switch is off.

If you turn the lights off with the headlights set to high-
beam illumination, the headlights are automatically
returned to their low-beam setting when the light switch is
next turned to the “ ” position.
Turn signal lever
N00522600434
When changing lanes, or to making a gradual turn, hold the
lever in the “lane change” position (1). It will return to the neu-
tral position when you let go. Use the full position (2) when
making a normal turn. The lever will return to the neutral posi-
tion when the turn is complete. There may be times when the
lever does not return to the neutral position. This usually hap-
pens when the steering wheel is turned only slightly. You can
easily return the lever by hand.
BK0139500US.book 84 ページ ２０１１年４月１９日　火曜日　午後１時４８分

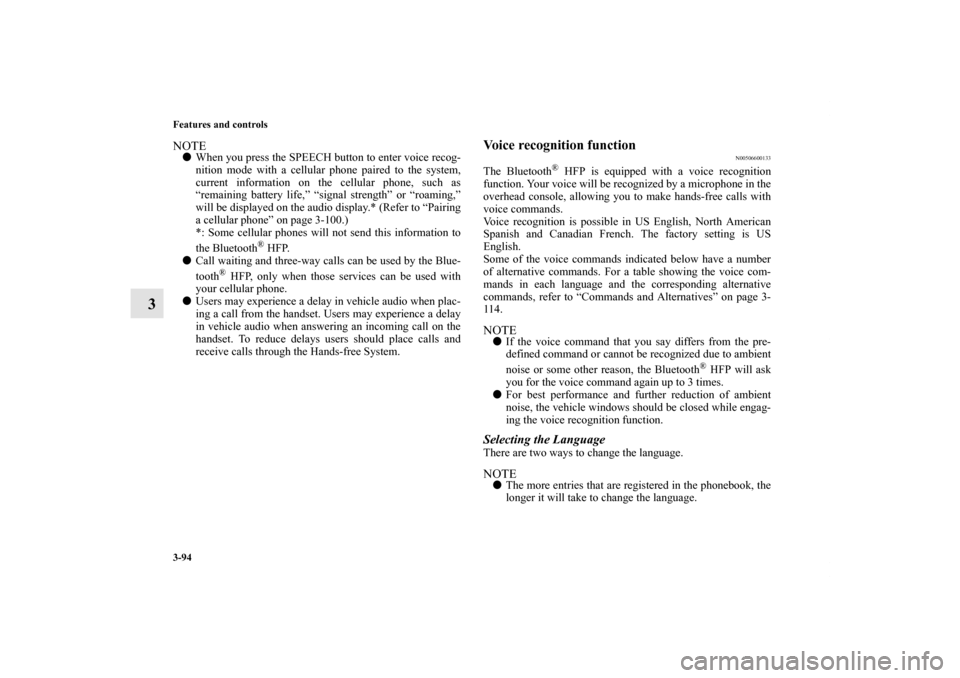

3-94 Features and controls
3
NOTE
When you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.* (Refer to “Pairing
a cellular phone” on page 3-100.)
*: Some cellular phones will not send this information to
the Bluetooth
® HFP.

Call waiting and three-way calls can be used by the Blue-
tooth
® HFP, only when those services can be used with
your cellular phone.

Users may experience a delay in vehicle audio when plac-
ing a call from the handset. Users may experience a delay
in vehicle audio when answering an incoming call on the
handset. To reduce delays users should place calls and
receive calls through the Hands-free System.
Voice recognition function
N00506600133
The Bluetooth
® HFP is equipped with a voice recognition
function. Your voice will be recognized by a microphone in the
overhead console, allowing you to make hands-free calls with
voice commands.
Voice recognition is possible in US English, North American
Spanish and Canadian French. The factory setting is US
English.
Some of the voice commands indicated below have a number
of alternative commands. For a table showing the voice com-
mands in each language and the corresponding alternative
commands, refer to “Commands and Alternatives” on page 3-
114.
NOTE
If the voice command that you say differs from the pre-
defined command or cannot be recognized due to ambient
noise or some other reason, the Bluetooth
® HFP will ask
you for the voice command again up to 3 times.

For best performance and further reduction of ambient
noise, the vehicle windows should be closed while engag-
ing the voice recognition function.
Selecting the LanguageThere are two ways to change the language. NOTE
The more entries that are registered in the phonebook, the
longer it will take to change the language.
BK0139500US.book 94 ページ ２０１１年４月１９日　火曜日　午後１時４８分

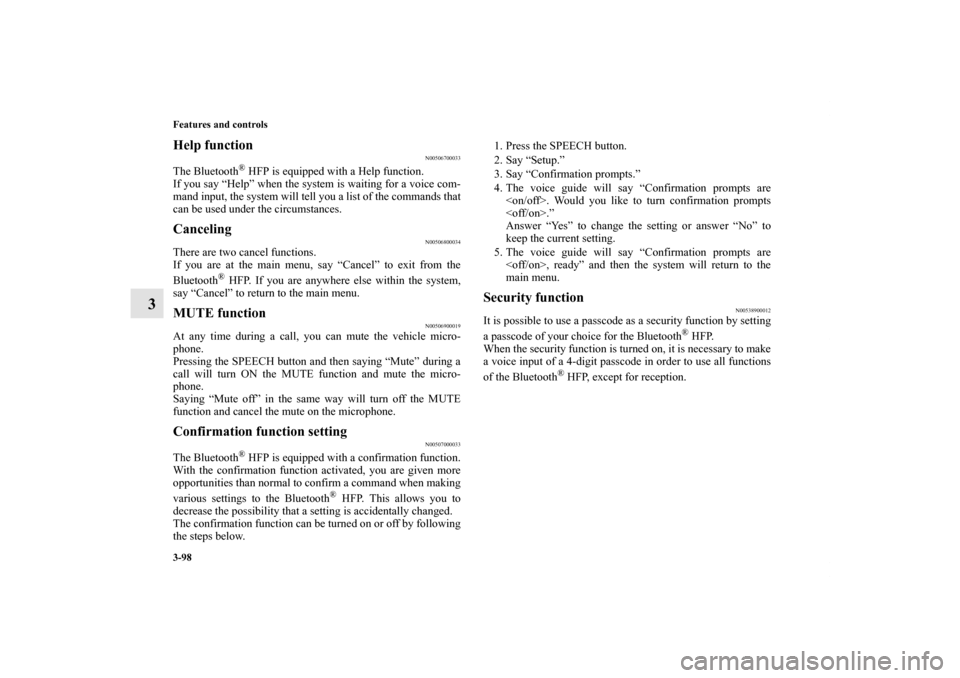

3-98 Features and controls
3
Help function
N00506700033
The Bluetooth
® HFP is equipped with a Help function.
If you say “Help” when the system is waiting for a voice com-
mand input, the system will tell you a list of the commands that
can be used under the circumstances.
Canceling
N00506800034
There are two cancel functions.
If you are at the main menu, say “Cancel” to exit from the
Bluetooth
® HFP. If you are anywhere else within the system,
say “Cancel” to return to the main menu.
MUTE function
N00506900019
At any time during a call, you can mute the vehicle micro-
phone.
Pressing the SPEECH button and then saying “Mute” during a
call will turn ON the MUTE function and mute the micro-
phone.
Saying “Mute off” in the same way will turn off the MUTE
function and cancel the mute on the microphone.Confirmation function setting
N00507000033
The Bluetooth
® HFP is equipped with a confirmation function.
With the confirmation function activated, you are given more
opportunities than normal to confirm a command when making
various settings to the Bluetooth
® HFP. This allows you to
decrease the possibility that a setting is accidentally changed.
The confirmation function can be turned on or off by following
the steps below. 1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Confirmation prompts.”
4. The voice guide will say “Confirmation prompts are
. Would you like to turn confirmation prompts
.”
Answer “Yes” to change the setting or answer “No” to
keep the current setting.
5. The voice guide will say “Confirmation prompts are
, ready” and then the system will return to the
main menu.
Security function
N00538900012
It is possible to use a passcode as a security function by setting
a passcode of your choice for the Bluetooth
® HFP.
When the security function is turned on, it is necessary to make
a voice input of a 4-digit passcode in order to use all functions
of the Bluetooth
® HFP, except for reception.
BK0139500US.book 98 ページ ２０１１年４月１９日　火曜日　午後１時４８分

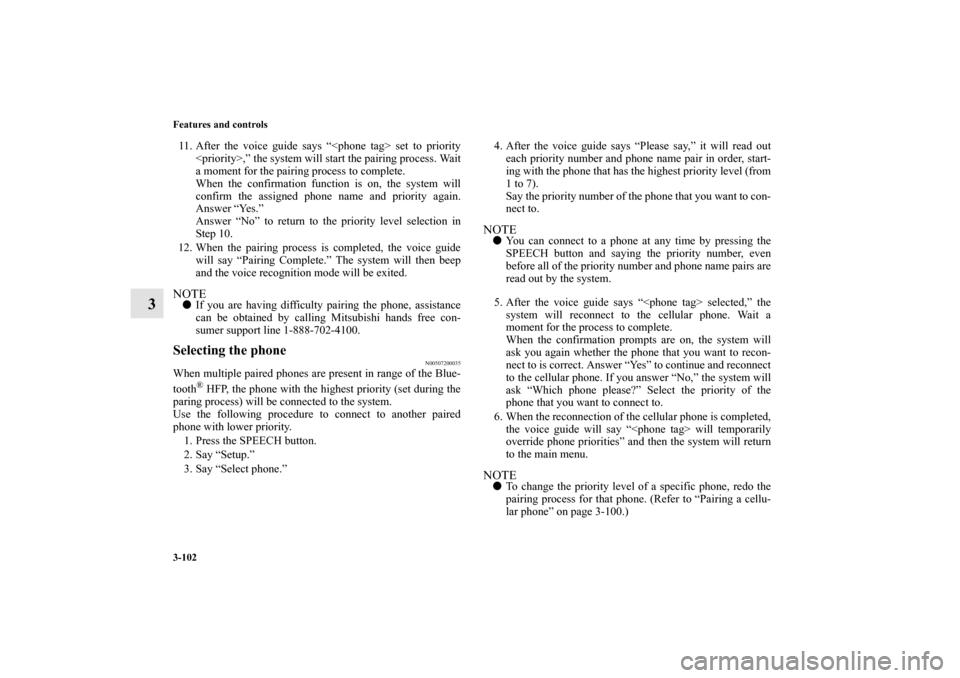

3-102 Features and controls
3
11. After the voice guide says “ set to priority
,” the system will start the pairing process. Wait
a moment for the pairing process to complete.
When the confirmation function is on, the system will
confirm the assigned phone name and priority again.
Answer “Yes.”
Answer “No” to return to the priority level selection in
Step 10.
12. When the pairing process is completed, the voice guide
will say “Pairing Complete.” The system will then beep
and the voice recognition mode will be exited.NOTE
If you are having difficulty pairing the phone, assistance
can be obtained by calling Mitsubishi hands free con-
sumer support line 1-888-702-4100.Selecting the phone
N00507200035
When multiple paired phones are present in range of the Blue-
tooth
® HFP, the phone with the highest priority (set during the
paring process) will be connected to the system.
Use the following procedure to connect to another paired
phone with lower priority.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select phone.”4. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7).
Say the priority number of the phone that you want to con-
nect to.
NOTE
You can connect to a phone at any time by pressing the
SPEECH button and saying the priority number, even
before all of the priority number and phone name pairs are
read out by the system.
5. After the voice guide says “ selected,” the
system will reconnect to the cellular phone. Wait a
moment for the process to complete.
When the confirmation prompts are on, the system will
ask you again whether the phone that you want to recon-
nect to is correct. Answer “Yes” to continue and reconnect
to the cellular phone. If you answer “No,” the system will
ask “Which phone please?” Select the priority of the
phone that you want to connect to.
6. When the reconnection of the cellular phone is completed,
the voice guide will say “ will temporarily
override phone priorities” and then the system will return
to the main menu.NOTE
To change the priority level of a specific phone, redo the
pairing process for that phone. (Refer to “Pairing a cellu-
lar phone” on page 3-100.)
BK0139500US.book 102 ページ ２０１１年４月１９日　火曜日　午後１時４８分

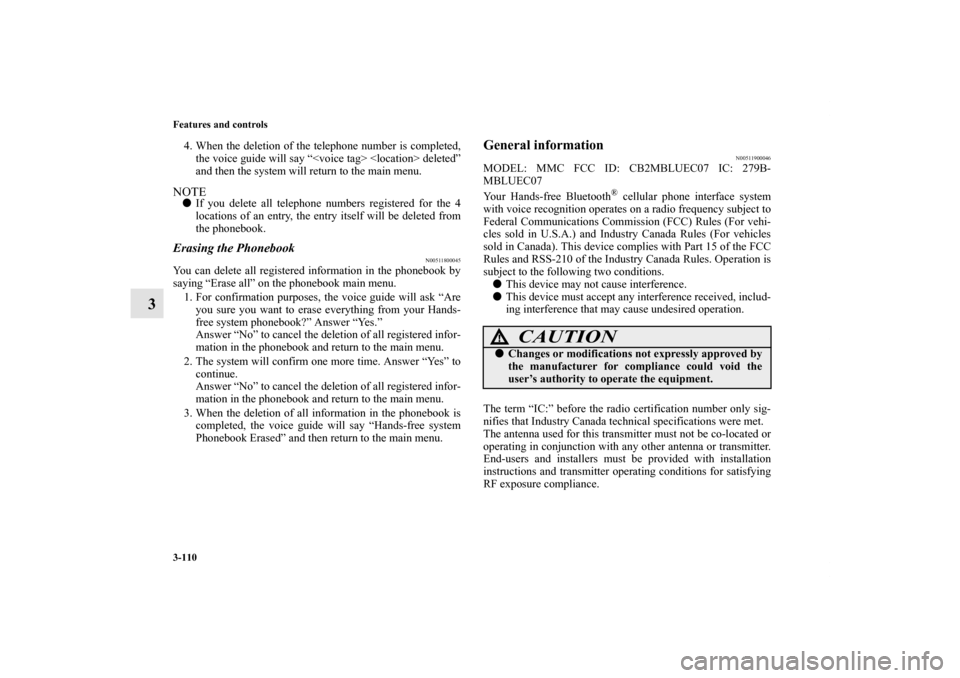

3-110 Features and controls
3
4. When the deletion of the telephone number is completed,
the voice guide will say “ deleted”
and then the system will return to the main menu.NOTE
If you delete all telephone numbers registered for the 4
locations of an entry, the entry itself will be deleted from
the phonebook.Erasing the Phonebook
N00511800045
You can delete all registered information in the phonebook by
saying “Erase all” on the phonebook main menu.
1. For confirmation purposes, the voice guide will ask “Are
you sure you want to erase everything from your Hands-
free system phonebook?” Answer “Yes.”
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
2. The system will confirm one more time. Answer “Yes” to
continue.
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
3. When the deletion of all information in the phonebook is
completed, the voice guide will say “Hands-free system
Phonebook Erased” and then return to the main menu.
General information
N00511900046
MODEL: MMC FCC ID: CB2MBLUEC07 IC: 279B-
MBLUEC07
Your Hands-free Bluetooth
® cellular phone interface system
with voice recognition operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules (For vehi-
cles sold in U.S.A.) and Industry Canada Rules (For vehicles
sold in Canada). This device complies with Part 15 of the FCC
Rules and RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions.

This device may not cause interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
The term “IC:” before the radio certification number only sig-
nifies that Industry Canada technical specifications were met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with installation
instructions and transmitter operating conditions for satisfying
RF exposure compliance.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0139500US.book 110 ページ ２０１１年４月１９日　火曜日　午後１時４８分

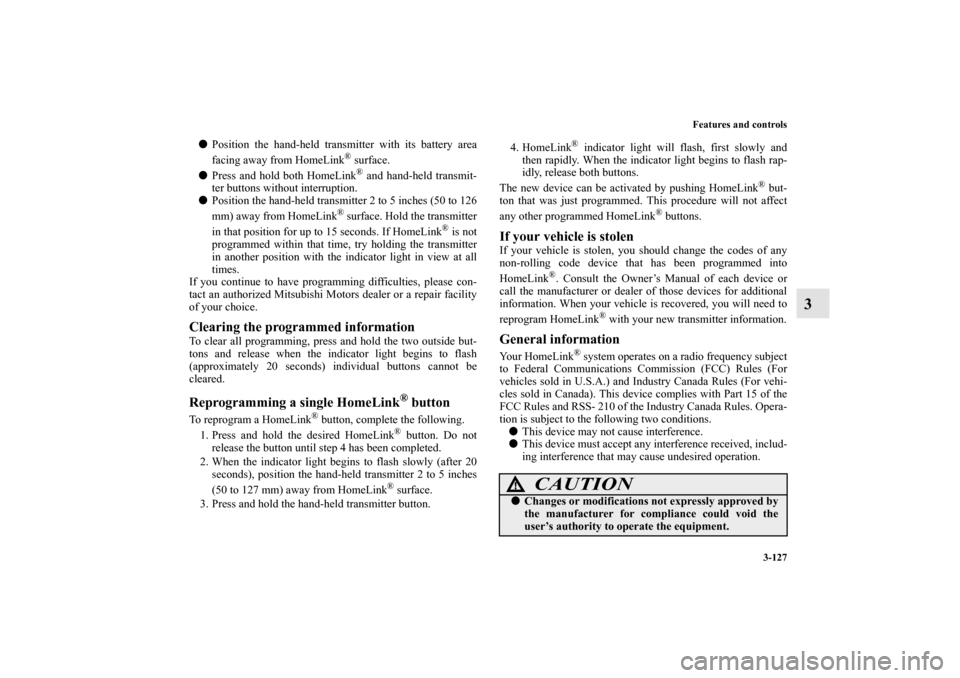

Features and controls
3-127
3

Position the hand-held transmitter with its battery area
facing away from HomeLink
® surface.

Press and hold both HomeLink® and hand-held transmit-
ter buttons without interruption.

Position the hand-held transmitter 2 to 5 inches (50 to 126
mm) away from HomeLink
® surface. Hold the transmitter
in that position for up to 15 seconds. If HomeLink
® is not
programmed within that time, try holding the transmitter
in another position with the indicator light in view at all
times.
If you continue to have programming difficulties, please con-
tact an authorized Mitsubishi Motors dealer or a repair facility
of your choice.
Clearing the programmed informationTo clear all programming, press and hold the two outside but-
tons and release when the indicator light begins to flash
(approximately 20 seconds) individual buttons cannot be
cleared.Reprogramming a single HomeLink
® button
To reprogram a HomeLink
® button, complete the following.
1. Press and hold the desired HomeLink
® button. Do not
release the button until step 4 has been completed.
2. When the indicator light begins to flash slowly (after 20
seconds), position the hand-held transmitter 2 to 5 inches
(50 to 127 mm) away from HomeLink
® surface.
3. Press and hold the hand-held transmitter button.4. HomeLink
® indicator light will flash, first slowly and
then rapidly. When the indicator light begins to flash rap-
idly, release both buttons.
The new device can be activated by pushing HomeLink
® but-
ton that was just programmed. This procedure will not affect
any other programmed HomeLink
® buttons.
If your vehicle is stolenIf your vehicle is stolen, you should change the codes of any
non-rolling code device that has been programmed into
HomeLink
®. Consult the Owner’s Manual of each device or
call the manufacturer or dealer of those devices for additional
information. When your vehicle is recovered, you will need to
reprogram HomeLink
® with your new transmitter information.
General informationYour HomeLink
® system operates on a radio frequency subject
to Federal Communications Commission (FCC) Rules (For
vehicles sold in U.S.A.) and Industry Canada Rules (For vehi-
cles sold in Canada). This device complies with Part 15 of the
FCC Rules and RSS- 210 of the Industry Canada Rules. Opera-
tion is subject to the following two conditions.

This device may not cause interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0139500US.book 127 ページ ２０１１年４月１９日　火曜日　午後１時４８分
