Page 10 of 424
Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701006
NOTEThese warning lights will come on for a few seconds for a bulb check when the ignition key is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning lightPark your vehicle in a safe place and stop the engine.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your
choice for assistance.P.3-80
Oil pressure warning lightPark your vehicle in a safe place and stop the engine, then check the engine
oil level.
If the light comes on while the engine oil level is normal, have the system
checked at an authorized Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.P.3-80
or
Brake warning lightIf this light comes on while driving, check to see that the parking brake is
fully released.
If this light stays on after releasing the parking brake, stop and check the
brake fluid level.
If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speeds, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P.3-78
BK0139500US.book 1 ページ 2011年4月19日 火曜日 午後1時48分
Page 91 of 424
3-2 Features and controls
3Break-in recommendations
N00508700226
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.
Avoid revving the engine.
Avoid rough driving such as fast starts, sudden accelera-
tion, prolonged high-speed driving and sudden braking.
These would have a detrimental effect on the engine and
also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
gear.
Do not overload the vehicle. Observe the seating capacity
(See “Cargo load precautions” on page 4-13).
Do not use this vehicle for trailer towing.
Keys
N00508800546
Two keys are provided.
The keys fit all locks. Keep one in a safe place as a spare key.
BK0139500US.book 2 ページ 2011年4月19日 火曜日 午後1時48分
Page 166 of 424
Features and controls
3-77
3 Indicator and warning light package
N00519800780
1- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-79
2- Cruise control indicator → P.3-58
3- High beam indicator → P.3-78
4- Turn signal indicators/Hazard warning lights → P.3-78
5- Front fog light indicator (if so equipped) → P.3-78
6- Automatic transaxle position indicator → P.3-42
7- Active stability control (ASC) indicator → P. 3 - 5 4
8- Active stability control (ASC) OFF indicator → P.3-54
9- Driver’s seat belt reminder/warning light → P. 2 - 2 0
10- Door-ajar warning light → P. 3 - 8 0
11- Oil pressure warning light → P.3-80
12- Charging system warning light → P.3-80
13- Immobilizer indicator → P. 3 - 314- Tire pressure monitoring system warning light → P.3-65
15- Supplemental Restraint System (SRS) warning light
→ P. 2 - 4 6
16- Anti-lock braking system warning light → P.3-50
17- Brake warning light → P.3-78
18- Low-fuel warning light → P.3-75
BK0139500US.book 77 ページ 2011年4月19日 火曜日 午後1時48分
Page 169 of 424
3-80 Features and controls
3
Charging system warning light
N00520600209
This light comes on in the event of a malfunction in the charg-
ing system or when the ignition key is turned to the “ON” posi-
tion (engine off). When the engine is started, the light should
go out. Check to make sure that the light has gone out before
driving.Oil pressure warning light
N00520700170
This light comes on when the engine oil pressure is below nor-
mal. If the light stays on while driving, stop the engine as soon
as possible. Do not run the engine until the cause of the low oil
pressure is corrected.
Door-ajar warning light and buzzer
N00520900299
This light comes on when any door is open or not completely
closed.
When the vehicle is moving at more than 5 mph (8 km/h) and
any door is open or ajar, a tone will sound 4 times and the
warning light will flash 4 times to inform the driver that a door
is not properly shut.NOTEThe light goes out automatically after about 30 minutes.
Refer to “Interior light auto-shutoff function (dome light
and other lights)” on page 3-130.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, Mitsubishi Multi-Communication Sys-
tem can be used to stop the warning lamp from flashing
and to stop the tone from functioning.
For details, refer to the separate owner’s manual.
CAUTION
!If the charging light stays on after the engine has
started, the battery charging system may be mal-
functioning. In this case, take your vehicle to an
authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
CAUTION
!If this light comes on when the engine oil level is not
low, have your vehicle checked at an authorized Mit-
subishi Motors dealer or a repair facility of your
choice.This warning light does not show the amount of oil
in the crankcase. This can only be determined by
checking the oil level with the dipstick with the
engine turned off.
CAUTION
!Before driving, make sure that the door-ajar warn-
ing light is off.
BK0139500US.book 80 ページ 2011年4月19日 火曜日 午後1時48分
Page 229 of 424

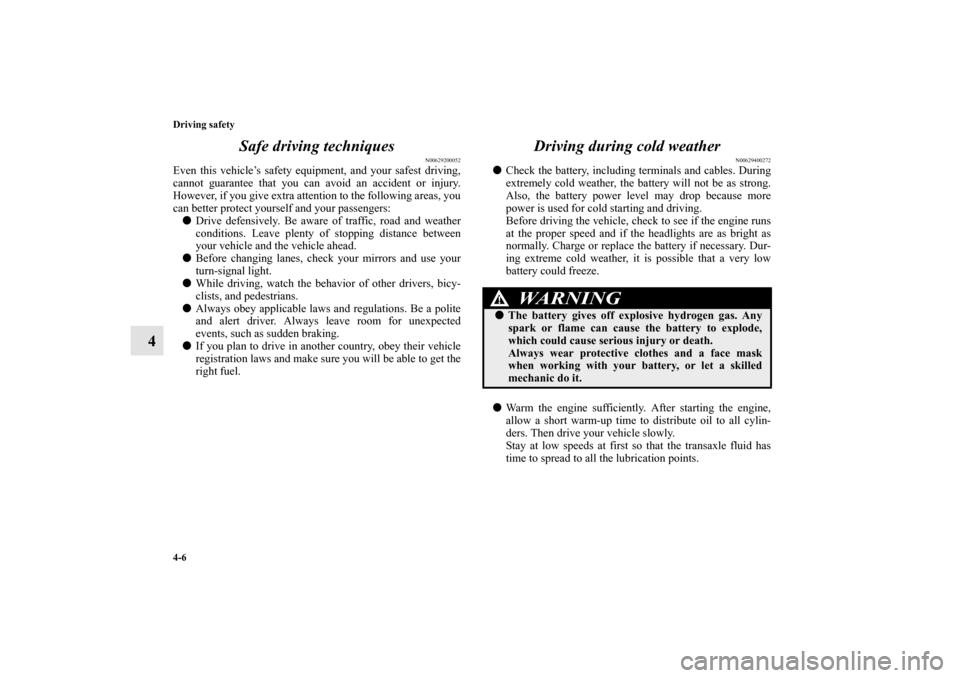

4-6 Driving safety
4Safe driving techniques
N00629200052
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:
Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.
Before changing lanes, check your mirrors and use your
turn-signal light.
While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.
Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.
If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
Driving during cold weather
N00629400272
Check the battery, including terminals and cables. During
extremely cold weather, the battery will not be as strong.
Also, the battery power level may drop because more
power is used for cold starting and driving.
Before driving the vehicle, check to see if the engine runs
at the proper speed and if the headlights are as bright as
normally. Charge or replace the battery if necessary. Dur-
ing extreme cold weather, it is possible that a very low
battery could freeze.
Warm the engine sufficiently. After starting the engine,
allow a short warm-up time to distribute oil to all cylin-
ders. Then drive your vehicle slowly.
Stay at low speeds at first so that the transaxle fluid has
time to spread to all the lubrication points.
WA R N I N G
!The battery gives off explosive hydrogen gas. Any
spark or flame can cause the battery to explode,
which could cause serious injury or death.
Always wear protective clothes and a face mask
when working with your battery, or let a skilled
mechanic do it.
BK0139500US.book 6 ページ 2011年4月19日 火曜日 午後1時48分
Page 230 of 424
Driving safety
4-7
4
Check the engine antifreeze.
If there is not enough coolant because of a leak or from
engine overheating, add high-quality ethylene glycol anti-
freeze and water. The recommended blend is about 50 %
water and 50 % anti-freeze. Use a higher concentration
(not over 60 %) when the outside temperature is -31 °F
(-35 °C) or lower. When the engine is working very hard
(for example, during mountain driving and/or when the
outside temperature is high), use a 50 % concentration.
This blend will provide adequate protection from corro-
sion and boiling.
Braking
N00629500260
All the parts of the brake system are critical to safety. Have the
vehicle serviced by an authorized Mitsubishi Motors dealer or
a repair facility of your choice at regular intervals according to
the “WARRANTY AND MAINTENANCE MANUAL”.When brakes are wetCheck the brake system while driving at a low speed immedi-
ately after starting, especially when the brakes are wet, to con-
firm they work normally.
A film of water can be formed on the brake discs and prevent
normal braking after driving in heavy rain or through large
puddles, or after the vehicle is washed. If this occurs, dry the
brakes out by driving slowly while lightly depressing the brake
pedal.When driving in cold weatherOn snowy roads, ice can form on the braking system, making
the brakes less effective. While driving in such conditions, pay
close attention to preceding and following vehicles and to the
condition of the road surface. From time to time, lightly
depress the brake pedal and check how effective the brakes are.When driving downhillIt is important to take advantage of the engine braking by shift-
ing to a lower gear while driving on steep downhill roads in
order to prevent the brakes from overheating.
WA R N I N G
!Never open the radiator cap when the radiator is
hot. You could be seriously burned.
BK0139500US.book 7 ページ 2011年4月19日 火曜日 午後1時48分
Page 336 of 424
7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 6
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 6
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 9
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 11
Automatic transaxle fluid. . . . . . . . . . . . . . . . . . . .7- 12
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 13
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 14
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 15
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 15
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 19
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 28
Parking brake lever stroke . . . . . . . . . . . . . . . . . . .7- 28
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 29
Emission-control system maintenance. . . . . . . . . .7- 29
General maintenance . . . . . . . . . . . . . . . . . . . . . . .7- 31
For cold and snowy weather . . . . . . . . . . . . . . . . .7- 34
Fuse links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 34
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 35Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 44
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 61
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 62
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 63
BK0139500US.book 1 ページ 2011年4月19日 火曜日 午後1時48分
Page 341 of 424
7-6 Vehicle care and maintenance
7View of the engine compartment
N00937600612
Engine oil and oil filter
N00937700815
To check and refill engine oil It is normal for an engine to use oil. You may need to add oil
between the recommended oil change intervals. Before starting
the engine, check the engine oil level. Refill if necessary.
To check the oil level, remove the dipstick, wipe it off, and
gently insert it all the way into the crankcase. Slowly remove it
again. The oil level must not go above the line on the dipstick.
If the level does not reach the line, which shows the smallest
amount of oil required, remove the oil filler cap on the engine
valve cover, and fill to within the “Good” range.
1- Power steering fluid reservoir
2- Brake fluid
3- Battery
4- Windshield washer fluid reservoir
5- Engine oil level dipstick
6- Radiator cap
7- Engine oil filler cap
8- Automatic transaxle fluid level dipstick
9- Engine coolant reservoir
10- Air cleaner filter
Good
BK0139500US.book 6 ページ 2011年4月19日 火曜日 午後1時48分
Page 342 of 424
Vehicle care and maintenance
7-7
7
NOTEEngine oil consumption is greatly influenced by payload,
engine speed, etc.
The engine oil will deteriorate rapidly if the vehicle is
subjected to severe conditions (for example, repeated
operation on rough roads, in mountainous regions, on
roads with many uphill and downhill gradients, or over
short distances). Consequently, the oil will require earlier
replacement in accordance with the schedule in the
“WARRANTY AND MAINTENANCE MANUAL”.Engine oil identification markMitsubishi Motors recommends using only engine oils with the
ILSAC certification symbol on the front of the container.
CAUTION
!Overfilling the crankcase will cause oil aeration and
loss of oil pressure, which could damage the engine.
WA R N I N G
!Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Don’t let used oil touch your skin. Wash thor-
oughly after working with it.Keep used oil out of the reach of children.
ILSAC certification symbol
BK0139500US.book 7 ページ 2011年4月19日 火曜日 午後1時48分
Page 343 of 424
7-8 Vehicle care and maintenance
7
If you cannot find oils with the ILSAC certification symbol,
use an API classification SM or higher oil with the following
label.
This mark appears on the top of the oil container and tells you
two important things about the oil.
Recommended engine oil viscosityUse engine oil with the proper thickness for the outdoor tem-
peratures where you will be driving.
SAE 5W-20 engine oil is strongly recommended for optimum
fuel economy and cold starting.
1- The top portion shows the quality of the oil.
2- The center portion shows the SAE grade of the oil viscosity.API service symbolBK0139500US.book 8 ページ 2011年4月19日 火曜日 午後1時48分
