keyless MITSUBISHI GALANT 2012 9.G Owners Manual

Overview
Outside
N00100601222
Outside rearview mirrors P.3-32
Fuel tank filler door P.1-4
Locking and unlocking
P. 3 - 1 2
Keyless entry system
P. 3 - 7
Front fog lights
(if so equipped)
P.3-86, 7-45, 7-51 Engine compartment P.7-6
Engine hood P.7-4Windshield wiper and washer P.3-87
Headlights
P.3-81, 7-45, 7-47Front side-marker lights
P.3-81, 7-45, 7-50
Front turn-signal and parking lights
P.3-81, 7-45, 7-50
BK0139500US.book 6 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Quick index
5
Metallic squeal when you press the
brake pedal while driving.“Brake pad wear alarm”
The brake pads are worn down to the serviceable limit.
Have the brake pads replaced at an authorized Mitsubishi Motors dealer or a
repair facility of your choice.P.3-48
Tone when the ignition key is turned to
the “ON” position.“Seat belt reminder buzzer”
When the ignition key is turned to the “ON” position, the tone will sound for
about 6 seconds. If the driver’s seat belt remains unfastened 1 minute later, the
tone will sound intermittently (12 times) when the vehicle is driven. If the
driver’s seat belt subsequently remains unfastened while the vehicle is being
driven, the tone will sound as a warning each time the vehicle stops and starts.
When the driver’s seat belt is fastened, the tone will stop.P.2-20
Tone when the vehicle is moving at
more than 5 mph (8 km/h).“Door-ajar warning buzzer”
Door or trunk lid is not properly shut.
If you shut the door or trunk lid, the tone will stop.P.3-80
Wind buffeting when driving with one
or both rear door windows opened.“What to do if you hear wind buffeting when driving”
Open the front door windows as well as the rear door windows.P.3-25
When the headlights have flashed for
three minutes, the horn will sound inter-
mittently for three minutes.“Theft-alarm system” (if so equipped)
The theft-alarm system is operating. To stop the alarm, turn the key in the
driver’s door toward the front of the vehicle (the lock direction) or toward the
rear of the vehicle (the unlock direction). Alternatively, use the keyless-entry
transmitter to lock or unlock the doors or the trunk lid.P.3-20
Sound
Do this
Ref. page
BK0139500US.book 5 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 3
Keyless entry system . . . . . . . . . . . . . . . . . . . . . . .3- 7
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 12
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 14
“Child safety locks” for rear door . . . . . . . . . . . . .3- 15
Trunk lid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Inside emergency trunk lid release. . . . . . . . . . . . .3- 18
Theft-alarm system (if so equipped) . . . . . . . . . . .3- 20
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 23
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . .3- 26
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 28
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . .3- 29
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . .3- 30
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 32
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 34
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .3- 36
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 37
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . .3- 39
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 47
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 49
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 51
Power steering system . . . . . . . . . . . . . . . . . . . . . .3- 56
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 57
Tire pressure monitoring system . . . . . . . . . . . . . .3- 63
Rear-view camera (if so equipped) . . . . . . . . . . . .3- 69Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 72
Indicator and warning light package . . . . . . . . . . . 3- 77
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Combination headlights and dimmer switch . . . . . 3- 81
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 84
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 85
Fog light switch (if so equipped). . . . . . . . . . . . . . 3- 86
Instrument panel light dimmer control . . . . . . . . . 3- 87
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 87
Electric rear window defogger switch. . . . . . . . . . 3- 90
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 91
Hands-free Bluetooth
® cellular phone interface
system with voice recognition (if so equipped) . 3- 92
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 121
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 122
Power outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 122
Digital clock (if so equipped) . . . . . . . . . . . . . . . . 3- 123
HomeLink
® Wireless Control System
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 124

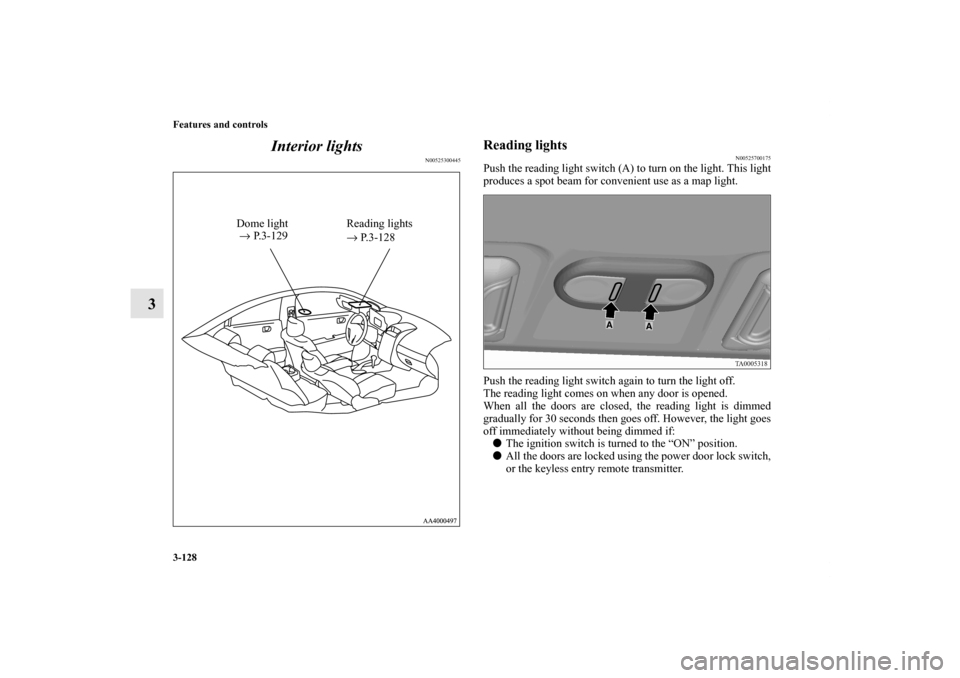

Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 128
Accessory boxes . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 131
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . 3- 131
Floor console box/Tissue holder/Pen holders . . . . 3- 132
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 133
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134
BK0139500US.book 1 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-7
3
General informationYour electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Keyless entry system
N00509000880
Press the remote control transmitter buttons to lock or unlock
the doors and to open the trunk lid.
It can also help you signal for attention by setting off the panic
alarm.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
Trunk ( ) button
4- PANIC button
5- Indicator light
BK0139500US.book 7 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-8 Features and controls
3
To l o c k Press the LOCK button (1) to lock all the doors.
If they are locked while the dome light is not illuminated, the
dome light will blink once. The turn signal lights will also
blink once. NOTE
If you press the LOCK button (1) after locking the doors,
the horn will sound once to confirm that they are locked.To unlock Press the UNLOCK button (2) to unlock the driver’s door only.
Press the UNLOCK button one more time to unlock all the
doors.
If the driver’s door only or all doors are unlocked while the
dome light is not illuminated, the dome light will turn on for 15
seconds. The turn signal lights will also blink twice.To open the trunk lidPress the trunk button (3) twice within 5 seconds and the trunk
lid will be opened. The trunk lid must be closed manually after
it has been opened.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Answerback function The keyless entry system answerback functions from the horn
and turn signal lights can each be turned on or off as desired.
This is done with the key removed from the ignition switch.
NOTE
The answerback function will not operate when the key is
in the ignition switch.Horn deactivation/reactivation The answerback function can be set in the following three
ways.
Each time the answerback function is set, a tone will sound to
tell you the condition of the answerback function.
1. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
2. Release the LOCK and UNLOCK buttons within 10 sec-
onds of pressing the UNLOCK button in step 1.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.One chime: The horn will sound if the doors are locked with
the keyless entry system.
Two chimes: The horn will not sound, even if the doors are
locked with the keyless entry system.
Three chimes: The horn will sound if the doors are already
locked and the keyless entry system is used.
In this mode, the horn will only sound when the
keyless entry LOCK button is pressed again to
reconfirm that the doors are locked.
BK0139500US.book 8 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-9
3
Turn signal light deactivation/reactivation The answerback function from the turn signal lights indicating
when the doors are locked or unlocked can be turned on or off
separately.
A tone will sound once when the function has been turned on,
and twice if it has been turned off.
To deactivate/reactivate the answerback function for lock-
ing of the doors, take the following steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the LOCK button and then release the UNLOCK
button within 10 seconds of pressing the LOCK button in
step 1.
To deactivate/reactivate the answerback function for
unlocking of the doors, take the following steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the UNLOCK button and then release the LOCK
button within 10 seconds of pressing the LOCK button in
step 1.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Using the panic alarmIf you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (4) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.NOTE
The indicator light (5) comes on each time a switch is
pressed.

The keyless entry system does not work if the key is in the
ignition.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed and no door is
opened within approximately 30 seconds: relocking will
automatically occur.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

If the following conditions are observed after pressing one
of the buttons of the remote control transmitter, the battery
in the remote control transmitter may need to be replaced.
• The doors cannot be locked or unlocked.
• The trunk lid cannot be opened.
• The panic alarm cannot be operated.
• The indicator light (5) is dim or does not come on.
BK0139500US.book 9 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-10 Features and controls
3

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 4 remote control transmitters can
be programmed for your vehicle.NOTE
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies
with Part 15 of the FCC Rules and RSS-210 of the Indus-
try Canada Rules. Operation is subject to the following
two conditions:
• This device may not cause interference.
• This device must accept any interference received,
including interference that may cause undesired opera-
tion.
Procedure for replacing the remote control trans-
mitter battery1. Before replacing the battery, remove static electricity from
your body by touching a metal grounded object.
2. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0139500US.book 10 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-11
3
3. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 1.
4. Remove the old battery.5. Install a new battery with the + side (A) down.
6. Close the remote control transmitter firmly.
7. Place the remote control transmitter in the remote control
transmitter case, then securely close the remote control
transmitter case.
8. Check the keyless entry system to see that it works.
NOTE
You may purchase a replacement battery at an electric
appliance store.

Your authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
+ side
- side
Coin type battery CR1620
BK0139500US.book 11 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-17
3
To open
N00545200020
Operation from outside the vehicleUse the remote control transmitter to open. Press the trunk but-
ton. (See “Keyless entry system” on page 3-7.)
The trunk lid will pop up slightly. Lift it to open the trunk.Operation from inside the vehiclePull the trunk lid release lever, located to the left of the driver’s
seat, up to open the trunk.
NOTE
The trunk light comes on when the trunk lid is opened,
and goes out when it is closed.To close
N00545300034
If your vehicle is equipped with a trunk lid grip, pull the trunk
lid grip (A) downward as illustrated and let it go before the
trunk lid closes completely.
Gently close the trunk lid from the outside so that it is com-
pletely closed.
CAUTION
!
Do not use the trunk lid release lever while the vehi-
cle is moving. If the trunk lid is opened, objects in
the trunk could fall onto the road and cause an acci-
dent.
CAUTION
!
To avoid injuring your hand or arm, do not attempt
to close the trunk lid without letting go of the trunk
lid grip.
BK0139500US.book 17 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-128 Features and controls
3Interior lights
N00525300445
Reading lights
N00525700175
Push the reading light switch (A) to turn on the light. This light
produces a spot beam for convenient use as a map light.
Push the reading light switch again to turn the light off.
The reading light comes on when any door is opened.
When all the doors are closed, the reading light is dimmed
gradually for 30 seconds then goes off. However, the light goes
off immediately without being dimmed if:

The ignition switch is turned to the “ON” position.

All the doors are locked using the power door lock switch,
or the keyless entry remote transmitter.
Reading lights
→ P.3-128 Dome light
→ P. 3 - 1 2 9
BK0139500US.book 128 ページ ２０１１年４月１９日　火曜日　午後１時４８分
