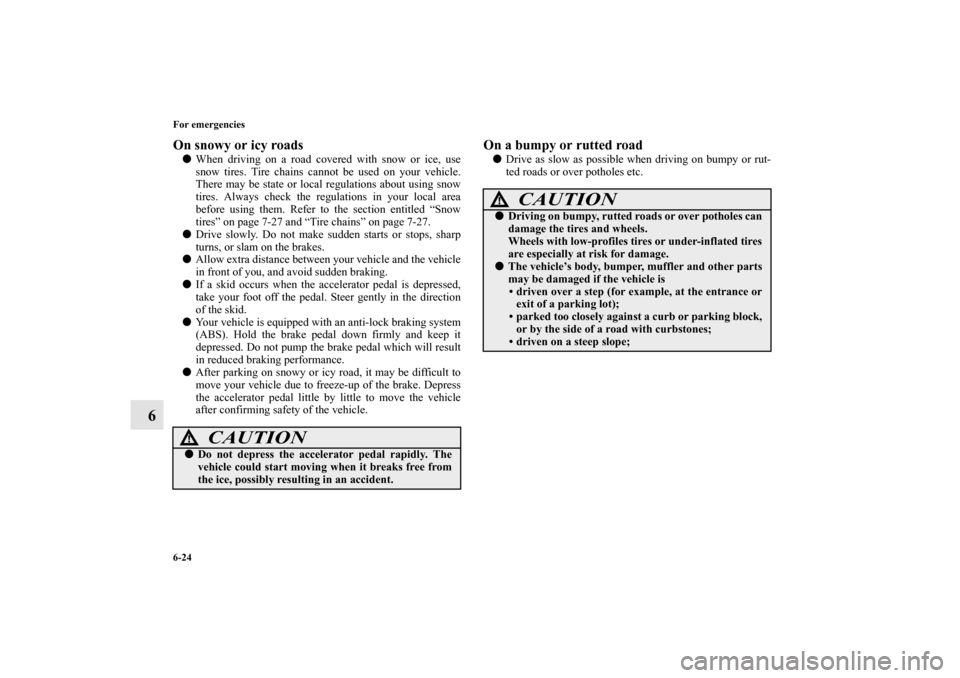

6-24 For emergencies
6
On snowy or icy roads
When driving on a road covered with snow or ice, use
snow tires. Tire chains cannot be used on your vehicle.
There may be state or local regulations about using snow
tires. Always check the regulations in your local area
before using them. Refer to the section entitled “Snow
tires” on page 7-27 and “Tire chains” on page 7-27.

Drive slowly. Do not make sudden starts or stops, sharp
turns, or slam on the brakes.

Allow extra distance between your vehicle and the vehicle
in front of you, and avoid sudden braking.

If a skid occurs when the accelerator pedal is depressed,
take your foot off the pedal. Steer gently in the direction
of the skid.

Your vehicle is equipped with an anti-lock braking system
(ABS). Hold the brake pedal down firmly and keep it
depressed. Do not pump the brake pedal which will result
in reduced braking performance.

After parking on snowy or icy road, it may be difficult to
move your vehicle due to freeze-up of the brake. Depress
the accelerator pedal little by little to move the vehicle
after confirming safety of the vehicle.
On a bumpy or rutted road
Drive as slow as possible when driving on bumpy or rut-
ted roads or over potholes etc.
CAUTION
!
Do not depress the accelerator pedal rapidly. The
vehicle could start moving when it breaks free from
the ice, possibly resulting in an accident.
CAUTION
!
Driving on bumpy, rutted roads or over potholes can
damage the tires and wheels.
Wheels with low-profiles tires or under-inflated tires
are especially at risk for damage.
The vehicle’s body, bumper, muffler and other parts
may be damaged if the vehicle is
• driven over a step (for example, at the entrance or
exit of a parking lot);
• parked too closely against a curb or parking block,
or by the side of a road with curbstones;
• driven on a steep slope;
BK0139500US.book 24 ページ ２０１１年４月１９日　火曜日　午後１時４８分

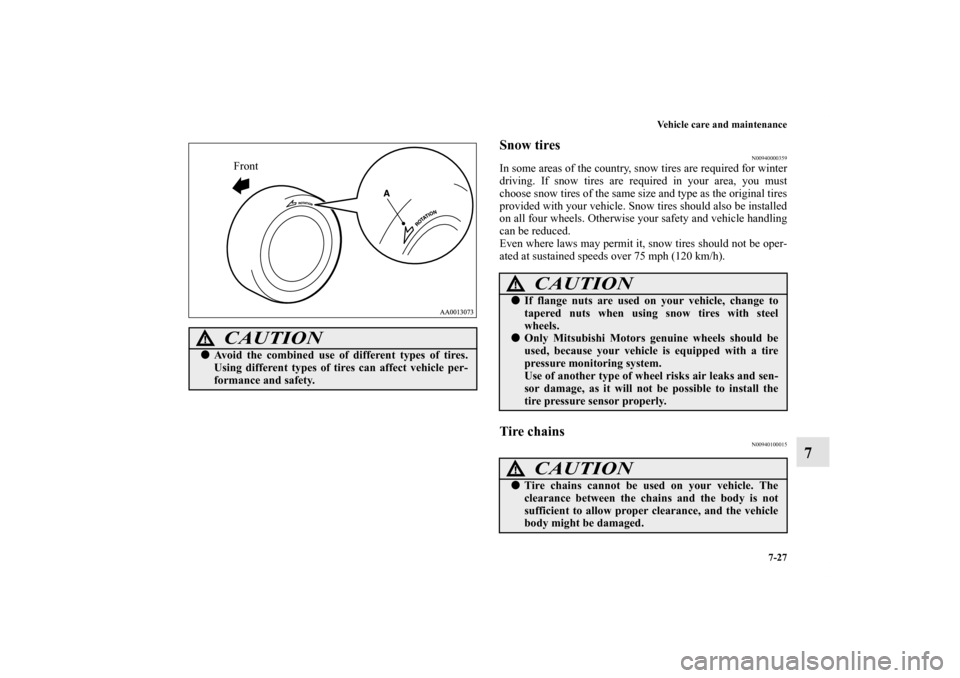

Vehicle care and maintenance
7-27
7
Snow tires
N00940000359
In some areas of the country, snow tires are required for winter
driving. If snow tires are required in your area, you must
choose snow tires of the same size and type as the original tires
provided with your vehicle. Snow tires should also be installed
on all four wheels. Otherwise your safety and vehicle handling
can be reduced.
Even where laws may permit it, snow tires should not be oper-
ated at sustained speeds over 75 mph (120 km/h).Tire chains
N00940100015
CAUTION
!
Avoid the combined use of different types of tires.
Using different types of tires can affect vehicle per-
formance and safety.
Front
CAUTION
!
If flange nuts are used on your vehicle, change to
tapered nuts when using snow tires with steel
wheels.
Only Mitsubishi Motors genuine wheels should be
used, because your vehicle is equipped with a tire
pressure monitoring system.
Use of another type of wheel risks air leaks and sen-
sor damage, as it will not be possible to install the
tire pressure sensor properly.
CAUTION
!
Tire chains cannot be used on your vehicle. The
clearance between the chains and the body is not
sufficient to allow proper clearance, and the vehicle
body might be damaged.
BK0139500US.book 27 ページ ２０１１年４月１９日　火曜日　午後１時４８分

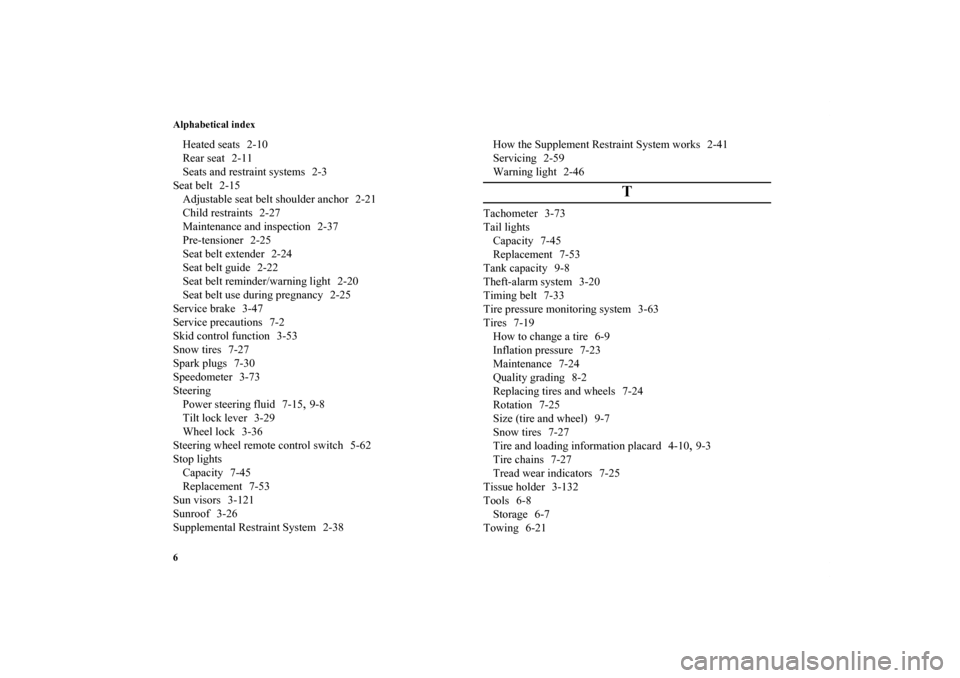

Alphabetical index
6Heated seats 2-10
Rear seat 2-11
Seats and restraint systems 2-3
Seat belt 2-15
Adjustable seat belt shoulder anchor 2-21
Child restraints 2-27
Maintenance and inspection 2-37
Pre-tensioner 2-25
Seat belt extender 2-24
Seat belt guide 2-22
Seat belt reminder/warning light 2-20
Seat belt use during pregnancy 2-25
Service brake 3-47
Service precautions 7-2
Skid control function 3-53
Snow tires 7-27
Spark plugs 7-30
Speedometer 3-73
Steering
Power steering fluid 7-15
,9-8
Tilt lock lever 3-29
Wheel lock 3-36
Steering wheel remote control switch 5-62
Stop lights
Capacity 7-45
Replacement 7-53
Sun visors 3-121
Sunroof 3-26
Supplemental Restraint System 2-38How the Supplement Restraint System works 2-41
Servicing 2-59
Warning light 2-46
T
Tachometer 3-73
Tail lights
Capacity 7-45
Replacement 7-53
Tank capacity 9-8
Theft-alarm system 3-20
Timing belt 7-33
Tire pressure monitoring system 3-63
Tires 7-19
How to change a tire 6-9
Inflation pressure 7-23
Maintenance 7-24
Quality grading 8-2
Replacing tires and wheels 7-24
Rotation 7-25
Size (tire and wheel) 9-7
Snow tires 7-27
Tire and loading information placard 4-10
,9-3
Tire chains 7-27
Tread wear indicators 7-25
Tissue holder 3-132
Tools 6-8
Storage 6-7
Towing 6-21
