Page 211 of 369

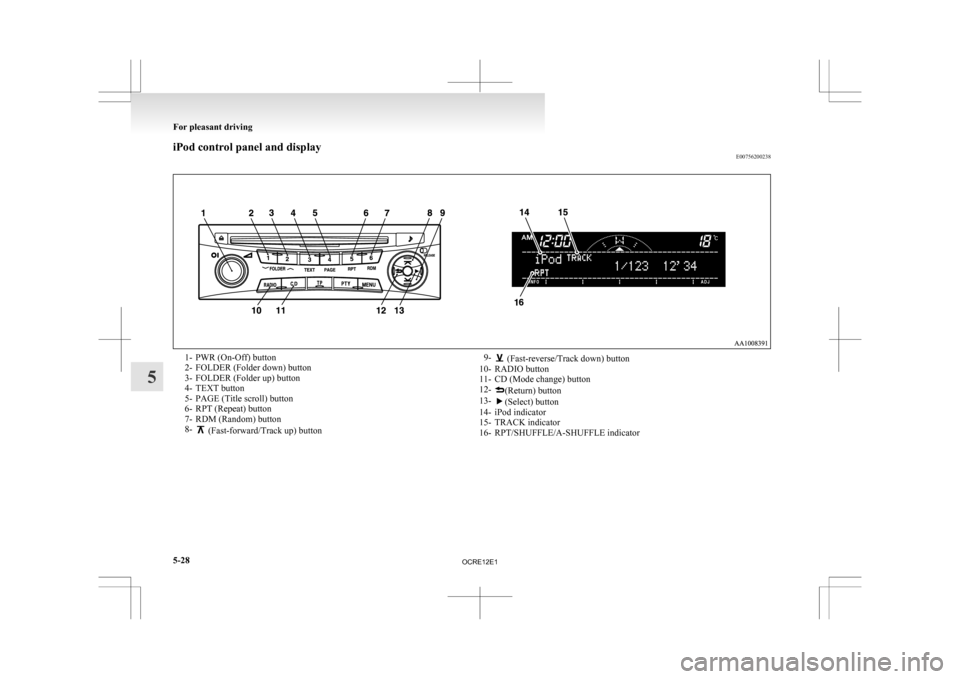

iPod control panel and display
E007562002381- PWR (On-Off) button
2-
FOLDER (Folder down) button
3- FOLDER (Folder up) button
4- TEXT button
5- PAGE (Title scroll) button
6- RPT (Repeat) button
7- RDM (Random) button
8- (Fast-forward/Track up) button
9- (Fast-reverse/Track down) button
10-
RADIO button
11- CD (Mode change) button
12- (Return) button
13- (Select) button
14-
iPod indicator
15- TRACK indicator
16- RPT/SHUFFLE/A-SHUFFLE indicator For pleasant driving
5-28
5
OCRE12E1
Page 212 of 369

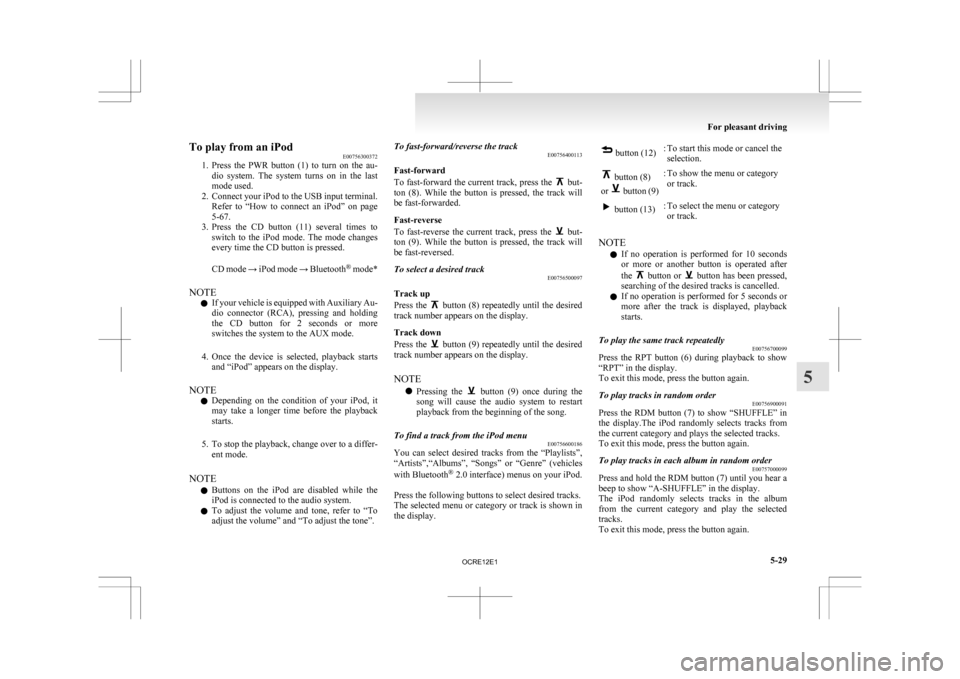

To play from an iPod
E00756300372
1. Press
the PWR button (1) to turn on the au-
dio system. The system turns on in the last
mode used.
2. Connect your iPod to the USB input terminal. Refer to “How to connect an iPod” on page
5-67.
3. Press the CD button (11) several times to switch to the iPod mode. The mode changes
every time the CD button is pressed.
CD mode → iPod mode → Bluetooth ®
mode*
NOTE l If your vehicle is equipped with Auxiliary Au-
dio connector (RCA), pressing and holding
the CD button for 2 seconds or more
switches the system to the AUX mode.
4. Once the device is selected, playback starts and “iPod” appears on the display.
NOTE l Depending on the condition of your iPod, it
may take a longer time before the playback
starts.
5. To stop the playback, change over to a differ- ent mode.
NOTE l Buttons on the iPod are disabled while the
iPod is connected to the audio system.
l To adjust the volume and tone, refer to “To
adjust the volume” and “To adjust the tone”. To fast-forward/reverse the track
E00756400113
Fast-forward
To
fast-forward the current track, press the but-
ton
(8). While the button is pressed, the track will
be fast-forwarded.
Fast-reverse
To fast-reverse the current track, press the but-
ton
(9). While the button is pressed, the track will
be fast-reversed.
To select a desired track E00756500097
Track up
Press
the button (8) repeatedly until the desired
track number appears on the display.
Track down
Press
the button (9) repeatedly until the desired
track number appears on the display.
NOTE
l Pressing
the button (9) once during the
song
will cause the audio system to restart
playback from the beginning of the song.
To find a track from the iPod menu E00756600186
You can select desired tracks from the “Playlists”,
“Artists”,“Albums”,
“Songs” or “Genre” (vehicles
with Bluetooth ®
2.0 interface) menus on your iPod.
Press the following buttons to select desired tracks.
The selected menu or category or track is shown in
the display. button (12)
: To start this mode or cancel the
selection. button (8)
or button (9)
: To show the menu or category
or track. button (13)
: To select the menu or category
or track.
NOTE l If
no operation is performed for 10 seconds
or more or another button is operated after
the button or button has been pressed,
searching of the desired tracks is cancelled.
l If
no operation is performed for 5 seconds or
more after the track is displayed, playback
starts.
To play the same track repeatedly E00756700099
Press the RPT button (6) during playback to show
“RPT” in the display.
To exit this mode, press the button again.
To play tracks in random order E00756900091
Press the RDM button (7) to show “SHUFFLE” in
the
display.The iPod randomly selects tracks from
the current category and plays the selected tracks.
To exit this mode, press the button again.
To play tracks in each album in random order E00757000099
Press and hold the RDM button (7) until you hear a
beep to show “A-SHUFFLE” in the display.
The
iPod randomly selects tracks in the album
from the current category and play the selected
tracks.
To exit this mode, press the button again. For pleasant driving
5-29 5
OCRE12E1
Page 213 of 369

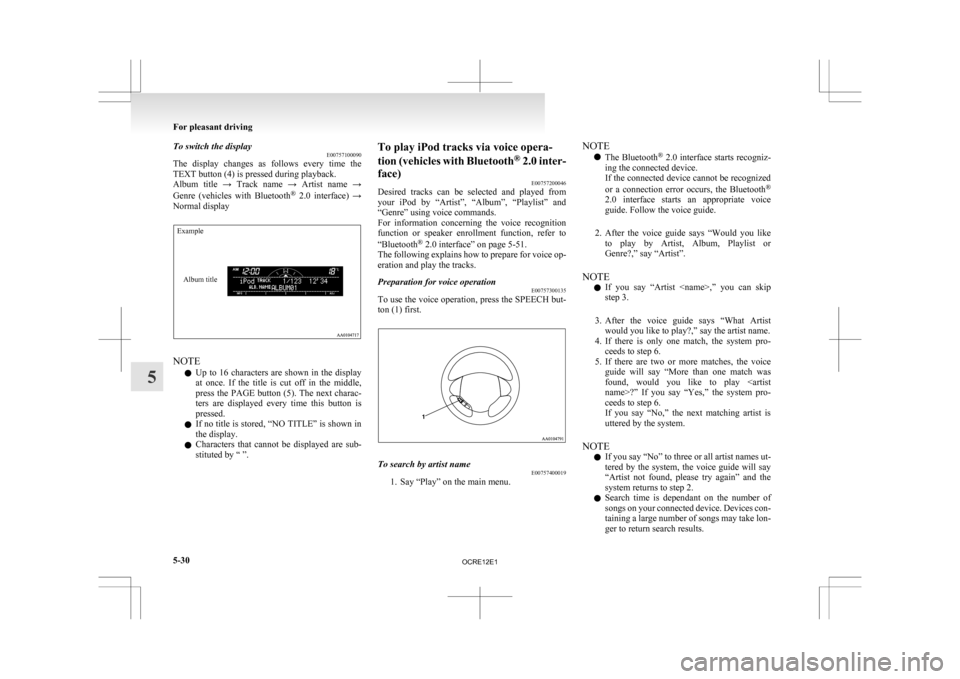

To switch the display
E00757100090
The
display changes as follows every time the
TEXT button (4) is pressed during playback.
Album title → Track name → Artist name →
Genre (vehicles with Bluetooth ®
2.0 interface) →
Normal display
Example
Album title NOTE
l Up
to 16 characters are shown in the display
at once. If the title is cut off in the middle,
press the PAGE button (5). The next charac-
ters are displayed every time this button is
pressed.
l If no title is stored, “NO TITLE” is shown in
the display.
l Characters that cannot be displayed are sub-
stituted by “ ”. To play iPod tracks via voice opera-
tion
(vehicles with Bluetooth ®
2.0 inter-
face) E00757200046
Desired tracks can be selected and played from
your iPod by “Artist”, “Album”, “Playlist” and
“Genre” using voice commands.
For information concerning the voice recognition
function or speaker enrollment function, refer to
“Bluetooth ®
2.0 interface” on page 5-51.
The following explains how to prepare for voice op-
eration and play the tracks.
Preparation for voice operation E00757300135
To use the voice operation, press the SPEECH but-
ton (1) first. To search by artist name
E00757400019
1. Say “Play” on the main menu. NOTE
l The
Bluetooth®
2.0 interface starts recogniz-
ing the connected device.
If the connected device cannot be recognized
or a connection error occurs, the Bluetooth ®
2.0 interface starts an appropriate voice
guide. Follow the voice guide.
2. After the voice guide says “Would you like to play by Artist, Album, Playlist or
Genre?,” say “Artist”.
NOTE l If you say “Artist ,” you can skip
step 3.
3. After the voice guide says “What Artist would you like to play?,” say the artist name.
4. If there is only one match, the system pro- ceeds to step 6.
5. If there are two or more matches, the voice guide will say “More than one match was
found, would you like to play
name>?” If you say “Yes,” the system pro-
ceeds to step 6.
If you say “No,” the next matching artist is
uttered by the system.
NOTE l If you say “No” to three or all artist names ut-
tered by the system, the voice guide will say
“Artist not found, please try again” and the
system returns to step 2.
l Search time is dependant on the number of
songs on your connected device. Devices con-
taining a large number of songs may take lon-
ger to return search results. For pleasant driving
5-30
5
OCRE12E1

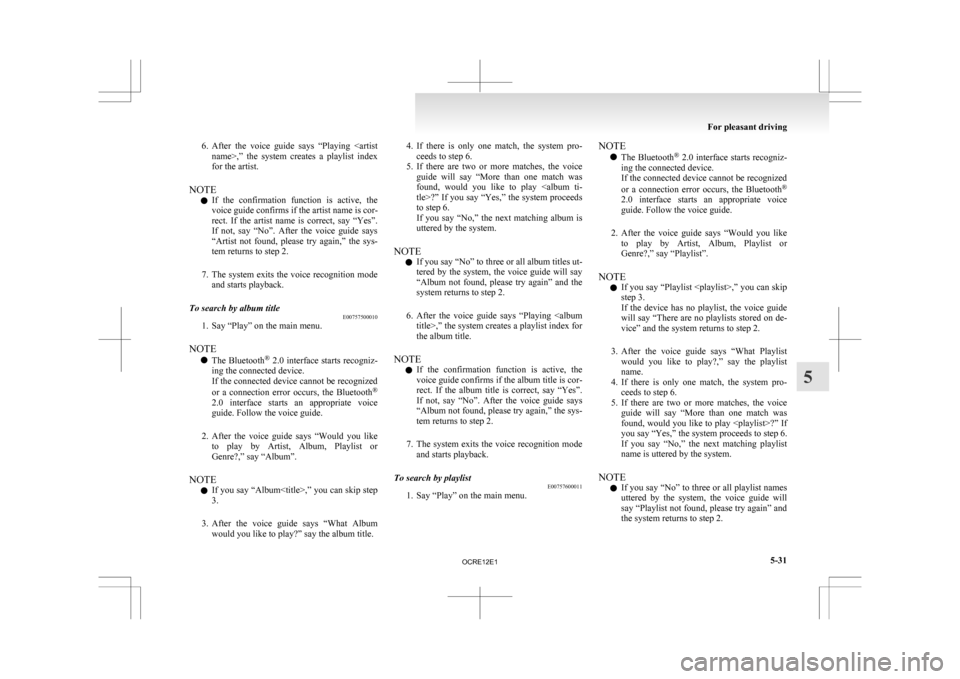

Page 214 of 369
6. After the voice guide says “Playing
name>,” the system creates a playlist index
for the artist.
NOTE l If the confirmation function is active, the
voice guide confirms if the artist name is cor-
rect. If the artist name is correct, say “Yes”.
If not, say “No”. After the voice guide says
“Artist not found, please try again,” the sys-
tem returns to step 2.
7. The system exits the voice recognition mode and starts playback.
To search by album title E00757500010
1. Say “Play” on the main menu.
NOTE l The
Bluetooth ®
2.0 interface starts recogniz-
ing the connected device.
If the connected device cannot be recognized
or a connection error occurs, the Bluetooth ®
2.0 interface starts an appropriate voice
guide. Follow the voice guide.
2. After the voice guide says “Would you like to play by Artist, Album, Playlist or
Genre?,” say “Album”.
NOTE l If you say “Album
,” you can skip step<br />
3.<br />
3. After the voice guide says “What Album would you like to play?” say the album title. 4. If <br />
there is only one match, the system pro-<br />
ceeds to step 6.<br />
5. If there are two or more matches, the voice guide will say “More than one match was<br />
found, would you like to play <album ti-<br />
tle>?” If you say “Yes,” the system proceeds<br />
to step 6.<br />
If you say “No,” the next matching album is<br />
uttered by the system.<br />
NOTE l If you say “No” to three or all album titles ut-<br />
tered by the system, the voice guide will say<br />
“Album not found, please try again” and the<br />
system returns to step 2.<br />
6. After the voice guide says “Playing <album title>,” the system creates a playlist index for<br />
the album title.<br />
NOTE l If the confirmation function is active, the<br />
voice guide confirms if the album title is cor-<br />
rect. If the album title is correct, say “Yes”.<br />
If not, say “No”. After the voice guide says<br />
“Album not found, please try again,” the sys-<br />
tem returns to step 2.<br />
7. The system exits the voice recognition mode and starts playback.<br />
To search by playlist E00757600011<br />
1. Say “Play” on the main menu. NOTE<br />
l The <br />
Bluetooth®<br />
2.0 interface starts recogniz-<br />
ing the connected device.<br />
If the connected device cannot be recognized<br />
or a connection error occurs, the Bluetooth ®<br />
2.0 interface starts an appropriate voice<br />
guide. Follow the voice guide.<br />
2. After the voice guide says “Would you like to play by Artist, Album, Playlist or<br />
Genre?,” say “Playlist”.<br />
NOTE l If you say “Playlist <playlist>,” you can skip<br />
step 3.<br />
If the device has no playlist, the voice guide<br />
will say “There are no playlists stored on de-<br />
vice” and the system returns to step 2.<br />
3. After the voice guide says “What Playlist would you like to play?,” say the playlist<br />
name.<br />
4. If there is only one match, the system pro- ceeds to step 6.<br />
5. If there are two or more matches, the voice guide will say “More than one match was<br />
found, would you like to play <playlist>?” If<br />
you say “Yes,” the system proceeds to step 6.<br />
If you say “No,” the next matching playlist<br />
name is uttered by the system.<br />
NOTE l If you say “No” to three or all playlist names<br />
uttered by the system, the voice guide will<br />
say “Playlist not found, please try again” and<br />
the system returns to step 2. For pleasant driving<br />
5-31 5<br />
OCRE12E1 <p></div><script>$(document).on('click', '#a214', function(){
$(this).hide();
$('#b214').height($('#a214').height()-22);
$('#b214').show();
});
$(document).on('click', '#b214', function(){
$(this).hide();
$('#a214').show();
});
$(document).ready(function(){
$('#b214').height($('#a214').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='215'></a><h3>Page 215 of 369</h3><div id='a215'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI L200 2010 4.G Owners Manual 6. After the voice guide says “Playing <play-

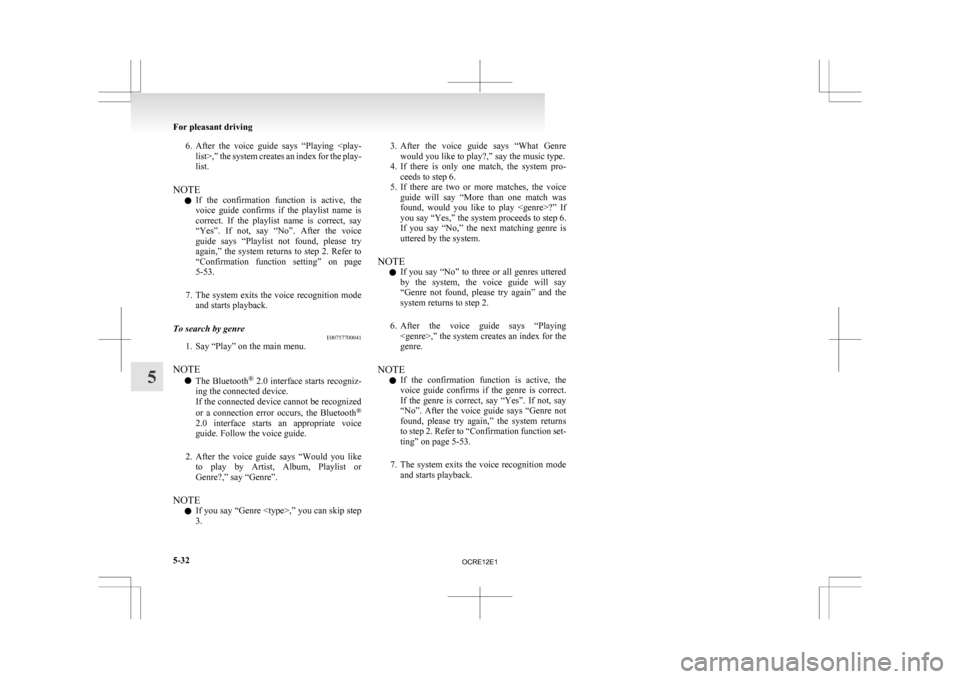

list>,” the system creates an index for the play-
list.
NOTE l If the confirmation function is active, the
voice guide confirms if the ' title='MITSUBISHI L200 2010 4.G Owners Manual 6. After the voice guide says “Playing <play-
list>,” the system creates an index for the play-
list.
NOTE l If the confirmation function is active, the
voice guide confirms if the ' src='/img/19/7568/w960_7568-214.png' /></div><div id='b215' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>6. After the voice guide says “Playing <play-<br />
list>,” the system creates an index for the play-<br />
list.<br />
NOTE l If the confirmation function is active, the<br />
voice guide confirms if the playlist name is<br />
correct. If the playlist name is correct, say<br />
“Yes”. If not, say “No”. After the voice<br />
guide says “Playlist not found, please try<br />
again,” the system returns to step 2. Refer to<br />
“Confirmation function setting” on page<br />
5-53.<br />
7. The system exits the voice recognition mode and starts playback.<br />
To search by genre E00757700041<br />
1. Say “Play” on the main menu.<br />
NOTE l The <br />
<br />
Bluetooth ®<br />
2.0 interface starts recogniz-<br />
ing the connected device.<br />
If the connected device cannot be recognized<br />
or a connection error occurs, the Bluetooth ®<br />
2.0 interface starts an appropriate voice<br />
guide. Follow the voice guide.<br />
2. After the voice guide says “Would you like to play by Artist, Album, Playlist or<br />
Genre?,” say “Genre”.<br />
NOTE l If you say “Genre <type>,” you can skip step<br />
3. 3. After <br />
the voice guide says “What Genre<br />
would you like to play?,” say the music type.<br />
4. If there is only one match, the system pro- ceeds to step 6.<br />
5. If there are two or more matches, the voice guide will say “More than one match was<br />
found, would you like to play <genre>?” If<br />
you say “Yes,” the system proceeds to step 6.<br />
If you say “No,” the next matching genre is<br />
uttered by the system.<br />
NOTE l If you say “No” to three or all genres uttered<br />
by the system, the voice guide will say<br />
“Genre not found, please try again” and the<br />
system returns to step 2.<br />
6. After the voice guide says “Playing <genre>,” the system creates an index for the<br />
genre.<br />
NOTE l If the confirmation function is active, the<br />
voice guide confirms if the genre is correct.<br />
If the genre is correct, say “Yes”. If not, say<br />
“No”. After the voice guide says “Genre not<br />
found, please try again,” the system returns<br />
to step 2. Refer to “Confirmation function set-<br />
ting” on page 5-53.<br />
7. The system exits the voice recognition mode and starts playback. For pleasant driving<br />
5-32<br />
5<br />
OCRE12E1 <p></div><script>$(document).on('click', '#a215', function(){
$(this).hide();
$('#b215').height($('#a215').height()-22);
$('#b215').show();
});
$(document).on('click', '#b215', function(){
$(this).hide();
$('#a215').show();
});
$(document).ready(function(){
$('#b215').height($('#a215').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='216'></a><h3>Page 216 of 369</h3><div id='a216'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI L200 2010 4.G Owners Manual USB control panel and display
E007581002311- PWR (On-Off) button
2-
FOLDER (Folder down) button
3- FOLDER (Folder up) button
4- TEXT button
5- PAGE (Title scroll) button
6- RPT (Repeat) button
7- RDM ' title='MITSUBISHI L200 2010 4.G Owners Manual USB control panel and display
E007581002311- PWR (On-Off) button
2-
FOLDER (Folder down) button
3- FOLDER (Folder up) button
4- TEXT button
5- PAGE (Title scroll) button
6- RPT (Repeat) button
7- RDM ' src='/img/19/7568/w960_7568-215.png' /></div><div id='b216' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>USB control panel and display<br />
E007581002311- PWR (On-Off) button<br />
2-<br />
FOLDER (Folder down) button<br />
3- FOLDER (Folder up) button<br />
4- TEXT button<br />
5- PAGE (Title scroll) button<br />
6- RPT (Repeat) button<br />
7- RDM (Random) button<br />
8- (Fast-forward/File up) button<br />
9- (Fast-reverse/File down) button<br />
10- RADIO button<br />
11-<br />
CD (Mode change) button<br />
12- (Return) button<br />
13- (Select) button<br />
14-<br />
<br />
USB indicator<br />
15- FOLDER indicator<br />
16- FILE indicator<br />
17- RPT/F-RPT/F-RDM/RDM/SCAN/F-SCAN indicator For pleasant driving<br />
5-33 5 <br />
OCRE12E1 <p></div><script>$(document).on('click', '#a216', function(){
$(this).hide();
$('#b216').height($('#a216').height()-22);
$('#b216').show();
});
$(document).on('click', '#b216', function(){
$(this).hide();
$('#a216').show();
});
$(document).ready(function(){
$('#b216').height($('#a216').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='217'></a><h3>Page 217 of 369</h3><div id='a217'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI L200 2010 4.G Owners Manual To play from a USB memory device
E00762500366
1. Press
the PWR button (1) to turn on the au-
dio system. The system turns on in the last
mode used.
2. Connect your USB memory devi' title='MITSUBISHI L200 2010 4.G Owners Manual To play from a USB memory device
E00762500366
1. Press
the PWR button (1) to turn on the au-
dio system. The system turns on in the last
mode used.
2. Connect your USB memory devi' src='/img/19/7568/w960_7568-216.png' /></div><div id='b217' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>To play from a USB memory device<br />

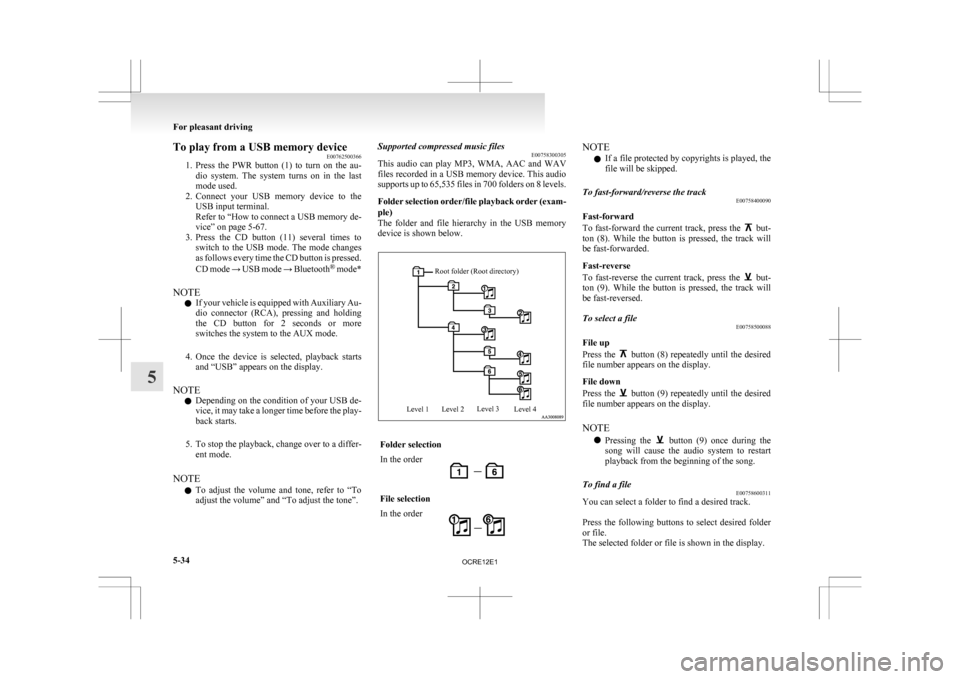

E00762500366<br />
1. Press <br />
the PWR button (1) to turn on the au-<br />
dio system. The system turns on in the last<br />
mode used.<br />
2. Connect your USB memory device to the USB input terminal.<br />
Refer to “How to connect a USB memory de-<br />
vice” on page 5-67.<br />
3. Press the CD button (11) several times to switch to the USB mode. The mode changes<br />
as follows every time the CD button is pressed.<br />
CD mode → USB mode → Bluetooth ®<br />
mode*<br />
NOTE l If your vehicle is equipped with Auxiliary Au-<br />
dio connector (RCA), pressing and holding<br />
the CD button for 2 seconds or more<br />
switches the system to the AUX mode.<br />
4. Once the device is selected, playback starts and “USB” appears on the display.<br />
NOTE l Depending on the condition of your USB de-<br />
vice, it may take a longer time before the play-<br />
back starts.<br />
5. To stop the playback, change over to a differ- ent mode.<br />
NOTE l To adjust the volume and tone, refer to “To<br />
adjust the volume” and “To adjust the tone”. Supported compressed music files<br />
E00758300305<br />
This <br />
audio can play MP3, WMA, AAC and WAV<br />
files recorded in a USB memory device. This audio<br />
supports up to 65,535 files in 700 folders on 8 levels.<br />
Folder selection order/file playback order (exam-<br />
ple)<br />
The folder and file hierarchy in the USB memory<br />
device is shown below.<br />
Root folder (Root directory)<br />
Level 1 Level 2 Level 3<br />
Level 4 Folder selection<br />
In the order<br />
File selection<br />
In the order NOTE<br />
l If a file protected by copyrights is played, the<br />
file will be skipped.<br />
To fast-forward/reverse the track E00758400090<br />
Fast-forward<br />
To <br />
fast-forward the current track, press the but-<br />
ton <br />
<br />
(8). While the button is pressed, the track will<br />
be fast-forwarded.<br />
Fast-reverse<br />
To fast-reverse the current track, press the but-<br />
ton <br />
<br />
(9). While the button is pressed, the track will<br />
be fast-reversed.<br />
To select a file E00758500088<br />
File up<br />
Press <br />
the button (8) repeatedly until the desired<br />
file number appears on the display.<br />
File down<br />
Press <br />
<br />
the button (9) repeatedly until the desired<br />
file number appears on the display.<br />
NOTE<br />
l Pressing <br />
<br />
the button (9) once during the<br />
song <br />
<br />
will cause the audio system to restart<br />
playback from the beginning of the song.<br />
To find a file E00758600311<br />
You can select a folder to find a desired track.<br />
<br />
Press <br />
<br />
the following buttons to select desired folder<br />
or file.<br />
The selected folder or file is shown in the display. For pleasant driving<br />
5-34<br />
5 <br />
OCRE12E1 <p></div><script>$(document).on('click', '#a217', function(){
$(this).hide();
$('#b217').height($('#a217').height()-22);
$('#b217').show();
});
$(document).on('click', '#b217', function(){
$(this).hide();
$('#a217').show();
});
$(document).ready(function(){
$('#b217').height($('#a217').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='218'></a><h3>Page 218 of 369</h3><div id='a218'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI L200 2010 4.G Owners Manual button (12)
:To start this mode or cancel
the selection. button (8)
or button (9)
: To show the folder or file. button (13)
: To select the folder or file.
NOTE l If
no operation is pe' title='MITSUBISHI L200 2010 4.G Owners Manual button (12)
:To start this mode or cancel
the selection. button (8)
or button (9)
: To show the folder or file. button (13)
: To select the folder or file.
NOTE l If
no operation is pe' src='/img/19/7568/w960_7568-217.png' /></div><div id='b218' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p> button (12)<br />

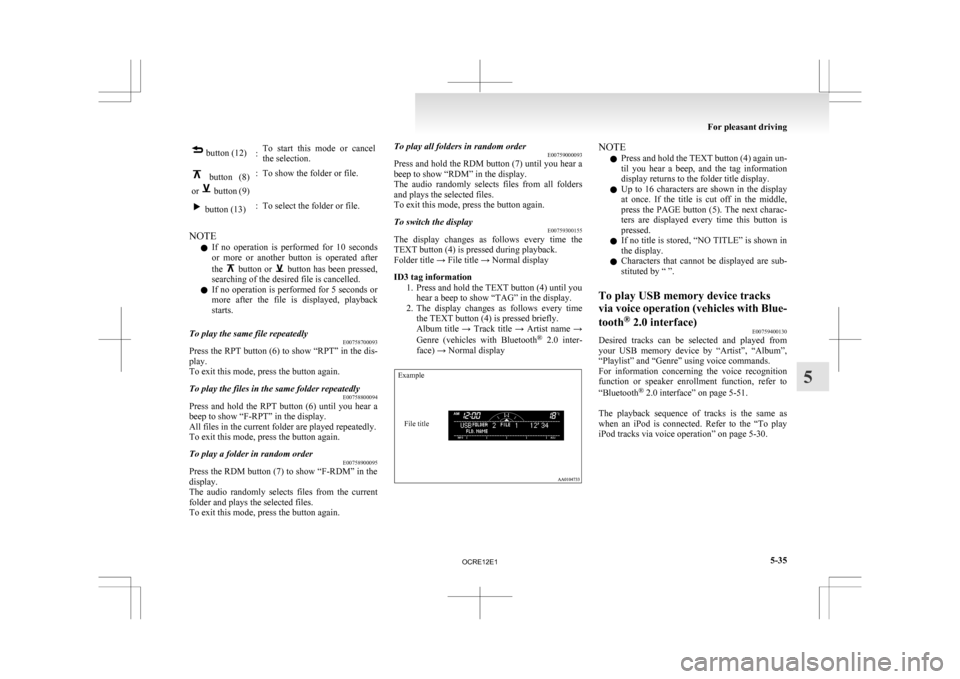

:To start this mode or cancel<br />
the selection. button (8)<br />
or button (9)<br />
: To show the folder or file. button (13)<br />
: To select the folder or file.<br />
NOTE l If <br />
no operation is performed for 10 seconds<br />
or more or another button is operated after<br />
the button or button has been pressed,<br />
searching of the desired file is cancelled.<br />
l If <br />
<br />
no operation is performed for 5 seconds or<br />
more after the file is displayed, playback<br />
starts.<br />
To play the same file repeatedly E00758700093<br />
Press the RPT button (6) to show “RPT” in the dis-<br />
play.<br />
To exit this mode, press the button again.<br />
To play the files in the same folder repeatedly E00758800094<br />
Press and hold the RPT button (6) until you hear a<br />
beep to show “F-RPT” in the display.<br />
All files in the current folder are played repeatedly.<br />
To exit this mode, press the button again.<br />
To play a folder in random order E00758900095<br />
Press the RDM button (7) to show “F-RDM” in the<br />
display.<br />
The <br />
<br />
audio randomly selects files from the current<br />
folder and plays the selected files.<br />
To exit this mode, press the button again. To play all folders in random order<br />
E00759000093<br />
Press <br />
<br />
and hold the RDM button (7) until you hear a<br />
beep to show “RDM” in the display.<br />
The audio randomly selects files from all folders<br />
and plays the selected files.<br />
To exit this mode, press the button again.<br />
To switch the display E00759300155<br />
The display changes as follows every time the<br />
TEXT button (4) is pressed during playback.<br />
Folder title → File title → Normal display<br />
ID3 tag information<br />
1.<br />
<br />
Press and hold the TEXT button (4) until youhear a beep to show “TAG” in the display.<br />
2. The display changes as follows every time the TEXT button (4) is pressed briefly.<br />
Album title → Track title → Artist name →<br />
Genre (vehicles with Bluetooth ®<br />
2.0 inter-<br />
face) → Normal display<br />
Example<br />
File title NOTE<br />
l Press <br />
<br />
and hold the TEXT button (4) again un-<br />
til you hear a beep, and the tag information<br />
display returns to the folder title display.<br />
l Up to 16 characters are shown in the display<br />
at once. If the title is cut off in the middle,<br />
press the PAGE button (5). The next charac-<br />
ters are displayed every time this button is<br />
pressed.<br />
l If no title is stored, “NO TITLE” is shown in<br />
the display.<br />
l Characters that cannot be displayed are sub-<br />
stituted by “ ”.<br />
To play USB memory device tracks<br />
via <br />
voice operation (vehicles with Blue-<br />
tooth ®<br />
2.0 interface)<br />
E00759400130<br />
Desired tracks can be selected and played from<br />
your <br />
<br />
USB memory device by “Artist”, “Album”,<br />
“Playlist” and “Genre” using voice commands.<br />
For information concerning the voice recognition<br />
function or speaker enrollment function, refer to<br />
“Bluetooth ®<br />
2.0 interface” on page 5-51.<br />
<br />
The playback sequence of tracks is the same as<br />
when an iPod is connected. Refer to the “To play<br />
iPod tracks via voice operation” on page 5-30. For pleasant driving<br />
5-35 5 <br />
OCRE12E1 <p></div><script>$(document).on('click', '#a218', function(){
$(this).hide();
$('#b218').height($('#a218').height()-22);
$('#b218').show();
});
$(document).on('click', '#b218', function(){
$(this).hide();
$('#a218').show();
});
$(document).ready(function(){
$('#b218').height($('#a218').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='219'></a><h3>Page 219 of 369</h3><div id='a219'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI L200 2010 4.G Owners Manual Preparation for voice operation
To
use the voice operation, press the SPEECH but-
ton (1) first. To play tracks from a Bluetooth
®
device (vehicles with Bluetooth ®
2.0 interface) E00759700162
You ' title='MITSUBISHI L200 2010 4.G Owners Manual Preparation for voice operation
To
use the voice operation, press the SPEECH but-
ton (1) first. To play tracks from a Bluetooth
®
device (vehicles with Bluetooth ®
2.0 interface) E00759700162
You ' src='/img/19/7568/w960_7568-218.png' /></div><div id='b219' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>Preparation for voice operation<br />

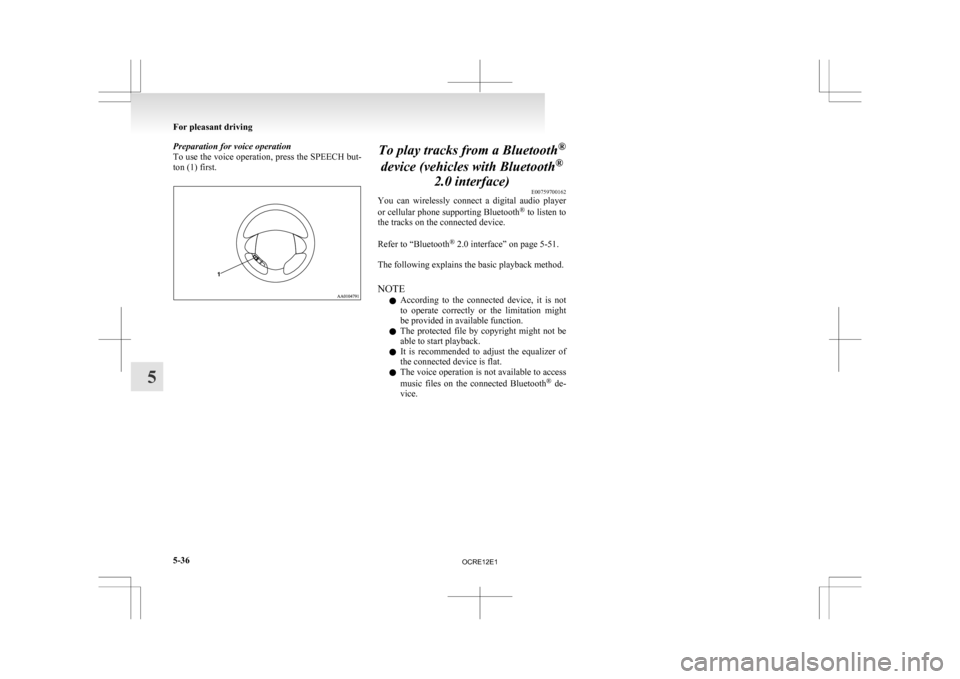

To <br />
use the voice operation, press the SPEECH but-<br />
ton (1) first. To play tracks from a Bluetooth<br />
®<br />
device (vehicles with Bluetooth ®<br />
2.0 interface) E00759700162<br />
You <br />
can wirelessly connect a digital audio player<br />
or cellular phone supporting Bluetooth ®<br />
to listen to<br />
the tracks on the connected device.<br />
<br />
Refer to “Bluetooth ®<br />
2.0 interface” on page 5-51.<br />
<br />
The following explains the basic playback method.<br />
NOTE<br />
l According to the connected device, it is not<br />
to operate correctly or the limitation might<br />
be provided in available function.<br />
l The protected file by copyright might not be<br />
able to start playback.<br />
l It is recommended to adjust the equalizer of<br />
the connected device is flat.<br />
l The voice operation is not available to access<br />
music files on the connected Bluetooth ®<br />
de-<br />
vice. For pleasant driving<br />
5-36<br />
5 <br />
OCRE12E1 <p></div><script>$(document).on('click', '#a219', function(){
$(this).hide();
$('#b219').height($('#a219').height()-22);
$('#b219').show();
});
$(document).on('click', '#b219', function(){
$(this).hide();
$('#a219').show();
});
$(document).ready(function(){
$('#b219').height($('#a219').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='220'></a><h3>Page 220 of 369</h3><div id='a220'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI L200 2010 4.G Owners Manual Bluetooth
®
device control panel and display
E007626001811- PWR (On-Off) button
2-
TEXT (Title display) button
3- PAGE (Title scroll) button
4- RPT (Repeat) button
5- RDM (Random) button
6- (Fast-f' title='MITSUBISHI L200 2010 4.G Owners Manual Bluetooth
®
device control panel and display
E007626001811- PWR (On-Off) button
2-
TEXT (Title display) button
3- PAGE (Title scroll) button
4- RPT (Repeat) button
5- RDM (Random) button
6- (Fast-f' src='/img/19/7568/w960_7568-219.png' /></div><div id='b220' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>Bluetooth<br />

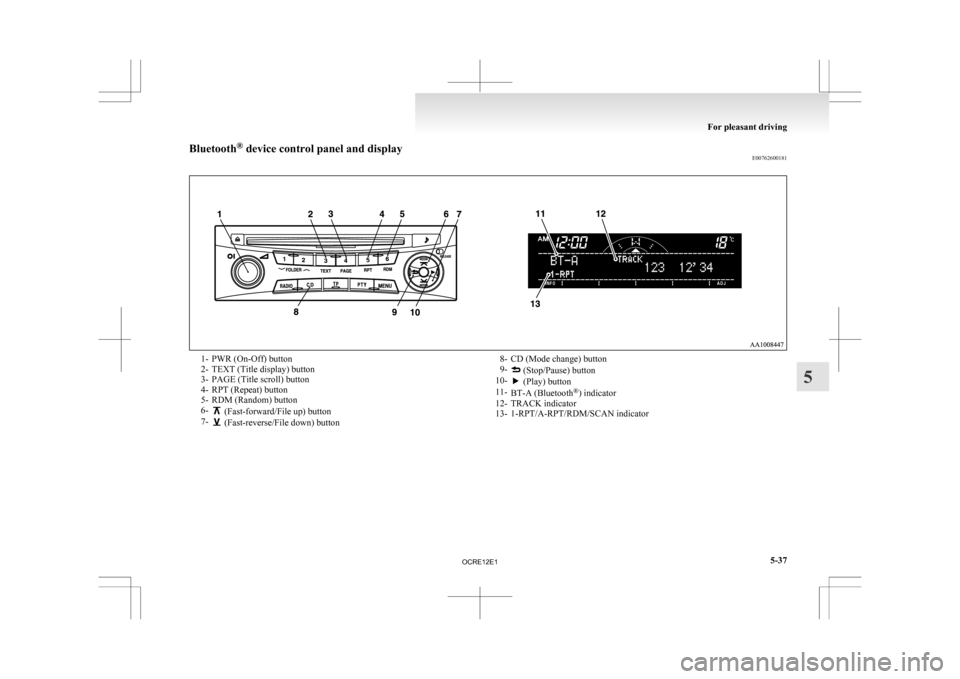

®<br />
device control panel and display<br />
E007626001811- PWR (On-Off) button<br />
2-<br />
TEXT (Title display) button<br />
3- PAGE (Title scroll) button<br />
4- RPT (Repeat) button<br />
5- RDM (Random) button<br />
6- (Fast-forward/File up) button<br />
7- (Fast-reverse/File down) button<br />
8- CD (Mode change) button<br />
9- (Stop/Pause) button<br />
10- (Play) button<br />
11- BT-A (Bluetooth ®<br />
) indicator<br />
12-<br />
<br />
TRACK indicator<br />
13- 1-RPT/A-RPT/RDM/SCAN indicator For pleasant driving<br />
5-37 5 <br />
OCRE12E1 <p></div><script>$(document).on('click', '#a220', function(){
$(this).hide();
$('#b220').height($('#a220').height()-22);
$('#b220').show();
});
$(document).on('click', '#b220', function(){
$(this).hide();
$('#a220').show();
});
$(document).ready(function(){
$('#b220').height($('#a220').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<ul class="actions" style="text-align:center;">
<li><a href="/mitsubishi-l200-2010-4-g-owners-manual/23" class="button">Load next 10 pages</a></li>
</ul>
<div style="text-align: center" class="text-center my-2">
<span class="article-section">
Page:
</span><a href="/mitsubishi-l200-2010-4-g-owners-manual/21">< prev</a> <a class='text-dark' href="/mitsubishi-l200-2010-4-g-owners-manual/">1-10</a> ... <a class='text-dark' href="/mitsubishi-l200-2010-4-g-owners-manual/18">171-180</a> <a class='text-dark' href="/mitsubishi-l200-2010-4-g-owners-manual/19">181-190</a> <a class='text-dark' href="/mitsubishi-l200-2010-4-g-owners-manual/20">191-200</a> <a class='text-dark' href="/mitsubishi-l200-2010-4-g-owners-manual/21">201-210</a> <strong>211-220</strong> <a class='text-dark' href="/mitsubishi-l200-2010-4-g-owners-manual/23">221-230</a> <a class='text-dark' href="/mitsubishi-l200-2010-4-g-owners-manual/24">231-240</a> <a class='text-dark' href="/mitsubishi-l200-2010-4-g-owners-manual/25">241-250</a> <a class='text-dark' href="/mitsubishi-l200-2010-4-g-owners-manual/26">251-260</a> ... <a class='text-dark' href="/mitsubishi-l200-2010-4-g-owners-manual/37">370</a> <a class='text-dark' href="/mitsubishi-l200-2010-4-g-owners-manual/23">next ></a></div><div class="clear"></div><form action="/mitsubishi-l200-2010-4-g-owners-manual/" method="get"><span class="byline">Search: <input type="text" pattern=".{3,}" required title="3 characters minimum" name="srch" placeholder="search in this manual" /> <input type="submit" value="search" /> (<a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=remove+seats'>remove seats</a>, <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=oil+type'>oil type</a>, <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=run+flat'>run flat</a>, <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=deactivate+airbag'>deactivate airbag</a>, <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=tire+pressure'>tire pressure</a>, <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=spark+plugs'>spark plugs</a>)</span></form>
<span>Trending: <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=start+stop+button'>start stop button</a>, <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=USB'>USB</a>, <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=wiper+blades'>wiper blades</a>, <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=oil+pressure'>oil pressure</a>, <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=fuel+pressure'>fuel pressure</a>, <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=oil+capacities'>oil capacities</a>, <a href='/mitsubishi-l200-2010-4-g-owners-manual/?srch=keyless+entry'>keyless entry</a></span>
<form action="/mitsubishi-l200-2010-4-g-owners-manual" method="post"><span class="byline">Jump to page (1-369): <input type="text" value="211" size="4" name="jumpto" /> <input type="submit" value="go" /></span></form> <script>
ga('send', 'event', 'view', 'MITSUBISHI', 'mitsubishi-l200-2010-4-g-owners-manual', {
nonInteraction: true
});</script>
<div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
</section>
</div>
</div>
</div>
</div>
<!-- Footer -->
<div id="footer">
<div class="container">
<br/>
<h2><a href='/b/mitsubishi'>MITSUBISHI Owners Manuals</a></h2>
<div class="row">
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-montero-1987-1-g">1987 MITSUBISHI MONTERO 1.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-spyder-1995">1995 MITSUBISHI SPYDER Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-outlander-xl-2013">2013 MITSUBISHI OUTLANDER XL Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-grandis-2008">2008 MITSUBISHI GRANDIS Owners Manual</a></li>
</ul>
</section>
</div>
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-pajero-2020">2020 MITSUBISHI PAJERO Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-l200-2017">2017 MITSUBISHI L200 Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-outlander-phev-2019">2019 MITSUBISHI OUTLANDER PHEV Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-outlander-xl-2013">2013 MITSUBISHI OUTLANDER XL Owners Manual</a></li>
</ul>
</section>
</div>
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-montero-2004">2004 MITSUBISHI MONTERO Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-outlander-xl-2010">2010 MITSUBISHI OUTLANDER XL Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-outlander-phev-2018">2018 MITSUBISHI OUTLANDER PHEV Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-galant-2001-8-g">2001 MITSUBISHI GALANT 8.G Owners Manual</a></li>
</ul>
</section>
</div>
</div>
</div>
</div>
<!-- Copyright -->
<div id="copyright">
<div class="container">
<p>View, print and download for free: MITSUBISHI L200 2010 4.G Owners Manual, 369 Pages, PDF Size: 30.72 MB. Search in MITSUBISHI L200 2010 4.G Owners Manual online. CarManualsOnline.info is the largest online database of car user manuals. MITSUBISHI L200 2010 4.G Owners Manual PDF Download. iPod control panel and display
E007562002381- PWR (On-Off) button
2-
FOLDER (Folder down) button
3- FOLDER (Folder up) button
4- TEXT button
5- PAGE (Title scro</p>
<p>All product names, logos, and brands are property of their respective owners.</p>
<p><a href='/privacy-policy'>Privacy Policy</a> | <a href='/about-us-contact'>About Us & Contact</a></p>
</div>
</div>
<script type="text/javascript">
function chooserbrand() {
$('#brand').prop('disabled', true);
if($('#year')) {
$('#year').prop('disabled', true);
}
if($('#vehicle')) {
$('#vehicle').prop('disabled', true);
}
$.ajax({
url: 'https://www.carmanualsonline.info/chooser.php',
type: 'POST',
data: {
brand: $('#brand').val()
},
success: function(responseText) {
$('#chooser').html(responseText);
}
});
}
function chooser() {
$('#brand').prop('disabled', true);
if($('#year')) {
$('#year').prop('disabled', true);
}
if($('#vehicle')) {
$('#vehicle').prop('disabled', true);
}
$.ajax({
url: 'https://www.carmanualsonline.info/chooser.php',
type: 'POST',
data: {
brand: $('#brand').val(),
year: $('#year').val(),
vehicle: $('#vehicle').val()
},
success: function(responseText) {
$('#chooser').html(responseText);
}
});
}
</script>
<script>
// var style = document.createElement('style');
// style.innerHTML = '#content div,img{'
// +'max-width: 100%;'
// +'display:block;'
// +'height: auto;'
// +'}'
// +'.logotop {'
// +'font-size: 80%;'
// +'display:block;'
// +'height: auto;'
// +'}';
// var ref = document.querySelector('script');
// ref.parentNode.insertBefore(style,ref);
var meta = document.createElement('meta');
meta.name = "viewport";
meta.content = "width=device-width, maximum-scale=5.0, minimum-scale=.25, user-scalable=yes";
document.getElementsByTagName('head')[0].appendChild(meta);
</script>
</body>
</html>
