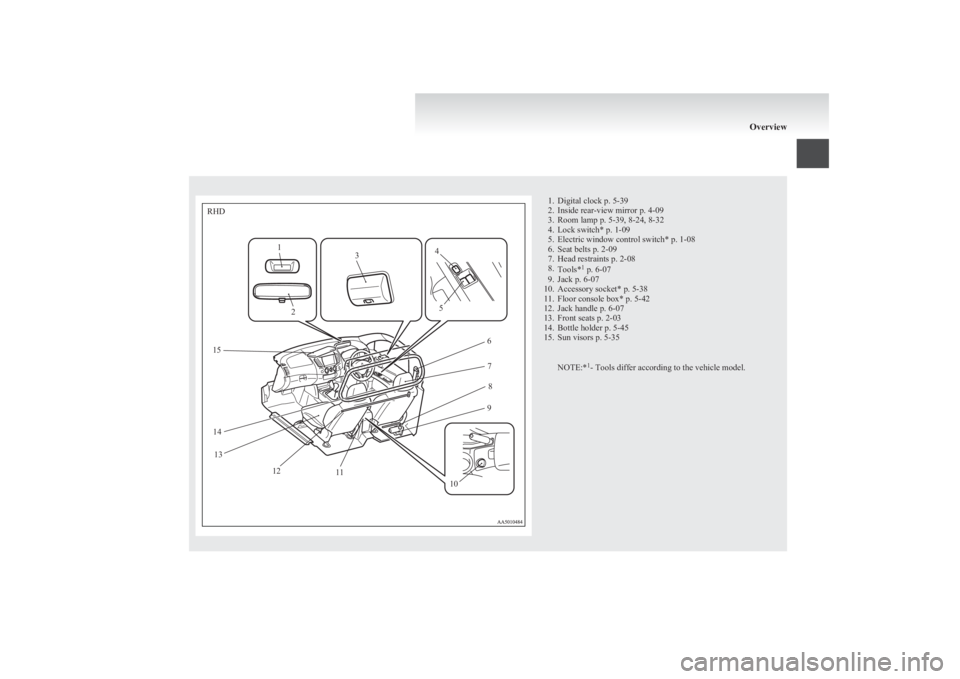

MITSUBISHI L200 2011 (in English) User Guide

1. Digital clock p. 5-39
2. Inside rear-view mirror p. 4-09
3. Room lamp p. 5-39, 8-24, 8-32
4. Lock switch* p. 1-09
5. Electric window control switch* p. 1-08
6. Seat belts p. 2-09
7. Head restraints p. 2-08
8. Tools* 1
p. 6-07
9. Jack p. 6-07
10. Accessory socket* p. 5-38
11. Floor console box* p. 5-42
12. Jack handle p. 6-07
13. Front seats p. 2-03
14. Bottle holder p. 5-45
15. Sun visors p. 5-35

NOTE:* 1
- Tools differ according to the vehicle model.
OverviewRHD
12 3
4
5 67 8
9
10
11
12
13
14
15

Interior (Club cab)E001002038901. Lock switch* p. 1-09
2. Electric window control switch* p. 1-08
3. Room lamp (rear) p. 5-39, 8-24, 8-32
4. Personal lamps* p. 5-40, 8-24, 8-32
5. Sunglasses holder* p. 5-43
6. Room lamp (front)* p. 5-39, 8-24, 8-32
7. Inside rear-view mirror p. 4-09
8. Digital clock* p. 5-39
9. Sun visors p. 5-35 Card holder p. 5-35
Vanity mirror p. 5-36
10. Bottle holder p. 5-45
11. Front seats p. 2-03 Seat under tray* p. 5-44
12. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 2-35
13. Secret box p. 5-43
14. Rear seat* p. 2-07
15. Floor console box p. 5-42 Accessory socket p. 5-38
Auxiliary Audio connector (RCA)* p. 5-27
Auxiliary Video connector (RCA)* p. 5-27
16. Jack p. 6-07 Jack handle p. 6-07
Tools p. 6-07
17. Head restraints p. 2-08
18. Coat hook* p. 5-46
19. Seat belts p. 2-09 Adjustable seat belt anchor p. 2-11
OverviewLHD1
2 3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
19

1. Personal lamps* p. 5-40, 8-24, 8-32
2. Sunglasses holder* p. 5-43
3. Room lamp (front)* p. 5-39, 8-24, 8-32
4. Inside rear-view mirror p. 4-09
5. Digital clock* p. 5-39
6. Room lamp (rear) p. 5-39, 8-24, 8-32
7. Lock switch* p. 1-09
8. Electric window control switch* p. 1-08
9. Seat belts p. 2-09 Adjustable seat belt anchor p. 2-11
10. Coat hook* p. 5-46
11. Head restraints p. 2-08
12. Secret box p. 5-43
13. Floor console box p. 5-42 Accessory socket p. 5-38
Auxiliary Audio connector (RCA)* p. 5-27
Auxiliary Video connector (RCA)* p. 5-27
14. Rear seat* p. 2-07
15. Jack p. 6-07 Jack handle p. 6-07
Tools p. 6-07
16. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 2-35
17. Front seats p. 2-03 Seat under tray* p. 5-44
18. Bottle holder p. 5-45
19. Sun visors p. 5-35 Card holder p. 5-35
Vanity mirror p. 5-36
OverviewRHD1 2
3
4 6
7
8 9
10
11
12
13
14
15
16 17
18 19 5

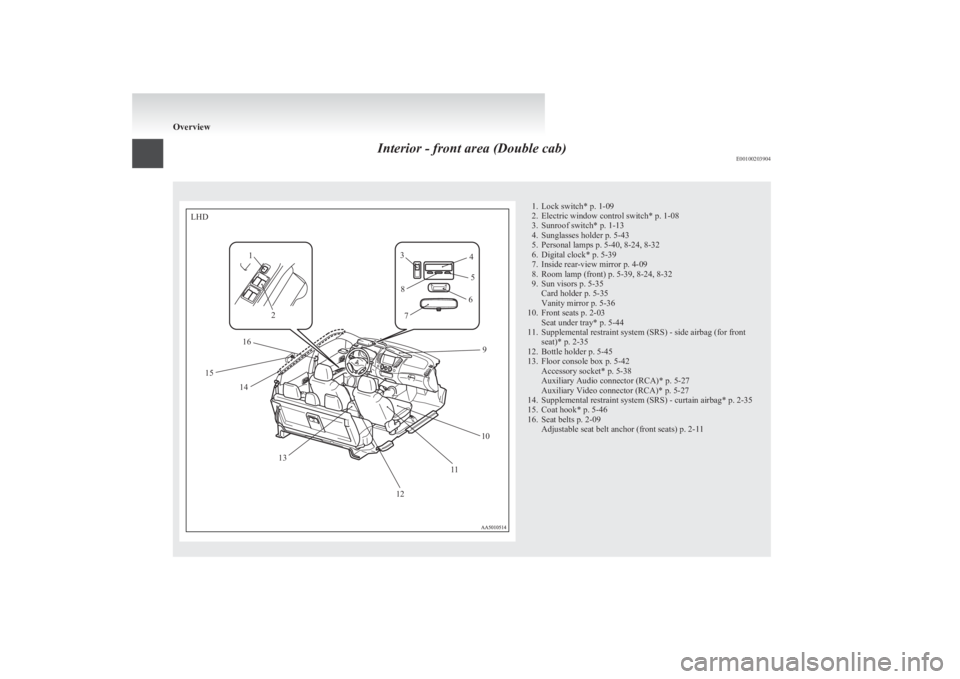

Interior - front area (Double cab)E001002039041. Lock switch* p. 1-09
2. Electric window control switch* p. 1-08
3. Sunroof switch* p. 1-13
4. Sunglasses holder p. 5-43
5. Personal lamps p. 5-40, 8-24, 8-32
6. Digital clock* p. 5-39
7. Inside rear-view mirror p. 4-09
8. Room lamp (front) p. 5-39, 8-24, 8-32
9. Sun visors p. 5-35 Card holder p. 5-35
Vanity mirror p. 5-36
10. Front seats p. 2-03 Seat under tray* p. 5-44
11. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 2-35
12. Bottle holder p. 5-45
13. Floor console box p. 5-42 Accessory socket* p. 5-38
Auxiliary Audio connector (RCA)* p. 5-27
Auxiliary Video connector (RCA)* p. 5-27
14. Supplemental restraint system (SRS) - curtain airbag* p. 2-35
15. Coat hook* p. 5-46
16. Seat belts p. 2-09 Adjustable seat belt anchor (front seats) p. 2-11
OverviewLHD1
2 3
4
5
6
7
8
9
10
11
12
13
14
15 16

1. Sunroof switch* p. 1-13
2. Sunglasses holder p. 5-43
3. Personal lamps p. 5-40, 8-24, 8-32
4. Digital clock* p. 5-39
5. Inside rear-view mirror p. 4-09
6. Room lamp (front) p. 5-39, 8-24, 8-32
7. Lock switch* p. 1-09
8. Electric window control switch* p. 1-08
9. Seat belts p. 2-09 Adjustable seat belt anchor (front seats) p. 2-11
10. Coat hook* p. 5-46
11. Supplemental restraint system (SRS) - curtain airbag* p. 2-35
12. Floor console box p. 5-42 Accessory socket* p. 5-38
Auxiliary Audio connector (RCA)* p. 5-27
Auxiliary Video connector (RCA)* p. 5-27
13. Bottle holder p. 5-45
14. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 2-35
15. Front seats p. 2-03 Seat under tray* p. 5-44
16. Sun visors p. 5-35 Card holder p. 5-35
Vanity mirror p. 5-36
OverviewRHD1 7
8 9
10
11
12
13
14
15 16 2
34
5
6

Interior - rear area (Double cab)E001002011441. Head restraints p. 2-08
2. Bottle holder p. 5-45
3. Room lamp (rear)* p. 5-39, 8-24, 8-32
4. Cup holder p. 5-45
5. Armrest (for rear seat) p. 2-07
6. Rear seats p. 2-07
7. Tools* 1
p. 6-07
8. Jack p. 6-07
9. Jack handle* 1
p. 6-07
10. Seat belts (for rear seats) p. 2-09

NOTE:* 1
- Tools differ according to the vehicle model.
OverviewLHD1 2
3
45
6
7
8
9
10

1. Room lamp (rear)* p. 5-39, 8-24, 8-32
2. Bottle holder p. 5-45
3. Head restraints p. 2-08
4. Seat belts (for rear seats) p. 2-09
5. Jack handle* 1
p. 6-07
6. Tools* 1
p. 6-07
7. Jack p. 6-07
8. Rear seats p. 2-07
9. Armrest (for rear seat) p. 2-07
10. Cup holder p. 5-45

NOTE:* 1
- Tools differ according to the vehicle model.
OverviewRHD1 2
3
4
5 6
7
8
9
10

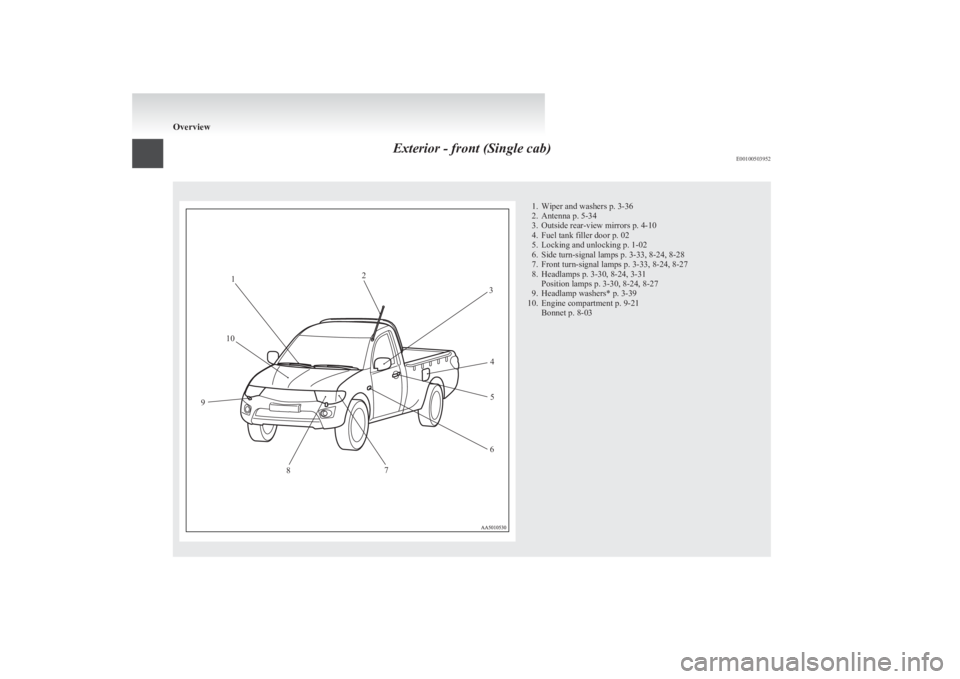

Exterior - front (Single cab)E001005039521. Wiper and washers p. 3-36
2. Antenna p. 5-34
3. Outside rear-view mirrors p. 4-10
4. Fuel tank filler door p. 02
5. Locking and unlocking p. 1-02
6. Side turn-signal lamps p. 3-33, 8-24, 8-28
7. Front turn-signal lamps p. 3-33, 8-24, 8-27
8. Headlamps p. 3-30, 8-24, 3-31 Position lamps p. 3-30, 8-24, 8-27
9. Headlamp washers* p. 3-39
10. Engine compartment p. 9-21 Bonnet p. 8-03
Overview12
3
45
6
7
8
9
10

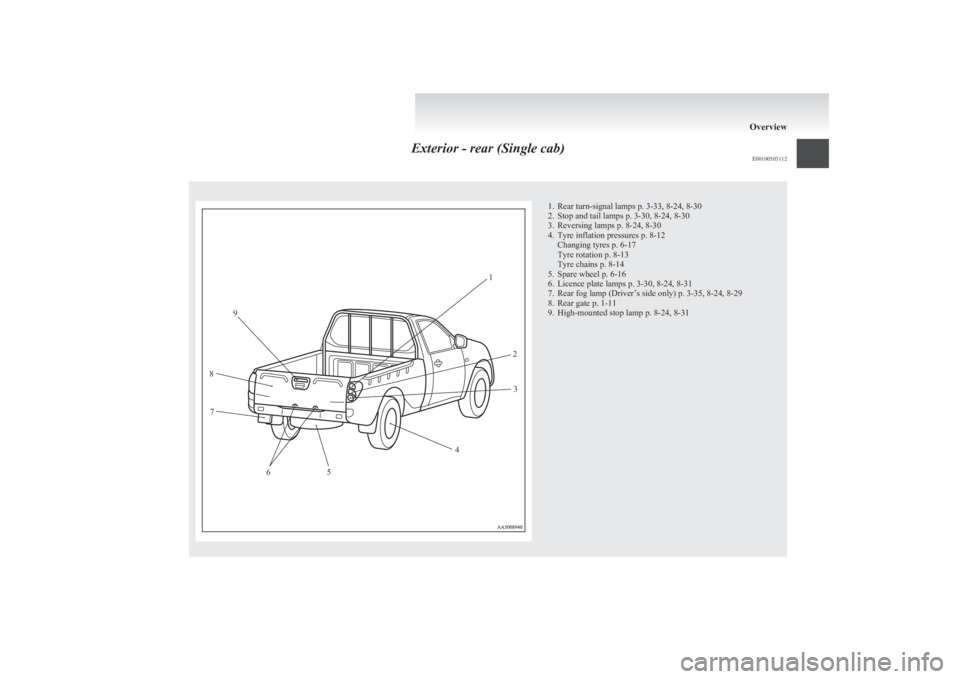

Exterior - rear (Single cab)E001005031121. Rear turn-signal lamps p. 3-33, 8-24, 8-30
2. Stop and tail lamps p. 3-30, 8-24, 8-30
3. Reversing lamps p. 8-24, 8-30
4. Tyre inflation pressures p. 8-12 Changing tyres p. 6-17
Tyre rotation p. 8-13
Tyre chains p. 8-14
5. Spare wheel p. 6-16
6. Licence plate lamps p. 3-30, 8-24, 8-31
7. Rear fog lamp (Driver’s side only) p. 3-35, 8-24, 8-29
8. Rear gate p. 1-11
9. High-mounted stop lamp p. 8-24, 8-31
Overview123
4
5
6
7
8 9

Exterior - front (Club cab)E001005039651. Wiper and washers p. 3-36
2. Rain sensor* p. 3-36
3. Antenna p. 5-34
4. Outside rear-view mirrors p. 4-10
5. Fuel tank filler door p. 02
6. Locking and unlocking p. 1-02 Keyless entry system* p. 1-04
7. Side turn-signal lamps p. 3-33, 8-24, 8-28
8. Front turn-signal lamps p. 3-33, 8-24, 8-27
9. Headlamps p. 3-30, 8-24, 3-31 Position lamps p. 3-30, 8-24, 8-27
10. Front fog lamps* p. 3-34, 8-24, 8-28
11. Headlamp washers* p. 3-39
12. Engine compartment p. 9-21 Bonnet p. 8-03
Overview12
3 4
5 6
7
8
9
10
11 12
