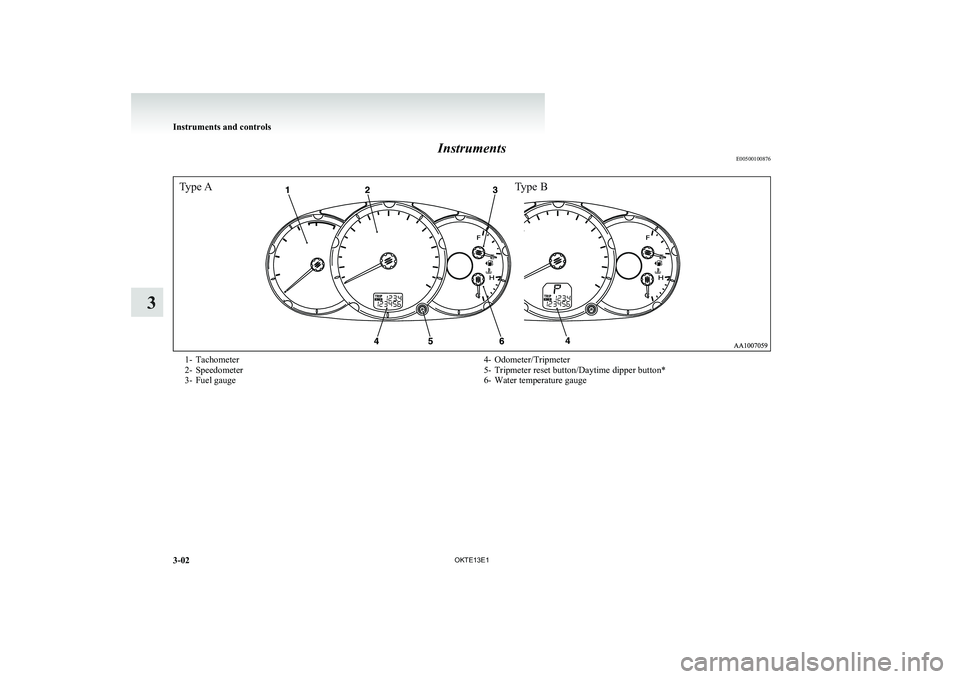

InstrumentsE00500100876
Type AType B1- Tachometer
2- Speedometer
3- Fuel gauge4- Odometer/Tripmeter
5- Tripmeter reset button/Daytime dipper button*
6- Water temperature gauge
Instruments and controls
3-02 OKTE13E1
3

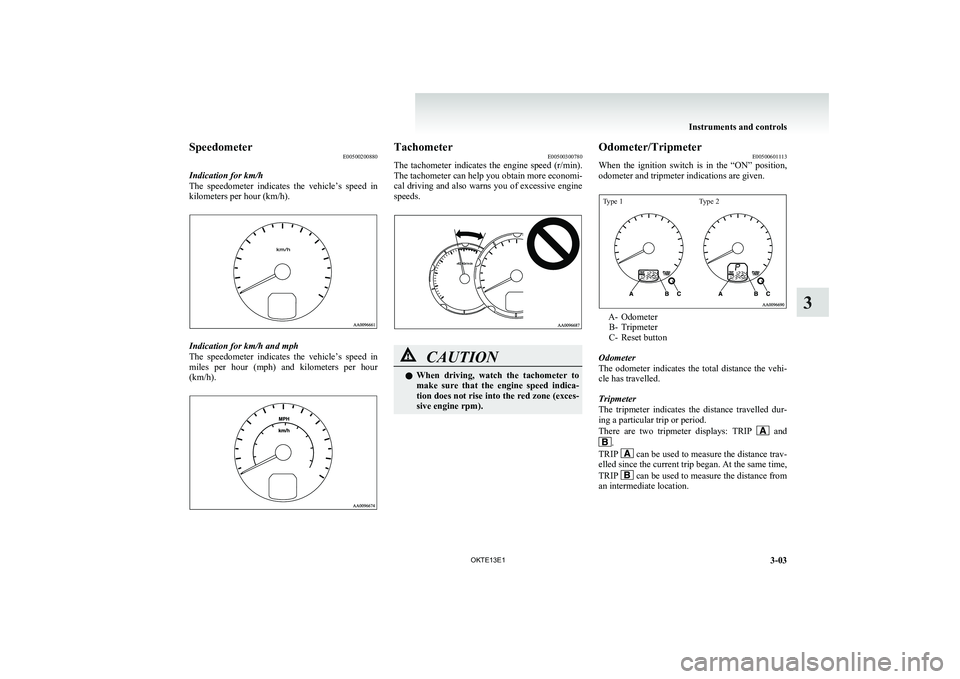

SpeedometerE00500200880
Indication for km/h
The speedometer indicates the vehicle’s speed in
kilometers per hour (km/h).
Indication for km/h and mph
The speedometer indicates the vehicle’s speed in
miles per hour (mph) and kilometers per hour
(km/h).
Tachometer E00500300780
The tachometer indicates the engine speed (r/min).
The tachometer can help you obtain more economi-
cal driving and also warns you of excessive engine
speeds.CAUTIONl When driving, watch the tachometer to
make sure that the engine speed indica-
tion does not rise into the red zone (exces-
sive engine rpm).Odometer/Tripmeter E00500601113
When the ignition switch is in the “ON” position,
odometer and tripmeter indications are given.Type 1Type 2
A- Odometer B- Tripmeter
C- Reset button
Odometer
The odometer indicates the total distance the vehi-
cle has travelled.
Tripmeter
The tripmeter indicates the distance travelled dur-
ing a particular trip or period.
There are two tripmeter displays: TRIP
and.
TRIP can be used to measure the distance trav-
elled since the current trip began. At the same time,
TRIP
can be used to measure the distance from
an intermediate location.
Instruments and controls
3-03
OKTE13E1
3

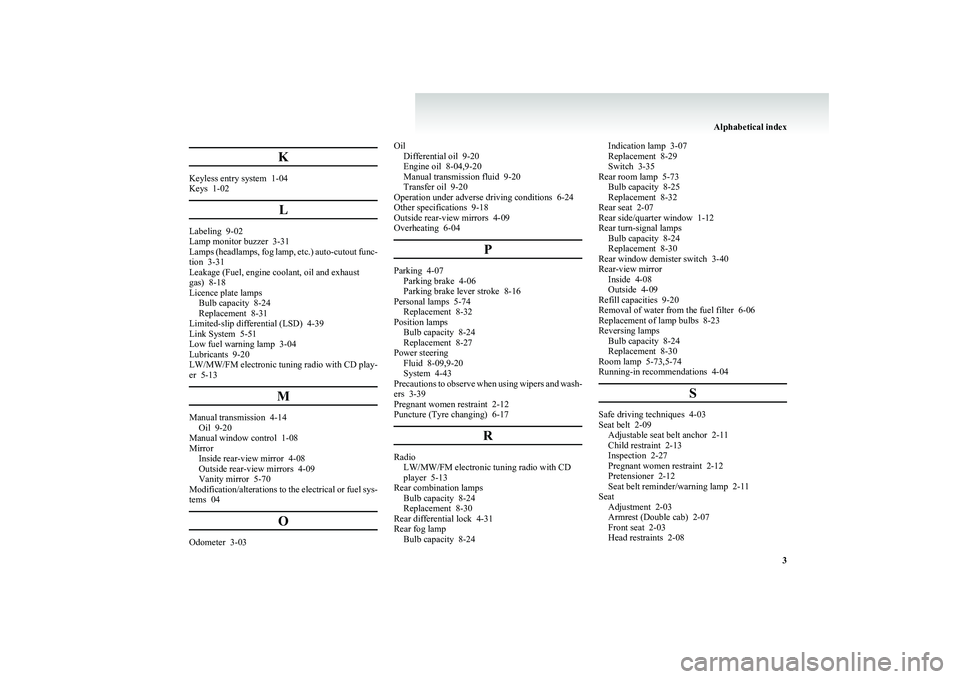

K
Keyless entry system 1-04
Keys 1-02
L
Labeling 9-02
Lamp monitor buzzer 3-31
Lamps (headlamps, fog lamp, etc.) auto-cutout func-
tion 3-31
Leakage (Fuel, engine coolant, oil and exhaust
gas) 8-18
Licence plate lamps
Bulb capacity 8-24
Replacement 8-31
Limited-slip differential (LSD) 4-39
Link System 5-51
Low fuel warning lamp 3-04
Lubricants 9-20
LW/MW/FM electronic tuning radio with CD play-
er 5-13
M
Manual transmission 4-14Oil 9-20
Manual window control 1-08
Mirror Inside rear-view mirror 4-08
Outside rear-view mirrors 4-09
Vanity mirror 5-70
Modification/alterations to the electrical or fuel sys-
tems 04
O
Odometer 3-03
OilDifferential oil 9-20
Engine oil 8-04,9-20
Manual transmission fluid 9-20
Transfer oil 9-20
Operation under adverse driving conditions 6-24
Other specifications 9-18
Outside rear-view mirrors 4-09
Overheating 6-04
P
Parking 4-07Parking brake 4-06
Parking brake lever stroke 8-16
Personal lamps 5-74 Replacement 8-32
Position lamps Bulb capacity 8-24
Replacement 8-27
Power steering Fluid 8-09,9-20
System 4-43
Precautions to observe when using wipers and wash-
ers 3-39
Pregnant women restraint 2-12
Puncture (Tyre changing) 6-17
R
RadioLW/MW/FM electronic tuning radio with CD
player 5-13
Rear combination lamps Bulb capacity 8-24
Replacement 8-30
Rear differential lock 4-31
Rear fog lamp Bulb capacity 8-24
Indication lamp 3-07
Replacement 8-29
Switch 3-35
Rear room lamp 5-73 Bulb capacity 8-25
Replacement 8-32
Rear seat 2-07
Rear side/quarter window 1-12
Rear turn-signal lamps Bulb capacity 8-24
Replacement 8-30
Rear window demister switch 3-40
Rear-view mirror Inside 4-08
Outside 4-09
Refill capacities 9-20
Removal of water from the fuel filter 6-06
Replacement of lamp bulbs 8-23
Reversing lamps Bulb capacity 8-24
Replacement 8-30
Room lamp 5-73,5-74
Running-in recommendations 4-04
S
Safe driving techniques 4-03
Seat belt 2-09 Adjustable seat belt anchor 2-11
Child restraint 2-13
Inspection 2-27
Pregnant women restraint 2-12
Pretensioner 2-12
Seat belt reminder/warning lamp 2-11
Seat Adjustment 2-03
Armrest (Double cab) 2-07
Front seat 2-03
Head restraints 2-08
Alphabetical index
