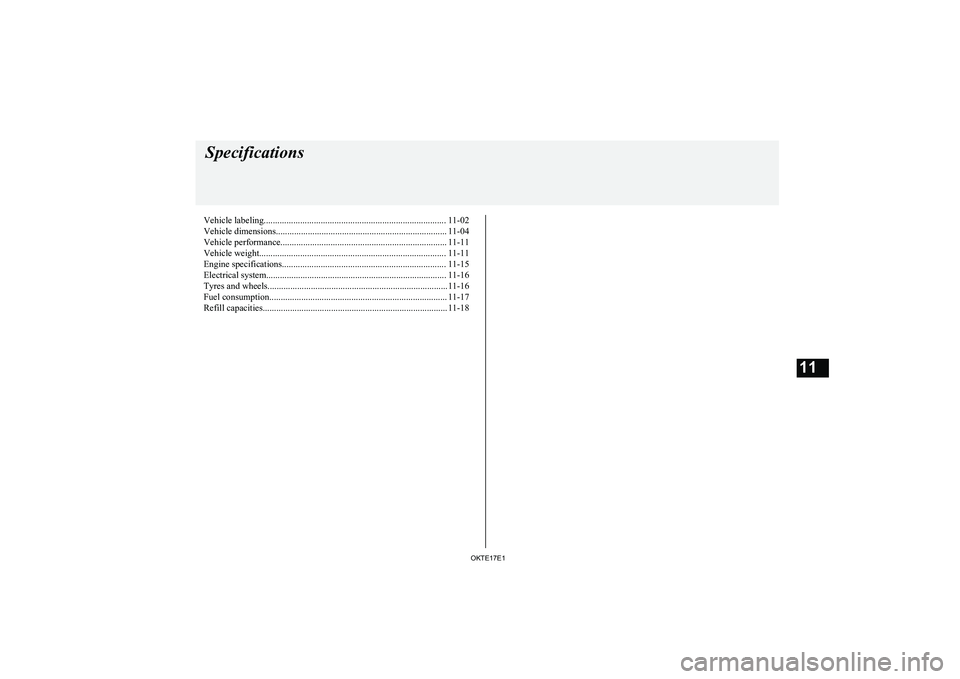

Vehicle labeling................................................................................ 11-02
Vehicle dimensions........................................................................... 11-04
Vehicle performance......................................................................... 11-11 Vehicle weight.................................................................................. 11-11
Engine specifications........................................................................ 11-15
Electrical system............................................................................... 11-16
Tyres and wheels...............................................................................11-16
Fuel consumption.............................................................................. 11-17
Refill capacities................................................................................. 11-18Specifications
OKTE17E111
Page 384 of 426
Vehicle dimensionsE01100204692
Vehicle dimensions

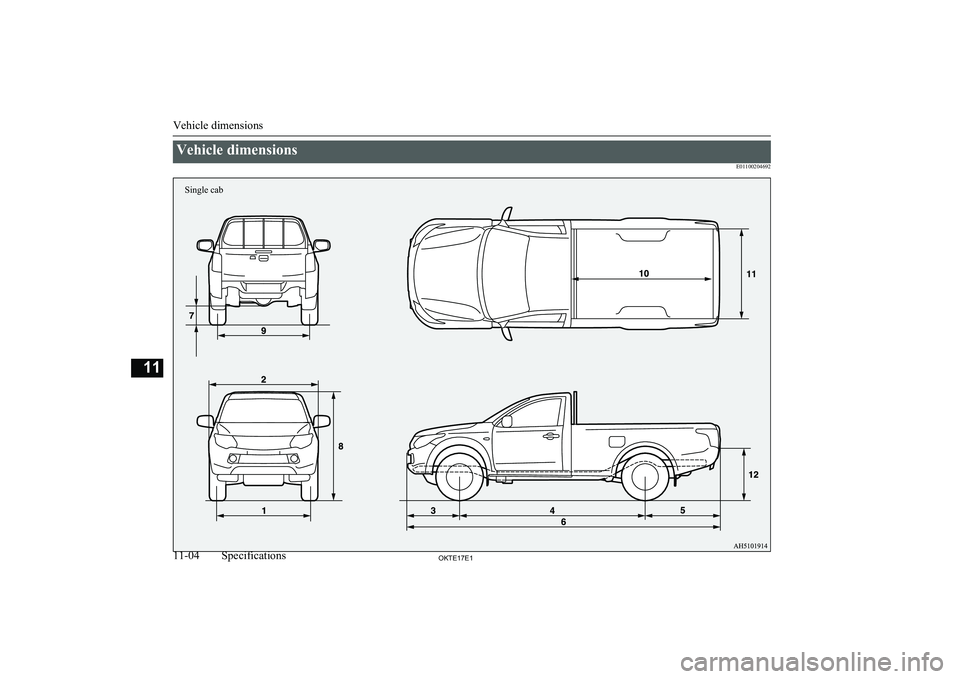

11-04OKTE17E1Specifications11Single cab
Page 385 of 426

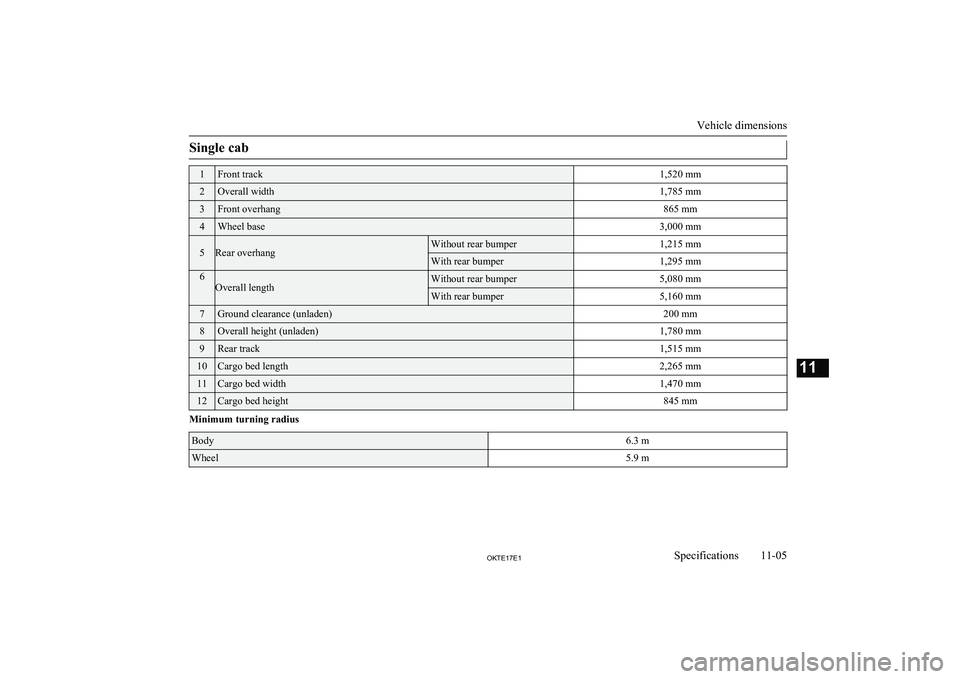

Single cab1Front track1,520 mm2Overall width1,785 mm3Front overhang865 mm4Wheel base3,000 mm5Rear overhangWithout rear bumper1,215 mmWith rear bumper1,295 mm6Overall lengthWithout rear bumper5,080 mmWith rear bumper5,160 mm7Ground clearance (unladen)200 mm8Overall height (unladen)1,780 mm9Rear track1,515 mm10Cargo bed length2,265 mm11Cargo bed width1,470 mm12Cargo bed height845 mm
Minimum turning radius
Body6.3 mWheel5.9 m
Vehicle dimensions
11-05OKTE17E1Specifications11
Page 386 of 426
Vehicle dimensions

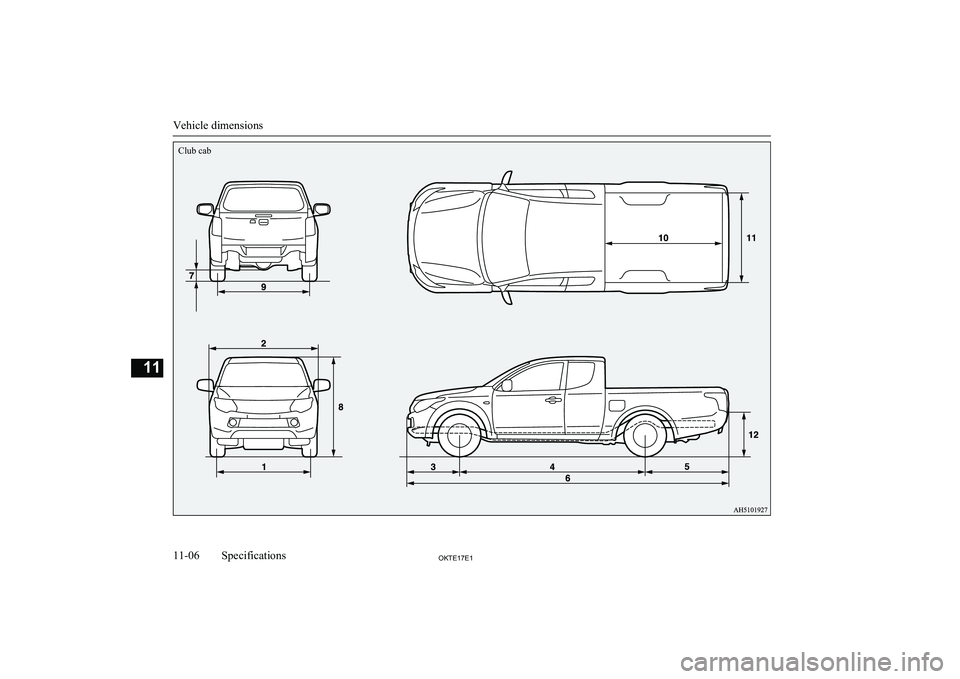

11-06OKTE17E1Specifications11Club cab

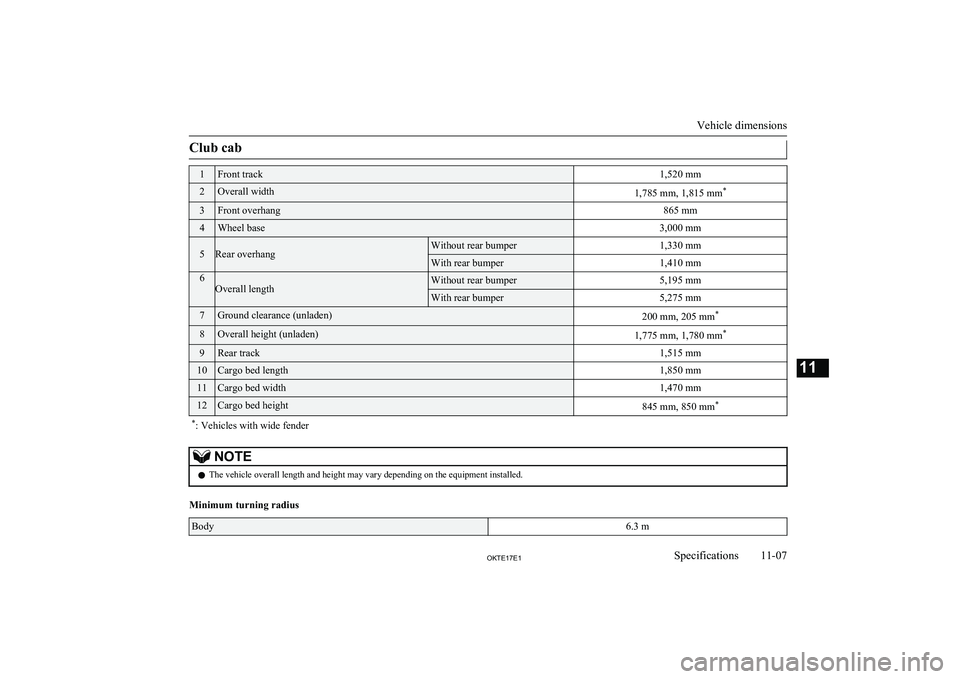

Page 387 of 426
Club cab1Front track1,520 mm2Overall width1,785 mm, 1,815 mm*3Front overhang865 mm4Wheel base3,000 mm5Rear overhangWithout rear bumper1,330 mmWith rear bumper1,410 mm6Overall lengthWithout rear bumper5,195 mmWith rear bumper5,275 mm7Ground clearance (unladen)200 mm, 205 mm*8Overall height (unladen)1,775 mm, 1,780 mm *9Rear track1,515 mm10Cargo bed length1,850 mm11Cargo bed width1,470 mm12Cargo bed height845 mm, 850 mm**
: Vehicles with wide fenderNOTEl The vehicle overall length and height may vary depending on the equipment installed.
Minimum turning radius
Body6.3 m
Vehicle dimensions
11-07OKTE17E1Specifications11
Page 388 of 426

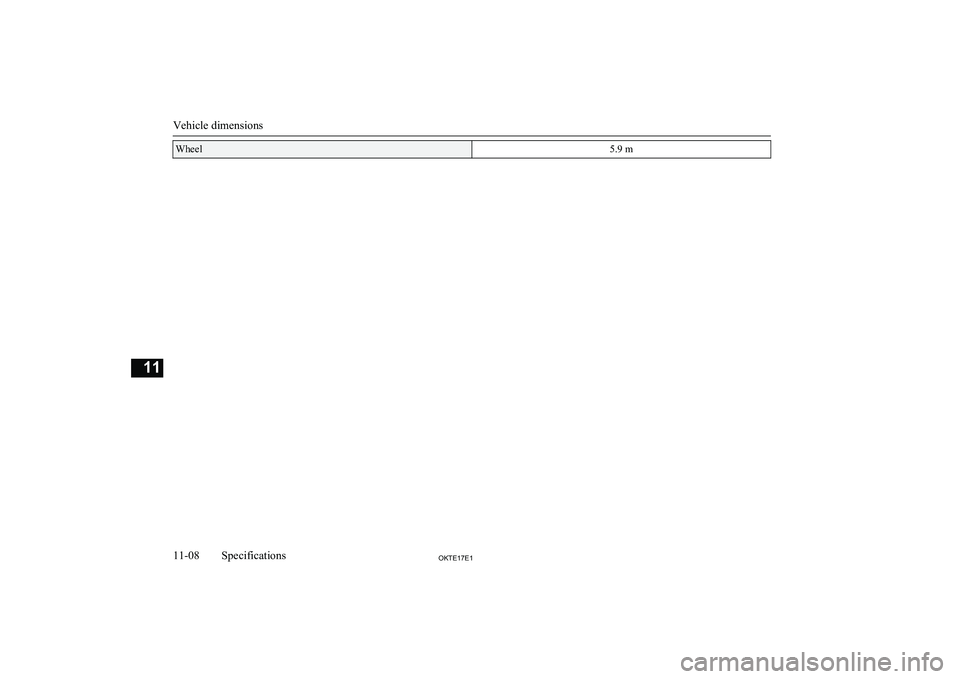

Wheel5.9 m
Vehicle dimensions
11-08OKTE17E1Specifications11
Page 389 of 426
Vehicle dimensions

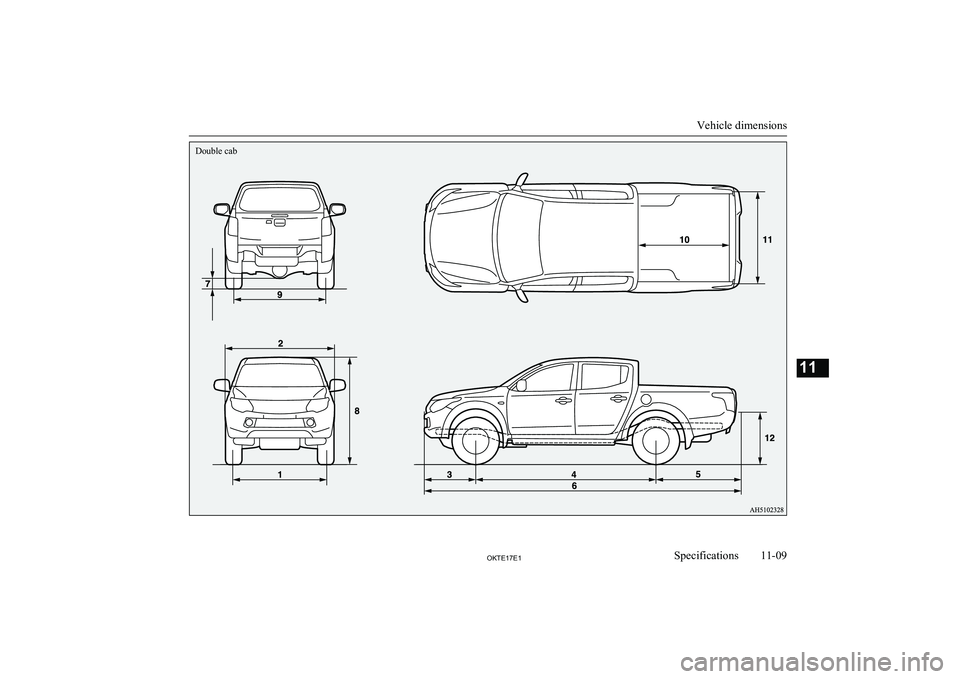

11-09OKTE17E1Specifications11Double cab
Page 390 of 426

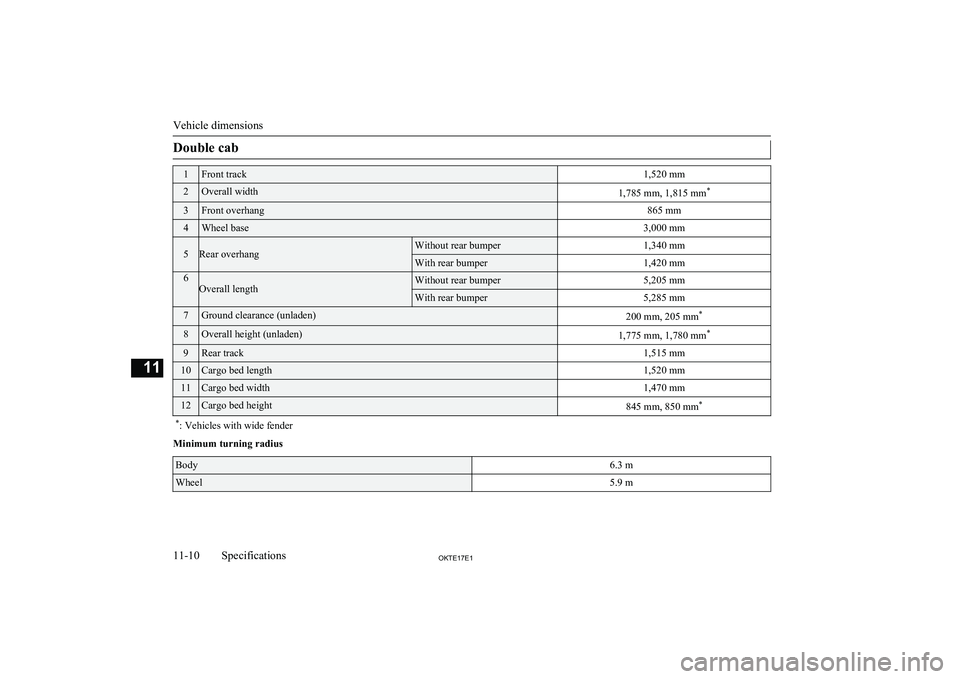

Double cab1Front track1,520 mm2Overall width1,785 mm, 1,815 mm*3Front overhang865 mm4Wheel base3,000 mm5Rear overhangWithout rear bumper1,340 mmWith rear bumper1,420 mm6Overall lengthWithout rear bumper5,205 mmWith rear bumper5,285 mm7Ground clearance (unladen)200 mm, 205 mm*8Overall height (unladen)1,775 mm, 1,780 mm *9Rear track1,515 mm10Cargo bed length1,520 mm11Cargo bed width1,470 mm12Cargo bed height845 mm, 850 mm**
: Vehicles with wide fender
Minimum turning radius
Body6.3 mWheel5.9 m
Vehicle dimensions
11-10OKTE17E1Specifications11
Page 402 of 426

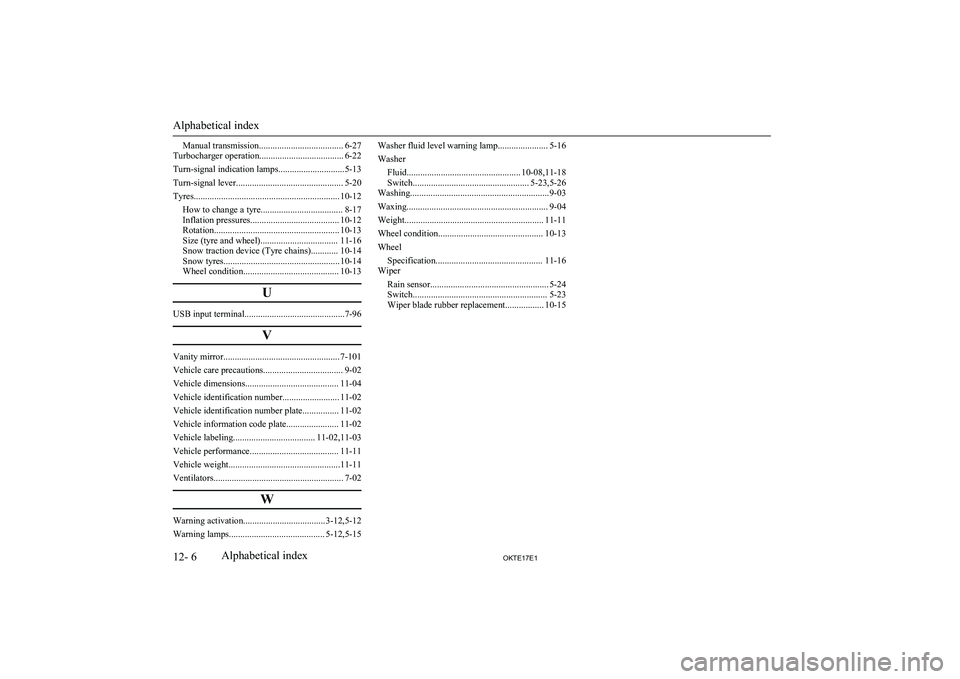

Bulb location and capacity.............................. 10-22C
Capacities........................................................ 11-18
Card holder...................................................... 7-100
Cargo loads........................................................6-83
Catalytic converter.......................................... 10-03
Cautions on handling of 4-wheel drive vehicles................................................... 6-52
CD player.................................................. 7-18,7-39
Central door locks............................................. 3-17
Centre console under tray................................7-106
Charge warning lamp........................................ 5-16 Check engine warning lamp.............................. 5-15
Child restraint.................................................... 4-11 Caution for installing the child re-straint on vehicles with a front
passenger airbag.................................. 4-11,4-26
Child restraint system with ISOFIX mountings.................................................... 4-21
i-Size child restraint system.......................... 4-15
Installing a child restraint system to the lower anchorage (ISOFIX
child restraint mountings) and
tether anchorage...........................................4-21
Suitability for various ISOFIX positions...... 4-14
Suitability for various seating positions........ 4-16
Child-protection rear doors............................... 3-20
Cigarette lighter............................................... 7-101
Cleaning Chrome parts................................................. 9-05
Exterior of your vehicle................................ 9-03
Genuine leather............................................. 9-03
Interior of your vehicle................................. 9-02
Plastic parts................................................... 9-04
Plastic, fabric and flocked parts.................... 9-02
Polishing....................................................... 9-04 Washing........................................................ 9-03
Waxing.......................................................... 9-04
Clock............................................................... 7-102
Clutch Fluid.................................................. 10-09,11-18
Coat hook........................................................ 7-109
Combination headlamps and dipper switch...... 5-17
Convenient hook............................................. 7-108
Coolant (engine)....................................10-06,11-18
Cruise control.................................................... 6-63 Indication lamp............................................. 6-64
Switch........................................................... 6-64
Cup holder....................................................... 7-107
D
Daytime running lamps..................................... 5-19Bulb capacity.............................................. 10-22
Replacement................................................ 10-27
Demister (rear window).................................... 5-27
Diesel particulate filter (DPF)........................... 6-21 Warning lamp................................................6-21
Diesel preheat indication lamp.......................... 5-14
Differential oil................................................. 11-18
Digital clock.................................................... 7-102 Time Setting......................................... 7-37,7-70
Dimensions...................................................... 11-04
Dipper (High/Low beam change)......................5-19
Display Indicator............................................... 7-35
Disposal information for used batteries............ 2-06
Doors Central door locks......................................... 3-17
Child-protection rear doors........................... 3-20
Dead Lock System........................................ 3-18
Door ajar warning lamp................................ 5-16
Locking and unlocking................................. 3-15
To open or close the rear door (Club cab).... 3-16
Driving, alcohol and drugs................................ 6-02
E
Easy select 4WD............................................... 6-352WD/4WD operation indication lamp.. 6-36,6-38
Low-range indication lamp........................... 6-38
Economical driving........................................... 6-02
Electric window control.................................... 3-21 Safety mechanism......................................... 3-23
Switch........................................................... 3-21
Timer function.............................................. 3-23
Electrical system............................................. 11-16
Electronic immobilizer (Anti-theft starting system)................................................ 3-03
Emergency key.................................................. 3-11
Emergency starting............................................8-08
Emergency stop signal system.......................... 6-56
Engine specifications.......................................11-15
Engine switch.................................................... 6-14
Engine Check engine warning lamp..........................5-15
Coolant..............................................10-06,11-18 Diesel preheat indication lamp......................5-14Engine coolant temperature display.............. 5-06
Model.......................................................... 11-03
Number....................................................... 11-03
Oil..................................................... 10-05,11-18
