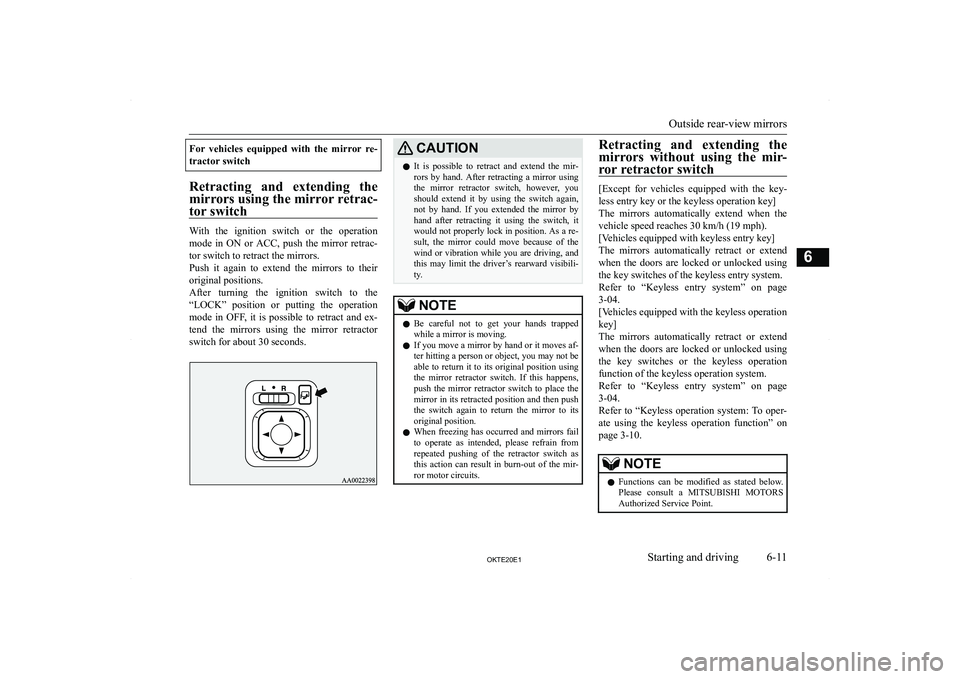

For vehicles equipped with the mirror re-tractor switch
Retracting and extending the mirrors using the mirror retrac-
tor switch
With the ignition switch or the operation
mode in ON or ACC, push the mirror retrac-
tor switch to retract the mirrors.
Push it again to extend the mirrors to their
original positions.
After turning the ignition switch to the
“LOCK” position or putting the operation
mode in OFF, it is possible to retract and ex-
tend the mirrors using the mirror retractor switch for about 30 seconds.
CAUT,ONz It is possible to retract and extend the mir-
rors by hand. After retracting a mirror using
the mirror retractor switch, however, you
should extend it by using the switch again, not by hand. If you extended the mirror by
hand after retracting it using the switch, it
would not properly lock in position. As a re- sult, the mirror could move because of thewind or vibration while you are driving, and
this may limit the driver’s rearward visibili- ty.NOTEz Be careful not to get your hands trapped
while a mirror is moving.
z If you move a mirror by hand or it moves af-
ter hitting a person or object, you may not be
able to return it to its original position using the mirror retractor switch. If this happens,
push the mirror retractor switch to place the mirror in its retracted position and then push
the switch again to return the mirror to its original position.
z When freezing has occurred and mirrors fail
to operate as intended, please refrain from repeated pushing of the retractor switch as
this action can result in burn-out of the mir-
ror motor circuits.Retracting and extending the
mirrors without using the mir- ror retractor switch
[Except for vehicles equipped with the key-
less entry key or the keyless operation key@
The mirrors automatically extend when the vehicle speed reaches 30 km/h (19 mph).
[Vehicles equipped with keyless entry key@
The mirrors automatically retract or extend when the doors are locked or unlocked using the key switches of the keyless entry system.
Refer to “Keyless entry system” on page 3-04.
[Vehicles equipped with the keyless operation
key@
The mirrors automatically retract or extend when the doors are locked or unlocked using
the key switches or the keyless operation function of the keyless operation system.Refer to “Keyless entry system” on page 3-04.
Refer to “Keyless operation system: To oper-
ate using the keyless operation function” on
page 3-10.
NOTEz Functions can be modified as stated below.
Please consult a MITSUBISHI MOTORS
Authorized Service Point.
Outside rear-view mirrors
6-112.7(20(1Starting and driving6

NOTE

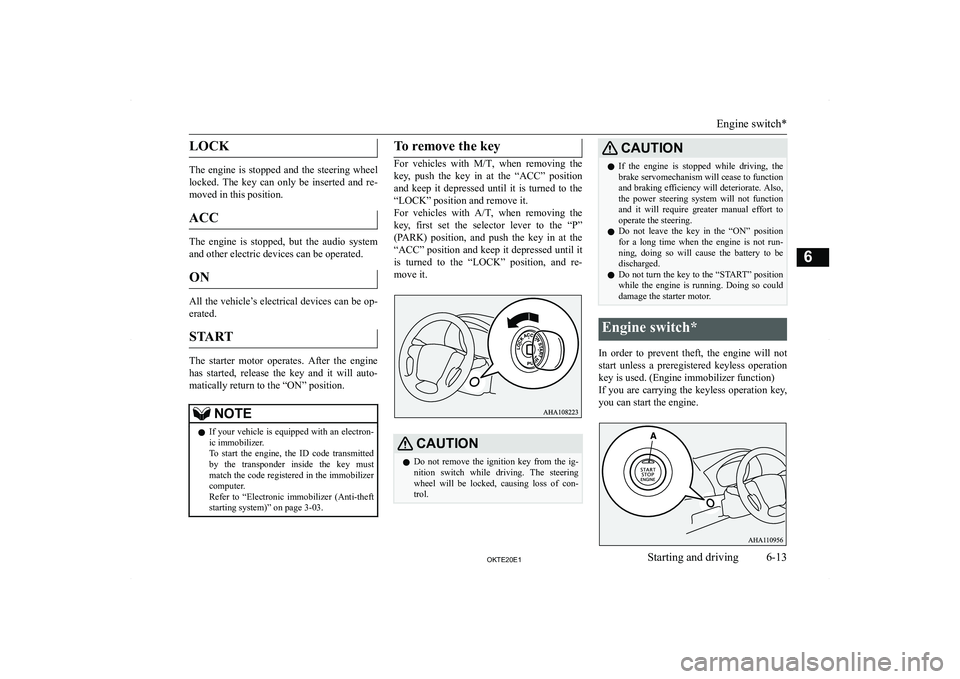

LOCK
The engine is stopped and the steering wheel
locked. The key can only be inserted and re- moved in this position.
ACC
The engine is stopped, but the audio system and other electric devices can be operated.
ON
All the vehicle’s electrical devices can be op- erated.
START
The starter motor operates. After the engine has started, release the key and it will auto- matically return to the “ON” position.
NOTEz If your vehicle is equipped with an electron-
ic immobilizer.
To start the engine, the ID code transmitted by the transponder inside the key must
match the code registered in the immobilizer
computer.
Refer to “Electronic immobilizer (Anti-theft starting system)” on page 3-03.To remove the key
For vehicles with M/T, when removing the
key, push the key in at the “ACC” position and keep it depressed until it is turned to the
“LOCK” position and remove it.
For vehicles with A/T, when removing the
key, first set the selector lever to the “P” (PARK) position, and push the key in at the
“ACC” position and keep it depressed until it
is turned to the “LOCK” position, and re- move it.
CAUT,ONz Do not remove the ignition key from the ig-
nition switch while driving. The steeringwheel will be locked, causing loss of con-
trol.CAUT,ONz If the engine is stopped while driving, the
brake servomechanism will cease to function and braking efficiency will deteriorate. Also,
the power steering system will not function
and it will require greater manual effort to operate the steering.
z Do not leave the key in the “ON” position
for a long time when the engine is not run-
ning, doing so will cause the battery to be discharged.
z Do not turn the key to the “START” position
while the engine is running. Doing so could damage the starter motor.Engine switch*
In order to prevent theft, the engine will not
start unless a preregistered keyless operation
key is used. (Engine immobilizer function) If you are carrying the keyless operation key,
you can start the engine.
Engine switch*
6-132.7(20(1Starting and driving6

CAUT,ONzThe indication lamp (A) will flash orange
when there is a problem or malfunction inthe keyless operation system. Never drive if
the indication lamp on the engine switch is
flashing orange. Immediately contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
z If the engine switch operation is not smooth
and feels like it is sticking, do not operate
the switch. Immediately contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.NOTEz When operating the engine switch, press the
switch all the way in. If the switch is not fully pressed, the engine may not start or theoperation mode may not change. If the en-
gine switch is pressed correctly, there is no need to hold the engine switch down.
z When the battery in the keyless operation
key has worn out, or the keyless operationkey is out of the vehicle, warning display
will appear.Operation mode of the engine
switch and its function
OFF
The indication lamp on the engine switch
turns off.
The operation mode cannot be put in OFF when the selector lever is in any position oth-
er than the “P” (PARK) position (A/T).

ACC
Electrical devices such as the audio and ac-
cessory socket can be operated.
The indication lamp on the engine switch il-
luminates orange.

ON
All vehicle’s electrical devices can be operat- ed.
The indication lamp on the engine switch il-
luminates green. The indication lamp turns off when the engine is running.
NOTEz Your vehicle is equipped with an electronic
immobilizer..
To start the engine, the ID code transmitted
by the transponder inside the key must match the code registered in the immobilizer
computer. Refer to “Electronic immobilizer
(Anti-theft starting system)” on page 3-03.Changing the operation mode
If you press the engine switch without de-
pressing the brake pedal (A/T) or the clutch
pedal (M/T), you can change the operation
mode in the order of OFF, ACC, ON, OFF.
CAUT,ONz When the engine is not running, put the op-
eration mode in OFF. Leaving the operation mode in ON or ACC for a long time when
the engine is not running may cause the bat- tery to be discharged, making it impossible
to start the engine, lock and unlock the steer- ing wheel.
Engine switch*
6-142.7(20(1Starting and driving6

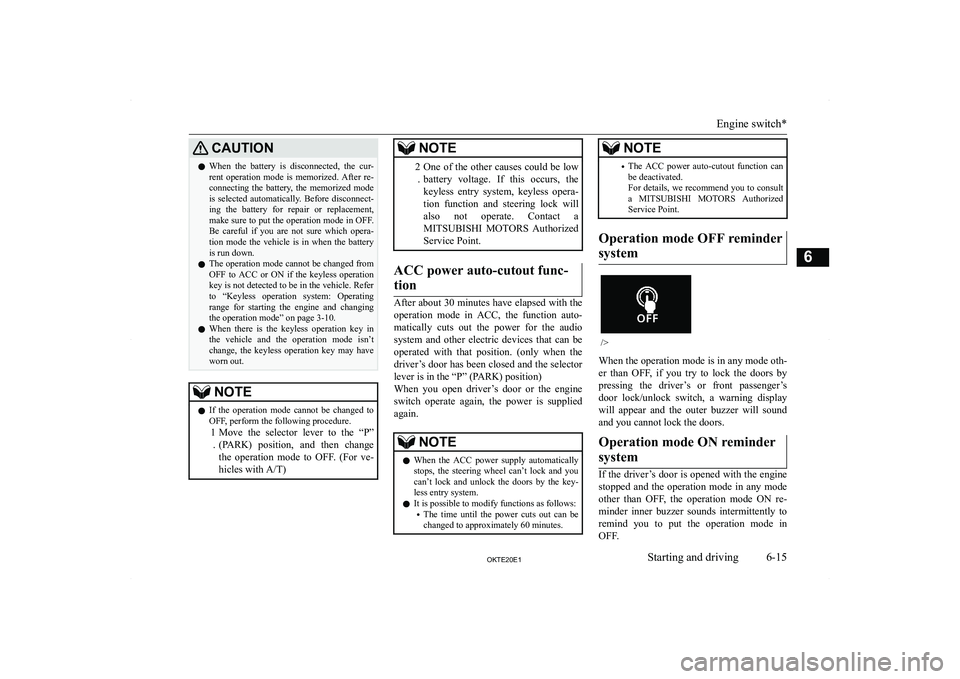

CAUT,ONzWhen the battery is disconnected, the cur-
rent operation mode is memorized. After re-
connecting the battery, the memorized mode is selected automatically. Before disconnect-ing the battery for repair or replacement,
make sure to put the operation mode in OFF.
Be careful if you are not sure which opera-
tion mode the vehicle is in when the battery
is run down.
z The operation mode cannot be changed from
OFF to ACC or ON if the keyless operationkey is not detected to be in the vehicle. Refer
to “Keyless operation system: Operating
range for starting the engine and changing the operation mode” on page 3-10.
z When there is the keyless operation key in
the vehicle and the operation mode isn’t
change, the keyless operation key may have worn out.NOTEz If the operation mode cannot be changed to
OFF, perform the following procedure.
1
. Move the selector lever to the “P”
(PARK) position, and then change the operation mode to OFF. (For ve-hicles with A/T)NOTE2 . One of the other causes could be low
battery voltage. If this occurs, the
keyless entry system, keyless opera- tion function and steering lock will also not operate. Contact a
MITSUBISHI MOTORS Authorized
Service Point.ACC power auto-cutout func-
tion
After about 30 minutes have elapsed with the
operation mode in ACC, the function auto- matically cuts out the power for the audio
system and other electric devices that can be operated with that position. (only when the
driver’s door has been closed and the selector
lever is in the “P” (PARK) position)
When you open driver’s door or the engine switch operate again, the power is supplied
again.
NOTEz When the ACC power supply automatically
stops, the steering wheel can’t lock and you can’t lock and unlock the doors by the key-
less entry system.
z It is possible to modify functions as follows:

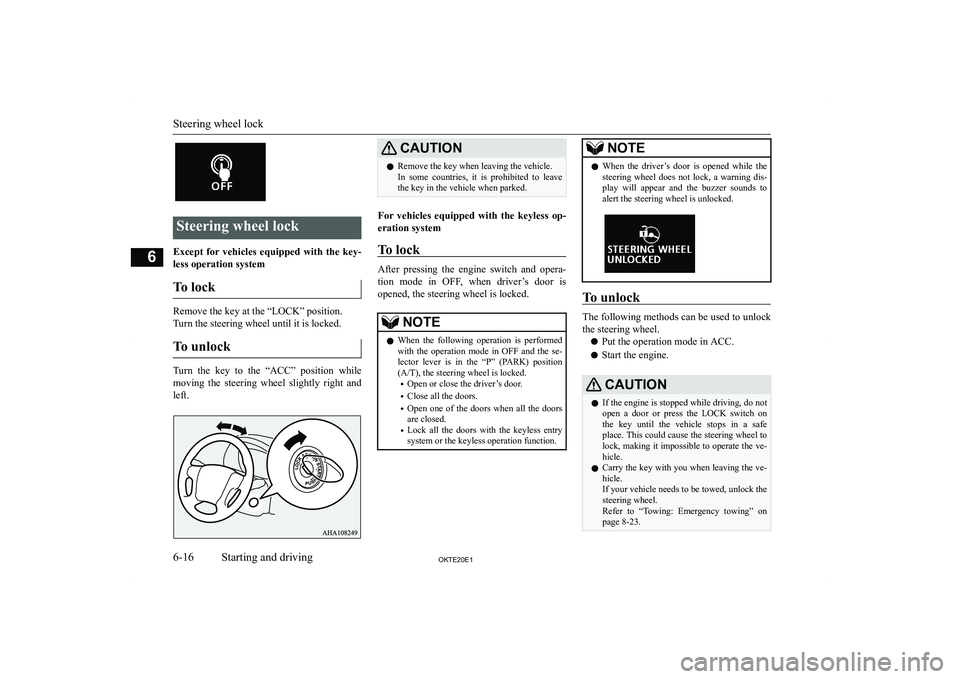

Steering wheel lock
Except for vehicles equipped with the key-less operation system
To lock
Remove the key at the “LOCK” position.
Turn the steering wheel until it is locked.
To unlock
Turn the key to the “ACC” position while moving the steering wheel slightly right and
left.
CAUT,ONz Remove the key when leaving the vehicle.
In some countries, it is prohibited to leave the key in the vehicle when parked.
For vehicles equipped with the keyless op-
eration system
To lock
After pressing the engine switch and opera- tion mode in OFF, when driver’s door is
opened, the steering wheel is locked.
NOTEz When the following operation is performed
with the operation mode in OFF and the se- lector lever is in the “P” (PARK) position(A/T), the steering wheel is locked.

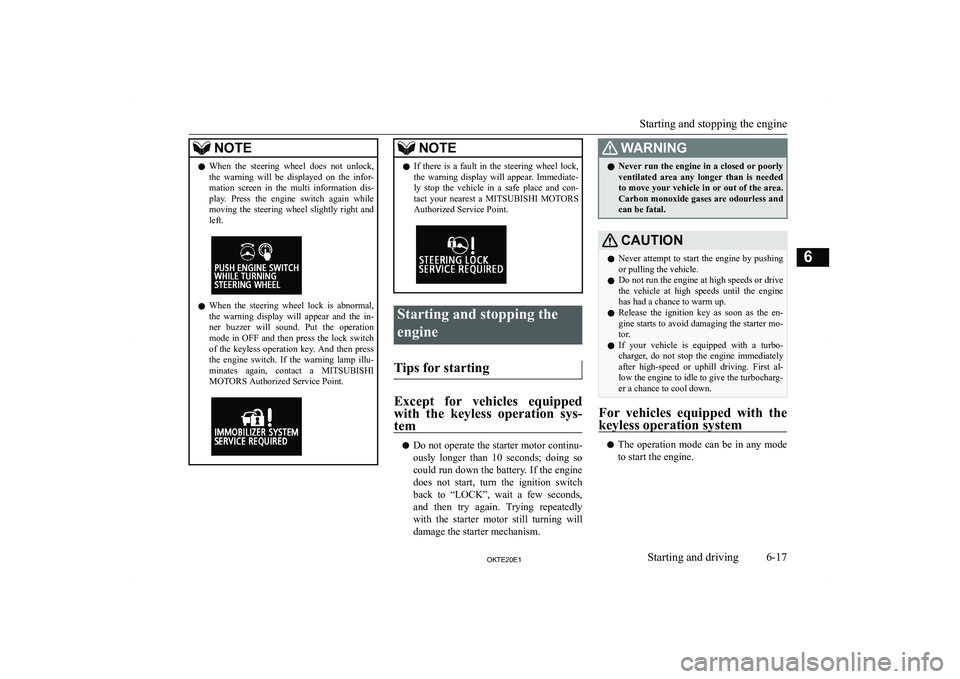

NOTEzWhen the steering wheel does not unlock,
the warning will be displayed on the infor-
mation screen in the multi information dis-
play. Press the engine switch again while
moving the steering wheel slightly right and left.
z When the steering wheel lock is abnormal,
the warning display will appear and the in-ner buzzer will sound. Put the operation
mode in OFF and then press the lock switch of the keyless operation key. And then press the engine switch. If the warning lamp illu- minates again, contact a MITSUBISHI
MOTORS Authorized Service Point.
NOTEz If there is a fault in the steering wheel lock,
the warning display will appear. Immediate-
ly stop the vehicle in a safe place and con-
tact your nearest a MITSUBISHI MOTORS
Authorized Service Point.Starting and stopping the
engine
Tips for starting
Except for vehicles equipped with the keyless operation sys- tem
z Do not operate the starter motor continu-
ously longer than 10 seconds; doing so
could run down the battery. If the engine
does not start, turn the ignition switch back to “LOCK”, wait a few seconds,
and then try again. Trying repeatedly
with the starter motor still turning will damage the starter mechanism.
:ARN,NGz Never run the engine in a closed or poorly
ventilated area any longer than is needed
to move your vehicle in or out of the area. Carbon monoxide gases are odourless and can be fatal.CAUT,ONz Never attempt to start the engine by pushing
or pulling the vehicle.
z Do not run the engine at high speeds or drive
the vehicle at high speeds until the engine
has had a chance to warm up.
z Release the ignition key as soon as the en-
gine starts to avoid damaging the starter mo-
tor.
z If your vehicle is equipped with a turbo-
charger, do not stop the engine immediately
after high-speed or uphill driving. First al-
low the engine to idle to give the turbocharg-
er a chance to cool down.
For vehicles equipped with the
keyless operation system
z The operation mode can be in any mode
to start the engine.
Starting and stopping the engine
6-172.7(20(1Starting and driving6

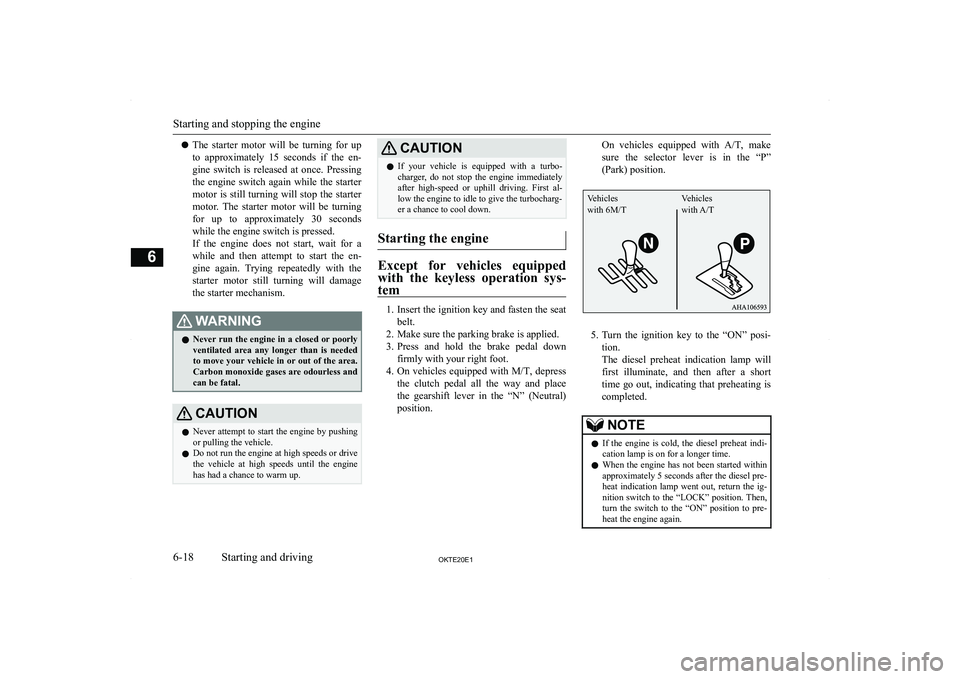

zThe starter motor will be turning for up
to approximately 15 seconds if the en- gine switch is released at once. Pressing
the engine switch again while the starter motor is still turning will stop the starter
motor. The starter motor will be turning for up to approximately 30 secondswhile the engine switch is pressed.
If the engine does not start, wait for a
while and then attempt to start the en-
gine again. Trying repeatedly with the starter motor still turning will damage
the starter mechanism.:ARN,NGz Never run the engine in a closed or poorly
ventilated area any longer than is needed
to move your vehicle in or out of the area. Carbon monoxide gases are odourless and can be fatal.CAUT,ONz Never attempt to start the engine by pushing
or pulling the vehicle.
z Do not run the engine at high speeds or drive
the vehicle at high speeds until the engine
has had a chance to warm up.CAUT,ONz If your vehicle is equipped with a turbo-
charger, do not stop the engine immediately
after high-speed or uphill driving. First al-
low the engine to idle to give the turbocharg-
er a chance to cool down.Starting the engine
Except for vehicles equipped
with the keyless operation sys- tem
1. Insert the ignition key and fasten the seat
belt.
2. Make sure the parking brake is applied.
3. Press and hold the brake pedal down
firmly with your right foot.
4. On vehicles equipped with M/T, depress
the clutch pedal all the way and place the gearshift lever in the “N” (Neutral)
position.
On vehicles equipped with A/T, make
sure the selector lever is in the “P”
(Park) position.
5. Turn the ignition key to the “ON” posi-
tion.
The diesel preheat indication lamp will first illuminate, and then after a short
time go out, indicating that preheating is completed.
NOTEz If the engine is cold, the diesel preheat indi-
cation lamp is on for a longer time.
z When the engine has not been started within
approximately 5 seconds after the diesel pre- heat indication lamp went out, return the ig-nition switch to the “LOCK” position. Then,
turn the switch to the “ON” position to pre-
heat the engine again.
Starting and stopping the engine
6-182.7(20(1Starting and driving6 Vehicles
with 6M/TVehicles
with A/T

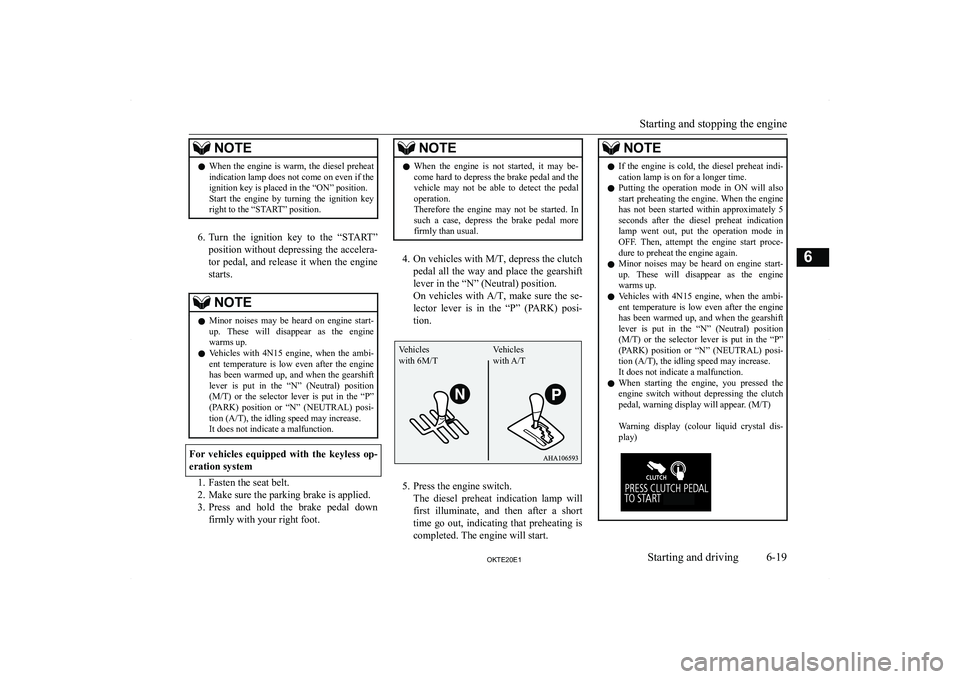

NOTEzWhen the engine is warm, the diesel preheat
indication lamp does not come on even if the
ignition key is placed in the “ON” position.
Start the engine by turning the ignition key
right to the “START” position.
6. Turn the ignition key to the “START”
position without depressing the accelera- tor pedal, and release it when the engine starts.
NOTEz Minor noises may be heard on engine start-
up. These will disappear as the engine
warms up.
z Vehicles with 4N15 engine, when the ambi-
ent temperature is low even after the engine
has been warmed up, and when the gearshift
lever is put in the “N” (Neutral) position (M/T ) or the selector lever is put in the “P”
(PARK) position or “N” (NEUTRAL) posi-
tion (A/T), the idling speed may increase.
It does not indicate a malfunction.
For vehicles equipped with the keyless op-
eration system
1. Fasten the seat belt.
2. Make sure the parking brake is applied.
3. Press and hold the brake pedal down
firmly with your right foot.
NOTEz When the engine is not started, it may be-
come hard to depress the brake pedal and thevehicle may not be able to detect the pedal
operation.
Therefore the engine may not be started. In such a case, depress the brake pedal more
firmly than usual.
4. On vehicles with M/T, depress the clutch
pedal all the way and place the gearshift
lever in the “N” (Neutral) position.
On vehicles with A/T, make sure the se-
lector lever is in the “P” (PARK) posi- tion.
5. Press the engine switch. The diesel preheat indication lamp willfirst illuminate, and then after a short
time go out, indicating that preheating is completed. The engine will start.
NOTEz If the engine is cold, the diesel preheat indi-
cation lamp is on for a longer time.
z Putting the operation mode in ON will also
start preheating the engine. When the engine
has not been started within approximately 5 seconds after the diesel preheat indication
lamp went out, put the operation mode in OFF. Then, attempt the engine start proce-dure to preheat the engine again.
z Minor noises may be heard on engine start-
up. These will disappear as the engine
warms up.
z Vehicles with 4N15 engine, when the ambi-
ent temperature is low even after the engine
has been warmed up, and when the gearshift
lever is put in the “N” (Neutral) position (M/T ) or the selector lever is put in the “P”
(PARK) position or “N” (NEUTRAL) posi-
tion (A/T), the idling speed may increase.
It does not indicate a malfunction.
z When starting the engine, you pressed the
engine switch without depressing the clutch pedal, warning display will appear. (M/T)

Warning display (colour liquid crystal dis- play)
Starting and stopping the engine
6-192.7(20(1Starting and driving6 Vehicles
with 6M/TVehicles
with A/T

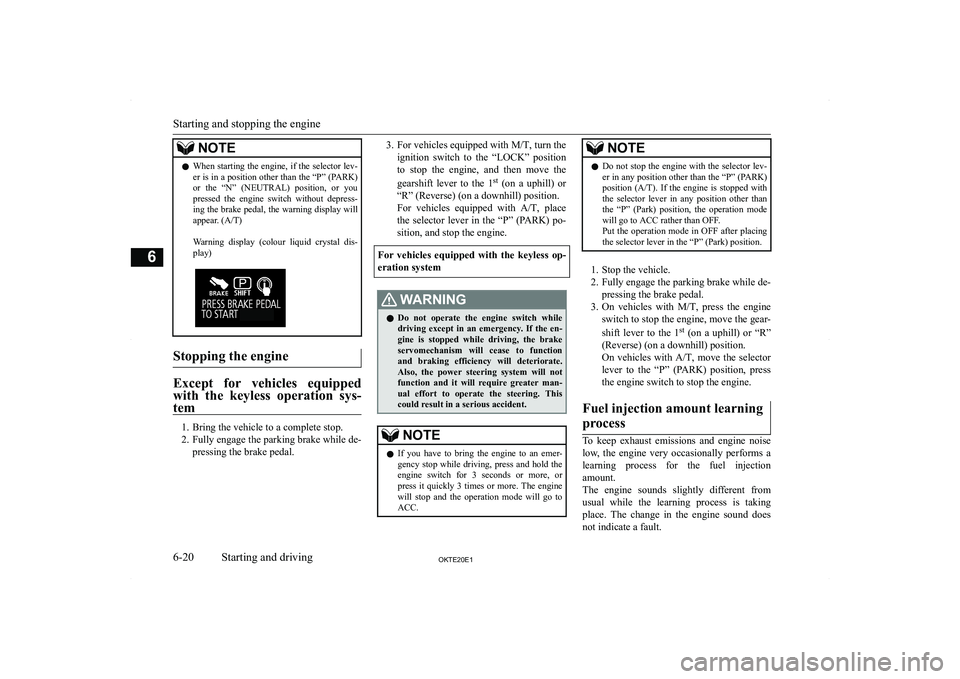

NOTEzWhen starting the engine, if the selector lev-
er is in a position other than the “P” (PARK)
or the “N” (NEUTRAL) position, or you pressed the engine switch without depress-
ing the brake pedal, the warning display will appear. (A/T)

Warning display (colour liquid crystal dis- play)Stopping the engine
Except for vehicles equipped
with the keyless operation sys- tem
1. Bring the vehicle to a complete stop.
2. Fully engage the parking brake while de-
pressing the brake pedal.
3. For vehicles equipped with M/T, turn the
ignition switch to the “LOCK” position
to stop the engine, and then move the
gearshift lever to the 1 st
(on a uphill) or
“R” (Reverse) (on a downhill) position.
For vehicles equipped with A/T, place
the selector lever in the “P” (PARK) po-
sition, and stop the engine.
For vehicles equipped with the keyless op-
eration system:ARN,NGz Do not operate the engine switch while
driving except in an emergency. If the en-
gine is stopped while driving, the brake servomechanism will cease to function
and braking efficiency will deteriorate. Also, the power steering system will not
function and it will require greater man- ual effort to operate the steering. This could result in a serious accident.NOTEz If you have to bring the engine to an emer-
gency stop while driving, press and hold the engine switch for 3 seconds or more, or
press it quickly 3 times or more. The engine will stop and the operation mode will go to ACC.NOTEz Do not stop the engine with the selector lev-
er in any position other than the “P” (PARK)position (A/T). If the engine is stopped with
the selector lever in any position other than
the “P” (Park) position, the operation mode will go to ACC rather than OFF.
Put the operation mode in OFF after placing the selector lever in the “P” (Park) position.
1. Stop the vehicle.
2. Fully engage the parking brake while de-
pressing the brake pedal.
3. On vehicles with M/T, press the engine
switch to stop the engine, move the gear-
shift lever to the 1 st
(on a uphill) or “R”
(Reverse) (on a downhill) position. On vehicles with A/T, move the selector
lever to the “P” (PARK) position, press the engine switch to stop the engine.
Fuel injection amount learning
process
To keep exhaust emissions and engine noise
low, the engine very occasionally performs a
learning process for the fuel injection amount.
The engine sounds slightly different from
usual while the learning process is taking
place. The change in the engine sound does not indicate a fault.
Starting and stopping the engine
6-202.7(20(1Starting and driving6
