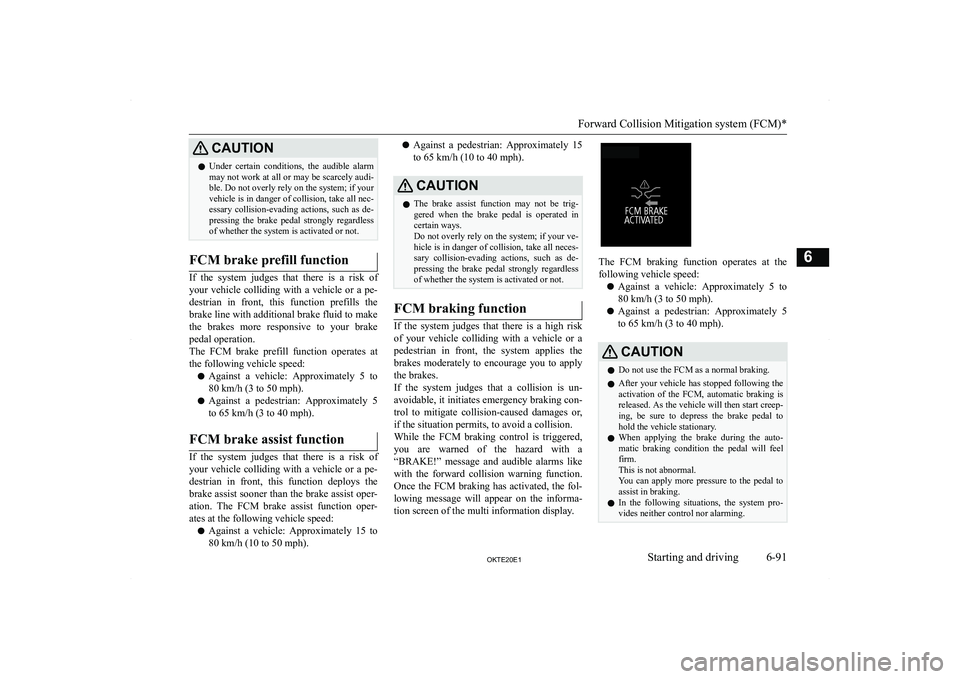

CAUT,ONzUnder certain conditions, the audible alarm
may not work at all or may be scarcely audi- ble. Do not overly rely on the system; if your
vehicle is in danger of collision, take all nec- essary collision-evading actions, such as de-
pressing the brake pedal strongly regardless of whether the system is activated or not.FCM brake prefill function
If the system judges that there is a risk of
your vehicle colliding with a vehicle or a pe-
destrian in front, this function prefills the
brake line with additional brake fluid to make
the brakes more responsive to your brake pedal operation.
The FCM brake prefill function operates at
the following vehicle speed:
z Against a vehicle: Approximately 5 to
80 km/h (3 to 50 mph).
z Against a pedestrian: Approximately 5
to 65 km/h (3 to 40 mph).
FCM brake assist function
If the system judges that there is a risk of
your vehicle colliding with a vehicle or a pe- destrian in front, this function deploys the
brake assist sooner than the brake assist oper- ation. The FCM brake assist function oper- ates at the following vehicle speed:
z Against a vehicle: Approximately 15 to
80 km/h (10 to 50 mph).
z Against a pedestrian: Approximately 15
to 65 km/h (10 to 40 mph).CAUT,ONz The brake assist function may not be trig-
gered when the brake pedal is operated in certain ways.
Do not overly rely on the system; if your ve- hicle is in danger of collision, take all neces-
sary collision-evading actions, such as de-
pressing the brake pedal strongly regardless
of whether the system is activated or not.FCM braking function
If the system judges that there is a high risk
of your vehicle colliding with a vehicle or a pedestrian in front, the system applies the
brakes moderately to encourage you to apply the brakes.
If the system judges that a collision is un-
avoidable, it initiates emergency braking con- trol to mitigate collision-caused damages or,
if the situation permits, to avoid a collision. While the FCM braking control is triggered,
you are warned of the hazard with a “BRAKE!” message and audible alarms like
with the forward collision warning function. Once the FCM braking has activated, the fol-
lowing message will appear on the informa-
tion screen of the multi information display.
The FCM braking function operates at the
following vehicle speed:
z Against a vehicle: Approximately 5 to
80 km/h (3 to 50 mph).
z Against a pedestrian: Approximately 5
to 65 km/h (3 to 40 mph).
CAUT,ONz Do not use the FCM as a normal braking.
z After your vehicle has stopped following the
activation of the FCM, automatic braking is
released. As the vehicle will then start creep-
ing, be sure to depress the brake pedal to hold the vehicle stationary.
z When applying the brake during the auto-
matic braking condition the pedal will feel
firm.
This is not abnormal.
You can apply more pressure to the pedal to
assist in braking.
z In the following situations, the system pro-
vides neither control nor alarming.
Forward Collision Mitigation system (FCM)*
6-912.7(20(1Starting and driving6

CAUT,ON

CAUT,ON

CAUT,ON

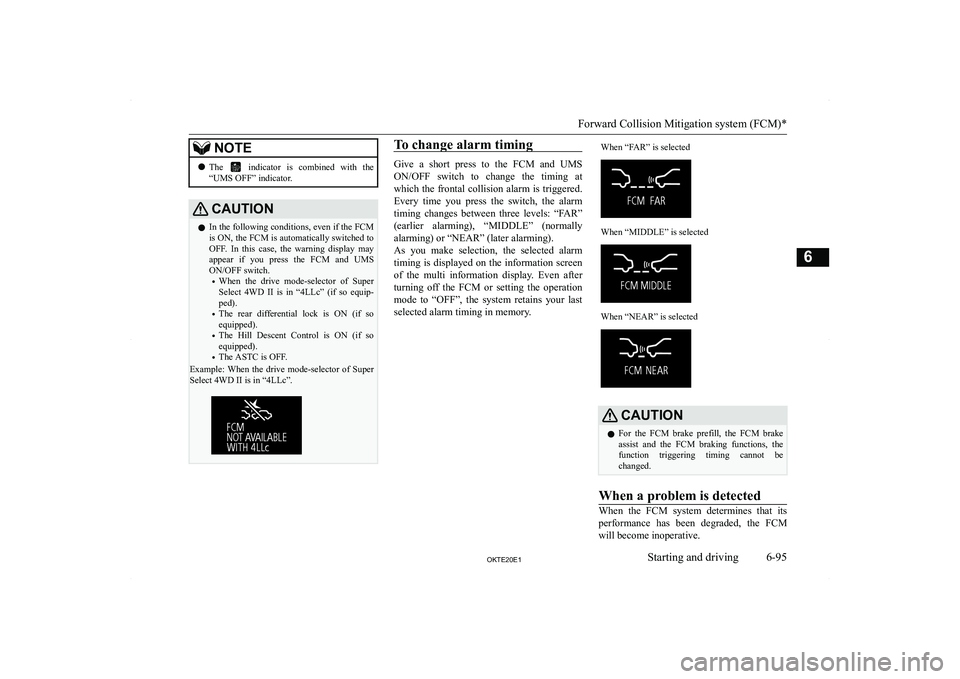

NOTEzThe indicator is combined with the
“UMS OFF” indicator.CAUT,ONz In the following conditions, even if the FCM
is ON, the FCM is automatically switched to
OFF. In this case, the warning display may appear if you press the FCM and UMSON/OFF switch.

This can occur when:z Foreign objects, such as dirt, snow or
ice, adhere to the windscreen of the sen-
sor portion.
z There are adverse weather conditions,
such as rain, snow, sand storms, etc.
z A vehicle in front or an oncoming vehi-
cle is splashing water, snow or dirt.
The “DRIVER ASSISTANCE CAMERA BLOCKED” message will appear and the
indicator will appear on the information screen of the multi-information display.
When the sensor performance returns, the
FCM functions will resume operation.
If the display keeps showing the message,
there is a possibility that the sensor has a malfunction. Contact a MITSUBISHI
MOTORS Authorized Service Point for in-
spection of the sensor.
NOTEz The “DRIVER ASSISTANCE CAMERA
BLOCKED” message may temporarily ap-
pear on the information screen when the sen-
sor cannot detect a vehicle, a pedestrian or an object within range. This is not a mal-
function. When a vehicle or an object comes
within range, the FCM function will resume and the message will go off.
z The “DRIVER ASSISTANCE CAMERA
BLOCKED” message may appear on the in-
formation screen when driving on a non- busy road with a few vehicles and obstacles
in front.
If the system becomes temporarily unavaila-
ble for some reason, the following message
may appear.
The
indicator will appear on the informa-
tion screen of the multi information display
and the FCM will automatically be turned off. If the display keeps showing the mes-
sage, there is a possibility that the FCM has a
malfunction. Contact a MITSUBISHI
MOTORS Authorized Service Point for in-
spection of the system.
If the system becomes temporarily unavaila-
ble due to a high or low temperature of the
sensor, the following warning message willappear.
The
indicator will appear on the informa-
tion screen of the multi information display
and the FCM will automatically be turned off. After the temperature of the sensor has
been in range, the system will automatically
return to operation.
If the display keeps showing the message,
there is a possibility that the FCM has a mal-
function. Contact a MITSUBISHI MOTORS
Authorized Service Point for inspection of
the system.
Forward Collision Mitigation system (FCM)*
6-962.7(20(1Starting and driving6

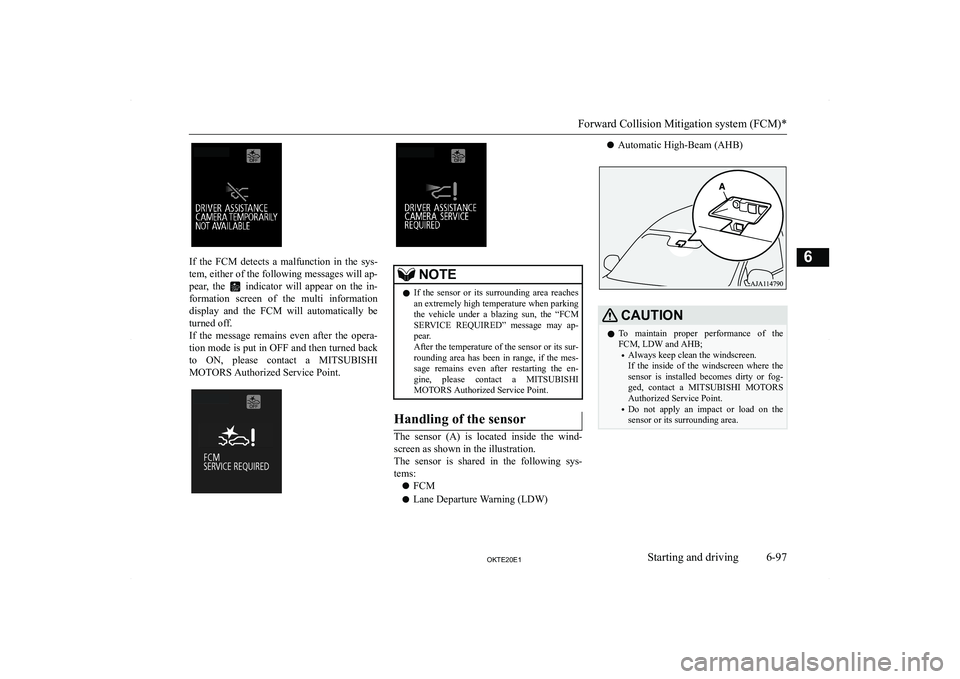

If the FCM detects a malfunction in the sys-
tem, either of the following messages will ap- pear, the
indicator will appear on the in-
formation screen of the multi information display and the FCM will automatically beturned off.
If the message remains even after the opera-
tion mode is put in OFF and then turned back to ON, please contact a MITSUBISHI
MOTORS Authorized Service Point.
NOTEz If the sensor or its surrounding area reaches
an extremely high temperature when parking the vehicle under a blazing sun, the “FCMSERVICE REQUIRED” message may ap-
pear.
After the temperature of the sensor or its sur-
rounding area has been in range, if the mes-
sage remains even after restarting the en- gine, please contact a MITSUBISHI
MOTORS Authorized Service Point.Handling of the sensor
The sensor (A) is located inside the wind-
screen as shown in the illustration.
The sensor is shared in the following sys-
tems:
z FCM
z Lane Departure Warning (LDW)
zAutomatic High-Beam (AHB)CAUT,ONz To maintain proper performance of the
FCM, LDW and AHB;

CAUT,ON

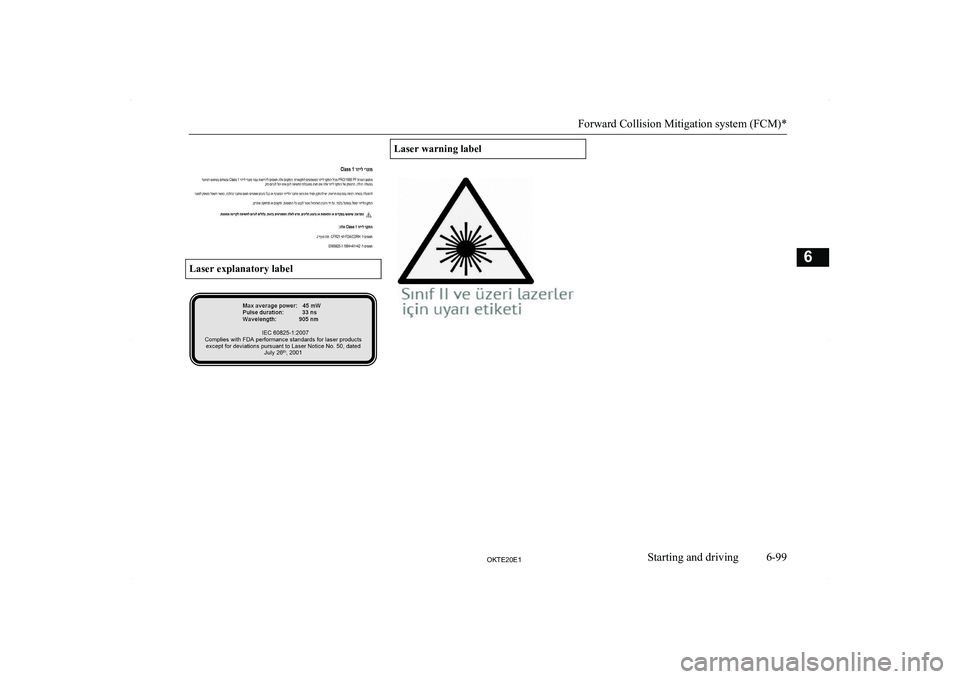

Laser explanatory label
Laser warning label
Forward Collision Mitigation system (FCM)*
6-992.7(20(1Starting and driving6

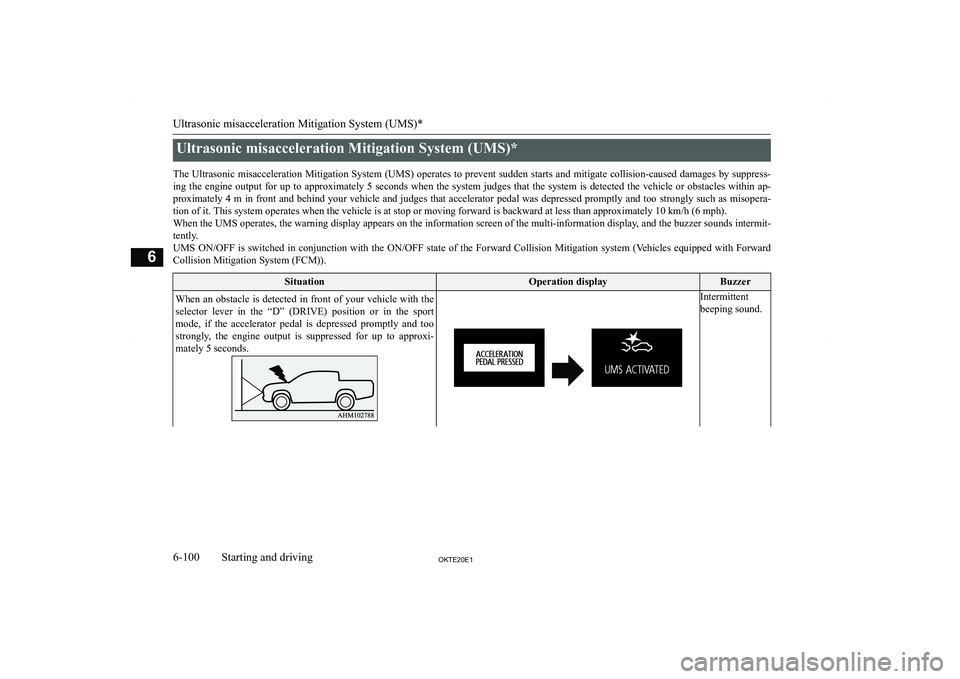

Ultrasonic misacceleration Mitigation System (UMS)*
The Ultrasonic misacceleration Mitigation System (UMS) operates to prevent sudden starts and mitigate collision-caused damages by suppress- ing the engine output for up to approximately 5 seconds when the system judges that the system is detected the vehicle or obstacles within ap-
proximately 4 m in front and behind your vehicle and judges that accelerator pedal was depressed promptly and too strongly such as misopera-
tion of it. This system operates when the vehicle is at stop or moving forward is backward at less than approximately 10 km/h (6 mph).
When the UMS operates, the warning display appears on the information screen of the multi-information display, and the buzzer sounds intermit- tently.
UMS ON/OFF is switched in conjunction with the ON/OFF state of the Forward Collision Mitigation system (Vehicles equipped with Forward
Collision Mitigation System (FCM)).SituationOperation displayBuzzerWhen an obstacle is detected in front of your vehicle with the
selector lever in the “D” (DRIVE) position or in the sport
mode, if the accelerator pedal is depressed promptly and too strongly, the engine output is suppressed for up to approxi-
mately 5 seconds.

Intermittent
beeping sound.
