sensor MITSUBISHI LANCER 2006 Workshop Manual

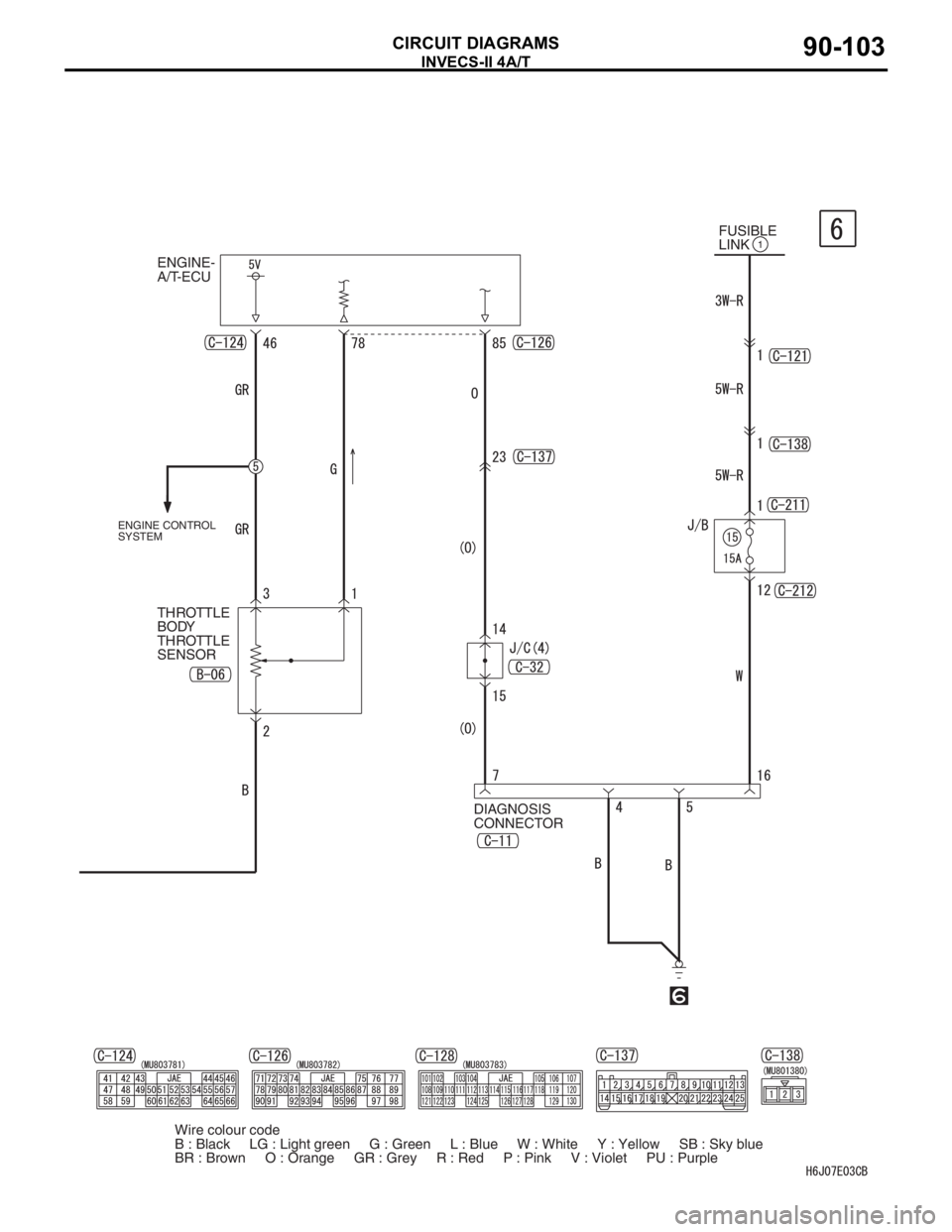

INVECS-II 4A/T
CIRCUIT DIAGRAMS90-103
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple ENGINE-
A/T-ECU
THROTTLE
BODY
THROTTLE
SENSOR
DIAGNOSIS
CONNECTORFUSIBLE
LINK
ENGINE CONTROL
SYSTEM
1

INVECS-II 4A/T
CIRCUIT DIAGRAMS90-105
ENGINE
CONTROL
SYSTEM
METER AND
GAUGE
(FUSE )3
RELAY
BOX
OUTPUT
SHAFT
SPEED
SENSORINPUT
SHAFT
SPEED
SENSOR
ENGINE-
A/T-ECU
NOTE
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER ·FRONT
FOG LAMP
·HEADLAMP
·HEADLAMP
LEVELLING SYSTEM
·HEADLAMP
WASHER
·REAR FOG LAMP

INVECS-II 4A/T
CIRCUIT DIAGRAMS90-108
INVECS-II 4A/T <4G6 (LHD)> (CONTINUED)
A/T
CONTROL
RELAY
A/T CONTROL
SOLENOID
VALVE ASSEMBLY
ENGINE CONTROL
SYSTEM
ENGINE-
A/T-ECU
NOTE
:
:
:
:
: UNDERDRIVE
SOLENOID VALVE
SECOND
SOLENOID VALVE
DAMPER CLUTCH
CONTROL
SOLENOID VALVE OVERDRIVE
SOLENOID VALVE
LOW AND REVERSE
SOLENOID VALVE
A/T FLUID
TEMPERATURE
SENSOR
FRONT
SIDE

INVECS-II 4A/T
CIRCUIT DIAGRAMS90-109

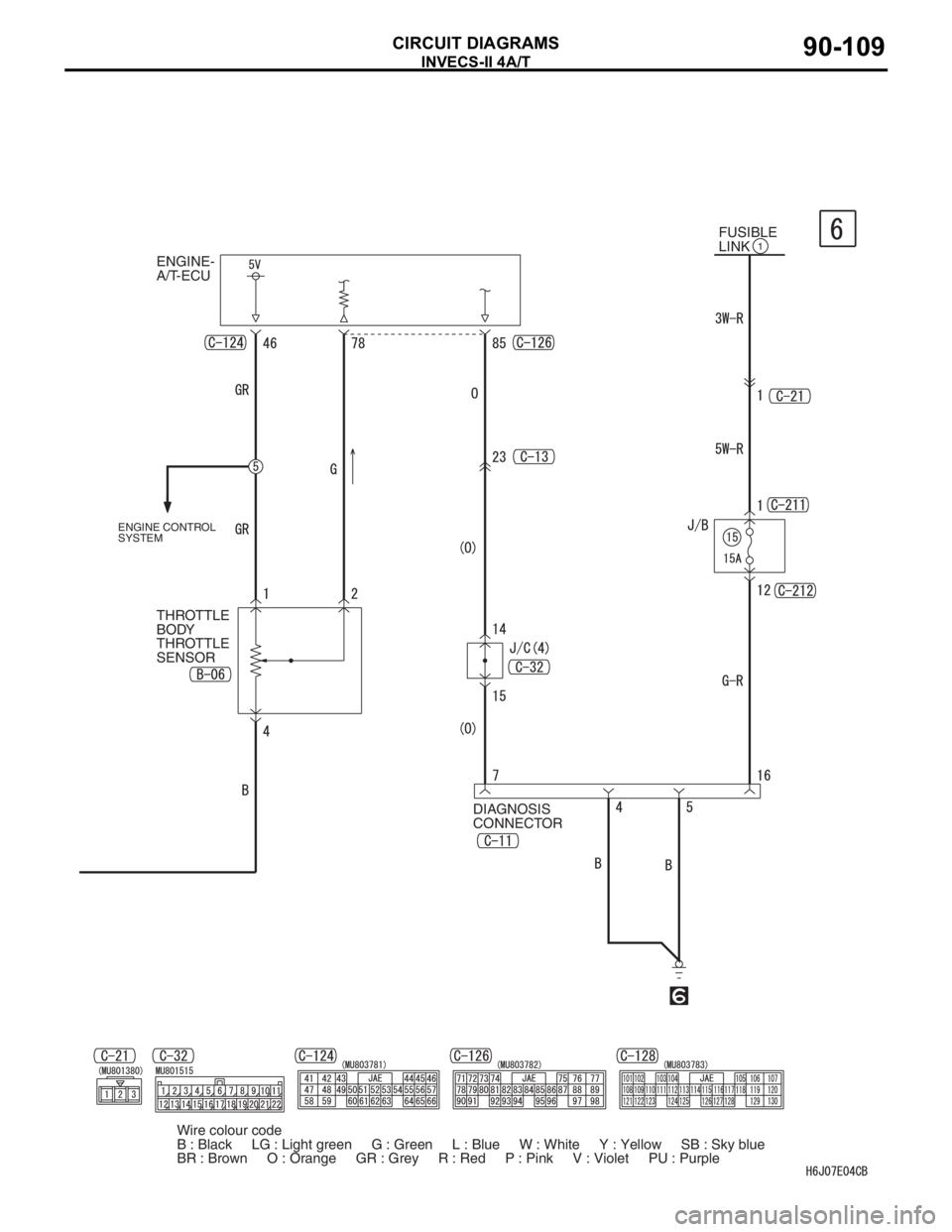

ENGINE-
A/T-ECU
THROTTLE
BODY
THROTTLE
SENSOR
DIAGNOSIS
CONNECTORFUSIBLE
LINK
ENGINE CONTROL
SYSTEM
1
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

METER AND GAUGE
CIRCUIT DIAGRAMS90-190
METER AND GAUGE (CONTINUED)
VEHICLE
SPEED
SENSOR(FUSE )
2
(FUSE )3
ENGINE
CONTROL
SYSTEMINVECS-II 4A/T
ENGINE-A/T-ECU
OUTPUT
SHAFT
SPEED
SENSORA/T
CONTROL
RELAY
INVECS-II 4A/T
NOTE
:
: 4G1
4G6

METER AND GAUGE
CIRCUIT DIAGRAMS90-194
METER AND GAUGE (CONTINUED)
VEHICLE
SPEED
SENSOR
ENGINE
CONTROL
SYSTEMINVECS-II 4A/T
ENGINE-A/T-ECU
OUTPUT
SHAFT
SPEED
SENSORA/T
CONTROL
RELAY
INVECS-II 4A/T
(FUSE )2
COMBINATION
METER(FUSE )3
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple

MANUAL AIR CONDITIONER
CIRCUIT DIAGRAMS90-257
REAR WINDOW
DEFOGGER AND
DOOR MIRROR
HEATER
HEATER CONTROL PANEL OUTSIDE/INSIDE
AIR SELECTION
DAMPER CONTROL
MOTORTAIL LAMP
RELAY FRONT-ECU
A/C-ECU
RHEOSTAT
AIR THERMO
SENSOR
RELAY
BOX
TAIL LAMP, POSITION
LAMP, LICENCE
PLATE LAMP AND
LIGHTING MONITOR
BUZZER
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

MANUAL AIR CONDITIONER
CIRCUIT DIAGRAMS90-261
REAR WINDOW
DEFOGGER AND
DOOR MIRROR
HEATER
HEATER CONTROL PANEL OUTSIDE/INSIDE
AIR SELECTION
DAMPER CONTROL
MOTORTAIL LAMP
RELAY FRONT-ECU
A/C-ECU
RHEOSTAT
TAIL LAMP, POSITION
LAMP, LICENCE
PLATE LAMP AND
LIGHTING MONITOR
BUZZER
AIR THERMO
SENSOR
RELAY
BOX
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

AUTOMATIC AIR CONDITIONER
CIRCUIT DIAGRAMS90-265
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
TAIL LAMP
RELAY FRONT-ECU
RELAY
BOX
TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
A/C-ECU
OUTSIDE
THERMO
SENSOR INSIDE AIR
TEMPERATURE
SENSOR
RHEOSTAT

AUTOMATIC AIR CONDITIONER
CIRCUIT DIAGRAMS90-268

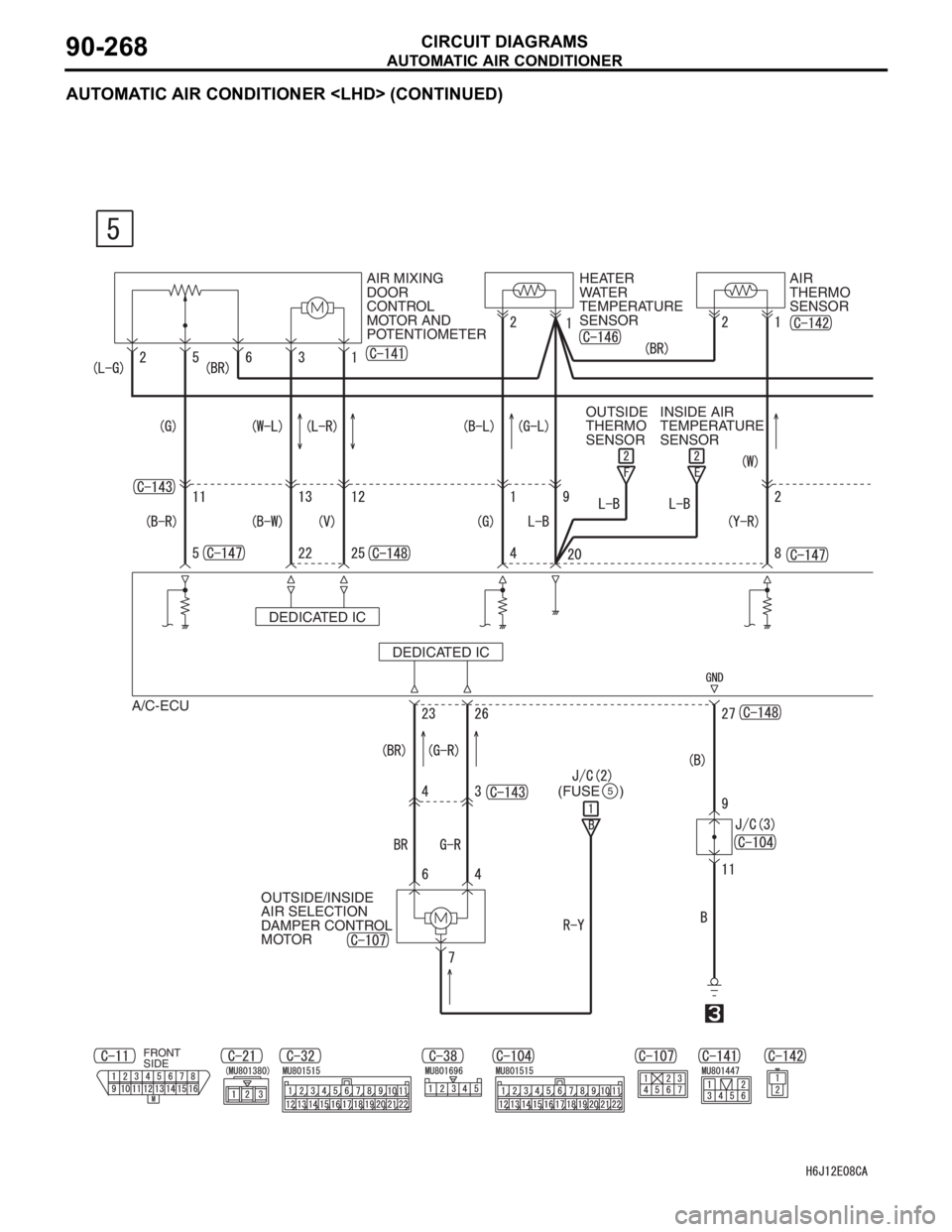

AUTOMATIC AIR CONDITIONER (CONTINUED)
AIR MIXING
DOOR
CONTROL
MOTOR AND
POTENTIOMETERHEATER
WATER
TEMPERATURE
SENSORAIR
THERMO
SENSOR
OUTSIDE
THERMO
SENSORINSIDE AIR
TEMPERATURE
SENSOR
DEDICATED IC
DEDICATED IC
OUTSIDE/INSIDE
AIR SELECTION
DAMPER CONTROL
MOTOR(FUSE )
5
FRONT
SIDE
A/C-ECU
