MITSUBISHI LANCER 2006 Workshop Manual
Page 607 of 800
ROOM LAMP AND LUGGAGE COMPARTMENT LAMP
CIRCUIT DIAGRAMS90-143
RELAY
BOX BATTERY
1FUSIBLE
LINK
·FRONT FOG LAMP
·HEADLAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER
WITHOUT
KEYLESS ENTRYWITH
KEYLESS ENTRY
LOAD
DETERMINATION
CIRCUIT KEEP RELAY
TRUNK LID
LATCH
SWITCH LUGGAGE
COMPARTMENT
LAMP
DIAGNOSIS
CONNECTOR
J/B SIDE FRONT
SIDE
Page 608 of 800
ROOM LAMP AND LUGGAGE COMPARTMENT LAMP
CIRCUIT DIAGRAMS90-144
ROOM LAMP AND LUGGAGE COMPARTMENT LAMP (CONTINUED)
COMBINATION
METER
KEY
REMINDER
SWITCH
(WHEN
REMOVING
KEY: ON) ETACS-
ECU
J/B SIDE
DOOR
SWITCH
(FRONT: LH)DOOR
SWITCH
(REAR: LH)DOOR
SWITCHDOOR
SWITCH
(FRONT: RH) (REAR: RH)
Page 611 of 800
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-147
BATTERY1FUSIBLE
LINK
POWER
SOURCEWITHOUT
KEYLESS ENTRYWITH
KEYLESS ENTRY
LOAD
DETERMINATION
CIRCUIT KEEP RELAY·FRONT FOG LAMP
·HEADLAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER ·HEADLAMP WASHER ·HEADLAMP LEVELLING
SYSTEM
·REAR FOG LAMP
COMBINATION
METER
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple

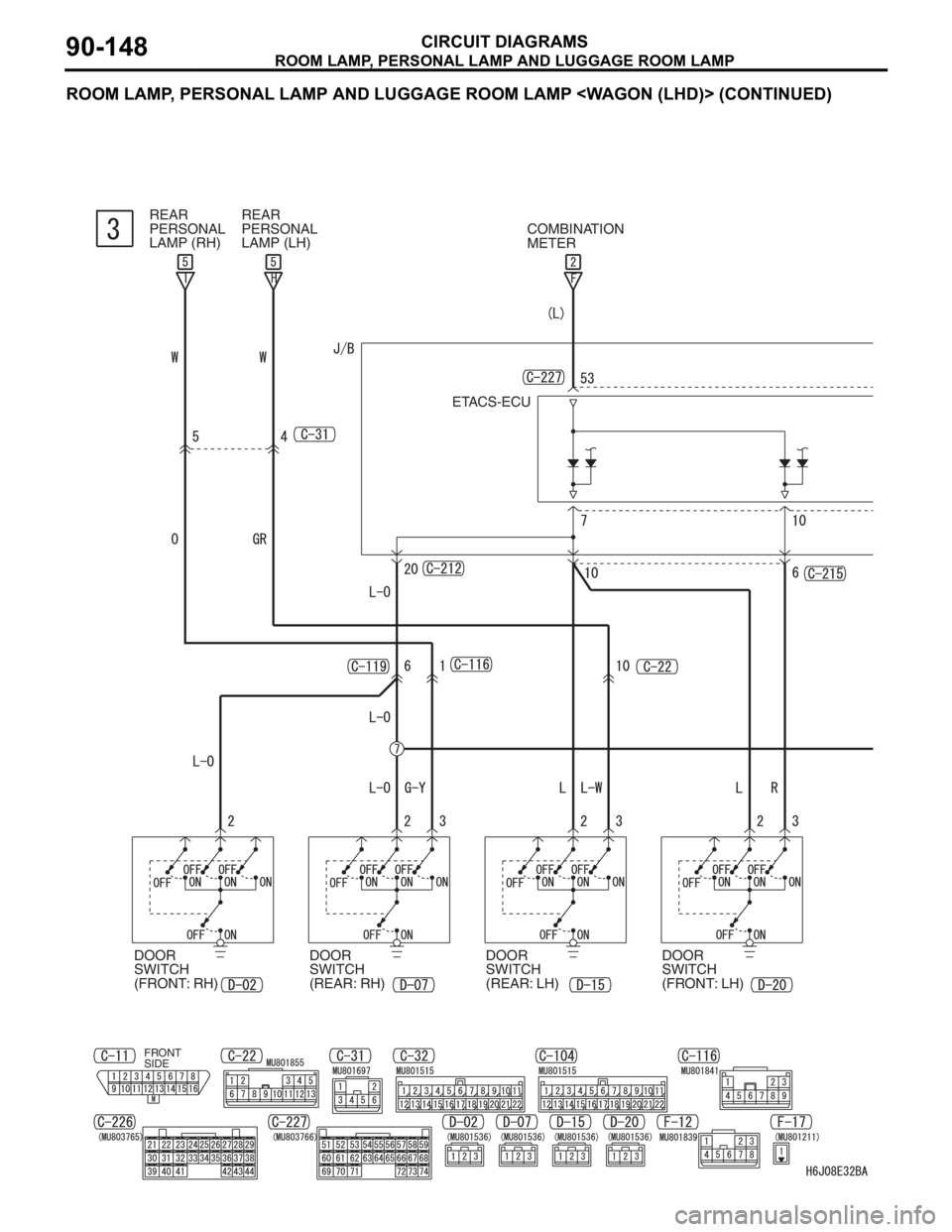

Page 612 of 800
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-148
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP (CONTINUED)
FRONT
SIDE
COMBINATION
METER
ETACS-ECU
DOOR
SWITCH
(FRONT: RH)DOOR
SWITCH
(REAR: RH)DOOR
SWITCH
(REAR: LH)DOOR
SWITCH
(FRONT: LH) REAR
PERSONAL
LAMP (LH) REAR
PERSONAL
LAMP (RH)
Page 614 of 800
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-150
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP (CONTINUED)
REAR
PERSONAL
LAMP (LH)REAR
PERSONAL
LAMP (RH) FRONT
ROOM
LAMP
FRONT
ROOM
LAMPREAR
ROOM
LAMP ETACS-
ECU
ETACS-
ECUETACS-
ECU ETACS-
ECU
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 617 of 800
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-153
BATTERY1FUSIBLE
LINK
·FRONT FOG LAMP
·HEADLAMP LEVELLING
SYSTEM ·HEADLAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER
POWER
SOURCEWITHOUT
KEYLESS ENTRYWITH
KEYLESS ENTRY
LOAD
DETERMINATION
CIRCUIT KEEP RELAY
J/B SIDE·REAR FOG LAMP
COMBINATION
METER

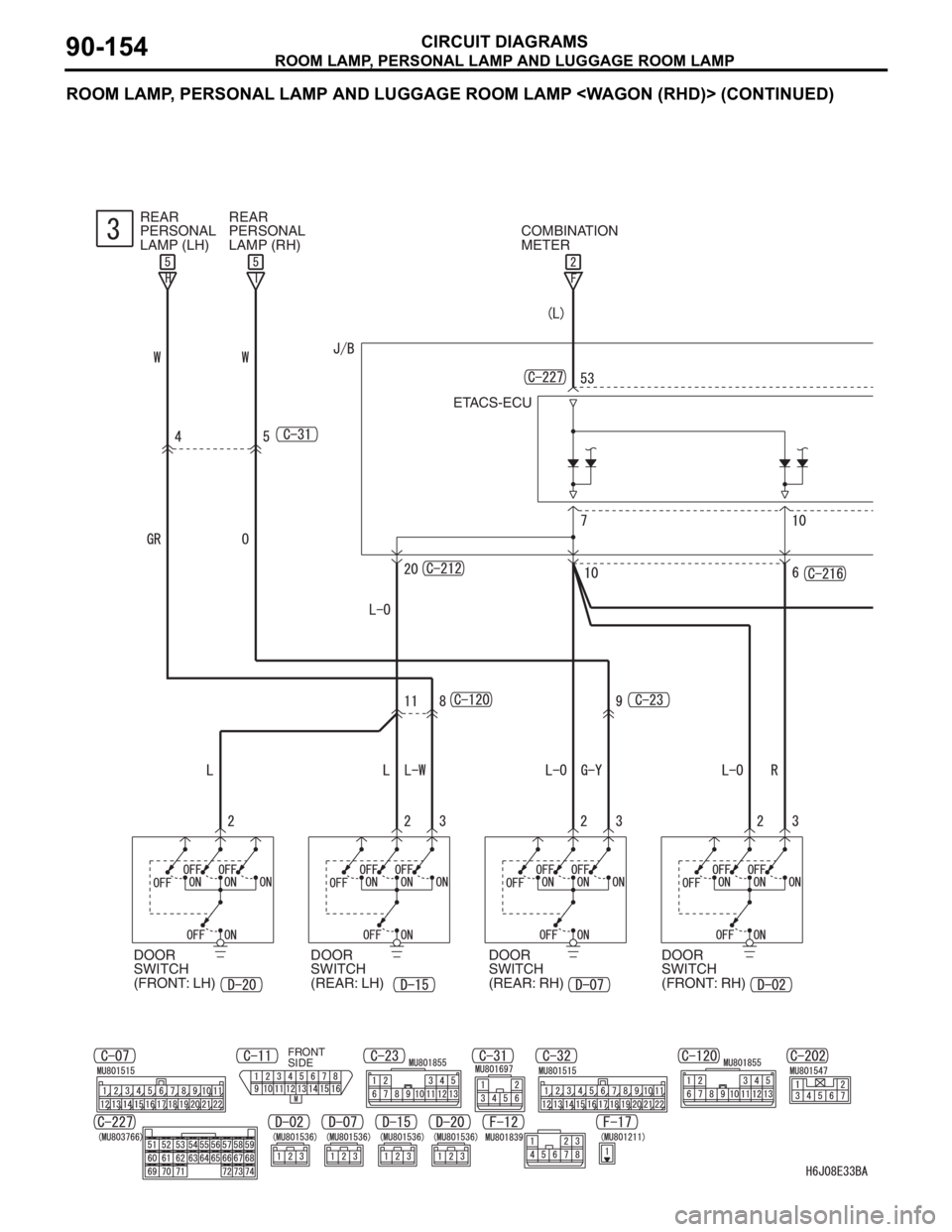

Page 618 of 800
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-154
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP (CONTINUED)
FRONT
SIDE
COMBINATION
METER
ETACS-ECU
DOOR
SWITCH
(FRONT: LH)DOOR
SWITCH
(REAR: LH)DOOR
SWITCH
(REAR: RH)DOOR
SWITCH
(FRONT: RH) REAR
PERSONAL
LAMP (RH) REAR
PERSONAL
LAMP (LH)

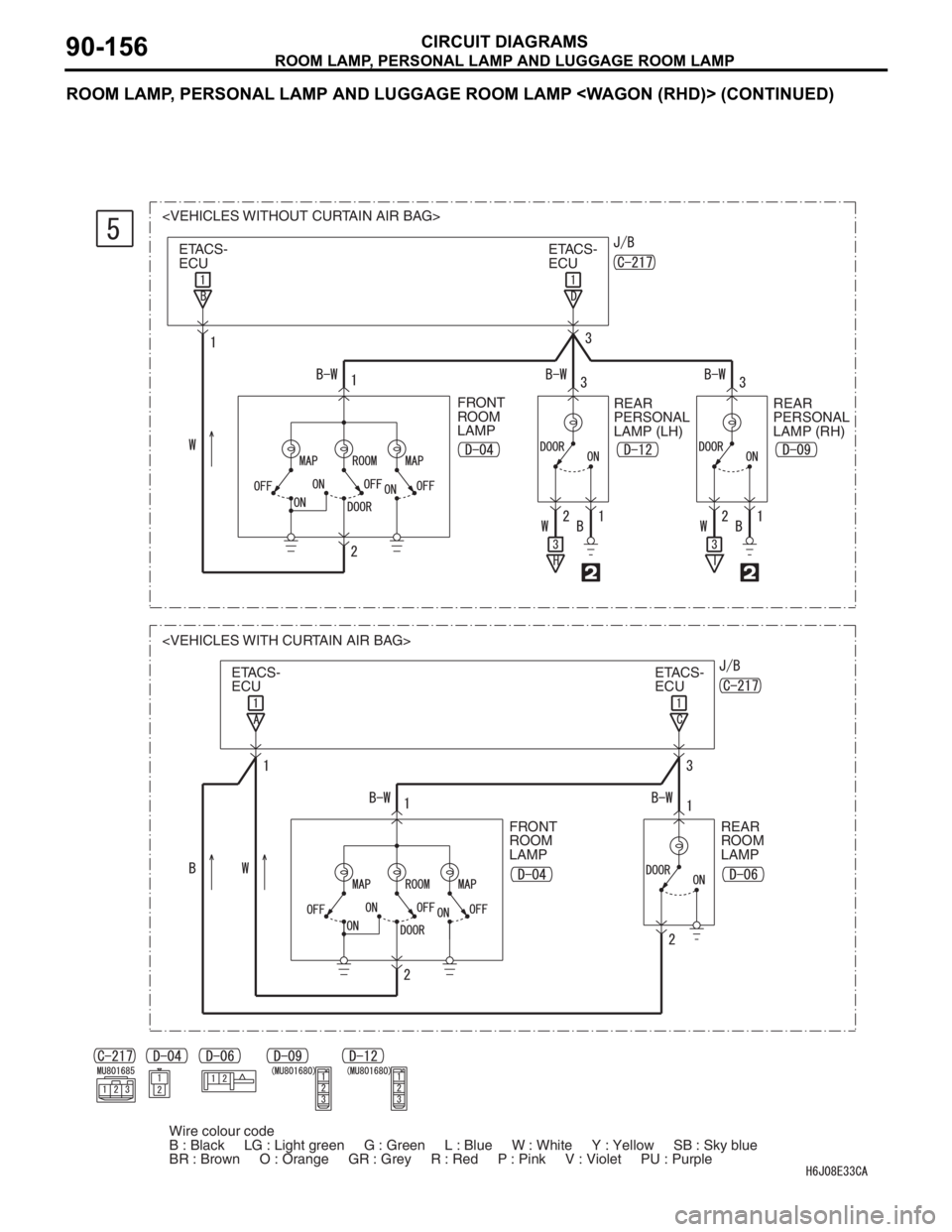

Page 620 of 800
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-156
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP (CONTINUED)
REAR
PERSONAL
LAMP (LH)REAR
PERSONAL
LAMP (RH) FRONT
ROOM
LAMP
FRONT
ROOM
LAMPREAR
ROOM
LAMP ETACS-
ECU
ETACS-
ECUETACS-
ECU ETACS-
ECU
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 622 of 800
REAR FOG LAMP
CIRCUIT DIAGRAMS90-158
REAR FOG LAMP
REAR FOG LAMP M1901012000618
J/B SIDE RHEOSTAT
BATTERY
(FUSE )5
RELAY
BOX
FRONT-ECU
ETACS-ECUPOWER
SOURCE TAIL
LAMP
RELAY
TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
RELAY
BOX
FOG LAMP
SWITCH
Page 624 of 800
REAR FOG LAMP
CIRCUIT DIAGRAMS90-160
REAR FOG LAMP (CONTINUED)
REAR FOG
LAMP RELAY (FUSE )
16
ETACS-ECU
COMBINATION
METER REAR
FOG
LAMP
FRONT SIDE
J/B SIDE
NOTE: SEDAN
: WAGON
