sensor MITSUBISHI LANCER 2006 Repair Manual

AC301139AB
9
10
11
13
B-05B-07B-01
B-10X
B-14X
B-16X
B-17X
B-18
Battery wiring
harness
B-22
B-24B-06
B-08
B-23B-21
Earth
cable
B-16X(4)Engine control relay
B-17X(4)A/C compressor relay
B-18(6-B)Control wiring harness and battery wiring
harness combination
B-21(4-B)Engine control oxygen sensor (Front)
B-22(1)Sta rt er
B-23(1-B)Sta rt er
B-24(1-B)Engine oil pressure switch
B-25(1)Alternator
B-26(4-GR)Alternator
ENGINE AND TRA
N SMISSION
CONF IGURA TION D I A G RA MS80-23

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-24
ENGINE AND TRANSMISSION <4G6-MPI (RHD)> (CONTINUED)
AC301138AE
B-117B-105 B-101
B-113
B-114
B-115
B-116
Control wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
-101
thru
-118
B
B-101(2-BR)Emission solenoid
valve (EGR system)
B-103(6-B)Throttle body idle speed control servo
B-104(3-GR)Ignition coil 1
B-105(2-B)Emission solenoid va lve (Purge control
system)
B-106(1-B)Capacitor
B-107(3-B)Camshaft position sensor
B-110(2-B)Back-up lamp switch

AC301139AC
9
11
13
B-103B-106
B-118
B-112
Battery wiring
harness
B-110
B-111
B-107
B-104
10
Earth cable
B-111(2-B)Water temperature sensor unit
B-112(1-B)Water temperature gauge unit
B-113(3-GR)Ignition coil 2
B-114(1-B)A/C compressor
B-115(1-B)Power steering fluid pressure switch
B-116(3-B)Engine crank angle sensor
B-117(2-GR)Engine control detonation sensor
B-118(28-GR)ABS-ECU
ENGINE AND TRA N SMISSION
CONF IGURA TION D I A G RA MS80-25

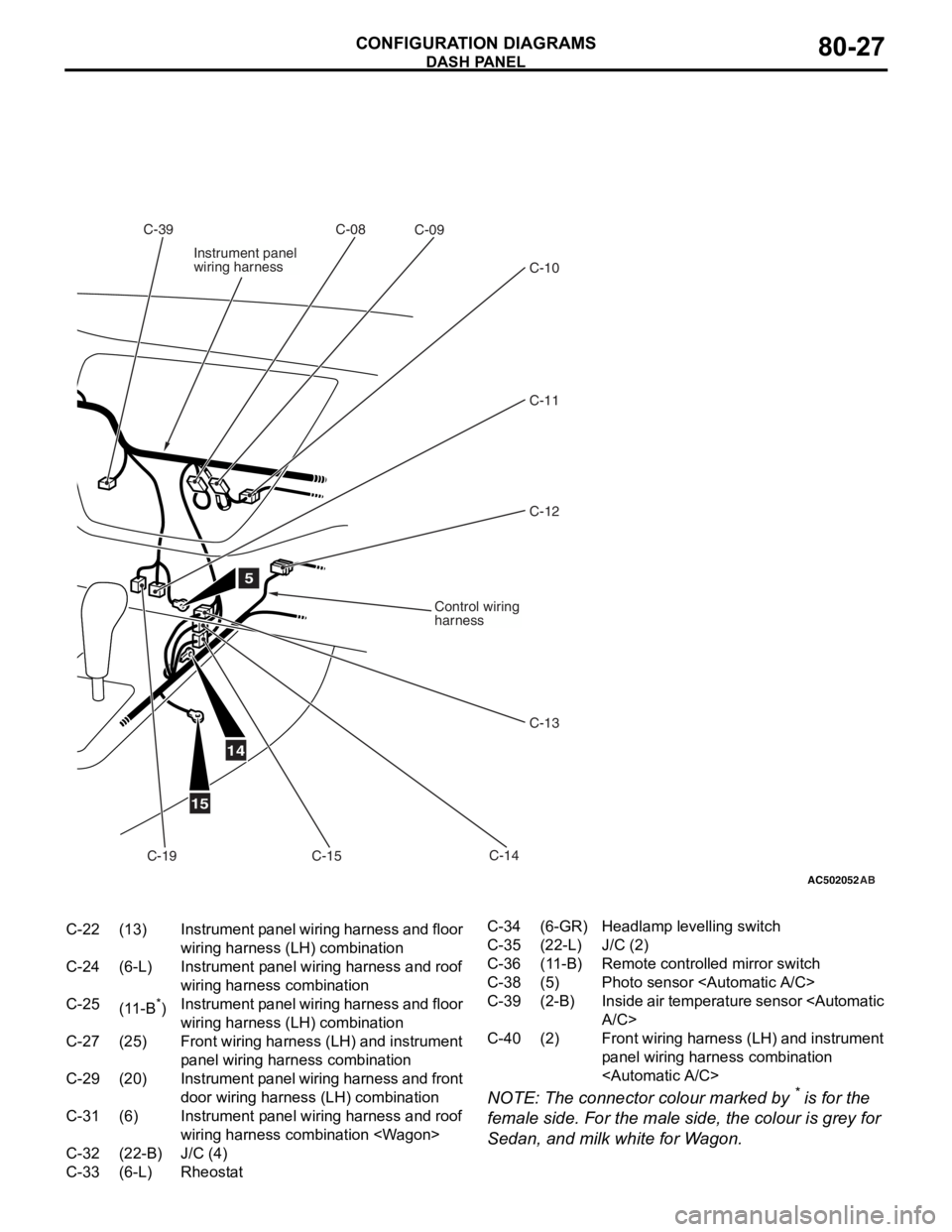

AC502052AB
5
14
15
C-08C-39C-09
C-11C-12
C-10
C-14
C-15
C-13
Instrument panel
wiring harness
Control wiring
harness
C-19
C-22(13)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-24(6-L)Instrument panel wiring harness and roof
wiring harness combination
C-25(11-B*)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-27(25)Front wiring harness (LH) and instrument
panel wiring harn ess combination
C-29(20)Instrument panel wiring harness and front
door wiring harness (LH) combination
C-31(6)Instrument panel wiring harness and roof
wiring harness combination
C-32(22-B)J/C (4)
C-33(6-L)Rheostat
C-34(6-GR)Headlamp levelling switch
C-35(22-L)J/C (2)
C-36(11-B)Remote controlled mirror switch
C-38(5)Photo sensor
C-39(2-B)Inside air temperature sensor A/C>
C-40(2)Front wiring harness (LH) and instrument
panel wiring harness combination

DASH P ANEL
CONF IGURA TION D I A G RA MS80-27
NOTE: The conn ecto r colour marked by * is fo r the
female side. F
o
r the male
side, the
colour is grey for
Se
dan, a
nd milk white f
o
r W
a
g
on.

DASH PANEL
CONFIGURATION DIAGRAMS80-28
DASH PANEL (CONTINUED)

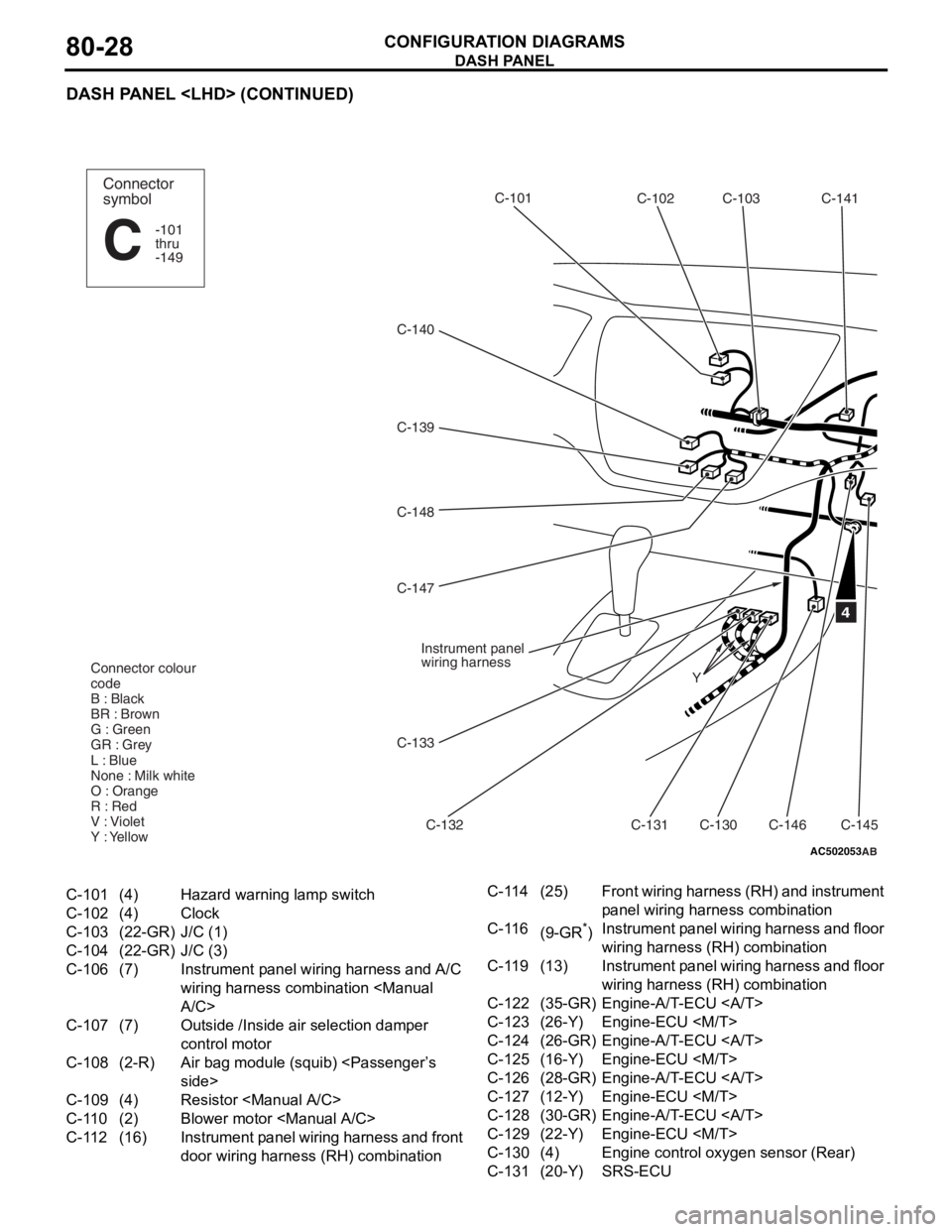

AC502053
C-140C-102
C-103
C-141
C-101
C-132
C-139
C-148
C-130
C-146C-145
Y
4
Connector
symbol
-101
thru
-149
C
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Instrument panel
wiring harness
C-131
C-133
C-147
AB
C-101(4)Hazard warning lamp switch
C-102(4)Clock
C-103(22-GR)J/C (1)
C-104(22-GR)J/C (3)
C-106(7)Instrument panel wiring harness and A/C
wiring harness combination A/C>
C-107(7)Outside /Inside air selection damper
control motor
C-108(2-R)Air bag module (squib) side>
C-109(4)Resistor
C-110(2)Blower motor
C-112(16)Instrument panel wiring harness and front
door wiring harness (RH) combination
C-114(25)Front wiring harness (RH) and instrument
panel wiring har
ness combination
C-116(9-GR*)Instrument panel wiring harness and floor
wiring harness (RH) combination
C-119(13)Instrument panel wiring harness and floor
wiring harness (RH) combination
C-122(35-GR)Engine-A/T-ECU
C-123(26-Y)Engine-ECU
C-124(26-GR)Engine-A/T-ECU
C-125(16-Y)Engine-ECU
C-126(28-GR)Engine-A/T-ECU
C-127(12-Y)Engine-ECU
C-128(30-GR)Engine-A/T-ECU
C-129(22-Y)Engine-ECU
C-130(4)Engine control oxygen sensor (Rear)
C-131(20-Y)SRS-ECU

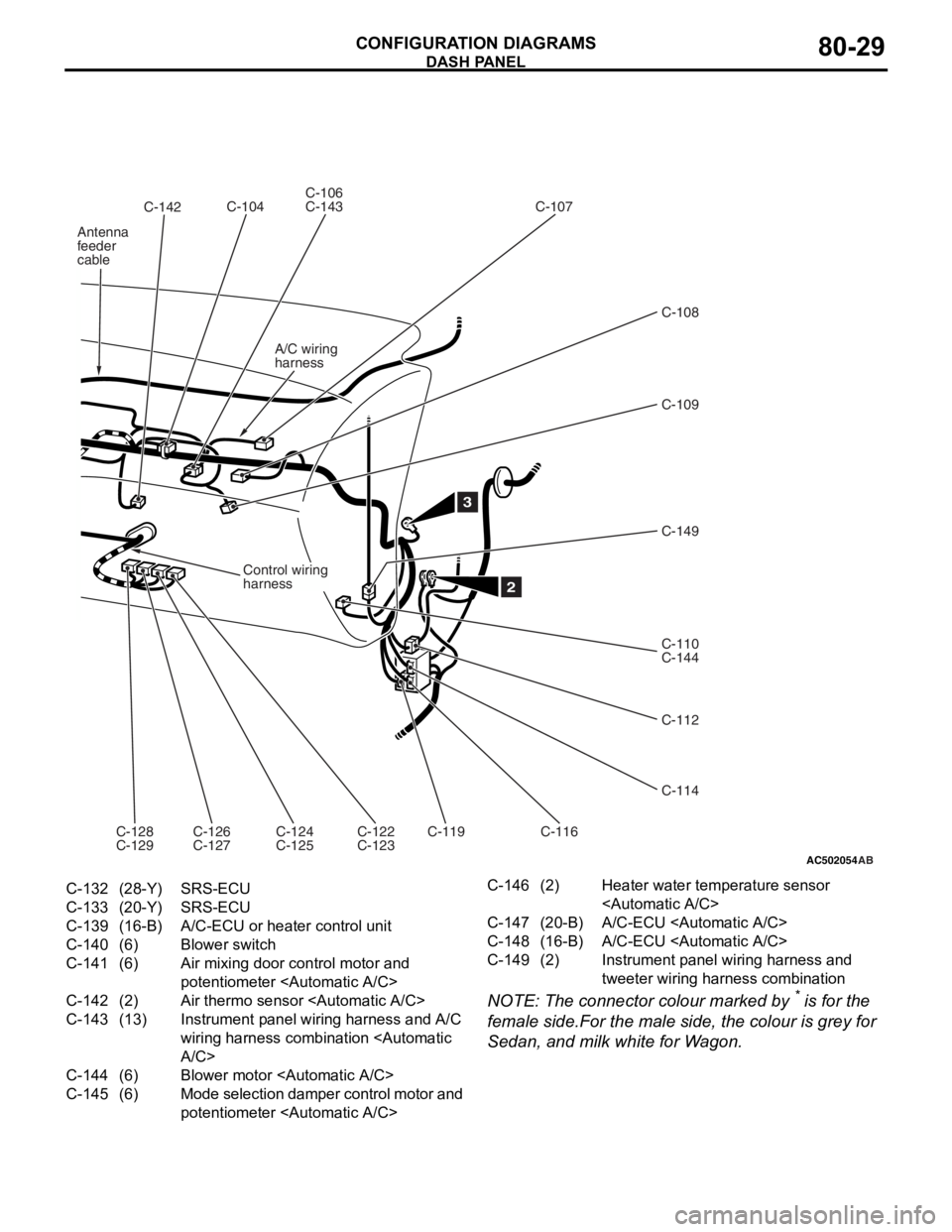

AC502054
C-142
AB
C-104C-106
C-143
C-107
C-109
C-149
C-110
C-144
C-112
C-114
C-116
C-119
C-126
C-127
C-128
C-129
2
C-108
C-124
C-125C-122
C-123
3
Control wiring
harness
A/C wiring
harness
Antenna
feeder
cable
C-132(28-Y)SRS-ECU
C-133(20-Y)SRS-ECU
C-139(16-B)A/C-ECU or heater control unit
C-140(6)Blower switch
C-141(6)Air mixing door control motor and
potentiometer
C-142(2)Air thermo sensor
C-143(13)Instrument panel wiring harness and A/C
wiring harness combination A/C>
C-144(6)Blower motor
C-145(6)Mode selection damper control motor and
potentiometer
C-146(2)Heater water temperature sensor

C-147(20-B)A/C-ECU
C-148(16-B)A/C-ECU
C-149(2)Instrument panel wiring harness and
tweeter wiring harn
ess combination
DASH P ANEL
CONF IGURA TION D I A G RA MS80-29
NOTE: The conn ecto r colour marked by * is fo r the
female side.F
o
r the male
sid
e
, the
colour is grey for
Se
dan, a
nd milk white f
o
r W
a
g
on.

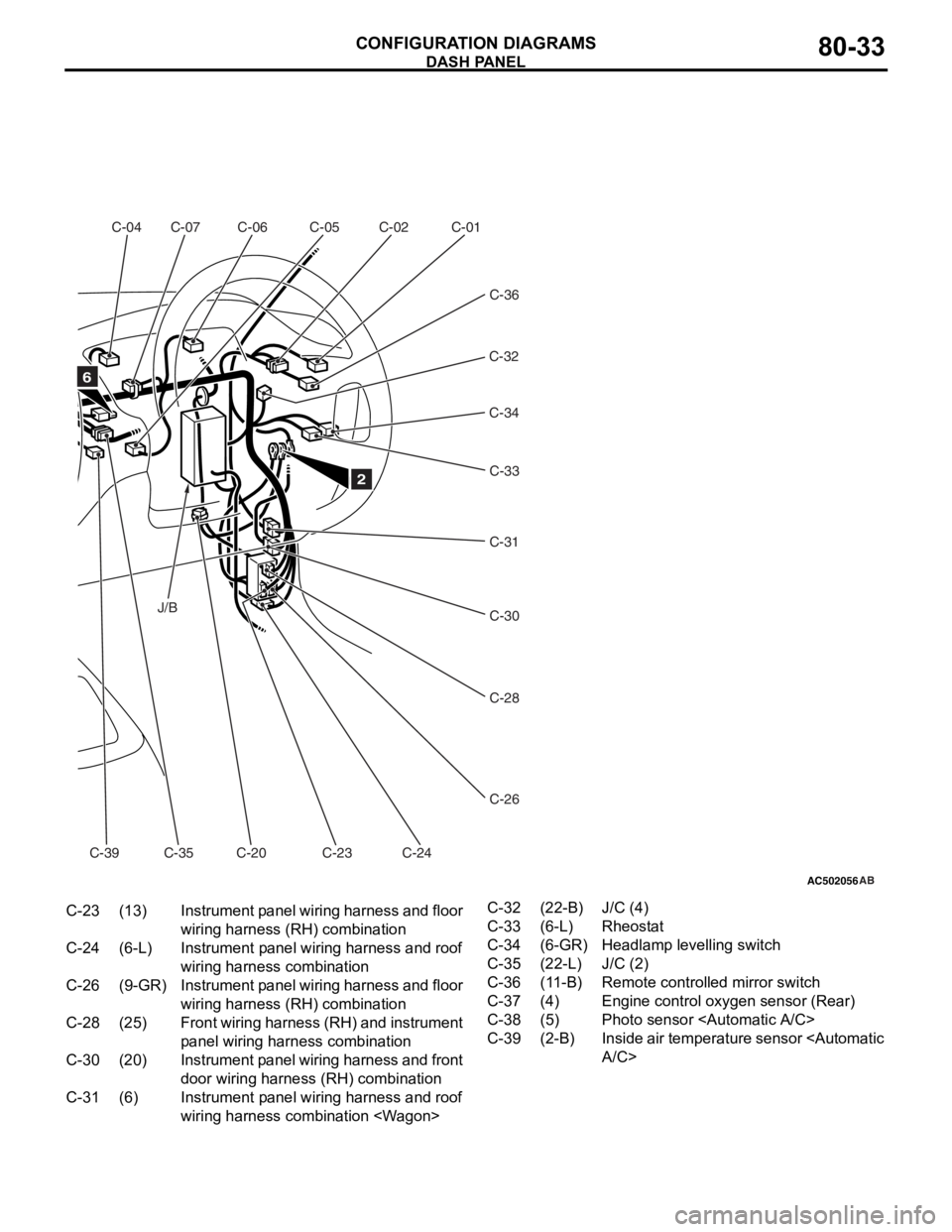

AC502056
C-39
AB
C-04 C-07 C-06 C-05 C-02 C-01J/B C-34
C-33
C-31
C-30
C-28
C-26
C-23 C-24
C-20 C-32
C-35
2
C-36
6
C-23(13)Instrument panel wiring harness and floor
wiring harness ( RH) combination
C-24(6-L)Instrument panel wiring harness and roof
wiring harness combination
C-26(9-GR)Instrument panel wiring harness and floor
wiring harness (RH) combination
C-28(25)Front wiring harness (RH) and instrument
panel wiring harn ess combination
C-30(20)Instrument panel wiring harness and front
door wiring harness (RH) combination
C-31(6)Instrument panel wiring harness and roof
wiring harness combination
C-32(22-B)J/C (4)
C-33(6-L)Rheostat
C-34(6-GR)Headlamp levelling switch
C-35(22-L)J/C (2)
C-36(11-B)Remote controlled mirror switch
C-37(4)Engine control oxygen sensor (Rear)
C-38(5)Photo sensor
C-39(2-B)Inside air temperature sensor A/C>
DASH P ANEL
CONF IGURA TION D I A G RA MS80-33

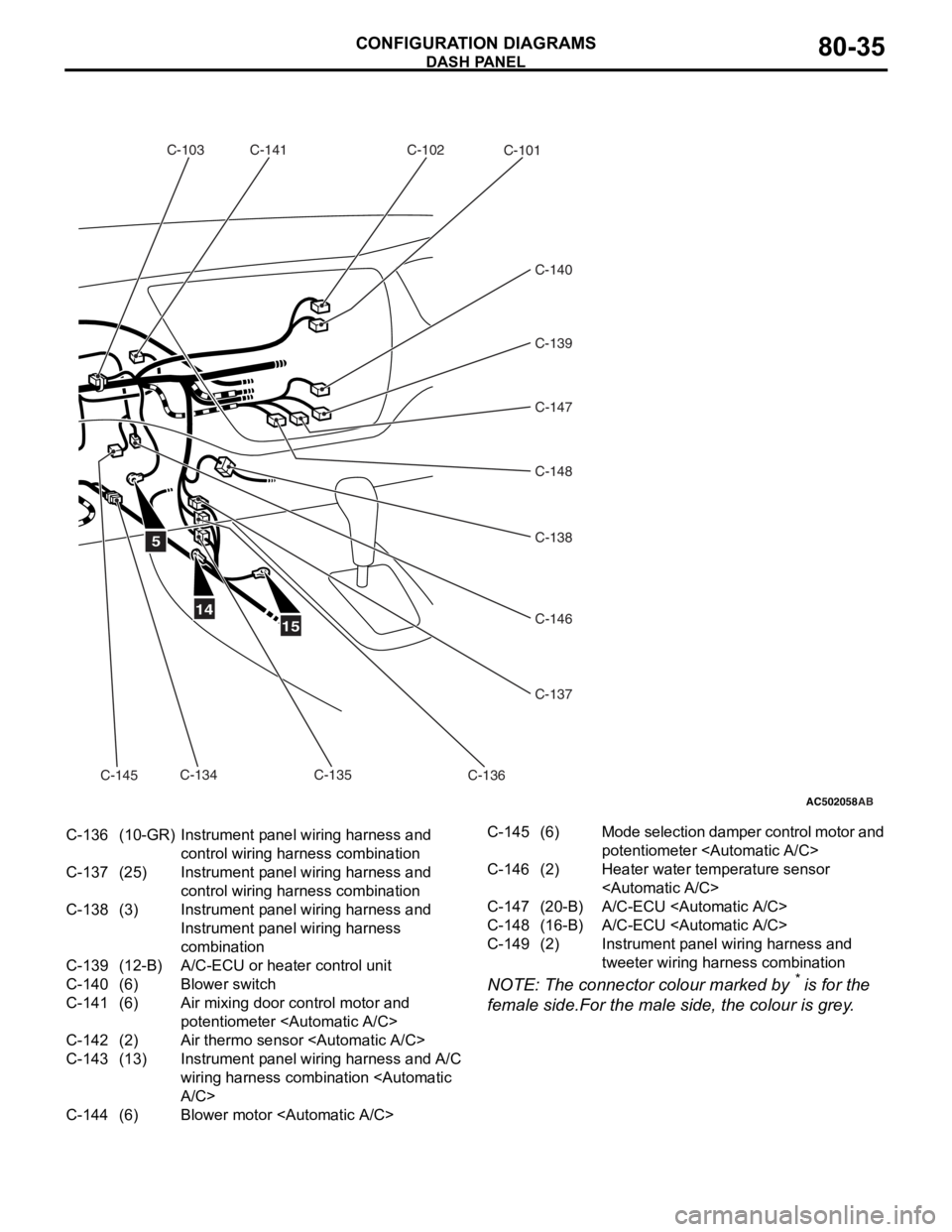

AC502058AB
5
14
15
C-103C-102
C-101
C-148
C-147C-138
C-146
C-137 C-140
C-139
C-136
C-135
C-134
C-145
C-141
C-136(10-GR)Instrument panel wiring harness and
control wiring harness combination
C-137(25)Instrument panel wiring harness and
control wiring harness combination
C-138(3)Instrument panel wiring harness and
Instrument panel wiring harness
combination
C-139(12-B)A/C-ECU or heater control unit
C-140(6)Blower switch
C-141(6)Air mixing door control motor and
potentiometer
C-142(2)Air thermo sensor
C-143(13)Instrument panel wiring harness and A/C
wiring harness combination A/C>
C-144(6)Blower motor
C-145(6)Mode selection damper control motor and
potentiometer
C-146(2)Heater water temperature sensor

C-147(20-B)A/C-ECU
C-148(16-B)A/C-ECU
C-149(2)Instrument panel wiring harness and
tweeter wiring harn ess combination
DASH P ANEL
CONF IGURA TION D I A G RA MS80-35
NOTE: The conn ecto r colour marked by * is fo r the
female side.F
o
r the male
sid
e
, the
colour is grey .

FLOOR AND ROOF
CONFIGURATION DIAGRAMS80-38
FLOOR AND ROOF
FLOOR AND ROOF M1801000901557

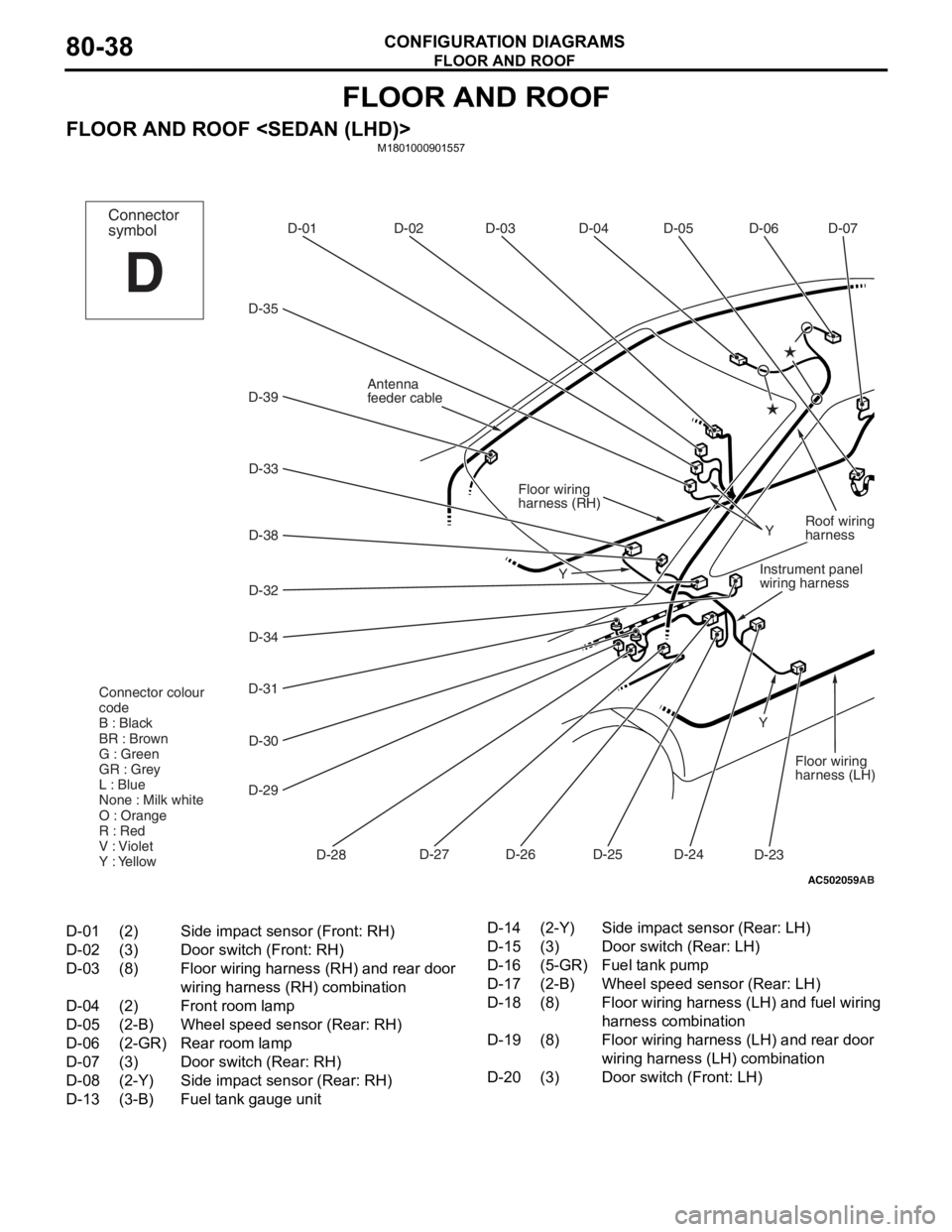

AC502059
D-06
D-07
D-05
D-04
D-03
D-02
D-01
D-35
D-39D-33
D-38D-32
D-34
D-31
D-30
D-29
D-25
D-28 D-27 D-24
D-23Y
Y Floor wiring
harness (LH)
Floor wiring
harness (RH)
Instrument panel
wiring harness
Connector
symbol
D
D-26
Roof wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Antenna
feeder cable
AB
Y
D-01(2)Side impact sensor (Front: RH)
D-02(3)Door switch (Front: RH)
D-03(8)Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04(2)Front room lamp
D-05(2-B)Wheel speed sensor (Rear: RH)
D-06(2-GR)Rear room lamp
D-07(3)Door switch (Rear: RH)
D-08(2-Y)Side impact sensor (Rear: RH)
D-13(3-B)Fuel tank gauge unit
D-14(2-Y)Side impact sensor (Rear: LH)
D-15(3)Door switch (Rear: LH)
D-16(5-GR)Fuel tank pump
D-17(2-B)Wheel speed sensor (Rear: LH)
D-18(8)Floor wiring harness (LH) and fuel wiring
harness combination
D-19(8)Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20(3)Door switch (Front: LH)

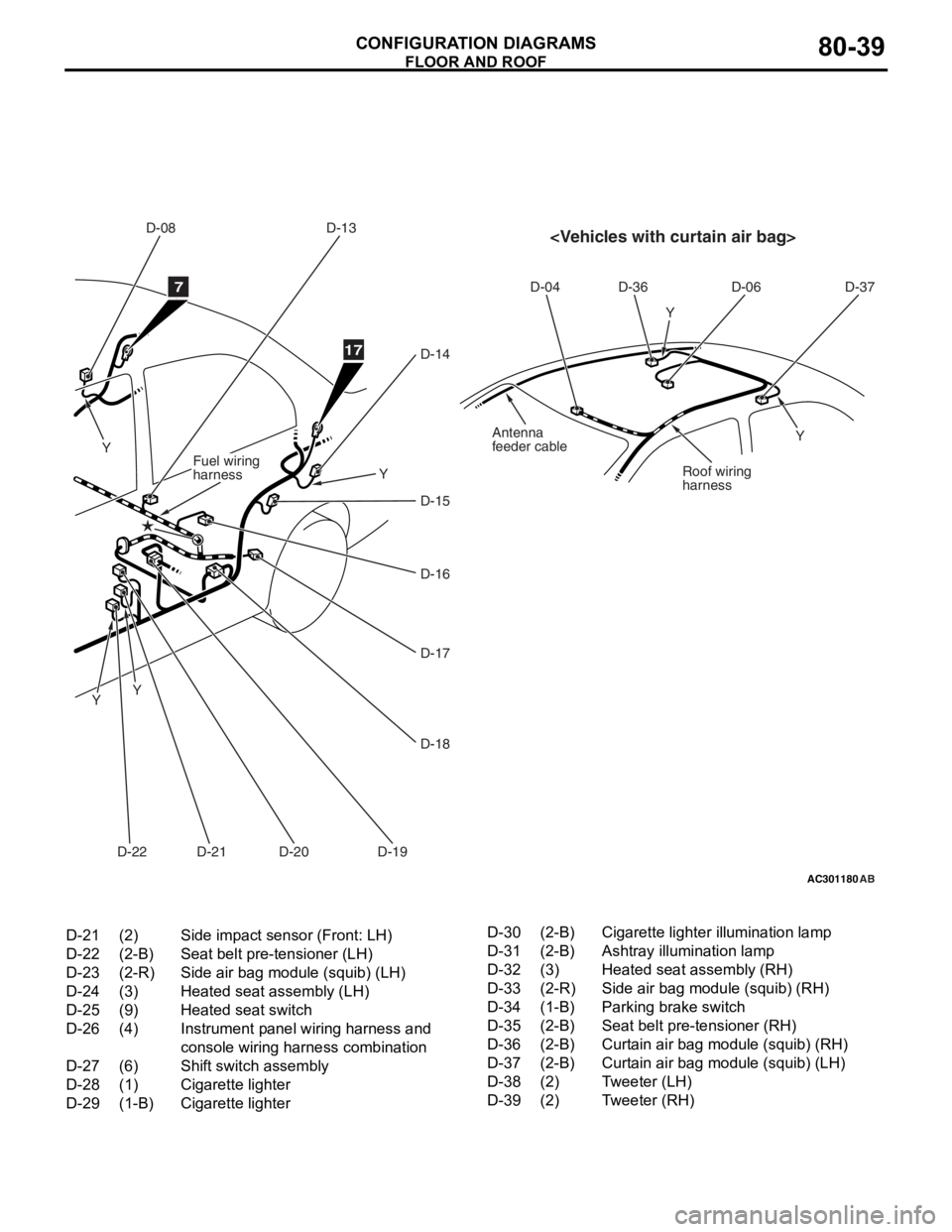

AC301180

AB
D-08D-13
D-14
D-15
D-16
D-17
D-18
D-19
D-20
D-21
D-22 Y Y
Y
D-04 D-36 D-06 D-37
Roof wiring
harness
YFuel wiring
harness
7
17
Y
Y
Antenna
feeder cable
D-21(2)Side impact sensor (Front: LH)
D-22(2-B)Seat belt pre-tensioner (LH)
D-23(2-R)Side air bag module (squib) (LH)
D-24(3)Heated seat assembly (LH)
D-25(9)Heated seat switch
D-26(4)Instrument panel wiring harness and
console wiring harness combination
D-27(6)Shift switch assembly
D-28(1)Cigarette lighter
D-29(1-B)Cigarette lighter
D-30(2-B)Cigarette lighter
illumination lamp
D-31(2-B)Ashtray illumination lamp
D-32(3)Heated seat assembly (RH)
D-33(2-R)Side air bag module (squib) (RH)
D-34(1-B)Parking brake switch
D-35(2-B)Seat belt pre-tensioner (RH)
D-36(2-B)Curtain air bag module (squib) (RH)
D-37(2-B)Curtain air bag module (squib) (LH)
D-38(2)Tw e et er (L H )
D-39(2)Tw e et er (R H )
FLOOR AND ROOF
CONF IGURA TION D I A G RA MS80-39
