Error in the Current Location 1-9
Introduction
Error in the Current LocationIn situations such as the following, the current
location may not be correctly displayed. Vehicle was moved without it being driven
(E.g., when transported on a ferry or trailer) Vehicle direction was changed without turning on the
engine
(E.g., on a turntable in a parking area) After replacing the tires or chains
 When driving on roads with elevation differences,
such as mountain roads with steep inclines When driving on roads that continue for a long time
in a straight line or gentle curve
(E.g., freeways) When driving around tight hairpin corners
 When meandering on wide roads When driving on Y-shaped roads When starting and stopping frequently at low speed,
such as in a traf c jam









Starting the MMCS 2-2
Operation Instructions
With this navigation system, operations
can be performed by pressing the panel
keys or touching the screen buttons.
Operate the screen by touching lightly with
a ngertip.
mb447
WARNING
 While driving, do not perform complicated
operations or concentrate on the screen. Failure to
pay attention to the road ahead may cause traf c
accidents. Have a front seat passenger perform
the operations, or stop the car in a safe location
before operating.NOTE Do not touch the screen with wet hands or press
it with hard, sharp objects, as this may cause
malfunction.
The Screens in this ManualThe screens described in this manual are for
explanation. They may be different from actual
screens, and their operation may also be different.
Lists
This section explains the list operation
buttons when a list has been displayed.
Scrolls forward through a list one line at
a time.Scrolls forward through a list one page
at a time.Scrolls back through a list one line at a
time.Scrolls back through a list one page at
a time.









View Route 4-2
Remaining
Displaying a map of the entire remaining
route, in a scale where it can all be
displayed.
1 Touch [Remaining] in the view
route screen
(page 4-1)

eng_a101
Displays a map of the entire remaining route, in a scale
where it can all be displayed.
Preview
The map can be scrolled along the route.
The type of route taken to the destination
can be viewed.
1 Touch [Preview] in the view route
screen
(page 4-1)
The preview screen is displayed. 2 Touch [Backward], [Stop] or
[Forward]
eng_a100
NOTE Touch [Backward] to scroll towards the starting
position.
 Touch [Stop] to stop the scrolling.
 Touch [Forward] to scroll towards the destination.
Route Outline
A list of the intersections up to the
destination where turns are required is
displayed.
1 Touch [Rt. Outline] in the view
route screen
(page 4-1)

eng_a102
A list of the intersections where turns are required is
displayed.NOTE Touch an intersection
on the list to display a
map of its vicinity.
eng_a103









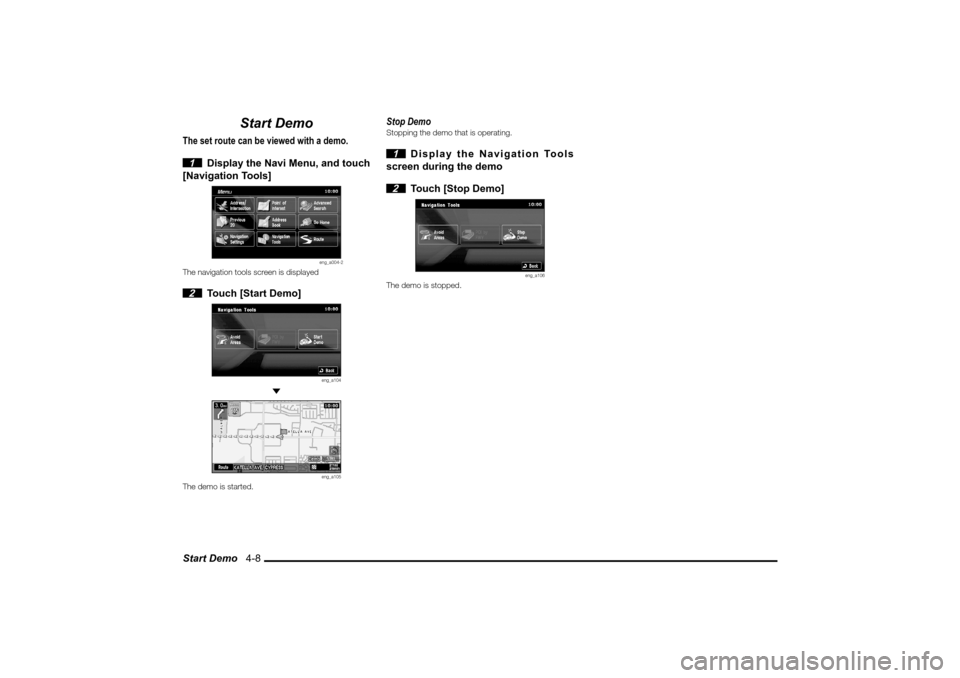

Start Demo 4-8
Start Demo
The set route can be viewed with a demo.
1 Display the Navi Menu, and touch
[Navigation Tools]
eng_a004-2
The navigation tools screen is displayed 2 Touch [Start Demo]
eng_a104

eng_a105
The demo is started.
Stop DemoStopping the demo that is operating. 1 Display the Navigation Tools
screen during the demo
2 Touch [Stop Demo]
eng_a106
The demo is stopped.





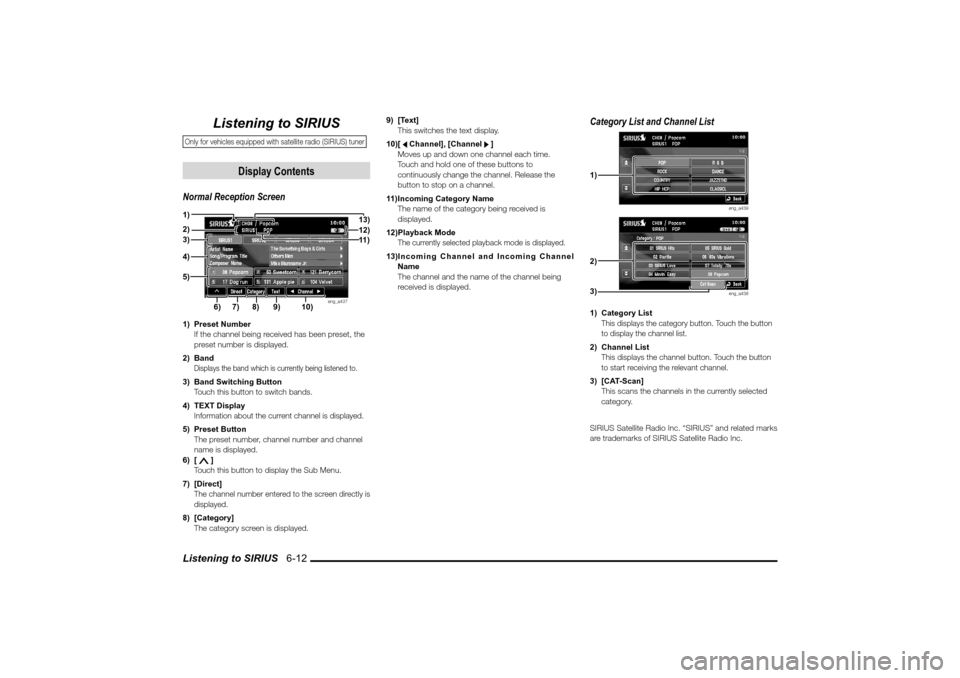

Listening to SIRIUS 6-12
Listening to SIRIUS
Only for vehicles equipped with satellite radio (SIRIUS) tuner
Display Contents
Normal Reception Screen
eng_a437
1) Preset Number
If the channel being received has been preset, the
preset number is displayed.
2) Band
Displays the band which is currently being listened to.3) Band Switching Button
Touch this button to switch bands.
4) TEXT Display
Information about the current channel is displayed.5) Preset Button
The preset number, channel number and channel
name is displayed.
6) [ ]
Touch this button to display the Sub Menu.
7) [Direct] The channel number entered to the screen directly is
displayed.8) [Category]
The category screen is displayed.9) [Text]
This switches the text display.
10) [ Channel], [Channel ]
Moves up and down one channel each time.
Touch and hold one of these buttons to
continuously change the channel. Release the
button to stop on a channel.
11) Incoming Category Name
The name of the category being received is
displayed.
12) Playback Mode

The currently selected playback mode is displayed.13) Incoming Channel and Incoming Channel
Name
The channel and the name of the channel being
received is displayed.
Category List and Channel List
eng_a439eng_a438
1) Category List This displays the category button. Touch the button
to display the channel list.2) Channel List This displays the channel button. Touch the button
to start receiving the relevant channel.3) [CAT-Scan]
This scans the channels in the currently selected
category.
SIRIUS Satellite Radio Inc. “SIRIUS” and related marks
are trademarks of SIRIUS Satellite Radio Inc.
2)
3)4)5)
6) 7) 8) 9) 10)
12) 13)
1)
1)2)3)
11 )





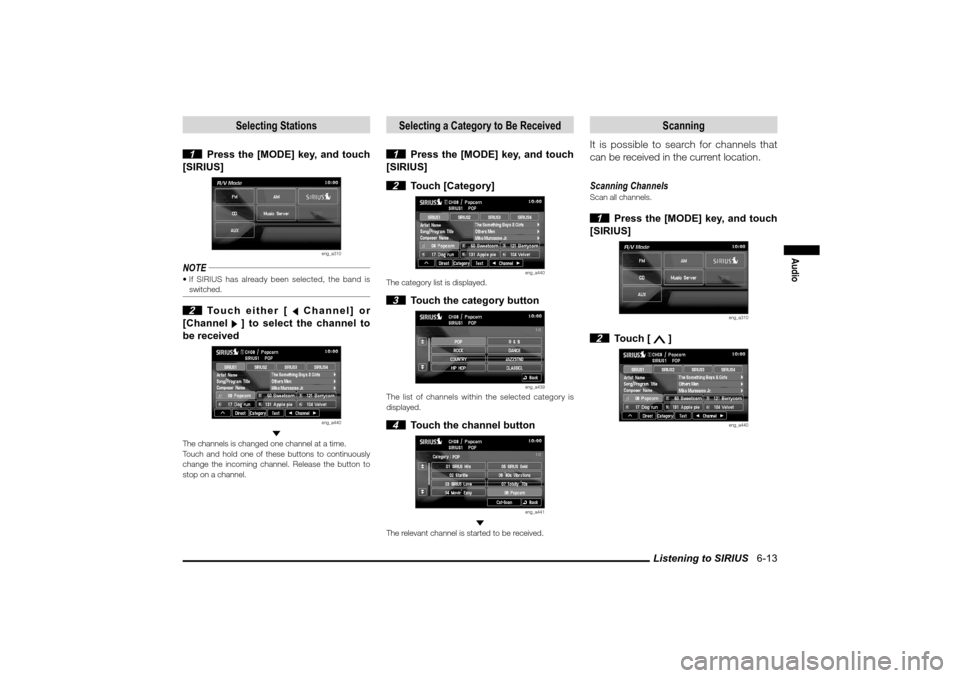

Listening to SIRIUS 6-13
Audio
Selecting Stations
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
NOTE If SIRIUS has already been selected, the band is
switched. 2 Touch either [
Channel] or
[Channel
] to select the channel to
be received
eng_a440

The channels is changed one channel at a time.
Touch and hold one of these buttons to continuously
change the incoming channel. Release the button to
stop on a channel.
Selecting a Category to Be Received
1 Press the [MODE] key, and touch
[SIRIUS]
2 Touch [Category]
eng_a440
The category list is displayed. 3 Touch the category button
eng_a439
The list of channels within the selected category is
displayed. 4 Touch the channel button
eng_a441

The relevant channel is started to be received.
Scanning
It is possible to search for channels that
can be received in the current location.
Scanning ChannelsScan all channels. 1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [
]
eng_a440





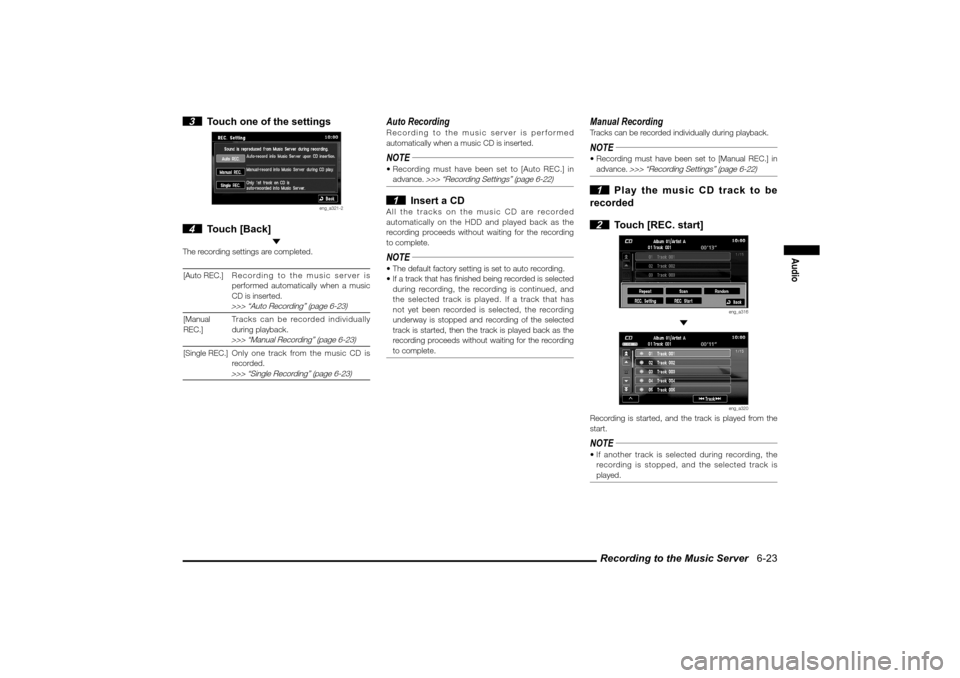

Recording to the Music Server 6-23
Audio
3 Touch one of the settings
eng_a321-2
4 Touch [Back]
The recording settings are completed.
[Auto REC.]Recording to the music server is
performed automatically when a music
CD is inserted.
>>> “Auto Recording” (page 6-23)
[Manual
REC.]Tracks can be recorded individually
during playback.
>>> “Manual Recording” (page 6-23)
[Single REC.]Only one track from the music CD is
recorded.
>>> “Single Recording” (page 6-23)
Auto RecordingRecording to the music server is performed
automatically when a music CD is inserted.NOTE Recording must have been set to [Auto REC.] in
advance.
>>> “Recording Settings” (page 6-22)
1 Insert a CD
All the tracks on the music CD are recorded
automatically on the HDD and played back as the
recording proceeds without waiting for the recording
to complete.NOTE The default factory setting is set to auto recording.
 If a track that has nished being recorded is selected
during recording, the recording is continued, and
the selected track is played. If a track that has
not yet been recorded is selected, the recording
underway is stopped and recording of the selected
track is started, then the track is played back as the
recording proceeds without waiting for the recording
to complete.
Manual RecordingTracks can be recorded individually during playback.NOTE Recording must have been set to [Manual REC.] in
advance.
>>> “Recording Settings” (page 6-22)
1 Play the music CD track to be
recorded
2 Touch [REC. start]
eng_a316

eng_a320
Recording is started, and the track is played from the
start.NOTE If another track is selected during recording, the
recording is stopped, and the selected track is
played.









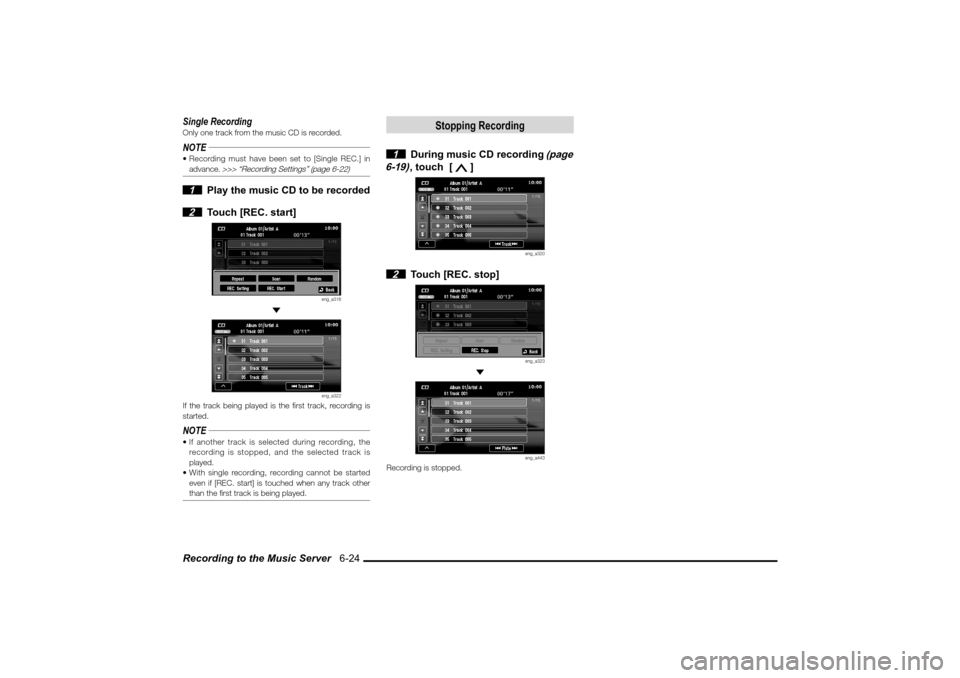

Recording to the Music Server 6-24Single RecordingOnly one track from the music CD is recorded.NOTE Recording must have been set to [Single REC.] in
advance.
>>> “Recording Settings” (page 6-22)
1 Play the music CD to be recorded
2 Touch [REC. start]
eng_a316

eng_a322
If the track being played is the rst track, recording is
started.NOTE If another track is selected during recording, the
recording is stopped, and the selected track is
played.
 With single recording, recording cannot be started
even if [REC. start] is touched when any track other
than the rst track is being played.
Stopping Recording
1 During music CD recording
(page
6-19)
, touch [
]
eng_a320
2 Touch [REC. stop]
eng_a323

eng_a443
Recording is stopped.









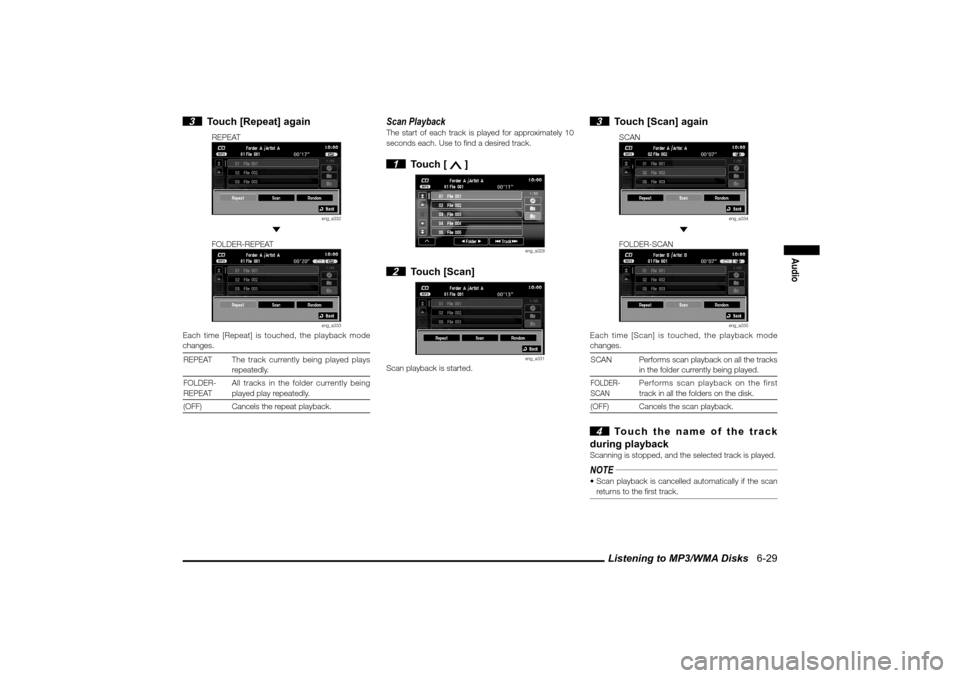

Listening to MP3/WMA Disks 6-29
Audio
3 Touch [Repeat] again
REPEAT
eng_a332

FOLDER-REPEAT
eng_a333
Each time [Repeat] is touched, the playback mode
changes.
REPEAT The track currently being played plays
repeatedly.
FOLDER-
REPEATAll tracks in the folder currently being
played play repeatedly.
(OFF) Cancels the repeat playback.
Scan PlaybackThe start of each track is played for approximately 10
seconds each. Use to nd a desired track. 1 Touch [
]
eng_a328
2 Touch [Scan]
eng_a331
Scan playback is started.
3 Touch [Scan] again
SCAN
eng_a334

FOLDER-SCAN
eng_a335
Each time [Scan] is touched, the playback mode
changes.
SCAN Performs scan playback on all the tracks
in the folder currently being played.FOLDER-
SCAN
Performs scan playback on the first
track in all the folders on the disk.
(OFF) Cancels the scan playback.
4 Touch the name of the track
during playback
Scanning is stopped, and the selected track is played.NOTE Scan playback is cancelled automatically if the scan
returns to the rst track.





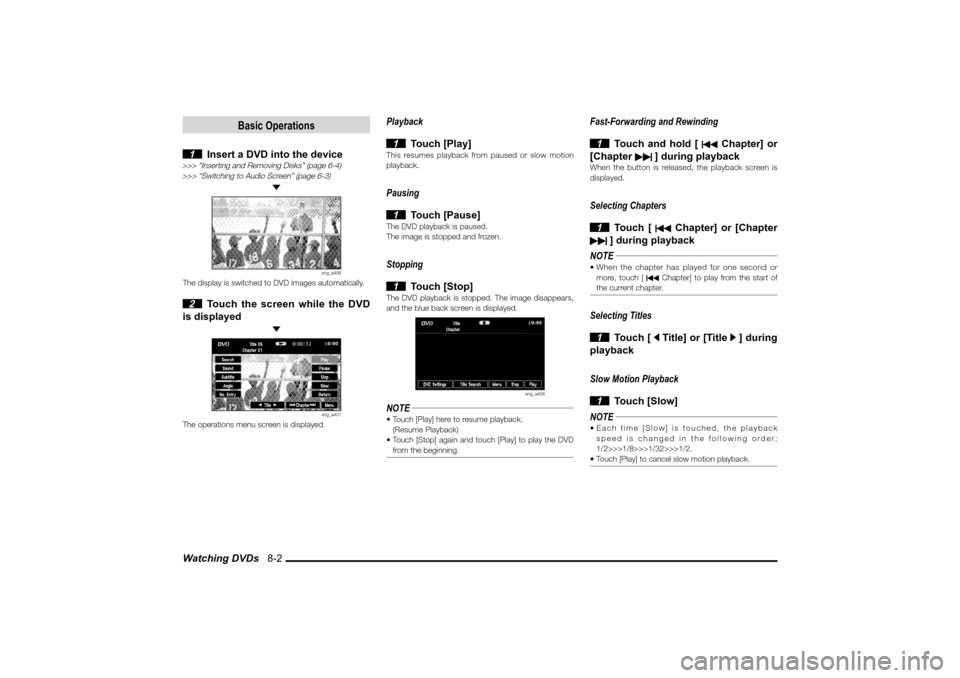

Watching DVDs 8-2
Basic Operations
1 Insert a DVD into the device
>>> “Inserting and Removing Disks” (page 6-4)
>>> “Switching to Audio Screen” (page 6-3)
eng_a406
The display is switched to DVD images automatically. 2 Touch the screen while the DVD
is displayed

eng_a407
The operations menu screen is displayed.
Playback
1 Touch [Play]
This resumes playback from paused or slow motion
playback.Pausing
1 Touch [Pause]
The DVD playback is paused.
The image is stopped and frozen.Stopping
1 Touch [Stop]
The DVD playback is stopped. The image disappears,
and the blue back screen is displayed.
eng_a408
NOTE Touch [Play] here to resume playback.
(Resume Playback)
 Touch [Stop] again and touch [Play] to play the DVD
from the beginning.
Fast-Forwarding and Rewinding
1 Touch and hold [
Chapter] or
[Chapter
] during playback
When the button is released, the playback screen is
displayed.Selecting Chapters
1 Touch [
Chapter] or [Chapter
] during playback
NOTE
 When the chapter has played for one second or
more, touch [
Chapter] to play from the start of
the current chapter.
Selecting Titles
1 Touch [
Title] or [Title ] during
playback
Slow Motion Playback

1 Touch [Slow]
NOTE
 Each time [Slow] is touched, the playback
speed is changed in the following order:
1/2>>>1/8>>>1/32>>>1/2.
 Touch [Play] to cancel slow motion playback.
