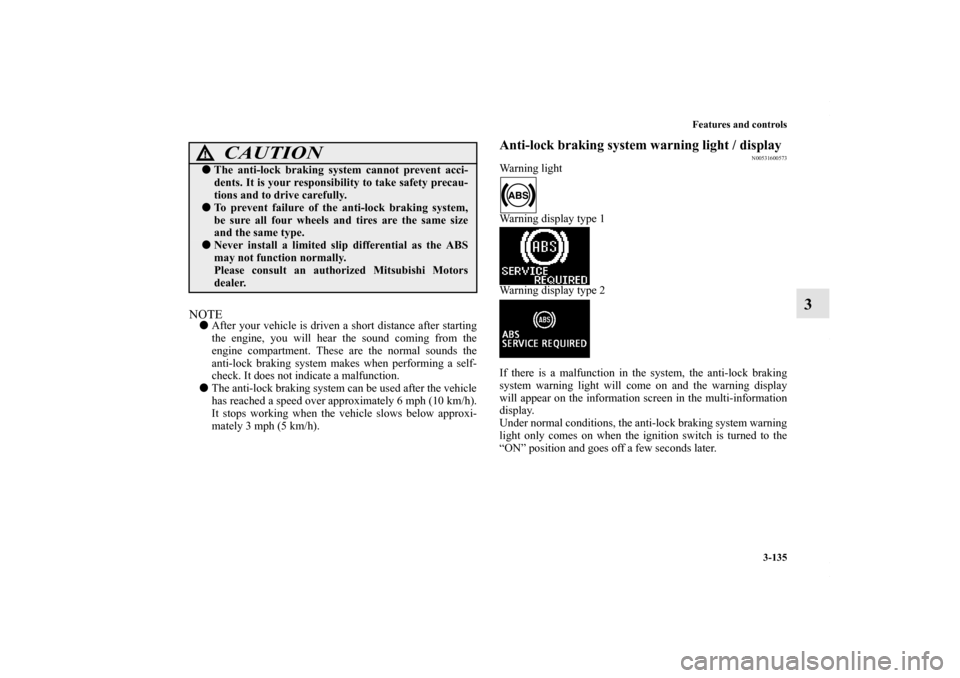

Features and controls
3-135
3
NOTE
After your vehicle is driven a short distance after starting
the engine, you will hear the sound coming from the
engine compartment. These are the normal sounds the
anti-lock braking system makes when performing a self-
check. It does not indicate a malfunction.

The anti-lock braking system can be used after the vehicle
has reached a speed over approximately 6 mph (10 km/h).
It stops working when the vehicle slows below approxi-
mately 3 mph (5 km/h).
Anti-lock braking system warning light / display
N00531600573
Warning light
Warning display type 1
Warning display type 2
If there is a malfunction in the system, the anti-lock braking
system warning light will come on and the warning display
will appear on the information screen in the multi-information
display.
Under normal conditions, the anti-lock braking system warning
light only comes on when the ignition switch is turned to the
“ON” position and goes off a few seconds later.
CAUTION
!
The anti-lock braking system cannot prevent acci-
dents. It is your responsibility to take safety precau-
tions and to drive carefully.
To prevent failure of the anti-lock braking system,
be sure all four wheels and tires are the same size
and the same type.
Never install a limited slip differential as the ABS
may not function normally.
Please consult an authorized Mitsubishi Motors
dealer.
BK0102103US.book 135 ページ ２００９年１０月２６日　月曜日　午後１時３８分

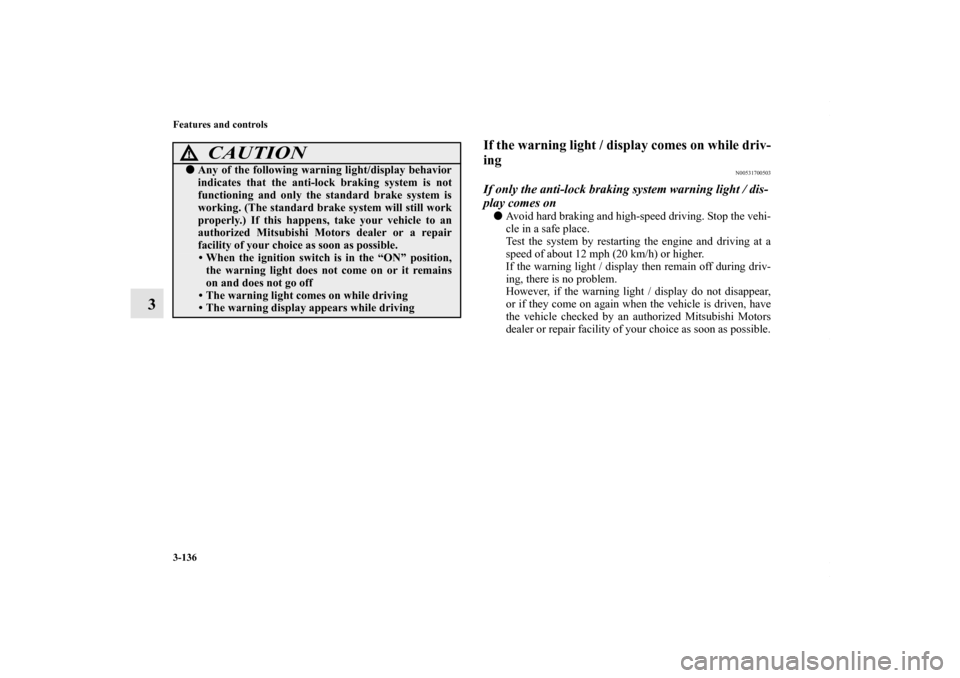

3-136 Features and controls
3
If the warning light / display comes on while driv-
ing
N00531700503
If only the anti-lock braking system warning light / dis-
play comes on
Avoid hard braking and high-speed driving. Stop the vehi-
cle in a safe place.
Test the system by restarting the engine and driving at a
speed of about 12 mph (20 km/h) or higher.
If the warning light / display then remain off during driv-
ing, there is no problem.
However, if the warning light / display do not disappear,
or if they come on again when the vehicle is driven, have
the vehicle checked by an authorized Mitsubishi Motors
dealer or repair facility of your choice as soon as possible.
CAUTION
!
Any of the following warning light/display behavior
indicates that the anti-lock braking system is not
functioning and only the standard brake system is
working. (The standard brake system will still work
properly.) If this happens, take your vehicle to an
authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
• When the ignition switch is in the “ON” position,
the warning light does not come on or it remains
on and does not go off
• The warning light comes on while driving
• The warning display appears while driving
BK0102103US.book 136 ページ ２００９年１０月２６日　月曜日　午後１時３８分

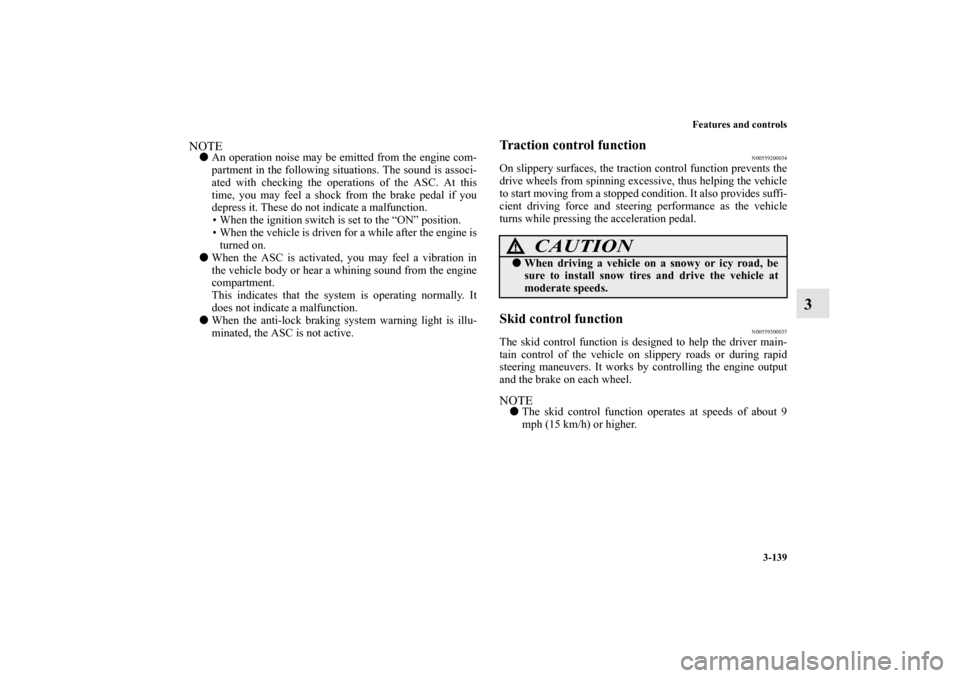

Features and controls
3-139
3
NOTE
An operation noise may be emitted from the engine com-
partment in the following situations. The sound is associ-
ated with checking the operations of the ASC. At this
time, you may feel a shock from the brake pedal if you
depress it. These do not indicate a malfunction.
• When the ignition switch is set to the “ON” position.
• When the vehicle is driven for a while after the engine is
turned on.

When the ASC is activated, you may feel a vibration in
the vehicle body or hear a whining sound from the engine
compartment.
This indicates that the system is operating normally. It
does not indicate a malfunction.

When the anti-lock braking system warning light is illu-
minated, the ASC is not active.
Traction control function
N00559200034
On slippery surfaces, the traction control function prevents the
drive wheels from spinning excessive, thus helping the vehicle
to start moving from a stopped condition. It also provides suffi-
cient driving force and steering performance as the vehicle
turns while pressing the acceleration pedal.Skid control function
N00559300035
The skid control function is designed to help the driver main-
tain control of the vehicle on slippery roads or during rapid
steering maneuvers. It works by controlling the engine output
and the brake on each wheel.NOTE
The skid control function operates at speeds of about 9
mph (15 km/h) or higher.
CAUTION
!
When driving a vehicle on a snowy or icy road, be
sure to install snow tires and drive the vehicle at
moderate speeds.
BK0102103US.book 139 ページ ２００９年１０月２６日　月曜日　午後１時３８分

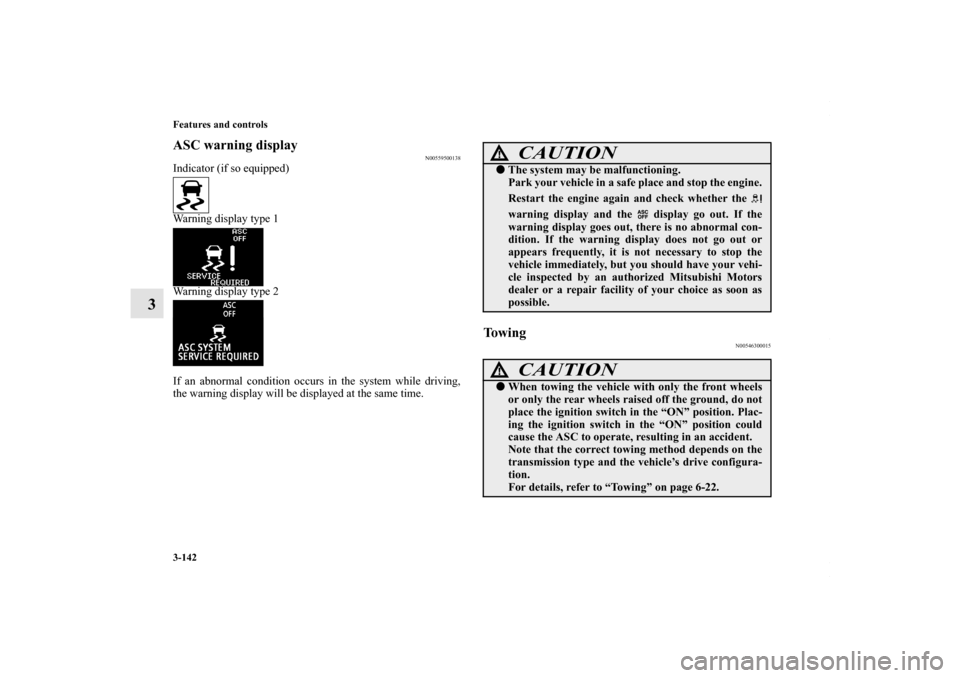

3-142 Features and controls
3
ASC warning display
N00559500138
Indicator (if so equipped)
Warning display type 1
Warning display type 2
If an abnormal condition occurs in the system while driving,
the warning display will be displayed at the same time.
To w i n g
N00546300015
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine again and check whether the
warning display and the display go out. If the
warning display goes out, there is no abnormal con-
dition. If the warning display does not go out or
appears frequently, it is not necessary to stop the
vehicle immediately, but you should have your vehi-
cle inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as
possible.
CAUTION
!
When towing the vehicle with only the front wheels
or only the rear wheels raised off the ground, do not
place the ignition switch in the “ON” position. Plac-
ing the ignition switch in the “ON” position could
cause the ASC to operate, resulting in an accident.
Note that the correct towing method depends on the
transmission type and the vehicle’s drive configura-
tion.
For details, refer to “Towing” on page 6-22.
BK0102103US.book 142 ページ ２００９年１０月２６日　月曜日　午後１時３８分

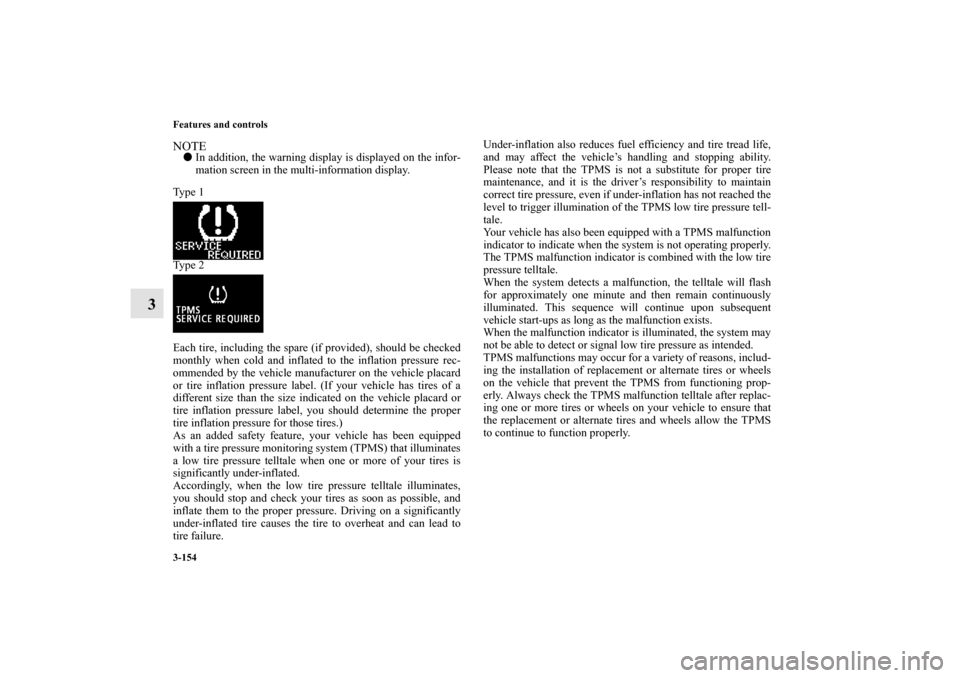

3-154 Features and controls
3
NOTE
In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
Type 1
Type 2
Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure rec-
ommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label. (If your vehicle has tires of a
different size than the size indicated on the vehicle placard or
tire inflation pressure label, you should determine the proper
tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped
with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates,
you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat and can lead to
tire failure.Under-inflation also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure tell-
tale.
Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale.
When the system detects a malfunction, the telltale will flash
for approximately one minute and then remain continuously
illuminated. This sequence will continue upon subsequent
vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, includ-
ing the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to ensure that
the replacement or alternate tires and wheels allow the TPMS
to continue to function properly.
BK0102103US.book 154 ページ ２００９年１０月２６日　月曜日　午後１時３８分

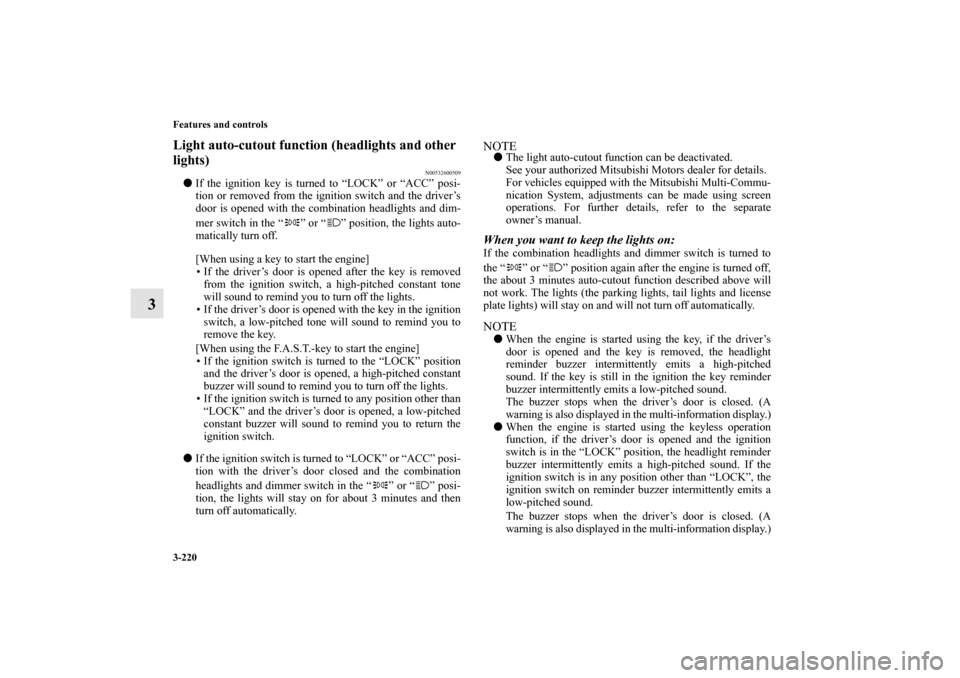

3-220 Features and controls
3
Light auto-cutout function (headlights and other
lights)
N00532600509

If the ignition key is turned to “LOCK” or “ACC” posi-
tion or removed from the ignition switch and the driver’s
door is opened with the combination headlights and dim-
mer switch in the “ ” or “ ” position, the lights auto-
matically turn off.
[When using a key to start the engine]
• If the driver’s door is opened after the key is removed
from the ignition switch, a high-pitched constant tone
will sound to remind you to turn off the lights.
• If the driver’s door is opened with the key in the ignition
switch, a low-pitched tone will sound to remind you to
remove the key.
[When using the F.A.S.T.-key to start the engine]
• If the ignition switch is turned to the “LOCK” position
and the driver’s door is opened, a high-pitched constant
buzzer will sound to remind you to turn off the lights.
• If the ignition switch is turned to any position other than
“LOCK” and the driver’s door is opened, a low-pitched
constant buzzer will sound to remind you to return the
ignition switch.

If the ignition switch is turned to “LOCK” or “ACC” posi-
tion with the driver’s door closed and the combination
headlights and dimmer switch in the “ ” or “ ” posi-
tion, the lights will stay on for about 3 minutes and then
turn off automatically.
NOTE
The light auto-cutout function can be deactivated.
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For further details, refer to the separate
owner’s manual.When you want to keep the lights on: If the combination headlights and dimmer switch is turned to
the “ ” or “ ” position again after the engine is turned off,
the about 3 minutes auto-cutout function described above will
not work. The lights (the parking lights, tail lights and license
plate lights) will stay on and will not turn off automatically. NOTE
When the engine is started using the key, if the driver’s
door is opened and the key is removed, the headlight
reminder buzzer intermittently emits a high-pitched
sound. If the key is still in the ignition the key reminder
buzzer intermittently emits a low-pitched sound.
The buzzer stops when the driver’s door is closed. (A
warning is also displayed in the multi-information display.)

When the engine is started using the keyless operation
function, if the driver’s door is opened and the ignition
switch is in the “LOCK” position, the headlight reminder
buzzer intermittently emits a high-pitched sound. If the
ignition switch is in any position other than “LOCK”, the
ignition switch on reminder buzzer intermittently emits a
low-pitched sound.
The buzzer stops when the driver’s door is closed. (A
warning is also displayed in the multi-information display.)
BK0102103US.book 220 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-221
3

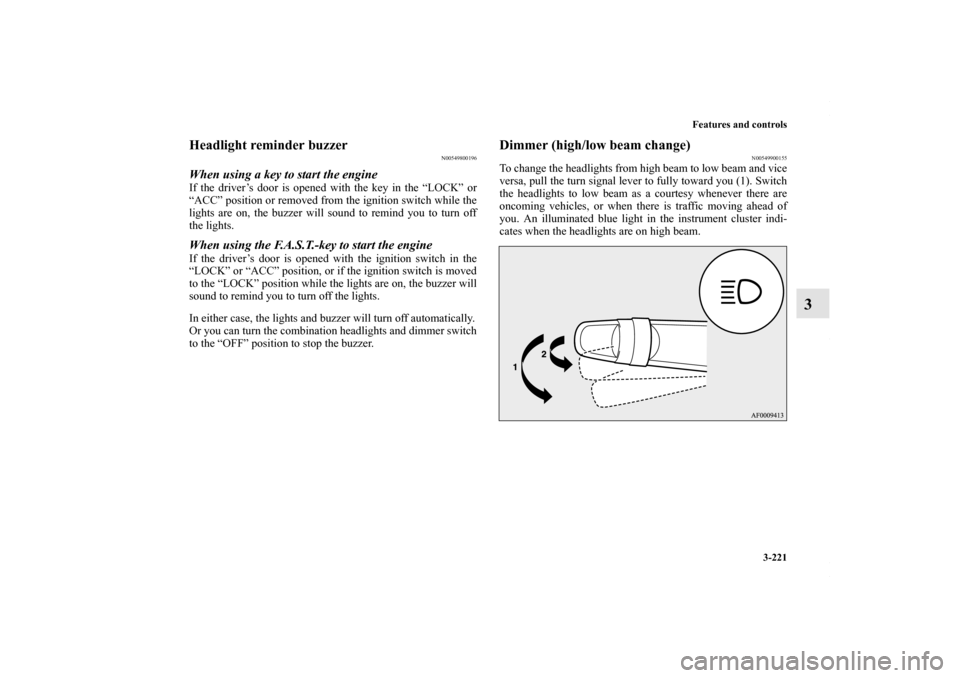

Headlight reminder buzzer
N00549800196
When using a key to start the engineIf the driver’s door is opened with the key in the “LOCK” or
“ACC” position or removed from the ignition switch while the
lights are on, the buzzer will sound to remind you to turn off
the lights.When using the F.A.S.T.-key to start the engineIf the driver’s door is opened with the ignition switch in the
“LOCK” or “ACC” position, or if the ignition switch is moved
to the “LOCK” position while the lights are on, the buzzer will
sound to remind you to turn off the lights.
In either case, the lights and buzzer will turn off automatically.
Or you can turn the combination headlights and dimmer switch
to the “OFF” position to stop the buzzer.
Dimmer (high/low beam change)
N00549900155
To change the headlights from high beam to low beam and vice
versa, pull the turn signal lever to fully toward you (1). Switch
the headlights to low beam as a courtesy whenever there are
oncoming vehicles, or when there is traffic moving ahead of
you. An illuminated blue light in the instrument cluster indi-
cates when the headlights are on high beam.
BK0102103US.book 221 ページ ２００９年１０月２６日　月曜日　午後１時３８分

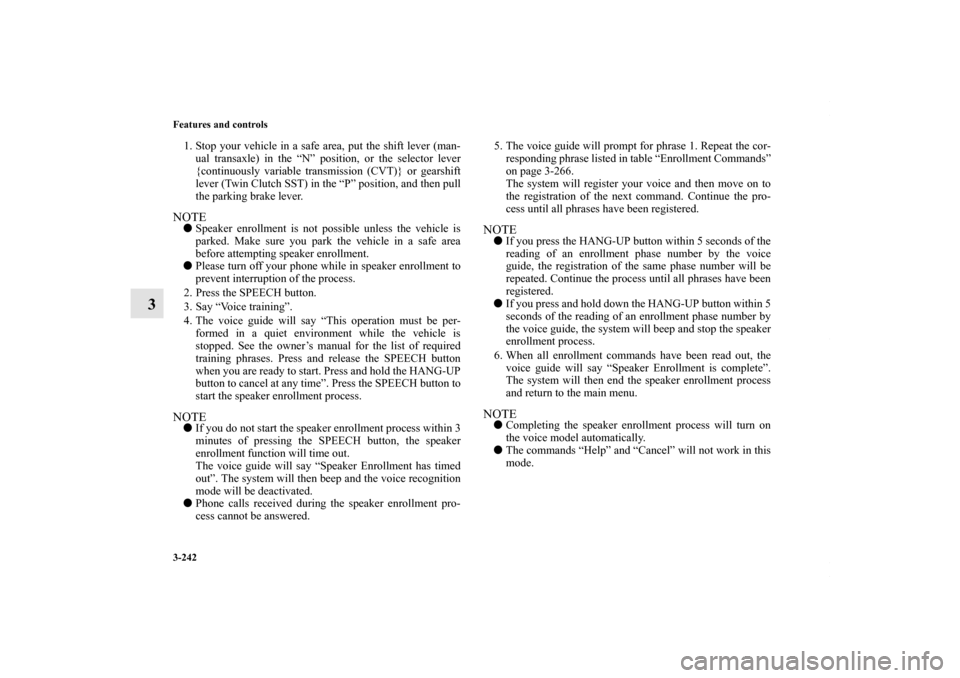

3-242 Features and controls
3
1. Stop your vehicle in a safe area, put the shift lever (man-
ual transaxle) in the “N” position, or the selector lever
{continuously variable transmission (CVT)} or gearshift
lever (Twin Clutch SST) in the “P” position, and then pull
the parking brake lever.NOTE
Speaker enrollment is not possible unless the vehicle is
parked. Make sure you park the vehicle in a safe area
before attempting speaker enrollment.

Please turn off your phone while in speaker enrollment to
prevent interruption of the process.
2. Press the SPEECH button.
3. Say “Voice training”.
4. The voice guide will say “This operation must be per-
formed in a quiet environment while the vehicle is
stopped. See the owner’s manual for the list of required
training phrases. Press and release the SPEECH button
when you are ready to start. Press and hold the HANG-UP
button to cancel at any time”. Press the SPEECH button to
start the speaker enrollment process. NOTE
If you do not start the speaker enrollment process within 3
minutes of pressing the SPEECH button, the speaker
enrollment function will time out.
The voice guide will say “Speaker Enrollment has timed
out”. The system will then beep and the voice recognition
mode will be deactivated.

Phone calls received during the speaker enrollment pro-
cess cannot be answered. 5. The voice guide will prompt for phrase 1. Repeat the cor-
responding phrase listed in table “Enrollment Commands”
on page 3-266.
The system will register your voice and then move on to
the registration of the next command. Continue the pro-
cess until all phrases have been registered.
NOTE
If you press the HANG-UP button within 5 seconds of the
reading of an enrollment phase number by the voice
guide, the registration of the same phase number will be
repeated. Continue the process until all phrases have been
registered.

If you press and hold down the HANG-UP button within 5
seconds of the reading of an enrollment phase number by
the voice guide, the system will beep and stop the speaker
enrollment process.
6. When all enrollment commands have been read out, the
voice guide will say “Speaker Enrollment is complete”.
The system will then end the speaker enrollment process
and return to the main menu. NOTE
Completing the speaker enrollment process will turn on
the voice model automatically.

The commands “Help” and “Cancel” will not work in this
mode.
BK0102103US.book 242 ページ ２００９年１０月２６日　月曜日　午後１時３８分

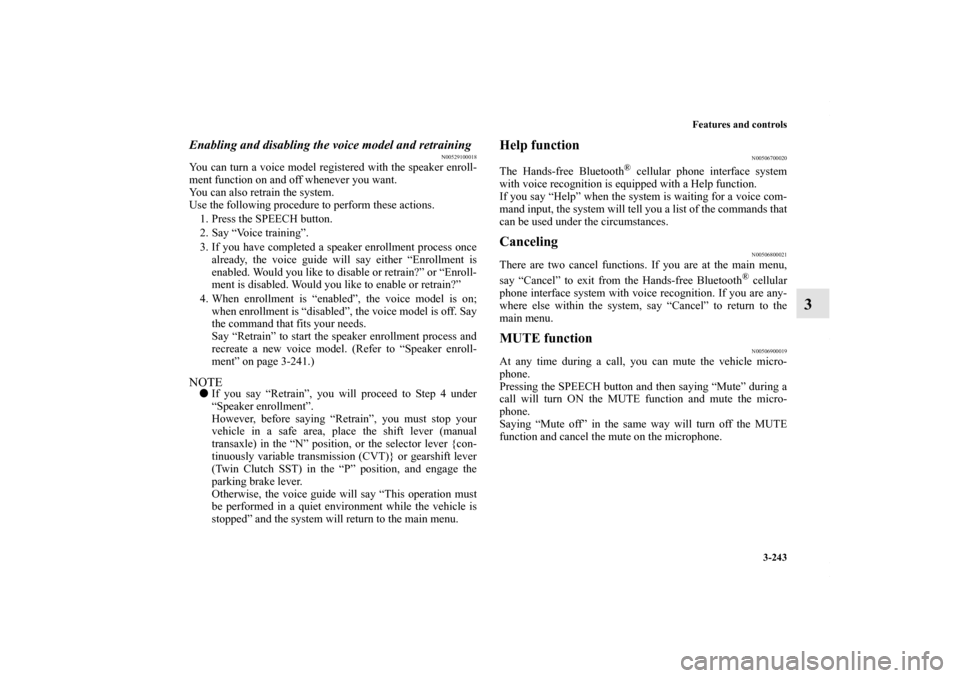

Features and controls
3-243
3
Enabling and disabling the voice model and retraining
N00529100018
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
You can also retrain the system.
Use the following procedure to perform these actions.
1. Press the SPEECH button.
2. Say “Voice training”.
3. If you have completed a speaker enrollment process once
already, the voice guide will say either “Enrollment is
enabled. Would you like to disable or retrain?” or “Enroll-
ment is disabled. Would you like to enable or retrain?”
4. When enrollment is “enabled”, the voice model is on;
when enrollment is “disabled”, the voice model is off. Say
the command that fits your needs.
Say “Retrain” to start the speaker enrollment process and
recreate a new voice model. (Refer to “Speaker enroll-
ment” on page 3-241.)NOTE
If you say “Retrain”, you will proceed to Step 4 under
“Speaker enrollment”.
However, before saying “Retrain”, you must stop your
vehicle in a safe area, place the shift lever (manual
transaxle) in the “N” position, or the selector lever {con-
tinuously variable transmission (CVT)} or gearshift lever
(Twin Clutch SST) in the “P” position, and engage the
parking brake lever.
Otherwise, the voice guide will say “This operation must
be performed in a quiet environment while the vehicle is
stopped” and the system will return to the main menu.
Help function
N00506700020
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a Help function.
If you say “Help” when the system is waiting for a voice com-
mand input, the system will tell you a list of the commands that
can be used under the circumstances.
Canceling
N00506800021
There are two cancel functions. If you are at the main menu,
say “Cancel” to exit from the Hands-free Bluetooth
® cellular
phone interface system with voice recognition. If you are any-
where else within the system, say “Cancel” to return to the
main menu.
MUTE function
N00506900019
At any time during a call, you can mute the vehicle micro-
phone.
Pressing the SPEECH button and then saying “Mute” during a
call will turn ON the MUTE function and mute the micro-
phone.
Saying “Mute off” in the same way will turn off the MUTE
function and cancel the mute on the microphone.
BK0102103US.book 243 ページ ２００９年１０月２６日　月曜日　午後１時３８分

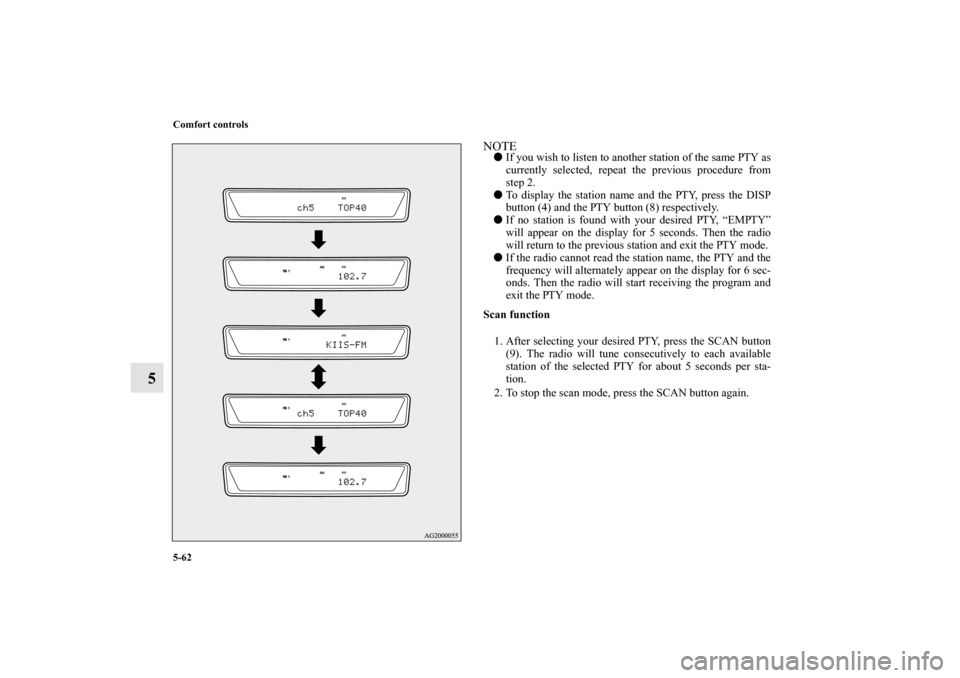

5-62 Comfort controls
5
NOTE
If you wish to listen to another station of the same PTY as
currently selected, repeat the previous procedure from
step 2.

To display the station name and the PTY, press the DISP
button (4) and the PTY button (8) respectively.

If no station is found with your desired PTY, “EMPTY”
will appear on the display for 5 seconds. Then the radio
will return to the previous station and exit the PTY mode.

If the radio cannot read the station name, the PTY and the
frequency will alternately appear on the display for 6 sec-
onds. Then the radio will start receiving the program and
exit the PTY mode.
Scan function
1. After selecting your desired PTY, press the SCAN button
(9). The radio will tune consecutively to each available
station of the selected PTY for about 5 seconds per sta-
tion.
2. To stop the scan mode, press the SCAN button again.
BK0102103US.book 62 ページ ２００９年１０月２６日　月曜日　午後１時３８分
