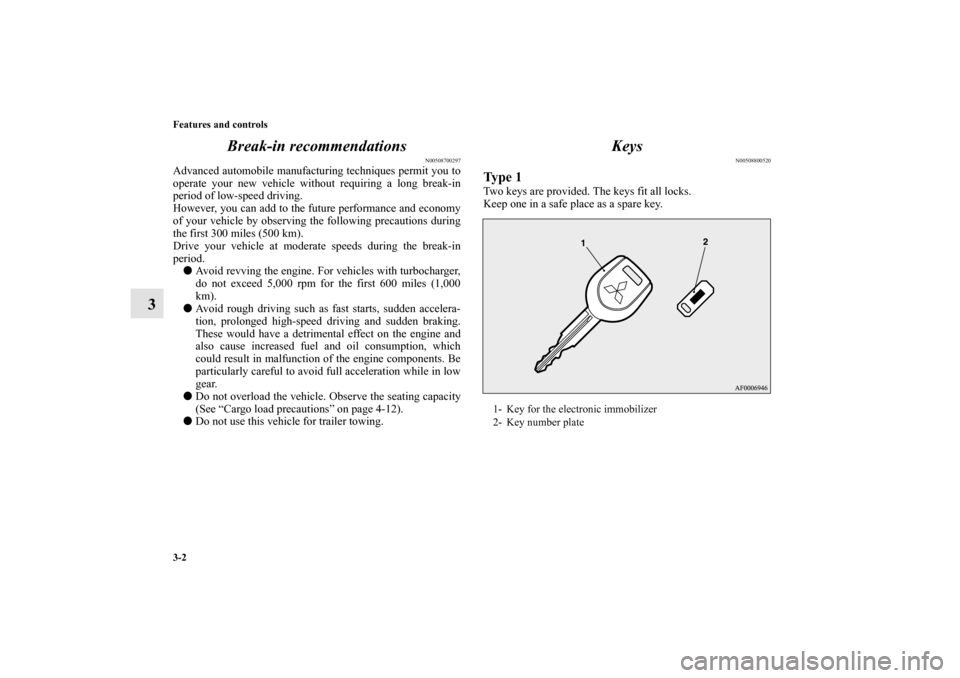

3Break-in recommendations
N00508700297
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine. For vehicles with turbocharger,
do not exceed 5,000 rpm for the first 600 miles (1,000
km).

Avoid rough driving such as fast starts, sudden accelera-
tion, prolonged high-speed driving and sudden braking.
These would have a detrimental effect on the engine and
also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
gear.

Do not overload the vehicle. Observe the seating capacity
(See “Cargo load precautions” on page 4-12).

Do not use this vehicle for trailer towing.
Keys
N00508800520
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer
2- Key number plate
BK0102103US.book 2 ページ ２００９年１０月２６日　月曜日　午後１時３８分

4-8 Driving safety
4Loading information
N00629900349

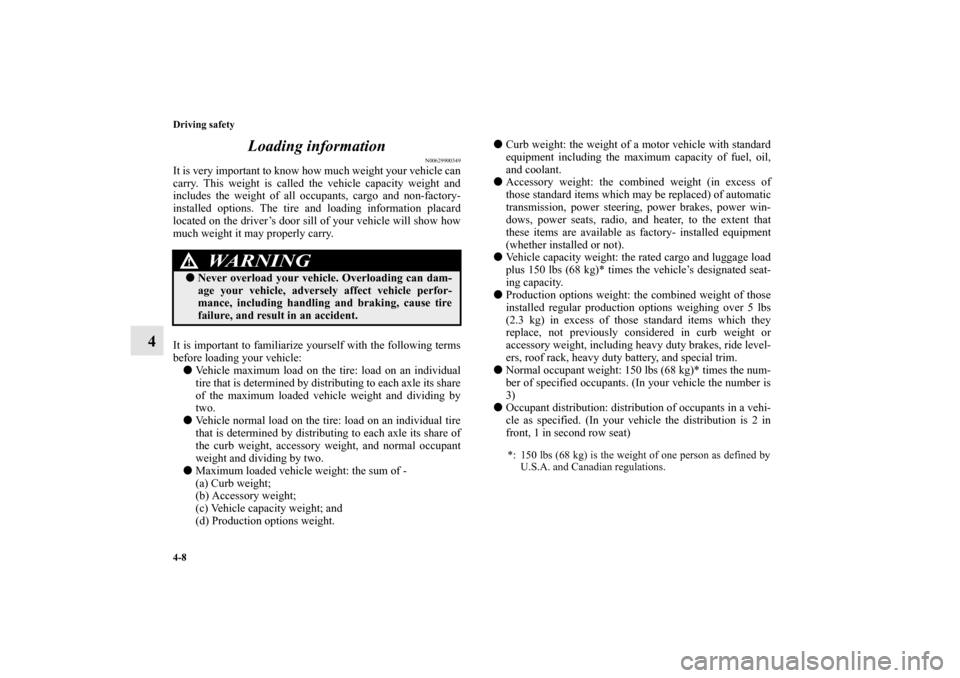

It is very important to know how much weight your vehicle can
carry. This weight is called the vehicle capacity weight and
includes the weight of all occupants, cargo and non-factory-
installed options. The tire and loading information placard
located on the driver’s door sill of your vehicle will show how
much weight it may properly carry.
It is important to familiarize yourself with the following terms
before loading your vehicle:

Vehicle maximum load on the tire: load on an individual
tire that is determined by distributing to each axle its share
of the maximum loaded vehicle weight and dividing by
two.

Vehicle normal load on the tire: load on an individual tire
that is determined by distributing to each axle its share of
the curb weight, accessory weight, and normal occupant
weight and dividing by two.

Maximum loaded vehicle weight: the sum of -
(a) Curb weight;
(b) Accessory weight;
(c) Vehicle capacity weight; and
(d) Production options weight.
Curb weight: the weight of a motor vehicle with standard
equipment including the maximum capacity of fuel, oil,
and coolant.

Accessory weight: the combined weight (in excess of
those standard items which may be replaced) of automatic
transmission, power steering, power brakes, power win-
dows, power seats, radio, and heater, to the extent that
these items are available as factory- installed equipment
(whether installed or not).

Vehicle capacity weight: the rated cargo and luggage load
plus 150 lbs (68 kg)* times the vehicle’s designated seat-
ing capacity.

Production options weight: the combined weight of those
installed regular production options weighing over 5 lbs
(2.3 kg) in excess of those standard items which they
replace, not previously considered in curb weight or
accessory weight, including heavy duty brakes, ride level-
ers, roof rack, heavy duty battery, and special trim.

Normal occupant weight: 150 lbs (68 kg)* times the num-
ber of specified occupants. (In your vehicle the number is
3)

Occupant distribution: distribution of occupants in a vehi-
cle as specified. (In your vehicle the distribution is 2 in
front, 1 in second row seat)
WARNING
!
Never overload your vehicle. Overloading can dam-
age your vehicle, adversely affect vehicle perfor-
mance, including handling and braking, cause tire
failure, and result in an accident.
*: 150 lbs (68 kg) is the weight of one person as defined by
U.S.A. and Canadian regulations.
BK0102103US.book 8 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Driving safety
4-9
4
Tire and loading information placard
N00630100309

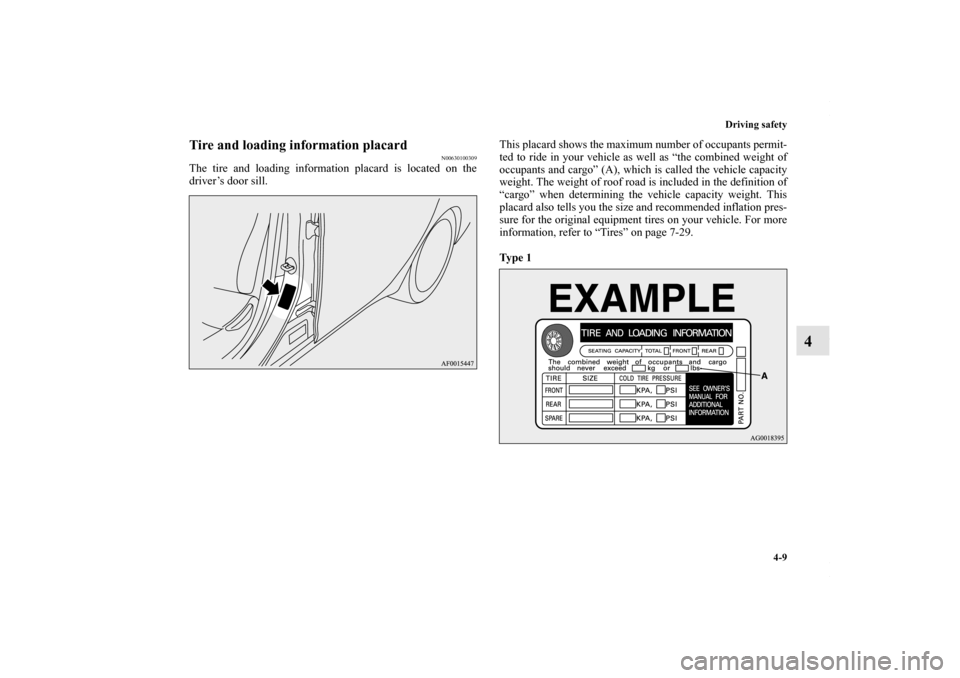

The tire and loading information placard is located on the
driver’s door sill. This placard shows the maximum number of occupants permit-
ted to ride in your vehicle as well as “the combined weight of
occupants and cargo” (A), which is called the vehicle capacity
weight. The weight of roof road is included in the definition of
“cargo” when determining the vehicle capacity weight. This
placard also tells you the size and recommended inflation pres-
sure for the original equipment tires on your vehicle. For more
information, refer to “Tires” on page 7-29.
Ty p e 1

BK0102103US.book 9 ページ ２００９年１０月２６日　月曜日　午後１時３８分

4-10 Driving safety
4
Ty p e 2

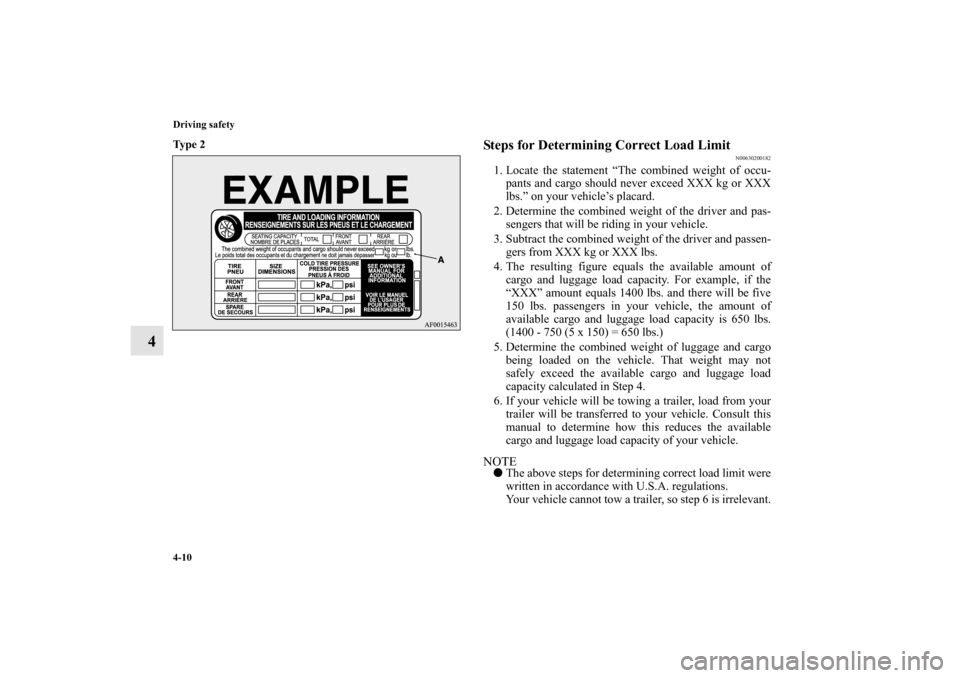

Steps for Determining Correct Load Limit
N00630200182
1. Locate the statement “The combined weight of occu-
pants and cargo should never exceed XXX kg or XXX
lbs.” on your vehicle’s placard.
2. Determine the combined weight of the driver and pas-
sengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and passen-
gers from XXX kg or XXX lbs.
4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if the
“XXX” amount equals 1400 lbs. and there will be five
150 lbs. passengers in your vehicle, the amount of
available cargo and luggage load capacity is 650 lbs.
(1400 - 750 (5 x 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo
being loaded on the vehicle. That weight may not
safely exceed the available cargo and luggage load
capacity calculated in Step 4.
6. If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. Consult this
manual to determine how this reduces the available
cargo and luggage load capacity of your vehicle.NOTE
The above steps for determining correct load limit were
written in accordance with U.S.A. regulations.
Your vehicle cannot tow a trailer, so step 6 is irrelevant.
BK0102103US.book 10 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Driving safety
4-11
4
NOTE

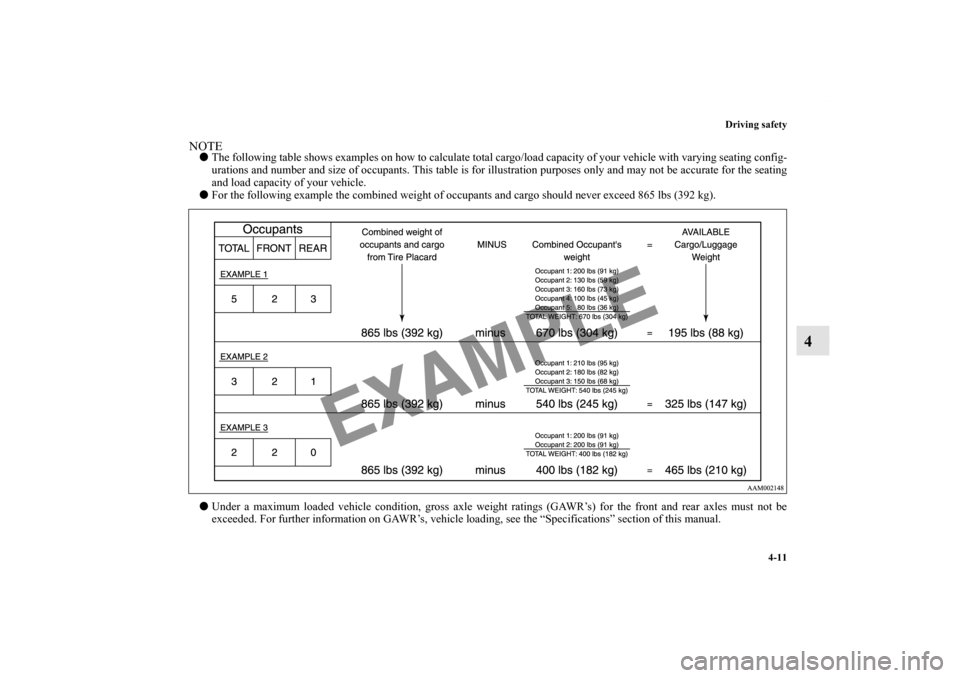

The following table shows examples on how to calculate total cargo/load capacity of your vehicle with varying seating config-
urations and number and size of occupants. This table is for illustration purposes only and may not be accurate for the seating
and load capacity of your vehicle.

For the following example the combined weight of occupants and cargo should never exceed 865 lbs (392 kg).

Under a maximum loaded vehicle condition, gross axle weight ratings (GAWR’s) for the front and rear axles must not be
exceeded. For further information on GAWR’s, vehicle loading, see the “Specifications” section of this manual.
BK0102103US.book 11 ページ ２００９年１０月２６日　月曜日　午後１時３８分

4-12 Driving safety
4Cargo loads
N00629700464

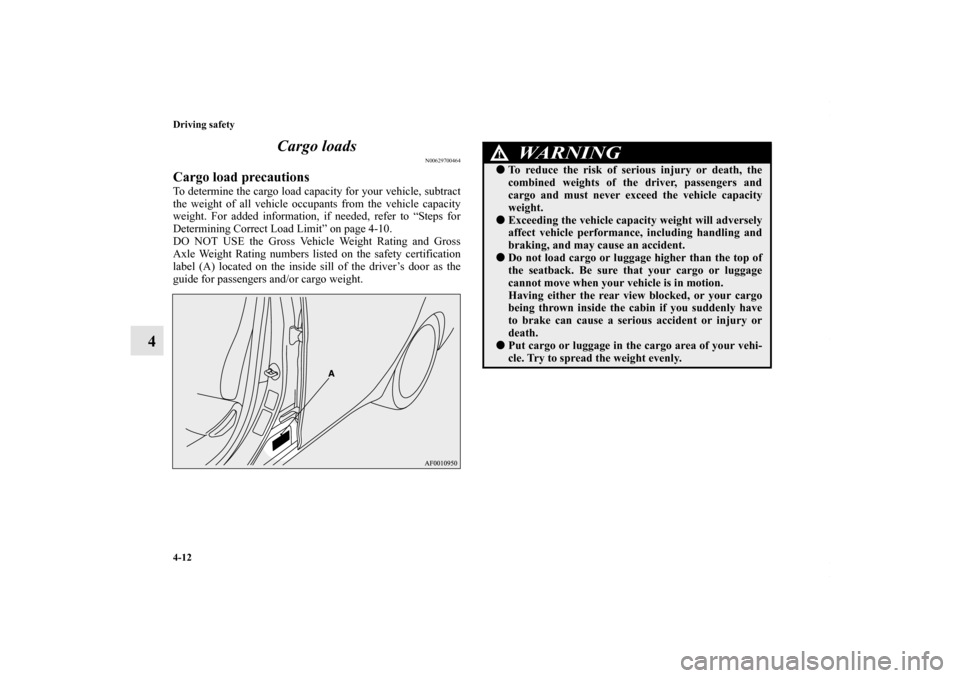

Cargo load precautionsTo determine the cargo load capacity for your vehicle, subtract
the weight of all vehicle occupants from the vehicle capacity
weight. For added information, if needed, refer to “Steps for
Determining Correct Load Limit” on page 4-10.
DO NOT USE the Gross Vehicle Weight Rating and Gross
Axle Weight Rating numbers listed on the safety certification
label (A) located on the inside sill of the driver’s door as the
guide for passengers and/or cargo weight.
WARNING
!
To reduce the risk of serious injury or death, the
combined weights of the driver, passengers and
cargo and must never exceed the vehicle capacity
weight.
Exceeding the vehicle capacity weight will adversely
affect vehicle performance, including handling and
braking, and may cause an accident.
Do not load cargo or luggage higher than the top of
the seatback. Be sure that your cargo or luggage
cannot move when your vehicle is in motion.
Having either the rear view blocked, or your cargo
being thrown inside the cabin if you suddenly have
to brake can cause a serious accident or injury or
death.
Put cargo or luggage in the cargo area of your vehi-
cle. Try to spread the weight evenly.
BK0102103US.book 12 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Vehicle care and maintenance
7-31
7

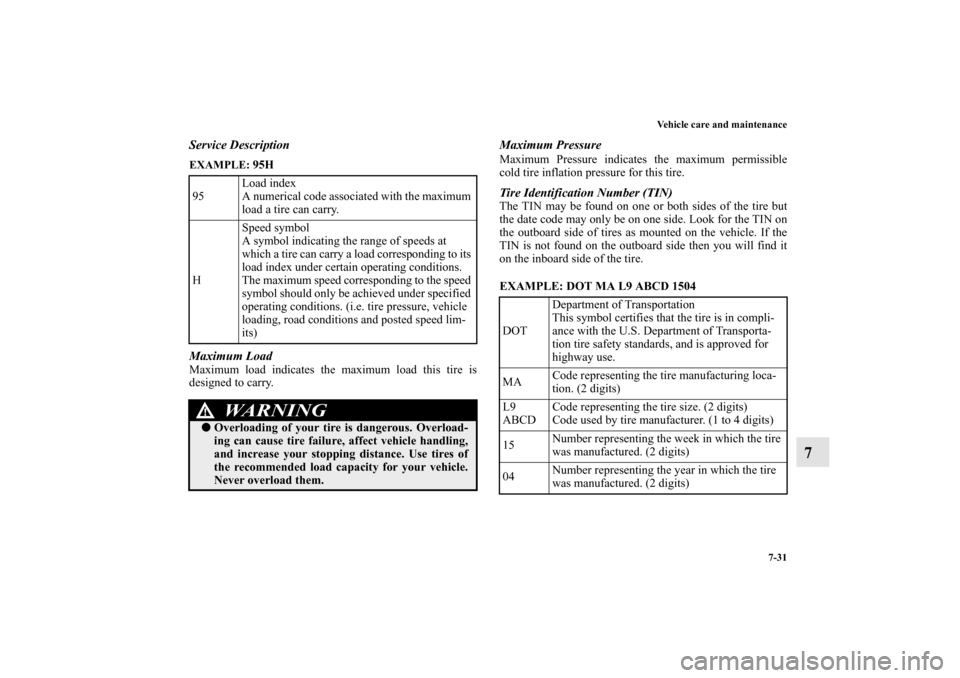

Service DescriptionEXAMPLE:
95H

Maximum LoadMaximum load indicates the maximum load this tire is
designed to carry.
Maximum PressureMaximum Pressure indicates the maximum permissible
cold tire inflation pressure for this tire.Tire Identification Number (TIN)The TIN may be found on one or both sides of the tire but
the date code may only be on one side. Look for the TIN on
the outboard side of tires as mounted on the vehicle. If the
TIN is not found on the outboard side then you will find it
on the inboard side of the tire.
EXAMPLE: DOT MA L9 ABCD 1504

95Load index
A numerical code associated with the maximum
load a tire can carry.
HSpeed symbol
A symbol indicating the range of speeds at
which a tire can carry a load corresponding to its
load index under certain operating conditions.
The maximum speed corresponding to the speed
symbol should only be achieved under specified
operating conditions. (i.e. tire pressure, vehicle
loading, road conditions and posted speed lim-
its)
WARNING
!
Overloading of your tire is dangerous. Overload-
ing can cause tire failure, affect vehicle handling,
and increase your stopping distance. Use tires of
the recommended load capacity for your vehicle.
Never overload them.
DOTDepartment of Transportation
This symbol certifies that the tire is in compli-
ance with the U.S. Department of Transporta-
tion tire safety standards, and is approved for
highway use.
MACode representing the tire manufacturing loca-
tion. (2 digits)
L9
ABCDCode representing the tire size. (2 digits)
Code used by tire manufacturer. (1 to 4 digits)
15Number representing the week in which the tire
was manufactured. (2 digits)
04Number representing the year in which the tire
was manufactured. (2 digits)
BK0102103US.book 31 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Vehicle care and maintenance
7-49
7
Engine compartmentIn the engine compartment, the fuse block is located as shown
in the illustration.
1. Push the lock lever.
2. Remove the fuse block cover.
Fuse load capacities
N00954800114
This fuse list shows the names of the electrical systems and
their fuse capacities.
There are spare fuses in the cover of the fuse block in the
engine compartment. Always replace a blown fuse with one of
the same capacity as the original.
BK0102103US.book 49 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Specifications
9-7
9 Vehicle weights

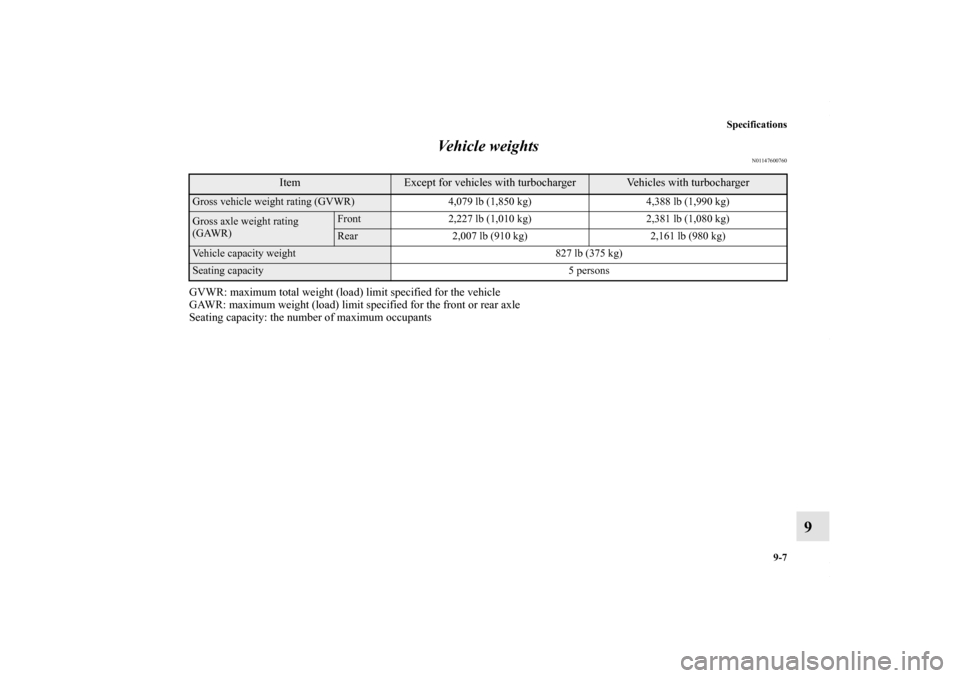

N01147600760
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupants
Item
Except for vehicles with turbocharger
Vehicles with turbocharger
Gross vehicle weight rating (GVWR) 4,079 lb (1,850 kg) 4,388 lb (1,990 kg)Gross axle weight rating
(GAWR)
Front 2,227 lb (1,010 kg) 2,381 lb (1,080 kg)Rear 2,007 lb (910 kg) 2,161 lb (980 kg)
Vehicle capacity weight 827 lb (375 kg)Seating capacity 5 persons
BK0102103US.book 7 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Alphabetical index
2Brake
Anti-lock braking system 3-134
Braking 4-6
Fluid 7-21
,9-11
Hose 7-43
Parking brake 3-74
Parking brake lever stroke 7-39
Pedal 3-131
Pedal free play 7-38
Power brakes 3-132
Service brake 3-131
Break-in recommendations 3-2
Bulb capacity 7-56
C
California Perchlorate Materials Requirements 1-10
Capacities 9-11
Card holder 3-269
Cargo loads 4-12
Catalytic converter 7-3
Certification label 9-5
Charging system warning light 3-213
Chassis number 9-3
Child restraint 2-24
Child safety locks for rear door 3-58
Cigarette lighter 3-271
Cleaning
Inside of your vehicle 7-90
Outside of your vehicle 7-91Clutch
Fluid 7-21
,9-11
Pedal free play 7-38
Coat hooks 3-284
Combination headlights and dimmer switch 3-217
Coming home light 3-223
Consumer information 8-2
Continuously variable transmission (CVT) 3-93
Fluid 7-18,9-11
Selector lever operation 3-94
Sports mode 3-101
Coolant (engine) 7-12
,9-11
Cruise control 3-143
Indicator 3-144
Cup holder 3-282
D
Daytime running lights
Bulb capacity 7-56
Replacement 7-64
Defogger (rear window) 3-235
Defrosting or defogging (windshield, door windows)
5-20
,5-29
,5-39
,5-49
Dimensions 9-6
Dimmer (high/low beam change) 3-221
Disc brake pads 7-43
Dome light
Bulb capacity 7-59
Replacement 7-87
Switch 3-276
BK0102103US.book 2 ページ ２００９年１０月２６日　月曜日　午後１時３８分
