3Multi-information display
N00555000122
[Except for vehicles equipped with the Twin Clutch SST]The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, average and momentary fuel consumption, driving range, average speed,
instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch is
“OFF” position
W
i
th
i
g
ni
ti
on
swi
t
ch
i
s
“
ON”
p
os
it
i
on
{
Con
t
in
uou
sl
y
v
ar
ia
bl
e
t
ra
ns
mi
ss
io
n
(
CVT)
}
With ignition switch is “ON”
position (Manual transaxle)
Type 1 Type 2 Type 1 Type 2 Type 1 Type 2
1- Warning display screen (With ignition switch in the
“OFF” position) → P. 3-165
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P. 3-165
Interrupt display screen (With ignition switch in the “OFF”
position) → P. 3-168
3- Door ajar warning display screen (With ignition switch in the
“OFF” position) → P. 3-169
4- Warning display screen (With ignition switch in the “ON”
position) → P. 3-172
5- Active Stability Control (ASC) OFF display screen (if so
equipped) → P. 3-172
6- Information screen (With ignition switch in the “ON” posi-
tion) → P. 3-172
Interrupt display screen (With ignition switch in the “ON”
position) → P. 3-177
7- Fuel remaining display screen → P. 3-179
8- Outside temperature display screen → P. 3-179
9- Selector lever position display screen (CVT) → P. 3-178
BK0102103US.book 162 ページ 2009年10月26日 月曜日 午後1時38分
Page 254 of 670
Features and controls
3-163
3

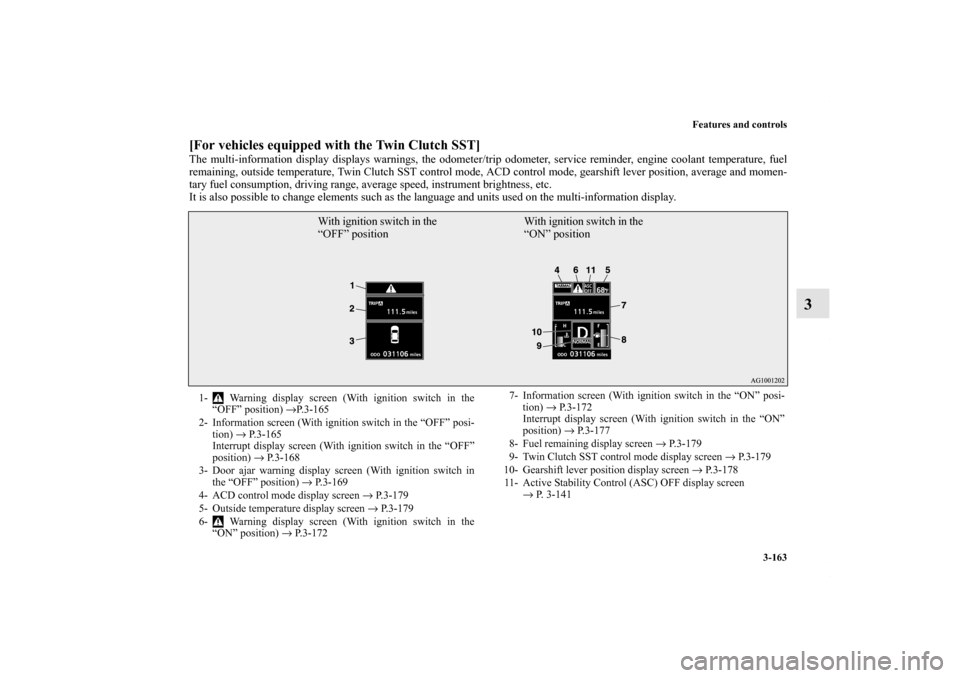

[For vehicles equipped with the Twin Clutch SST]The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, Twin Clutch SST control mode, ACD control mode, gearshift lever position, average and momen-
tary fuel consumption, driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the
“OFF” positionWith ignition switch in the
“ON” position
1- Warning display screen (With ignition switch in the
“OFF” position) →P.3-165
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-165
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-168
3- Door ajar warning display screen (With ignition switch in
the “OFF” position) → P.3-169
4- ACD control mode display screen → P.3-179
5- Outside temperature display screen → P.3-179
6- Warning display screen (With ignition switch in the
“ON” position) → P.3-172
7- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-172
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-177
8- Fuel remaining display screen → P.3-179
9- Twin Clutch SST control mode display screen → P.3-179
10- Gearshift lever position display screen → P.3-178
11- Active Stability Control (ASC) OFF display screen
→ P. 3-141
BK0102103US.book 163 ページ 2009年10月26日 月曜日 午後1時38分
Page 255 of 670
3-164 Features and controls
3
NOTEThe fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-165.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-200.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON” position)” on page 3-170.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-172.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-203.
Multi-information meter switch
N00555100080
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, odometer/trip odometer
(Type 1), service reminder, engine coolant temperature (Type
1), average and momentary fuel consumption, driving range,
and average speed and ACD control mode display (if so
equipped).
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
BK0102103US.book 164 ページ 2009年10月26日 月曜日 午後1時38分
Page 257 of 670
3-166 Features and controls
3

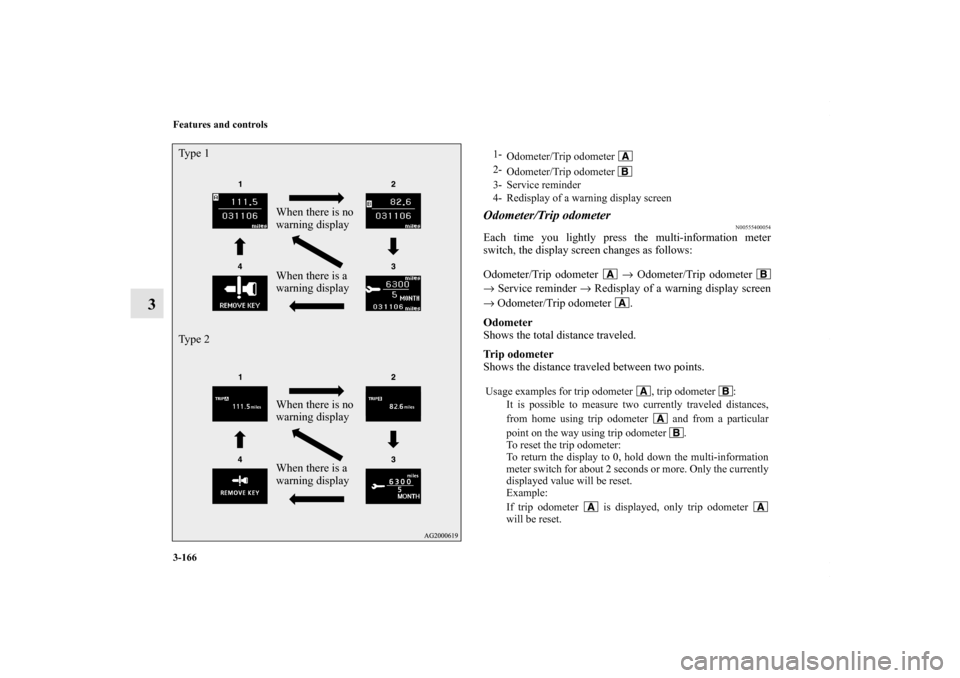

Odometer/Trip odometer
N00555400054
Each time you lightly press the multi-information meter
switch, the display screen changes as follows:
Odometer/Trip odometer → Odometer/Trip odometer
→ Service reminder → Redisplay of a warning display screen
→ Odometer/Trip odometer .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.
When there is no
warning display
When there is a
warning display Type 1
Type 2
When there is no
warning display
When there is a
warning display
1-
Odometer/Trip odometer
2-
Odometer/Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
Usage examples for trip odometer , trip odometer :
It is possible to measure two currently traveled distances,
from home using trip odometer and from a particular
point on the way using trip odometer .
To reset the trip odometer:
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example:
If trip odometer is displayed, only trip odometer
will be reset.
BK0102103US.book 166 ページ 2009年10月26日 月曜日 午後1時38分
Page 258 of 670
Features and controls
3-167
3

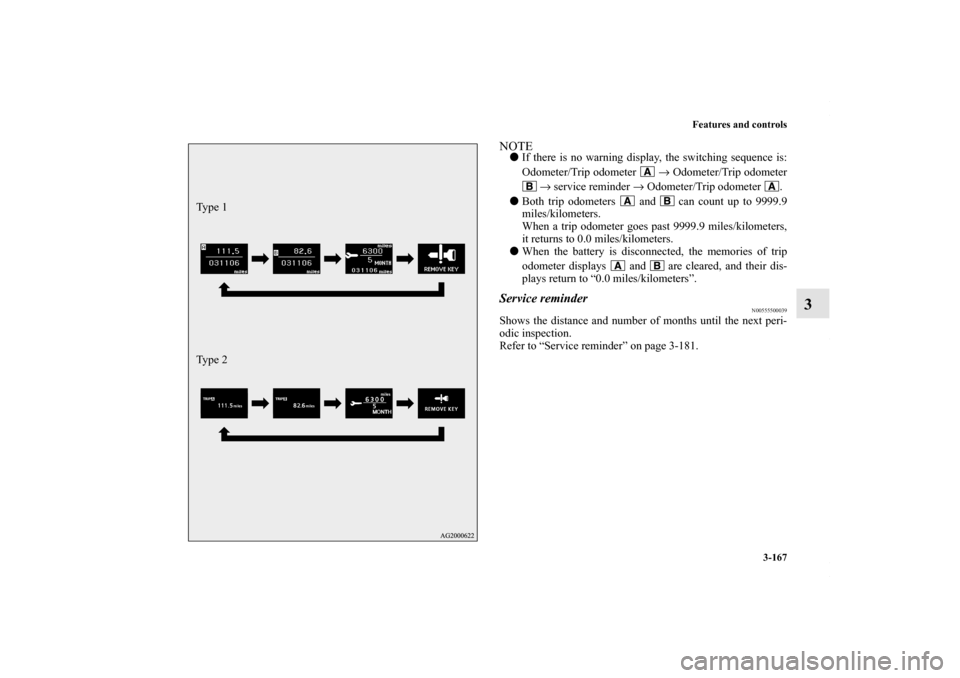

NOTEIf there is no warning display, the switching sequence is:
Odometer/Trip odometer → Odometer/Trip odometer
→ service reminder → Odometer/Trip odometer .
Both trip odometers and can count up to 9999.9
miles/kilometers.
When a trip odometer goes past 9999.9 miles/kilometers,
it returns to 0.0 miles/kilometers.
When the battery is disconnected, the memories of trip
odometer displays and are cleared, and their dis-
plays return to “0.0 miles/kilometers”.Service reminder
N00555500039
Shows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-181.
Type 1
Type 2
BK0102103US.book 167 ページ 2009年10月26日 月曜日 午後1時38分
Page 264 of 670
Features and controls
3-173
3
NOTEWhile driving, the function setting screen is not displayed
even if you operate the multi-information meter switch.
Always park the vehicle in a safe place before operating.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
When there is information to be announced, such as a sys-
tem fault, the tone sounds and the screen display is
changed.
Refer to “Interrupt display screen (With ignition switch in
the “ON” position)” on page 3-177.
When there is no warning display
When there is a
warning display Type 1
Type 2
When there is no warning display
When there is a
warning display
1-
Odometer/Trip odometer
2-
Odometer/Trip odometer
3- Service reminder
4- Engine coolant temperature display (Type 1)
5- Driving range display (Type 1)
6- Average speed display, average fuel consumption display,
momentary fuel consumption display (Type 1)
7- Driving range display, momentary fuel consumption display
(Type 2)
8- Average fuel consumption display, momentary fuel con-
sumption display (Type 2)
9- Average speed display, momentary fuel consumption display
(Type 2)
10- Function setting screen
11- Redisplay of a warning display screen
BK0102103US.book 173 ページ 2009年10月26日 月曜日 午後1時38分
Page 265 of 670
3-174 Features and controls
3

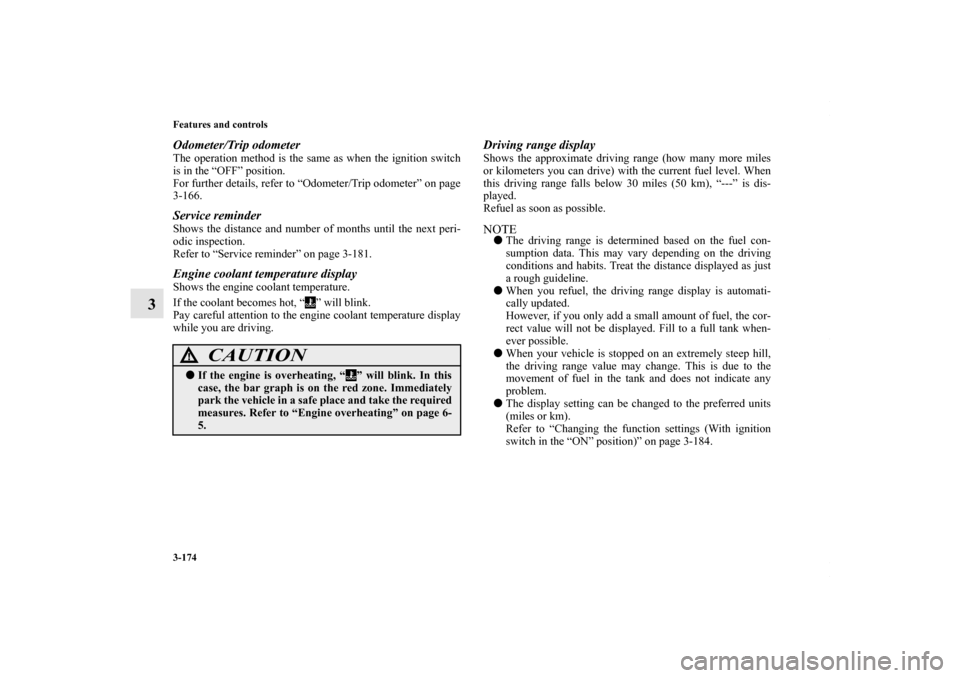

Odometer/Trip odometerThe operation method is the same as when the ignition switch
is in the “OFF” position.
For further details, refer to “Odometer/Trip odometer” on page
3-166.Service reminderShows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-181.Engine coolant temperature displayShows the engine coolant temperature.
If the coolant becomes hot, “ ” will blink.
Pay careful attention to the engine coolant temperature display
while you are driving.
Driving range displayShows the approximate driving range (how many more miles
or kilometers you can drive) with the current fuel level. When
this driving range falls below 30 miles (50 km), “---” is dis-
played.
Refuel as soon as possible.NOTEThe driving range is determined based on the fuel con-
sumption data. This may vary depending on the driving
conditions and habits. Treat the distance displayed as just
a rough guideline.
When you refuel, the driving range display is automati-
cally updated.
However, if you only add a small amount of fuel, the cor-
rect value will not be displayed. Fill to a full tank when-
ever possible.
When your vehicle is stopped on an extremely steep hill,
the driving range value may change. This is due to the
movement of fuel in the tank and does not indicate any
problem.
The display setting can be changed to the preferred units
(miles or km).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
CAUTION
!If the engine is overheating, “ ” will blink. In this
case, the bar graph is on the red zone. Immediately
park the vehicle in a safe place and take the required
measures. Refer to “Engine overheating” on page 6-
5.
BK0102103US.book 174 ページ 2009年10月26日 月曜日 午後1時38分
Page 279 of 670
3-188 Features and controls
3

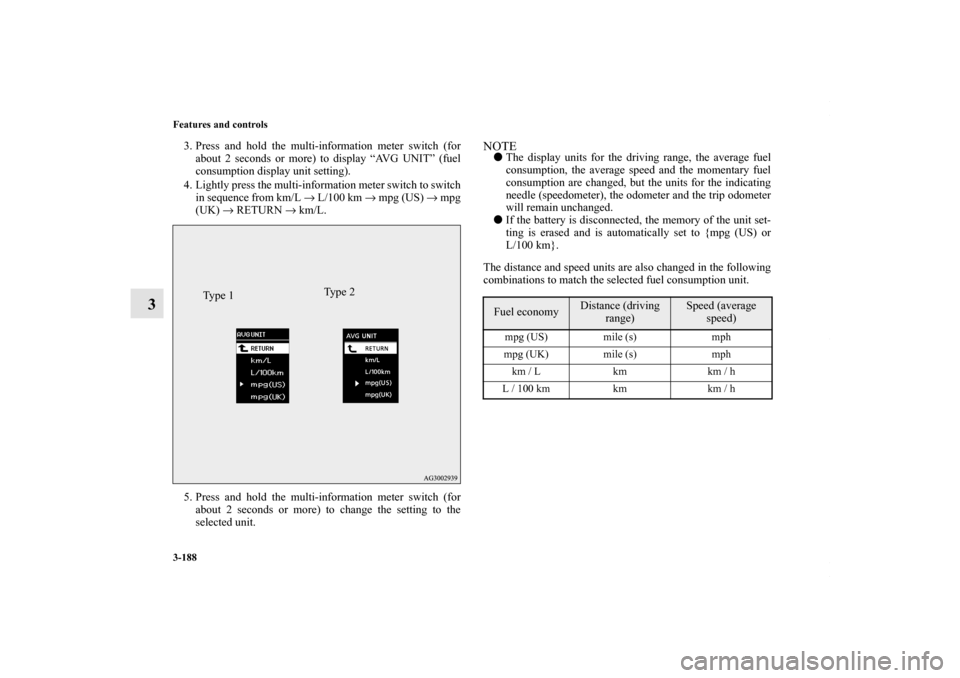

3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “AVG UNIT” (fuel
consumption display unit setting).
4. Lightly press the multi-information meter switch to switch
in sequence from km/L → L/100 km → mpg (US) → mpg
(UK) → RETURN → km/L.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected unit.
NOTEThe display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.
Ty p e 1Ty p e 2
Fuel economy
Distance (driving
range)
Speed (average
speed)
mpg (US) mile (s) mph
mpg (UK) mile (s) mph
km / L km km / h
L / 100 km km km / h
BK0102103US.book 188 ページ 2009年10月26日 月曜日 午後1時38分
Page 669 of 670

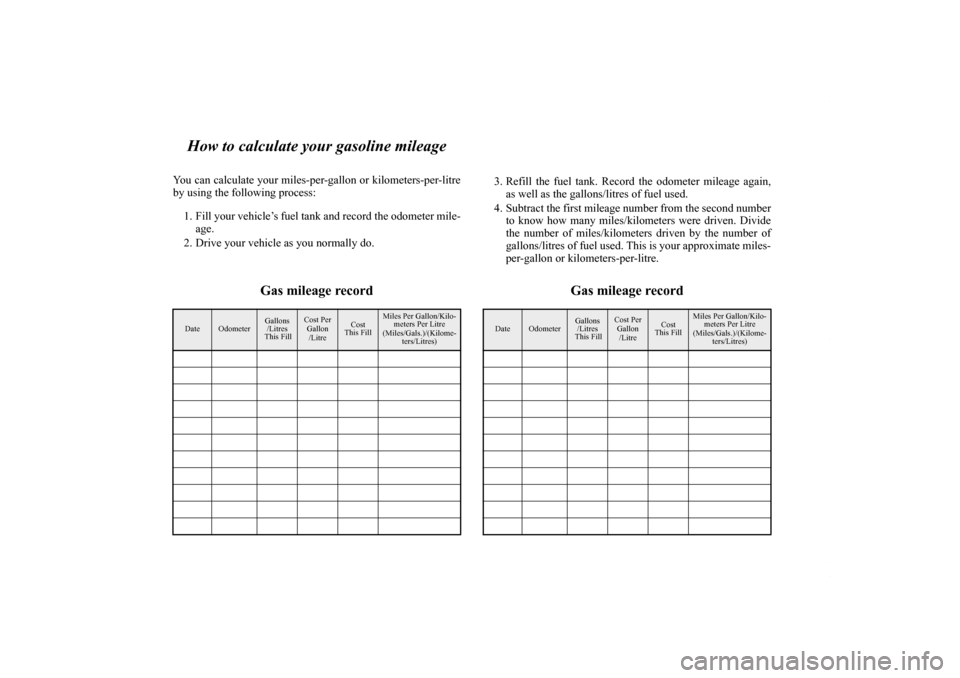

How to calculate your gasoline mileage
You can calculate your miles-per-gallon or kilometers-per-litre
by using the following process:
1. Fill your vehicle’s fuel tank and record the odometer mile-
age.
2. Drive your vehicle as you normally do.3. Refill the fuel tank. Record the odometer mileage again,
as well as the gallons/litres of fuel used.
4. Subtract the first mileage number from the second number
to know how many miles/kilometers were driven. Divide
the number of miles/kilometers driven by the number of
gallons/litres of fuel used. This is your approximate miles-
per-gallon or kilometers-per-litre.
Gas mileage record Gas mileage record
Date
Odometer
Gallons
/Litres
This Fill
Cost Per
Gallon
/Litre
Cost
This Fill
Miles Per Gallon/Kilo-
meters Per Litre
(Miles/Gals.)/(Kilome-
ters/Litres)
Date
Odometer
Gallons
/Litres
This Fill
Cost Per
Gallon
/Litre
Cost
This Fill
Miles Per Gallon/Kilo-
meters Per Litre
(Miles/Gals.)/(Kilome-
ters/Litres)
10GS41(NAFTA)_BK0102103US_lastpage.fm 1 ページ 2009年9月22日 火曜日 午後2時37分
