key MITSUBISHI LANCER 2011 8.G MMCS Manual

Advanced Search 3-9
Destination
4 Touch the desired POI
eng_a077>>> Continued at “Destination Setting” (page 3-12)
NOTE
display a map of
the vicinity and
corresponding
information.
eng_a078
From the Scroll MenuPOIs in the vicinity of a specified location can be
searched for from the scroll menu.
1 Scroll the map and place the
cursor on the location of the desired
facility, and press the [ENT] key
eng_a646
2 Touch [Nearby POI ]The remaining operations are the same as from step 2
of “Nearby POI ” (page 3-8).
eng_a603
POI along Route
Searching for POI along the set route. A
maximum of 100 POIs can be searched
for.

1 Display the “Advanced Search”
menu and touch [POI along Route]
The remaining operations are the same as from step 2
of “Nearby POI ” (page 3-8).
POI by Dest./Way Point
Searching for POI in the vicinity of the set
destination/way point.
A maximum of 100 POIs can be searched
for within a range of approximately 60
miles (100km) from the destination or way
point.
1 Display the “Advanced Search”
menu and touch [POI by Dest./WP]
2 Touch the destination or way point
eng_a081The remaining operations are the same as from step 2
of “Nearby POI ” (page 3-8).
NOTE
Touch [Info] to display
a map of the vicinity
and corresponding
information.
eng_a082
\b \b
\f \

  \b
\b
\f

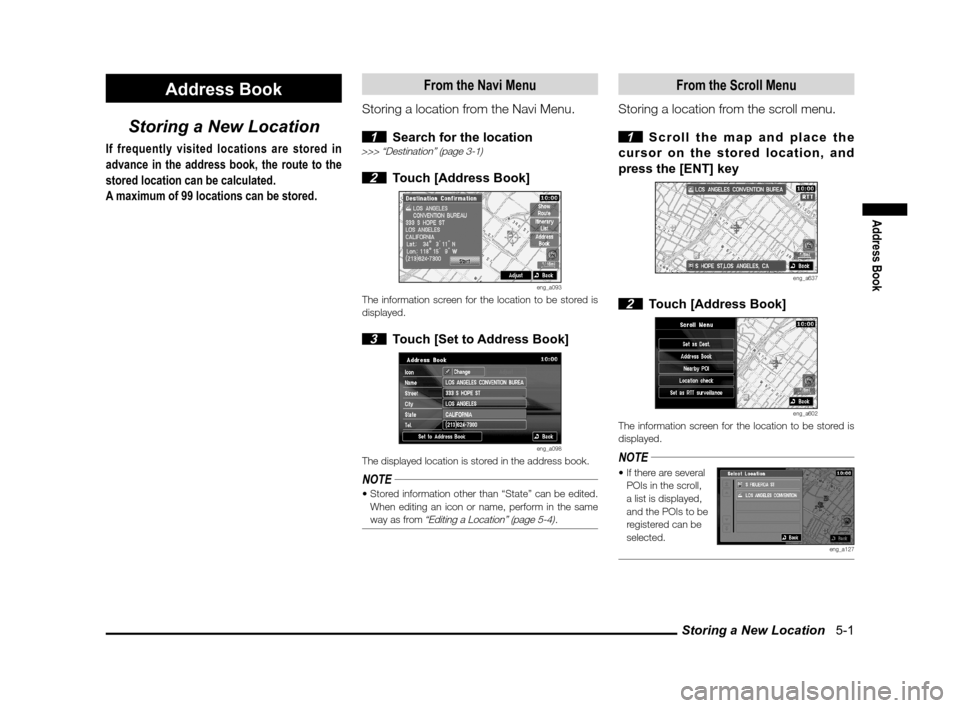

Storing a New Location 5-1
Address Book
Address Book
Storing a New Location
If frequently visited locations are stored in
advance in the address book, the route to the
stored location can be calculated.
A maximum of 99 locations can be stored.
From the Navi Menu
Storing a location from the Navi Menu.

1 Search for the location>>> “Destination” (page 3-1)
2 Touch [Address Book]
eng_a093The information screen for the location to be stored is
displayed.
3 Touch [Set to Address Book]
eng_a098The displayed location is stored in the address book.
NOTE When editing an icon or name, perform in the same
way as from
“Editing a Location” (page 5-4).
From the Scroll Menu
Storing a location from the scroll menu.

1 Scroll the map and place the
cursor on the stored location, and
press the [ENT] key
eng_a637
2 Touch [Address Book]
eng_a602The information screen for the location to be stored is
displayed.
NOTE

POIs in the scroll,
a list is displayed,
and the POIs to be
registered can be
selected.
eng_a127
\b \b
\f \


 \b
\b
\f

RTT (Real Time Traffi c) 6-2
Dynamic Route Guidance
If a RTT symbol with received data is
displayed on the route while driving,
atraffic information interrupt is displayed
automatically and the systemsearches
for a detour route.The traffic information
interrupt is displayed automatically.

1 Touch [Yes] on the Dynamic
Route Guidance screen
eng_a679
eng_a680
eng_a681The system searches for a detour route.
NOTE

route] is touched,
the original route
and new route
will be displayed.
eng_a682settings,interrupt displaywill not be performed. Refer
to
“RTT Options” (page 6-4).(The default setting for Dynamic Route Guidance is ON.)interrupt is displayedagain until the ACC is turned
OFF/ON.
Set as Surveillance MapA maximum of three map screens that display traf c
information can be stored.
If frequently driven roads are stored in advance, it easy
to view traf c information, without having to scroll the
map.
Storing from the RTT Traffic Information Screen
1 Display the traffi c information
eng_a615
2 Use the Joy-Stick to place the
cursor on the location to be stored.
Press the [ENT] key
eng_a616
3 Touch [RTT surveillance Map 1 (2, 3)]
eng_a617The data is stored to the selected number.
NOTE
has already been stored, the new data automatically
overwrites the old data and is saved.
\b \b
\f \

  \b
\b
 \f

RTT (Real Time Traffi c) 6-3
RTT
Storing from the Map Scroll Screen
1 Scroll to the location to store.
Press the [ENT] key
eng_a618
2 Touch [Set as RTT surveillance]
eng_a619
3 Touch [RTT surveillance Map 1 (2, 3)]
eng_a629The data is stored to the selected number.
NOTE
has already been stored, the new data automatically
overwrites the old data and is saved.
Recalling Stored Screens
Displaying on the screen the map screens
that have been stored in advance.

1 Press the [MENU] key

2 Touch [Navigation Tools]

3 Touch [Surveillance Map (RTT)]
eng_a672
4 Touch one of the Surveillance
Map numbers.
eng_a621The stored location is displayed.
5 Touch [RTT]
eng_a622The traf c information is displayed.
NOTE
Refer to “Set as Surveillance Map” (page 6-2).
\b \b
\f \

  \b
\b
 \f

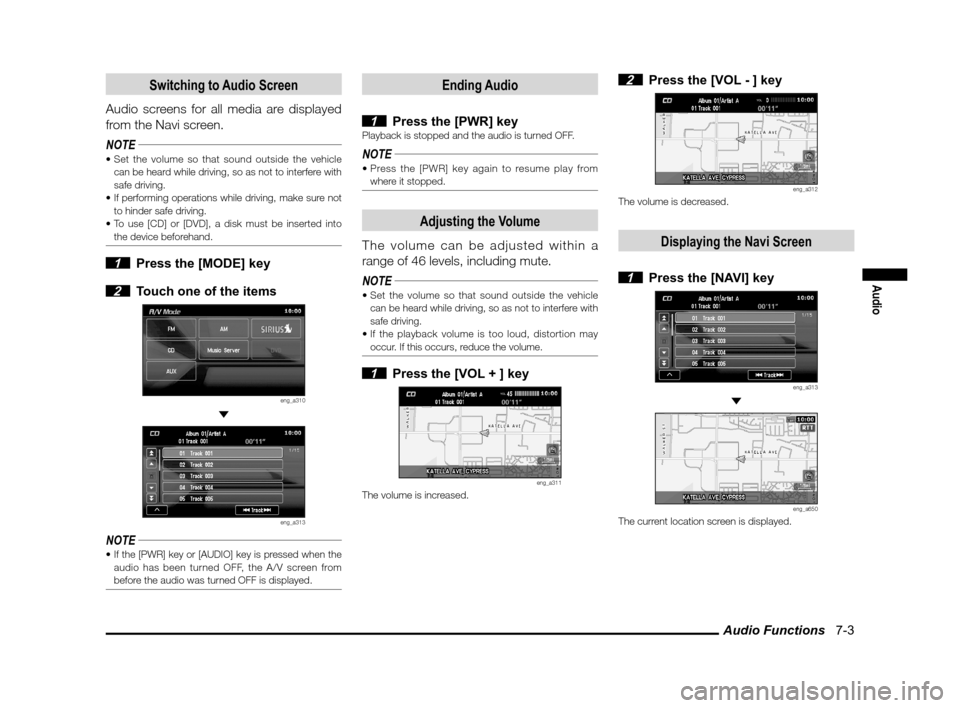

Audio Functions 7-3
Audio
Switching to Audio Screen
Audio screens for all media are displayed
from the Navi screen.
NOTE

can be heard while driving, so as not to interfere with
safe driving.
to hinder safe driving.
the device beforehand.
1 Press the [MODE] key

2 Touch one of the items
eng_a310
eng_a313
NOTE audio has been turned OFF, the A/V screen from
before the audio was turned OFF is displayed.
Ending Audio
1 Press the [PWR] keyPlayback is stopped and the audio is turned OFF.
NOTEwhere it stopped.
Adjusting the Volume
The volume can be adjusted within a
range of 46 levels, including mute.
NOTE
can be heard while driving, so as not to interfere with
safe driving.
occur. If this occurs, reduce the volume.
1 Press the [VOL + ] key
eng_a311The volume is increased.
2 Press the [VOL - ] key
eng_a312The volume is decreased.
Displaying the Navi Screen
1 Press the [NAVI] key
eng_a313
eng_a650The current location screen is displayed.
\b \b
\f \

  \b
\b

\f

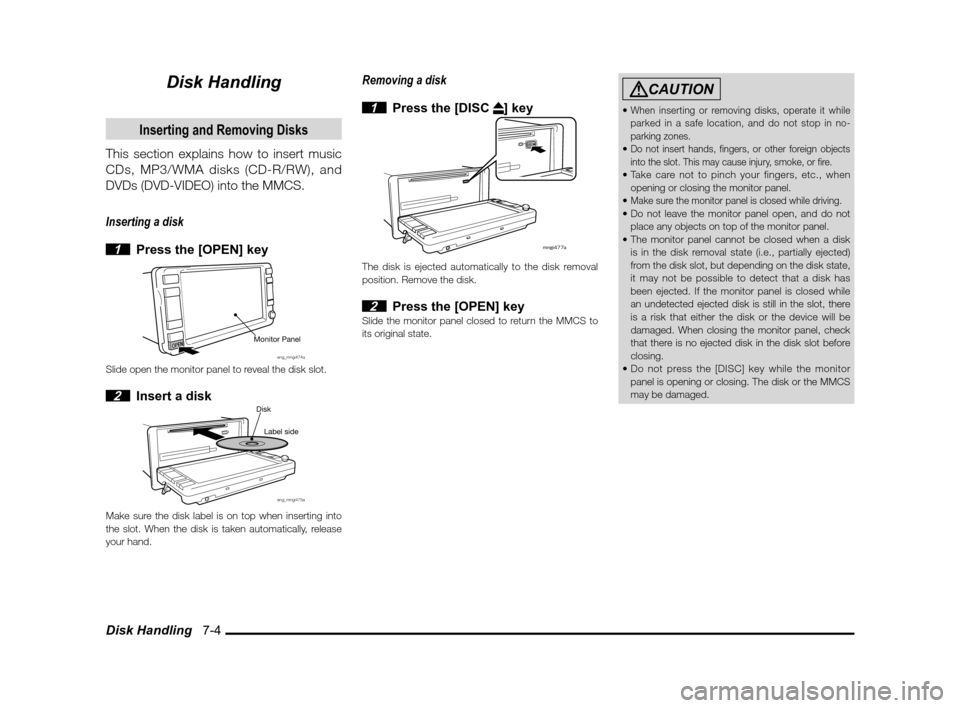

Disk Handling 7-4
Disk Handling
Inserting and Removing Disks
This section explains how to insert music
CDs, MP3/WMA disks (CD-R/RW), and
DVDs (DVD-VIDEO) into the MMCS.
Inserting a disk

1 Press the [OPEN] key
Monitor Panel
eng_mngi474aSlide open the monitor panel to reveal the disk slot.
2 Insert a disk
eng_mngi475a
Disk
Label side
Make sure the disk label is on top when inserting into
the slot. When the disk is taken automatically, release
your hand.
Removing a disk

1 Press the [DISC ] key
NOHJB
%*4$
The disk is ejected automatically to the disk removal
position. Remove the disk.
2 Press the [OPEN] keySlide the monitor panel closed to return the MMCS to
its original state.
CAUTION
When inserting or removing disks, operate it while
parked in a safe location, and do not stop in no-
parking zones.
Do not insert hands, ngers, or other foreign objects
into the slot. This may cause injury, smoke, or re.
opening or closing the monitor panel.

Make sure the monitor panel is closed while driving. place any objects on top of the monitor panel.
is in the disk removal state (i.e., partially ejected)
from the disk slot, but depending on the disk state,
it may not be possible to detect that a disk has
been ejected. If the monitor panel is closed while
an undetected ejected disk is still in the slot, there
is a risk that either the disk or the device will be
damaged. When closing the monitor panel, check
that there is no ejected disk in the disk slot before
closing.
panel is opening or closing. The disk or the MMCS
may be damaged.
\b \b
\f \

 \b \b
\b

\f

Listening to Radio 7-9
Audio
Listening to Radio
1 Press the [MODE] key

2 Touch [FM] or [AM]
eng_a310
eng_a431Radio is received.
NOTE the touch panel.
Selecting Stations
1 Receive radio
2 Touch either [ TUNE] or
[TUNE
] to select the frequency
eng_a431
The frequency is changed by one step.
Touch and hold the touch panel button to select
receivable frequencies automatically.
Scanning Broadcasting Stations
It is possible to search for broadcasting
stations that can be received in the current
location.

1 Receive radio

2 Touch [ ]
eng_a431
3 Touch [Scan]
eng_a432
eng_a433The search for broadcasting stations that can be
received starts automatically.
Broadcasting stations that can be received plays for
10 seconds only, and then the search resumes.
4 Press the [ENT] keyThe scan is cancelled, and reception of the current
broadcasting station is continued.
NOTE station can continue to be received.
\b \b
\f \

  \b
\b
 \f

Listening to SIRIUS 7-13
Audio
Selecting Stations
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
NOTE
switched.
2 Touch either [ Channel] or
[Channel
] to select the channel to
be received
eng_a440
The channels is changed one channel at a time.
Touch and hold one of these buttons to continuously
change the incoming channel. Release the button to
stop on a channel.
Selecting a Category to Be Received
1 Press the [MODE] key, and touch
[SIRIUS]

2 Touch [Category]
eng_a440The category list is displayed.
3 Touch the category button
eng_a439The list of channels within the selected category is
displayed.
4 Touch the channel button
eng_a441
The relevant channel is started to be received.
Scanning
It is possible to search for channels that
can be received in the current location.
Scanning Channels
Scan all channels.
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [ ]
eng_a440
\b \b
\f \


 \b
\b
 \f

Listening to SIRIUS 7-14
2 Touch [Scan]
eng_a442
eng_a437The search for channels that can be received is started
automatically.
Channels that can be received play for 10 seconds
only, and then the search resumes.
3 Press the [ENT] keyThe scan is cancelled, and reception of the current
channel is continued.
NOTE
continue to be received.
Scanning within CategoriesScan the channels in the currently selected category.
1 Display the channel list>>> “Selecting a Category to Be Received” (page 7-13)
2 Touch [CAT-Scan]
eng_a441
eng_a438The search for broadcasting stations that can be
received within the category is started automatically.
Broadcast stations that can be received plays for 10
seconds only, and then the channel search resumes.
3 Press the [ENT] keyThe scan is cancelled, and reception of the current
channel is continued.
NOTEcontinue to be received.
Selecting Channels DirectlyChannels can be selected by entering the channel
number directly.
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [Direct]
eng_a440
\b \b
\f \


\b \b
\b
 \f

Obtaining Title Information 7-25
Audio
Obtaining Title Information
The playlist title information can be obtained from the
Gracenote Database on the HDD. Searching for tracks
on the music server, etc., can be performed smoothly
by obtaining the title information.
Gracenote Service
Company OutlineMusic identification technology and related data
information is supplied by Gracenote Service and the
Gracenote music identification service. Gracenote
is the industry standard for music identification
technology and related data information distribution.
For details, refer to www.gracenote.com.
The Gracenote Database built into this device cannot
assure 100% the contents of the data.
Patents and TrademarksFor patents and trademarks, refer to “Gracenote®
music recognition service” (page 1-13).
Updating Gracenote CDDBThe information on the HDD can be updated using the
Gracenote CDDB version upgrade CD (disk).
NOTE the update is in progress.
displayed.

1 Insert a disk>>> “Inserting and Removing Disks” (page 7-4)
2 Press the [MODE] key

3 Touch [CDDB Updating]
eng_a324
eng_a325
NOTE The obtained update data is deleted. If the ACC is
turned OFF and the update is canceled, perform
update again from the start.
Obtaining Title Information
When a music CD is inserted into
the device, the title information can
be obtained from the built-in HDD
automatically at any time. If the title
information cannot be obtained, obtain it
using the CD text information.
The information that can be obtained is
the album title, album artist, track title,
track artist, and genre.
NOTE
as “No Title”, and the artist is displayed as “No
Name”.
period during which this device went on sale cannot
be obtained from the HDD. Further, it may not be
possible to obtain information from earlier music
CDs, either.
only.
information, it is necessary to use the music server.
\b \b
\f \

   \b \b
