5Audio System
navigation sYstem (if eqUiPPeD ) – PRessing the Panel keYs oR toUching the scReen bUttons can PeRfoRm vaRioUs
fUnctions. oPeRate the scReen b Y toUching lightlY with a fingeRtiP. foR a UDio s Ystem oPeRating instRUctions in
lanceRs withoUt a navigation s Ystem, Please RefeR to Y oUR owneR’s manUal.
Panel operation buttons:
MODE – displays the av mode selection screen
AUDIO – switches between the selected av mode and navigation screen
VOL – adjust the volume
PWR – turns on and off the audio function\:s
SET – displays the settings screen
OPEN – opens and closes \:the monitor panel
ENT with Joystick – implements th\:e selected item, scrolls the maps and im\:plements item selection.
MENU – displays the navigation menu screen
SCALE – changes the map s\:cale
NAVI – displays the current location screen
INFO – displays the info screen
C\fimate Contro\f System
Temperature C\bntr\bl Dial – t urn the temperature control dial clockwise to make the air warmer. t urn it counterclockwise to make the air cooler.
w hile the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engin\:e warms up, even if you
have selected warm air with the dia\:l.
Air Sele\fti\bn Swit\fh – select the outside ai\:rflow position to keep the windshield an\:d side windows clear and to quickly remove fog or frost from
the windshield. t o change the air sel\:ection, simply press the air selection \:switch. w hen the air conditioning turns o\:n, the air selection\: is controlled
automatically.
Bl\bwer Speed Sele\fti\bn D\wial – w hen the ignition switch is in the ON position, turn the \:blower speed selection dia\:l to set speed. w hen the blower
speed selection dial \:is set to the OFF position, all fan\bdriven airflow will stop.
Air C\bnditi\bning Swit\fh – Push the switch and the air conditioning compressor and indicator light will come on.
M\bde Sele\fti\bn Dial – t his dial controls the direction of airflow, not the amount of\: airflow. t he amount of airflow is controlled by the blower
selection dial. t o change the direction of air flowing from the vents, turn the mode \:selection dial to the desired airflow position. if equipped
with a uto temperature c ontrol, select AUTO for automatic air direction and blower fan speed. in AUTO mode, the system will adjust fan
speed, mode selection \:and temperature automatically.
Ele\ftri\f Rear Wind\bw Def\bgger Swit\fh – w hen the engine is run\:ning, the indicator light will come on when you push the electric \:rear
window defogger switch helping clear away moisture or light frost.
TIP: F\br Qui\fk Defr\bsting
\f. set the mode selection\: dial to the
position.
2. set blower dial to the maximum speed.
3. set the temperature to the highest position.
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
External Audi\b Input Fun\fti\bn (if\w equipped)
You can listen to your portable audio
equipment, through your vehicle’s speakers
by connecting the audio\: equipment to the
Rca input connectors found in the upper
front console area or the Usb port in glove
box area. To activate the RCA i\fput mo\be,
press a\f\b hol\b the CD but\Cto\f for more tha\f
2 seco\f\bs.
Au xiliary Au dio connector
(RCA )
Au xiliary \fideo connecto r
(RCA )
Ty
pe 1

6
What does a\f\f this stu\b do?
1) Digital Cl\b\fk
t ime is displayed when the ignition\: key is in the ON or ACC position. t o set the time, press and hold the CLOCK [1] button until the display
flashes. t o change the hour, press the H [2] button. t o change the minutes, press the M [3] button.
once you have made your adjustments to the hours and min\:utes, then press the [1] button once more to lock in the time.
2) Multi-Inf\brmati\bn Meter (INFO) Butt\bn
t he INFO button changes display information for warnings, odometer/tripmeter, service reminder, engine coolant temperature, average
and momentary fuel c\:onsumption, driving \:range and average speed. it is also possible to change elements su\:ch as the language \:and units
used on the multi\bin\:formation display by pushing the multi\b\:information meter (INFO) button.
3) Rhe\bstat Meter Illuminati\bn Butt\bn
t he brightness of the instrument panel can be \:adjusted by pressing the button.
4) P\bwer Outlet (if equip\wped)
12 V POWER OUTLETS:
located in front of the floor console. a ccessories can be operated when the ignition\: switch is in either the \:ON or ACC position.


123

10

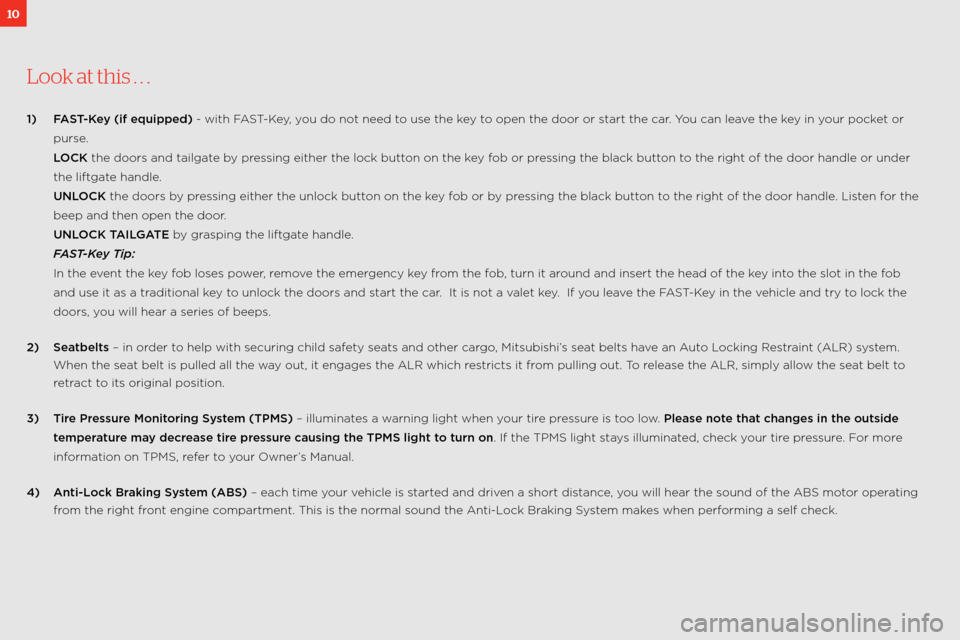

Look at this . . .
1) FAST-Key (if equipped) \b with fast \bkey, you do not need to use the key to open the door or start the car. You can leave the key in your pocket or
purse.
LOCK the doors and tailg\:ate by pressing either the lock\: button on the key fob or pressing the black butt\:on to the right of the d\:oor handle or under
the liftgate handle.
UNLOCK the doors by pressing either the unlo\:ck button on the key fob or by pressing the black butt\:on to the right of the d\:oor handle. listen for the
beep and then open the\: door.
UNLOCK TAILGATE by grasping the liftgate handle.
FAST-Key Tip:
in the event the key fob loses power, remove the emergency key from the fob, turn it around and insert the \:head of the key into the slot in the f\:ob and use it as a traditional key to unlock the doors \:and start the car. it is not a valet key. if you leave the fast \bkey in the vehicle and try to lock the
doors, you will hear a series\: of beeps.
2) Seatbelts – in order to help with securing \:child safety seats and other cargo, mitsubishi’s seat belts have an a uto locking Restraint (alR) system.
w hen the seat belt is pulled all\: the way out, it engages t\:he alR which restricts it from pulling out. t o release the alR, simply allow the seat belt to
retract to its original posit\:ion.
3) Tire Pressure M\bnit\bring System (TPMS) – illuminates a warning light when y\:our tire pressure is too low. Please n\bte that \fhanges in the \buts\wide
temperature may de\frease tire pressure \fausing the TPMS l\wight t\b turn \bn. if the tPms light stays illuminated, check your tire pressure. f or more
information on tPms, refer to your owner’s manual.
4) Anti-L\b\fk Braking System (ABS) – each time your vehicle is started and driven a short distance, you will hear the sou\:nd of the abs motor operating
from the right front engine compartment. t his is the normal s\:ound the anti\block braking system makes when performing a self check.\:
