brake sensor MITSUBISHI LANCER 2011 8.G Owners Manual

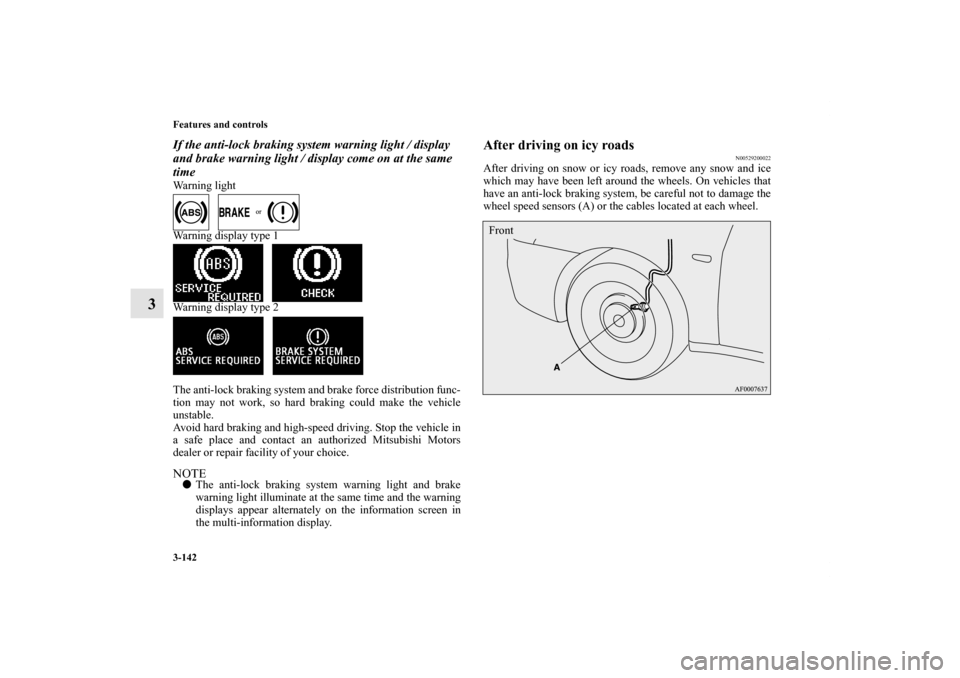

3-142 Features and controls
3
If the anti-lock braking system warning light / display
and brake warning light / display come on at the same
timeWarning light

Warning display type 1

Warning display type 2

The anti-lock braking system and brake force distribution func-
tion may not work, so hard braking could make the vehicle
unstable.
Avoid hard braking and high-speed driving. Stop the vehicle in
a safe place and contact an authorized Mitsubishi Motors
dealer or repair facility of your choice.NOTE
The anti-lock braking system warning light and brake
warning light illuminate at the same time and the warning
displays appear alternately on the information screen in
the multi-information display.
After driving on icy roads
N00529200022
After driving on snow or icy roads, remove any snow and ice
which may have been left around the wheels. On vehicles that
have an anti-lock braking system, be careful not to damage the
wheel speed sensors (A) or the cables located at each wheel.Front
BK0119300US.book 142 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

4-6 Driving safety
4

If you use new wheels with new tire inflation pressure
sensors, their ID codes must be programmed into the tire
pressure monitoring system. Refer to “Whenever the tires
and wheels are replaced with new ones” on page 3-163.
Braking
N00629500446
All the parts of the brake system are critical to safety. Have the
vehicle serviced by an authorized Mitsubishi Motors dealer or
a repair facility of your choice at regular intervals according to
the “WARRANTY AND MAINTENANCE MANUAL”.When brakes are wetCheck the brake system while driving at a low speed immedi-
ately after starting, especially when the brakes are wet, to con-
firm they work normally.
A film of water can be formed on the brake discs or brake
drums and prevent normal braking after driving in heavy rain
or through large puddles, or after the vehicle is washed. If this
occurs, dry the brakes out by driving slowly while lightly
depressing the brake pedal.When driving in cold weatherOn snowy roads, ice can form on the braking system, making
the brakes less effective. While driving in such conditions, pay
close attention to preceding and following vehicles and to the
condition of the road surface. From time to time, lightly
depress the brake pedal and check how effective the brakes are.When driving downhillIt is important to take advantage of the engine braking by shift-
ing to a lower gear while driving on steep downhill roads in
order to prevent the brakes from overheating.
BK0119300US.book 6 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

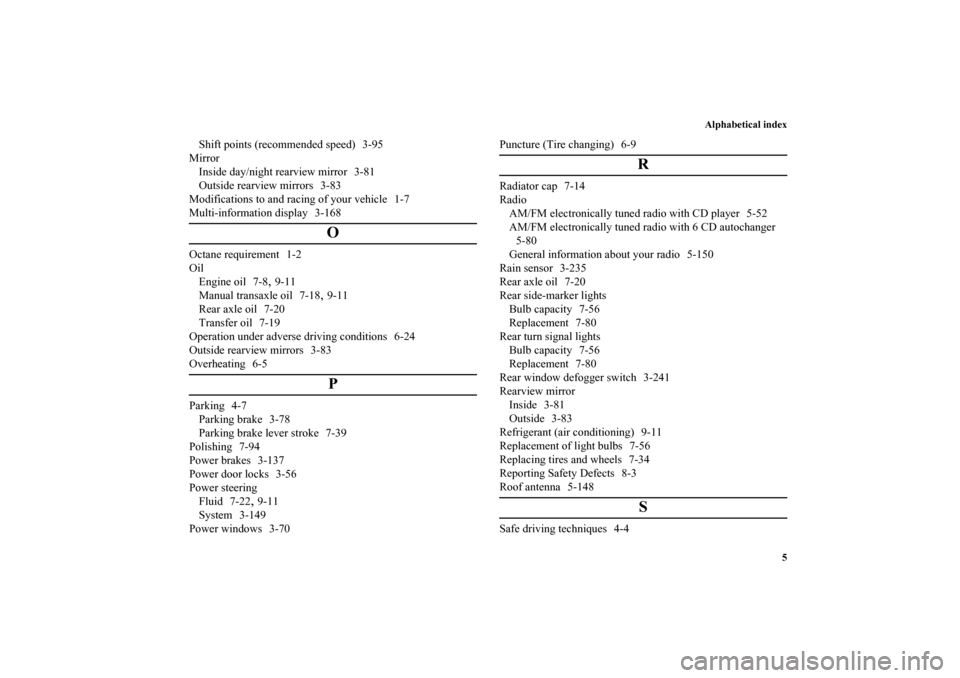

Alphabetical index
5
Shift points (recommended speed) 3-95
Mirror
Inside day/night rearview mirror 3-81
Outside rearview mirrors 3-83
Modifications to and racing of your vehicle 1-7
Multi-information display 3-168
O
Octane requirement 1-2
Oil
Engine oil 7-8
,9-11
Manual transaxle oil 7-18
,9-11
Rear axle oil 7-20
Transfer oil 7-19
Operation under adverse driving conditions 6-24
Outside rearview mirrors 3-83
Overheating 6-5P
Parking 4-7
Parking brake 3-78
Parking brake lever stroke 7-39
Polishing 7-94
Power brakes 3-137
Power door locks 3-56
Power steering
Fluid 7-22
,9-11
System 3-149
Power windows 3-70Puncture (Tire changing) 6-9
R
Radiator cap 7-14
Radio
AM/FM electronically tuned radio with CD player 5-52
AM/FM electronically tuned radio with 6 CD autochanger
5-80
General information about your radio 5-150
Rain sensor 3-235
Rear axle oil 7-20
Rear side-marker lights
Bulb capacity 7-56
Replacement 7-80
Rear turn signal lights
Bulb capacity 7-56
Replacement 7-80
Rear window defogger switch 3-241
Rearview mirror
Inside 3-81
Outside 3-83
Refrigerant (air conditioning) 9-11
Replacement of light bulbs 7-56
Replacing tires and wheels 7-34
Reporting Safety Defects 8-3
Roof antenna 5-148
S
Safe driving techniques 4-4
BK0119300US.book 5 ページ ２０１０年５月２１日　金曜日　午前１０時１３分
