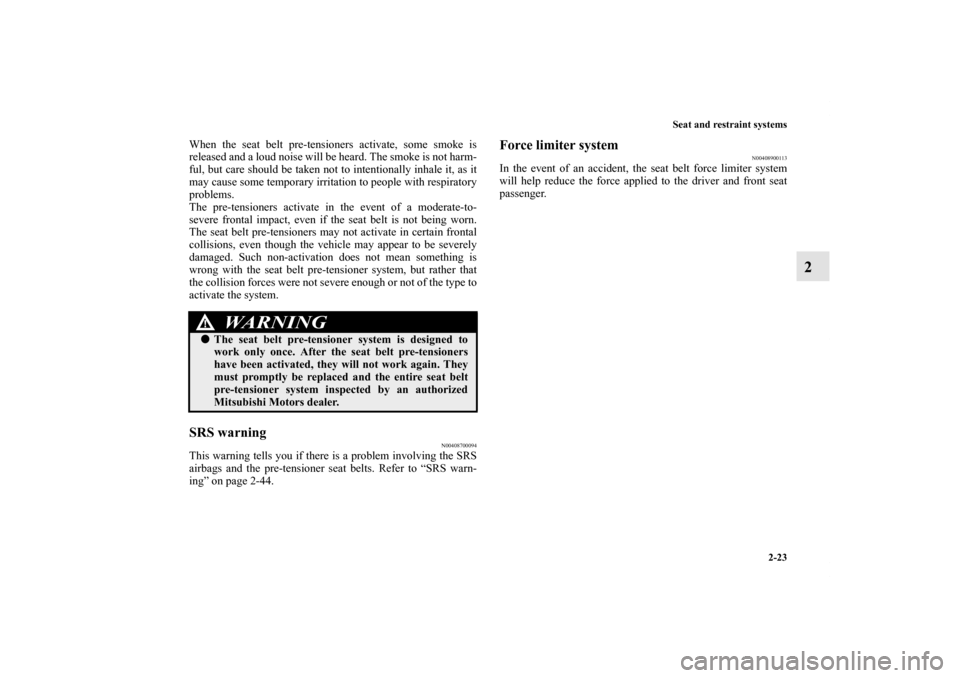

Page 54 of 700
Seat and restraint systems
2-23
2
When the seat belt pre-tensioners activate, some smoke is
released and a loud noise will be heard. The smoke is not harm-
ful, but care should be taken not to intentionally inhale it, as it
may cause some temporary irritation to people with respiratory
problems.
The pre-tensioners activate in the event of a moderate-to-
severe frontal impact, even if the seat belt is not being worn.
The seat belt pre-tensioners may not activate in certain frontal
collisions, even though the vehicle may appear to be severely
damaged. Such non-activation does not mean something is
wrong with the seat belt pre-tensioner system, but rather that
the collision forces were not severe enough or not of the type to
activate the system.SRS warning
N00408700094
This warning tells you if there is a problem involving the SRS
airbags and the pre-tensioner seat belts. Refer to “SRS warn-
ing” on page 2-44.
Force limiter system
N00408900113
In the event of an accident, the seat belt force limiter system
will help reduce the force applied to the driver and front seat
passenger.
WA R N I N G
!The seat belt pre-tensioner system is designed to
work only once. After the seat belt pre-tensioners
have been activated, they will not work again. They
must promptly be replaced and the entire seat belt
pre-tensioner system inspected by an authorized
Mitsubishi Motors dealer.
BK0119300US.book 23 ページ 2010年5月21日 金曜日 午前10時13分

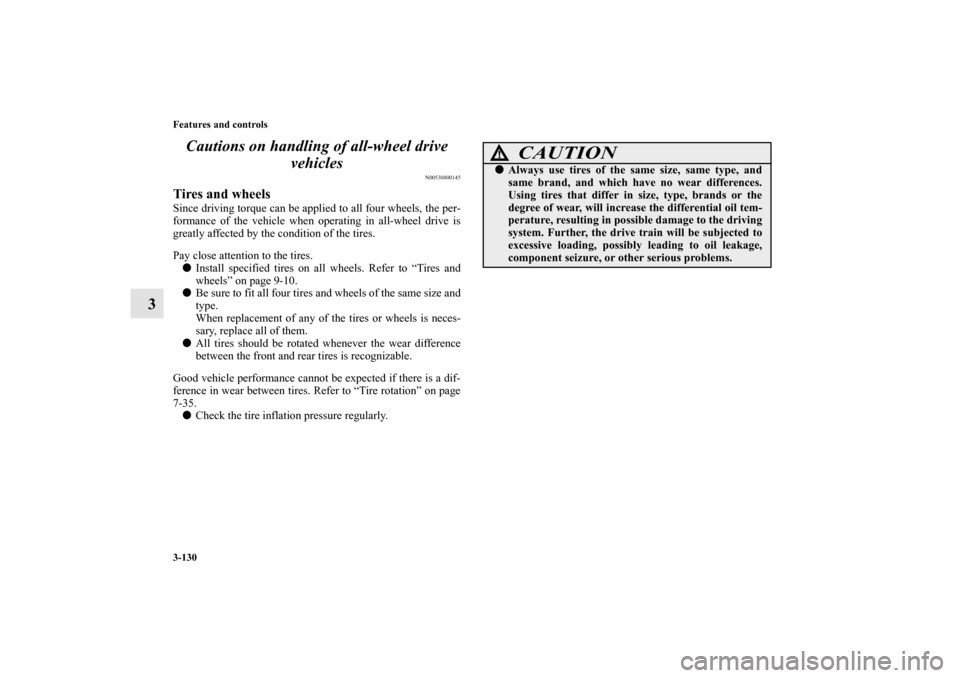

Page 225 of 700
3-130 Features and controls
3Cautions on handling of all-wheel drive
vehicles
N00530800145
Tires and wheelsSince driving torque can be applied to all four wheels, the per-
formance of the vehicle when operating in all-wheel drive is
greatly affected by the condition of the tires.
Pay close attention to the tires.
Install specified tires on all wheels. Refer to “Tires and
wheels” on page 9-10.
Be sure to fit all four tires and wheels of the same size and
type.
When replacement of any of the tires or wheels is neces-
sary, replace all of them.
All tires should be rotated whenever the wear difference
between the front and rear tires is recognizable.
Good vehicle performance cannot be expected if there is a dif-
ference in wear between tires. Refer to “Tire rotation” on page
7-35.
Check the tire inflation pressure regularly.
CAUTION
!Always use tires of the same size, same type, and
same brand, and which have no wear differences.
Using tires that differ in size, type, brands or the
degree of wear, will increase the differential oil tem-
perature, resulting in possible damage to the driving
system. Further, the drive train will be subjected to
excessive loading, possibly leading to oil leakage,
component seizure, or other serious problems.
BK0119300US.book 130 ページ 2010年5月21日 金曜日 午前10時13分

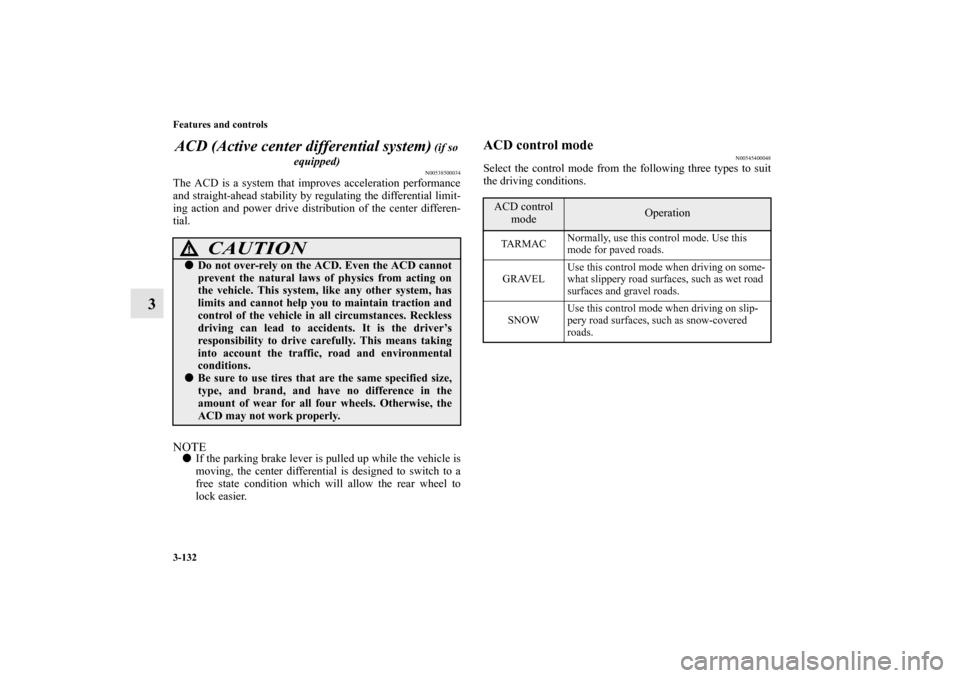

Page 227 of 700
3-132 Features and controls
3ACD (Active center differential system)
(if so
equipped)N00538500034
The ACD is a system that improves acceleration performance
and straight-ahead stability by regulating the differential limit-
ing action and power drive distribution of the center differen-
tial.NOTEIf the parking brake lever is pulled up while the vehicle is
moving, the center differential is designed to switch to a
free state condition which will allow the rear wheel to
lock easier.
ACD control mode
N00545400048
Select the control mode from the following three types to suit
the driving conditions.
CAUTION
!Do not over-rely on the ACD. Even the ACD cannot
prevent the natural laws of physics from acting on
the vehicle. This system, like any other system, has
limits and cannot help you to maintain traction and
control of the vehicle in all circumstances. Reckless
driving can lead to accidents. It is the driver’s
responsibility to drive carefully. This means taking
into account the traffic, road and environmental
conditions.Be sure to use tires that are the same specified size,
type, and brand, and have no difference in the
amount of wear for all four wheels. Otherwise, the
ACD may not work properly.
ACD control
mode
Operation
TA R M A CNormally, use this control mode. Use this
mode for paved roads.
GRAVELUse this control mode when driving on some-
what slippery road surfaces, such as wet road
surfaces and gravel roads.
SNOWUse this control mode when driving on slip-
pery road surfaces, such as snow-covered
roads.
BK0119300US.book 132 ページ 2010年5月21日 金曜日 午前10時13分
Page 235 of 700
3-140 Features and controls
3
NOTEAfter your vehicle is driven a short distance after starting
the engine, you will hear the sound coming from the
engine compartment. These are the normal sounds the
anti-lock braking system makes when performing a self-
check. It does not indicate a malfunction.
The anti-lock braking system can be used after the vehicle
has reached a speed over approximately 6 mph (10 km/h).
It stops working when the vehicle slows below approxi-
mately 3 mph (5 km/h).
Anti-lock braking system warning light / display
N00531600573
Warning light
Warning display type 1
Warning display type 2
If there is a malfunction in the system, the anti-lock braking
system warning light will come on and the warning display
will appear on the information screen in the multi-information
display.
Under normal conditions, the anti-lock braking system warning
light only comes on when the ignition switch is turned to the
“ON” position and goes off a few seconds later.
CAUTION
!The anti-lock braking system cannot prevent acci-
dents. It is your responsibility to take safety precau-
tions and to drive carefully. To prevent failure of the anti-lock braking system,
be sure all four wheels and tires are the same size
and the same type.Never install a limited slip differential as the ABS
may not function normally.
Please consult an authorized Mitsubishi Motors
dealer.
BK0119300US.book 140 ページ 2010年5月21日 金曜日 午前10時13分
Page 238 of 700
Features and controls
3-143
3 Active Stability Control (ASC)
(if so equipped)
N00559100118
The Active Stability Control (ASC) takes overall control of the
anti-lock braking system, traction control function and skid
control function to help maintain the vehicle’s control and trac-
tion. Please read this section in conjunction with the page on
the anti-lock braking system, traction control function and skid
control function.
Anti-lock braking system (ABS) → P. 3 - 1 3 9
Traction control function → P. 3 - 1 4 4
Skid control function → P. 3 - 1 4 4
Rear
CAUTION
!Do not over-rely on the ASC. Even the ASC cannot
prevent the natural laws of physics from acting on
the vehicle. This system, like any other system, has
limits and cannot help you to maintain traction and
control of the vehicle in all circumstances. Reckless
driving can lead to accidents. It is the driver’s
responsibility to drive carefully, This means taking
into account the traffic, road and environmental
conditions.Be sure to use the same specified type and size of tire
on all four wheels. Otherwise, the ASC may not
work properly.Do not install any aftermarket limited slip differen-
tial (LSD) on your vehicle. The ASC may stop func-
tioning properly.
BK0119300US.book 143 ページ 2010年5月21日 金曜日 午前10時13分

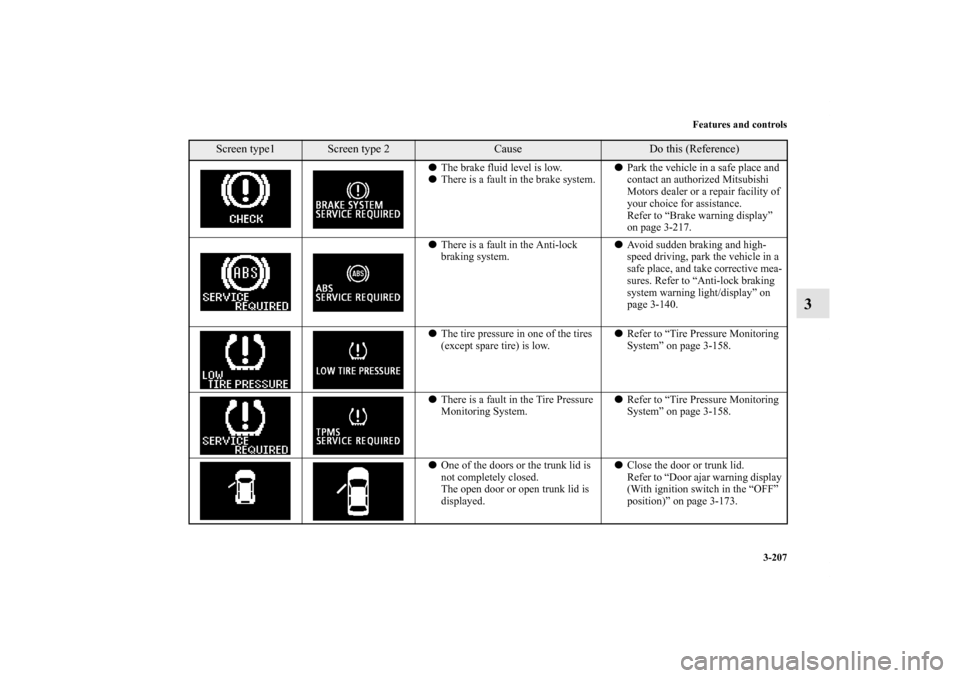

Page 302 of 700
Features and controls
3-207
3
The brake fluid level is low.
There is a fault in the brake system.Park the vehicle in a safe place and
contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice for assistance.
Refer to “Brake warning display”
on page 3-217.
There is a fault in the Anti-lock
braking system.Avoid sudden braking and high-
speed driving, park the vehicle in a
safe place, and take corrective mea-
sures. Refer to “Anti-lock braking
system warning light/display” on
page 3-140.
The tire pressure in one of the tires
(except spare tire) is low.Refer to “Tire Pressure Monitoring
System” on page 3-158.
There is a fault in the Tire Pressure
Monitoring System.Refer to “Tire Pressure Monitoring
System” on page 3-158.
One of the doors or the trunk lid is
not completely closed.
The open door or open trunk lid is
displayed.Close the door or trunk lid.
Refer to “Door ajar warning display
(With ignition switch in the “OFF”
position)” on page 3-173.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0119300US.book 207 ページ 2010年5月21日 金曜日 午前10時13分

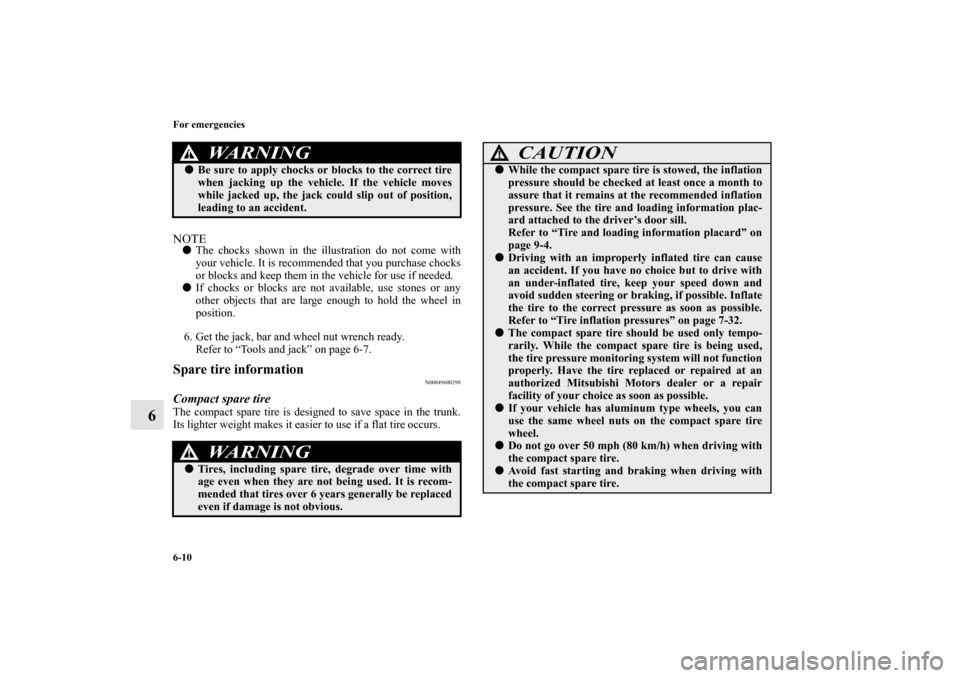

Page 561 of 700
6-10 For emergencies
6
NOTEThe chocks shown in the illustration do not come with
your vehicle. It is recommended that you purchase chocks
or blocks and keep them in the vehicle for use if needed.
If chocks or blocks are not available, use stones or any
other objects that are large enough to hold the wheel in
position.
6. Get the jack, bar and wheel nut wrench ready.
Refer to “Tools and jack” on page 6-7.Spare tire information
N00849600298
Compact spare tireThe compact spare tire is designed to save space in the trunk.
Its lighter weight makes it easier to use if a flat tire occurs.
WA R N I N G
!Be sure to apply chocks or blocks to the correct tire
when jacking up the vehicle. If the vehicle moves
while jacked up, the jack could slip out of position,
leading to an accident.
WA R N I N G
!Tires, including spare tire, degrade over time with
age even when they are not being used. It is recom-
mended that tires over 6 years generally be replaced
even if damage is not obvious.
CAUTION
!While the compact spare tire is stowed, the inflation
pressure should be checked at least once a month to
assure that it remains at the recommended inflation
pressure. See the tire and loading information plac-
ard attached to the driver’s door sill.
Refer to “Tire and loading information placard” on
page 9-4.Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-32.The compact spare tire should be used only tempo-
rarily. While the compact spare tire is being used,
the tire pressure monitoring system will not function
properly. Have the tire replaced or repaired at an
authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.If your vehicle has aluminum type wheels, you can
use the same wheel nuts on the compact spare tire
wheel. Do not go over 50 mph (80 km/h) when driving with
the compact spare tire.Avoid fast starting and braking when driving with
the compact spare tire.
BK0119300US.book 10 ページ 2010年5月21日 金曜日 午前10時13分

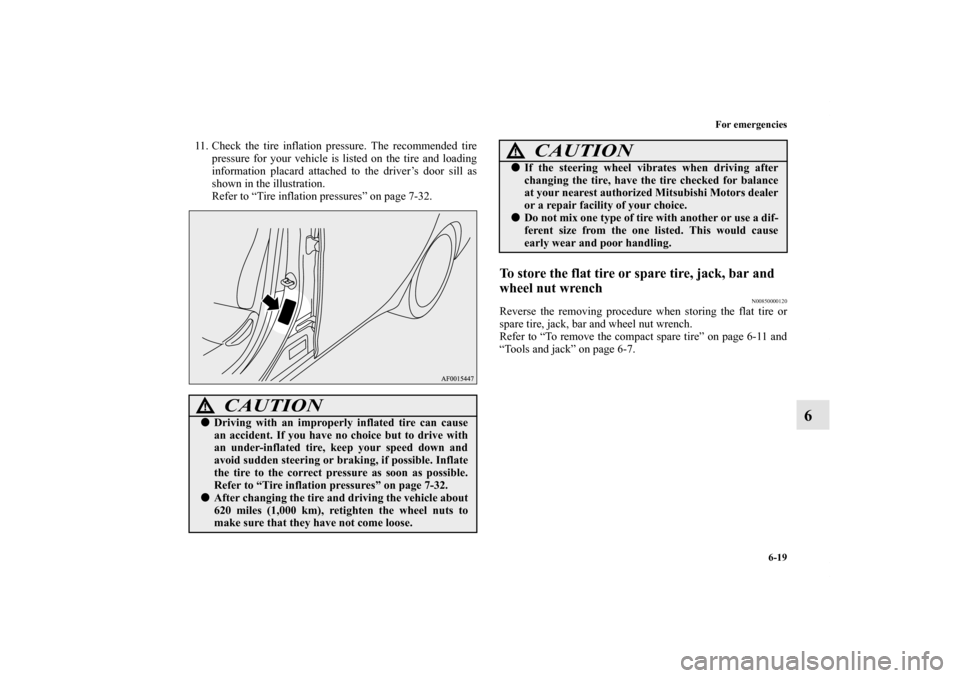

Page 570 of 700
For emergencies
6-19
6
11. Check the tire inflation pressure. The recommended tire
pressure for your vehicle is listed on the tire and loading
information placard attached to the driver’s door sill as
shown in the illustration.
Refer to “Tire inflation pressures” on page 7-32.
To store the flat tire or spare tire, jack, bar and
wheel nut wrench
N00850000120
Reverse the removing procedure when storing the flat tire or
spare tire, jack, bar and wheel nut wrench.
Refer to “To remove the compact spare tire” on page 6-11 and
“Tools and jack” on page 6-7.
CAUTION
!Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-32.After changing the tire and driving the vehicle about
620 miles (1,000 km), retighten the wheel nuts to
make sure that they have not come loose.
If the steering wheel vibrates when driving after
changing the tire, have the tire checked for balance
at your nearest authorized Mitsubishi Motors dealer
or a repair facility of your choice. Do not mix one type of tire with another or use a dif-
ferent size from the one listed. This would cause
early wear and poor handling.
CAUTION
!
BK0119300US.book 19 ページ 2010年5月21日 金曜日 午前10時13分
Page 606 of 700

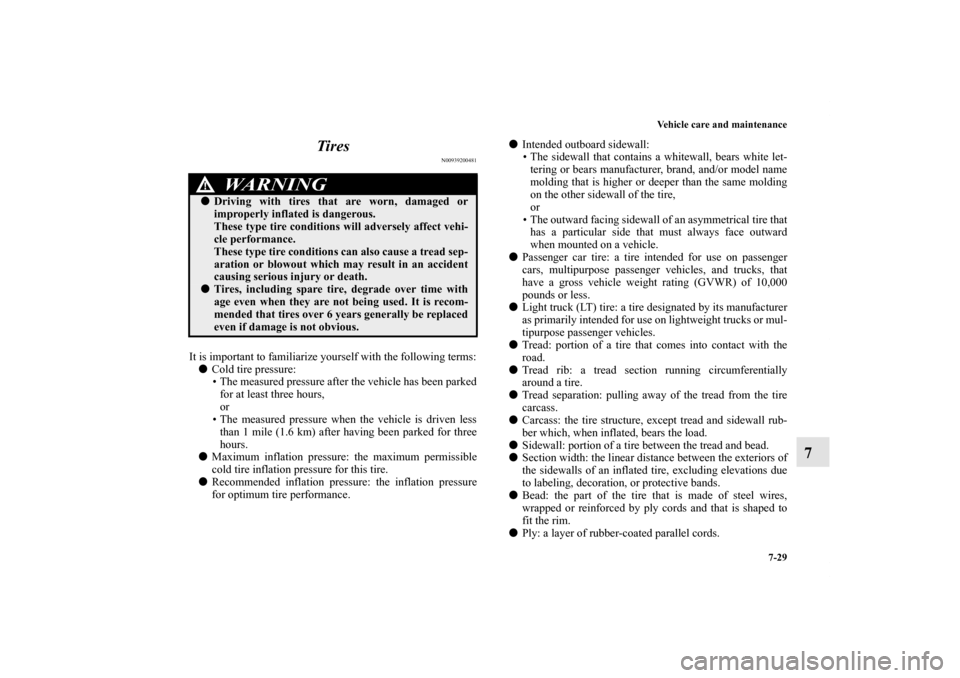

Vehicle care and maintenance
7-29
7 Tires
N00939200481
It is important to familiarize yourself with the following terms:
Cold tire pressure:
• The measured pressure after the vehicle has been parked
for at least three hours,
or
• The measured pressure when the vehicle is driven less
than 1 mile (1.6 km) after having been parked for three
hours.
Maximum inflation pressure: the maximum permissible
cold tire inflation pressure for this tire.
Recommended inflation pressure: the inflation pressure
for optimum tire performance.Intended outboard sidewall:
• The sidewall that contains a whitewall, bears white let-
tering or bears manufacturer, brand, and/or model name
molding that is higher or deeper than the same molding
on the other sidewall of the tire,
or
• The outward facing sidewall of an asymmetrical tire that
has a particular side that must always face outward
when mounted on a vehicle.
Passenger car tire: a tire intended for use on passenger
cars, multipurpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of 10,000
pounds or less.
Light truck (LT) tire: a tire designated by its manufacturer
as primarily intended for use on lightweight trucks or mul-
tipurpose passenger vehicles.
Tread: portion of a tire that comes into contact with the
road.
Tread rib: a tread section running circumferentially
around a tire.
Tread separation: pulling away of the tread from the tire
carcass.
Carcass: the tire structure, except tread and sidewall rub-
ber which, when inflated, bears the load.
Sidewall: portion of a tire between the tread and bead.
Section width: the linear distance between the exteriors of
the sidewalls of an inflated tire, excluding elevations due
to labeling, decoration, or protective bands.
Bead: the part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is shaped to
fit the rim.
Ply: a layer of rubber-coated parallel cords.
WA R N I N G
!Driving with tires that are worn, damaged or
improperly inflated is dangerous.
These type tire conditions will adversely affect vehi-
cle performance.
These type tire conditions can also cause a tread sep-
aration or blowout which may result in an accident
causing serious injury or death.Tires, including spare tire, degrade over time with
age even when they are not being used. It is recom-
mended that tires over 6 years generally be replaced
even if damage is not obvious.
BK0119300US.book 29 ページ 2010年5月21日 金曜日 午前10時13分
Page 611 of 700
7-34 Vehicle care and maintenance
7
Replacing tires and wheels
N00939600368
Tire maintenance
N00939700154
The following maintenance steps are recommended:
Check tire pressures regularly.
Have regular maintenance done on the wheel balance and
front and rear suspension alignment.
Rotate your tires regularly as described in the “Tire rota-
tion” section on page 7-35.
CAUTION
!Avoid using different size tires and wheels from the
ones listed, and avoid the combined use of different
types of tires and wheels. Using different size or type
tires and wheels may affect driving safety.
Refer to “Tires and wheels” on page 9-10.For All-wheel drive vehicles, always use tires of the
same size, same type, and same brand, and which
have no wear differences. Using tires that differ in
size, type, brand or the degree of wear, will increase
the differential oil temperature, resulting in possible
damage to the driving system. Further, the drive
train will be subjected to excessive loading, possibly
leading to oil leakage, component seizure, or other
serious problems.Even if a wheel has the same rim size and offset as
the specified type of wheel, its shape may prevent it
from being fitted correctly. Consult an authorized
Mitsubishi Motors dealer or a repair facility of your
choice before using wheels that you have.Only Mitsubishi Motors genuine wheels should be
used, because your vehicle is equipped with a tire
pressure monitoring system.
Use of another type of wheel risks air leaks and sen-
sor damage, as it will not be possible to install the
tire pressure sensor properly.
BK0119300US.book 34 ページ 2010年5月21日 金曜日 午前10時13分
