Overview
Center panel
N00100700154
Ty p e 1 Ty p e 2
Hazard warning flasher
switch P.3-230
Heater (if so equipped)
P. 5 - 6
Air conditioning (if so equipped)
P.5-31, 5-41
Ashtray P.3-276Front console box
P.3-286 Hazard warning flasher
switch P.3-230
Air conditioning
P.5-31, 5-41
Auxiliary Audio connecter
(RCA) (if so equipped)
P. 5 - 1 3 2
Auxiliary Video connecter
(RCA) (if so equipped)
P. 5 - 1 3 2 Auxiliary Audio connecter (RCA)
(if so equipped) P.5-132
Auxiliary Video connecter (RCA)
(if so equipped) P.5-13212 V power outlet P.3-277 Audio (if so equipped) P.5-52, 5-80
Digital clock (if so equipped) P.5-149
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”Audio (if so equipped) P.5-52, 5-80
Digital clock (if so equipped) P.5-149
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”
Electric rear win-
dow defogger
switch P.3-240Electric rear
window defog-
ger switch
P. 3 - 2 4 0 Front passenger seat belt
warning light P.2-19 Front passenger seat belt
warning light P.2-19
12 V power outlet
P.3-277 Passenger’s airbag
off indicator P.2-43Passenger’s airbag
off indicator
P.2-43BK0119300US.book 5 ページ 2010年5月21日 金曜日 午前10時13分
Page 8 of 700
Overview
Interior
N00100301085
Adjustable seat belt shoulder
anchor (for front seats) P.2-20
Seat belts P.2-14
Supplemental restraint system - side airbag
(for front seats, if so equipped) P.2-52Front seats P.2-3Sun visors P.3-274
Vanity mirror P.3-274 Inside rearview mirror P.3-80
Head restraints P.2-10 Window lock switch P.3-73
Power window
switches P.3-69Power door lock
switch P.3-55 Electric remote-
controlled out-
side mirror switch
P. 3 - 8 2Dome light (Front)/Reading lights
(if so equipped) P.3-279, 7-59, 7-86Sunroof switch
(if so equipped)
P. 3 - 7 4
Bluetooth
® 2.0 interface microphone (if so equipped)
P. 3 - 2 4 2
Bottle holder (for front seat) P.3-289
BK0119300US.book 6 ページ 2010年5月21日 金曜日 午前10時13分
Page 19 of 700
4 Quick indexCannot shift the selector lever
(CVT) or the gearshift lever (Twin
Clutch SST) from the “P” (PARK)
position. (for vehicles with CVT or
Tw i n C l u t c h S S T )Shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) while press-
ing the brake pedal.
Check that the ignition key or ignition switch is in the “ON” position.P.3-98, 3-110
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-10, 5-20,
5-29,
5-39, 5-49
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P.6-2,
7-23
Problem
Do this
Ref. Page
BK0119300US.book 4 ページ 2010年5月21日 金曜日 午前10時13分
Page 25 of 700
1-4 General information
1
Repeatedly driving short distances at low speeds can
cause deposits to form in the fuel system and engine,
resulting in poor starting and poor acceleration. If these
problems occur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the vehicle. The addi-
tive will remove the deposits, thereby returning the engine
to a normal condition. Be sure to use a genuine Mitsubishi
cleaning additive. Using an unsuitable additive could
make the engine malfunction. For details, please contact
the nearest authorized Mitsubishi Motors dealer.

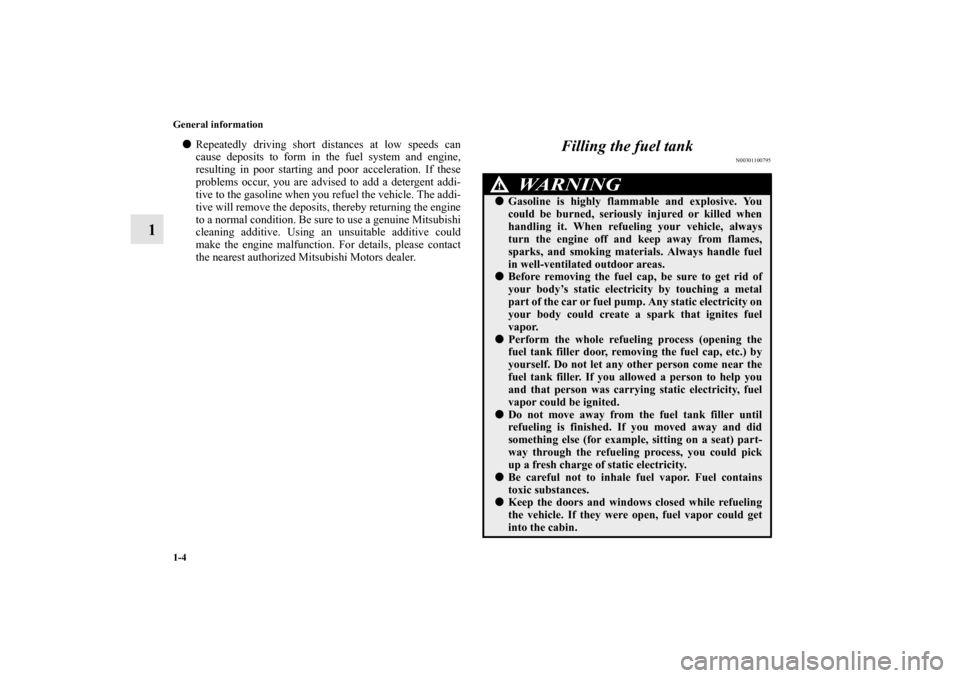

Filling the fuel tank
N00301100795
WA R N I N G
!Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. When refueling your vehicle, always
turn the engine off and keep away from flames,
sparks, and smoking materials. Always handle fuel
in well-ventilated outdoor areas.Before removing the fuel cap, be sure to get rid of
your body’s static electricity by touching a metal
part of the car or fuel pump. Any static electricity on
your body could create a spark that ignites fuel
vapor.Perform the whole refueling process (opening the
fuel tank filler door, removing the fuel cap, etc.) by
yourself. Do not let any other person come near the
fuel tank filler. If you allowed a person to help you
and that person was carrying static electricity, fuel
vapor could be ignited.Do not move away from the fuel tank filler until
refueling is finished. If you moved away and did
something else (for example, sitting on a seat) part-
way through the refueling process, you could pick
up a fresh charge of static electricity.Be careful not to inhale fuel vapor. Fuel contains
toxic substances.Keep the doors and windows closed while refueling
the vehicle. If they were open, fuel vapor could get
into the cabin.
BK0119300US.book 4 ページ 2010年5月21日 金曜日 午前10時13分
Page 96 of 700
3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 18
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 51
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 59
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . 3- 62
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 69
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 74
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 79
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 3- 80
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 82
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 84
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 87
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . 3- 88
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . 3- 92
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 93
Continuously variable transmission (CVT)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 96
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 110
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . 3- 129
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . 3- 130
ACD (Active center differential system)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 132
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . 3- 135
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 135
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 137
Hill start assist (vehicles with Twin Clutch SST) . . . . . . . . . . . 3- 138Anti-lock braking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139
Active Stability Control (ASC) (if so equipped) . . . . . . . . . . . . 3- 143
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 148
Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 149
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 158
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 167
Indicator light, warning light,
and information screen display list . . . . . . . . . . . . . . . . . . . . 3- 202
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 217
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 220
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . 3- 228
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 229
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 230
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 231
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 232
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 240
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 241
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 242
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . 3- 242
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 269
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 274
Ashtray (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 276
12 V power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 277
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 279
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 283
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 288
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
Coat hook (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
BK0119300US.book 1 ページ 2010年5月21日 金曜日 午前10時13分
Page 115 of 700
3-20 Features and controls
3
NOTEOnly the F.A.S.T.-key that is detectable by the doors and
the trunk lid can lock and unlock the doors and open the
trunk lid.
The system may not operate if the F.A.S.T.-key is too
close to the windshield, door windows or trunk lid.
Even if the F.A.S.T.-key is within about 2.3 feet (70 cm)
of the driver’s or front passenger’s door lock/unlock
switch and center of the trunk lid, the system may not
operate if the key is close to the ground or in a high posi-
tion.
If the F.A.S.T.-key is within the operating range, even a
person not carrying the F.A.S.T.-key can lock and unlock
the doors or open the trunk lid by pressing the driver’s or
front passenger’s door lock/unlock switch or the trunk lid
OPEN switch.

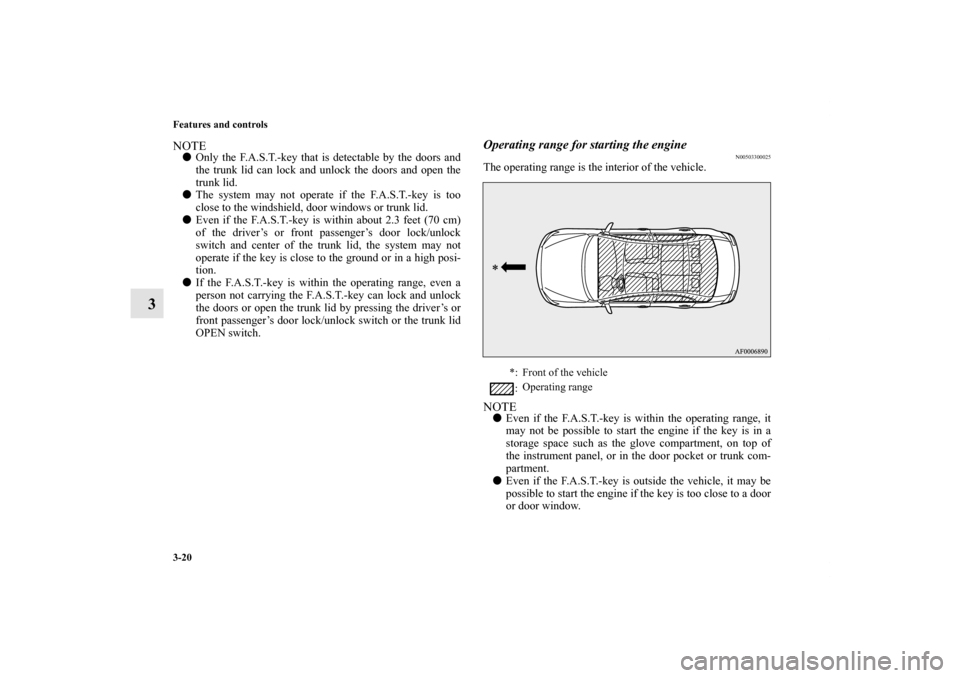

Operating range for starting the engine
N00503300025
The operating range is the interior of the vehicle.NOTEEven if the F.A.S.T.-key is within the operating range, it
may not be possible to start the engine if the key is in a
storage space such as the glove compartment, on top of
the instrument panel, or in the door pocket or trunk com-
partment.
Even if the F.A.S.T.-key is outside the vehicle, it may be
possible to start the engine if the key is too close to a door
or door window.
*: Front of the vehicle
:Operating range
BK0119300US.book 20 ページ 2010年5月21日 金曜日 午前10時13分
Page 123 of 700
3-28 Features and controls
3

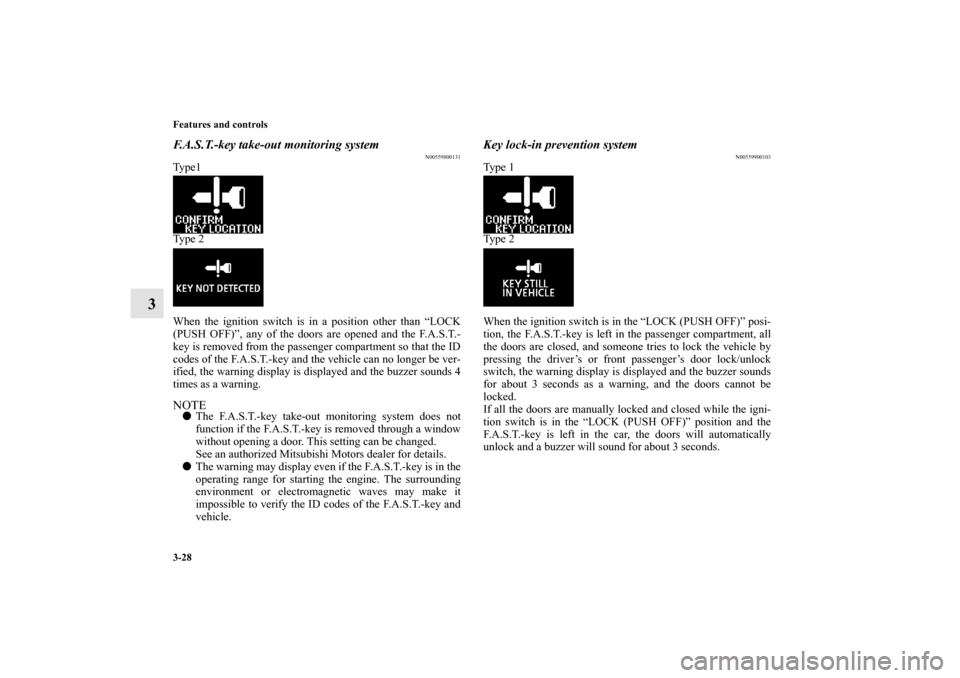

F.A.S.T.-key take-out monitoring system
N00559800131
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, any of the doors are opened and the F.A.S.T.-
key is removed from the passenger compartment so that the ID
codes of the F.A.S.T.-key and the vehicle can no longer be ver-
ified, the warning display is displayed and the buzzer sounds 4
times as a warning.NOTEThe F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door. This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.
The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine. The surrounding
environment or electromagnetic waves may make it
impossible to verify the ID codes of the F.A.S.T.-key and
vehicle.
Key lock-in prevention system
N00559900103
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, the F.A.S.T.-key is left in the passenger compartment, all
the doors are closed, and someone tries to lock the vehicle by
pressing the driver’s or front passenger’s door lock/unlock
switch, the warning display is displayed and the buzzer sounds
for about 3 seconds as a warning, and the doors cannot be
locked.
If all the doors are manually locked and closed while the igni-
tion switch is in the “LOCK (PUSH OFF)” position and the
F.A.S.T.-key is left in the car, the doors will automatically
unlock and a buzzer will sound for about 3 seconds.
BK0119300US.book 28 ページ 2010年5月21日 金曜日 午前10時13分
Page 160 of 700
Features and controls
3-65
3

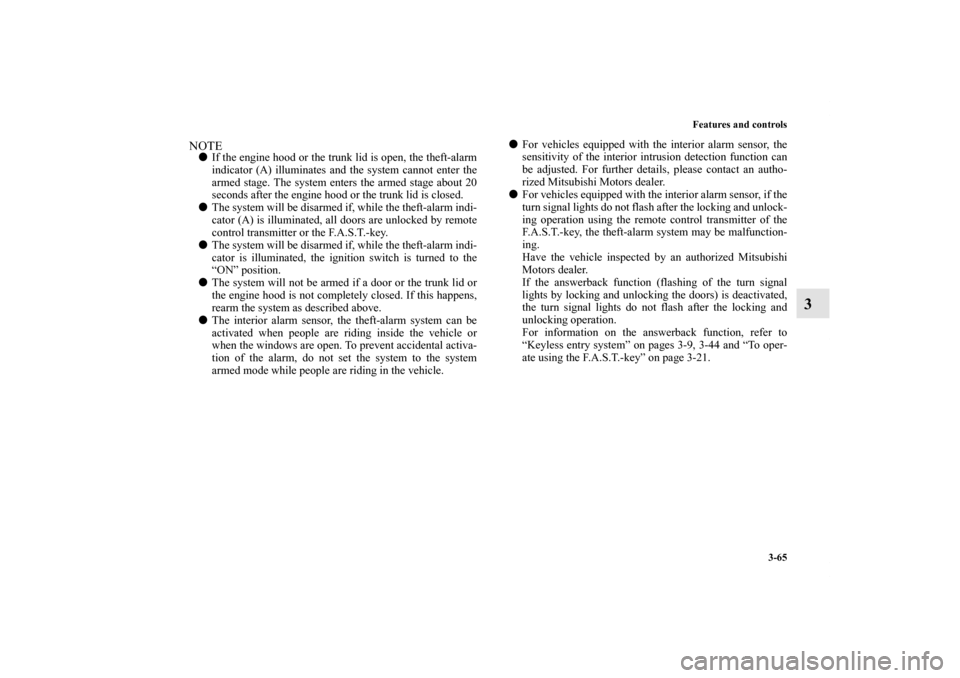

NOTEIf the engine hood or the trunk lid is open, the theft-alarm
indicator (A) illuminates and the system cannot enter the
armed stage. The system enters the armed stage about 20
seconds after the engine hood or the trunk lid is closed.
The system will be disarmed if, while the theft-alarm indi-
cator (A) is illuminated, all doors are unlocked by remote
control transmitter or the F.A.S.T.-key.
The system will be disarmed if, while the theft-alarm indi-
cator is illuminated, the ignition switch is turned to the
“ON” position.
The system will not be armed if a door or the trunk lid or
the engine hood is not completely closed. If this happens,
rearm the system as described above.
The interior alarm sensor, the theft-alarm system can be
activated when people are riding inside the vehicle or
when the windows are open. To prevent accidental activa-
tion of the alarm, do not set the system to the system
armed mode while people are riding in the vehicle.For vehicles equipped with the interior alarm sensor, the
sensitivity of the interior intrusion detection function can
be adjusted. For further details, please contact an autho-
rized Mitsubishi Motors dealer.
For vehicles equipped with the interior alarm sensor, if the
turn signal lights do not flash after the locking and unlock-
ing operation using the remote control transmitter of the
F.A.S.T.-key, the theft-alarm system may be malfunction-
ing.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer.
If the answerback function (flashing of the turn signal
lights by locking and unlocking the doors) is deactivated,
the turn signal lights do not flash after the locking and
unlocking operation.
For information on the answerback function, refer to
“Keyless entry system” on pages 3-9, 3-44 and “To oper-
ate using the F.A.S.T.-key” on page 3-21.
BK0119300US.book 65 ページ 2010年5月21日 金曜日 午前10時13分
Page 164 of 700
Features and controls
3-69
3
Testing the theft-alarm system
N00510600091
Use the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flashes for approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob and open the door.
5. Check to be sure that the horn (the siren for vehicles
equipped with the interior alarm sensor) sounds intermit-
tently and the headlights blink on and off when a door is
opened.
6. Disarm the system by unlocking all doors by the remote
control transmitter or the F.A.S.T.-key.
Power windows
N00510800367
NOTENever try to operate the main switch and sub switch in dif-
ferent directions at the same time. This will freeze the
window in position.
Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window
switches only while the engine is running. 1- Open (down)
2- Close (up)
BK0119300US.book 69 ページ 2010年5月21日 金曜日 午前10時13分
Page 165 of 700
3-70 Features and controls
3

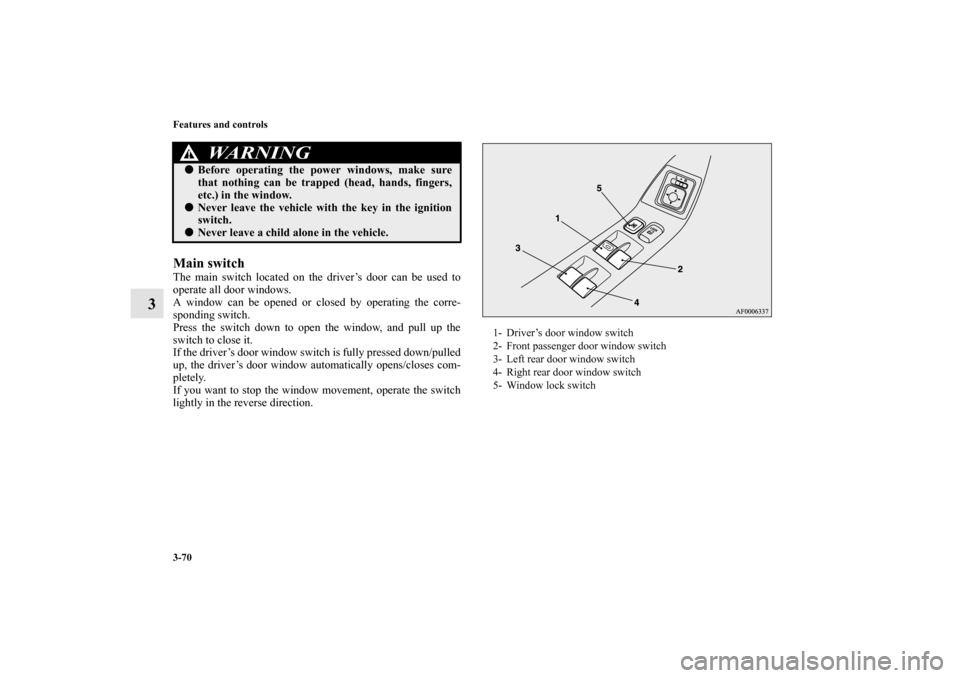

Main switchThe main switch located on the driver’s door can be used to
operate all door windows.
A window can be opened or closed by operating the corre-
sponding switch.
Press the switch down to open the window, and pull up the
switch to close it.
If the driver’s door window switch is fully pressed down/pulled
up, the driver’s door window automatically opens/closes com-
pletely.
If you want to stop the window movement, operate the switch
lightly in the reverse direction.
WA R N I N G
!Before operating the power windows, make sure
that nothing can be trapped (head, hands, fingers,
etc.) in the window. Never leave the vehicle with the key in the ignition
switch. Never leave a child alone in the vehicle.
1- Driver’s door window switch
2- Front passenger door window switch
3- Left rear door window switch
4- Right rear door window switch
5- Window lock switch
BK0119300US.book 70 ページ 2010年5月21日 金曜日 午前10時13分
