In addition, when the vehicle is driven with the gearshift lever
in the “D” (DRIVE) position, the forward gear number is
shown.
When the gearshift lever position display blinksWhen the gearshift lever is placed in the “R” (REVERSE)
position, the gearshift lever position display on the multi-infor-
mation display may blink and the vehicle will not move
because the gears in the transmission have not engaged.
If this occurs, perform the following procedure.
1. Depress the brake pedal with your right foot and place the
gearshift lever in the “N” (NEUTRAL) position.
2. Place the gearshift lever in the “R” (REVERSE) position,
and confirm that the gearshift lever position display stops
blinking.
3. Repeat 1 and 2 above if the gearshift lever position dis-
play continues to blink.If the gearshift lever position display is not showing
N00562500028
There may be a problem in the Twin Clutch SST.
If this occurs, the safety device operates and prevents the vehi-
cle from moving. Therefore, perform the following procedure.
1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.
through
WA R N I N G
!
To avoid unintended vehicle movement, keep brake
pedal applied with your right foot and do not
depress the accelerator pedal, while the gearshift
lever position display is blinking.
BK0138600US.book 115 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-116 Features and controls
3
If the gearshift lever position display is shown and the vehicle
can move after this procedure is performed, there is no mal-
function.
If the gearshift lever position display is not shown and the
vehicle cannot move, or if this problem occurs repeatedly, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice as soon as possible.

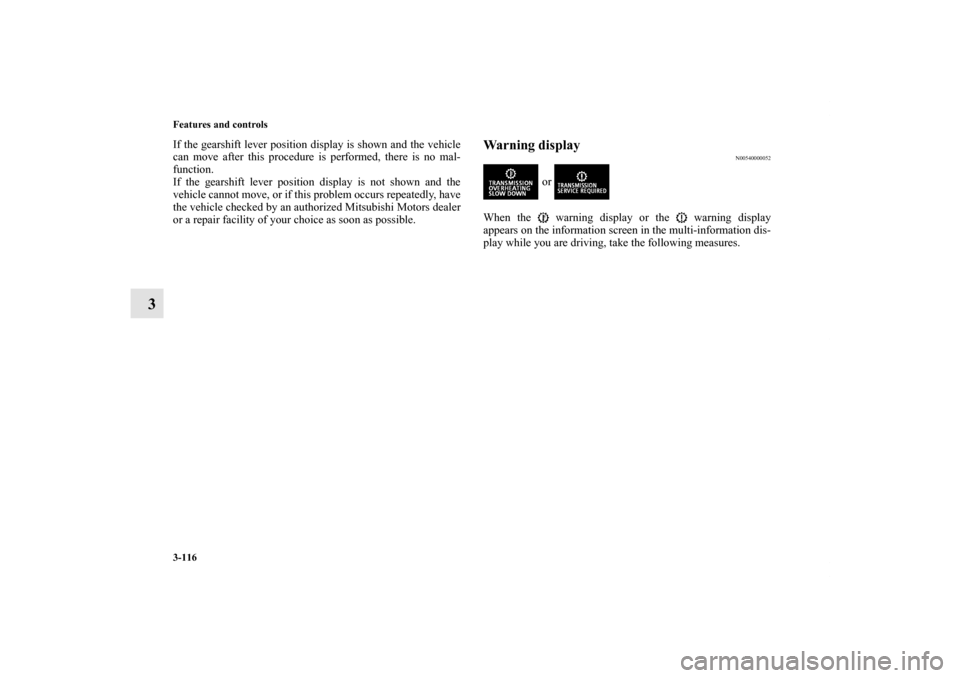

Warning display
N00540000052
or
When the warning display or the warning display
appears on the information screen in the multi-information dis-
play while you are driving, take the following measures.
BK0138600US.book 116 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-117
3
When warning display is showing
N00543100096
The temperature of the Twin Clutch SST fluid is high.
If this occurs, take one of the following measures.

Reduce the vehicle speed.

Stop the vehicle in a safe place, place the gearshift lever in
the “P” (PARK) position, and then open the engine hood
with the engine running to cool the engine.
After a while, check that the warning display has gone out.
If the display goes out, the vehicle can be driven normally.
If the warning display remains on or comes on frequently, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
NOTE
If the vehicle is continuously driven on hilly roads or in an
aggressive manner involving high engine rpm, sudden
acceleration and/or deceleration, the vehicle transmission
may vibrate.
This vibration is to alert the driver that the Twin Clutch
SST fluid temperature has risen. It does not indicate a
malfunction.
If this occurs, perform the same measures for when the
warning appears. If the vibration stops, the vehicle can be
driven normally.
If vehicle is driven with warning displayed
If the vehicle continues to be driven after the warning dis-
play appears, and the temperature of the Twin Clutch SST fluid
continues to rise, the transmission protection control may oper-
ate and cause the transmission to function as if the gearshift
lever was in the “N” (NEUTRAL) position.
(At this time, the vehicle temporarily cannot be driven.)
If this occurs, take the following measures.
1. Depress the brake pedal and stop the vehicle in a safe
place.
2. Place the gearshift lever in the “P” (PARK) position, and
then open the engine hood with the engine running to cool
the engine.
3. After a while, check that the warning display has gone
out, and then stop the engine if the warning display has
gone out.
CAUTION
!
If the warning display is shown, such as when the
vehicle does not accelerate while traveling even if
the accelerator pedal is depressed, the vehicle may
not be able to be driven normally.
For safety, pay attention to your surroundings when
driving the vehicle.
BK0138600US.book 117 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-118 Features and controls
3
4. If the engine can be restarted, the vehicle can be driven
normally.
If the warning display remains on or comes on frequently, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice.When warning display is showing
N00543200039
A safety device in the Twin Clutch SST has been activated due
to a possible malfunction in the Twin Clutch SST or in the
engine electronic control module.
If this occurs, perform the following procedure.
1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.
If the warning display goes out, there is no abnormal condi-
tion.
However, if the warning display remains on or comes on fre-
quently, have the vehicle checked by an authorized Mitsubishi
Motors dealer or a repair facility of your choice as soon as pos-
sible.
Gearshift lever positions (Main shift gate)
N00540100011
“P” PARKThis position locks the transmission to prevent the vehicle
from moving. The engine can be started from the “PARK”
position.“R” REVERSEMove the lever to this position only after the vehicle has come
to a complete stop.
CAUTION
!
If the warning display is shown, such as when the
vehicle does not accelerate while traveling even if
the accelerator pedal is depressed, the vehicle may
not be able to be driven normally.
For safety, pay attention to your surroundings when
driving the vehicle.
CAUTION
!
Never shift into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion.
If the lever is shifted into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion,
the transmission may be damaged.
BK0138600US.book 118 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-120 Features and controls
3

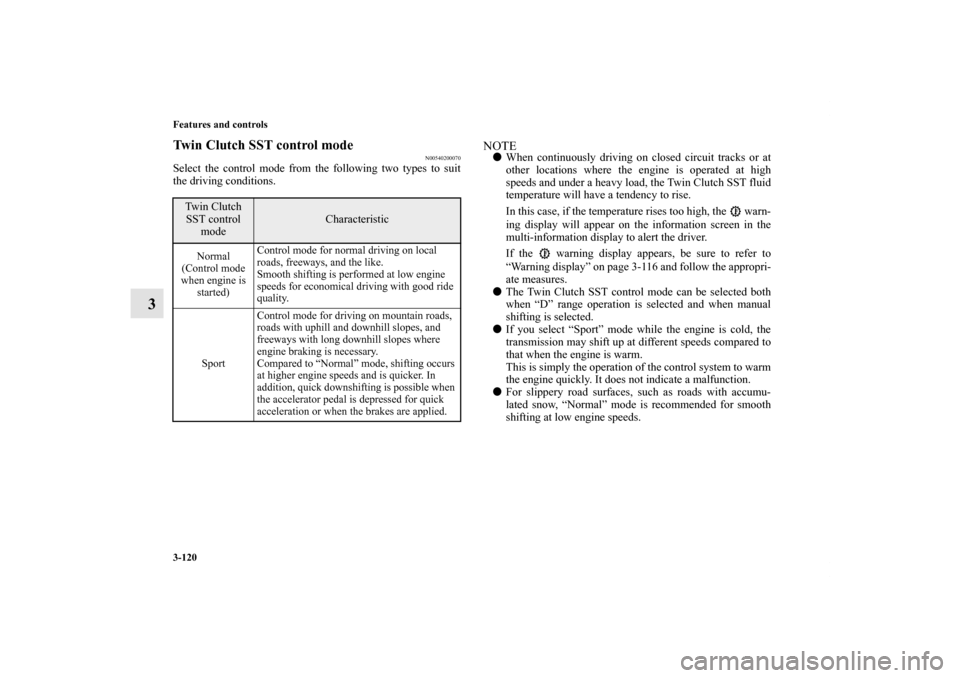

Twin Clutch SST control mode
N00540200070
Select the control mode from the following two types to suit
the driving conditions.
NOTE
When continuously driving on closed circuit tracks or at
other locations where the engine is operated at high
speeds and under a heavy load, the Twin Clutch SST fluid
temperature will have a tendency to rise.
In this case, if the temperature rises too high, the warn-
ing display will appear on the information screen in the
multi-information display to alert the driver.
If the warning display appears, be sure to refer to
“Warning display” on page 3-116 and follow the appropri-
ate measures.

The Twin Clutch SST control mode can be selected both
when “D” range operation is selected and when manual
shifting is selected.

If you select “Sport” mode while the engine is cold, the
transmission may shift up at different speeds compared to
that when the engine is warm.
This is simply the operation of the control system to warm
the engine quickly. It does not indicate a malfunction.

For slippery road surfaces, such as roads with accumu-
lated snow, “Normal” mode is recommended for smooth
shifting at low engine speeds.
Tw i n C l u t c h
SST control
mode
Characteristic
Normal
(Control mode
when engine is
started)Control mode for normal driving on local
roads, freeways, and the like.
Smooth shifting is performed at low engine
speeds for economical driving with good ride
quality.
SportControl mode for driving on mountain roads,
roads with uphill and downhill slopes, and
freeways with long downhill slopes where
engine braking is necessary.
Compared to “Normal” mode, shifting occurs
at higher engine speeds and is quicker. In
addition, quick downshifting is possible when
the accelerator pedal is depressed for quick
acceleration or when the brakes are applied.
BK0138600US.book 120 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-122 Features and controls
3

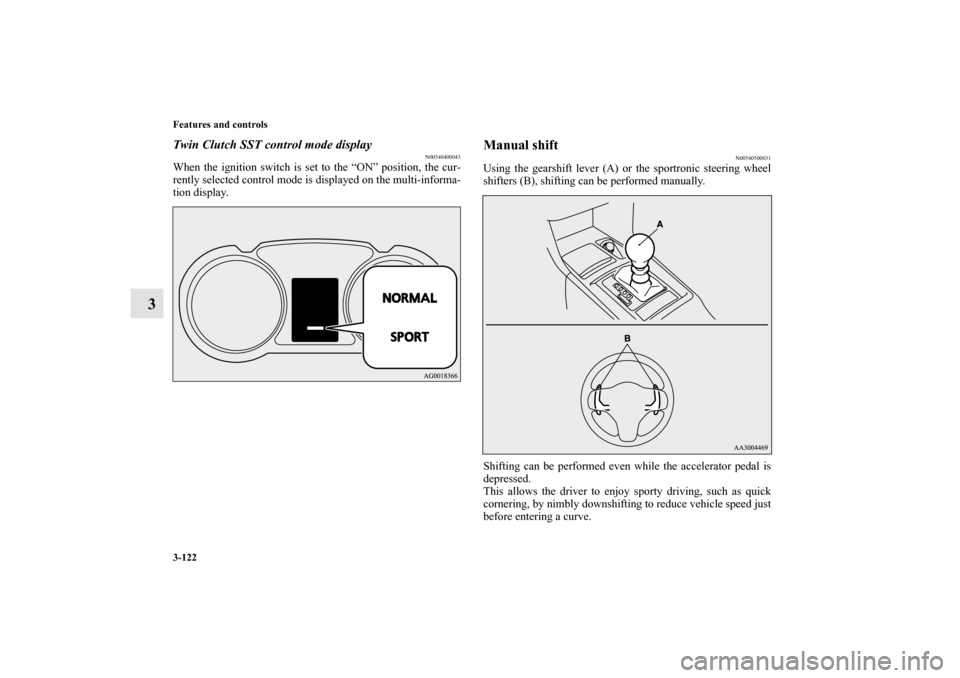

Twin Clutch SST control mode display
N00540400043
When the ignition switch is set to the “ON” position, the cur-
rently selected control mode is displayed on the multi-informa-
tion display.
Manual shift
N00540500031
Using the gearshift lever (A) or the sportronic steering wheel
shifters (B), shifting can be performed manually.
Shifting can be performed even while the accelerator pedal is
depressed.
This allows the driver to enjoy sporty driving, such as quick
cornering, by nimbly downshifting to reduce vehicle speed just
before entering a curve.
BK0138600US.book 122 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-128 Features and controls
3

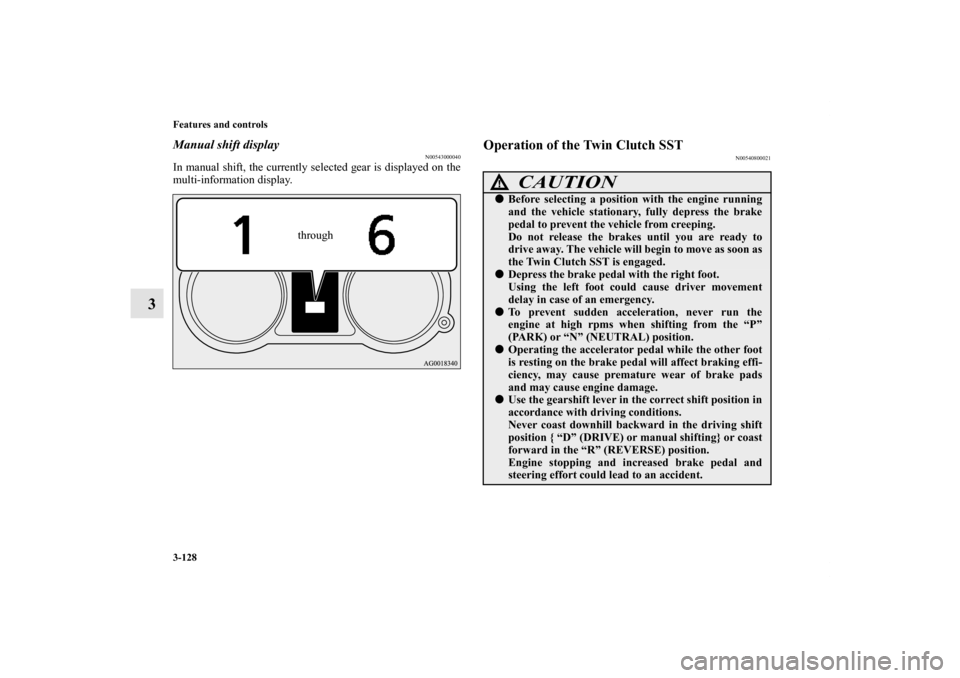

Manual shift display
N00543000040
In manual shift, the currently selected gear is displayed on the
multi-information display.
Operation of the Twin Clutch SST
N00540800021
through
CAUTION
!
Before selecting a position with the engine running
and the vehicle stationary, fully depress the brake
pedal to prevent the vehicle from creeping.
Do not release the brakes until you are ready to
drive away. The vehicle will begin to move as soon as
the Twin Clutch SST is engaged.
Depress the brake pedal with the right foot.
Using the left foot could cause driver movement
delay in case of an emergency.
To prevent sudden acceleration, never run the
engine at high rpms when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.
Operating the accelerator pedal while the other foot
is resting on the brake pedal will affect braking effi-
ciency, may cause premature wear of brake pads
and may cause engine damage.
Use the gearshift lever in the correct shift position in
accordance with driving conditions.
Never coast downhill backward in the driving shift
position { “D” (DRIVE) or manual shifting} or coast
forward in the “R” (REVERSE) position.
Engine stopping and increased brake pedal and
steering effort could lead to an accident.
BK0138600US.book 128 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-130 Features and controls
3

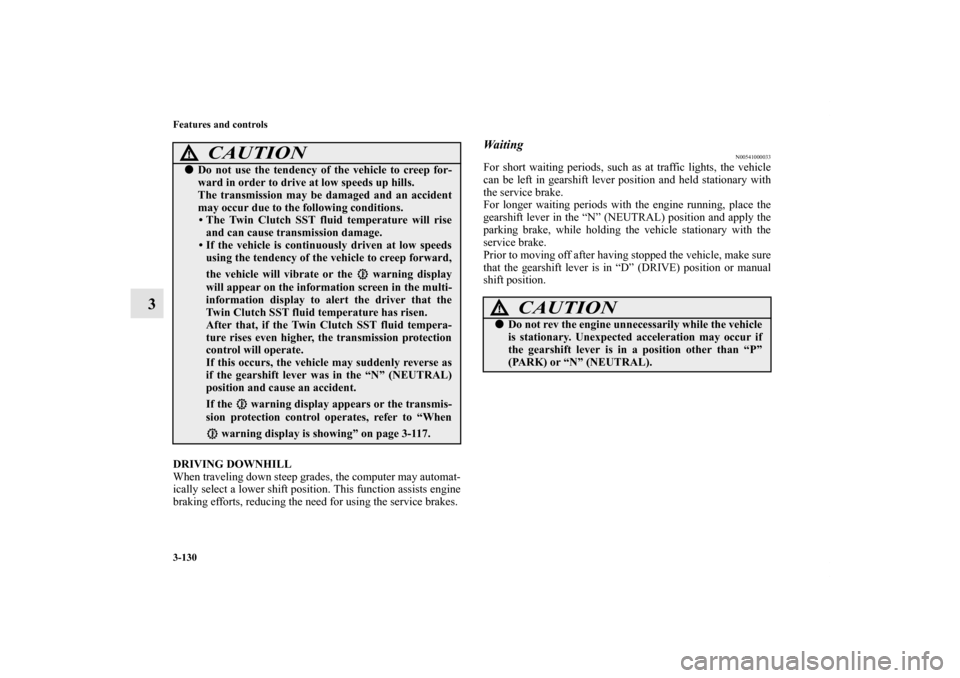

DRIVING DOWNHILL
When traveling down steep grades, the computer may automat-
ically select a lower shift position. This function assists engine
braking efforts, reducing the need for using the service brakes.
Waiting
N00541000033
For short waiting periods, such as at traffic lights, the vehicle
can be left in gearshift lever position and held stationary with
the service brake.
For longer waiting periods with the engine running, place the
gearshift lever in the “N” (NEUTRAL) position and apply the
parking brake, while holding the vehicle stationary with the
service brake.
Prior to moving off after having stopped the vehicle, make sure
that the gearshift lever is in “D” (DRIVE) position or manual
shift position.
CAUTION
!
Do not use the tendency of the vehicle to creep for-
ward in order to drive at low speeds up hills.
The transmission may be damaged and an accident
may occur due to the following conditions.
• The Twin Clutch SST fluid temperature will rise
and can cause transmission damage.
• If the vehicle is continuously driven at low speeds
using the tendency of the vehicle to creep forward,
the vehicle will vibrate or the warning display
will appear on the information screen in the multi-
information display to alert the driver that the
Twin Clutch SST fluid temperature has risen.
After that, if the Twin Clutch SST fluid tempera-
ture rises even higher, the transmission protection
control will operate.
If this occurs, the vehicle may suddenly reverse as
if the gearshift lever was in the “N” (NEUTRAL)
position and cause an accident.
If the warning display appears or the transmis-
sion protection control operates, refer to “When
warning display is showing” on page 3-117.
CAUTION
!
Do not rev the engine unnecessarily while the vehicle
is stationary. Unexpected acceleration may occur if
the gearshift lever is in a position other than “P”
(PARK) or “N” (NEUTRAL).
BK0138600US.book 130 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-131
3
Parking
N00541100018
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the gearshift lever to
the “P” (PARK) position.What to do if the following occur with the Twin Clutch
SST
N00541200064
If there is a malfunction in the Twin Clutch SST or engine elec-
tronic control module, the following may occur.

Twin Clutch SST does not shift.

Vehicle cannot move.

Twin Clutch SST acceleration is slow.

Vehicle does not creep.

“Shift shock” is large.

Shifting occurs at higher engine speed.

Response is slow.
If any of these occurs, perform the following procedure.
When warning display is showing
The temperature of Twin Clutch SST fluid is high.
Refer to “Warning display” on page 3-116 and follow the
appropriate measures.
When the engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”) comes on or
blinking
There could be a malfunction in the engine electronic control
module.
Refer to “Engine malfunction indicator (“SERVICE ENGINE
SOON” or “Check engine light”)” on page 3-229 and follow
the appropriate measures.

Do not keep the vehicle in a stopped position on an
uphill slope by depressing the accelerator pedal
instead of the brake pedal.
The transmission may be damaged and an accident
may occur due to the following conditions.
• The Twin Clutch SST fluid temperature will rise
and can cause transmission damage.
• If the vehicle is kept in a stopped position by
depressing the accelerator pedal instead of the
brake pedal, the vehicle will vibrate or the
warning display will appear on the information
screen in the multi-information display to alert the
driver that the Twin Clutch SST fluid temperature
has risen.
After that, if the Twin Clutch SST fluid tempera-
ture rises even higher, the transmission protection
control will operate.
If this occurs, the vehicle may suddenly reverse as
if the gearshift lever was in the “N” (NEUTRAL)
position and cause an accident.
If the warning display appears or the transmis-
sion protection control operates, refer to “When
warning display is showing” on page 3-117.CAUTION
!
BK0138600US.book 131 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-132 Features and controls
3
When the gearshift lever position display is not showing
A safety device in the Twin Clutch SST has been activated due
to a possible malfunction in the Twin Clutch SST.
Refer to “If the gearshift lever position display is not showing”
on page 3-115 and follow the appropriate measures.
When warning display is showing or when no warning is
showing in the multi-information display
A safety device in the Twin Clutch SST has been activated due
to a possible malfunction in the Twin Clutch SST or in the
engine electronic control module.
Perform the following procedure.
1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.
If the vehicle moves and accelerates normally after this proce-
dure is performed, there is no malfunction in the transmission.
However, if the vehicle does not move or accelerate normally,
or if this problem occurs repeatedly, have the vehicle checked
by an authorized Mitsubishi Motors dealer or a repair facility
of your choice as soon as possible.
ACD (Active center differential system)
(if so
equipped)N00538500034
The ACD is a system that improves acceleration performance
and straight-ahead stability by regulating the differential limit-
ing action and power drive distribution of the center differen-
tial.NOTE
If the parking brake lever is pulled up while the vehicle is
moving, the center differential is designed to switch to a
free state condition which will allow the rear wheel to
lock easier.
CAUTION
!
When the Twin Clutch SST fluid temperature is
high, the engine idle speed when the vehicle is
stopped may increase or the vehicle will have a weak
tendency to creep.
After that, if the Twin Clutch SST fluid temperature
rises even higher, the warning display will
appear.
CAUTION
!
Do not over-rely on the ACD. Even the ACD cannot
prevent the natural laws of physics from acting on
the vehicle. This system, like any other system, has
limits and cannot help you to maintain traction and
control of the vehicle in all circumstances. Reckless
driving can lead to accidents. It is the driver’s
responsibility to drive carefully. This means taking
into account the traffic, road and environmental
conditions.
Be sure to use tires that are the same specified size,
type, and brand, and have no difference in the
amount of wear for all four wheels. Otherwise, the
ACD may not work properly.
BK0138600US.book 132 ページ ２０１１年７月１７日　日曜日　午後２時３２分
