Features and controls
3-195
3

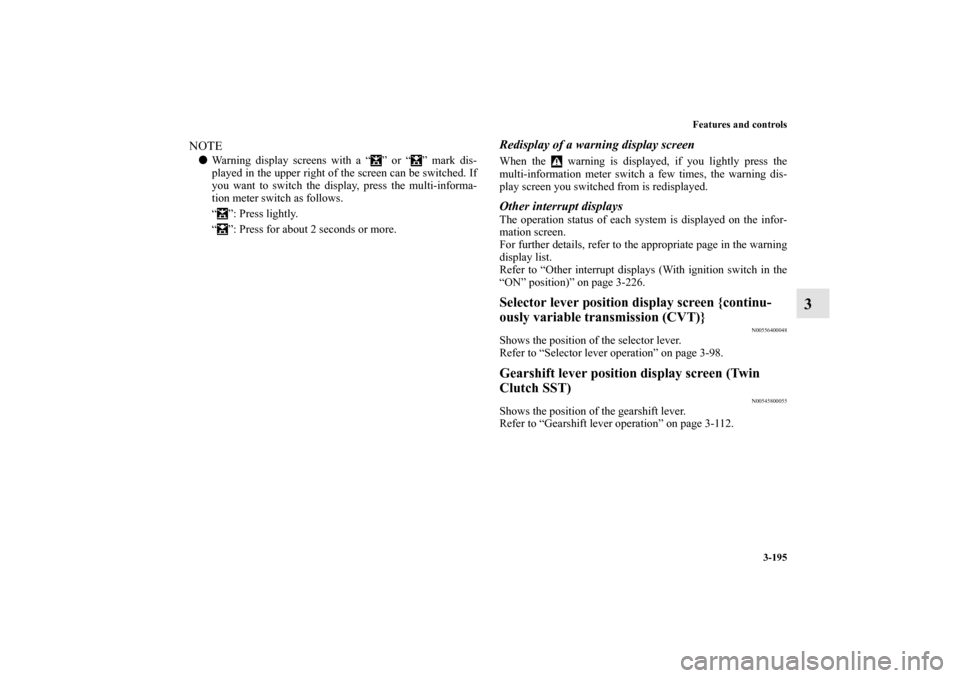

NOTE
Warning display screens with a “ ” or “ ” mark dis-
played in the upper right of the screen can be switched. If
you want to switch the display, press the multi-informa-
tion meter switch as follows.
“ ”: Press lightly.
“ ”: Press for about 2 seconds or more.
Redisplay of a warning display screenWhen the warning is displayed, if you lightly press the
multi-information meter switch a few times, the warning dis-
play screen you switched from is redisplayed.Other interrupt displaysThe operation status of each system is displayed on the infor-
mation screen.
For further details, refer to the appropriate page in the warning
display list.
Refer to “Other interrupt displays (With ignition switch in the
“ON” position)” on page 3-226.Selector lever position display screen {continu-
ously variable transmission (CVT)}
N00556400048
Shows the position of the selector lever.
Refer to “Selector lever operation” on page 3-98.Gearshift lever position display screen (Twin
Clutch SST)
N00545800055
Shows the position of the gearshift lever.
Refer to “Gearshift lever operation” on page 3-112.
BK0138600US.book 195 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-196 Features and controls
3

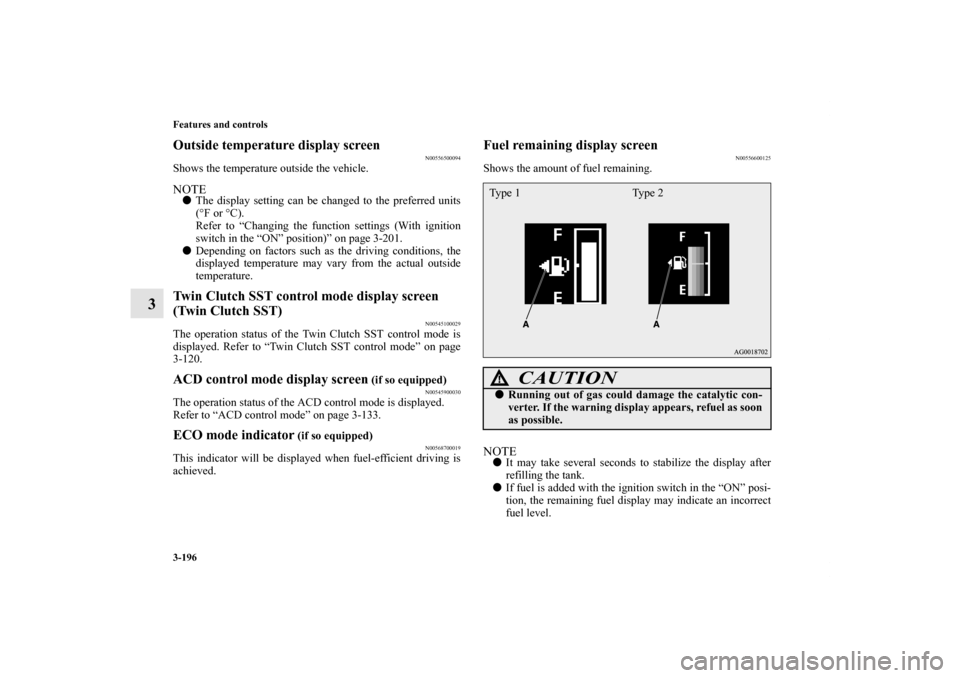

Outside temperature display screen
N00556500094
Shows the temperature outside the vehicle.NOTE
The display setting can be changed to the preferred units
(°F or °C).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-201.

Depending on factors such as the driving conditions, the
displayed temperature may vary from the actual outside
temperature.Twin Clutch SST control mode display screen
(Twin Clutch SST)
N00545100029
The operation status of the Twin Clutch SST control mode is
displayed. Refer to “Twin Clutch SST control mode” on page
3-120.ACD control mode display screen
(if so equipped)
N00545900030
The operation status of the ACD control mode is displayed.
Refer to “ACD control mode” on page 3-133.ECO mode indicator
(if so equipped)
N00568700019
This indicator will be displayed when fuel-efficient driving is
achieved.
Fuel remaining display screen
N00556600125
Shows the amount of fuel remaining.NOTE
It may take several seconds to stabilize the display after
refilling the tank.

If fuel is added with the ignition switch in the “ON” posi-
tion, the remaining fuel display may indicate an incorrect
fuel level.
CAUTION
!
Running out of gas could damage the catalytic con-
verter. If the warning display appears, refuel as soon
as possible.Ty p e 1 Ty p e 2
BK0138600US.book 196 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-197
3

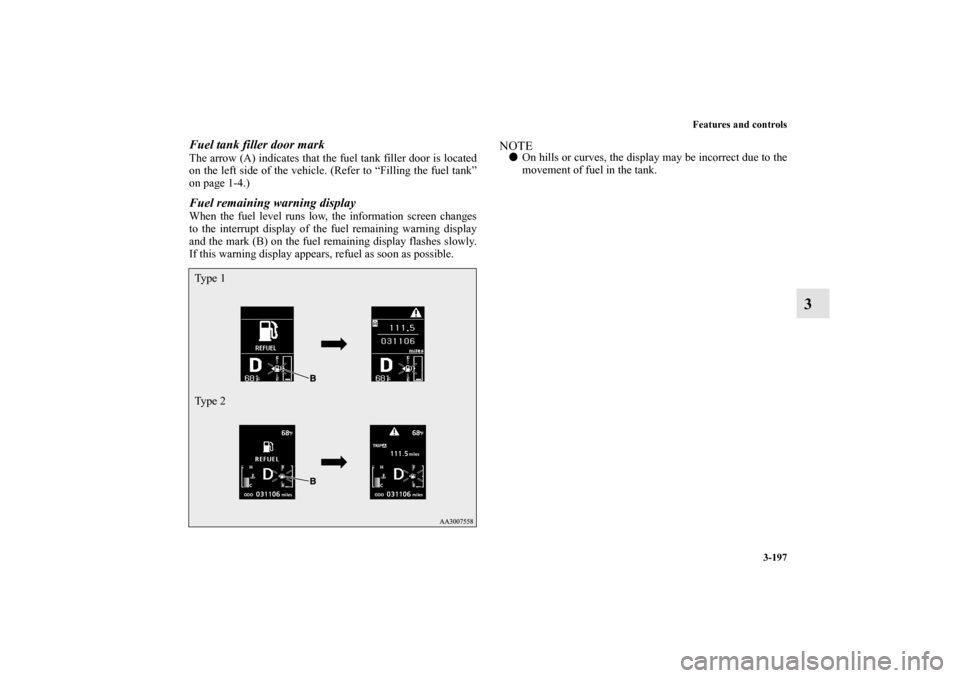

Fuel tank filler door markThe arrow (A) indicates that the fuel tank filler door is located
on the left side of the vehicle. (Refer to “Filling the fuel tank”
on page 1-4.)Fuel remaining warning displayWhen the fuel level runs low, the information screen changes
to the interrupt display of the fuel remaining warning display
and the mark (B) on the fuel remaining display flashes slowly.
If this warning display appears, refuel as soon as possible.
NOTE
On hills or curves, the display may be incorrect due to the
movement of fuel in the tank.
Ty p e 1
Ty p e 2
BK0138600US.book 197 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-198 Features and controls
3
Service reminder
N00556700168
Displays the approximate time until the next recommended
periodic inspection. “---” is displayed when the inspection time
has arrived.NOTE
Except for vehicles with Twin Clutch SST, shows the time
until the periodic inspection every 6 months (7,500 miles
or 12,000 km).

For vehicles with Twin Clutch SST, the service reminder
time can be modified by an authorized Mitsubishi Motors
dealer, to adjust for severe usage, etc. Refer to “Severe
maintenance schedule” in your vehicle’s Warranty and
Maintenance Manual. For further information, please con-
tact your authorized Mitsubishi Motors dealer.1. Shows the time until the next periodic inspection.
NOTE
Shows the distance in units of 100 miles (100 km) and the
time in units of 1 month.
2. This informs you that a periodic inspection is due. Contact
an authorized Mitsubishi Motors dealer or a repair facility
of your choice to have the system checked.
At that time, when the ignition switch is switched from
the “OFF” position to the “ON” position, the warning dis-
play is displayed for a few seconds on the information
screen.
Ty p e 1
Ty p e 2
3. After your vehicle is inspected at an authorized Mitsubishi
Motors dealer, it displays the time until the next periodic
inspection.
Ty p e 1
Ty p e 2BK0138600US.book 198 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-199
3
To r e s e t The “---” display can be reset while the ignition switch is in the
“OFF” position. When the display is reset, the time until the
next periodic inspection is displayed and the warning display is
no longer displayed when the ignition switch is switched from
the “OFF” position to the “ON” position.
1. When you lightly press the multi-information meter
switch, the information screen changes to the service
reminder display screen.2. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ ” and make it
flash. (If there is no operation for about 10 seconds with
this indicator flashing, the display returns to the previous
screen.)
3. With this indicator flashing, if you lightly press the multi-
information meter switch, the screen switches from “---”
to “CLEAR”. After that, the time until the next periodic
inspection is shown.Ty p e 1
Ty p e 2
Ty p e 2 Ty p e 1
BK0138600US.book 199 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-200 Features and controls
3
NOTE
The “---” display cannot be reset while the ignition switch
is in the “ON” position.

When “---” is displayed, after a certain distance and a cer-
tain period of time, the display is reset and the time until
the next periodic inspection is displayed.

If you accidentally reset the display, consult an authorized
Mitsubishi Motors dealer for assistance.

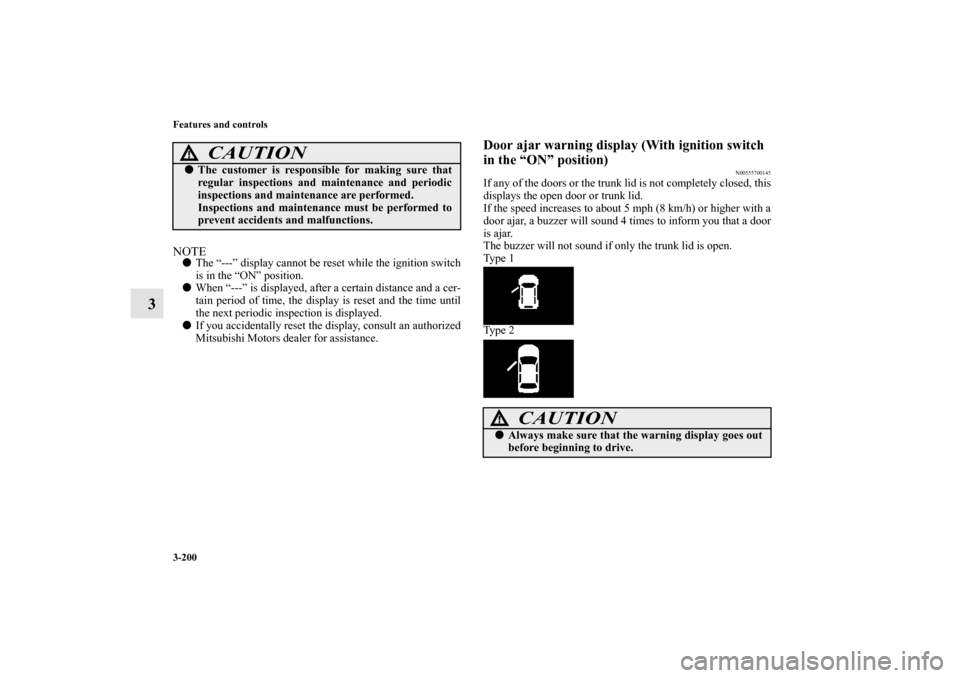

Door ajar warning display (With ignition switch
in the “ON” position)
N00555700145
If any of the doors or the trunk lid is not completely closed, this
displays the open door or trunk lid.
If the speed increases to about 5 mph (8 km/h) or higher with a
door ajar, a buzzer will sound 4 times to inform you that a door
is ajar.
The buzzer will not sound if only the trunk lid is open.
Ty p e 1
Ty p e 2
CAUTION
!
The customer is responsible for making sure that
regular inspections and maintenance and periodic
inspections and maintenance are performed.
Inspections and maintenance must be performed to
prevent accidents and malfunctions.
CAUTION
!
Always make sure that the warning display goes out
before beginning to drive.
BK0138600US.book 200 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-201
3

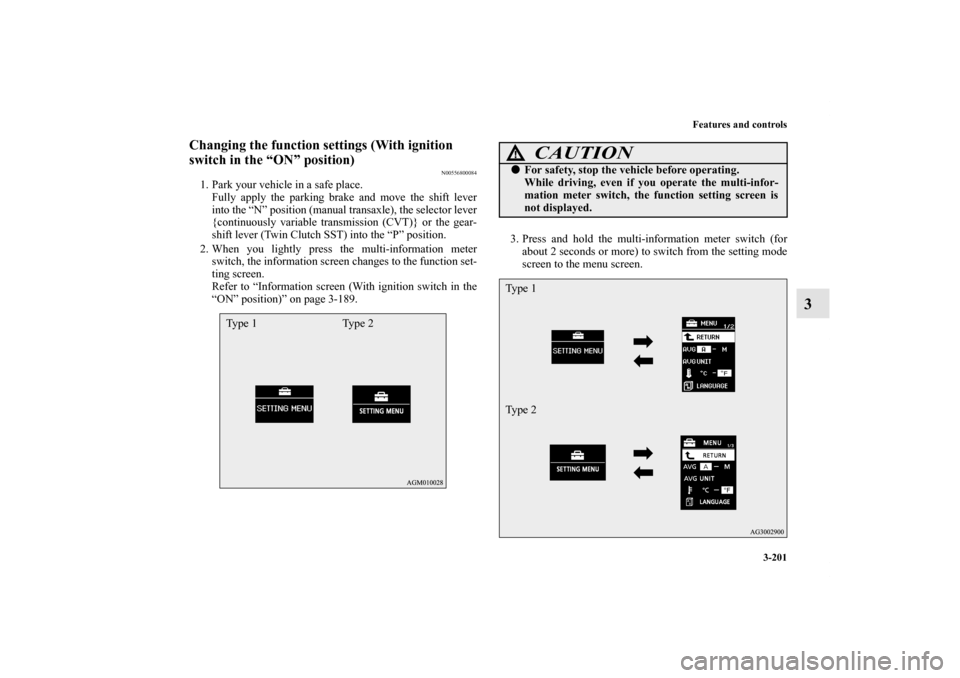

Changing the function settings (With ignition
switch in the “ON” position)
N00556800084
1. Park your vehicle in a safe place.
Fully apply the parking brake and move the shift lever
into the “N” position (manual transaxle), the selector lever
{continuously variable transmission (CVT)} or the gear-
shift lever (Twin Clutch SST) into the “P” position.
2. When you lightly press the multi-information meter
switch, the information screen changes to the function set-
ting screen.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-189.3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Type 1 Type 2
CAUTION
!
For safety, stop the vehicle before operating.
While driving, even if you operate the multi-infor-
mation meter switch, the function setting screen is
not displayed.Ty p e 1
Ty p e 2
BK0138600US.book 201 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-202 Features and controls
3
NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-202.
Refer to “Changing the fuel consumption display unit” on
page 3-204.
Refer to “Changing the temperature unit” on page 3-206.
Refer to “Changing the display language” on page 3-206.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-207.
Refer to “Operation sound setting” on page 3-209.
Refer to “Changing the amount of time until “REST
REMINDER” is displayed” on page 3-210.
Refer to “Changing the turn signal sound” on page 3-211.
Refer to “Changing the momentary fuel consumption dis-
play (Type 2)” on page 3-212.
Refer to “Returning to the factory settings” on page 3-
213.
Changing the reset mode for average fuel consumption
and average speed
N00557000184
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset”.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-201.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
BK0138600US.book 202 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-203
3

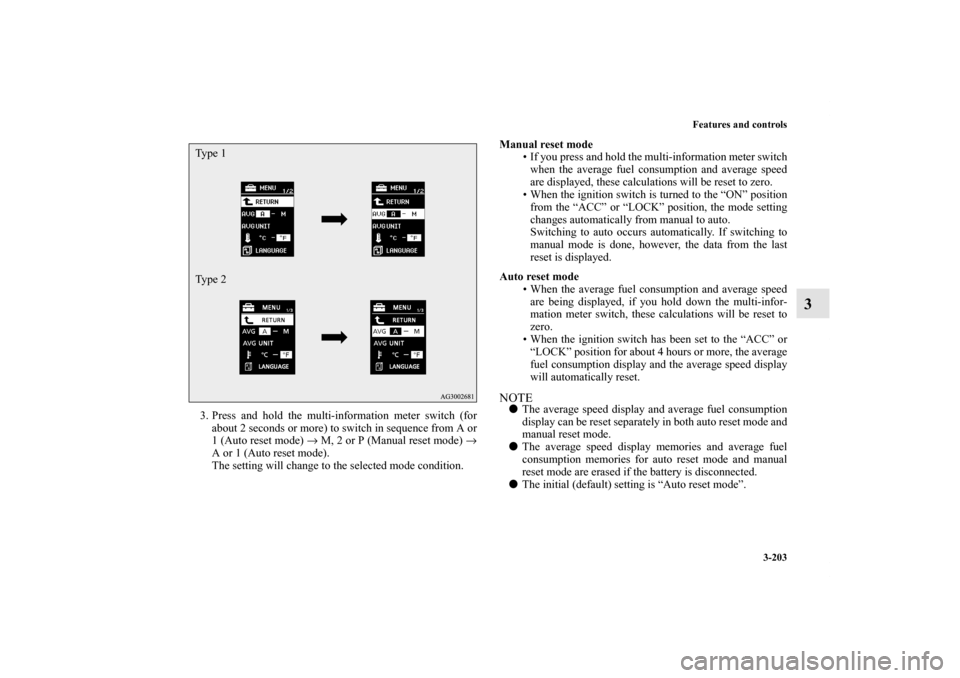

3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A or
1 (Auto reset mode) → M, 2 or P (Manual reset mode) →
A or 1 (Auto reset mode).
The setting will change to the selected mode condition.Manual reset mode
• If you press and hold the multi-information meter switch
when the average fuel consumption and average speed
are displayed, these calculations will be reset to zero.
• When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
Auto reset mode
• When the average fuel consumption and average speed
are being displayed, if you hold down the multi-infor-
mation meter switch, these calculations will be reset to
zero.
• When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
fuel consumption display and the average speed display
will automatically reset.
NOTE
The average speed display and average fuel consumption
display can be reset separately in both auto reset mode and
manual reset mode.

The average speed display memories and average fuel
consumption memories for auto reset mode and manual
reset mode are erased if the battery is disconnected.

The initial (default) setting is “Auto reset mode”.
Ty p e 1
Ty p e 2
BK0138600US.book 203 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-204 Features and controls
3

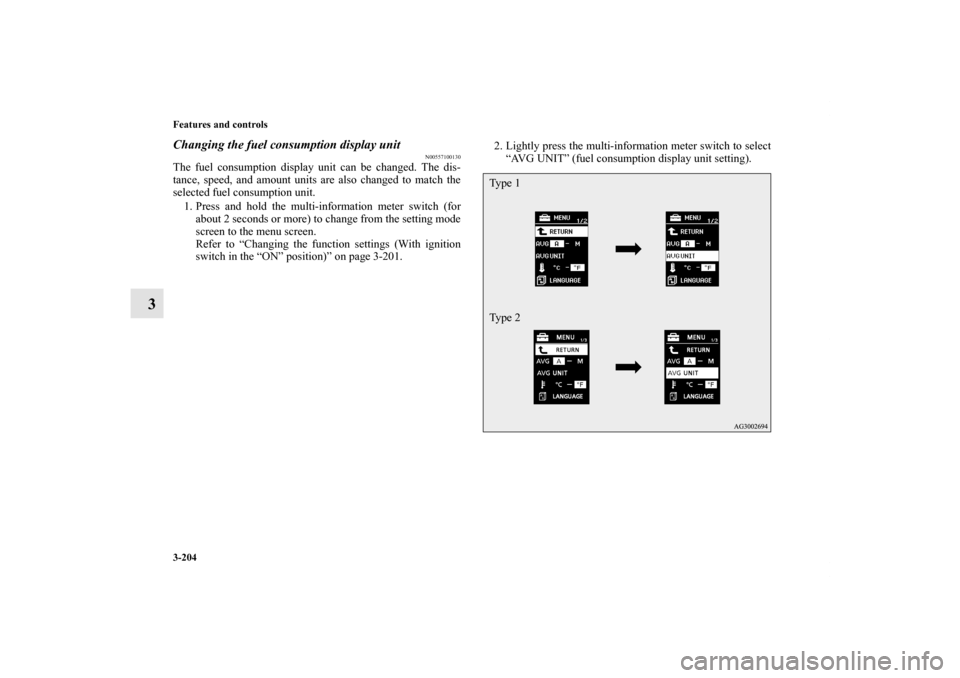

Changing the fuel consumption display unit
N00557100130
The fuel consumption display unit can be changed. The dis-
tance, speed, and amount units are also changed to match the
selected fuel consumption unit.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-201.2. Lightly press the multi-information meter switch to select
“AVG UNIT” (fuel consumption display unit setting).
Ty p e 1
Ty p e 2
BK0138600US.book 204 ページ ２０１１年７月１７日　日曜日　午後２時３２分
