Other Info 10-16

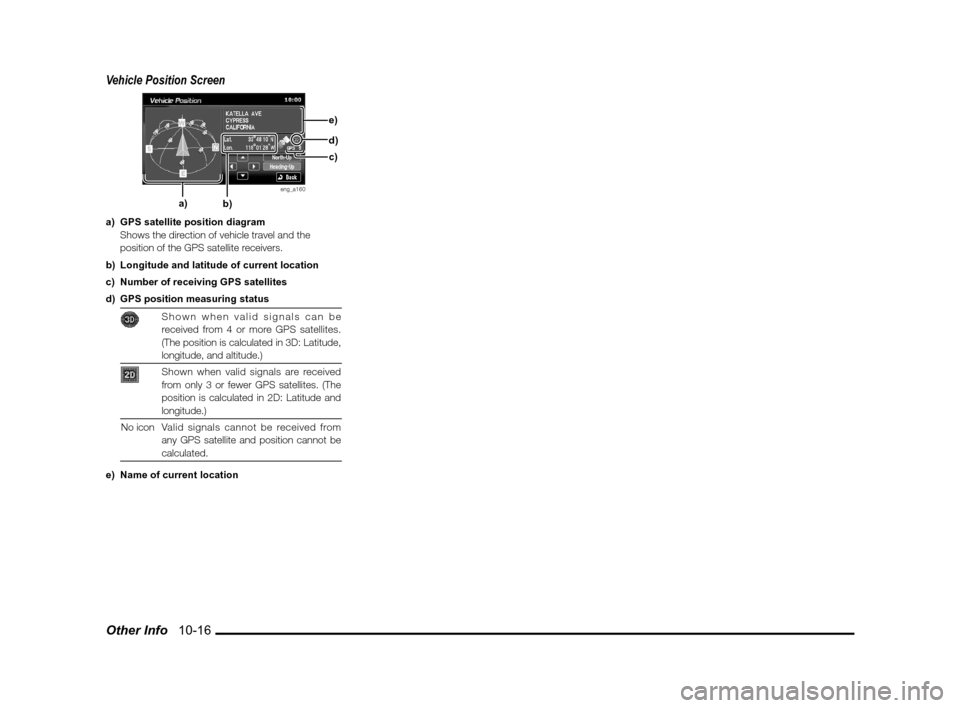

Vehicle Position Screen
eng_a160
a) GPS satellite position diagram
Shows the direction of vehicle travel and the
position of the GPS satellite receivers.
b) Longitude and latitude of current location
c) Number of receiving GPS satellites
d) GPS position measuring status
Shown when valid signals can be
received from 4 or more GPS satellites.
(The position is calculated in 3D: Latitude,
longitude, and altitude.)
Shown when valid signals are received
from only 3 or fewer GPS satellites. (The
position is calculated in 2D: Latitude and
longitude.)
No icon V alid signals cannot be received from
any GPS satellite and position cannot be
calculated.
e) Name of current location
a)b)
c) d)
e)
